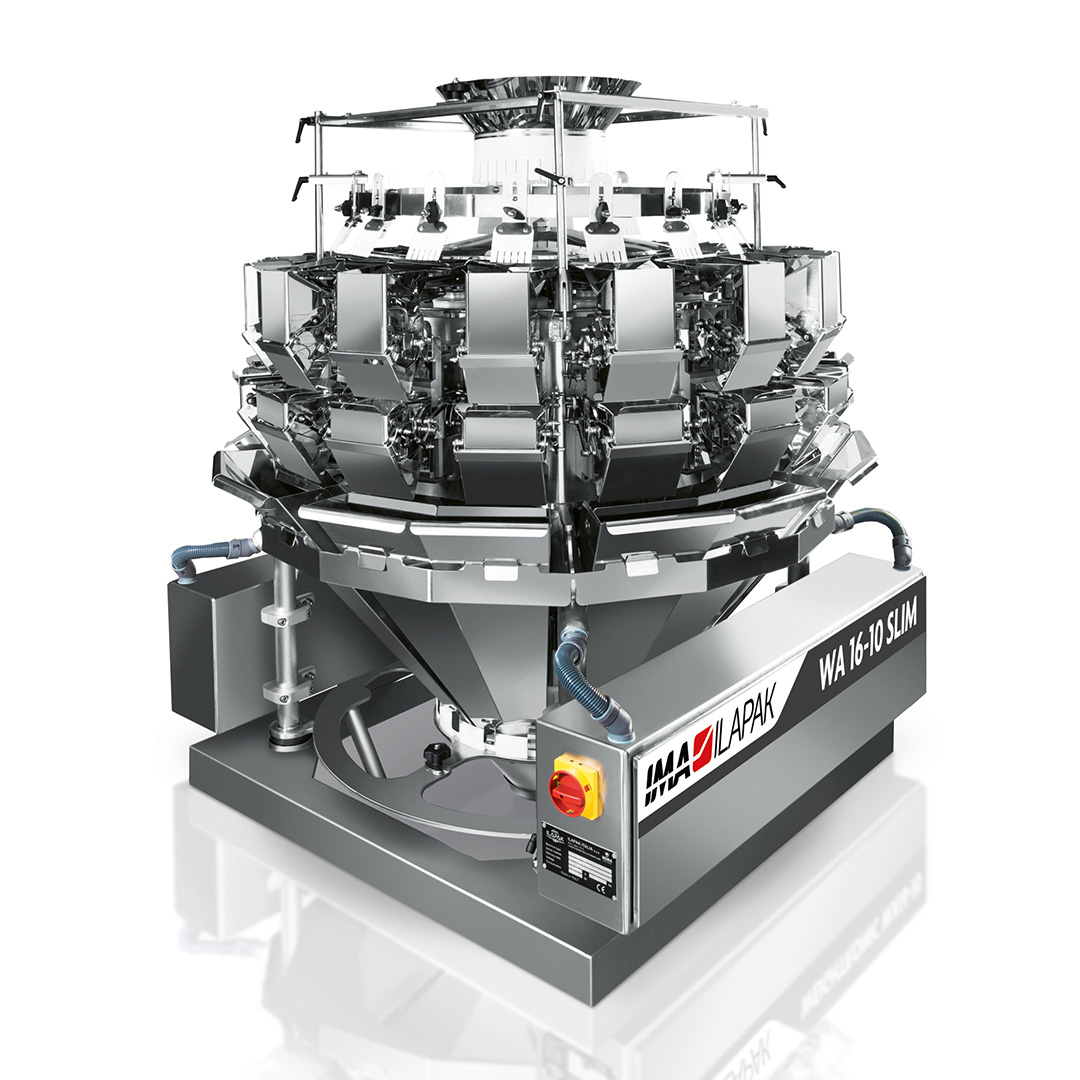

WA 16-10 Slim Weighing and Counting
Machine overview
High-speed compact weigher for small target weights and delicate products
IMA Ilapak’s WA 16-10 Slim is a high-speed, compact multi-head weigher designed for small target weights and delicate products. With minimal drop height and precise control, it ensures gentle handling of fragile items like snacks, bakery products, candies, and grated cheese. Its slim footprint is ideal for space-limited production environments, while its quick-release components and full wash-down design maximize sanitation and uptime. The intuitive HMI supports fast setup and troubleshooting, making the WA 16-10 Slim a top choice for flexible, accurate, and hygienic weighing in fast-paced food production.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Compact & Slim Design
Fits into tight production layouts without sacrificing performance.
-
Optimized for Small Weighments
High accuracy and speed for low target weights in sectors like confectionery, snacks, and dairy.
-
Low Drop Height
Gentle product handling minimizes damage to fragile or irregular products.
-
Fast Cleaning & Changeover
Quick-release contact parts ensure minimal downtime and easy sanitation.
-
User-Friendly HMI
Intuitive interface with troubleshooting guidance for reduced operator training and faster interventions.
-
Hygienic Construction
Wash-down execution ensures food safety and regulatory compliance across all environments.
Technical information
| Max. Speed | 160 wpm |
|---|---|
| Weigh Heads | 16 |
| Bucket Volume | 1.0 l |
| Max. Discharge Volume (Single Dump) | 2.5 l |
| Discharge Weight Range (Single Dump) | 10 g – 750 g |
| Max. Piece Length | 85 mm |
| Product Distribution | Vibratory or rotary distribution cone with loadcell to control product infeed |
| Product Contact Parts | Stainless steel AISI 304 Embossed plate* and special coating* |
| Drive | Springless, high-speed stepper motors |
| Loadcells | C3 accuracy class, OIML approved R76 class |
| Electronic Platform | Industrial PC |
| HMI | 12″ (18″*) colour touch screen with remote control capability (augmented reality feature*) (*optional) |
| Program Memory | Over 1000 recipes |
| Power Supply (Options Excluded) | 230 Vac ±5%, 1 phase, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 A @ 480 V) |
| Compressed Air (Options Excluded) | 180 l/min @ 7 bar |

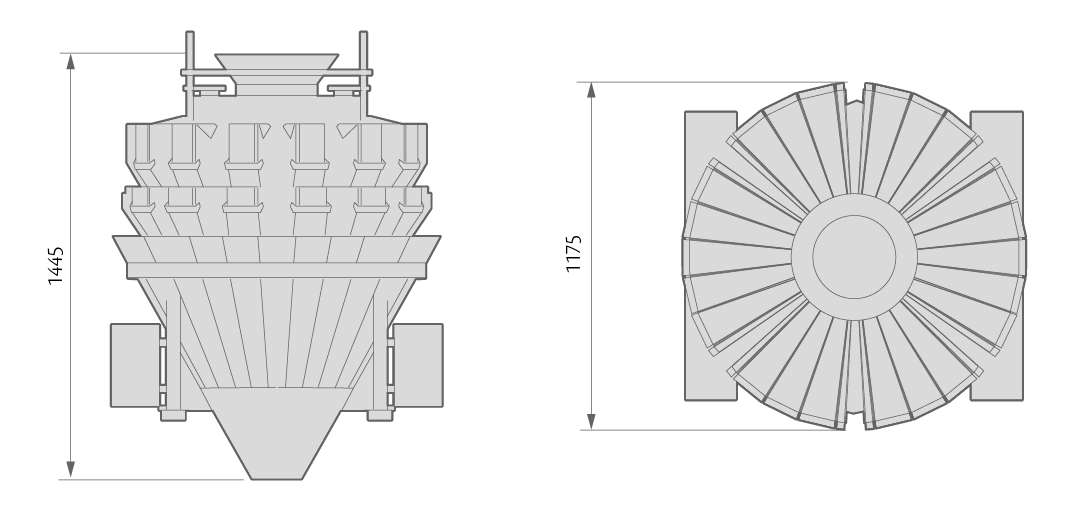

| Machine Dimensions (W × D × H) | 1175 × 1175 × 1445 mm (46.25″ × 46.25″ × 56.75″) |
| Machine Weight | 500 kg |
*optional
