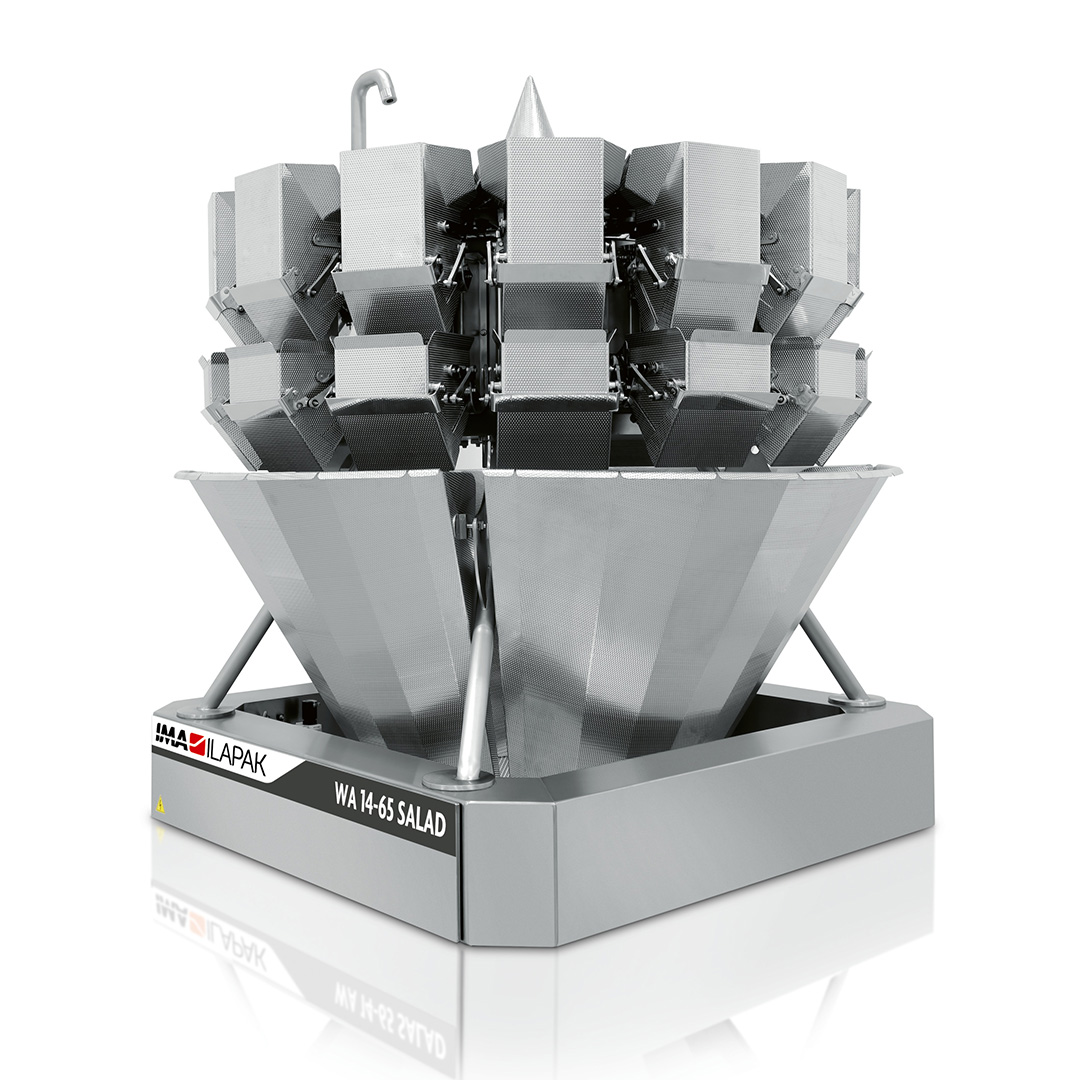

WA 14-65 Salad Weighing and Counting
Machine overview
Delicate precision for fresh salads and leafy produce
IMA Ilapak’s WA 14-65 Salad is a specialized multi-head weigher designed to meet the needs of processors handling delicate leafy vegetables like spinach, cabbage, and fresh-cut salad. Developed specifically for hygienic environments, it features a full wash-down execution and quick-release product contact parts to ensure maximum cleanliness and minimal downtime. With tailored weighing technology and operator-friendly controls, the WA 14-65 delivers gentle handling, excellent accuracy, and high-speed performance — ideal for fresh produce lines that require both speed and care.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Leafy Produce Specialization
Designed for optimal handling of fresh-cut vegetables without damaging the product.
-
Full Hygienic Execution
Wash-down compatible construction ensures maximum sanitation and food safety compliance.
-
Fast Changeover & Cleaning
Quick-release contact parts enable rapid sanitation and reduce downtime between shifts or product changeovers.
-
User-Friendly HMI
Intuitive interface with built-in troubleshooting tools streamlines operation and training.
-
High Accuracy with Gentle Handling
Balances weighing precision with product protection to minimize waste and preserve product quality.
Machine details
Technical information
| Max. Speed | 70 wpm |
|---|---|
| Weigh Heads | 14 |
| Bucket Volume | 6.5 l |
| Max. Discharge Volume (Single Dump) | 16.3 l |
| Discharge Weight Range (Single Dump) | 60 g – 2000 g |
| Max. Piece Length | 165 mm |
| Product Distribution | Vibratory or rotary distribution cone with loadcell to control product infeed |
| Product Contact Parts | Embossed Stainless Steel AISI 304 |
| Drive | Springless, high speed stepper motors |
| Loadcells | C3 accuracy class, OIML approved R76 class |
| Electronic Platform | Industrial PC |
| HMI | 12″ (18″*) colour touch screen with remote control capability (augmented reality feature*) |
| Program Memory | Over 1000 recipes |
| Power Supply (Options Excluded) | 230 Vac ±5%, 1 phase, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 A @ 480 V) |
| Compressed Air (Options Excluded) | 180 l/min @ 7 bar |

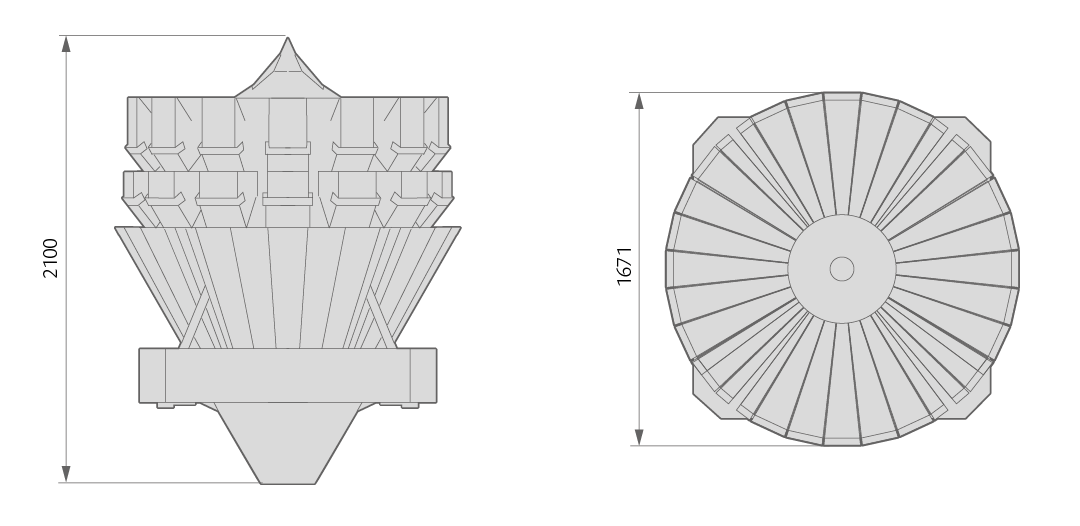

| Machine Dimensions (W × D × H) | 1671 × 1671 × 2100 mm (65.75″ × 65.75″ × 82.75″) |
| Machine Weight | 850 kg |
*optional
