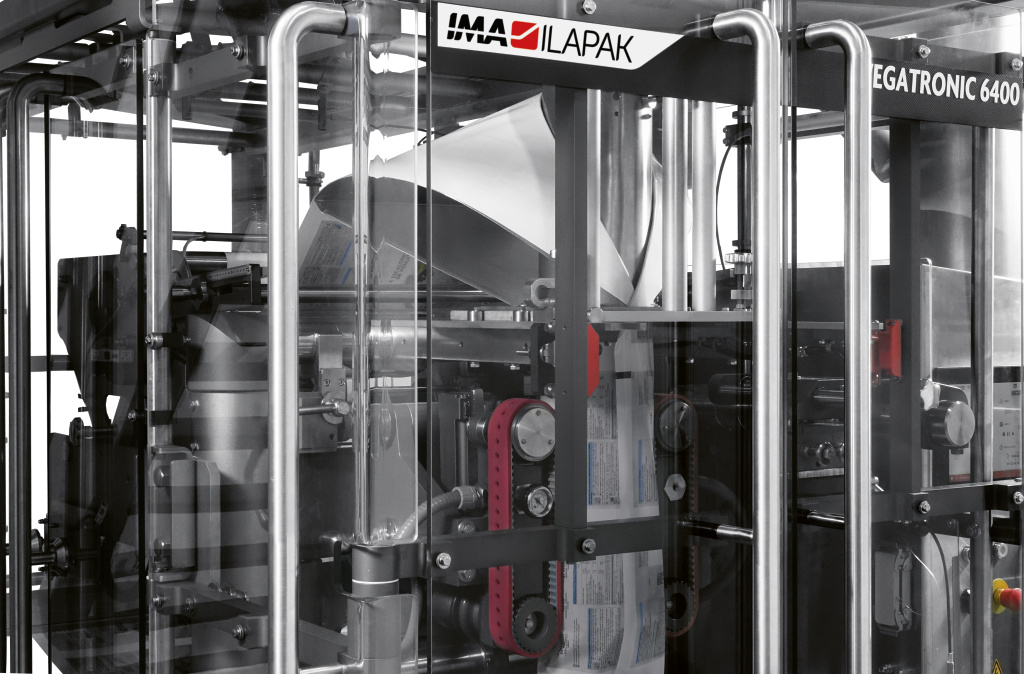

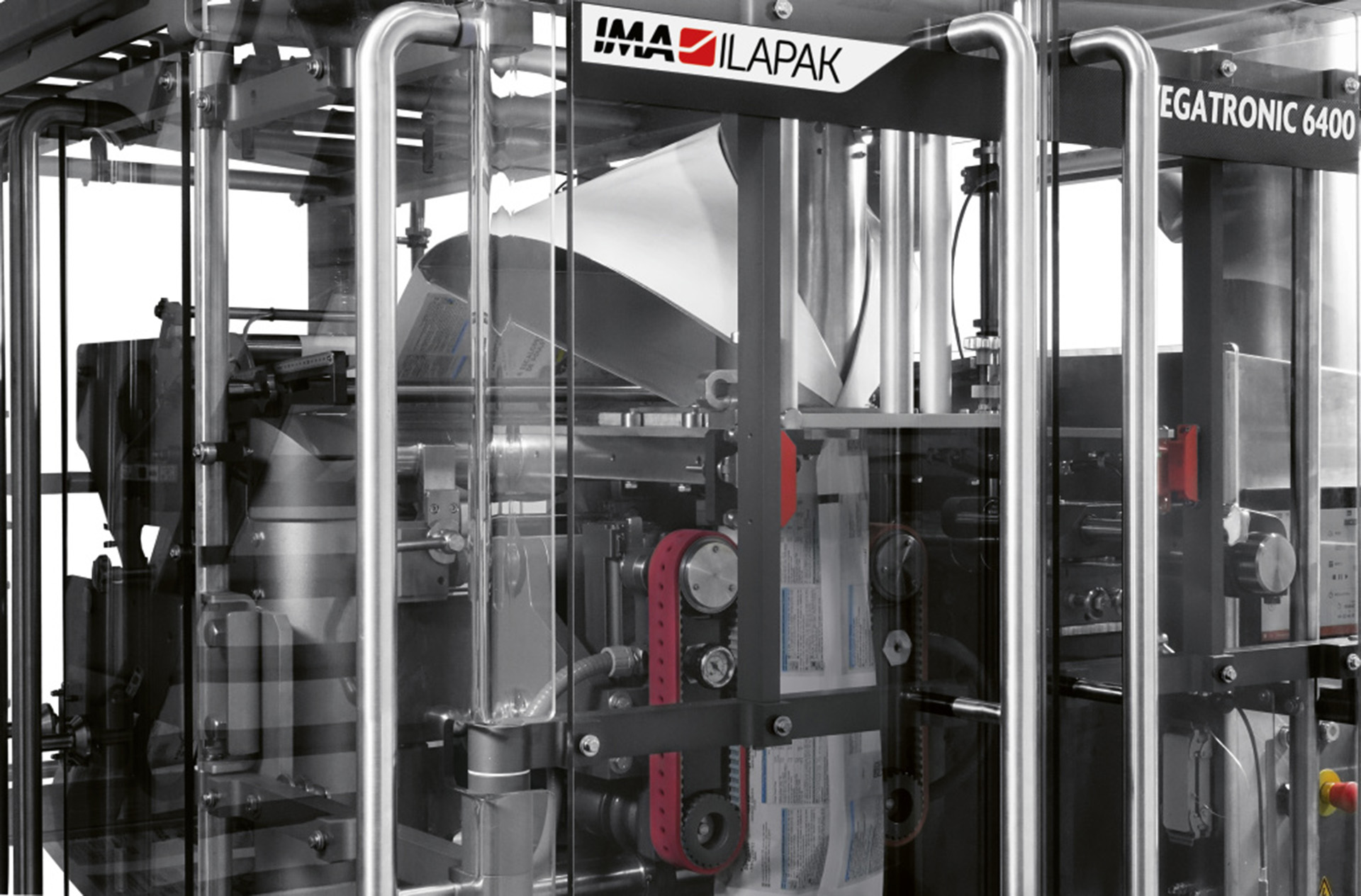

Vegatronic 6400 HD Vertical Form Fill and Seal
Machine overview
Next-generation hygiene. Unmatched performance
The Vegatronic 6400 HD is the ultra-sanitary evolution of IMA Ilapak’s proven Vegatronic 6000. Tailored for the demanding needs of the meat, cheese, and IQF sectors, this continuous motion vertical form fill and seal machine combines robust stainless steel construction, IP66-rated components, and an open frame design for full wash-down capability.
Its hygienic architecture minimizes contamination risk with sloped and rounded surfaces, stainless steel parts throughout, and a completely accessible frame that facilitates fast and thorough cleaning. Changeovers are streamlined thanks to a vacuum-assisted splicing table, swivel-mounted forming tube, and pneumatically activated cantilever reel shaft — all of which maximize uptime and operator efficiency.
Capable of producing medium to large pillow packs with or without MAP, and handling films up to 830 mm wide, the Vegatronic 6400 HD supports a wide range of materials — from laminates to HDPE, LDPE, biodegradable, and compostable films. It’s the optimal solution for producers looking to meet the highest hygiene standards without sacrificing performance or versatility.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Continuous Motion VFFS Technology
-
Full Wash-Down Execution
Engineered for the highest hygiene standards with IP66-rated components.
-
Revolutionary Open Frame Design
Facilitates rapid cleaning, full accessibility, and easier maintenance.
-
Large Film Width Capability
Handles films up to 830 mm for medium to large pillow packs.
-

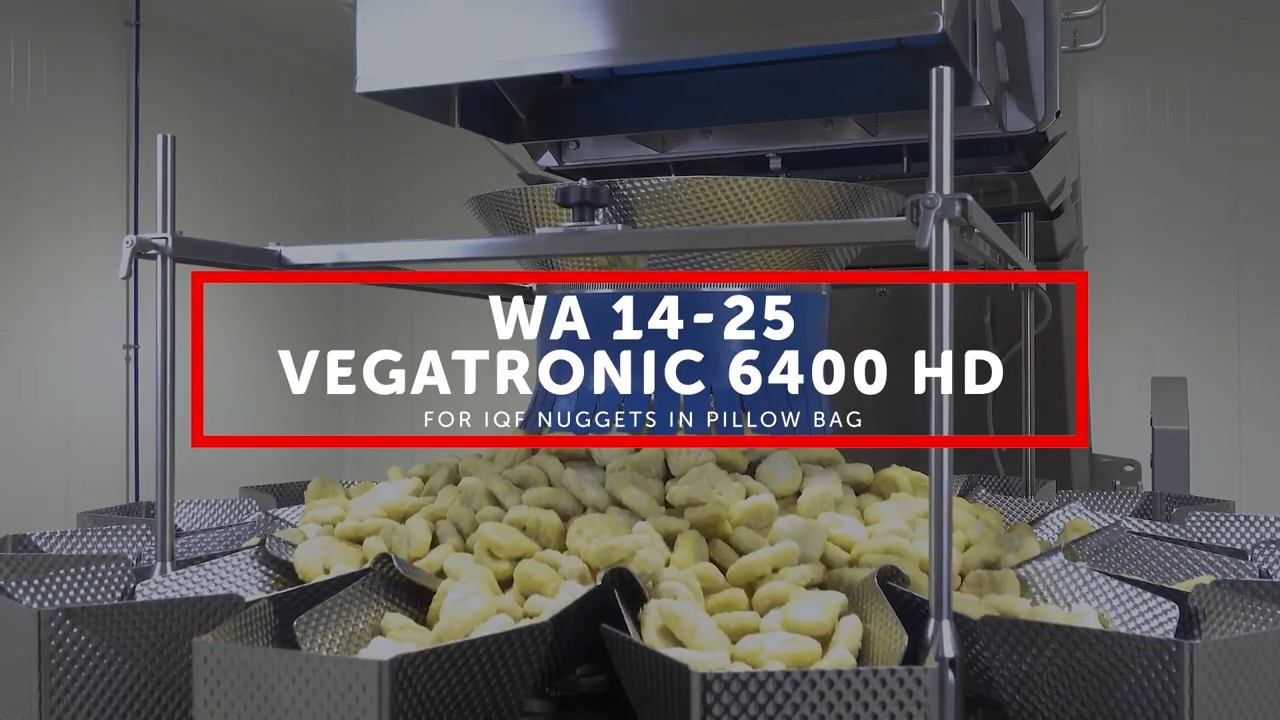

Short Product Drop
Minimizes breakage for fragile frozen products like IQF proteins or produce.
-
Vacuum-Assisted Splicing Table
Enables fast, reliable film changeovers with minimal downtime.
-
Swivel-Mounted Forming Tube
Quick, tool-free removal improves accessibility and cleaning.
-

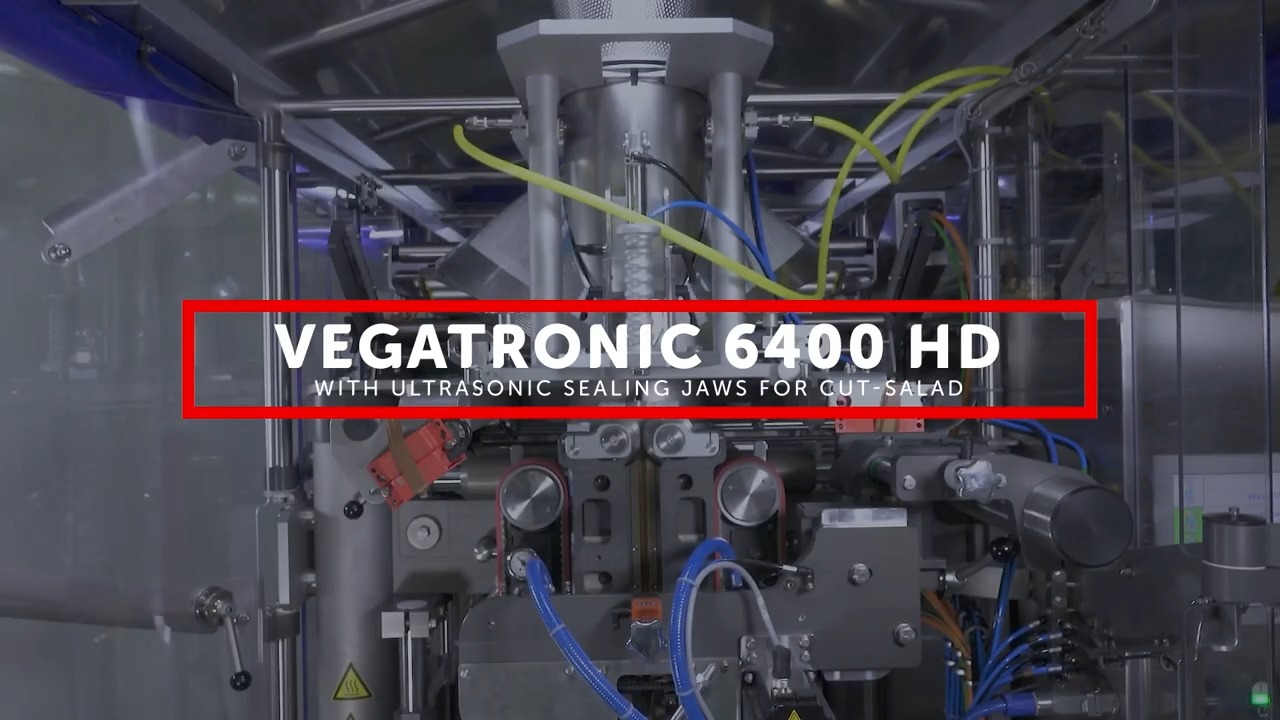

Ultrasonic Sealing Option
Reduces leak rates, film waste, and energy use.
-
Cantilever Pneumatic Reel Shaft
Accelerates reel changes and supports optional dual reel holder with auto splicing.
-
Sanitary Stainless Steel Construction
No aluminum on static parts; all critical components are food-grade steel.
Machine details
Technical information
| Machine Speed | 130 cpm |
|---|---|
| Wrapping Material | Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene |
| Electronic Platform | Industrial PC, Allen Bradley PLC* |
| Program Memory | 100 programs |
| HMI | 12″ HMI colour touch screen TFT SVGA resolution, Allen Bradley* |
| Power Requirement | 400 Vac ±5%, 3 phase, neutral, GND, 50/60 Hz, 15.6 kW, 22.6 A |
| Compressed Air | Up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE |
| Electrical Cabinet | Right-hand version, left-hand version* |

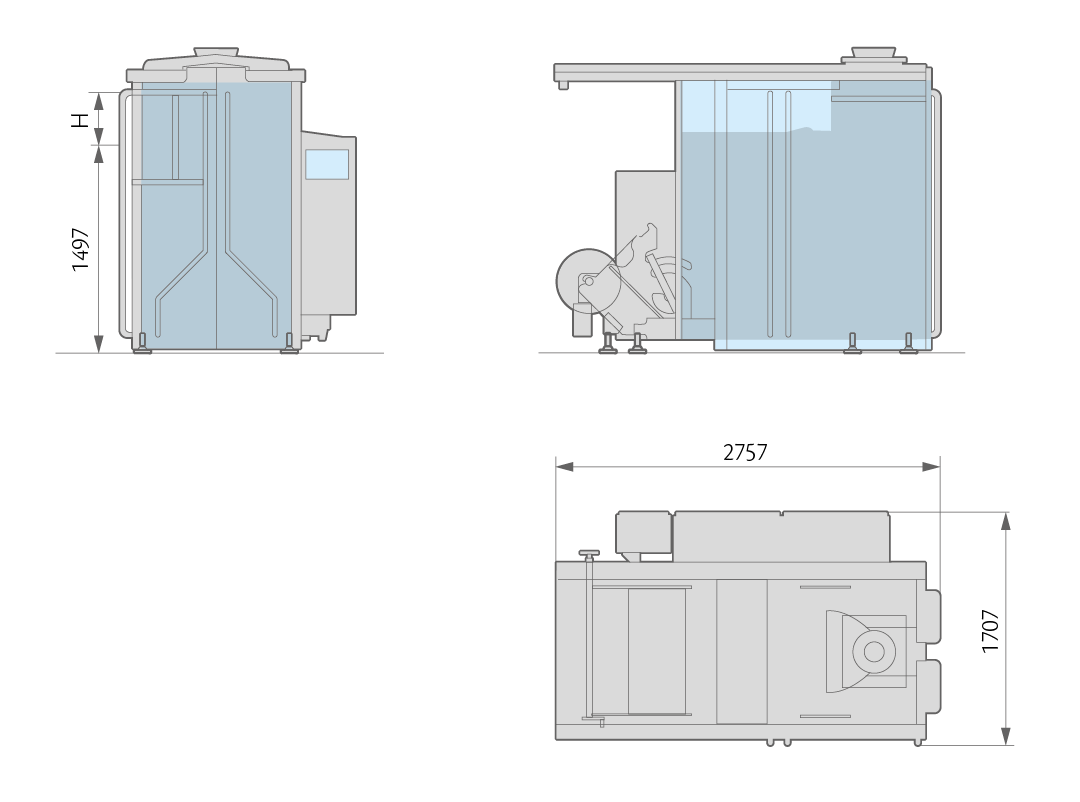

| Machine Dimensions (W × D × H) | 1707 × 2577 × 1497 mm (67.25″ × 108.5″ × 59″) |
| Machine Finishing | Stainless steel |
| Machine Weight | 1900 kg (4190 lb) |
| BAG DIMENSIONS | |
| Max. Width | 380 mm (15″), 370 mm (14.5″) for LDPE |
| Min. Width | 50 mm (2″) |
| Max. Length** | 600 mm (23.5″) |
| FILM REEL DIMENSIONS | |
| Max. Width | 780 mm (30.75″), 830 mm (32.75″)* |
| Max. Outer Diameter | 450 mm (17.75″) |
| Core Diameter | 76 mm (3″), 152 mm (6″)* |
*Optional
**Greater length feasible on request
