Vegatronic 6000 DZ Vertical Form Fill and Seal
Machine overview
Maximum Flexibility. Minimum Downtime

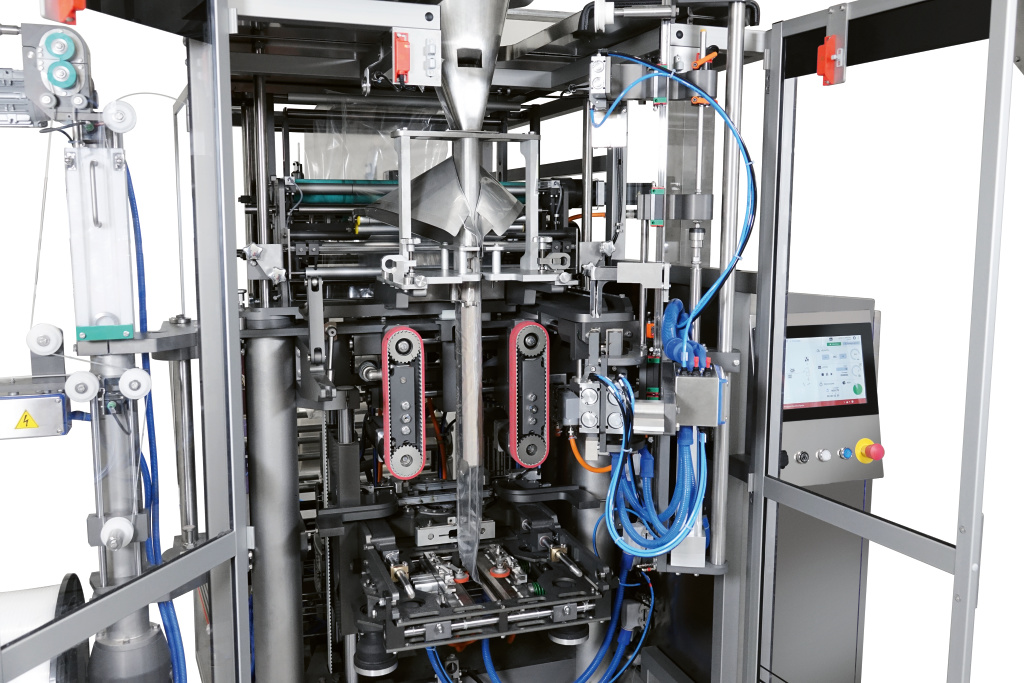

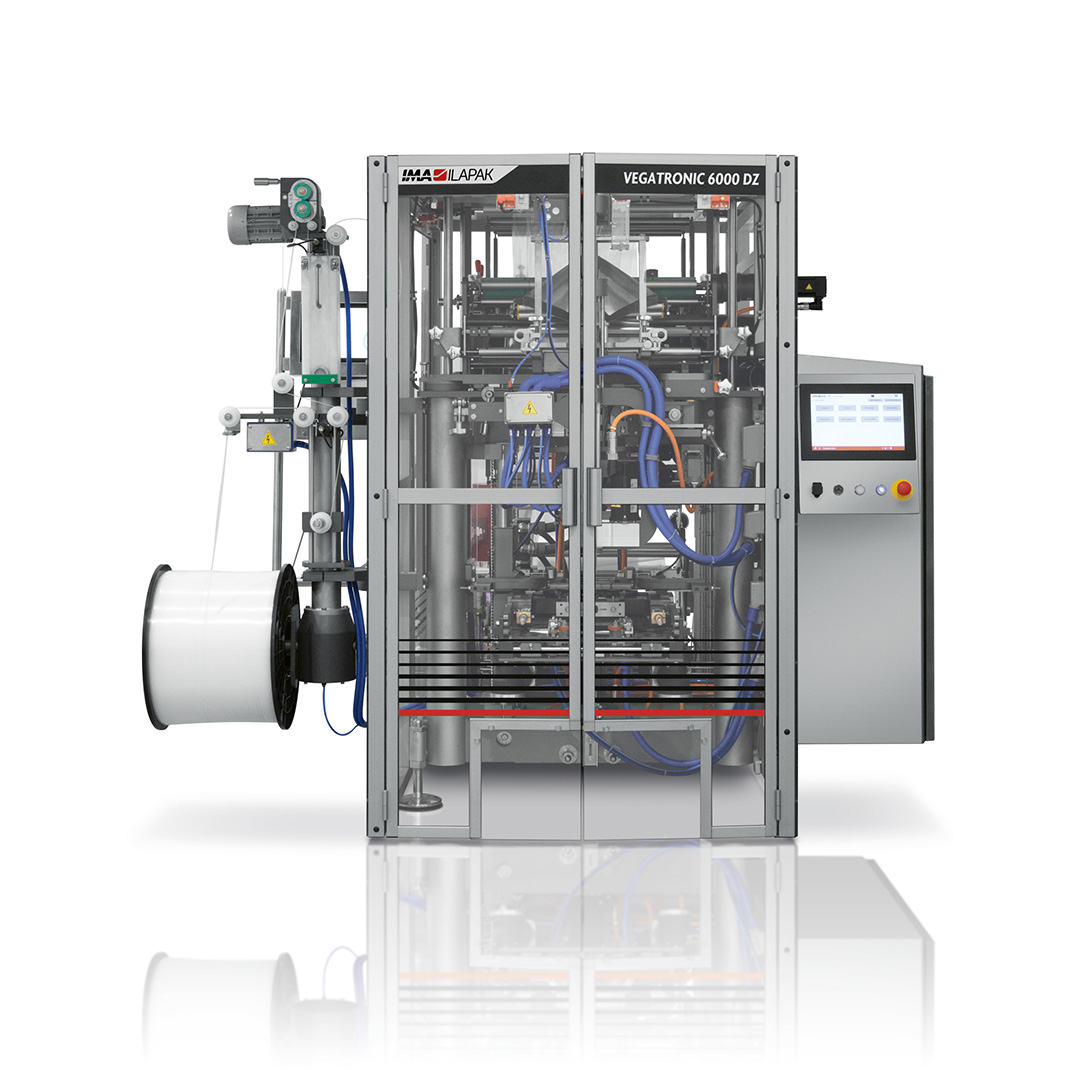

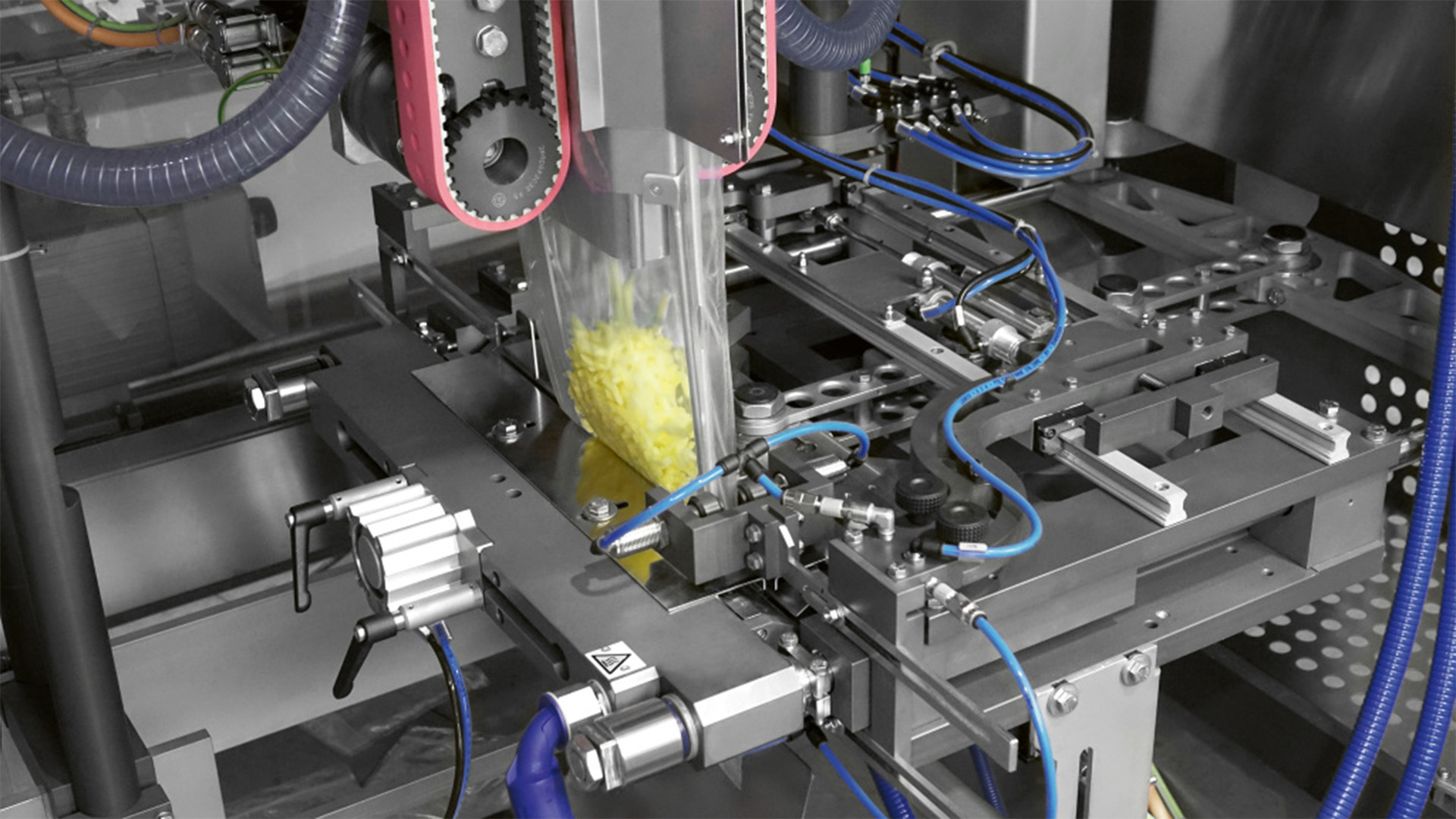

The IMA Ilapak Vegatronic 6000 DZ is a continuous motion vertical bagger designed to deliver high-speed performance and exceptional pack style versatility. Ideal for demanding packaging environments, this model is engineered to run shredded cheese, pet food (including flakes, pellets, and accessories), confectionery and chocolate (as loose products), as well as snacks and biscuits. Its compact footprint, full-servo design, and automatic format changeover make it a flexible and efficient solution for producers seeking premium presentation and fast changeovers across a wide range of pack styles — including Doy, Quattro, pillow, and 3-side seal bags, with or without zippers.
The Vegatronic 6000 DZ features interchangeable components with other Vegatronic 6000 models, including forming sets, jaws, belts, and consumables — reducing spare part inventory and lifecycle costs.
Its rotated jaw carriage, ideal for Doy Shark and 3SS formats, can be installed or removed with minimal effort thanks to a dedicated cart system. Whether starting with simple pillow packs or scaling up to premium reclosable pouches, the Vegatronic 6000 DZ offers a future-proof solution with unmatched flexibility and efficiency.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Complete range of pack styles
Pillow, Doy-Shark, Quattro, 3SS, pyramid.
-
Fully automatic format change by recipe
Fast, repeatable, and tool-less changeovers.
-
High-speed continuous motion
Maintains throughput with premium formats.
-
Ergonomic and accessible design
Quick maintenance and sanitation.
-
Compact footprint
Space-efficient with large bag capabilities.
-

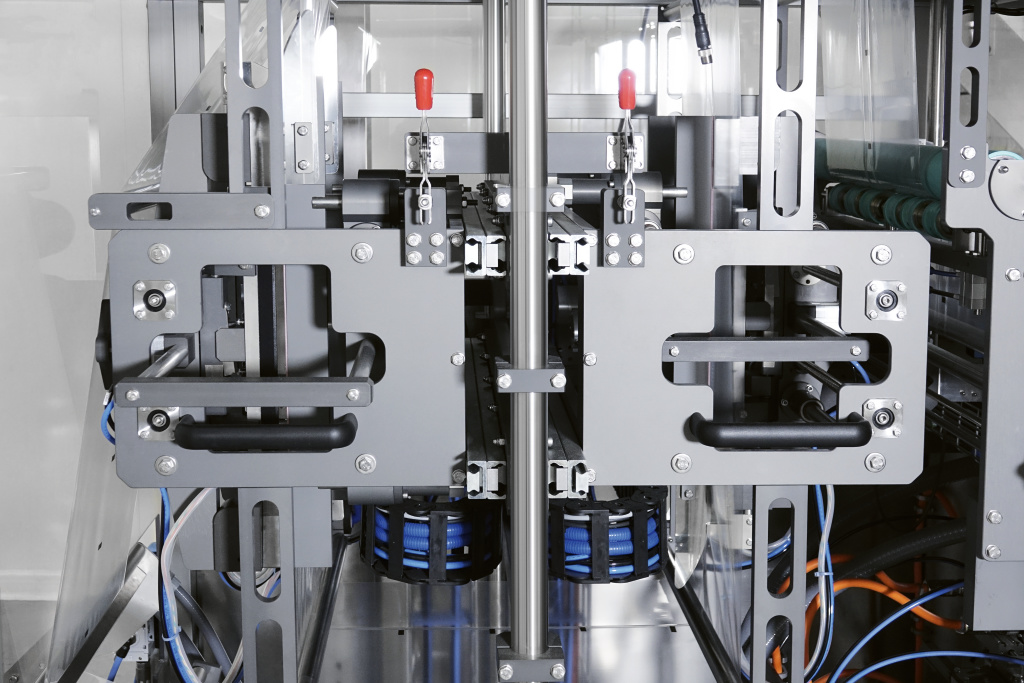

Rotated jaw carriage for Doy/3SS
Easy installation/removal via support cart.
-
Shared components with Vegatronic 6000
Simplified spare parts and lower TCO.
-
Runs various packaging materials
Flexible for laminates, mono-materials, and recyclable films.
Machine details
Technical information
| Machine Speed | Pillow bag: 210 cpm Doy and Quattro bags: up to 120 cpm | ||
|---|---|---|---|
| Wrapping Material | Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene and paper-based | ||
| Electronic Platform | Industrial PLC B&R, Allen Bradley* | ||
| Program Memory | 100 programs | ||

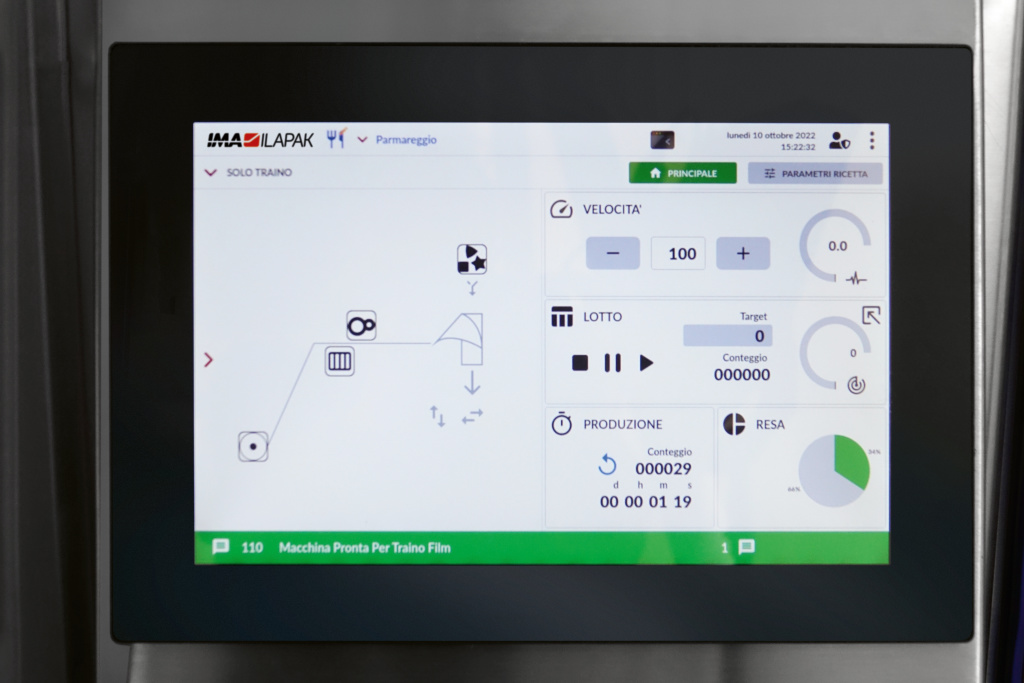

| HMI | 12″ HMI colour touch screen, Allen Bradley* | ||
| Power Requirement | 400 Vac ±5%, 3 phase, neutral, GND, 50/60 Hz, 15.6 kW, 22.6 A | ||
| Compressed Air | Up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE | ||
| Electrical Cabinet | Right-hand version, left-hand version* | ||

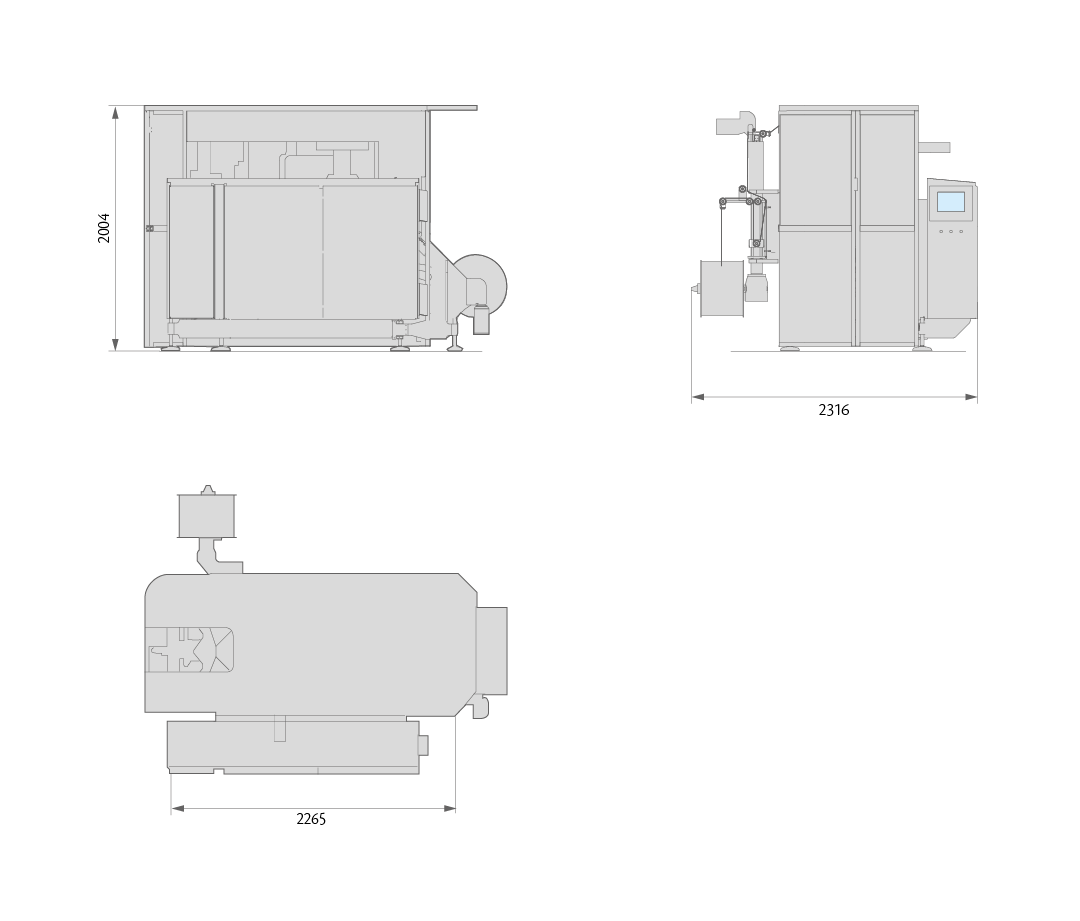

| Machine Dimensions (W × D × H) | 2316 × 2265 × 2004 mm (91.18″ × 88.17″ × 78.9″) | ||
| Machine Finishing | Electrostatic epoxy powder coating, stainless steel* | ||
| Machine Weight | 1900 kg (4189 lb) | ||
| BAG DIMENSIONS | Pillow | Doy | Quattro |
| Min Width | 280 mm (11″), 270 mm (10.5″) for LDPE | 270 mm (10.6″) | Based on max film width of 630 mm |
| Min. width | 50 mm (2″) | 70 mm (2.8″) | 70 mm (2.8″) |
| Max. length* | 500mm (19.75″) | 200 mm (7.9″) | 200 mm (7.9″) |

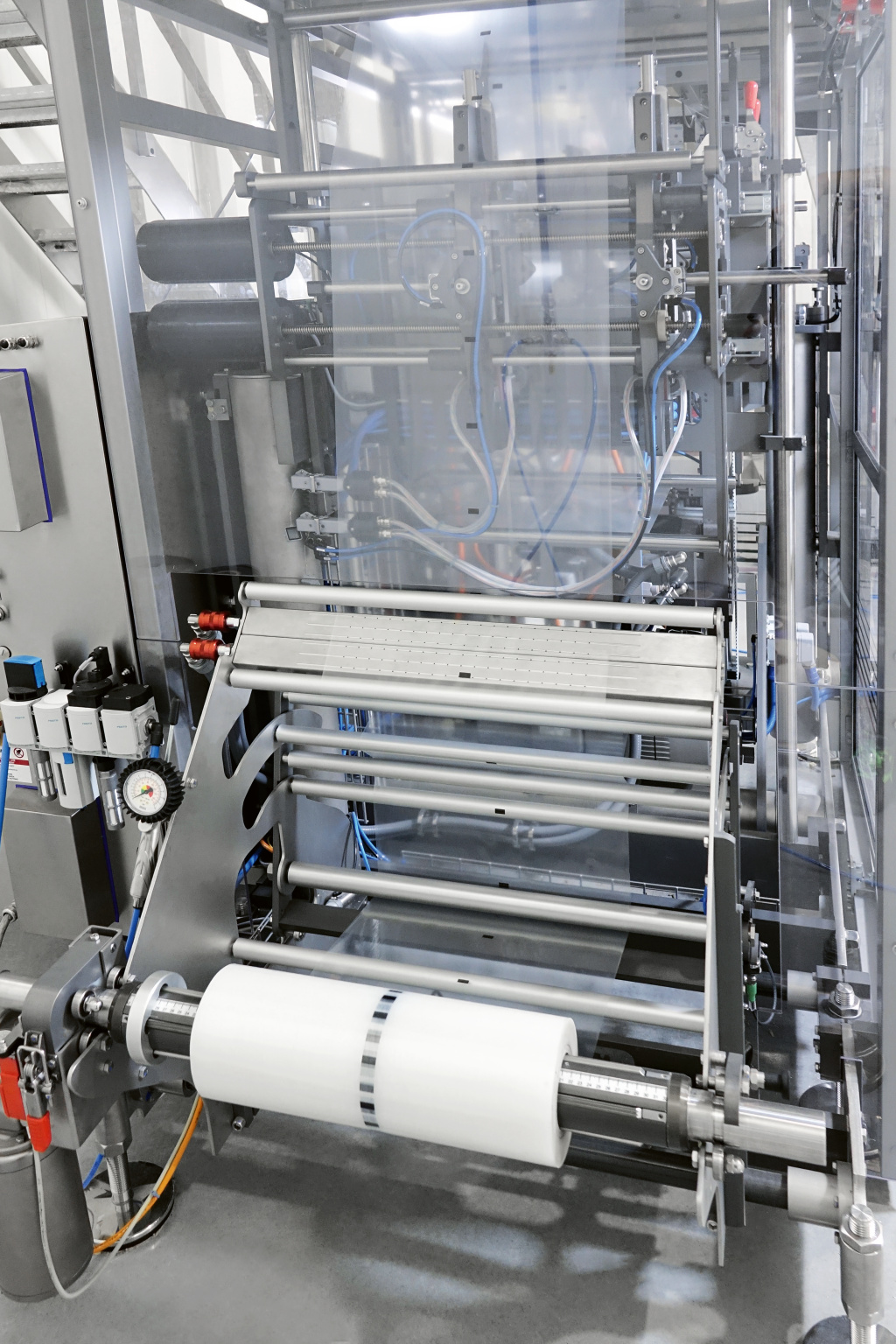

| FILM REEL DIMENSIONS | |||

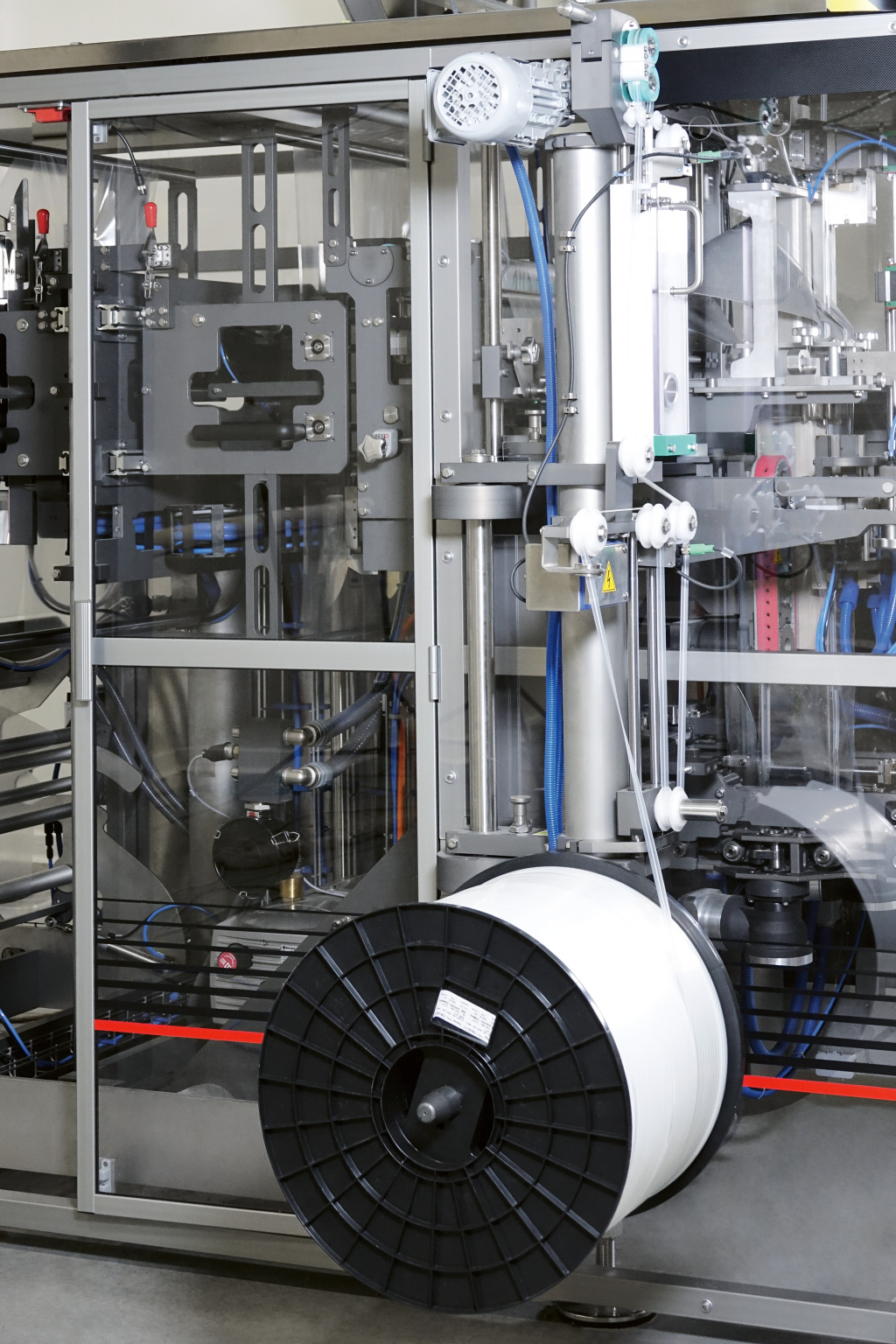

| Max. Width | Pneumatic shaft – 630 mm (24.75″) | ||
| Max. Outer Diameter | 500 mm (19.75″) | ||
| Core Diameter | 76 mm (3″), 152 mm (6″)* | ||
*Optional
**Greater length feasible on request
