Vegatronic 2000 RJ Vertical Form Fill and Seal
Machine overview
Pillow, Block Bottom, Quad seal, FlexCan, EasyPack and Doy Shark with zipper

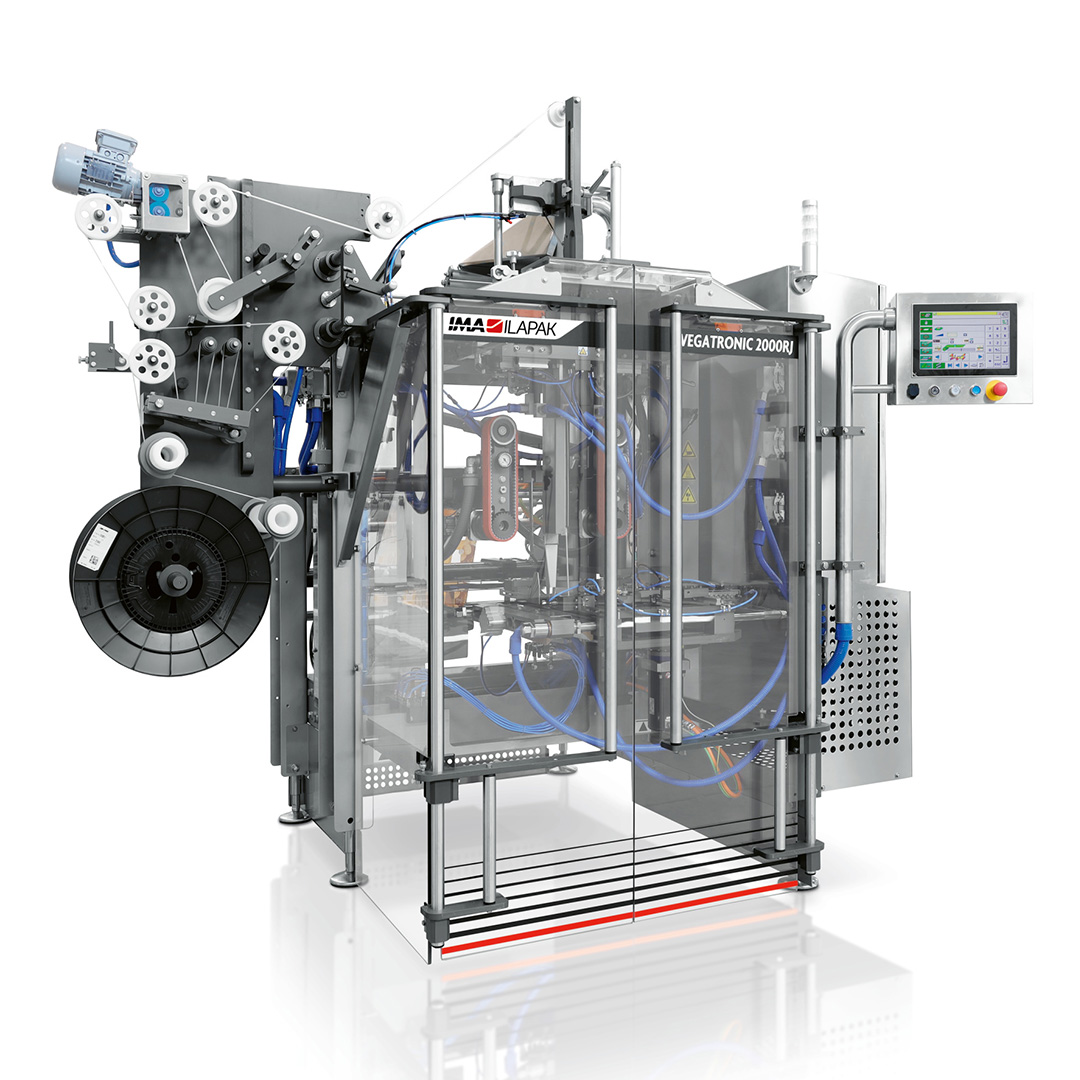

The IMA Ilapak Vegatronic 2000 RJ is one of the most flexible intermittent motion vertical baggers on the market, combining hygienic design, exceptional accessibility, and versatile packaging capabilities. It is ideal for a wide range of industries, including cheese, confectionery, snacks, bakery, IQF food, and many others.
Capable of producing a variety of pack styles such as pillow, block bottom, quad, Flexcan, Easypack, and Doy-Shark pouches, the Vegatronic 2000 RJ also supports advanced sealing options including reclosable zippers and multiple hang-hole formats.
Thanks to its Open Frame architecture, the machine offers easy access and fast changeovers, ensuring minimal downtime and maximum overall equipment effectiveness (OEE). It also handles thick films with extreme sealing pressure, making it a perfect choice for MAP (Modified Atmosphere Packaging) applications.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Maximum versatility
Supports a wide range of pack styles and sealing configurations for various product types.
-
High-efficiency intermittent VFFS machine
Delivers high productivity with the lowest cost per pack.
-
Hygienic Open Frame design
Easy access for cleaning, maintenance, and operation – full wash-down execution available.
-
Extreme sealing pressure
Handles thick films and guarantees tight, leak-proof seals for MAP applications.
Machine details
Technical information
| Machine Speed | 90 cpm |
|---|---|
| Wrapping Materials | Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene |
| Electronic Platform | Industrial PC, Allen Bradley PLC*, Siemens PLC* |
| Program Memory | 100+ programs |
| HMI | 12″ HMI colour touch screen TFT SVGA resolution, Allen Bradley*, Siemens* |
| Power Requirement | 400 Vac ±5%, 3 ph, neutral, GND; 50/60 Hz; 12 kW; 17.5 A |
| Compressed Air | Up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 8 bar (72.5 psi) for LDPE |
| Electrical Cabinet | Right-hand version, left-hand version* or remote cabinet* |

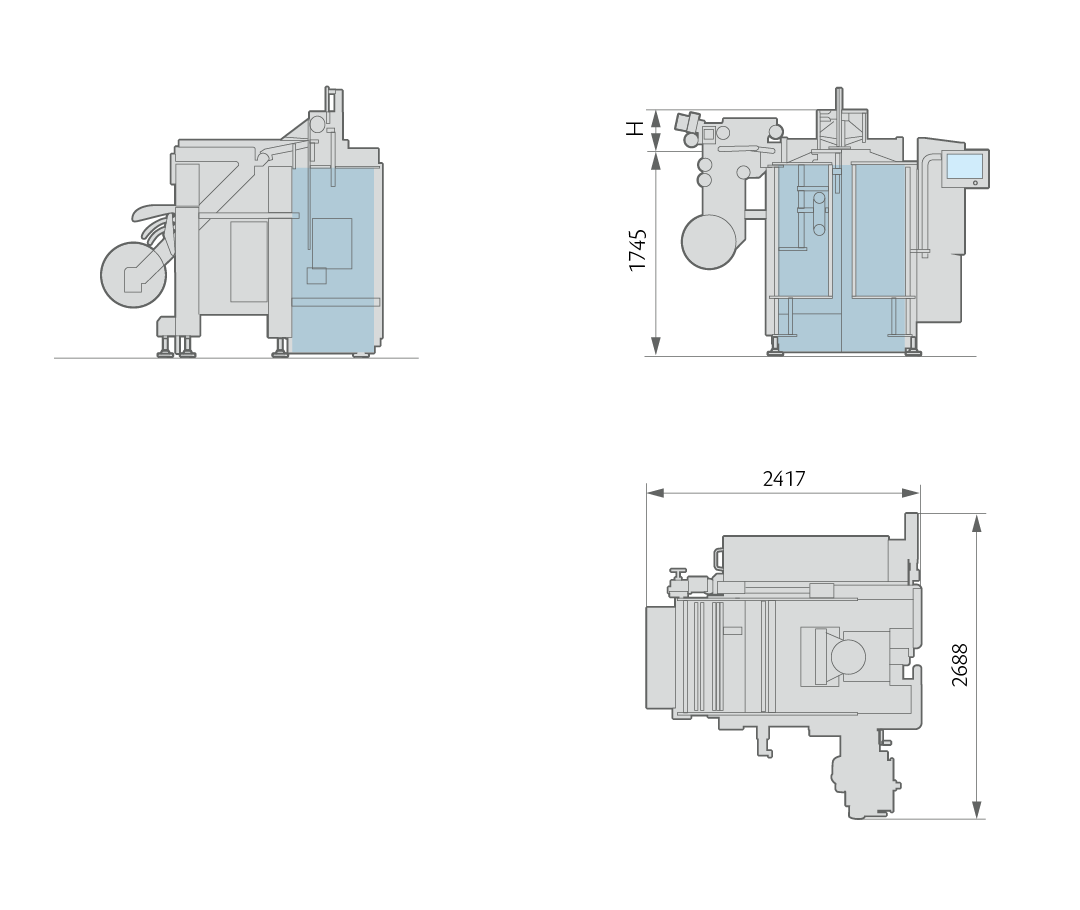

| Machine Dimensions (W x D x H) | 2688 x 2417 x 1745 mm (105.75 x 95.25 x 68.75″) |
| Machine Finishing | Electrostatic epoxy powder coating, stainless steel* |
| Machine Weight | 1600 kg (3530 lb) |
| Bag Dimensions | |
| Max. Width | 430 mm (16.75″), 420 mm (16.5″) for LDPE |
| Min. Width | 50 mm (2″) |
| Max. Length** | 580 mm (22.75″) |
| Film Reel Dimensions | |
| Max. Width | 880 mm (34.5″), 930 mm (36.5″) |
| Max. Outer Diameter | 600 mm (23.75″) |
| Core Diameter | 76 mm (3″), 152 mm (6″) |
*optional
**greater length feasible on request
