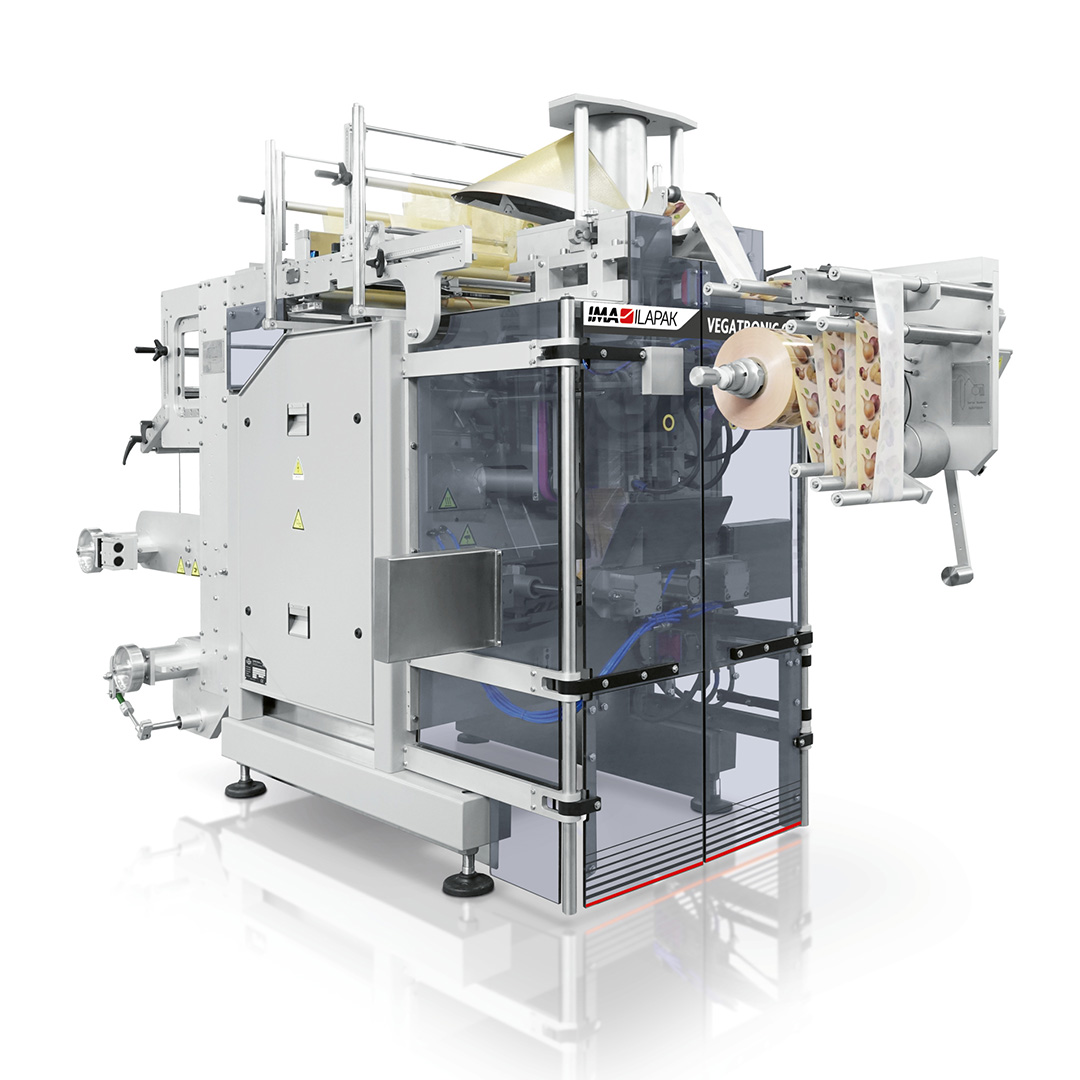

Vegatronic 2000 CF Vertical Form Fill and Seal
Machine overview
Compact intermittent motion VFFS bagger for packaging fresh produce in Carry-Fresh bags
The Vegatronic CF (Carry Fresh) is a compact intermittent VFFS machine developed by IMA Ilapak to meet the specific needs of the fresh produce sector. From potatoes and onions to carrots and bulk vegetables, it delivers reliable packaging performance with minimal footprint and excellent pack presentation.
The Vegatronic CF supports a variety of pack styles — including Carry-Fresh bags with carrying holes, pillow packs, and block bottom formats — giving produce packers broad application flexibility.
Its ability to handle both recyclable mono-plastic and paper-based films makes it a future-ready choice for operations adapting to sustainability demands. Thanks to its efficient layout and intermittent motion operation, the CF ensures competitive speeds and easy integration into smaller-scale or space-limited production lines.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Compact Intermittent Motion VFFS Design
Ideal for limited space environments without compromising performance.
-
High-Quality Entry-Level Packaging
Delivers consistent operation and strong pack presentation at a competitive investment.
-
Carry-Fresh Bag Capability
Supports pillow, block bottom, and Carry-Fresh bags with two-hole, three-hole, or euro-hole punch.
-
Film Versatility
Ability to handle both recyclable mono-plastic and paper-based films.
-
Optimized for Fresh Produce
Perfect for potatoes, carrots, onions, and other bulk vegetables.
Machine details
Technical information
| Machine Speed | 80 cpm |
|---|---|
| Wrapping Materials | Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene |
| Electronic Platform | Omron PLC, Allen Bradley PLC*, Siemens PLC* |
| Program Memory | 40 programs |
| HMI | Colour TFT 6″ touch screen, Allen Bradley*, Siemens* |
| Power Requirement | AC 400 V ±5%, 3 phase, neutral, 50/60 Hz, 6.2 kW, 10.3 A |
| Compressed Air | Up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE |
| Electrical Cabinet | Right-hand version, left-hand version* or remote cabinet* |

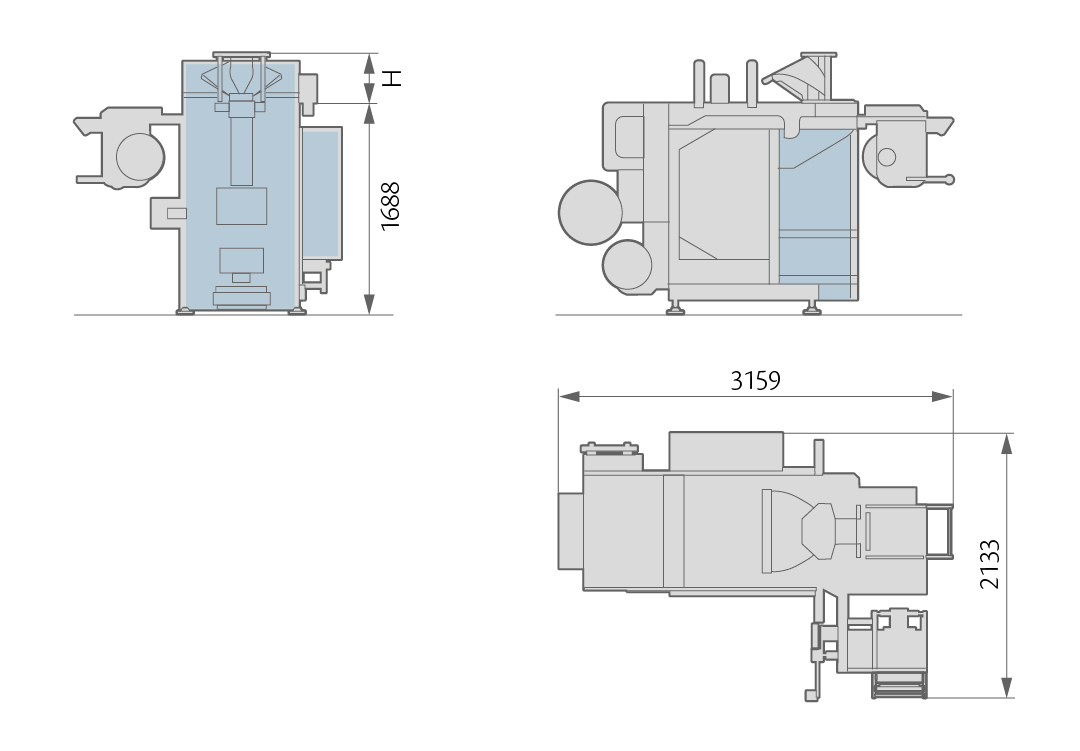

| Machine Dimensions (W x D x H) | 2133 x 3199 x 1666 mm (84 x 126 x 65.7″) |
| Machine Finishing | Electrostatic epoxy powder coating; stainless steel* |
| Machine Weight | 900 kg (1985 lb) |
| Bag Dimensions | |
| Max. Width | 380 mm (15″), 370 mm (14.5″) for LDPE |
| Min. Width | 50 mm (2″) |
| Max. Length** | 380 mm (15″) |
| Film Reel Dimensions | |
| Max. Width | 780 mm (30.7″), 830 mm (32.75″) |
| Max. Outer Diameter | 500 mm (19.75″) |
| Core Diameter | 76 mm (3″), 152 mm (6″) |
*optional
**greater length feasible on request
