Vegatronic 1000 Vertical Form Fill and Seal
Machine overview
Robust, mid-sized VFFS packaging machine for maximum versatility

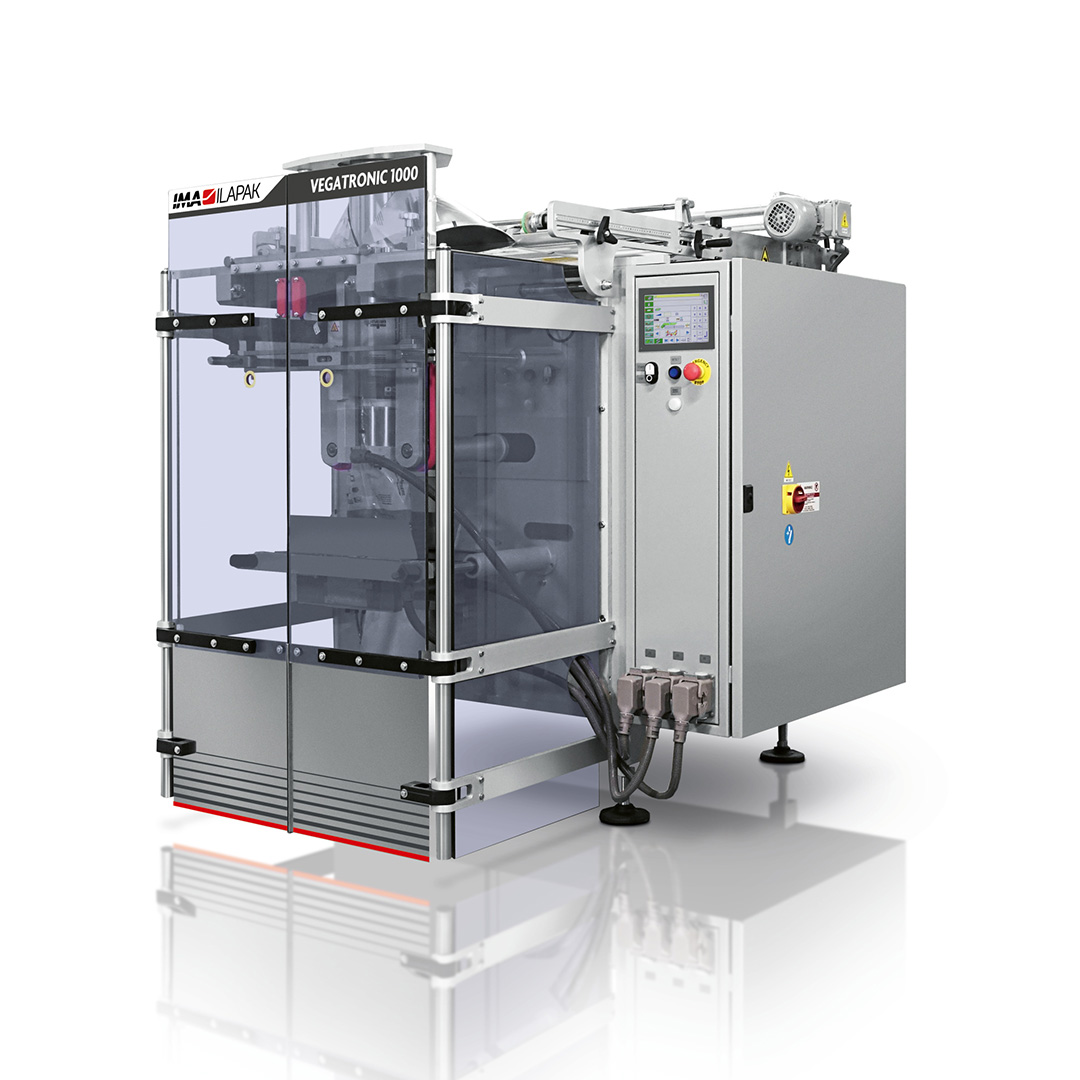

The IMA Ilapak Vegatronic 1000 is a high-quality intermittent motion VFFS machine, built to handle a broad range of bag styles and product types with precision and care. Compact and versatile, it’s ideal for manufacturers seeking reliable packaging for dry, wet, or frozen products, while keeping cost and footprint low.

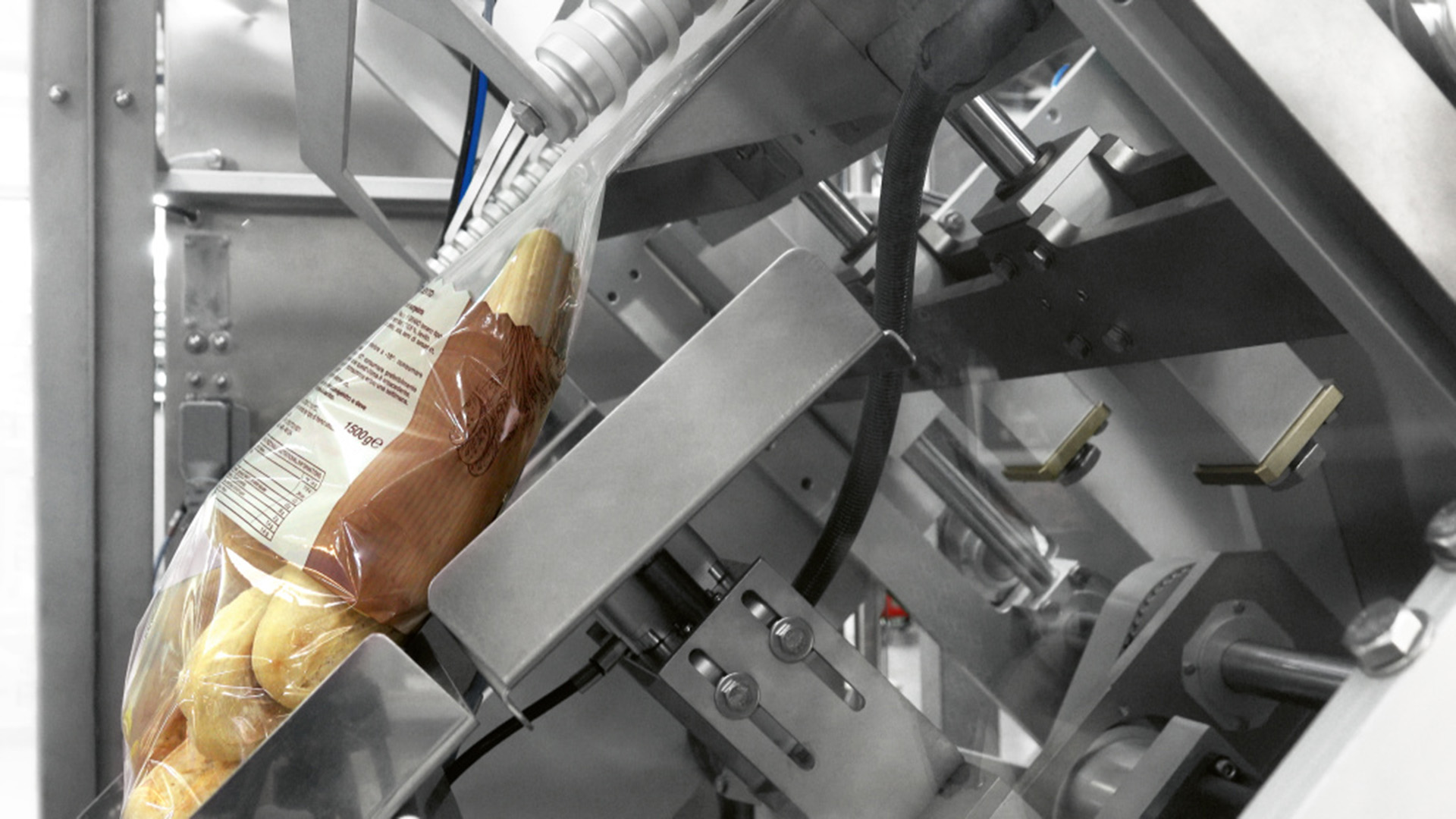

It supports pillow, block bottom, quad bags, including M.A.P. for extended shelf life. The Inclined version is engineered for gentle handling of delicate, brittle, or fragile products — making it perfect for fresh produce, baked goods, snacks, and IQF.
With fast format changeovers, optional reseal features (zippers, tear notches, hang holes), and large film width capability, the Vegatronic 1000 delivers flexibility and performance in a user-friendly, low-maintenance design.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Intermittent Motion VFFS Technology
Lorem ipsum
-
Compact Footprint
Fits into space-constrained production lines without sacrificing performance.
-
Versatile Format Capability
Pillow, Block Bottom and Quad bags.
-

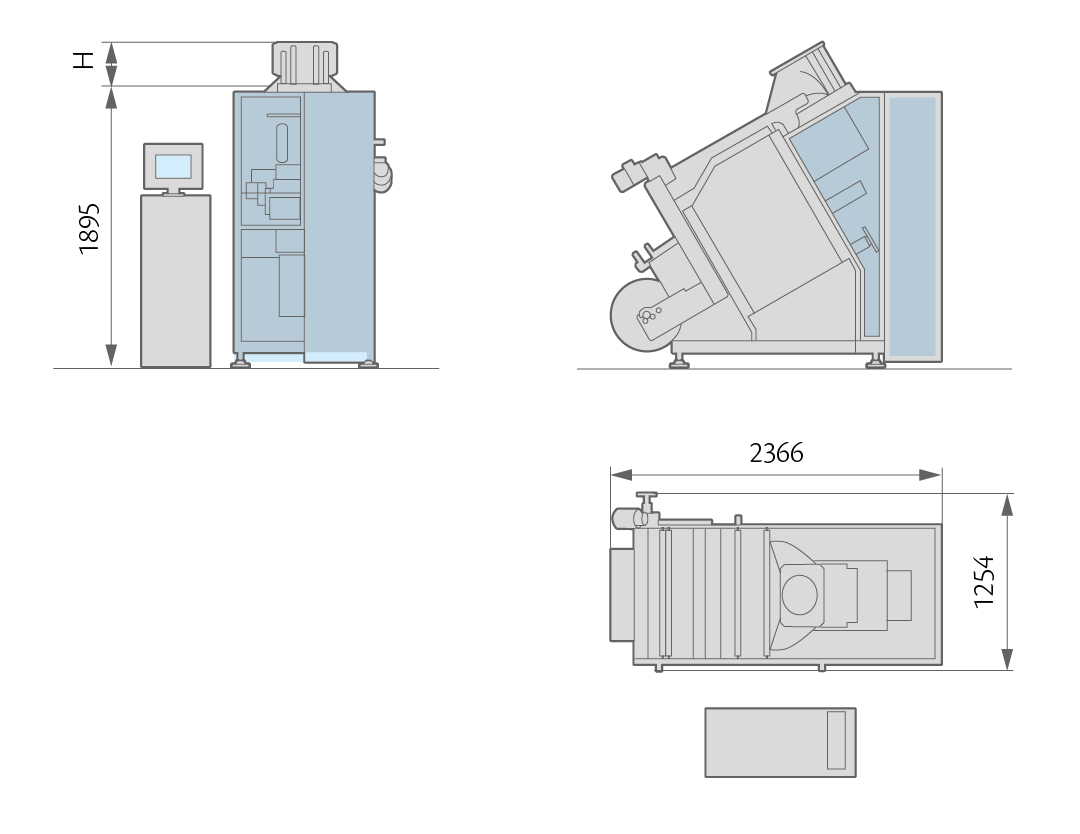

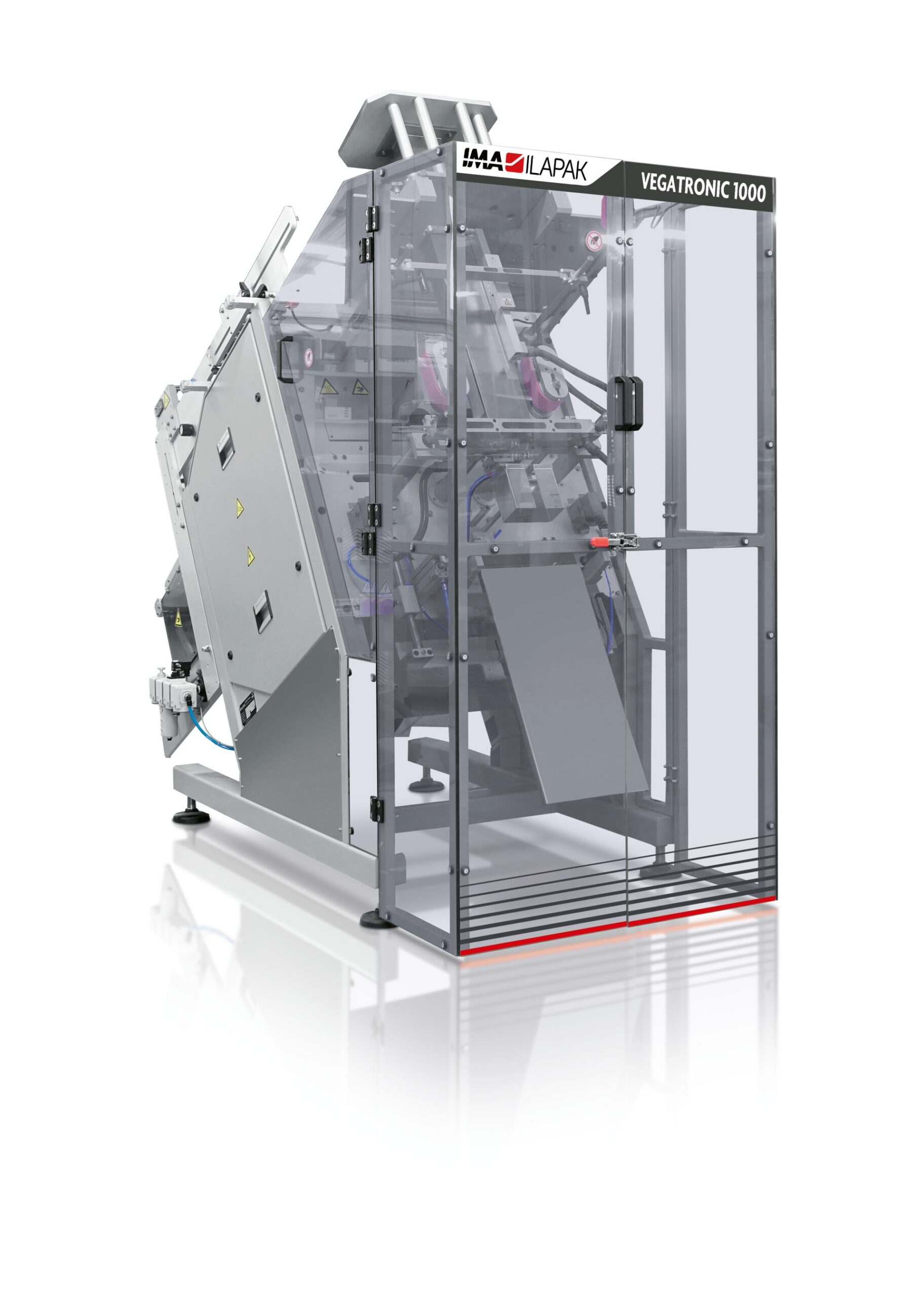

Inclined Version Available
Ensures gentle handling for fragile or brittle products like snacks, produce, and IQF.
-
M.A.P. Compatibility
Supports Modified Atmosphere Packaging to extend product shelf life.
-
Large Film Width Support
Accommodates a wide range of pack sizes.
-
Robust & Simple Design
Ensures long-term reliability with minimal maintenance.
Machine details
Technical information
| VEGATRONIC 1000 / VEGATRONIC 1000 INCLINED | |
|---|---|
| Machine Speed | 80 cpm |
| Wrapping Materials | Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene |
| Electronic Platform | Omron PLC, Allen Bradley PLC*, Siemens PLC* |
| Program Memory | 40 programs |
| HMI | Colour TFT 6″ touch screen, Allen Bradley*, Siemens* |
| Power Requirement | AC 400 V ±5%, 3 phase, neutral, 50/60 Hz, 6.7 kW, 10 A |
| Compressed Air | Up to 125 l/min at 8 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE |
| Electrical Cabinet | Right-hand version, left-hand version* or remote cabinet* |

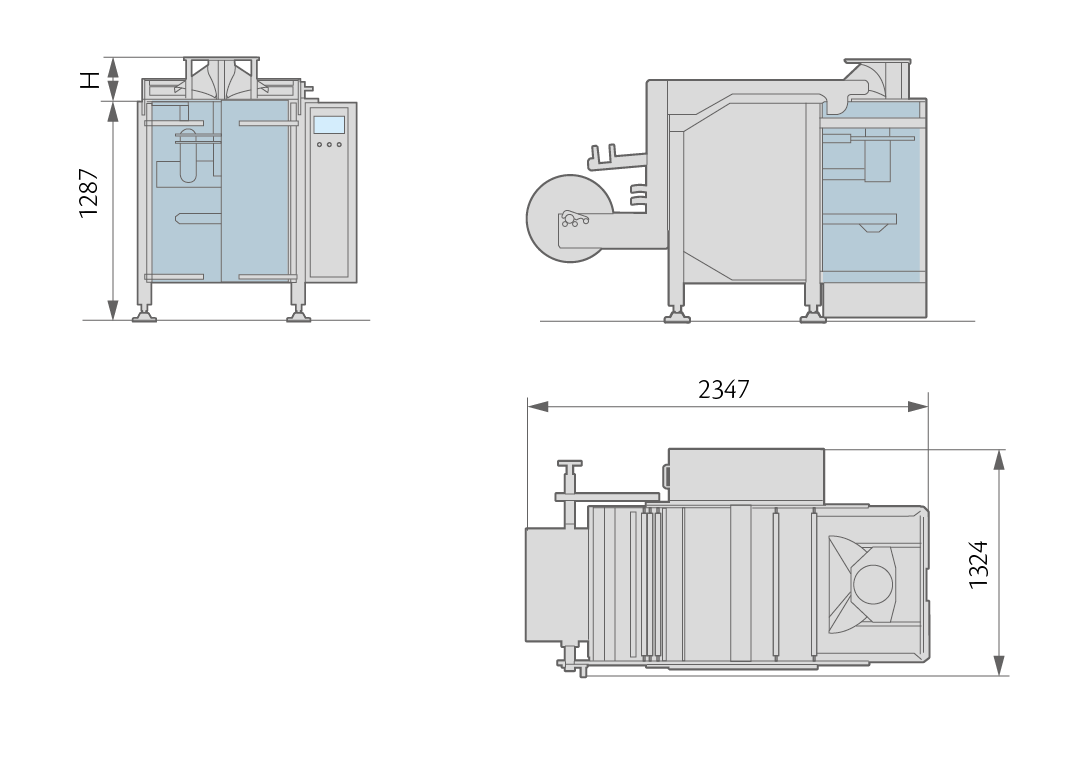

| Machine Dimensions (W × D × H) | 1324 × 2347 × 1287 mm (52.2″ × 92.5″ × 50.7″) |
| Machine Finishing | Electrostatic epoxy powder coating, stainless steel* |
| Machine Weight | 800 kg (1765 lb) |
| BAG DIMENSIONS | |
| Max. Width | 380 mm (15″), 370 mm (14.5″) for LDPE |
| Min. Width | 50 mm (2″) |
| Max. Length** | 380 mm (15″) |
| FILM REEL DIMENSIONS | |
| Max. Width | 780 mm (30.7″), 830 mm (32.75″)* |
| Max. Outer Diameter | 500 mm (19.75″) |
| Core Diameter | 76 mm (3″), 152 mm (6″)* |
*Optional
**Greater length feasible on request
