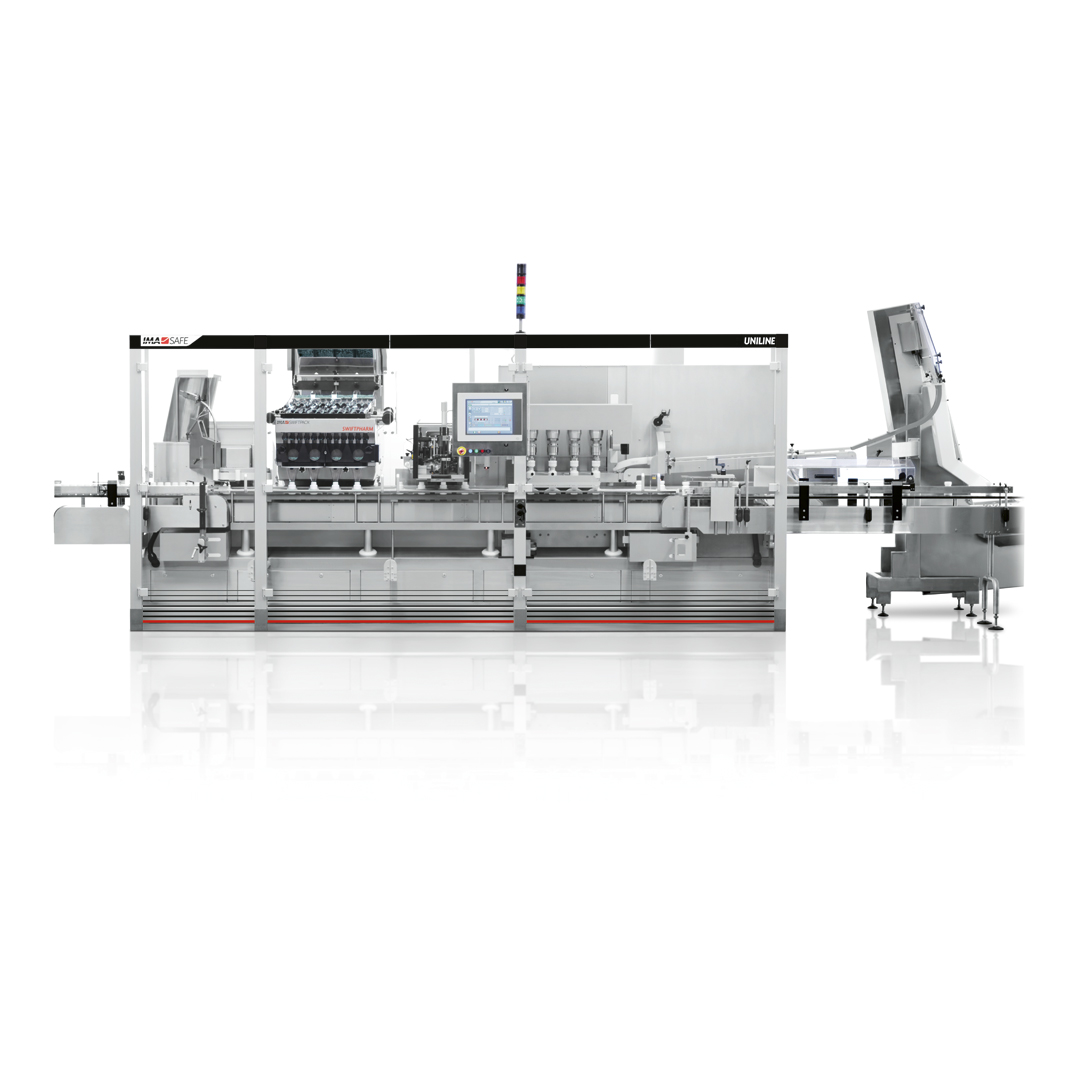

Uniline Counting/Dosing
Machine overview
Fast-track your counting system.

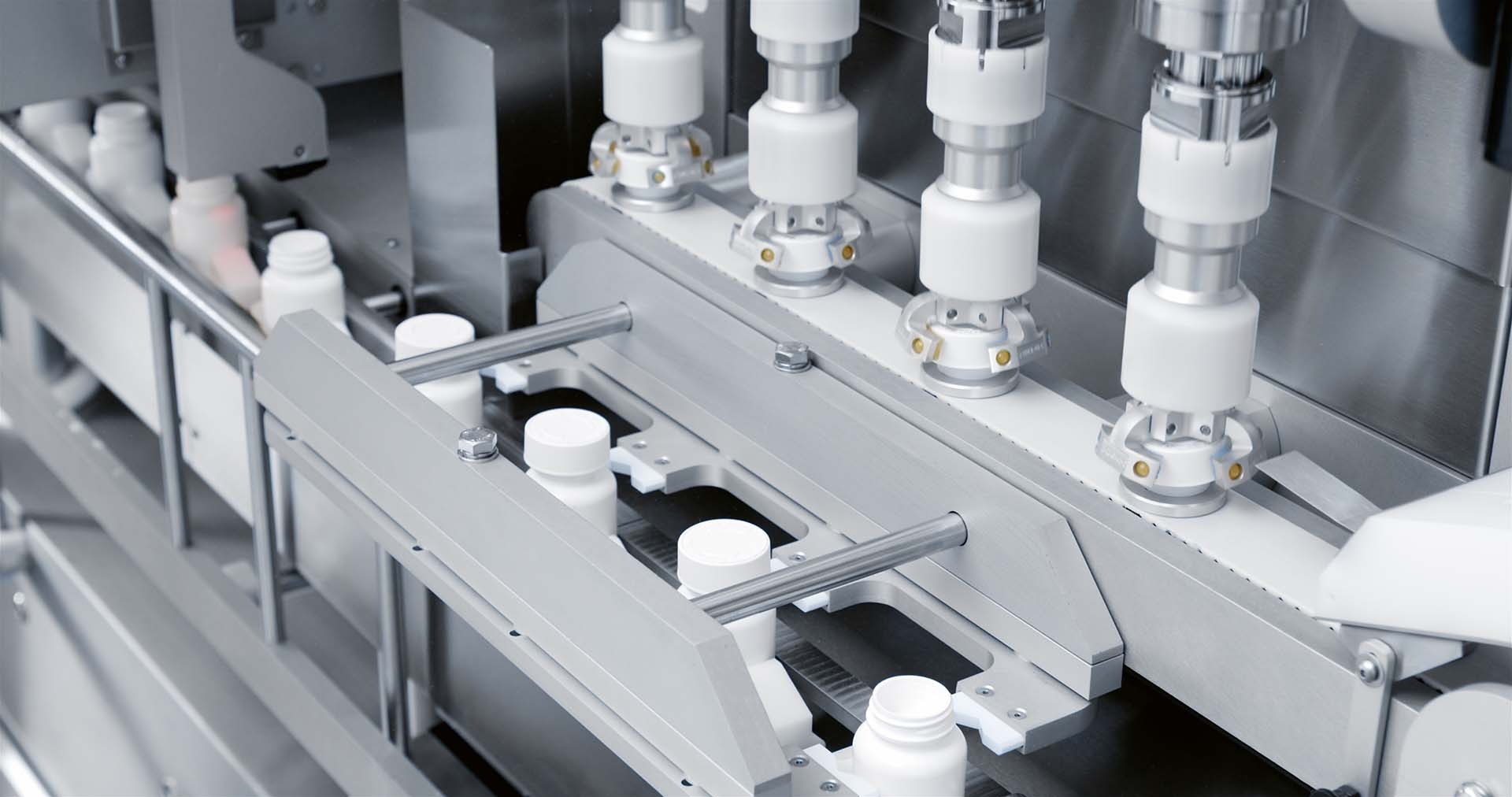

UNILINE is a conveying, filling and capping system that integrates the functions required to form a complete counting line: container loading, desiccant insertion, counting and filling, cotton insertion, capping, rejection.
Designed for maximum flexibility with no product or bottle change parts, UNILINE can be changed over very quickly and starts up immediately at production speed. achieving high OEE even when running small batches. The balcony design ensures easy cleanability and visibility with no hidden entrapment points. Thanks to its compact design, it fits in a fraction of the space needed for traditional equipment.
UNILINE enables the highest level of count accuracy thanks to the different counting technologies available (Optical sensor and E.F.S. – Electrostatic Field Sensor) which are able to work also in difficult conditions.
Production plant
IMA North America
Machine highlights
-

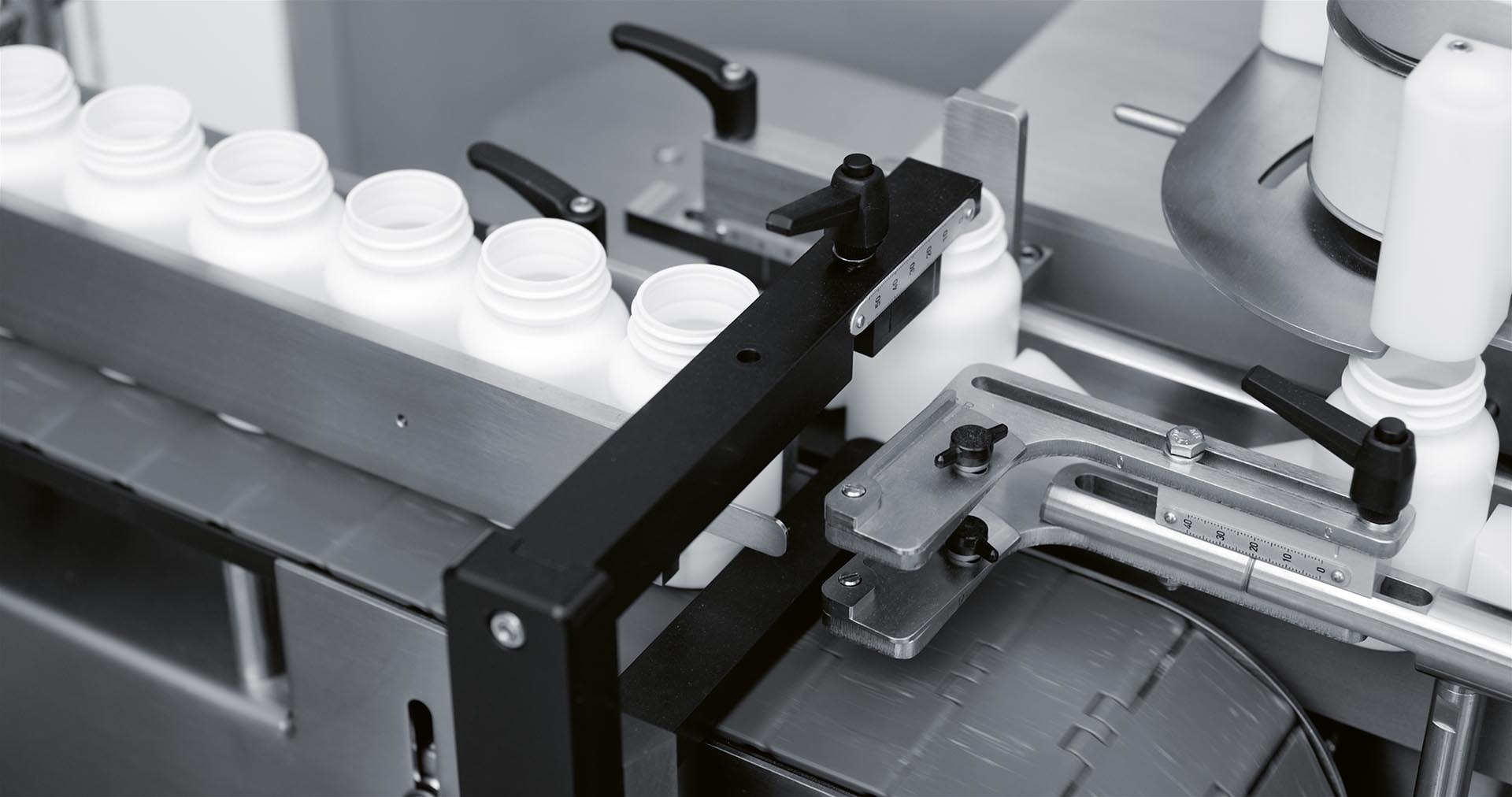

Bottle handling
The bottle is held positively and controlled throughout the entire process.
-
Zero oil contamination
No oil over the bottle transport.
-
No size parts
No size parts required for bottle dimensions.
-
Bottle size changeover
Automatic bottle size changeover with the touch of a button.
-
Cleaning made easy
Simple machine layout enables simple and fast cleaning.
-
Full versatility
Bottle transport system can handle round, rectangular, oval and square bottles.
-
Space-efficient
Counter does not require additional space at the rear of the machine.
-
In-house manufacture
All machines are made and supported by IMA.

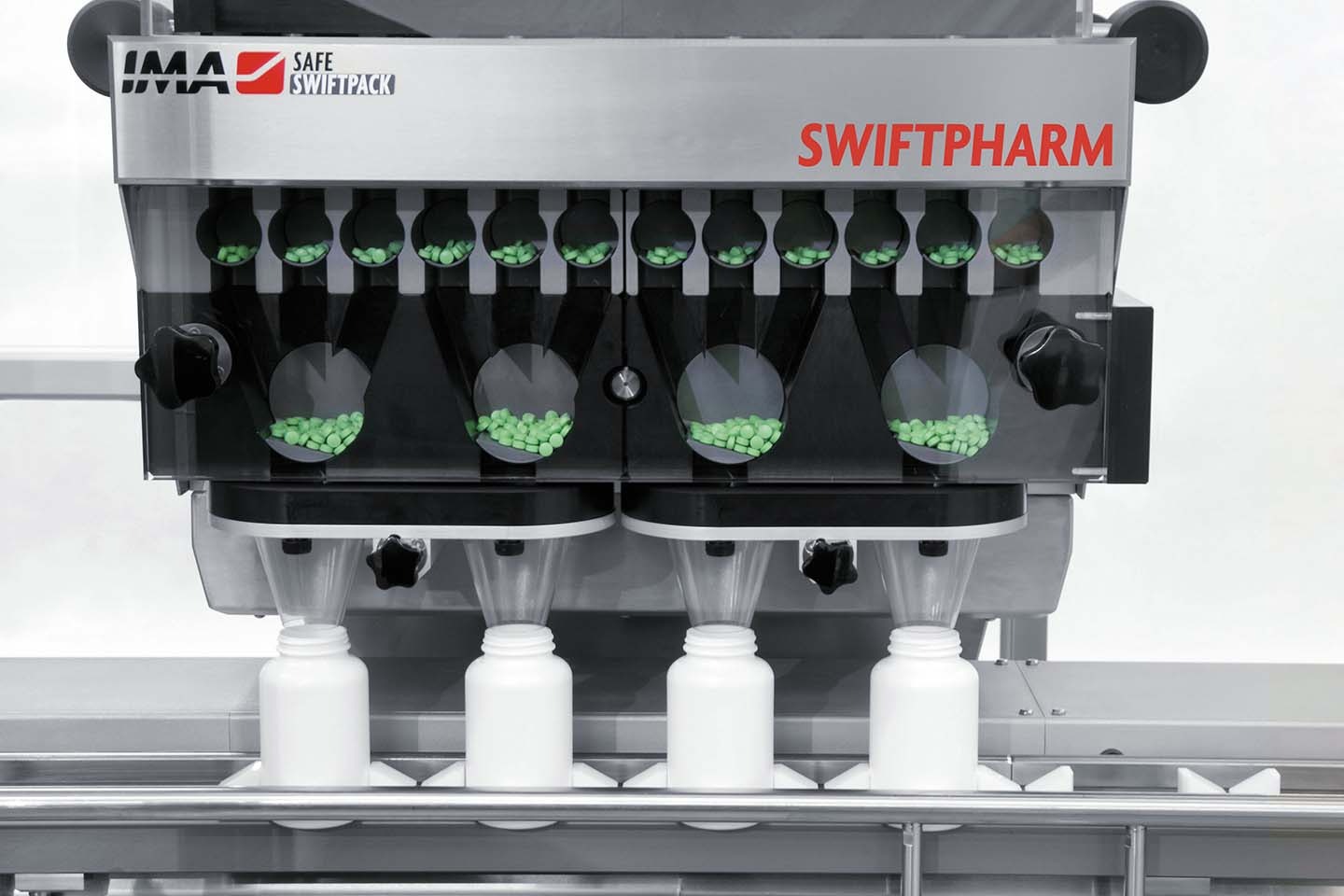

Counting accuracy
The counting accuracy depends on many factors: counter design, product flow control, gating system and, last but not least sensors. Over the years, Swiftpack has developed new solutions in order to improve quality and efficiency.
Machine details
Technical information
| TECHNICAL DATA UNILINE | |||||||
| Bottle Output | Up to 150 bpm | ||||||
| Product Output | 12,000 tablets/min. | ||||||
| Bottle range | Min. | Max. | |||||
| Length | Width | Height | Length | Width | Height | ||
| Round, rectangular*, square, oval* | 30 mm (1.18″) | 30 mm (1.18″) | 55 mm (2.17″) | 90 mm (3.50″), 104 mm (4.00″)* | 90 mm (3.50″) | 180 mm (7.00″) | |
| Cap range | CRC, Screw Top, Flip Top, Press on | 10 mm (0.44″) | 70 mm Dia. (2.75″) | ||||

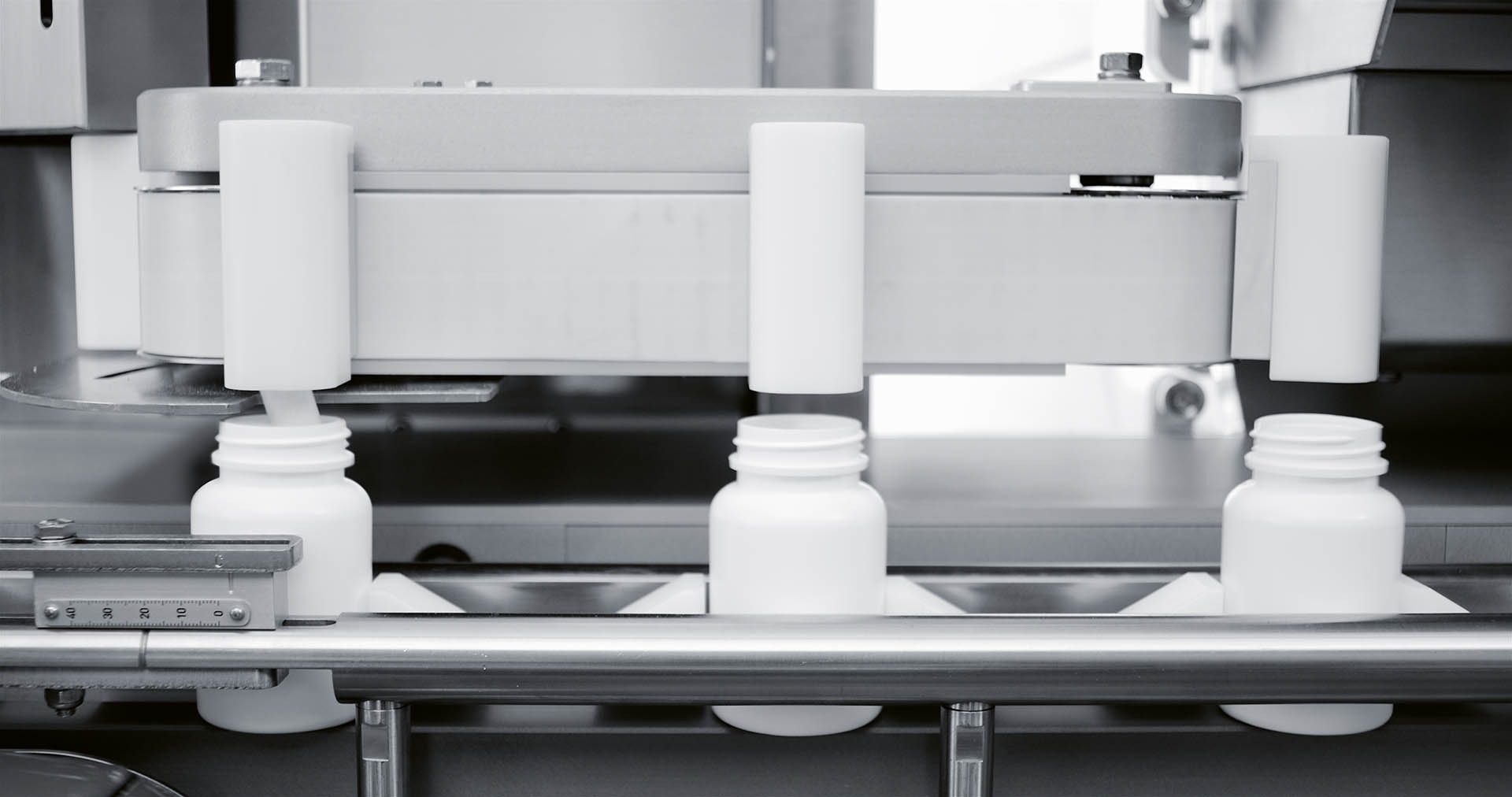

| Desiccant | 1,2 and 3 gram – 1 to 3 canisters per bottle | ||||||

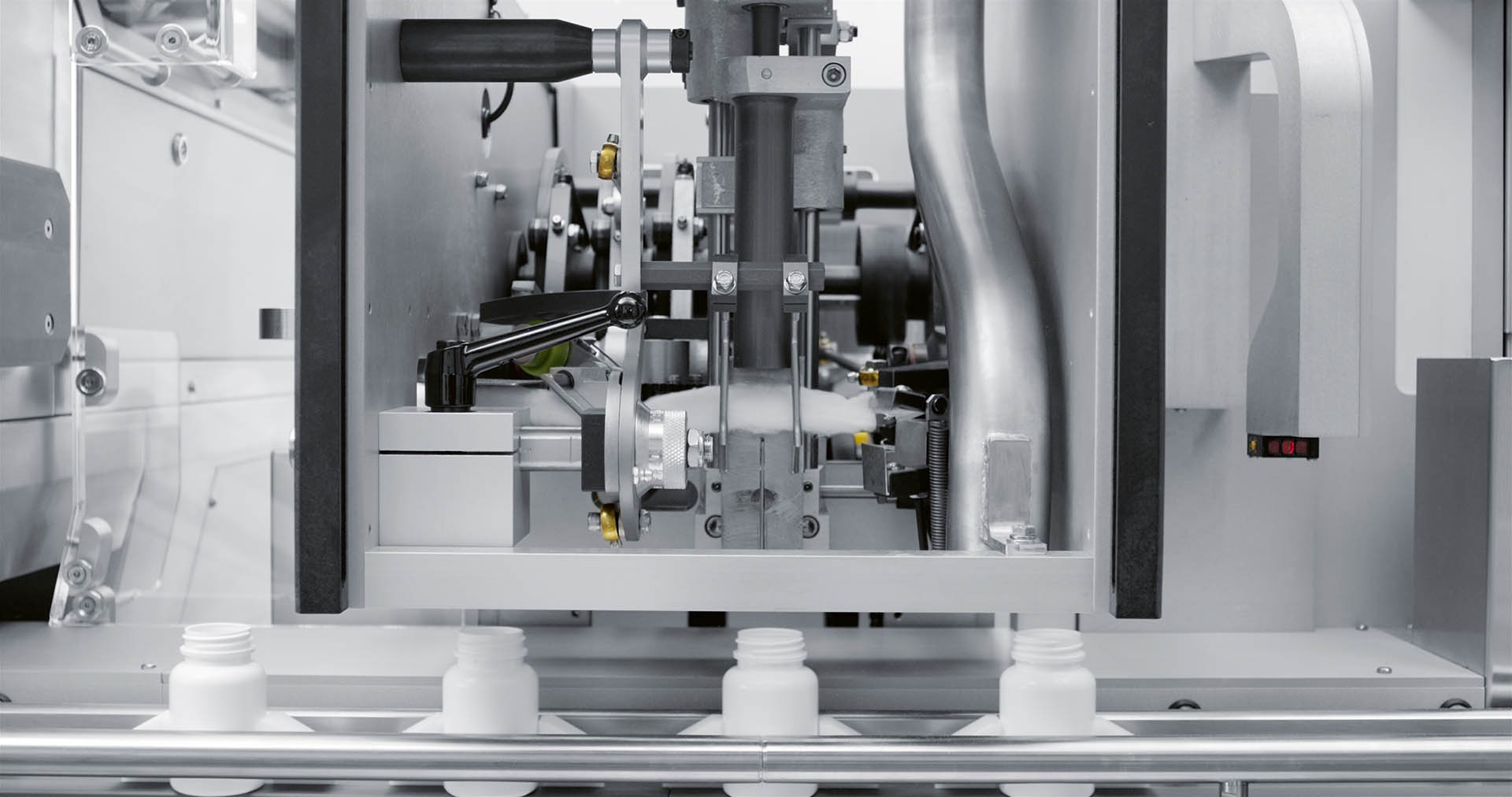

| Cotton | Cotton, Rayon, Polyester | 50 mm | – | – | 180 mm | – | – |
