Turbomix Liquid & Cream Processing

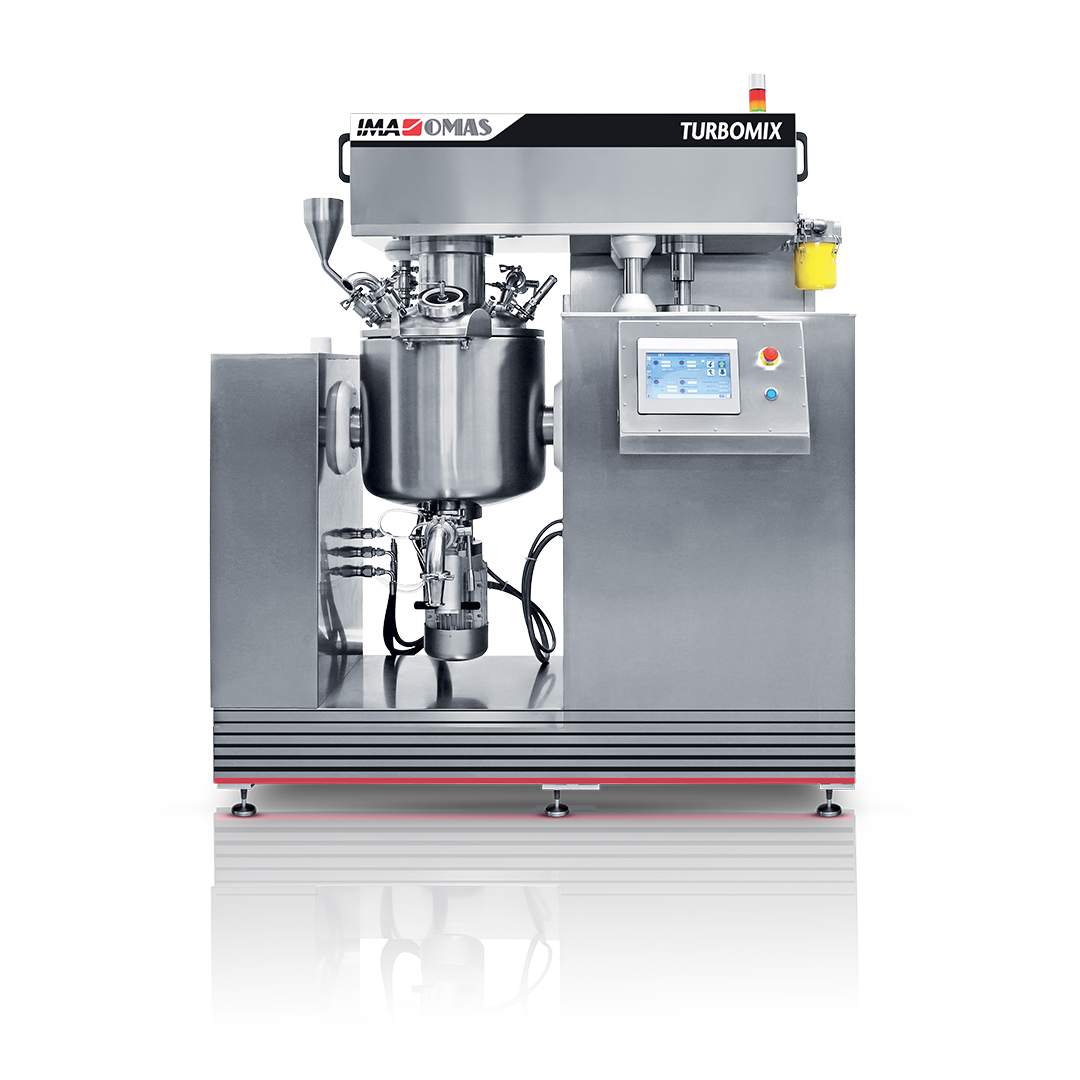

Machine overview

Turboemulsifier with homogenizer

Fully complete turbo undervacuum emulsifier with homogenizer in coaxial version for accuracy cream product processing by OMAS Tecnosistemi. Designed for easy cleaning and maintenance. Easy friendly touch screen panel. Complete of heating and vacuum system, lifting top cover and tilting device. Different options available as: product recirculation device, check weight control by load cells, heating system by steam, tank with increased pressure to facilitate product discharge, pre-melter vessel.
TURBOMIX Series with Tank size available from 3 litres up to 5000 litres

Production plant

IMA Omas

Machine highlights

Mixing and homogenizer system

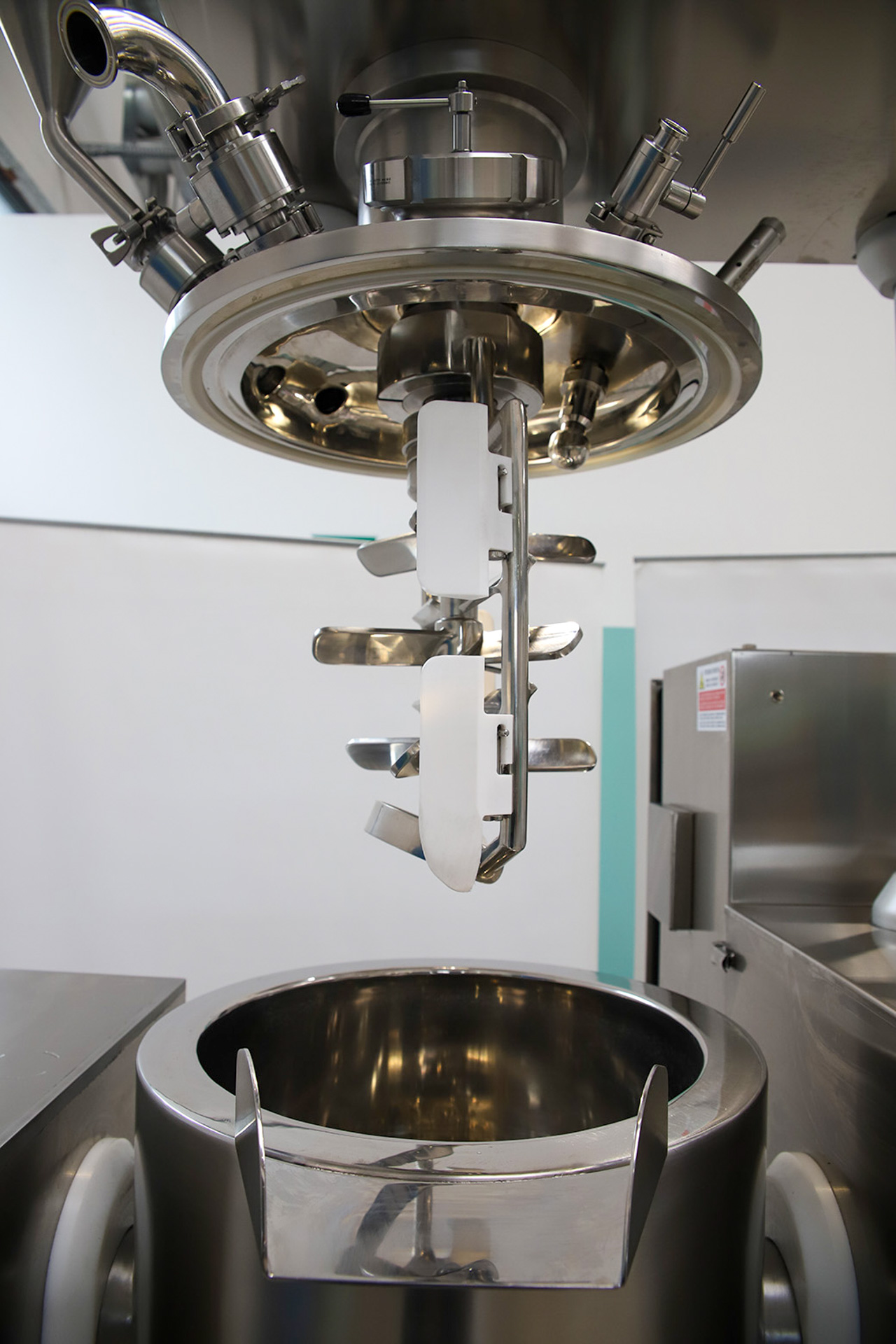

Low-speed mixing system operated by motor, with coaxial shafts. High speed homogenyzing system operated by motors positionned at the bottom of the frame, consisting of a turbine on the bottom of the vessel with coaxial shaft.

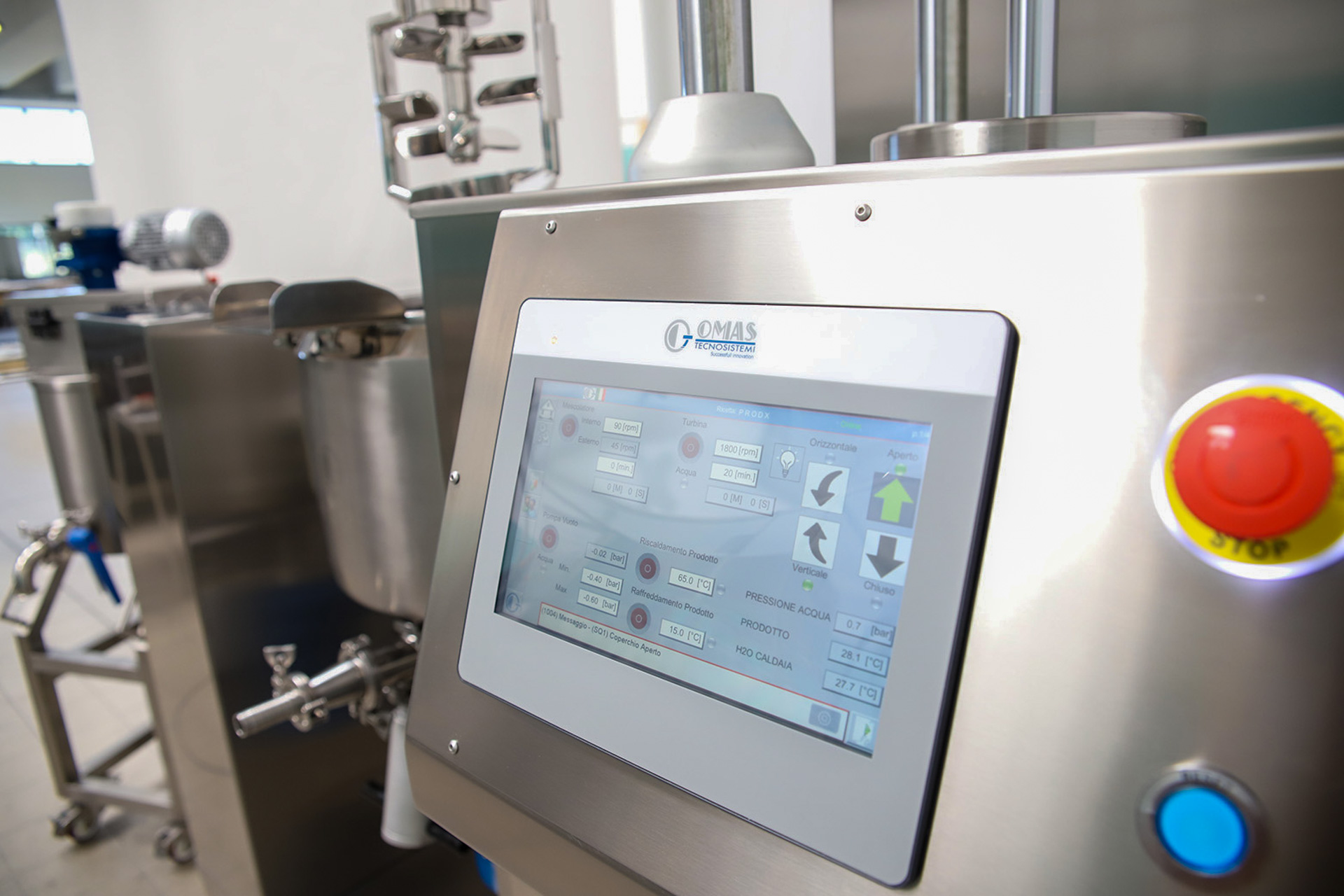

HMI and easy friendly panel

PLC and easy friendly HMI operator panel with program menu recipes for product preparation recipe, with possibility to store different recipes memorization.
Fittings

Automatic valve with tri-clamp on connections for vacuum, on connections for product feeding, on connections for vacuum break, discharge valve placed on the bottom of vessel.
