Swiftvision Counting/Dosing
Machine overview
Leading technology in tablet and capsule counting.

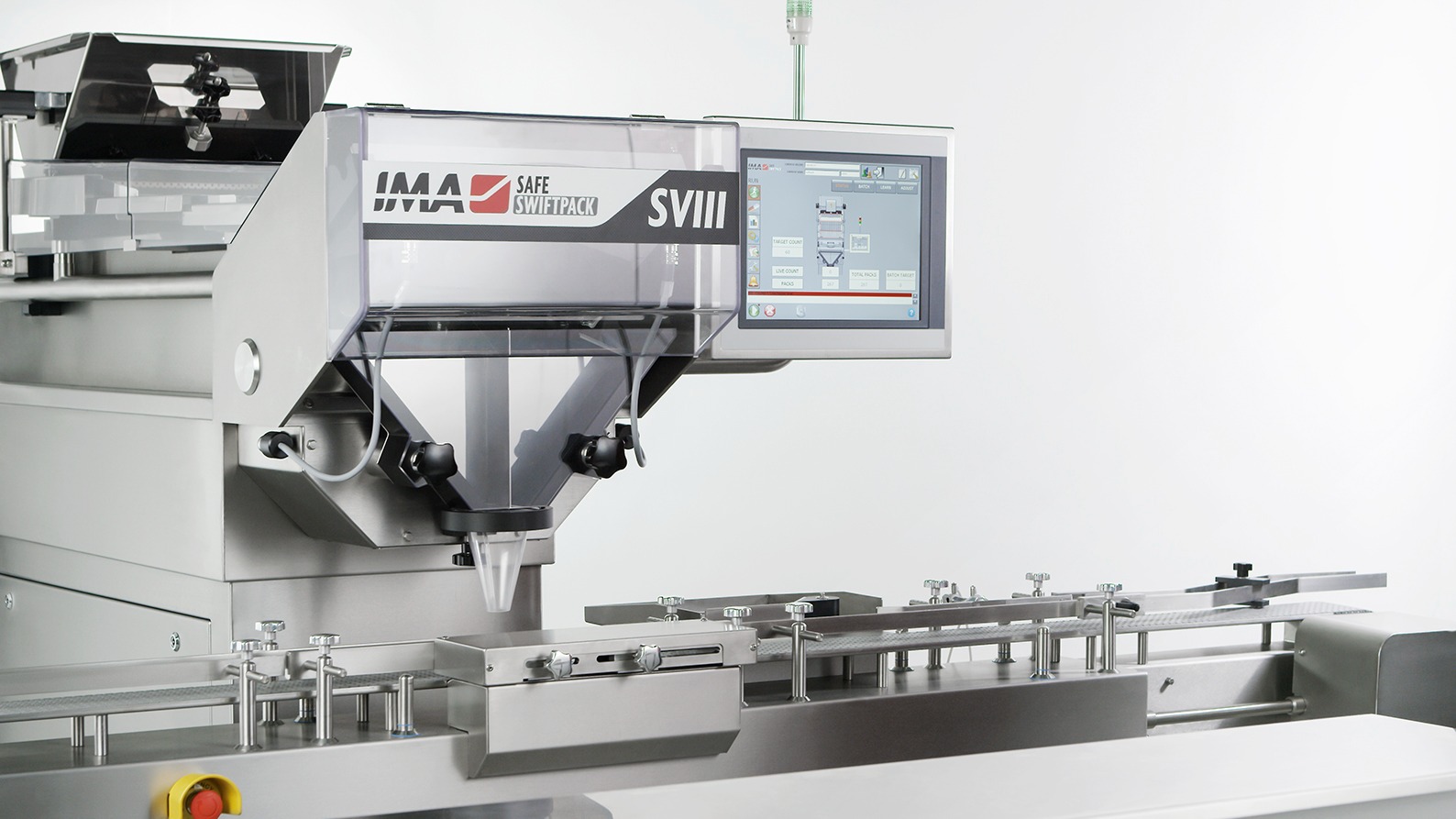

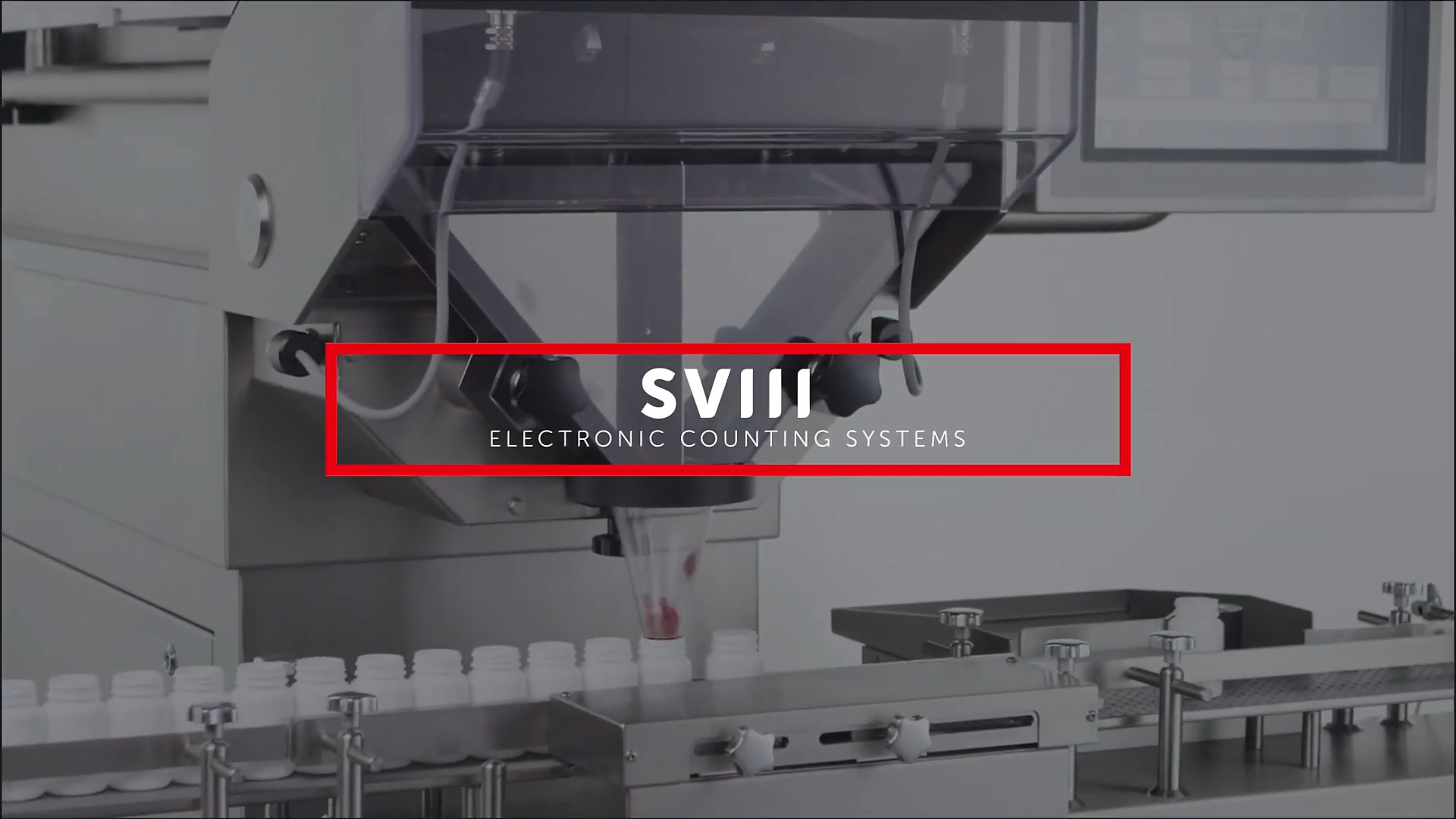

SVIII is a versatile counting/filling system to pack a variety of products accurately at speed, and requires few or no change parts to allow maximum productivity. Based on the Swiftvision experience that boasts over 300 machines supplied, an updated design enables SVIII to maintain the same reliability of the Swiftvision range, implementing additional features to make this counter even more reliable and simple to operate.

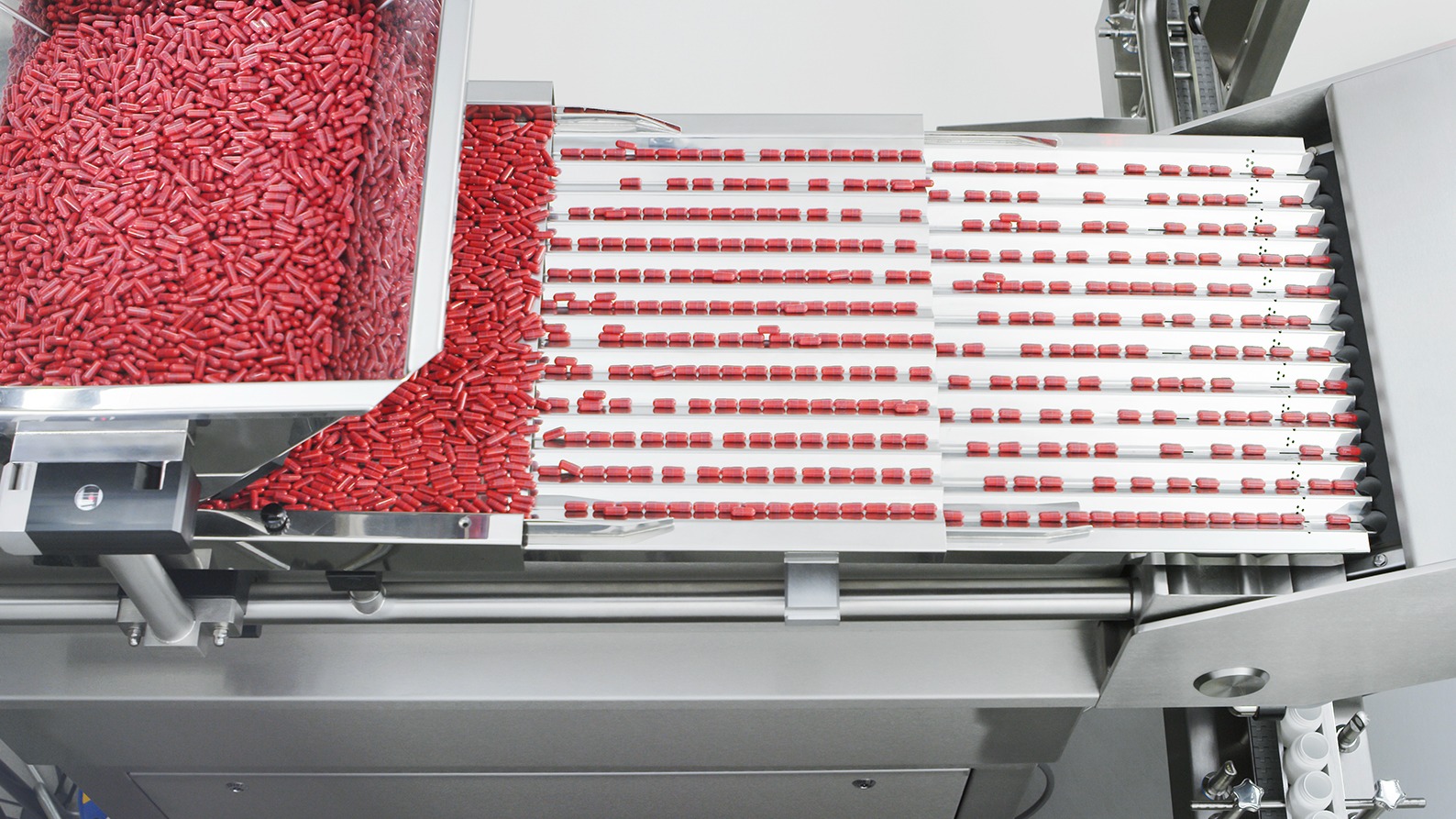

The SVIII counter range can be configured for any product or container requirement. Count speed and accuracy are optimised through the product flow feeding control system, which prevents surges and ensures a constant flow of the product to the count head, regardless of hopper level.
Production plant
IMA Swiftpack
Machine highlights
-
Accuracy without maintenance
Flow control through counting rate feedback for more accurate tablet flow control. No maintenance required.
-
Easy cleaning procedure
Single vibrator cover allows for easier and faster cleaning.
-
Optimum accessibility
Redesigned count head and pre-count gating facilitate easier count head removal and better access for cleaning and maintenance.
-
Power lift
New power lift mechanism.
-
Increased counting precision
Electrostatic field sensor (EFS) available for maximum counting accuracy.
-

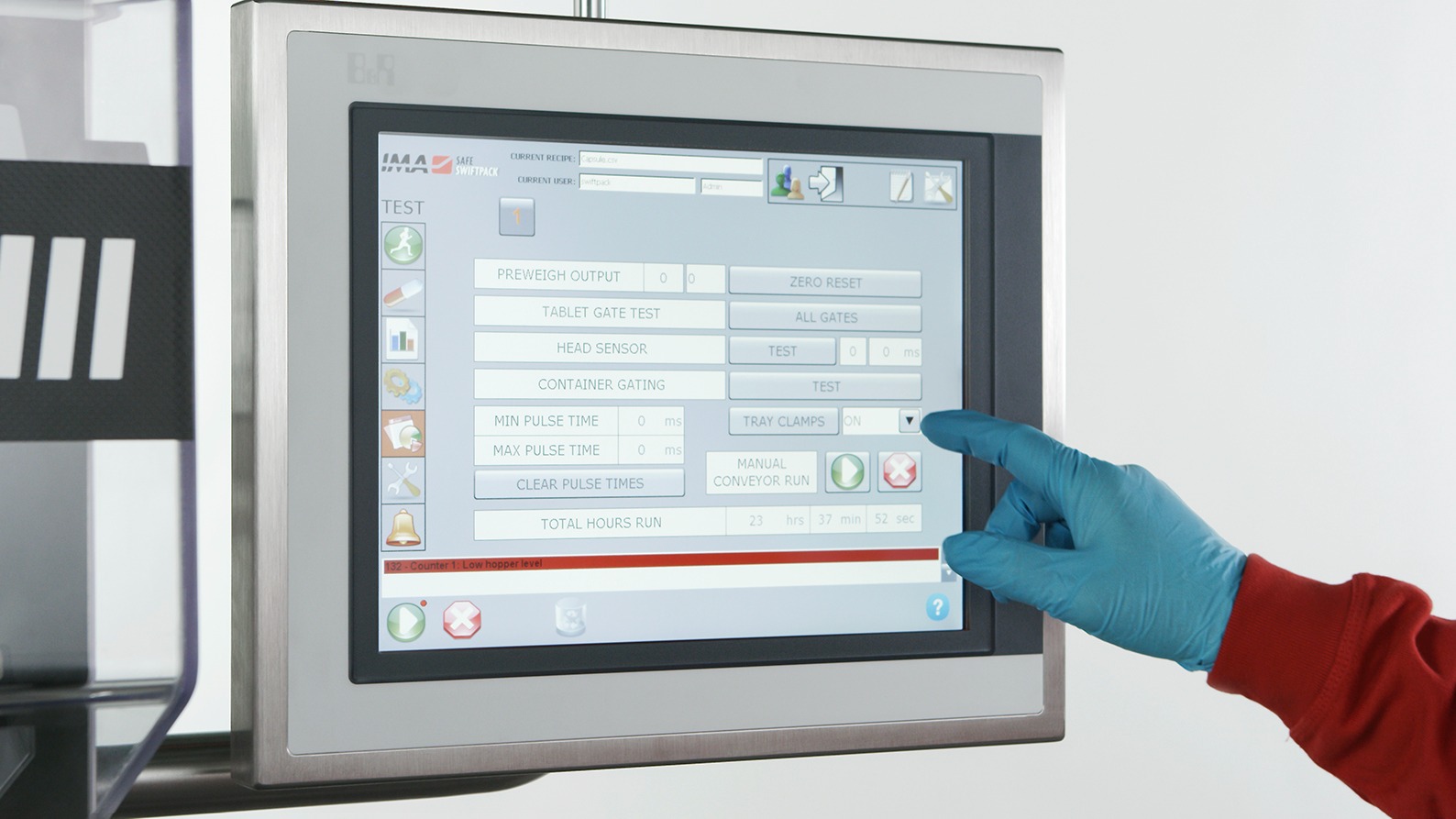

21 CFR Part 11
CFR Part 11 compliance as an option.
Counting accuracy
Counting accuracy depends on many factors: counter design, product flow control, gating system and, last but not least, sensors. Over the years, Swiftpack has developed new solutions in order to improve quality and efficiency.

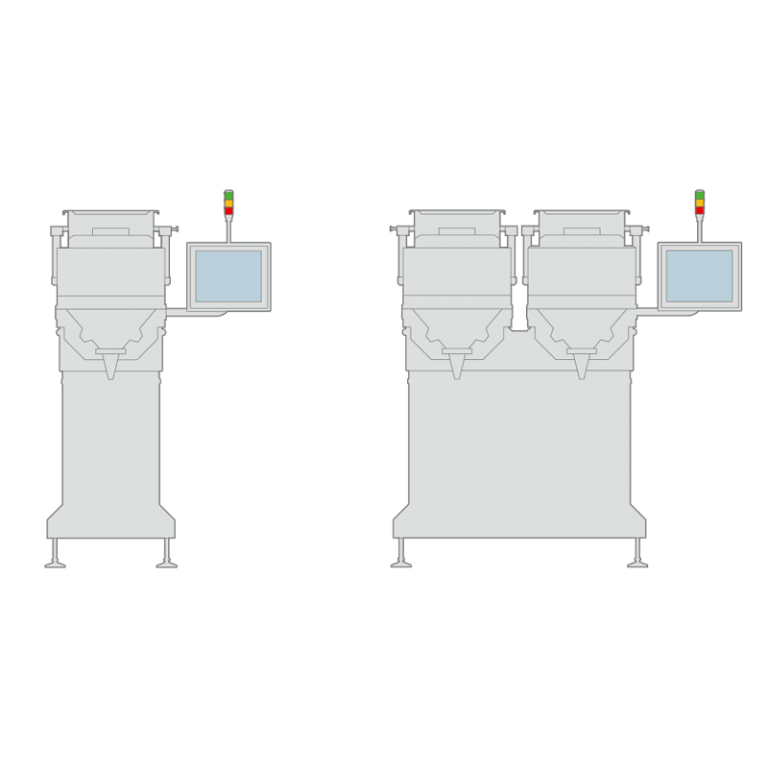

Versions
The SVIII series includes the following configurations:
• SVIII Single, one counting head mounted on a single base

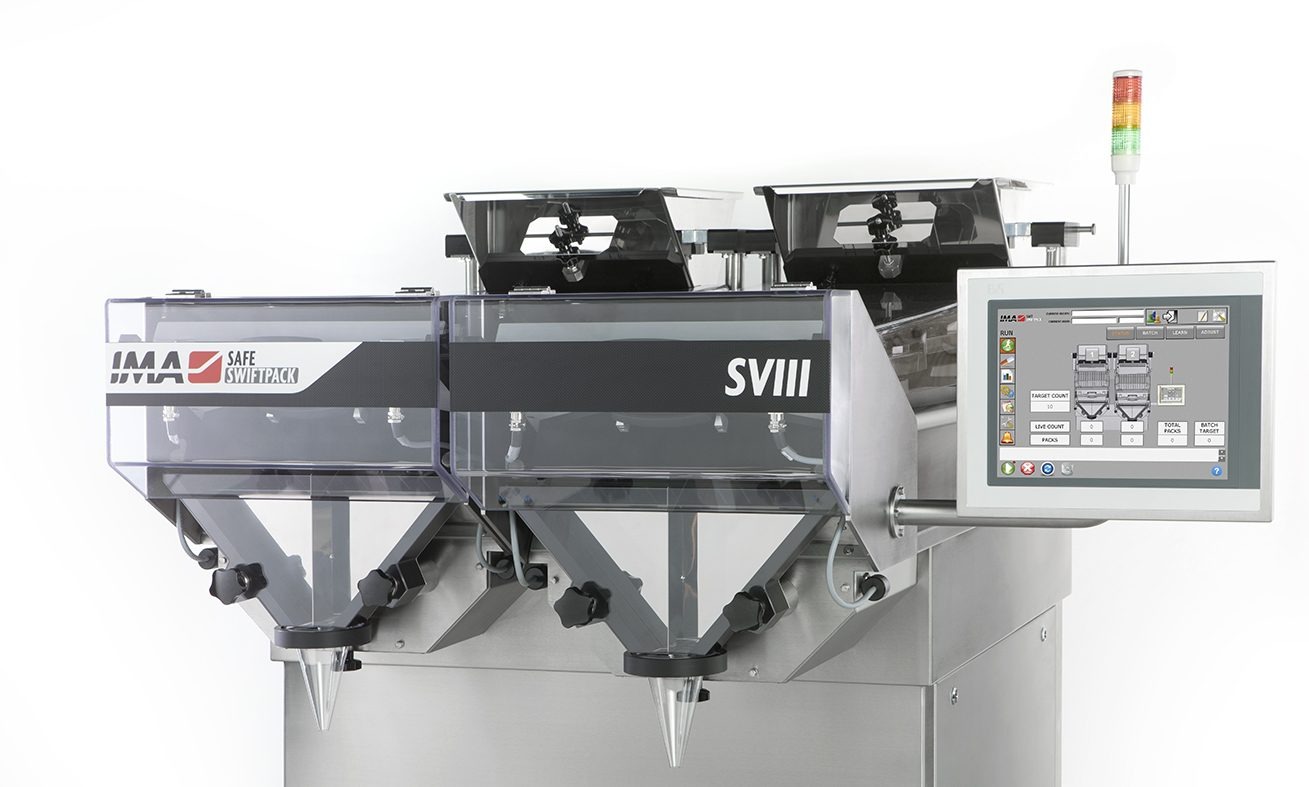

• SVIII Twin, two counting heads mounted on a single base
Machine details

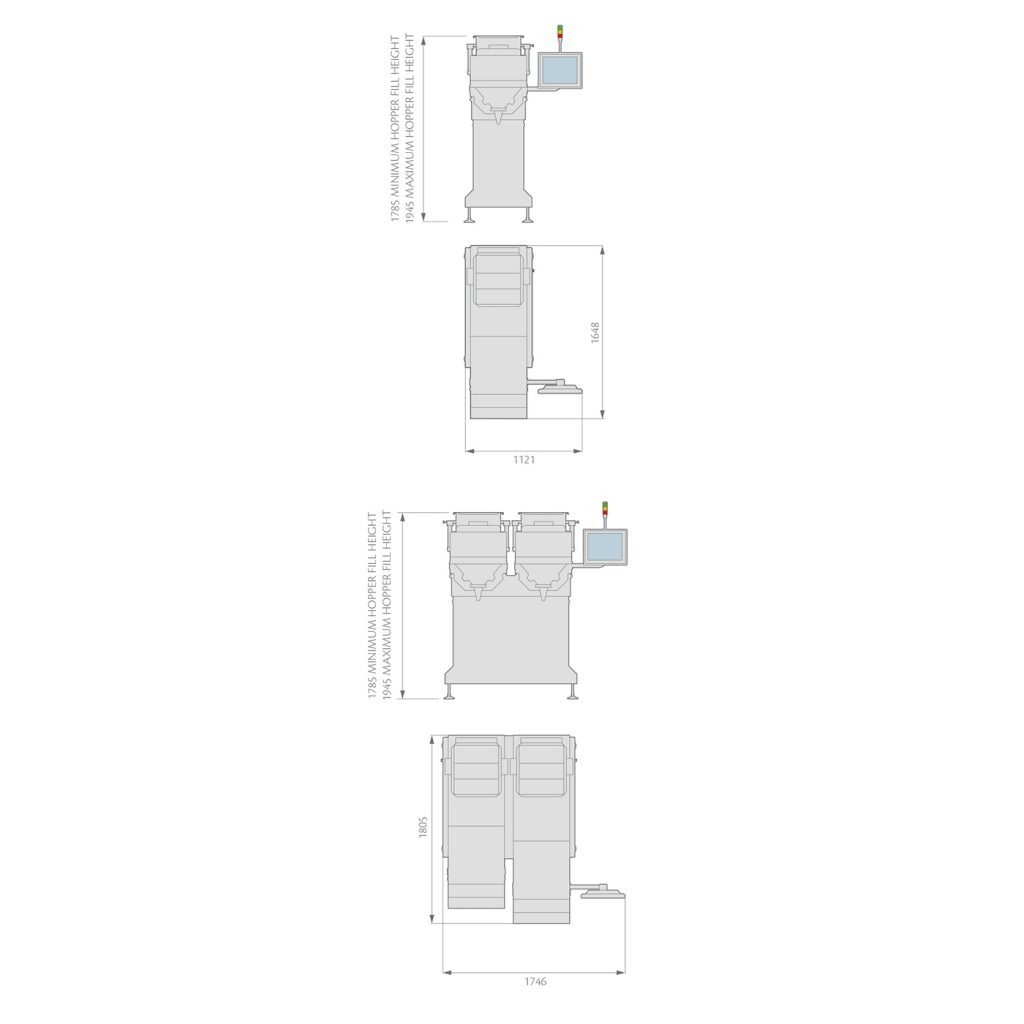

Technical information
| SVIII TECHNICAL DATA | ||
| Model | SVIII SINGLE | SVIII TWIN |
| Production output | Up to 60 bottles/min. or 6,000 tablets/min.* | Up to 120 bottles/min. or 12,000 tablets/min.* |
| Container diameter range | 25 mm – 100 mm | 25 mm – 100 mm |
| Container height range | 40 mm – 200 mm | 40 mm – 200 mm |
*Depending on product and bottle shape and size
