Swiftpharm Counting/Dosing
Machine overview

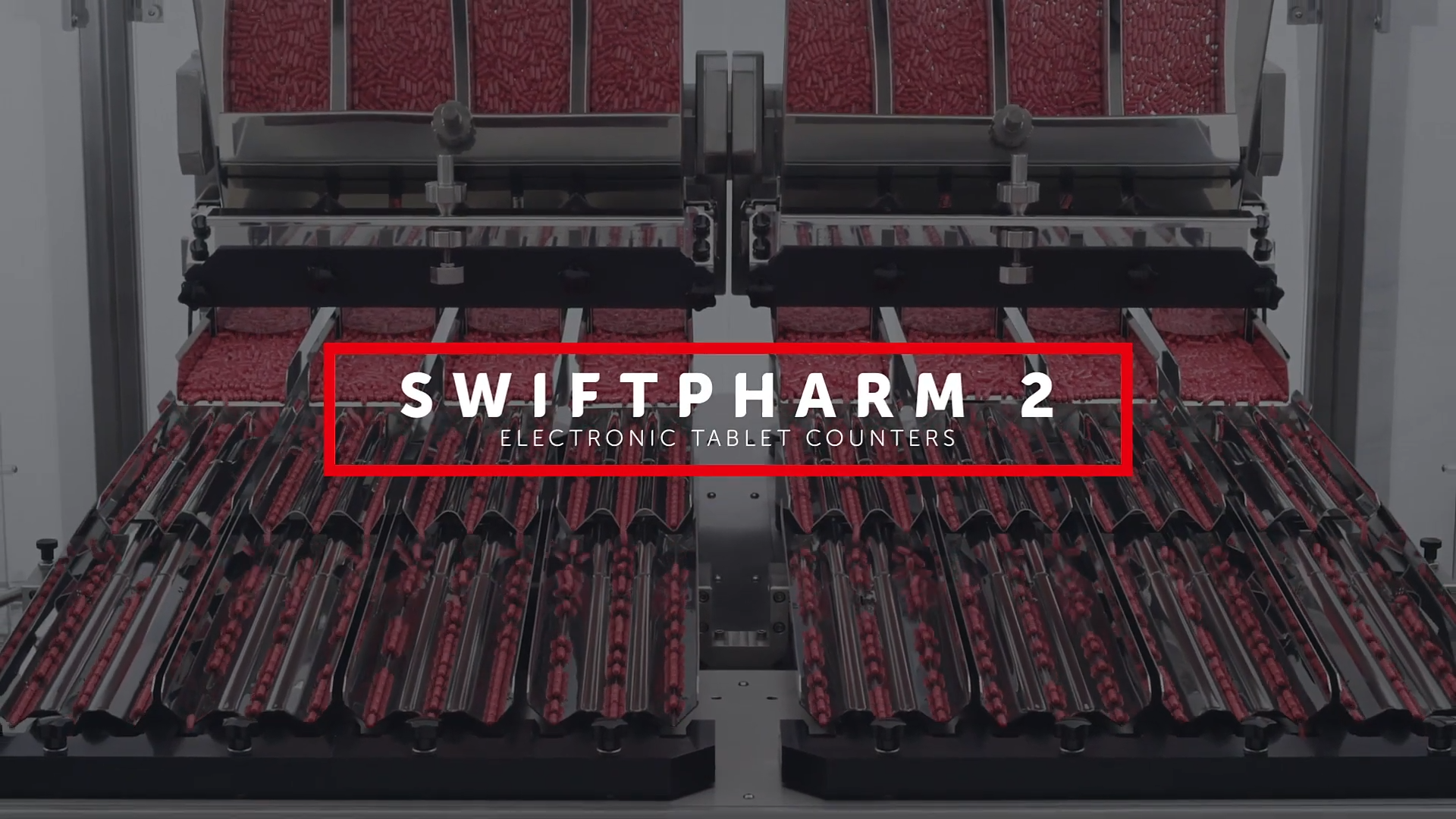

Taking electronic tablet counting to the next level.
SWIFTPHARM 2 is a versatile counting/filling system built to pack a variety of products accurately and at high speed. Requiring few or no change parts, it helps achieve maximum productivity.

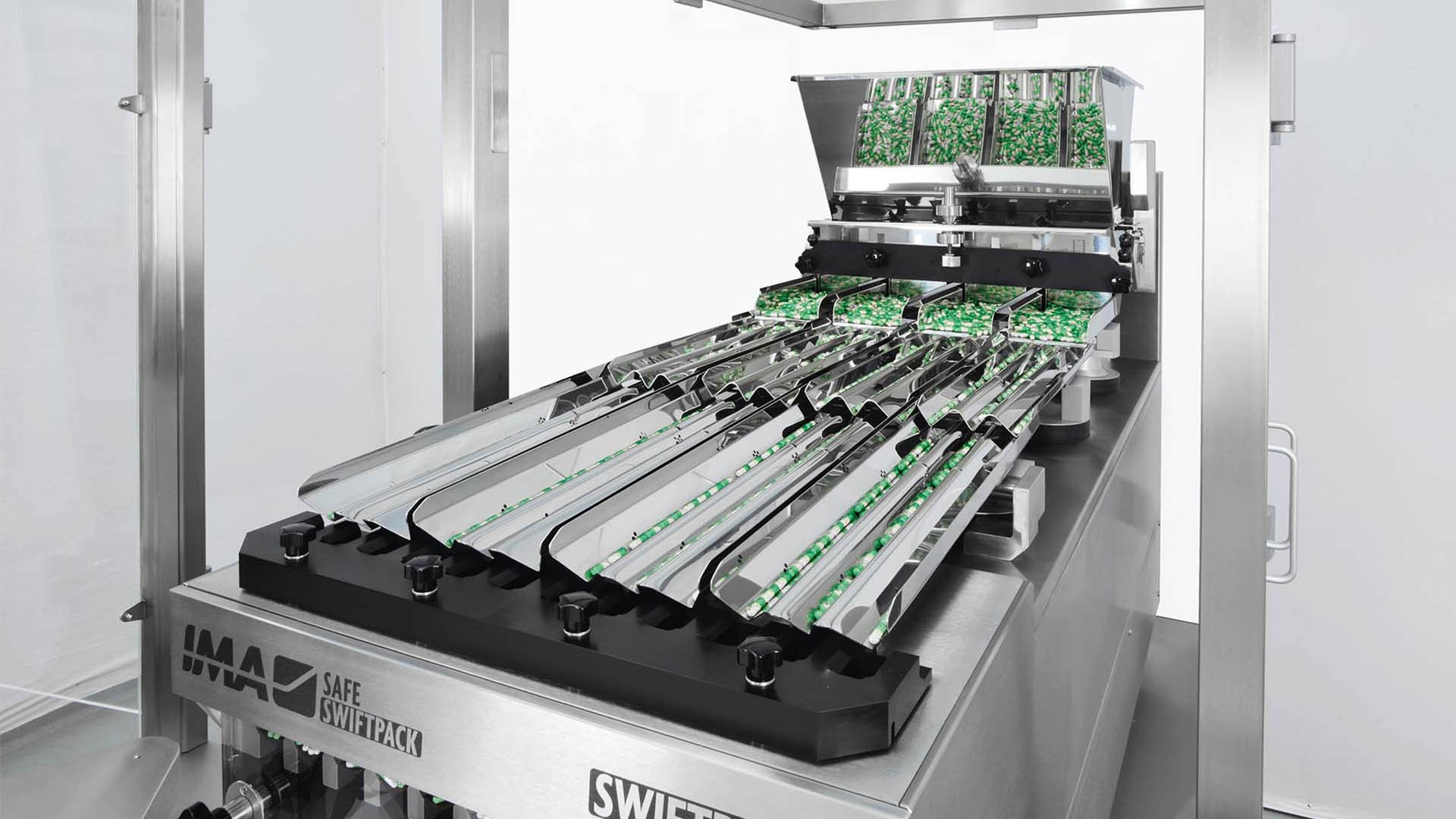

As a pharmaceutical-grade, electronic tablet counter with positive bottle transport, SWIFTPHARM 2 is available in two configurations according to the speed required: SWIFTPHARM 2-4 with one counting head and SWIFTPHARM 2-8 with two counting heads.
Both versions enable the highest level of count accuracy thanks to the different counting technologies available (Optical sensor and E.F.S. – Electrostatic Field Sensor) which are also able to work in difficult conditions. Moreover, SWIFTPHARM 2 is extremely easy to clean and its design featuring integrated guards allows for perfect integration of containment solutions if needed.
Production plant
IMA Safe
Machine highlights
-
Space-efficient
No additional space is required at the back of the counter for cleaning procedure.
-
Minimal downtime
The simpler layout allows for simpler cleaning procedures and reduces downtime.
-
Integrated-guard design
Enables a greater degree of product isolation.
-

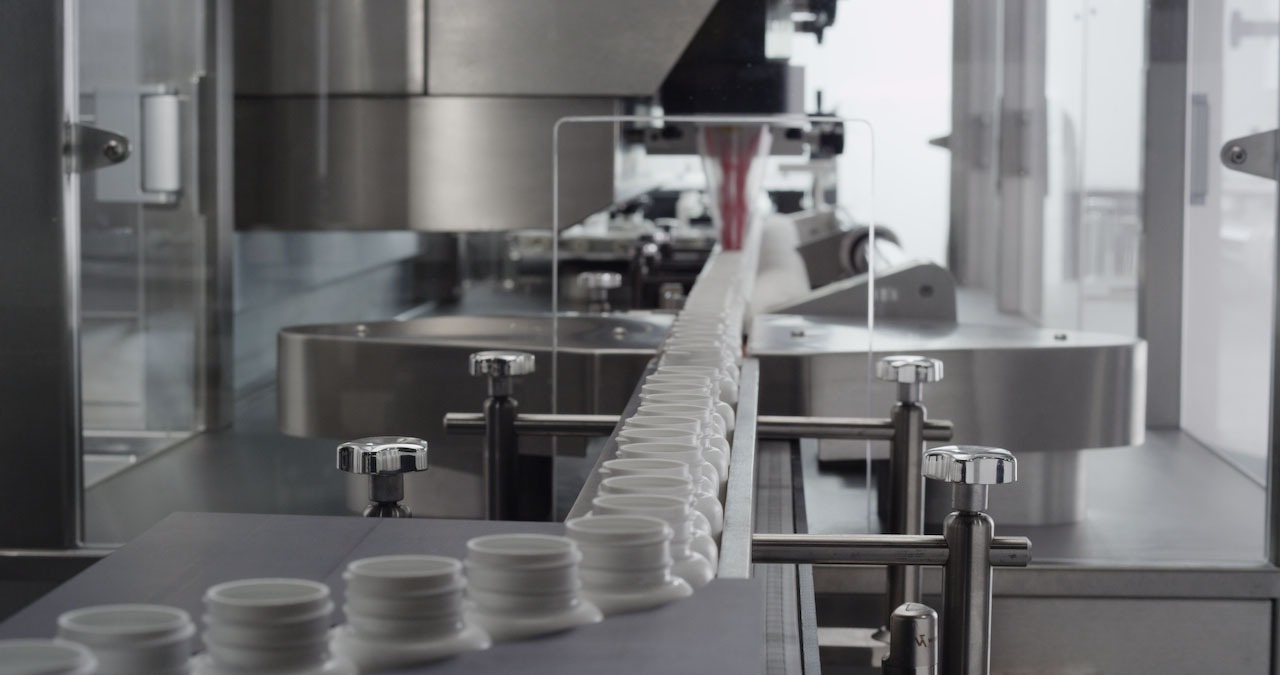

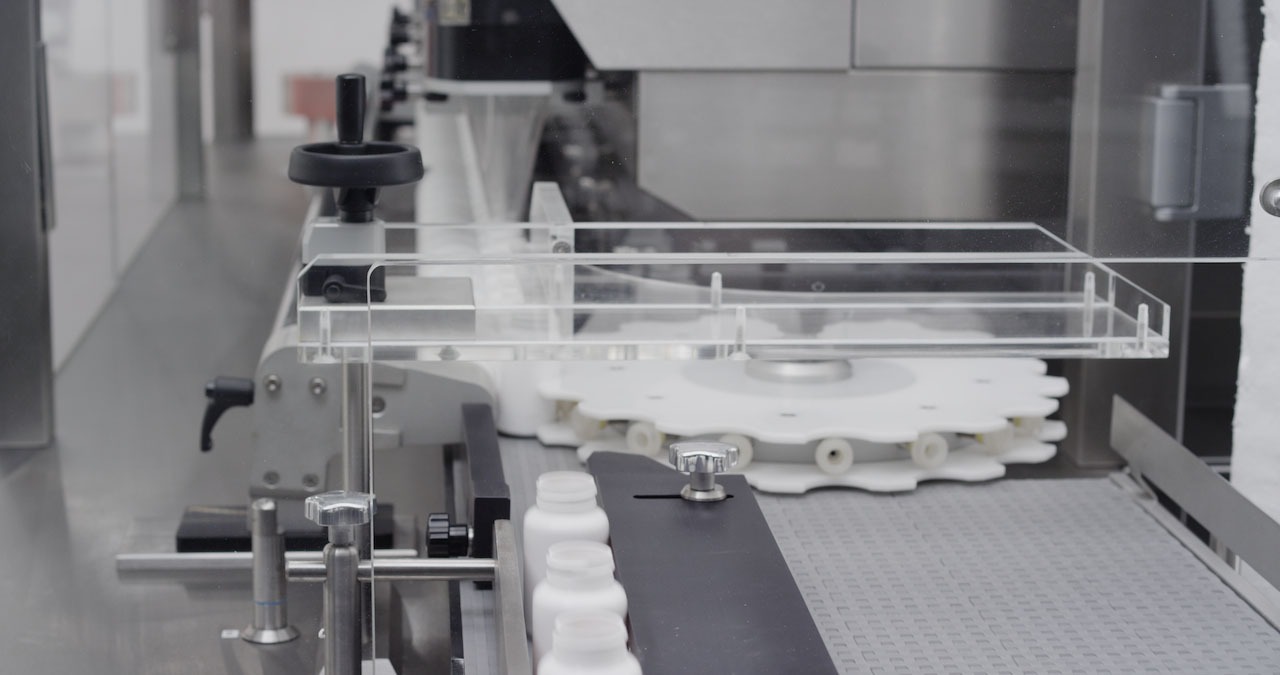

Container handling
The container is held positively and controlled throughout the entire process.
-

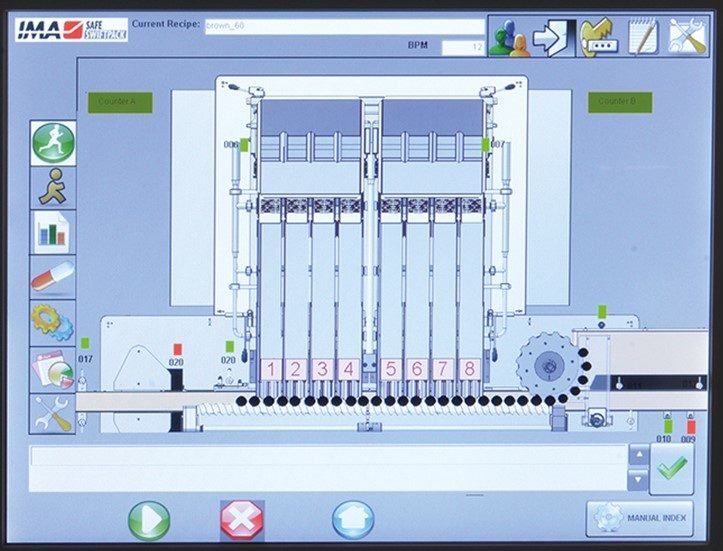

One HMI for two functions
A single HMI for the counter and the bottle transport.
-
Count accuracy
The highest level reached by any electronic counter.
-
Fewer parts
Fewer product contact parts and fewer bottle format parts compared to the direct competitor.
-
Zero oil contamination
No oil over the bottle transport.

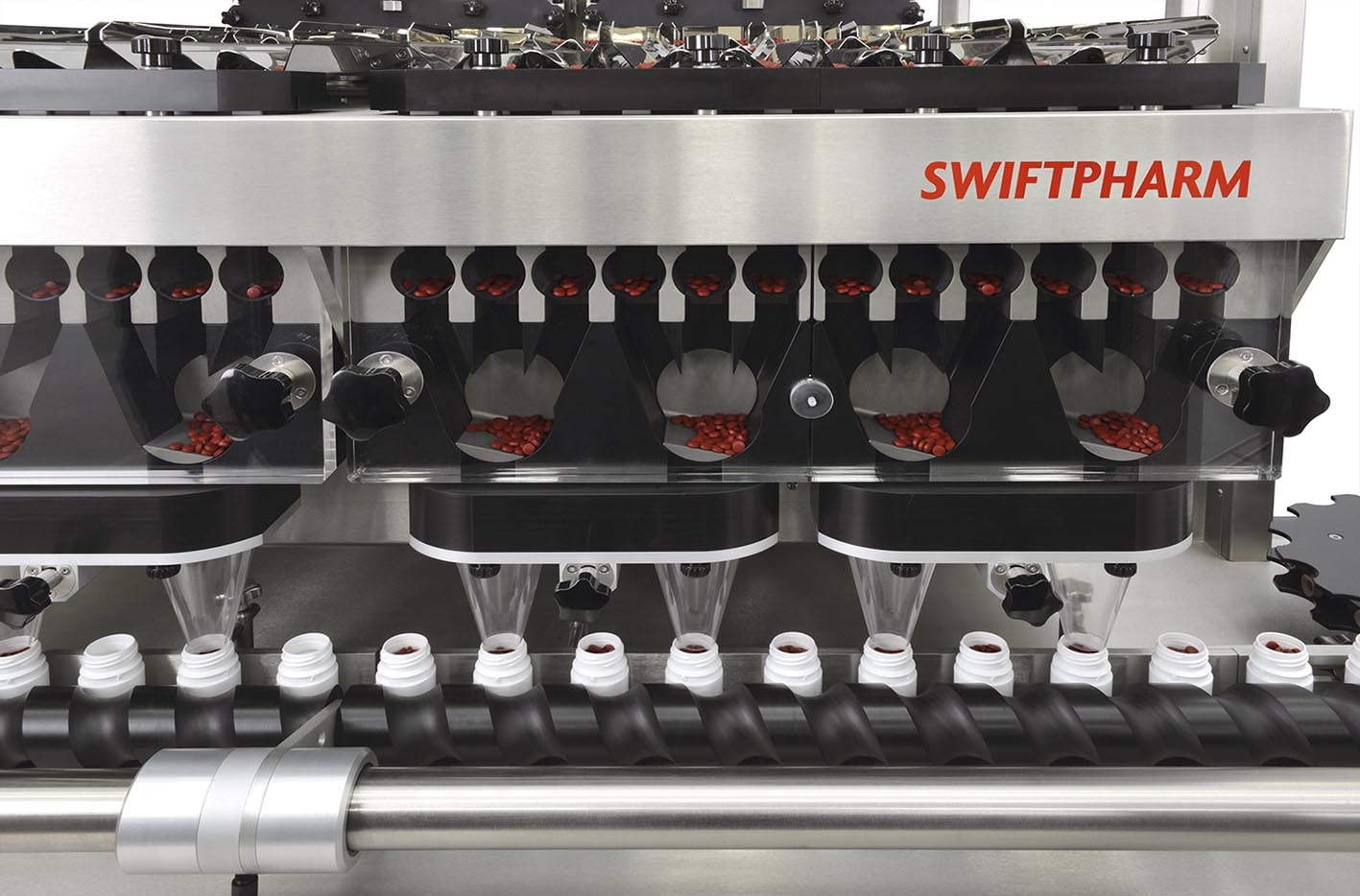

Counting accuracy

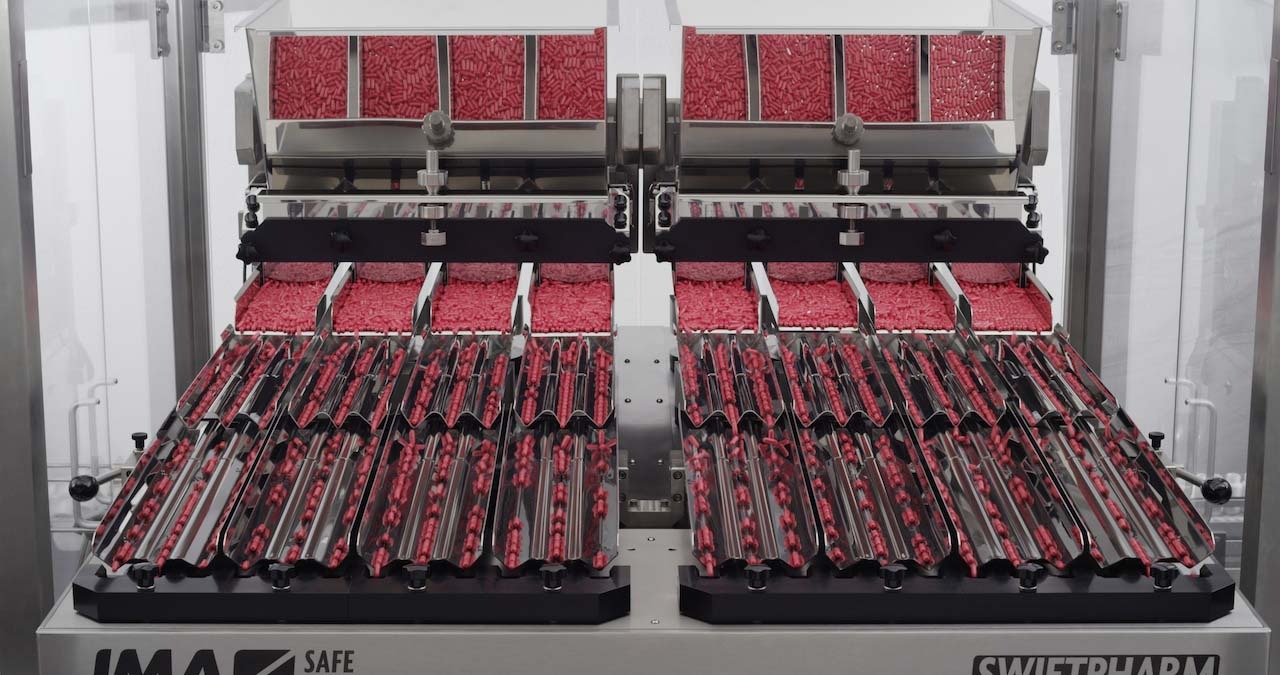

Counting accuracy depends on many factors: counter design, product flow control, gating system and, last but not least, sensors. Over the years, Swiftpack has developed new solutions in order to improve quality and efficiency.
Versions
The SWIFTPHARM 2 series includes the following configurations:

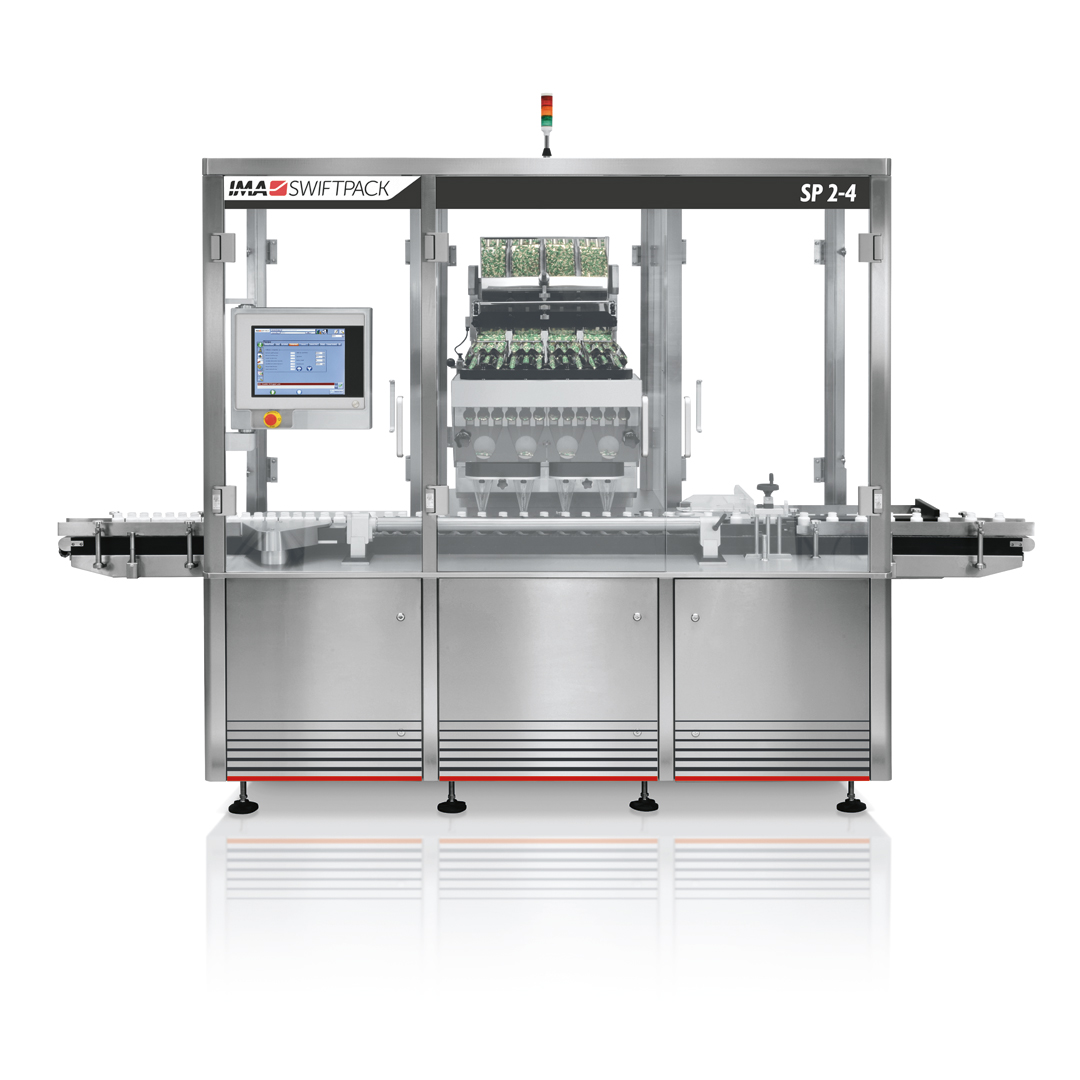

• SWIFTPHARM 2-4 machine, one counting head mounted on a single base
• SWIFTPHARM 2-8 machine, two counting heads mounted on a single base

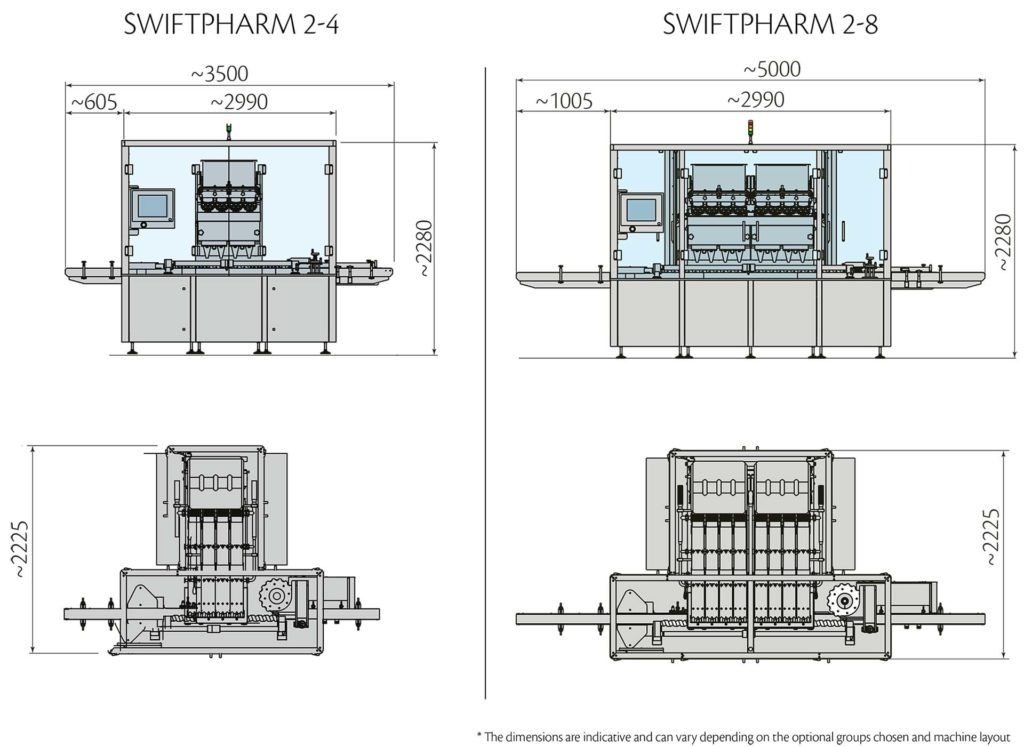

Machine details
Technical information
| SWIFTPHARM 2 TECHNICAL DATA | ||
| Model | SWIFTPHARM (2-4) | SWIFTPHARM (2-8) |
| Production output | Up to 120 bottles/min. or 12,000 tablets/min.* | Up to 240 bottles/min. or 24,000 tablets/min.* |
| Container diameter range | 25 mm – 100 mm | 25 mm – 100 mm |
| Container height range | 40 mm – 200 mm | 40 mm – 200 mm |
