SR Smart Series SR Smart Series

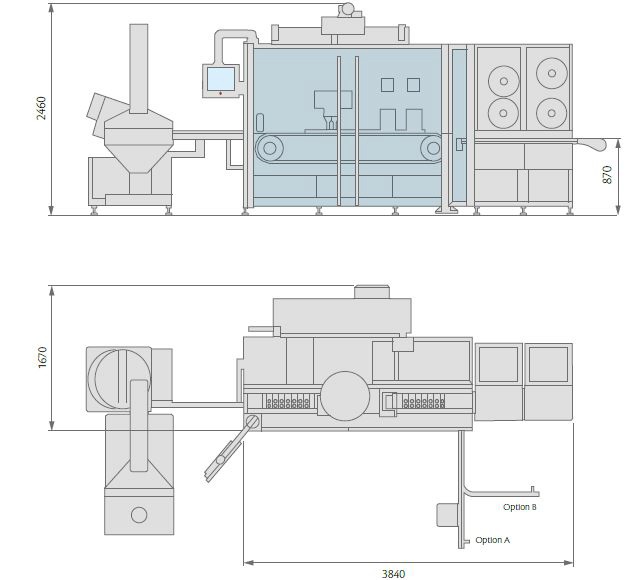

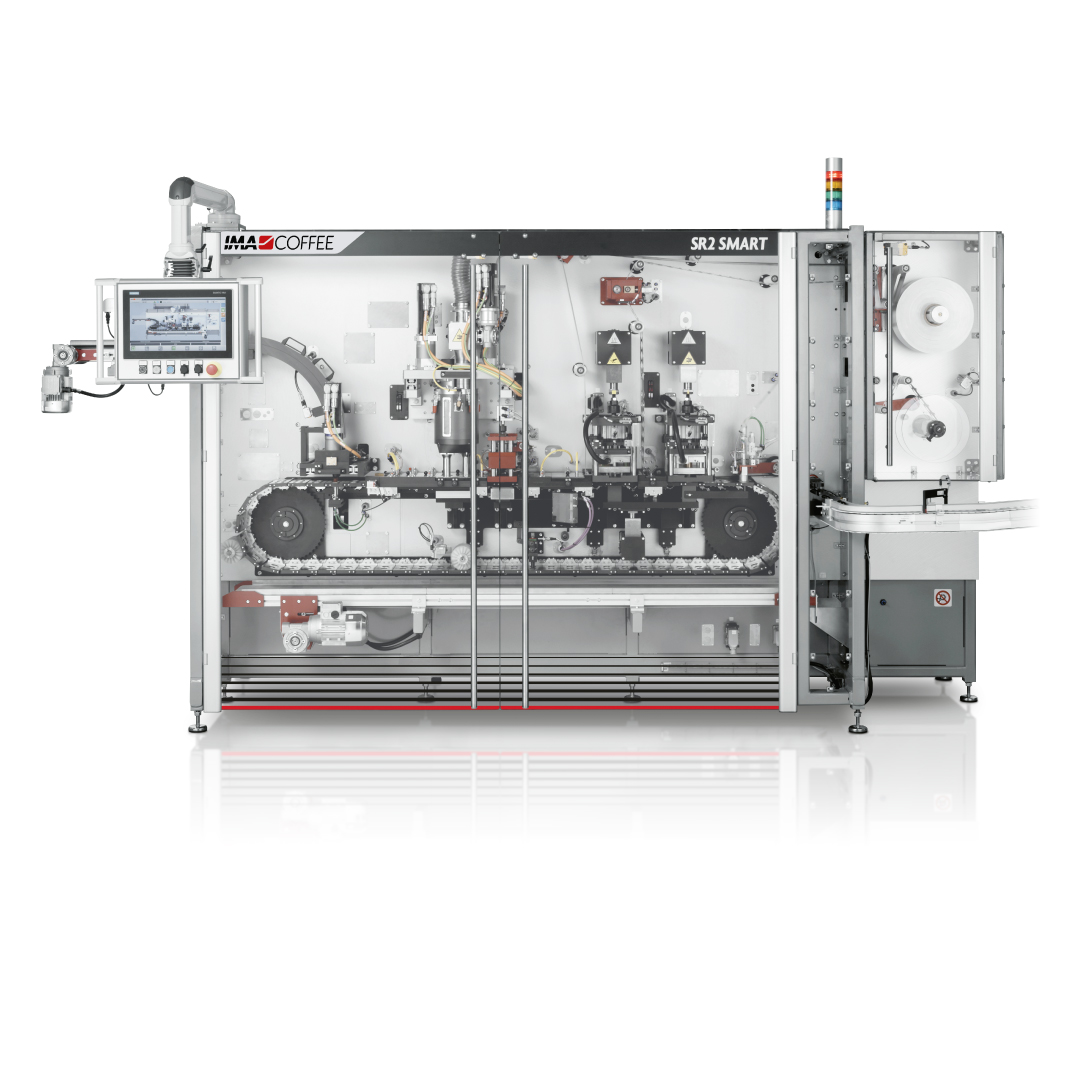

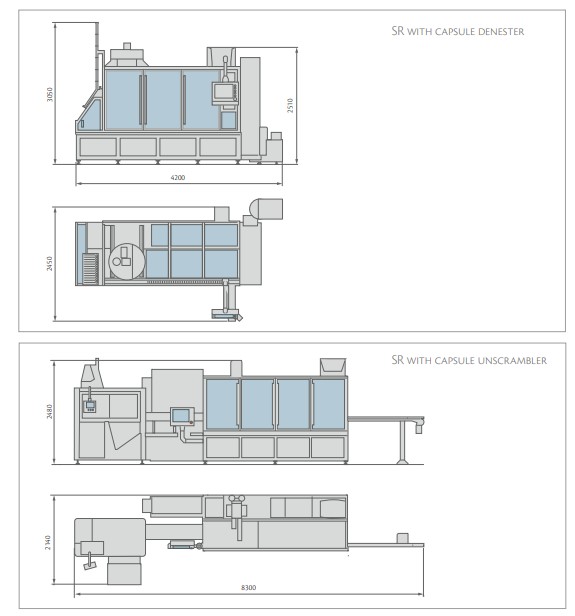

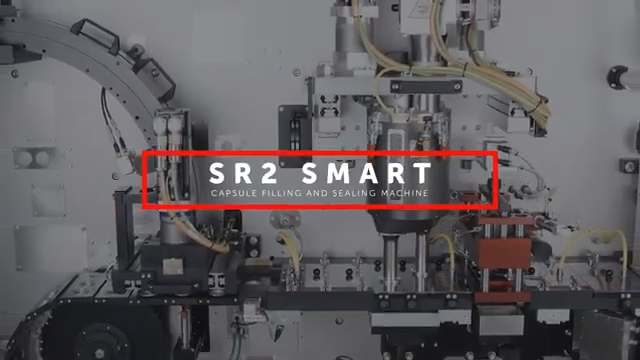

Machine overview
So smart, for any capsule there is
The unique ergonomic cantilever design assures great accessibility for maintenance, service and easy cleaning; further more the pullout operating system significantly reduces line downtimes resulting in a great efficiency increase. Lid and waste reels are placed outside the machine, reducing downtime.
Thanks to a very fast size changeover and to an integrated double feeding system, for bulk and stacked capsules, the SR SMART Series can handle any type of capsule in plastic, aluminum and compostable material. Capsules can be closed at the top with aluminum film, micro perforated, filter paper, triplex coupled, PP and compostable lid. Filters and diaphragms can be inserted into capsules and on their bottom.
According to the machine configuration, speed can vary from 60 to 120 capsules per minute.
Production plant
Spreafico Automation s.r.l.
Machine highlights
-
Ergonomic cantilever design
Providing excellent accessibility for operation and maintenance.
-
Fast changeover
Minimizing downtime between different production runs.
-

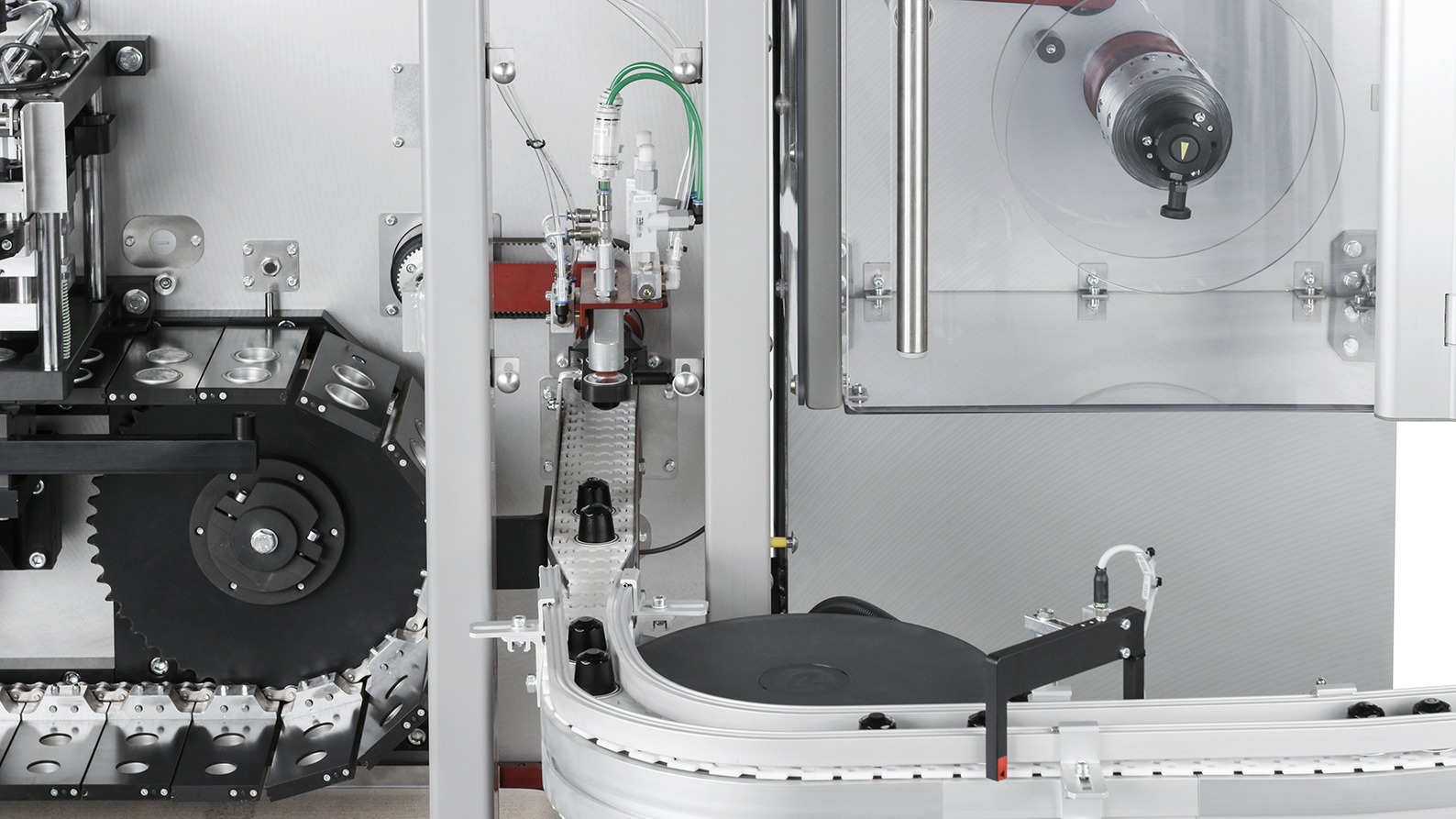

Double integrated feeding system
Ensuring continuous and reliable capsule supply.
-
Aroma doser
Preserving coffee freshness and enhancing flavour profile.
-

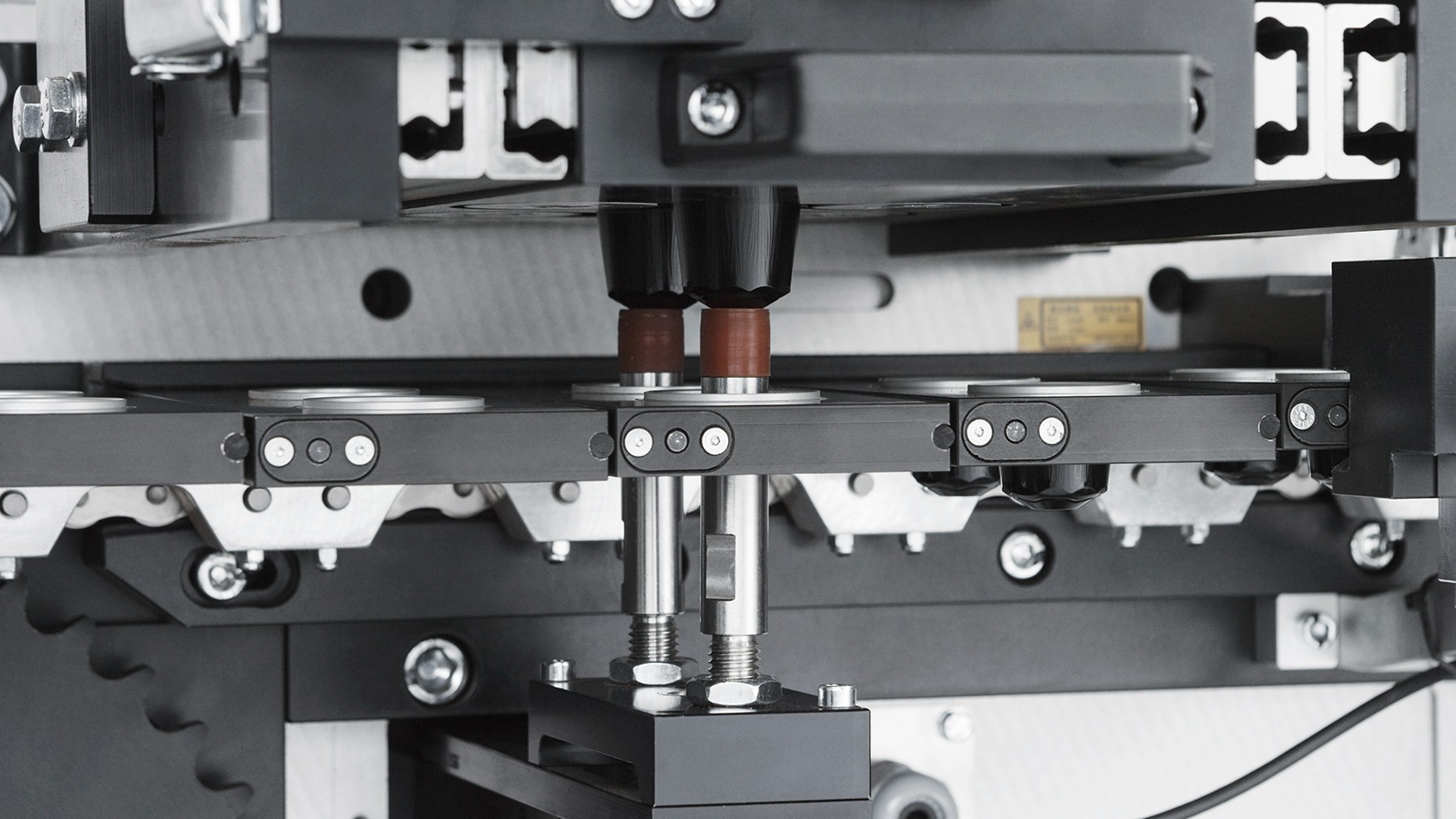

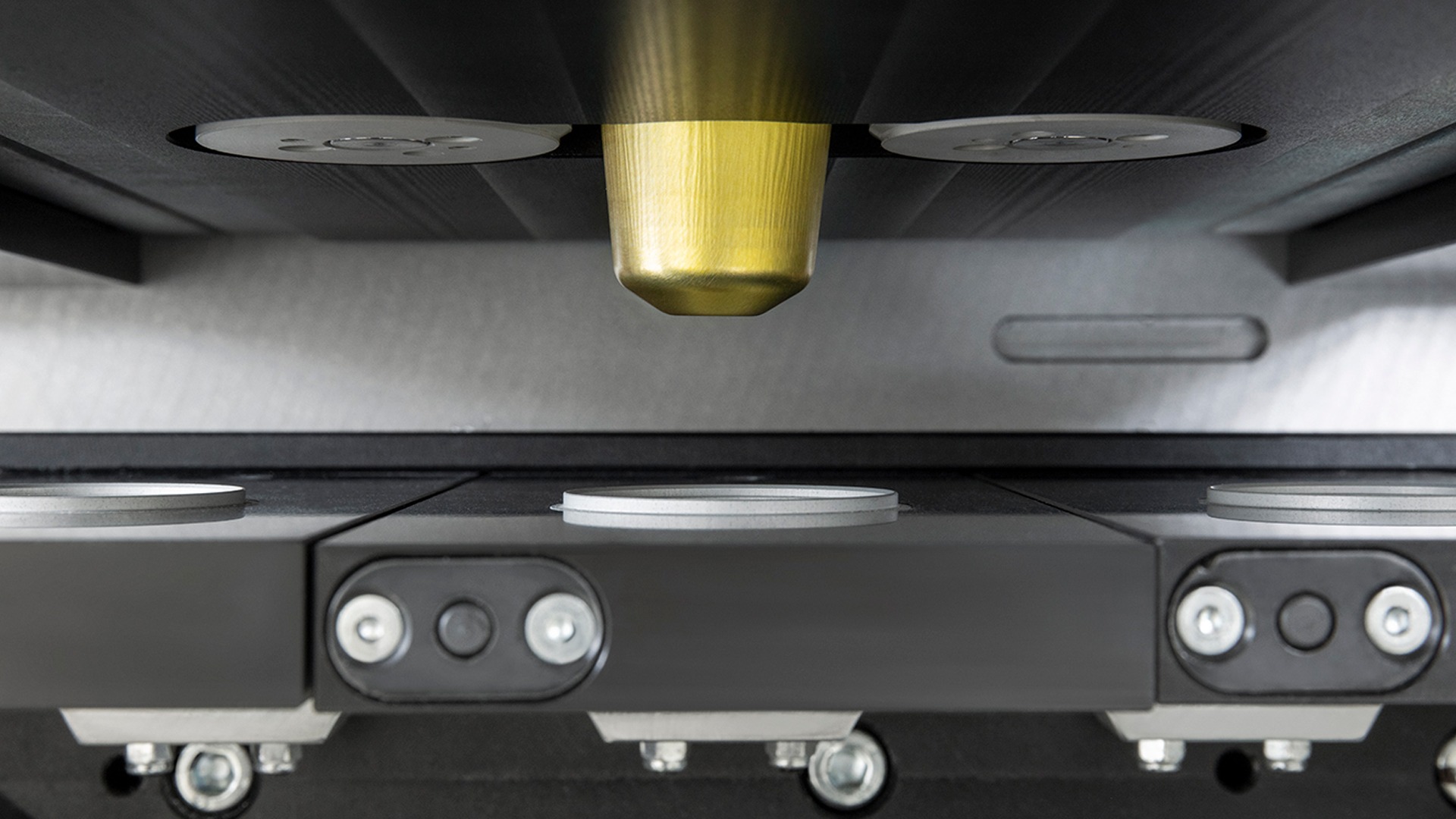

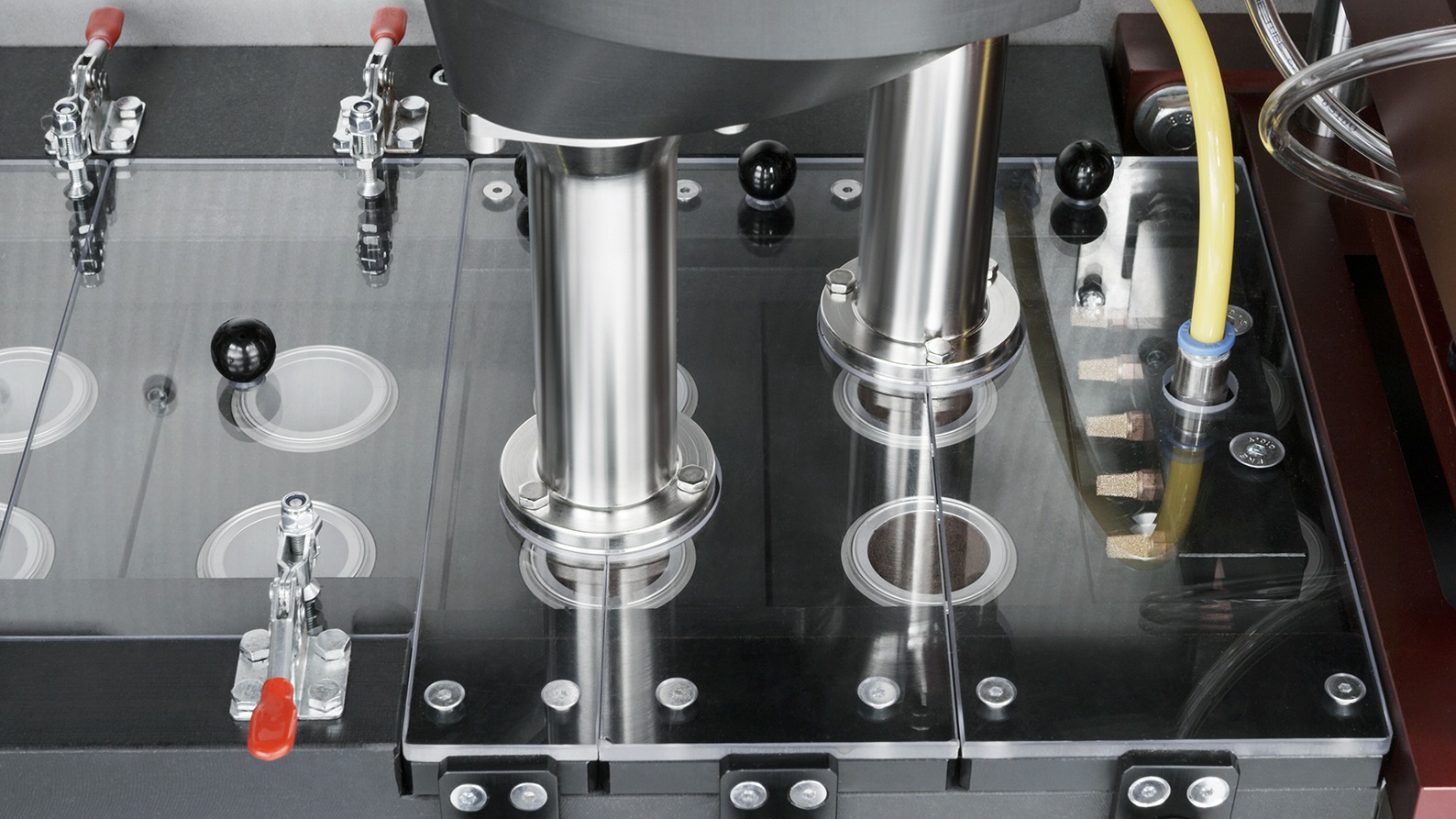

Extremely precise dosing system
Delivering consistent product filling for each capsule.
-

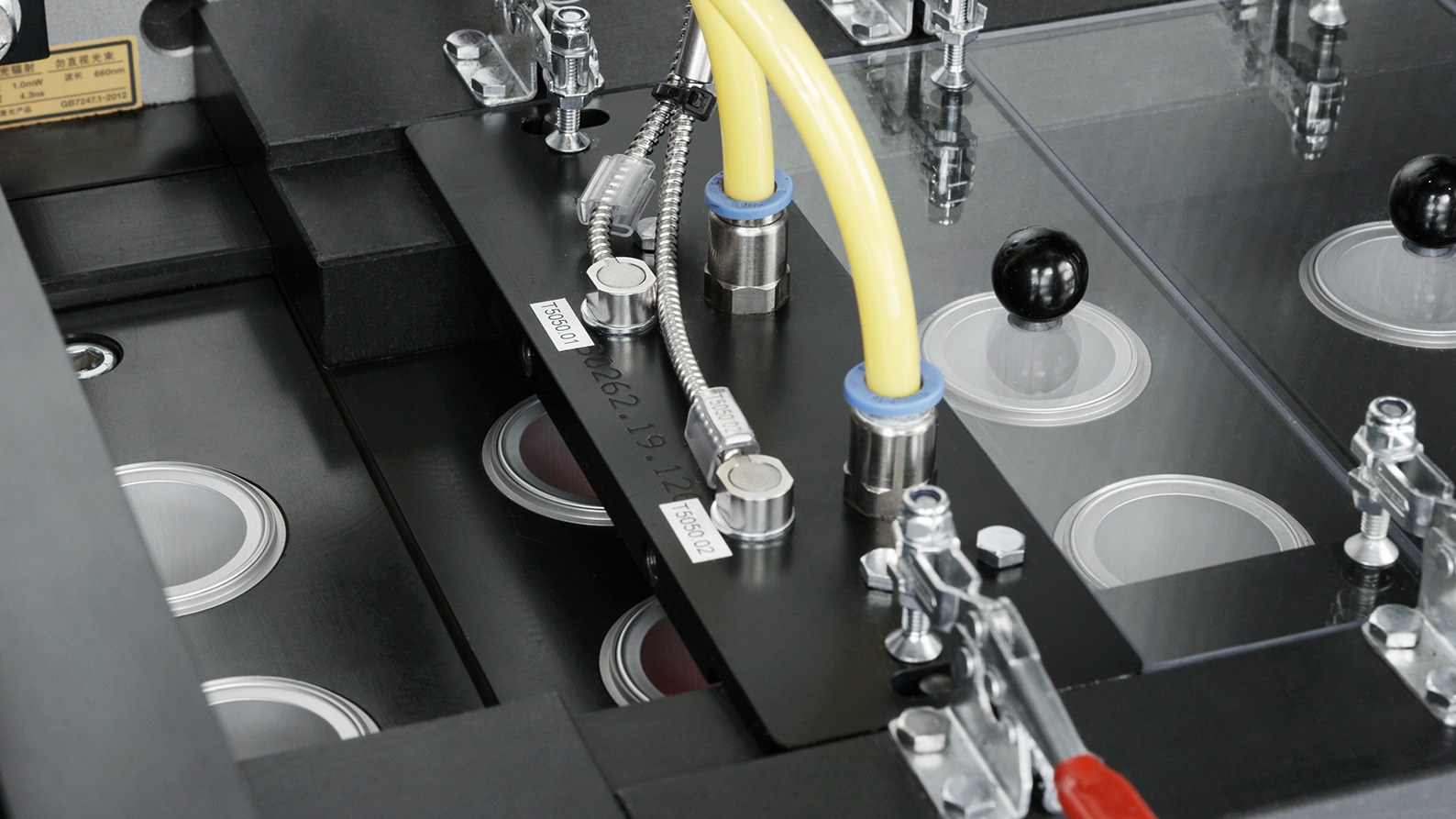

Production in modified atmosphere
Maintaining product quality and extending shelf life.
-

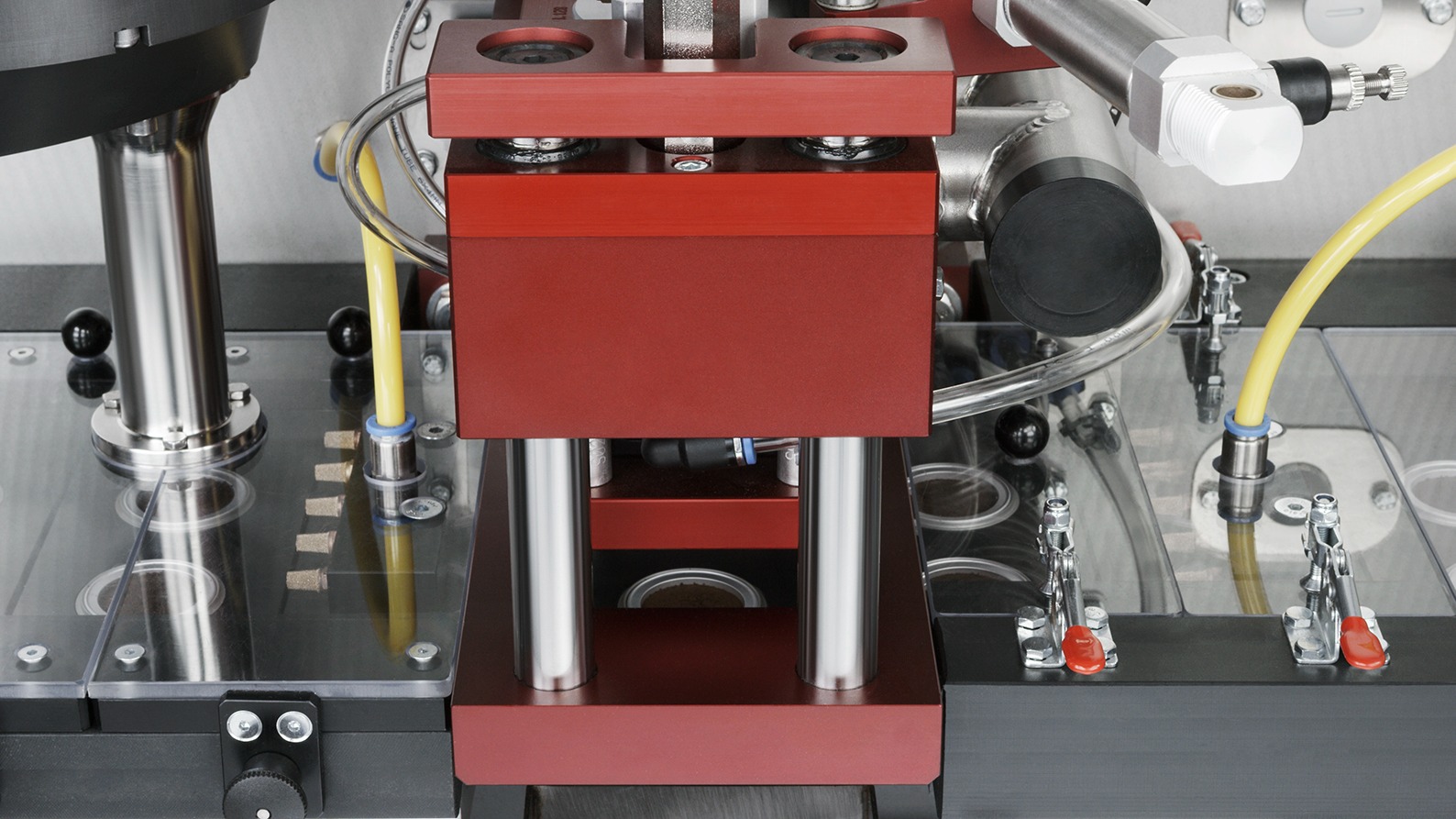

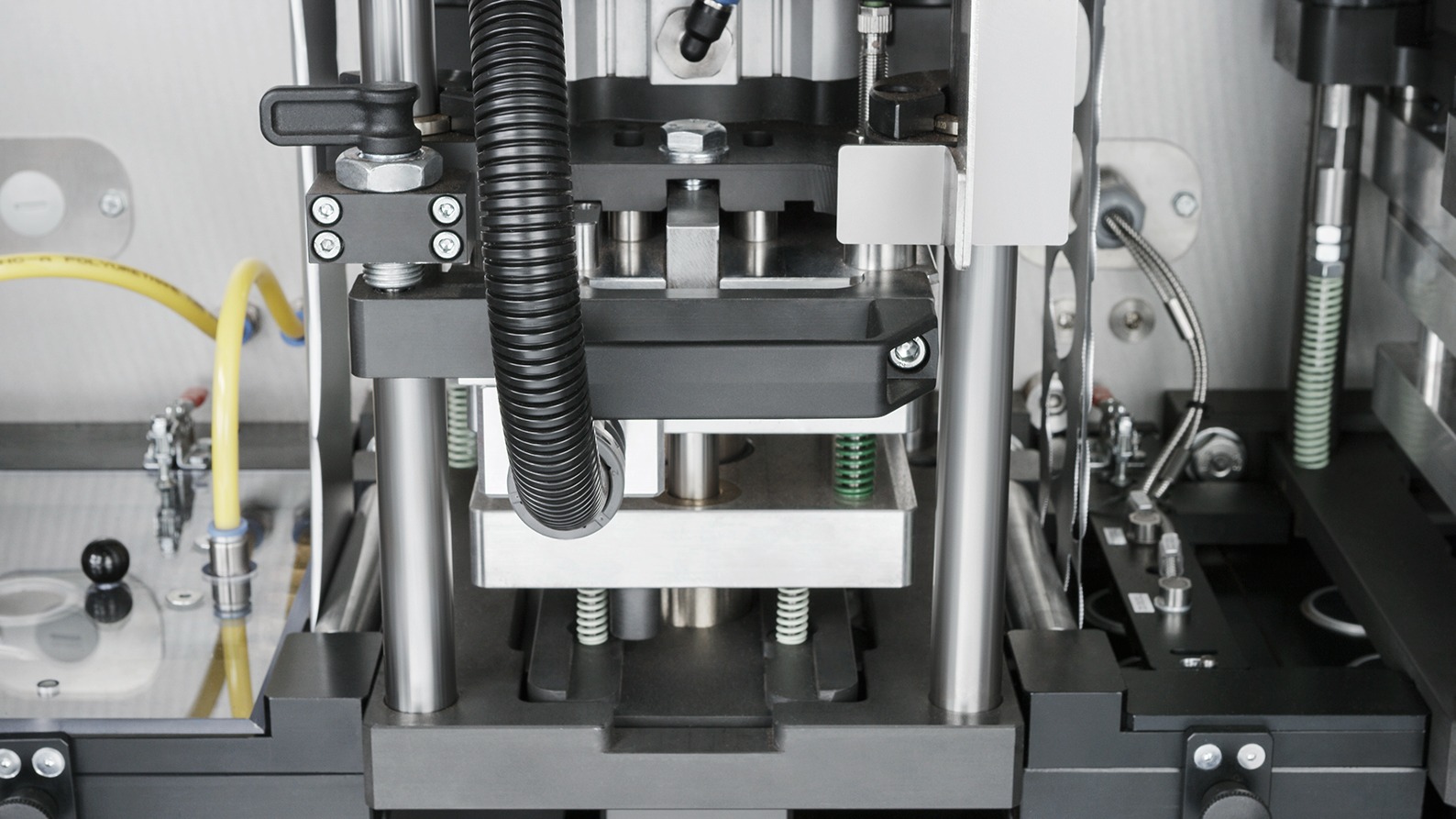

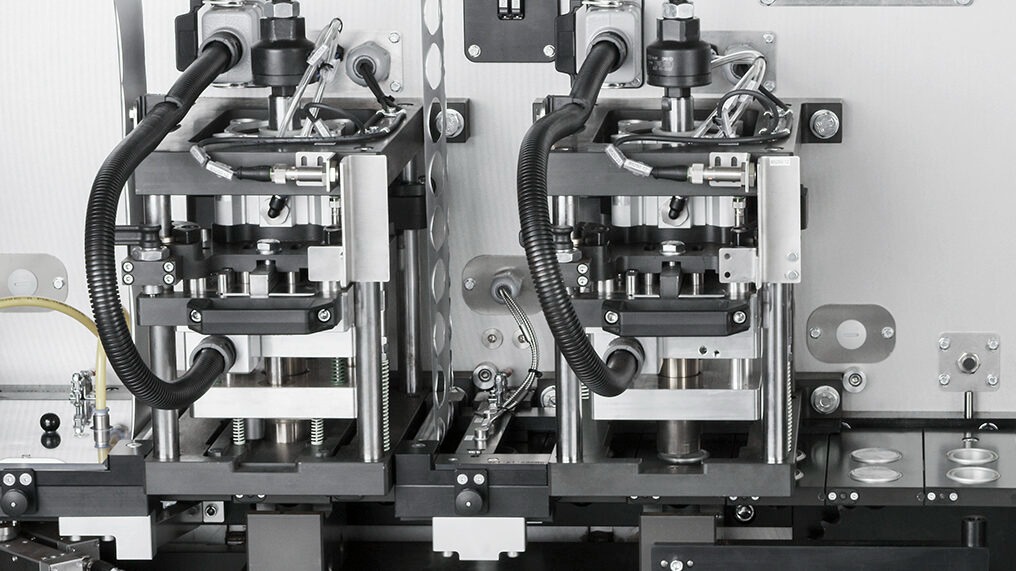

Special sealing technologies
For inner components and lid, ensuring secure closure and aroma protection.
-
Single capsule rejection
Allowing immediate removal of capsules outside specification for quality assurance.
Machine details
Technical information
| SR1 SMART | SR2 SMART | |
|---|---|---|
| Production speed (capsules/min) | up to 60 | up to 120 |
| Power consumption (kW) | 27 | 27 |
| Machine weight (kg) | 3280 | 3335 |
| Nitrogen consumption (Nm3/h) | 28 | 28 |
| Compressed air consumption (Nm3/h) | 28 | 38 |
| Compressed air pressure (bar) | 6 | 6 |
