Slat Counter Counting/Dosing
Machine overview
More than a counting system

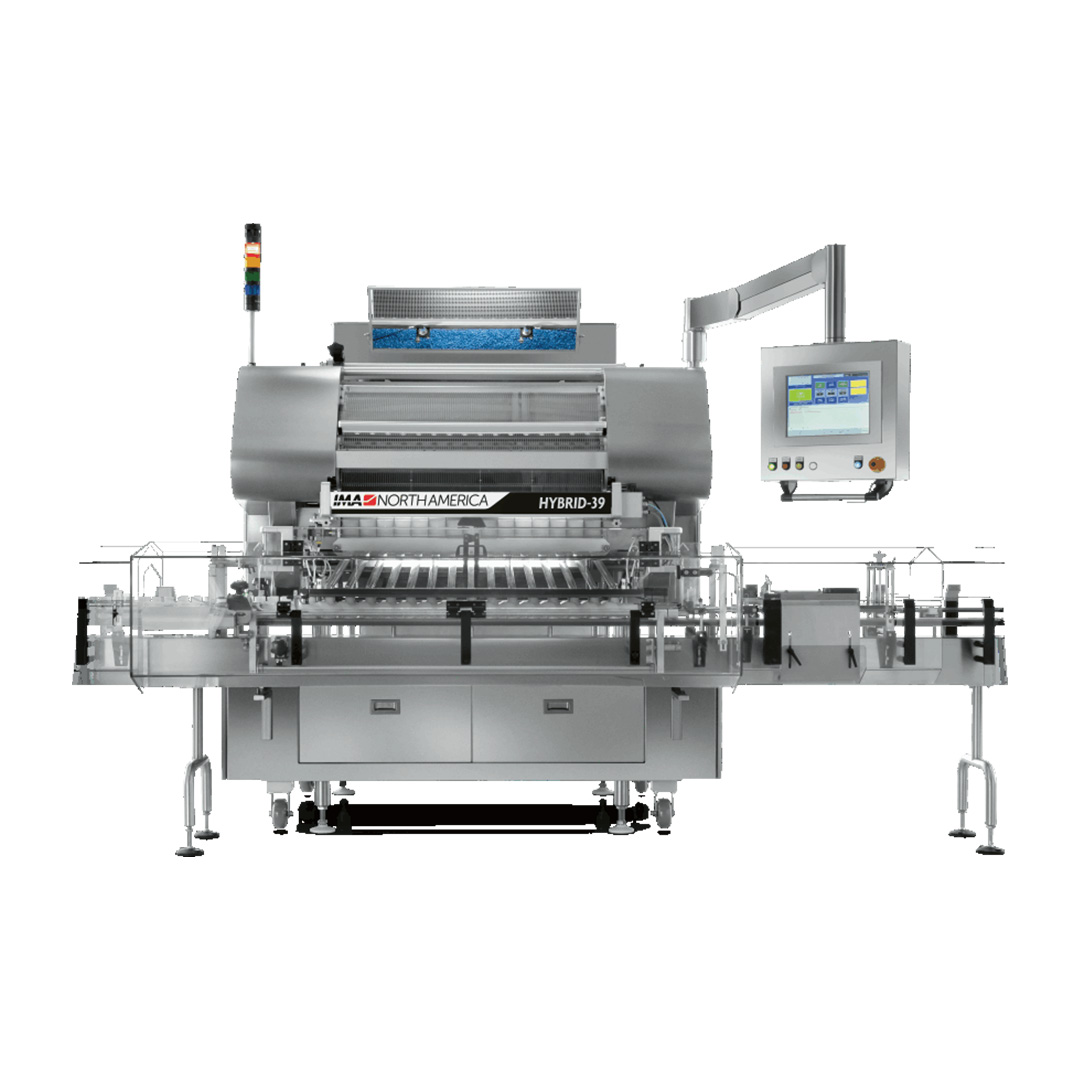

Integrating the best features of industry-leading Lakso and Merrill brand tablet counters, the HYBRID-39 Slat Counter delivers on speed, count accuracy and reliability. This long-lasting and durable counter provides mechanical precision and the assurance of 100% accurate counts from our patented TruCount® verification system.
Production plant
IMA North America
Machine highlights
-
Speed
Up to 300 BPM.
-
Accuracy
Extremely high count accuracy with TruCount® system.
-
Performance
High performance and efficiency reduce time and product waste.
-
Customized
Customized for specific customer requirements.
-
Versatility
Handles a wide array of tablets, capsules, caplets, gel caps and custom shapes.
-
Changeover
Equipped with 15” colour HMI touchscreen with recipe-driven menus for automated changeover.
-
Configurations

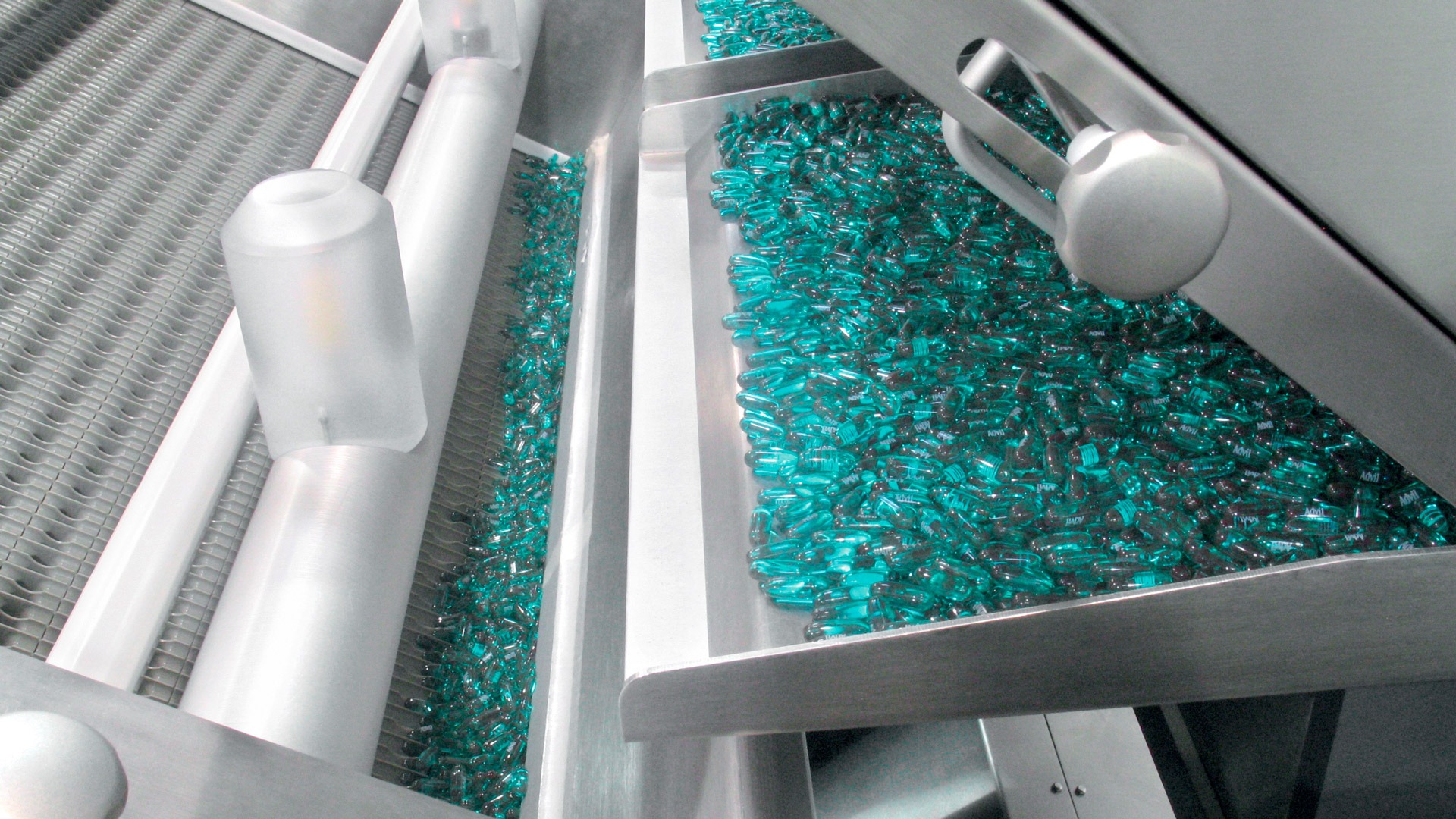

Uses 39” wide slats in 48 or 72 slat configurations.
-
American manufacturing
Manufactured and assembled in the USA.
The revolutionary TruCount®
The TruCount® system represents a critical innovation in ensuring absolute accuracy in tablet and capsule counting. Fully integrated into the machine’s control system, TruCount® works seamlessly with recipe-driven menus on the touchscreen, making setup quick and intuitive. Its operation is based on a high-speed scanning process that evaluates and counts each product while it is in free fall, after leaving the slat cavity and before entering the bottle. This approach eliminates any possibility of miscounts, guaranteeing that every bottle meets the highest standards of precision. TruCount® employs advanced LED lighting combined with photo-detectors to identify and count each object with remarkable reliability. Furthermore, the system includes an automatic reject mechanism that discards any bottle with an incorrect count, ensuring that only perfectly filled bottles proceed down the line. This combination of speed, accuracy, and integrated quality control makes TruCount® an indispensable feature for pharmaceutical packaging operations.

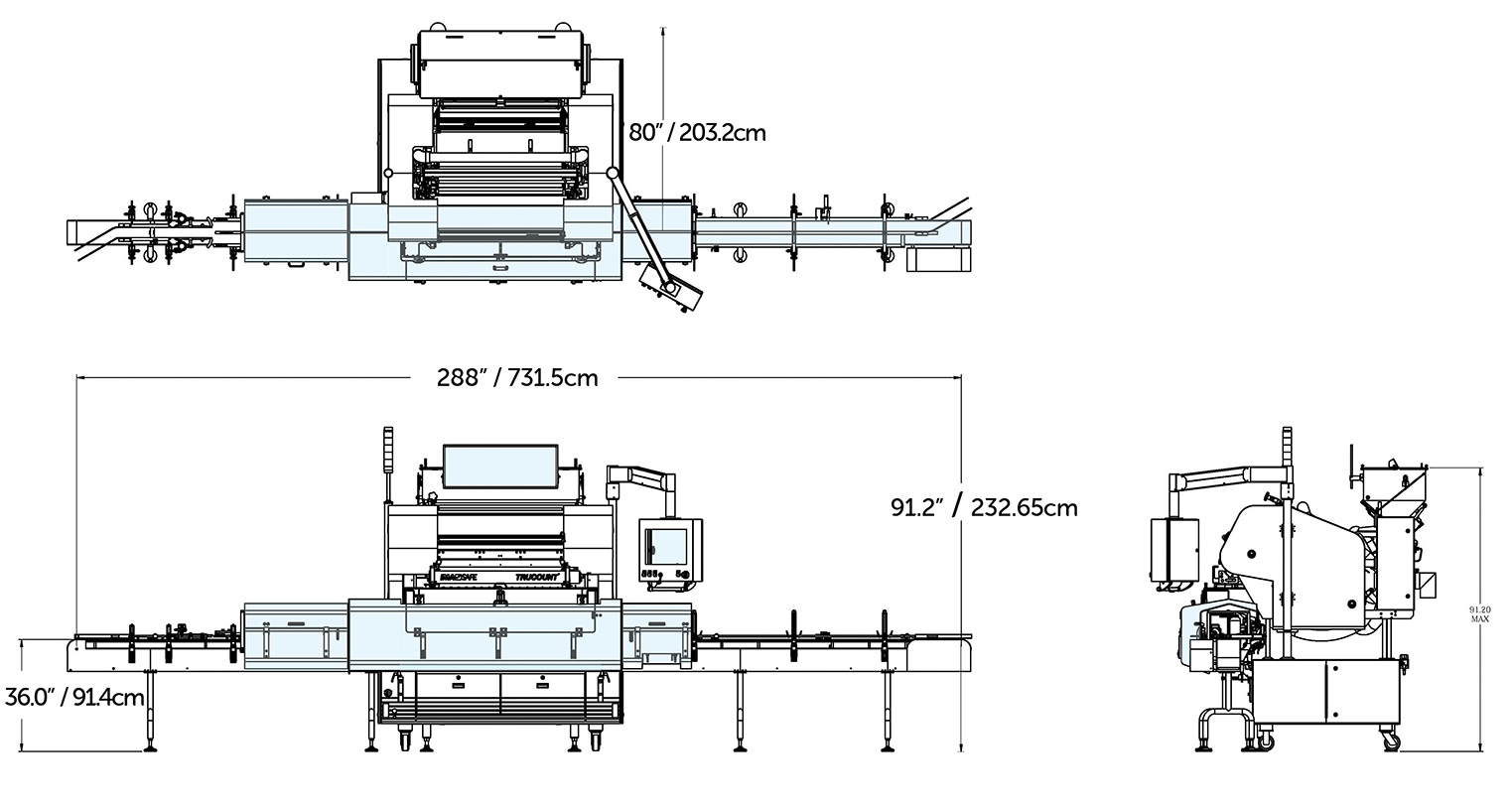

Technical information
| TECHNICAL DATA HYBRID-39 | |
|---|---|
| Production output | Up to 300 bottles/min |
| Container diameter range | 30–98 mm |
| Container height range | 40–200 mm |
