Sensitive AP400 BFS Labelling
Machine overview
Speed, accuracy, care. All in one solution for BFS containers

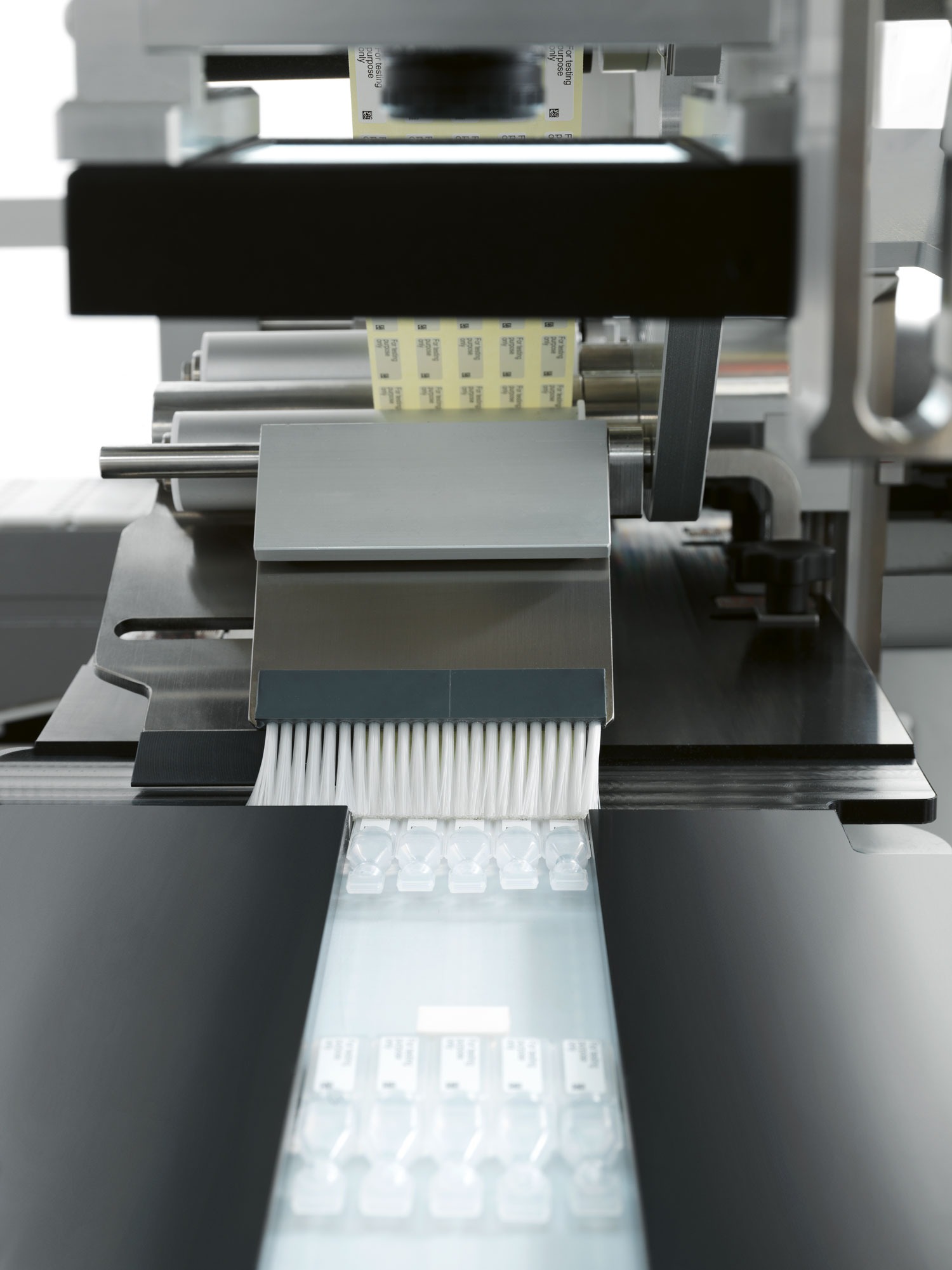

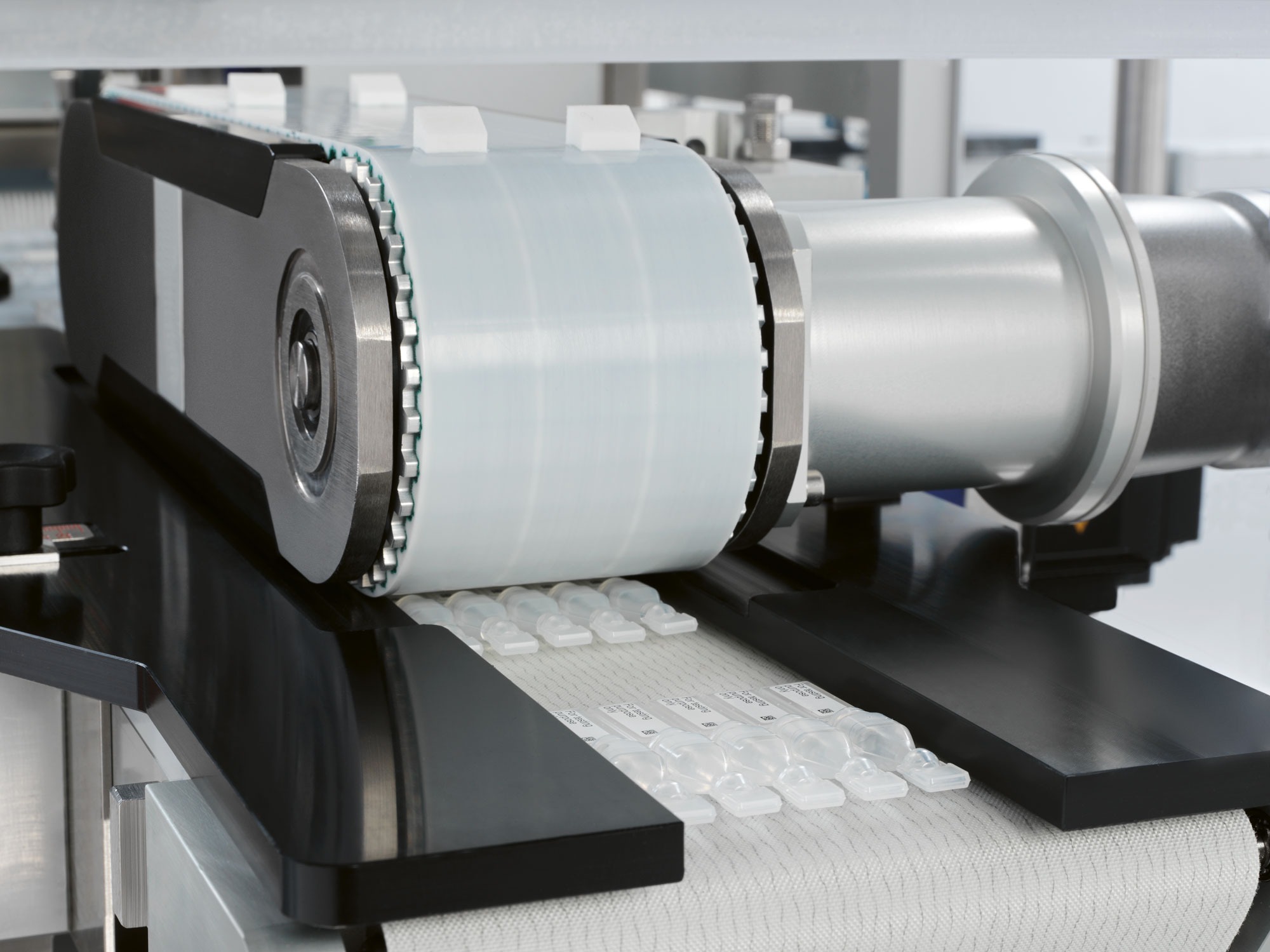

The Sensitive AP400 BFS applies self-adhesive labels on the top and bottom of Blow Fill Seal containers, combining high handling accuracy, maximum precision in label application and excellent performance in terms of speed. These are key issues when dealing with this type of container, increasingly popular due to the advantages it offers in terms of product safety and ease of use, especially for single-dose products.
The machine handles multiple BFS container types and can be easily installed in line with a packaging machine. Additionally, it boasts brushless motors to ensure BFS positioning accuracy, flexibility and reliability, both at low and high production speeds.

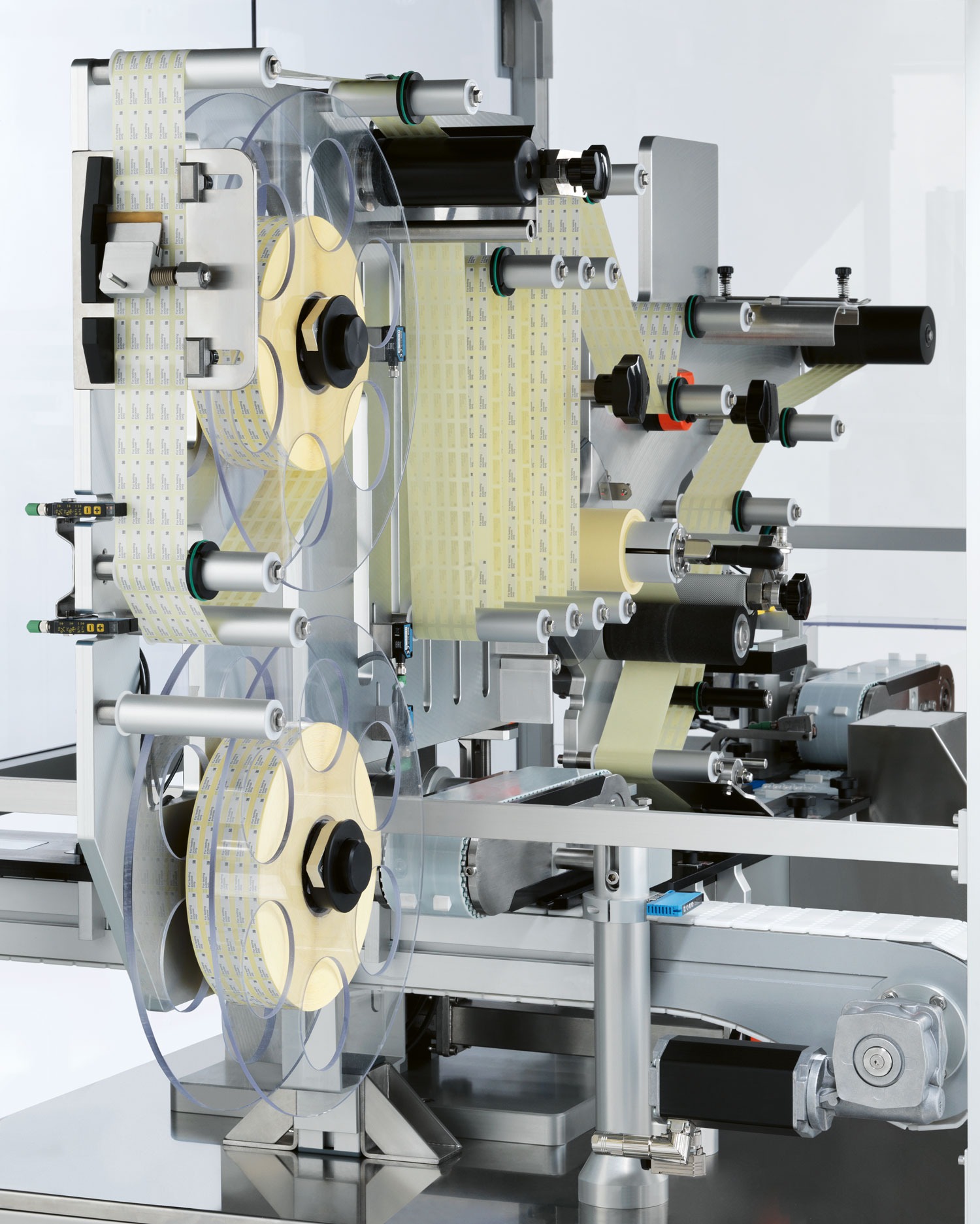

The labelling head is designed for multiple or parallel labels and can integrate the Easy Splice system for continuous infeed of new label reels without machine interruption. The neat basement allows the installation of additional units like cameras or printing devices.
Production plant
IMA Life
Machine highlights
-
Smart design
Compact and ergonomic design with stainless steel finish.
-
Positive transport
Ensures accurate label application and check.
-
Easy reel change
Label reel holder integrated on machine’s side for easy access and manual reel change.
-
Printing and serialisation
Easy installation of overprinting devices and camera vision systems to read and check data.
-
Accessibility
Straightforward access to the entire labelling process, quick clearance and cleaning.
-
Intuitive HMI
Effective machine monitoring and supervision of data collection.
Product safety and traceability
The flexible configuration of Sensitive AP400 BFS allows easy integration of Track & Trace systems to avoid product counterfeiting and to guarantee safety and product traceability along the entire supply chain.
Machine details
Technical information
| SENSITIVE AP400 BFS | |||||
|---|---|---|---|---|---|
| Maximum output (pieces/minute) | 400 | ||||
| Installed power (kW) | 2 | ||||
| Standard voltage | 400 V – 50 Hz | ||||
| Weight (kg) | 750 | ||||
| Size range (parallel BFS) | 5/10 | ||||
| BFS label length (mm) | 15-50 | ||||
| BFS label height (mm) | 5-12 | ||||
| Label accuracy (mm) | 0.8-1 | ||||
