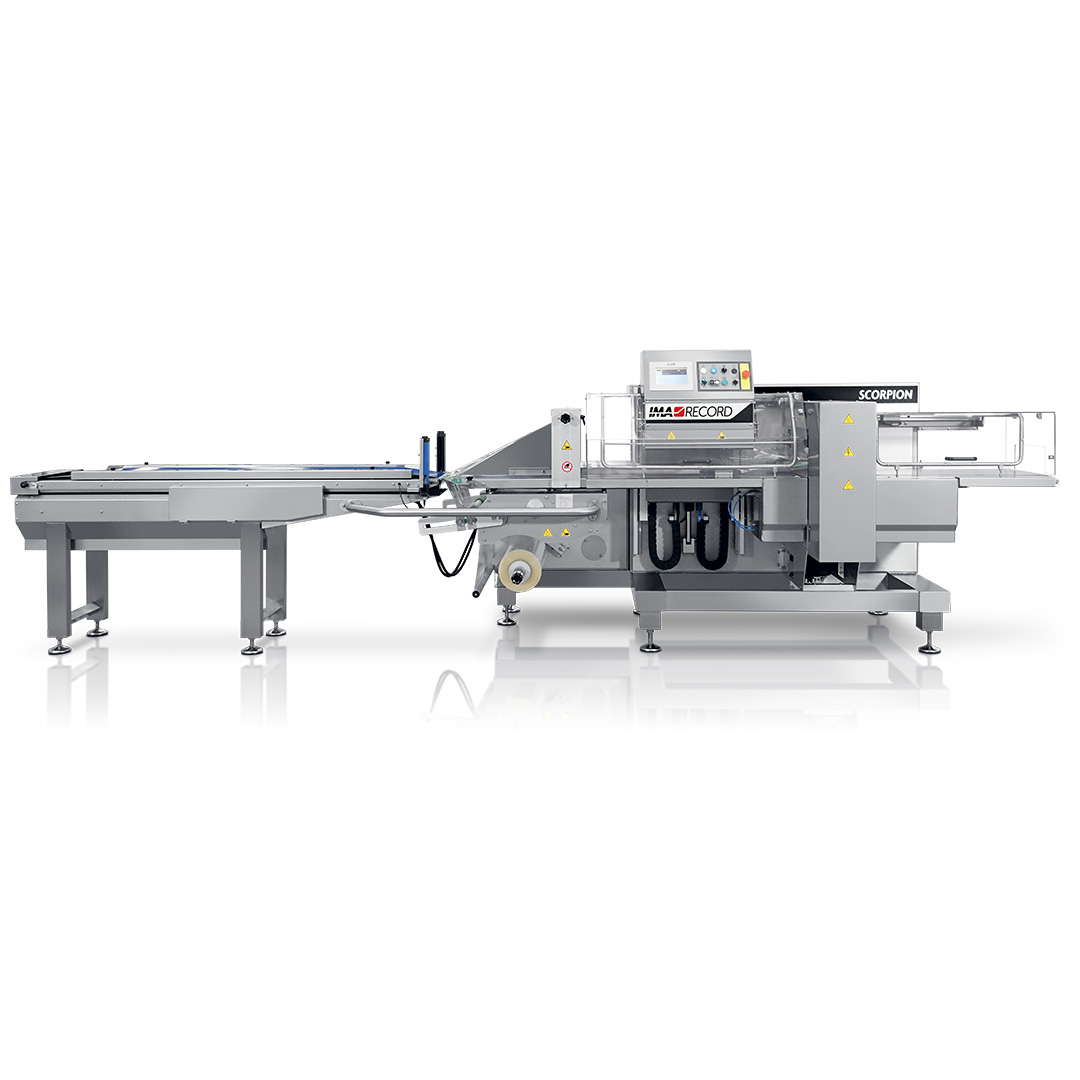

SCORPION TS RS Horizontal Form Fill and Seal
Machine overview
Entry-Level Flow Wrapper: Simple, Solid and Efficient
Scorpion TS RS is Record’s entry-level flow wrapping machine, designed around essential principles of simplicity, user-friendliness and operational efficiency. 100% made in Italy, it combines the reliability and material quality typical of all Record machines with a clean, functional design that ensures intuitive operation and easy maintenance.
Ideal for packaging irregular and unsupported products, items that are difficult to push and feature variable cut-off length, the Scorpion TS RS delivers consistent performance at mechanical speeds up to 100 ppm, while maintaining high standards of structural solidity and hygiene thanks to its food‑grade materials.
Production plant
IMA Record
Machine highlights
-
User-friendly & Easy Maintenance
Engineered for intuitive daily use with full accessibility for quick and simple maintenance.
-
Wide Product and Pack Size Flexibility
Ideal for a broad range of product types and dimensions, ensuring great production versatility.
-
Food-Grade Materials
Built with materials suitable for food contact, guaranteeing compliance with industry hygiene standards.
-
Performance up to 100 ppm
Delivers stable performance and productivity, maintaining efficiency across different product shapes and sizes.
Technical information
| SCORPION TS RS | |
| Machine speed (ppm max.) | 100 |
| Product width (mm max.) | ∞ |
| Product depth (mm max.) | 280 (355) |
| Product height (mm max.) | 100 (220) |
| Film width (mm max.) | 730 (930) |
| Cut-off length (mm max.) | ∞ |
| Jaws width (mm max.) | 350 (450) |
| Film linear speed (m/min.) | 35 |
