RP Series Palletizing
Machine overview
Smart technology for different products and tasks
Reduced dimensions of the palletizing section and flexible palletizing options, in line with real market needs, characterize the RP2/RP4 palletizers, equipped with a 6-axis robot capable of absorbing and working at high speed.

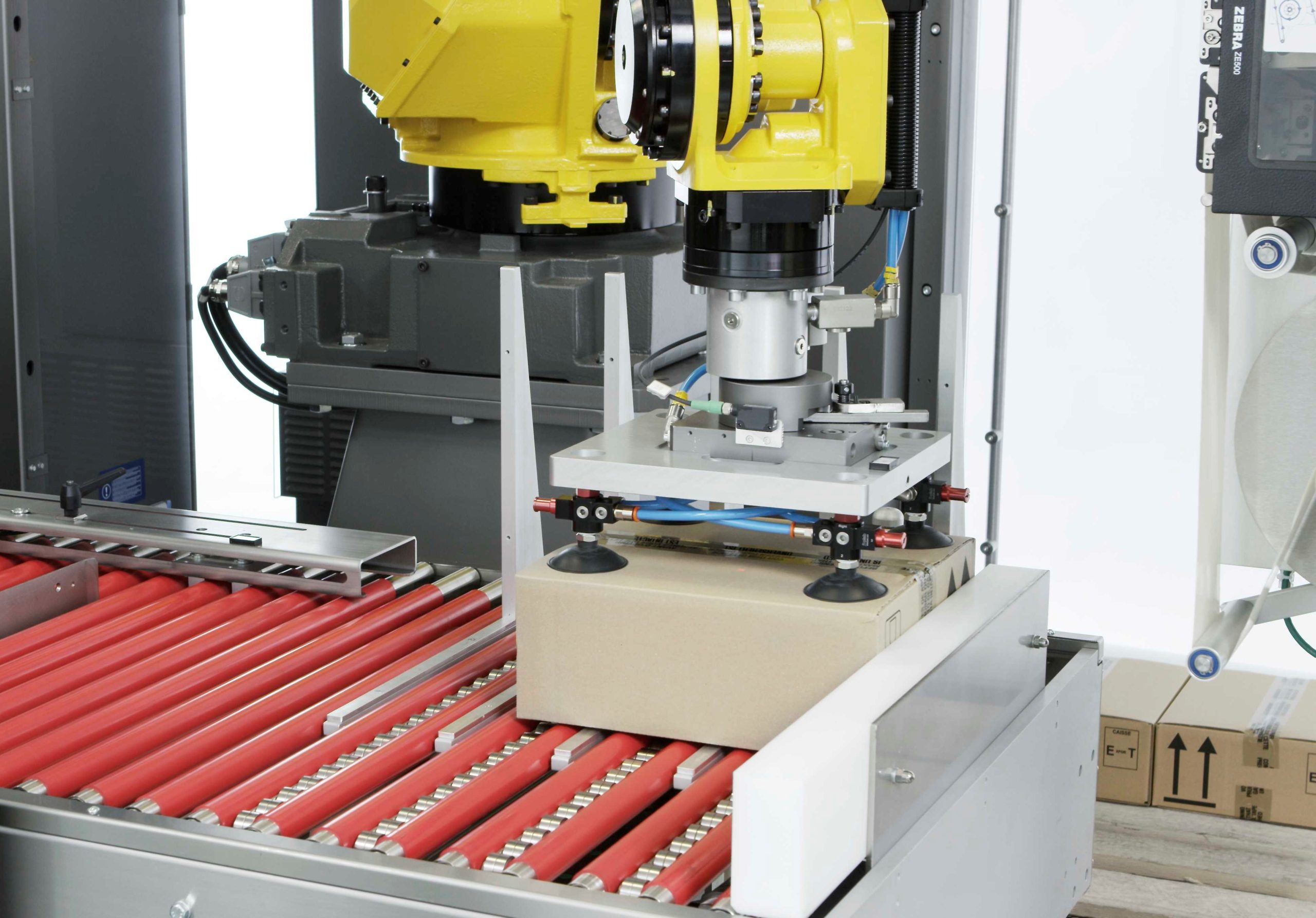

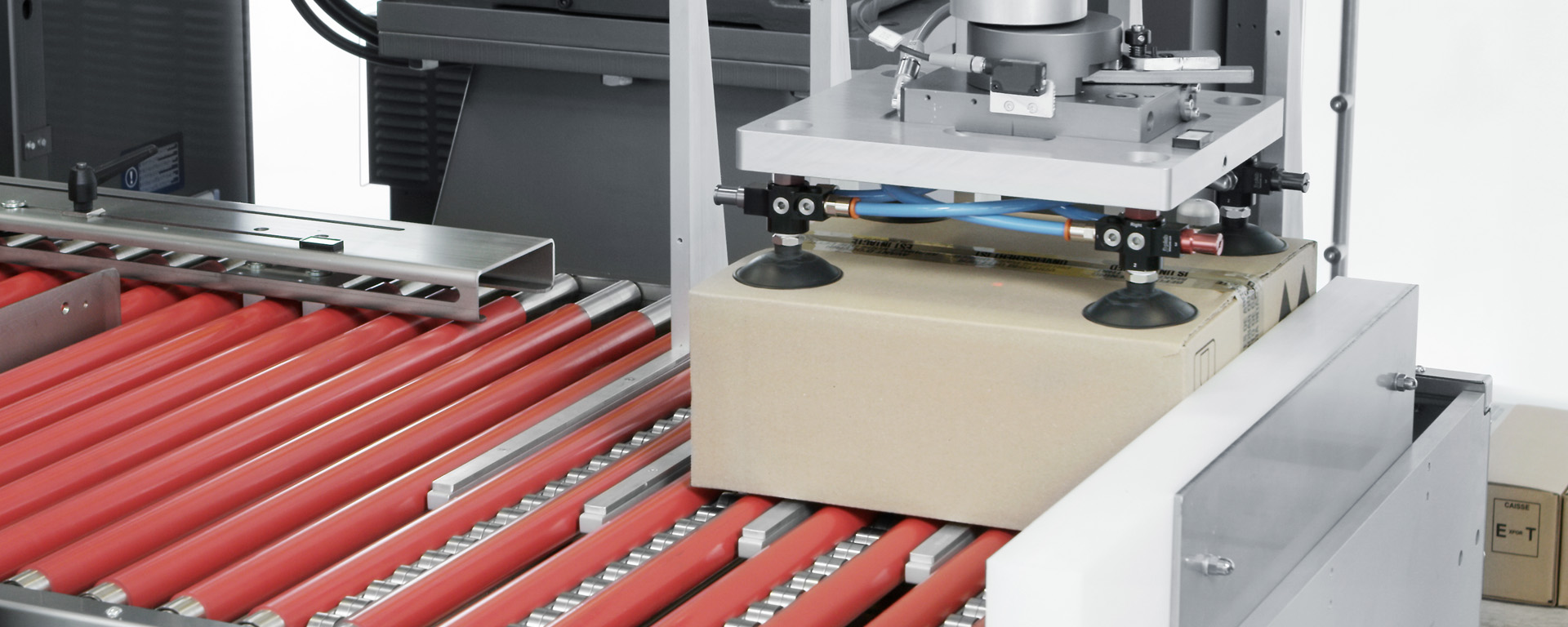

Built to deliver maximum productivity and efficiency, these latest-generation palletizing solutions offer exceptional flexibility. Efficient ink-jet printing and labelling or weighing of incoming cases, picked up by the robot. Cases are then placed on the pallet according to pre-established patterns set by the operator.
Modular design allows for customization of the palletizing section, whose dimensions are kept to a minimum. RP2/RP4 palletizers are conceived to be stand-alone or easily integrated with case packers thanks to their quick plug-in connection.
Production plant
IMA BFB
Machine highlights
-
Modular concept
Modular design for efficient use of available space. Modules can be installed so as to overcome restrictions due to existing facility layout and design.
-
Easy integration
Equipped with their own electrical cabinet, they can be easily integrated with any case-packing solution.
-
Choice of options

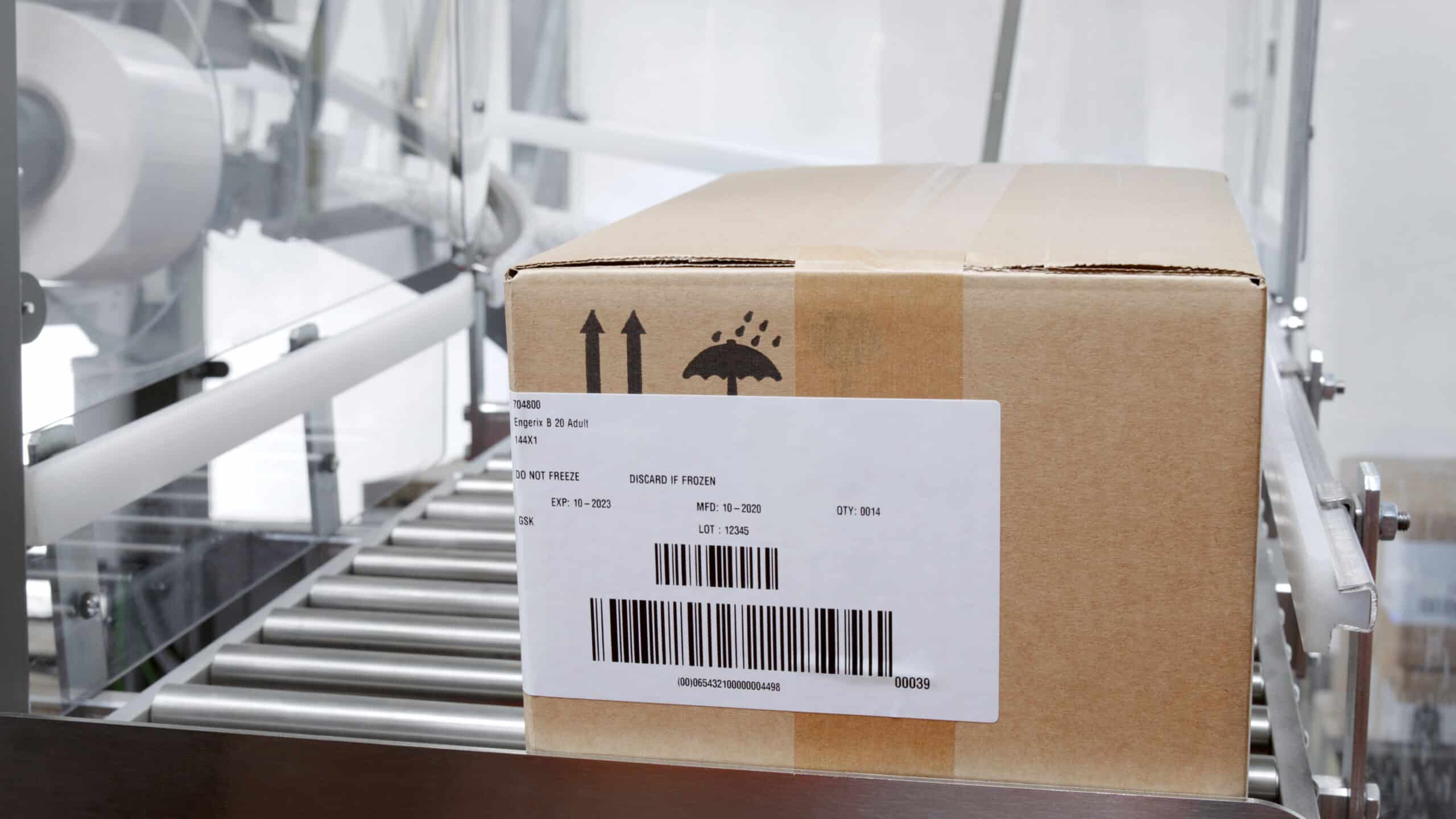

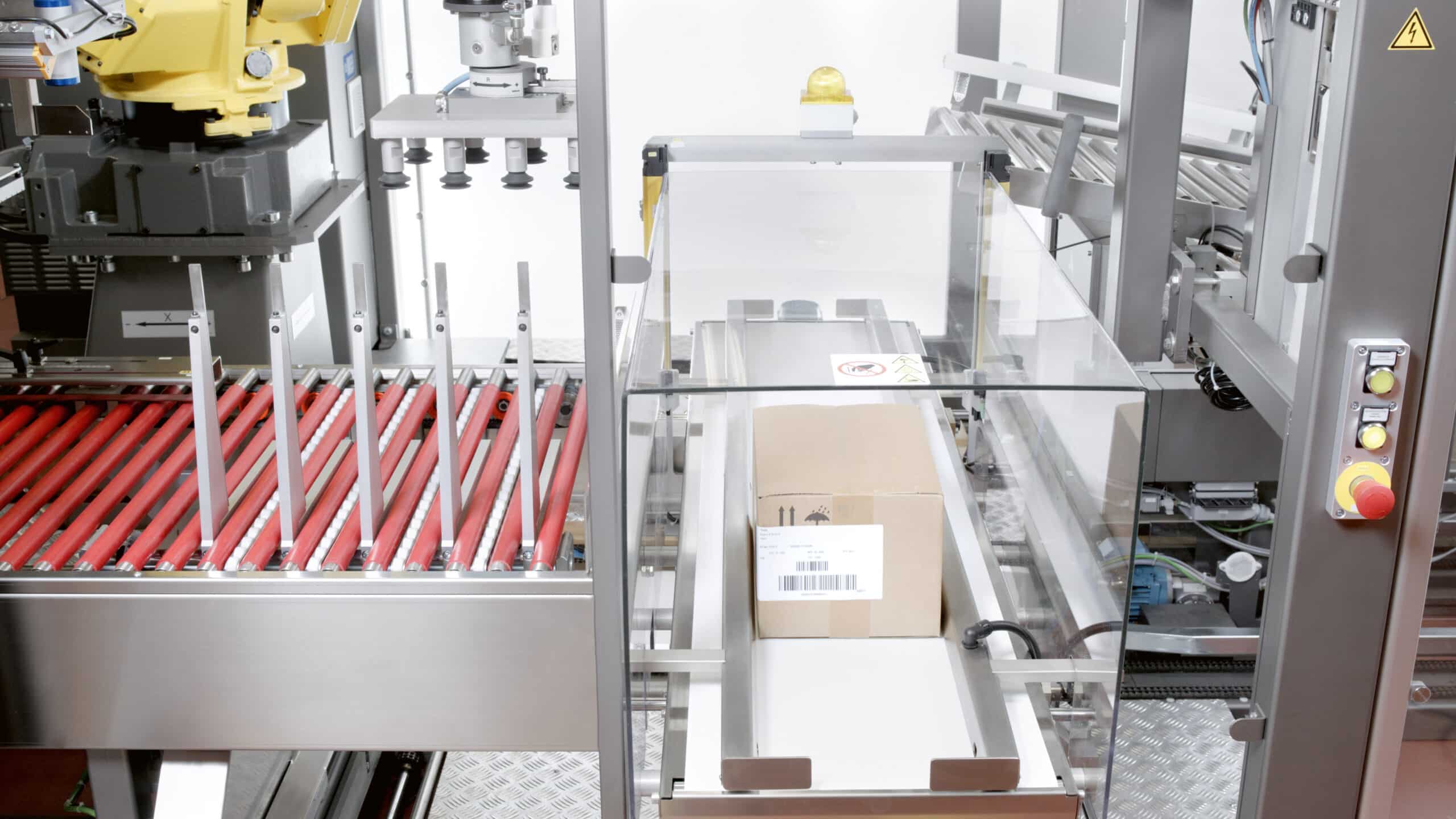

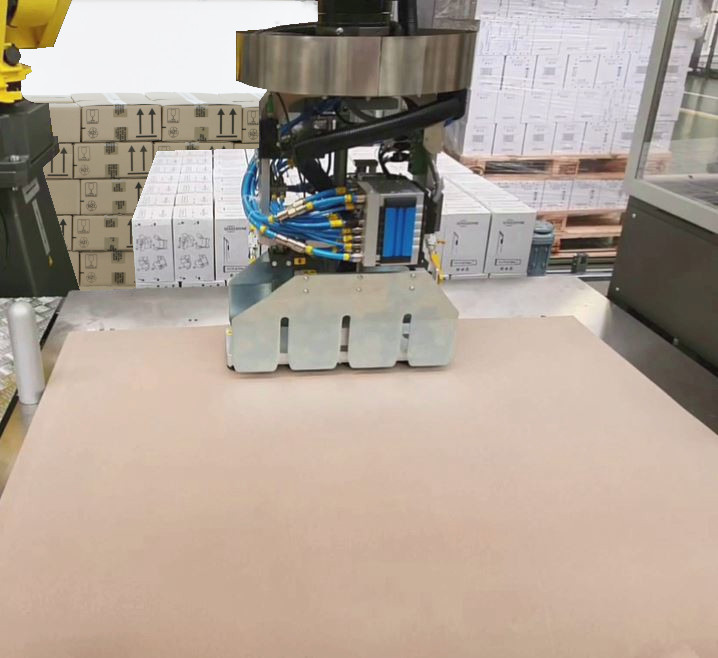

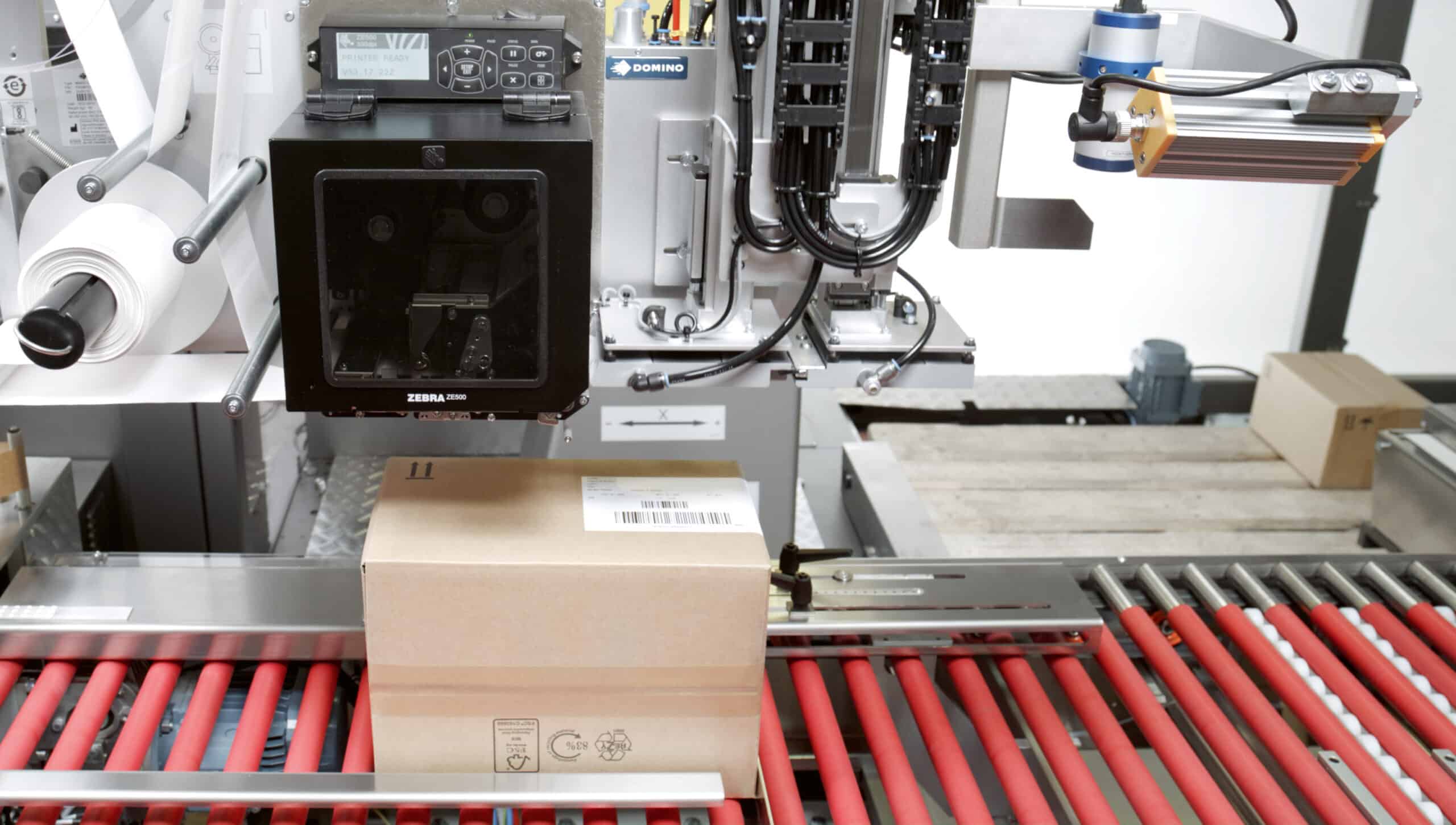

Many options available: slip-sheet magazine, labelling module, rejection station, T&T groups, pre-arrangement for AGV.
-
Minimum maintenance
Enhanced performance thank to fast and simple format changeovers and reduced maintenance operations.
-
Palletizing flexibility
Flexible palletizing options: from 1 to 4 stations for pallet transport and palletization.
-
Superior versatility
Flexibility in terms of handling various sizes, shapes and weights: these systems treat single or multiple cases, trays, bags and groups of bottles, even at high speed.
Machine details
Technical information
| RP TECHNICAL DATA | |||
| Product dimensions | A | B | C |
| Min. (mm) | 800 | 1200 | 1400 |
| Max. (mm) | 1000 | 1200 | 1400 |
| Max. speed | up to 10 cycles/min. | ||
Machine versions
Different palletizing solutions according to the layout space requests

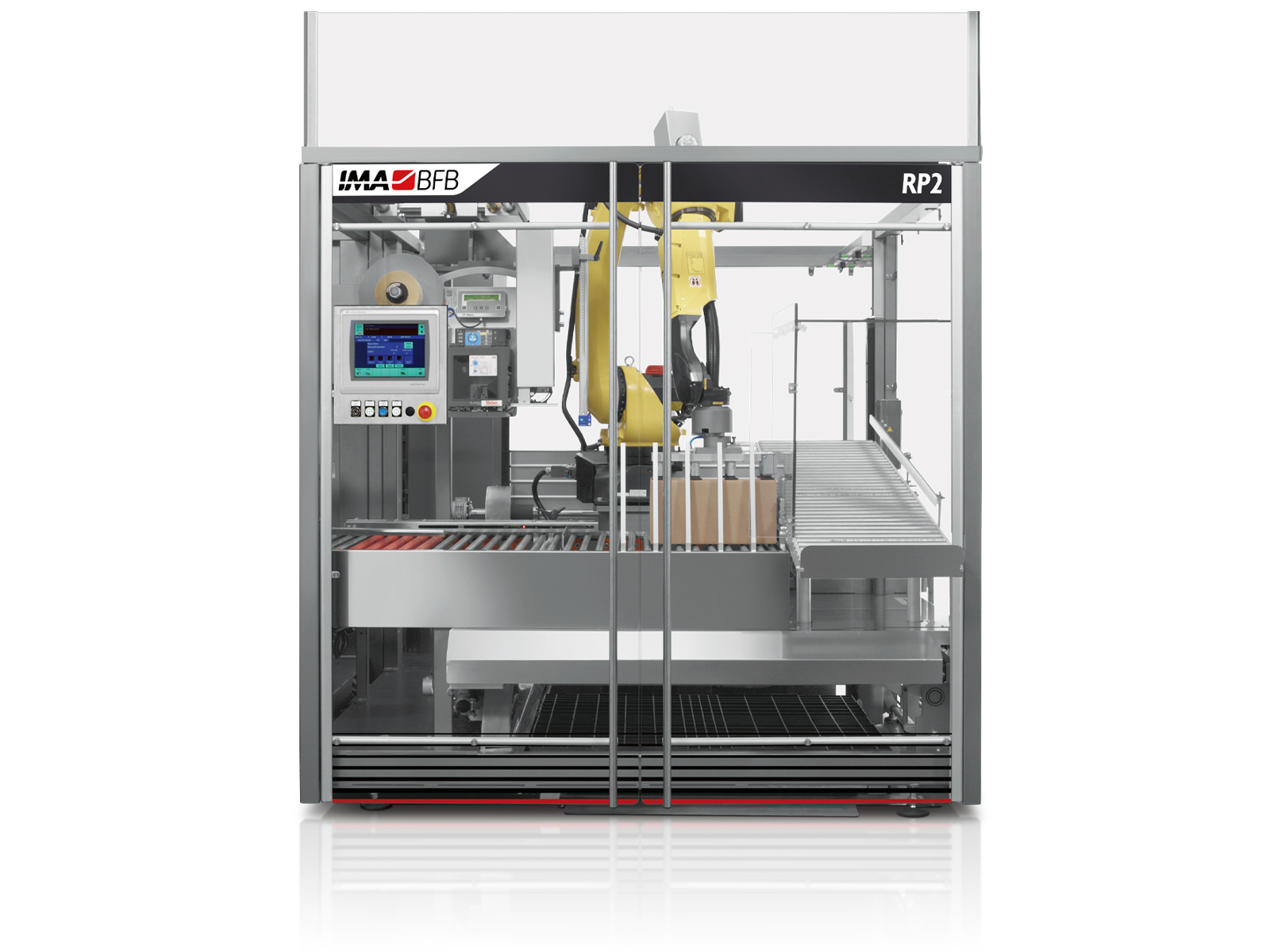

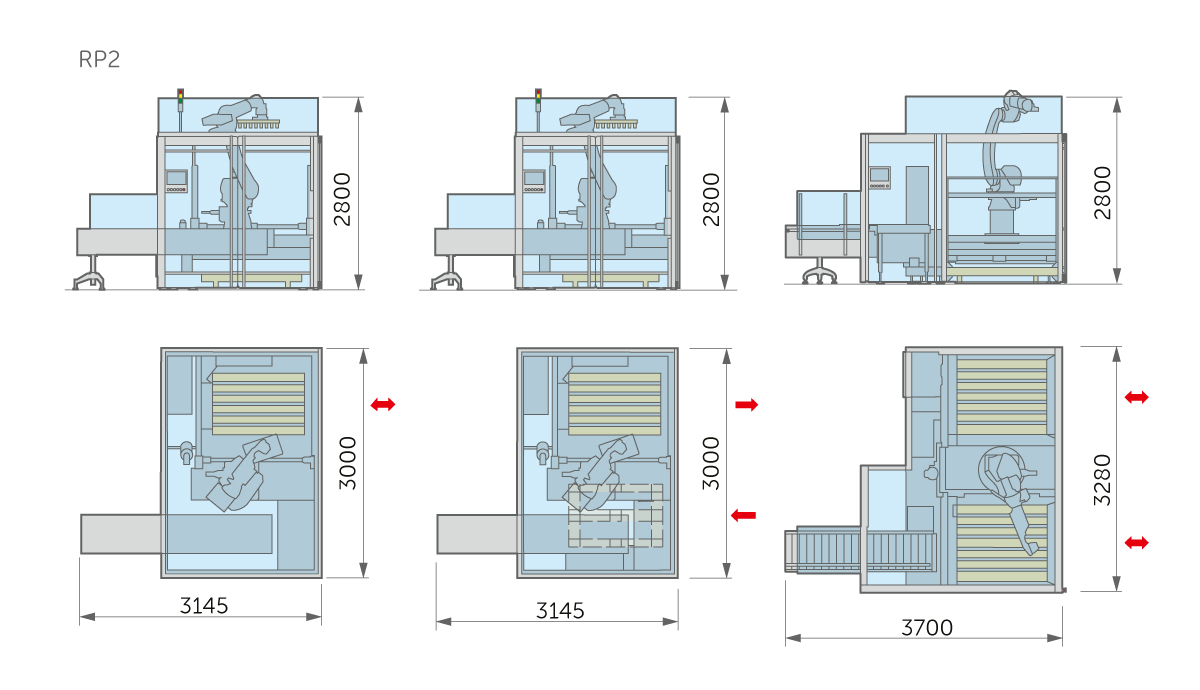

RP2

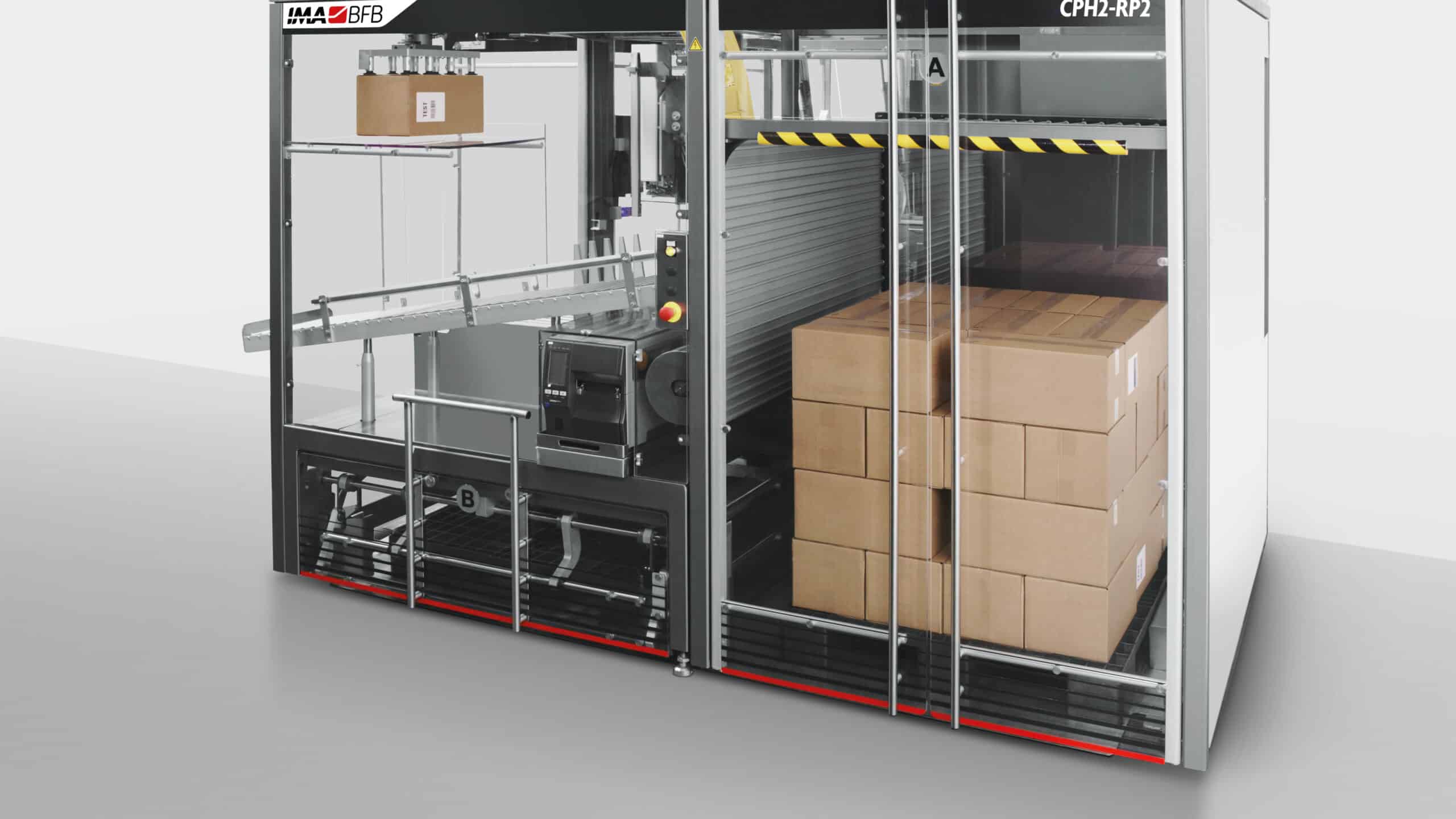

Automatic palletizer with single palletization station suitable for handling RSC cases or
naked bundles, picked up by means of a six axes manipulator. When pallet is complete,
the robot places the cases on the buffer area, giving the operator time to unload the
full pallet while the machine is working.

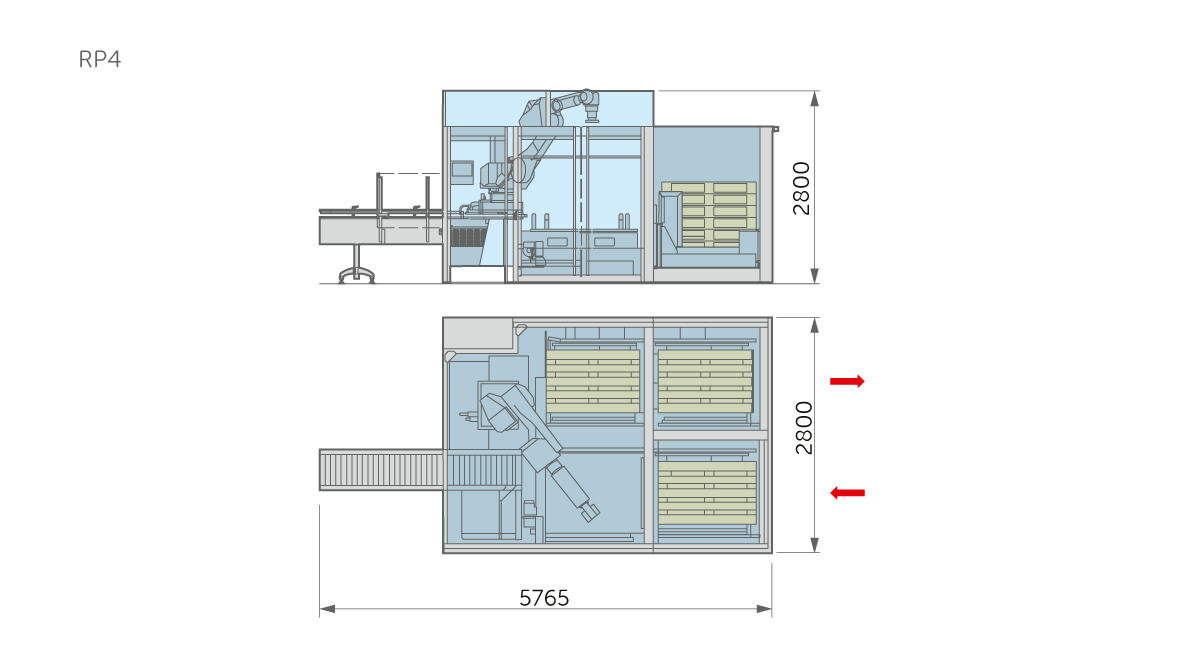

RP4
Automatic and extremely flexible palletizer with double palletization stations suitable
for handling RSC cases or naked bundles, loaded by means of a six axes manipulator.

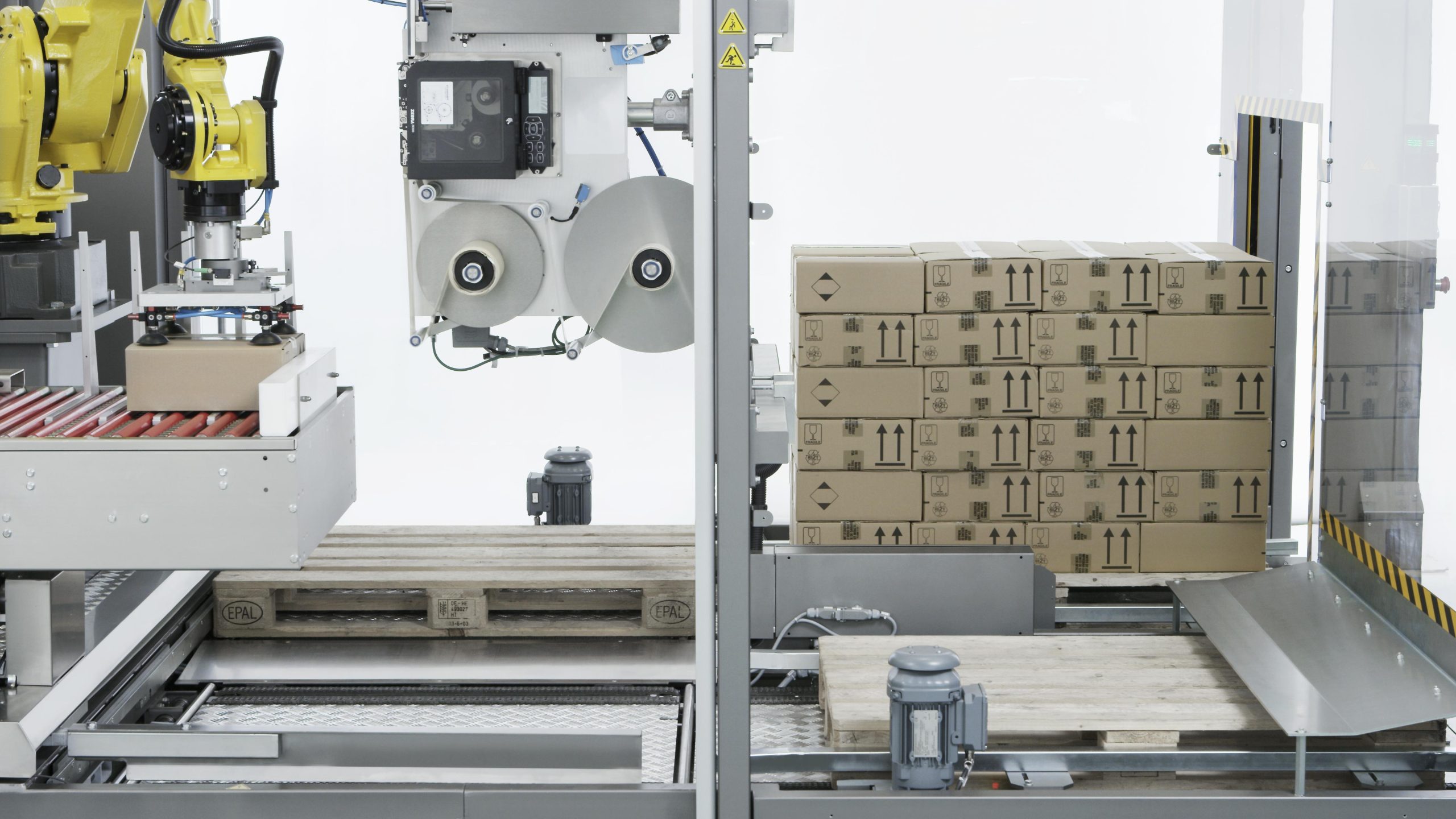

When the pallet is complete, the automatic pallet transport moves the complete
pallet to the waiting area on exit and replaces it with a new one, ready to be loaded.
Operator removes the full pallet and the machine keeps on working at the same time.

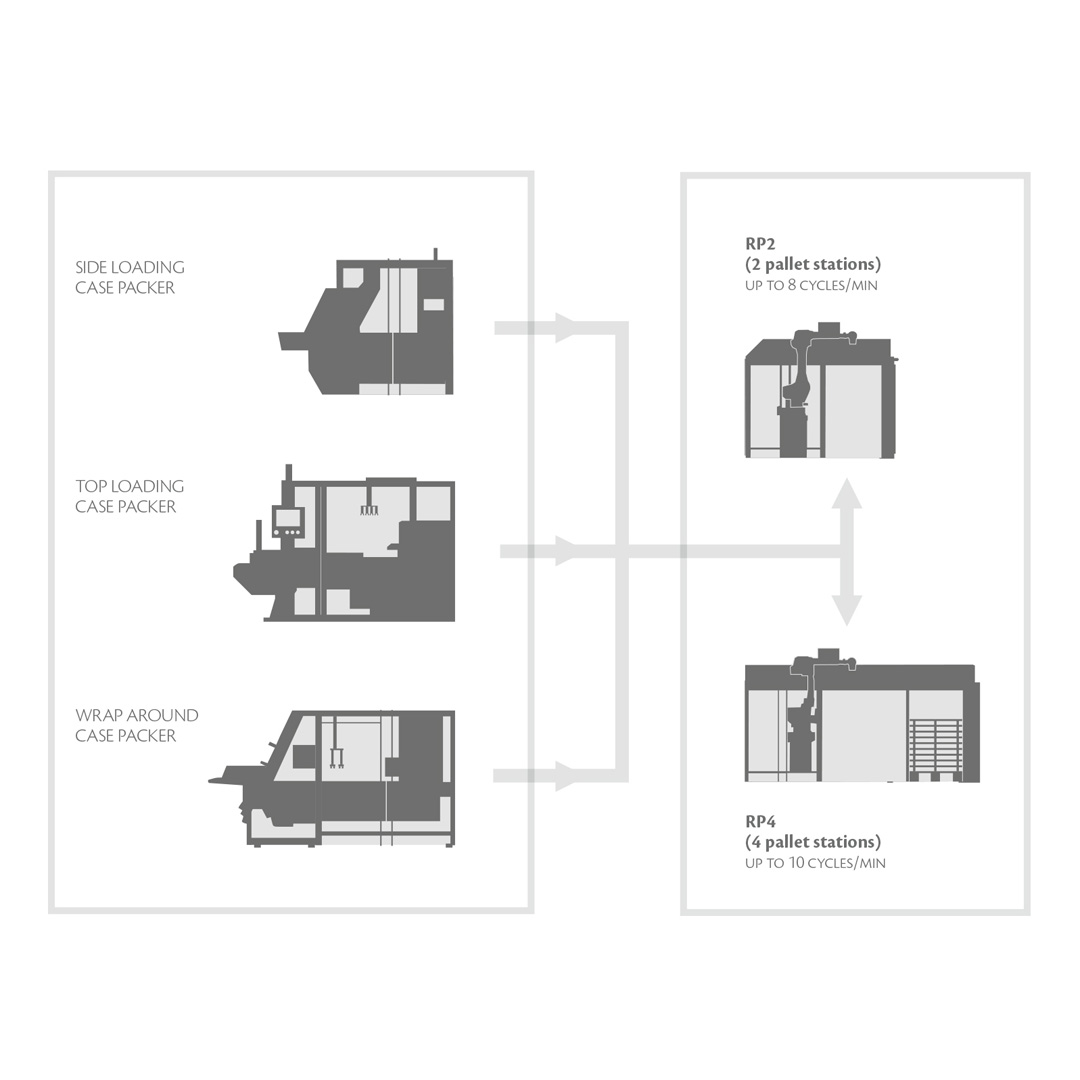

Case Packer – Palletizer integrated versions
RP2/RP4 palletizers are available in different case packer-palletizer integrated versions,
tailored to fit any space constraints and autonomy needs seamlessly.
