QUATTRO.PLUS Bundling

Machine overview

Make the most of your rolls

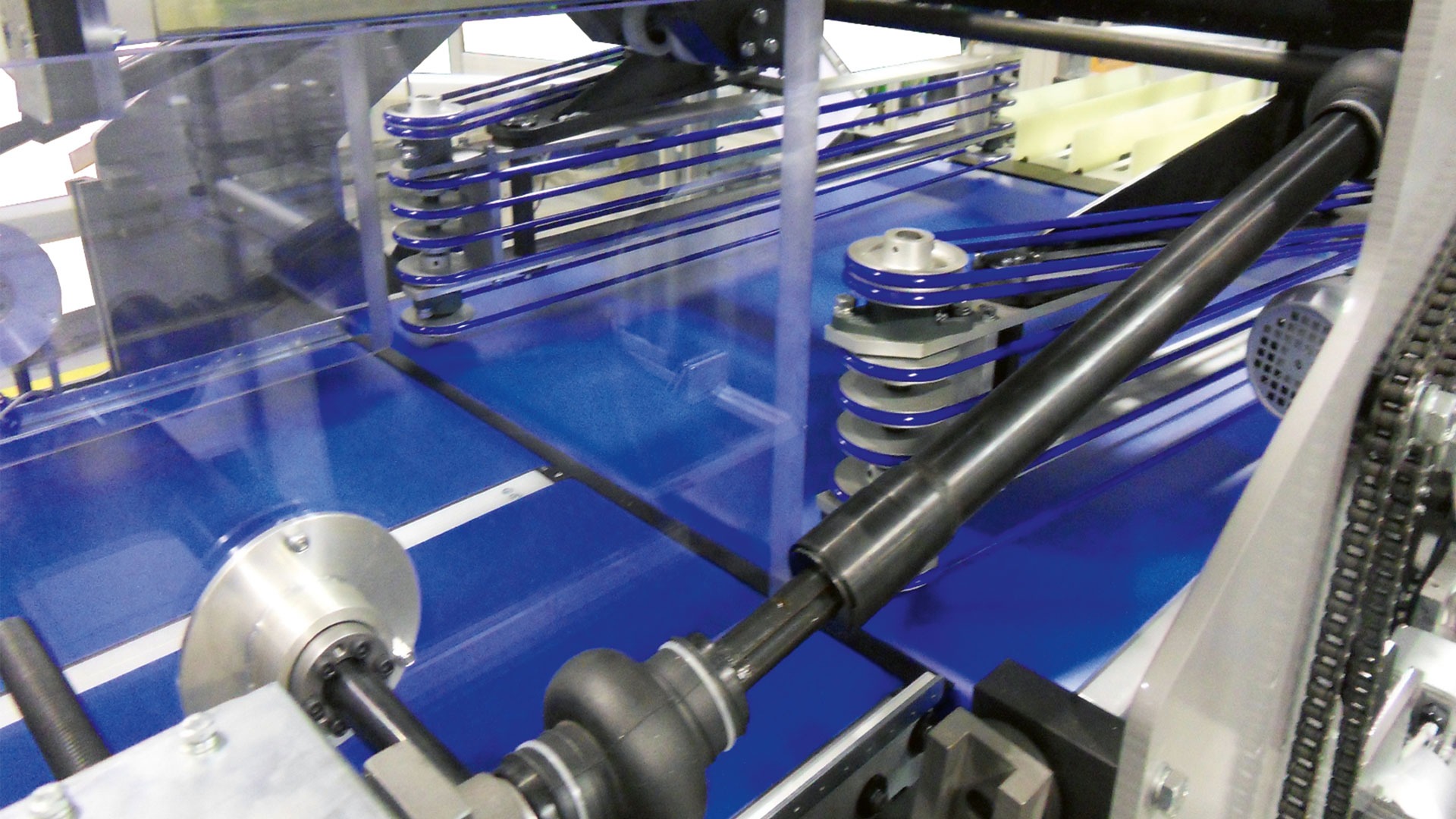

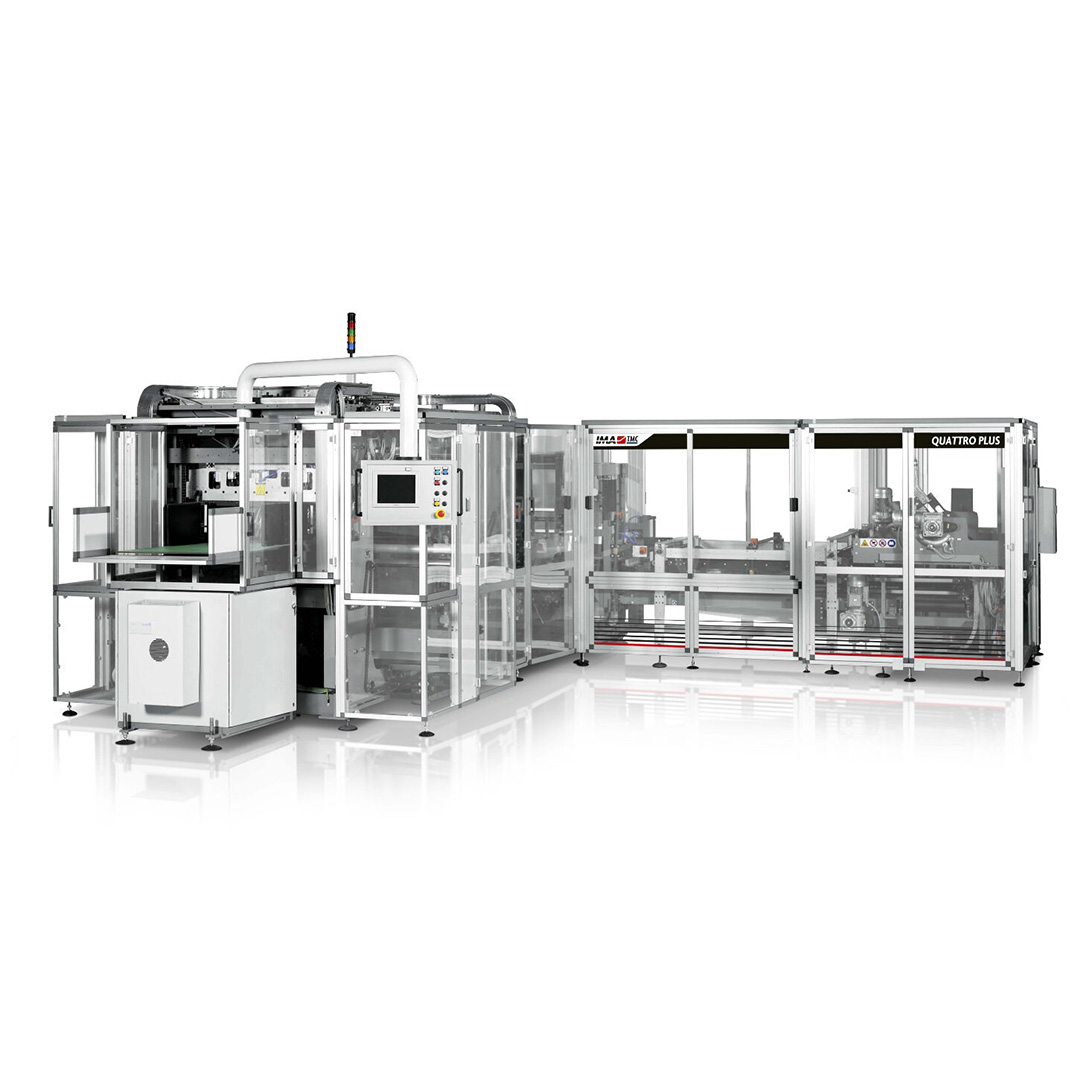

Especially designed to obtain the greatest possible number of roll bundles configurations, QUATTRO.PLUS is an automatic bundler that allows to switch from one bundle format to another quickly, granting maximum flexibility and reliability.

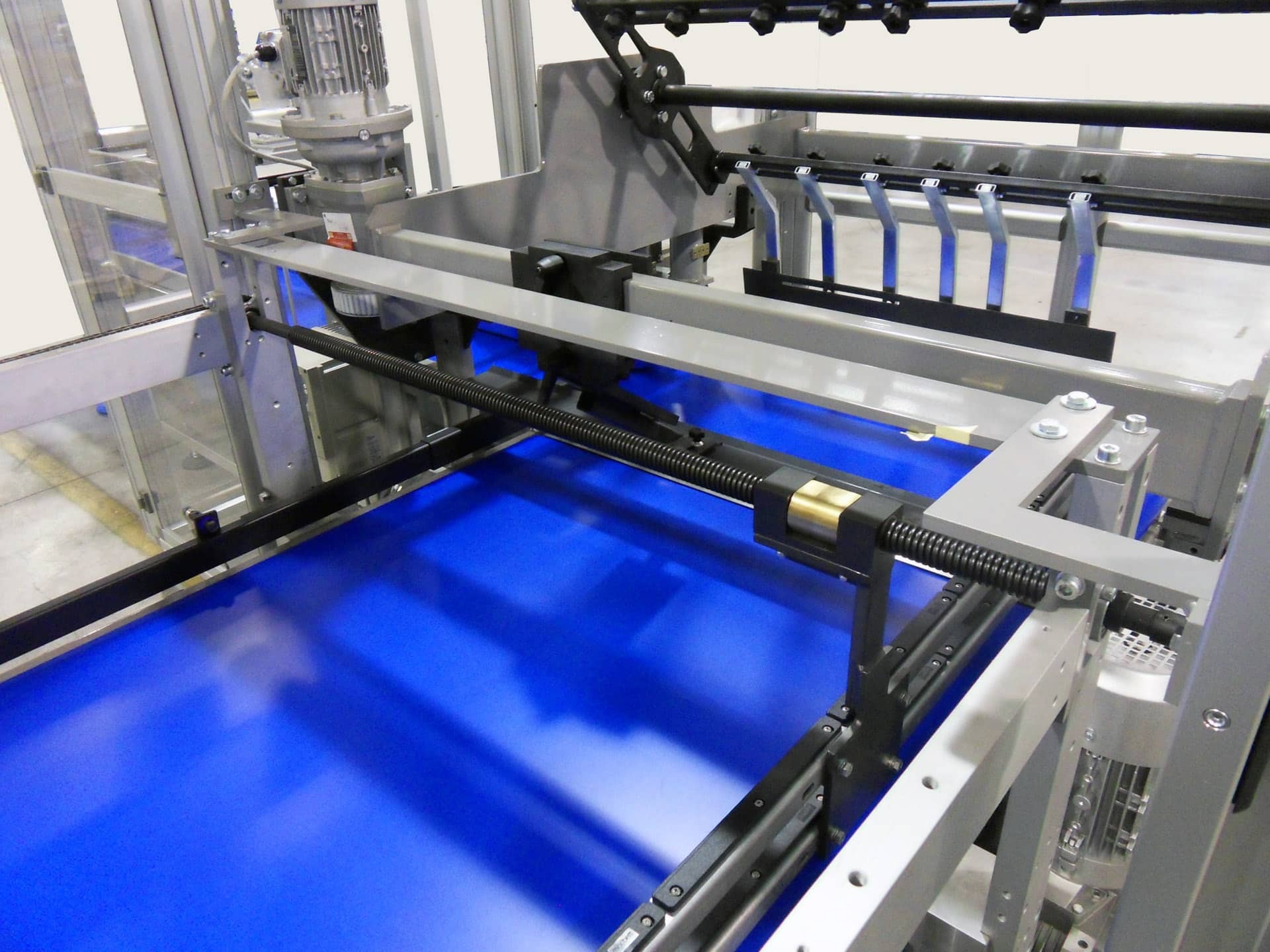

QUATTRO.PLUS features a rotary deviator, adjustable according to product size, so that product size and dimensions are not an issue.

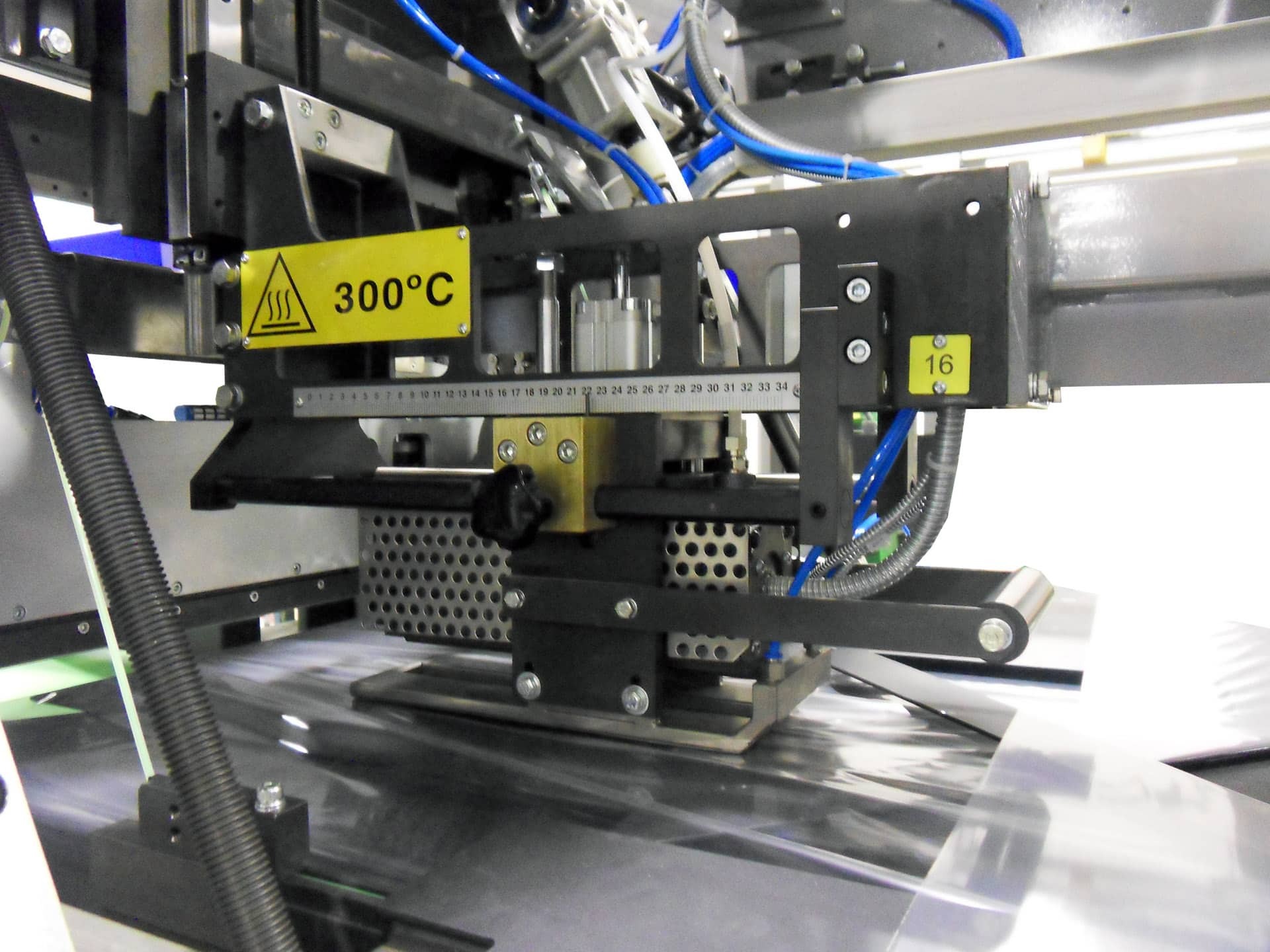

This machine also features a high-end sealing quality: the longitudinal sealer uses a jet of hot air to seal the overlay of the packaging material.
The Human Machine Interface (HMI) through panel PC provides easy machine management and operations. Easy, fast and repeatable format changeover is always guaranteed, as in TMC tradition, thanks to the innovative construction features.
Thanks to the presence of an integrated electrical cabinet, QUATTRO.PLUS requires a rationalized space, still getting the most of its potential.

Production plant

IMA TMC

Machine highlights

  1. Bundles

    All bundle configurations available, making QUATTRO.PLUS a super flexible bundling machine.

  2. Speed

    Mechanical speed up to 21 cycles/minute.

  3. Safety

    Automatic machine disengaging in case of product interference.

  4. Continuous production

    Machine downtimes are minimized for maintenance operations thanks to its smart design.

  5. HMI

    Diagnosing, troubleshooting and maintenance scheduling directly on the HMI panel.

  6. Accessibility

    Maximum accessibility and visibility for easy management of the machine in complete safety.

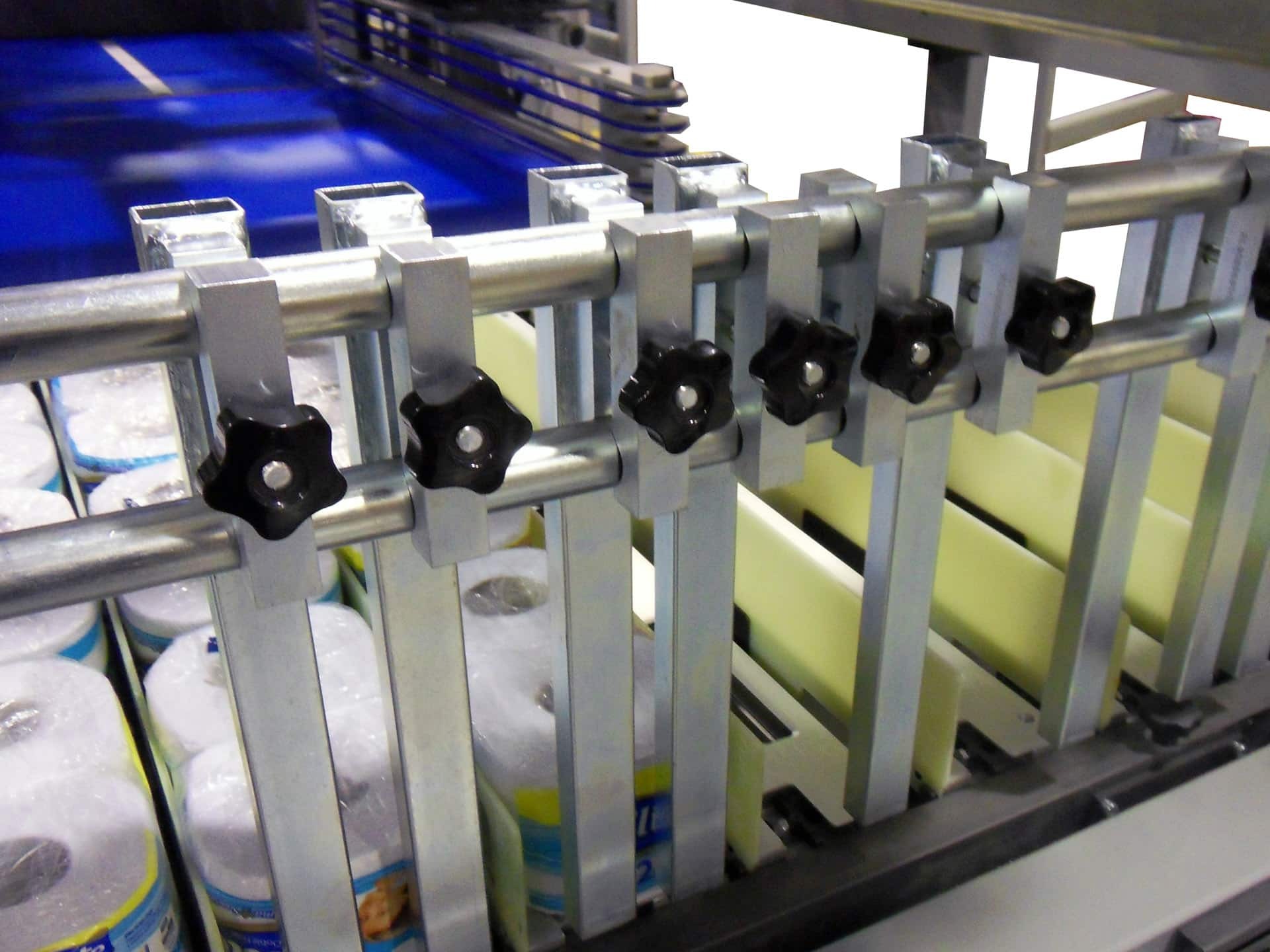

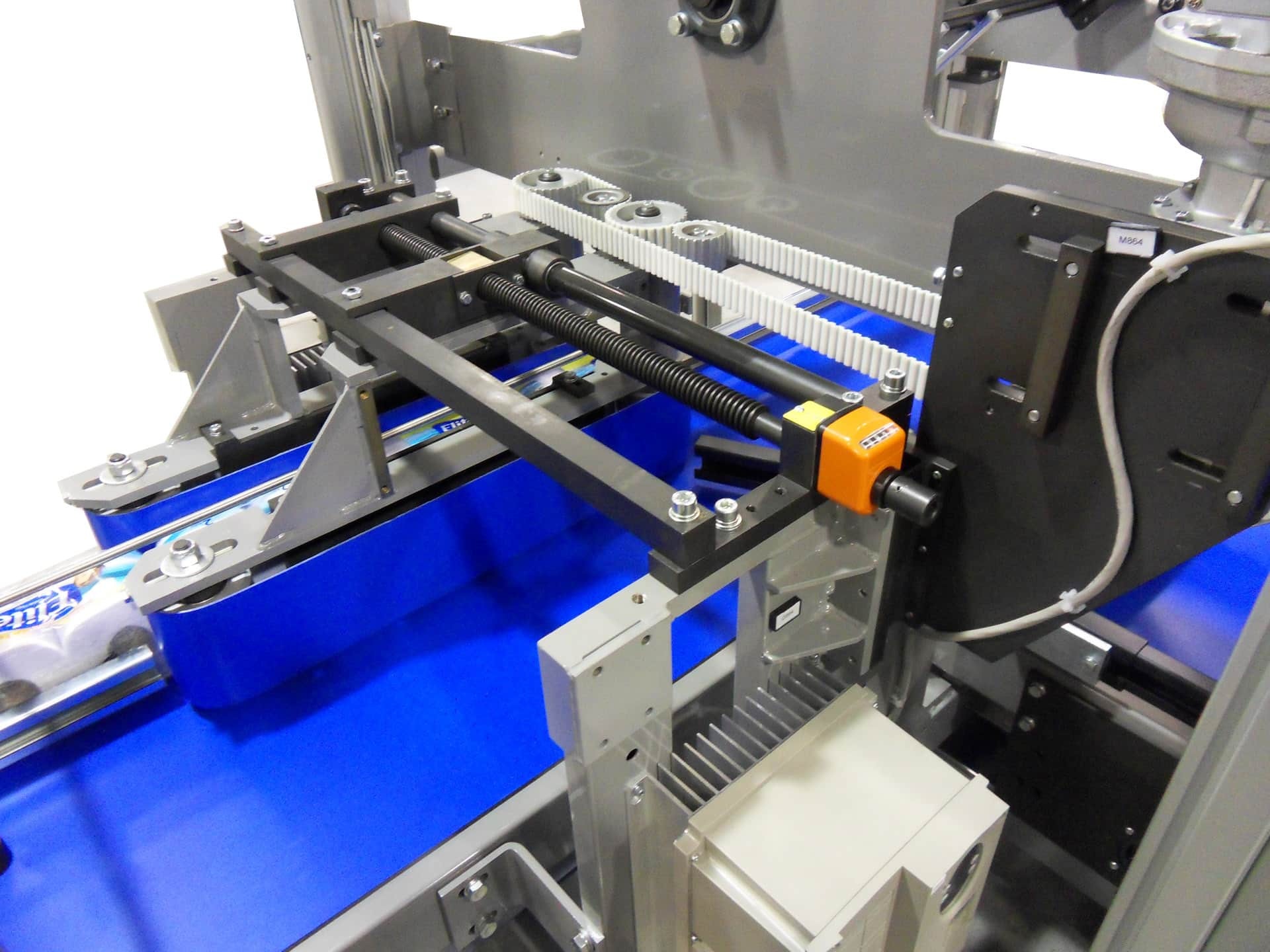

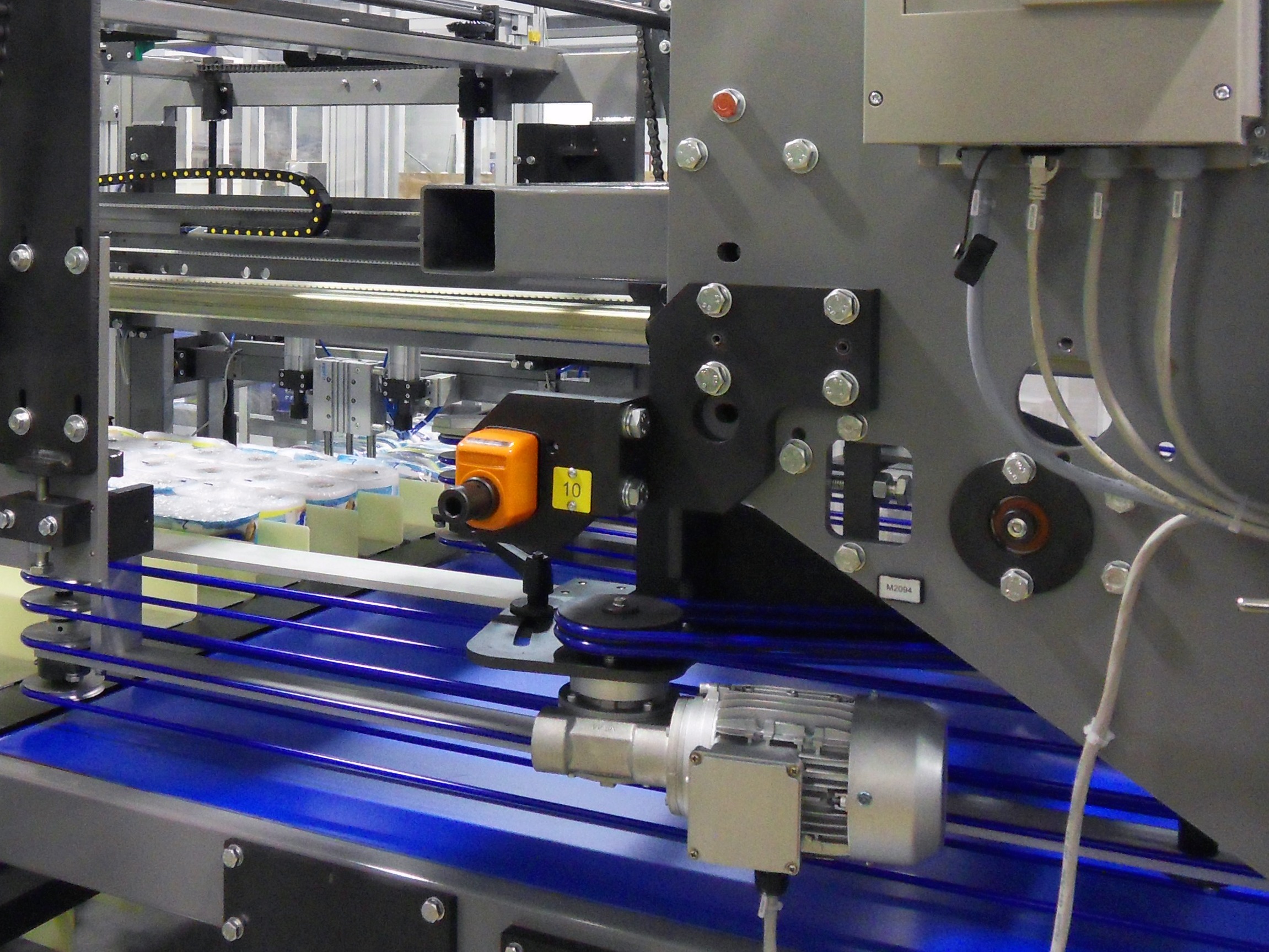

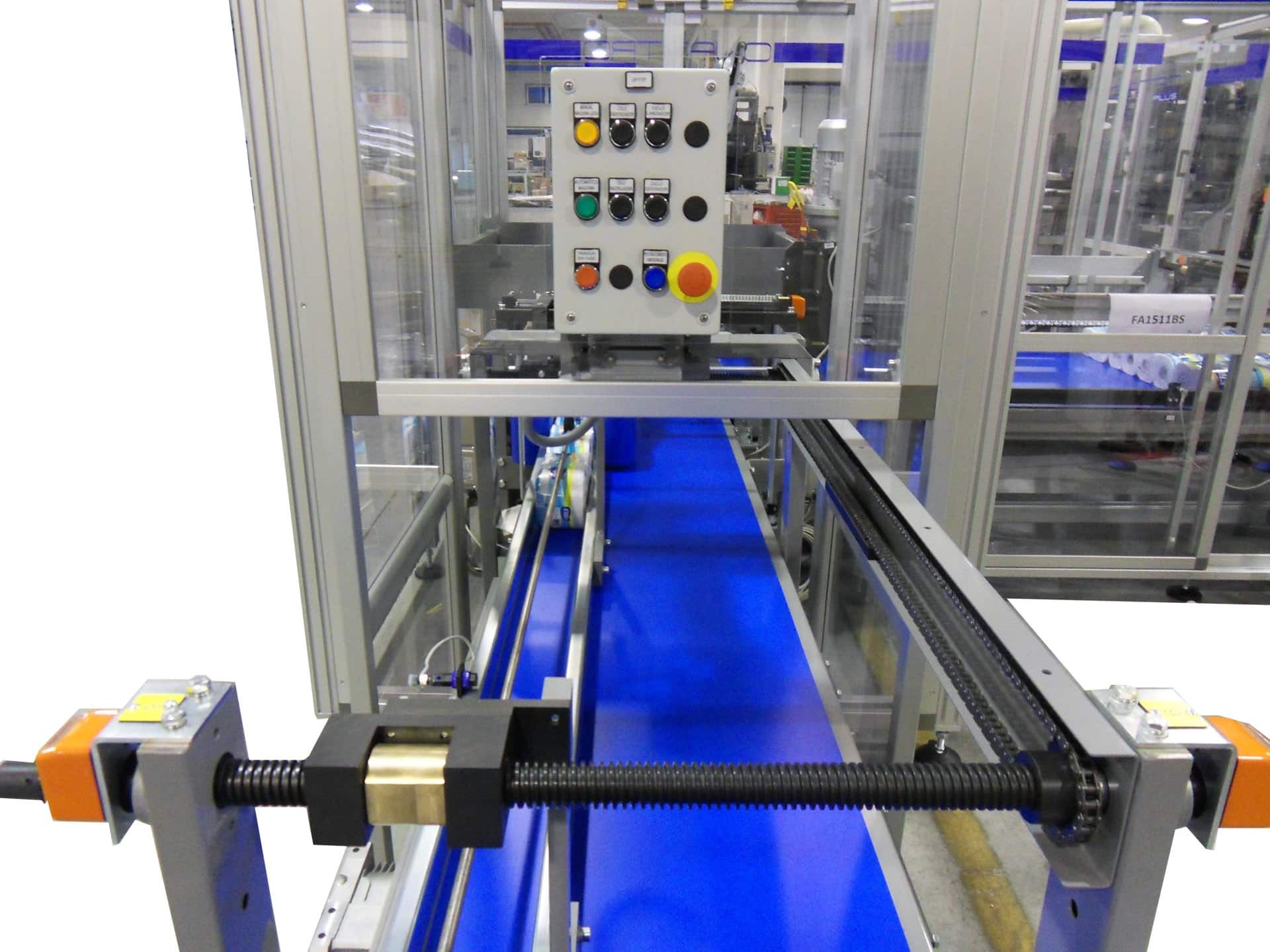

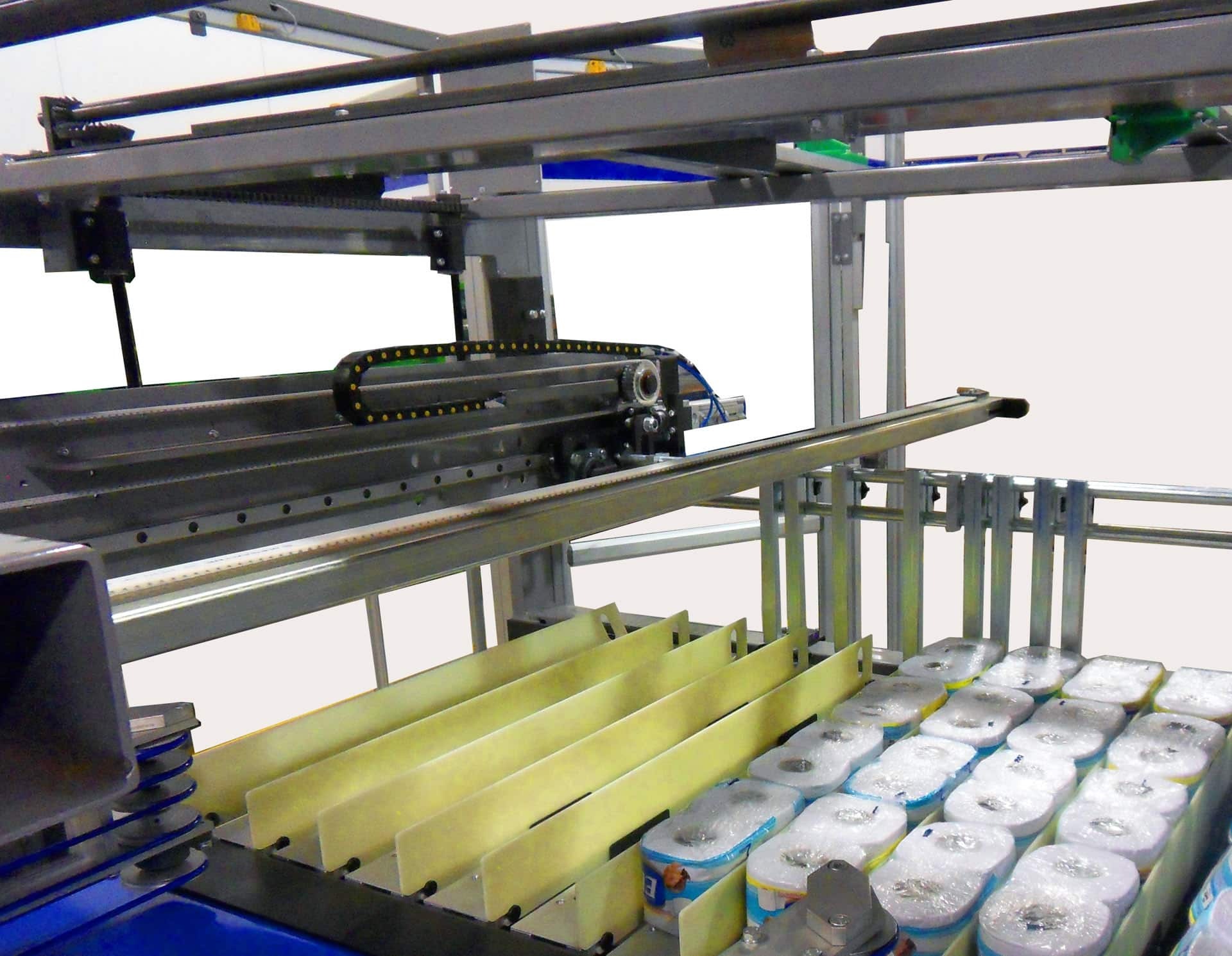

Machine details

Technical information

QUATTRO.PLUS TECHNICAL DATA
Max mec. speed

Up to 21 cy/1′

Servo motors

5-6

Aut. Adjustments

4-9

Pack Dimension

MIN

MAX

Width (A)

90 mm (3,5”)600 mm (23,6”)

Depth (B)

90 mm (3,5”)460 mm (18,1”)

Height (H)

90 mm (3,5”)300 mm (11,8”)
Layer Capabilityfrom 1 to 4
Machine RangeMIN MAX

Width

350 mm (13,7”)
(optional 300 mm – 11,8”)		850 mm (33,4”)

Depth

180 mm (7”)1000 mm (39,4”)
optional 2000 mm (78,7”) with double push

Height

180 mm (7,09”)
(optional 100 mm – 3,9”)		345 mm (13,5”)
(optional 460 mm – 18,11”)
Poly CapabilityMINMAX

Reel Diameter

–400 mm (15,7”)

Reel width

1100 mm (43,3”)2400 mm (94,5”)
