Precisa Quality control
Machine overview
Inborn precision.

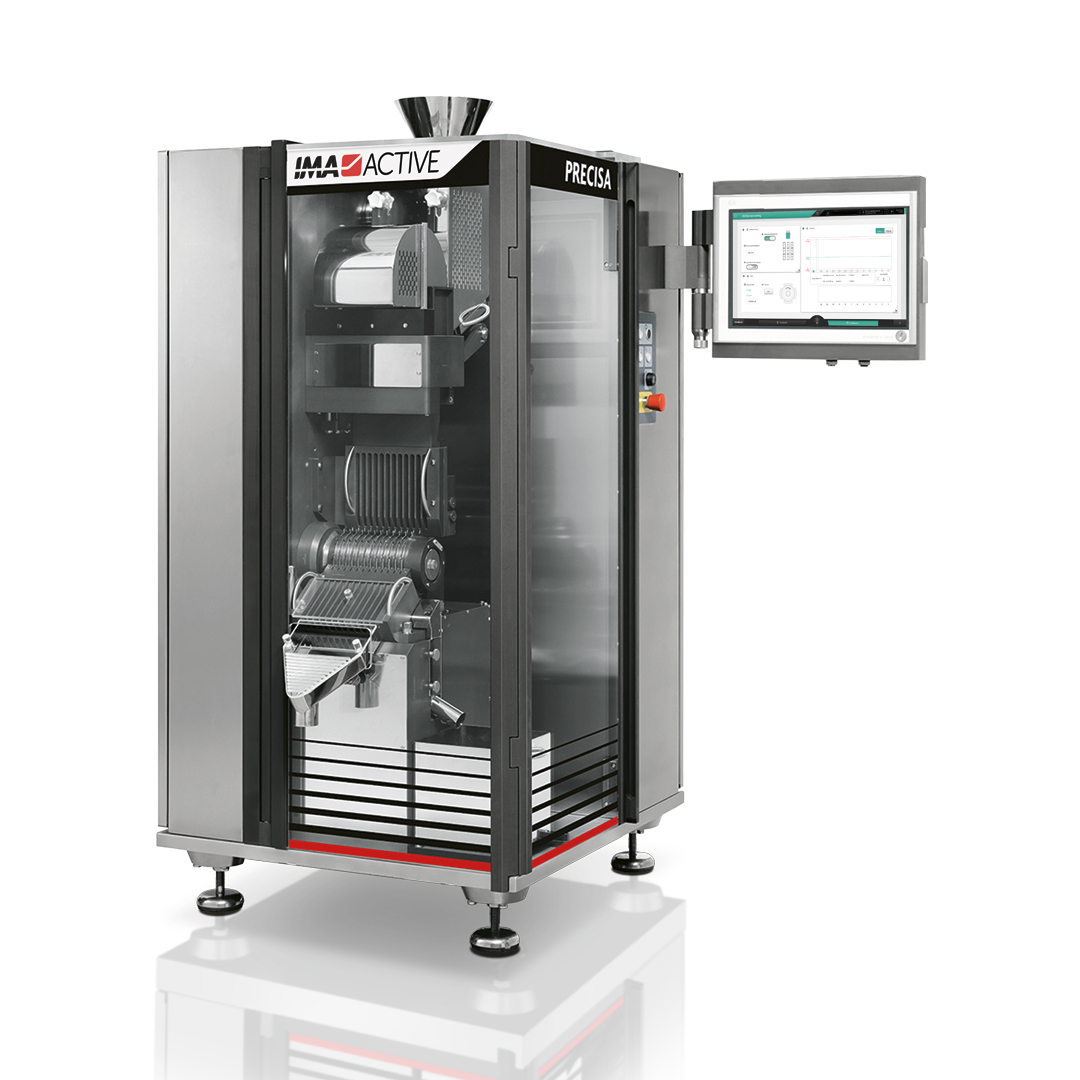

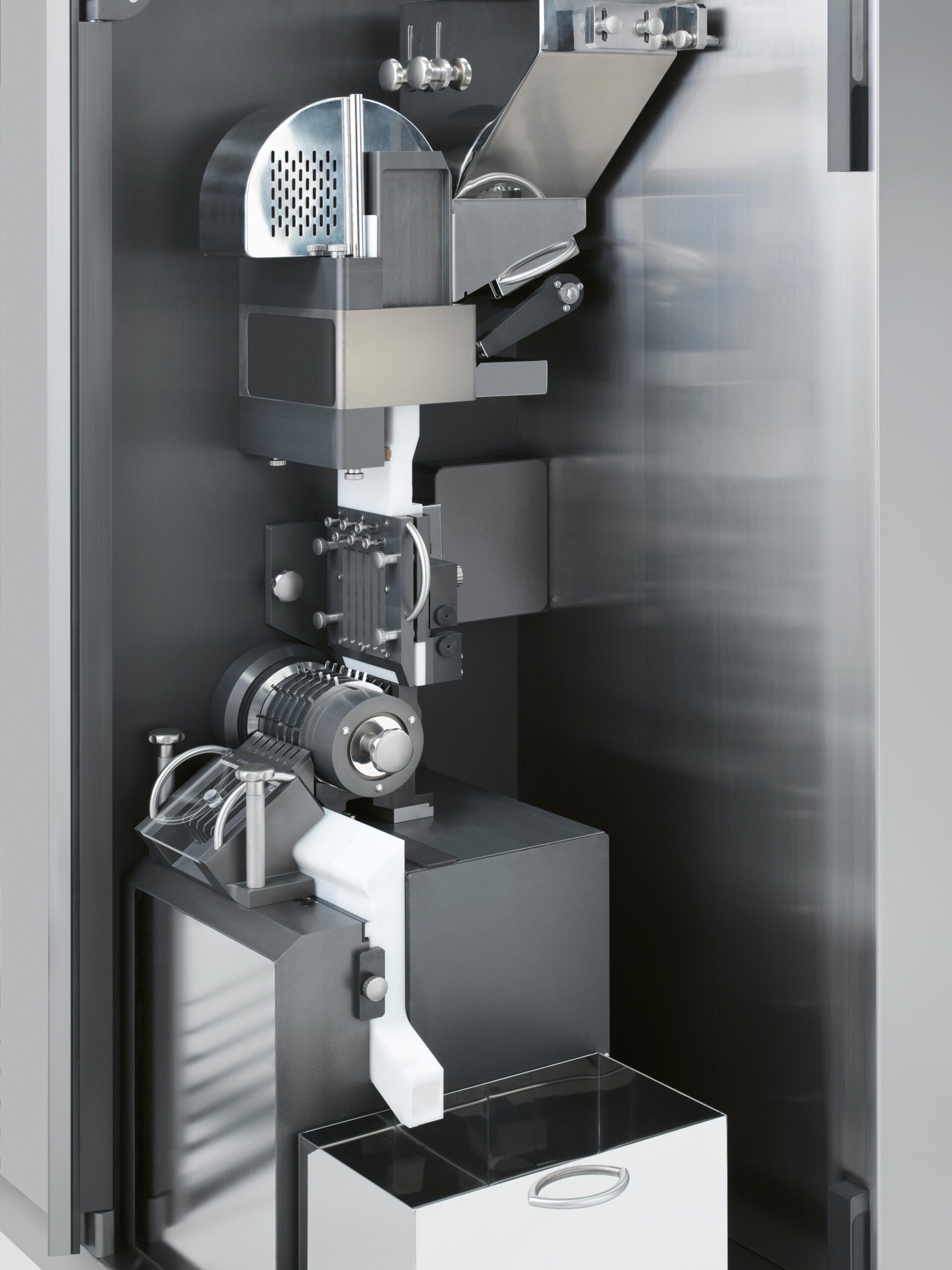

Precisa is an extremely precise weight-checking machine conceived for 100% weight control and selection of pharmaceutical products packed in hard gelatine and HPMC capsules.

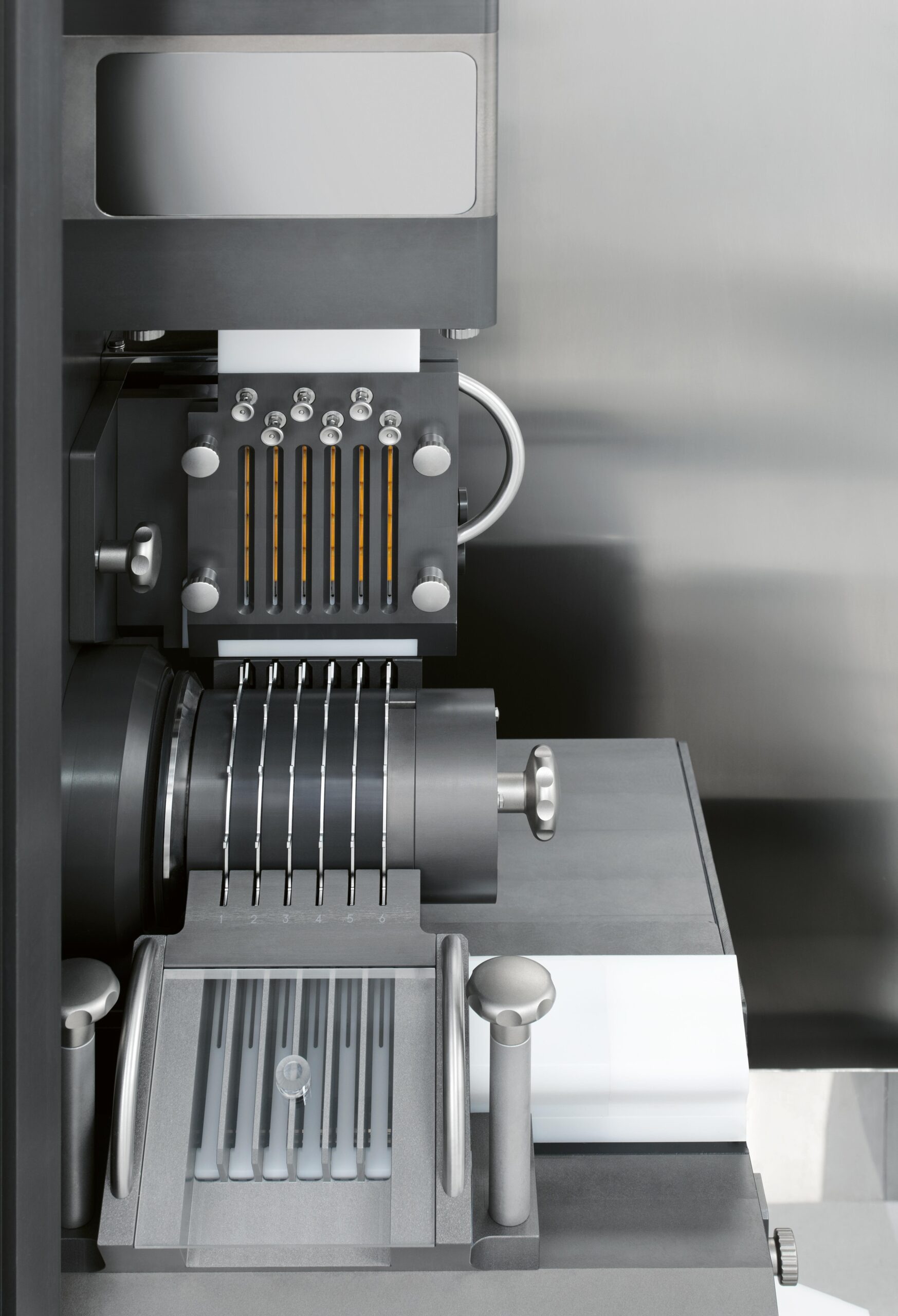

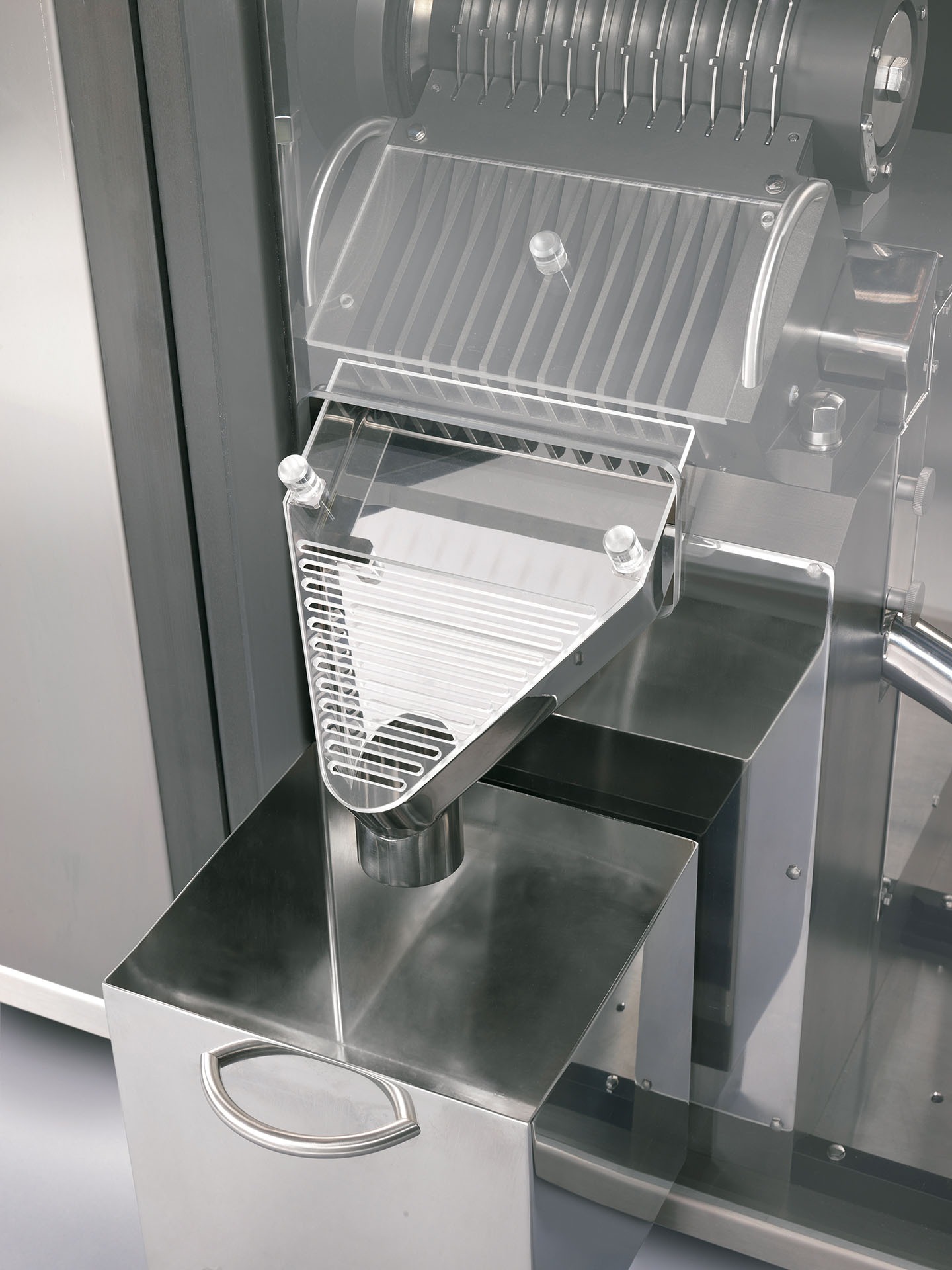

Designed with an extremely compact layout to save space in the production area, Precisa combines very high production speeds with outstanding weighing performance and implements a highly reliable product transfer system to the weighing cell that minimises vibrations. After weighing, any out-of-weight products are rejected into a specific container.
Production plant
IMA Active
Machine highlights
-
Space-efficient mobility
Extremely compact design with wheel attachment, saving space in the production area while allowing easy movement.
-
Comprehensive reporting
Batch report including 100% weight checking, ensuring complete traceability and quality control.
-
Fast changeover
Quick size changeover, enabling minimal downtime and efficient production flexibility.
-

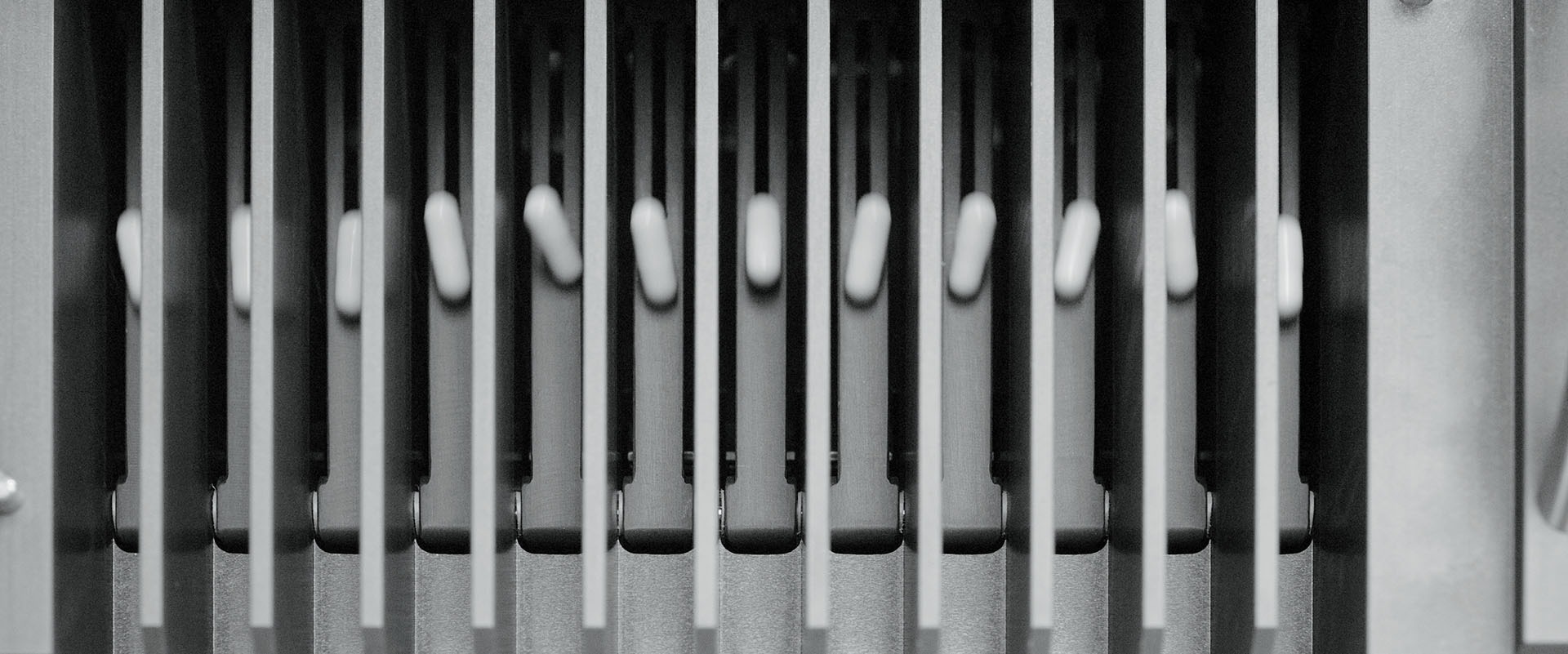

Efficient feeding
Automatic unclogging of feeding channels, ensuring continuous operation and reduced downtime.
-
Secure rejection
Fail-safe system for rejecting faulty capsules, ensuring product quality and operational reliability.
-
Flexible integration
Capable of in-line connection with all capsule fillers currently on the market, ensuring seamless integration and workflow compatibility.
Tailored feeding for precise tablet weighing

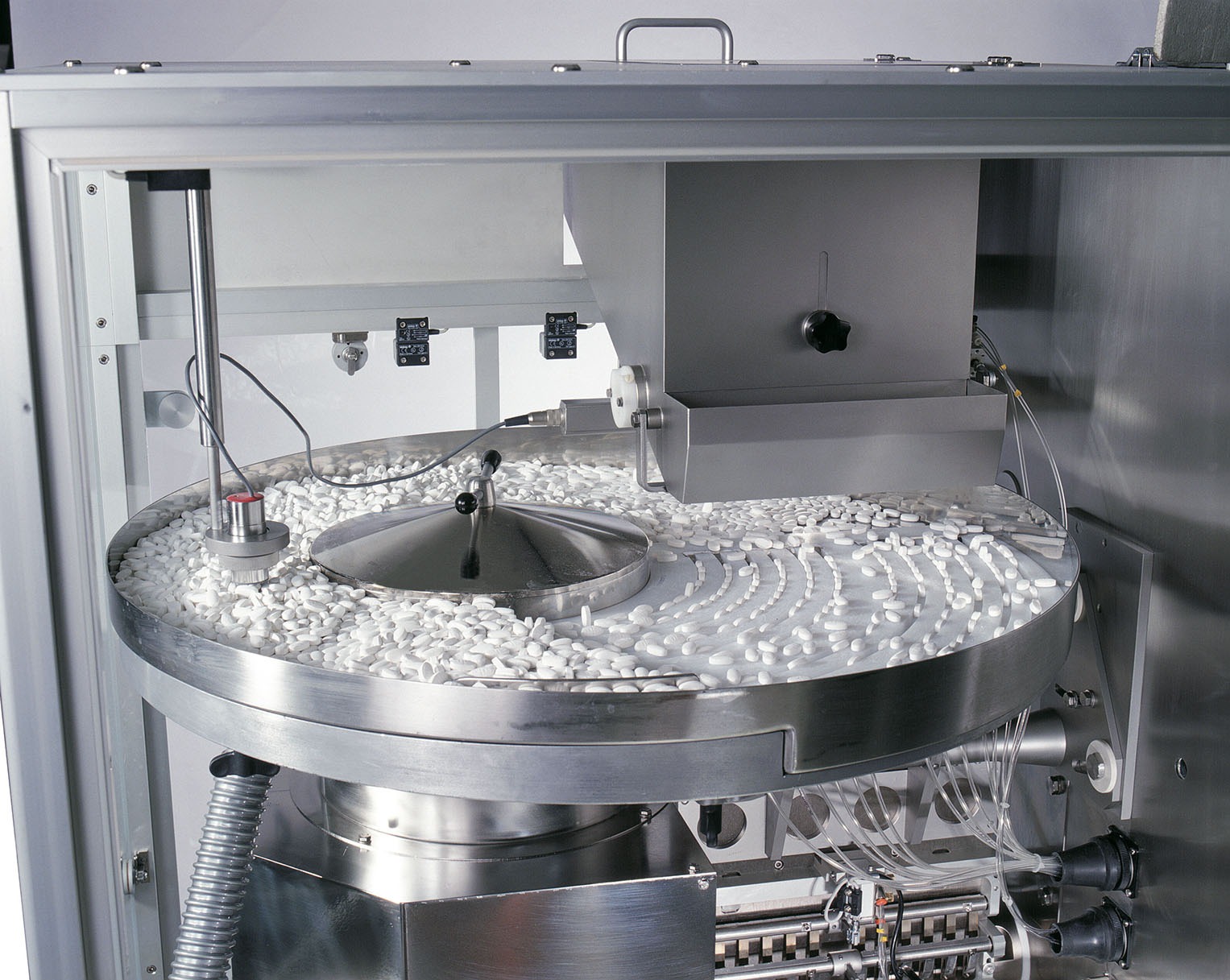

To meet the specific need to weigh tablets, IMA has designed a different product feeding system. The tablets are fed from a vibrating plate through the feeding channels to the continuous motion drum allowing tablet transfer to the weighing cells.
Machine versions

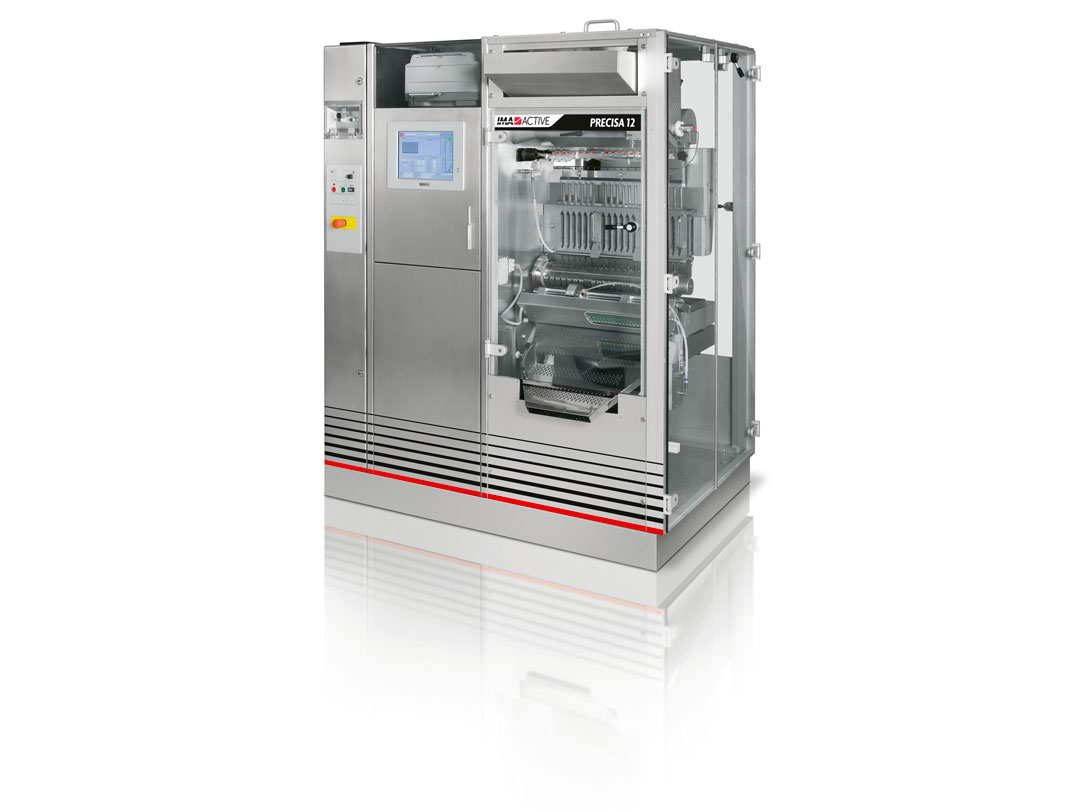

Precisa 12
To meet customers’ specific need to weigh tablets, IMA has designed Precisa 12. The tablets are fed from a vibrating plate through the feeding channels to the continuous motion drum allowing tablet transfer to the weighing cells
Machine details

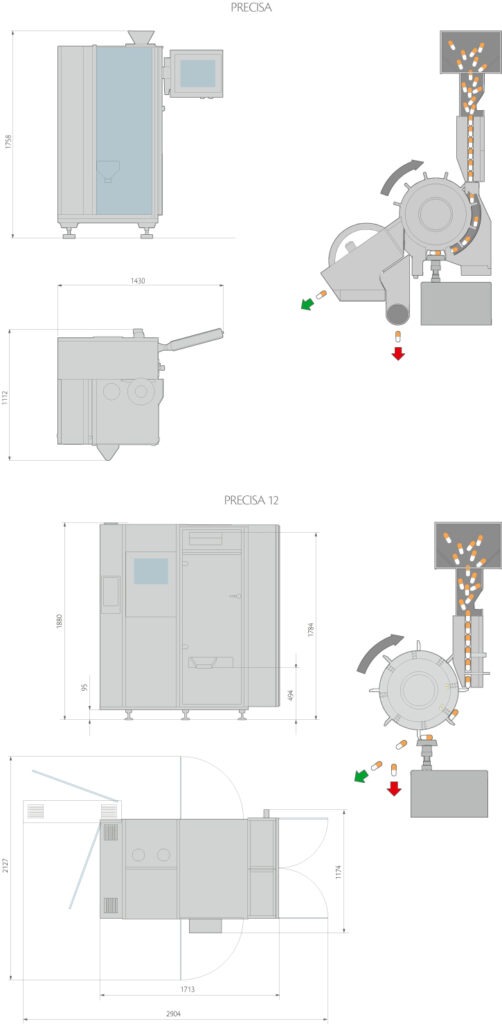

Technical information
| Precisa technical data | |||
| Model | 70 | 150 | 230 |
| Maximum output (units/hour) | 70,000 | 150,000 | 230,000 |
| Power supply | AC three phase without neutral | AC three phase without neutral | AC three phase without neutral |
| Installed power (kW) | 2.5 | ||
| Compressed air | 60 dm3/min – 6 Bar | 80 dm3/min – 6 Bar | 100 dm3/min – 6 Bar |
| Weight (kg) | 730 | 750 | 770 |
| Weighing range (mg) | 1 – 2,000 | 1 – 2,000 | 1 – 2,000 |
Scale accuracy-Standard deviation (mg) | 1 | 1 | 1 |

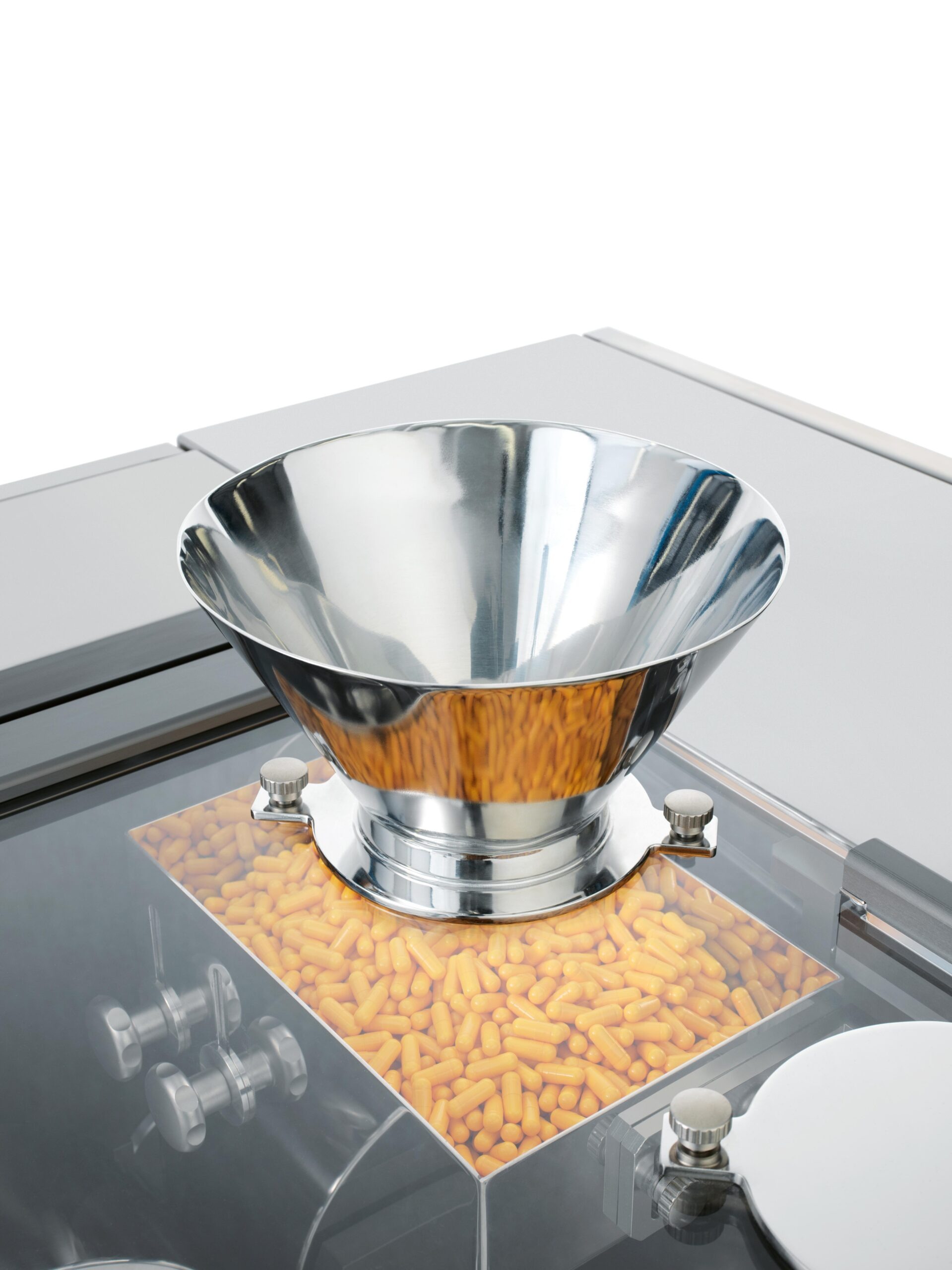

| Feeding hopper capacity (l) | 15 | 20 | 25 |
| Product | 000-5, Supro A-E, DB, DB.AA – Vegicaps: vegetable capsules | 000-5, Supro A-E, DB, DB.AA – Vegicaps: vegetable capsules | 000-5, Supro A-E, DB, DB.AA – Vegicaps: vegetable capsules |
