PH 3000 Horizontal Form Fill and Seal
Machine overview
Raising the bar with a unique solution
Born from the experience gained in the field by the IMA Ilapak team combined with IMA’s strong know-how in the Pharma sector, this flow wrapping machine breaks with the past thanks to its completely new and revolutionary architecture. Minimal footprint, total visibility of product and packaging material, ease of cleaning and accessibility for operations and maintenance. All this combined with excellent ergonomics, quick and easy format changes, and the built-in by-pass function.

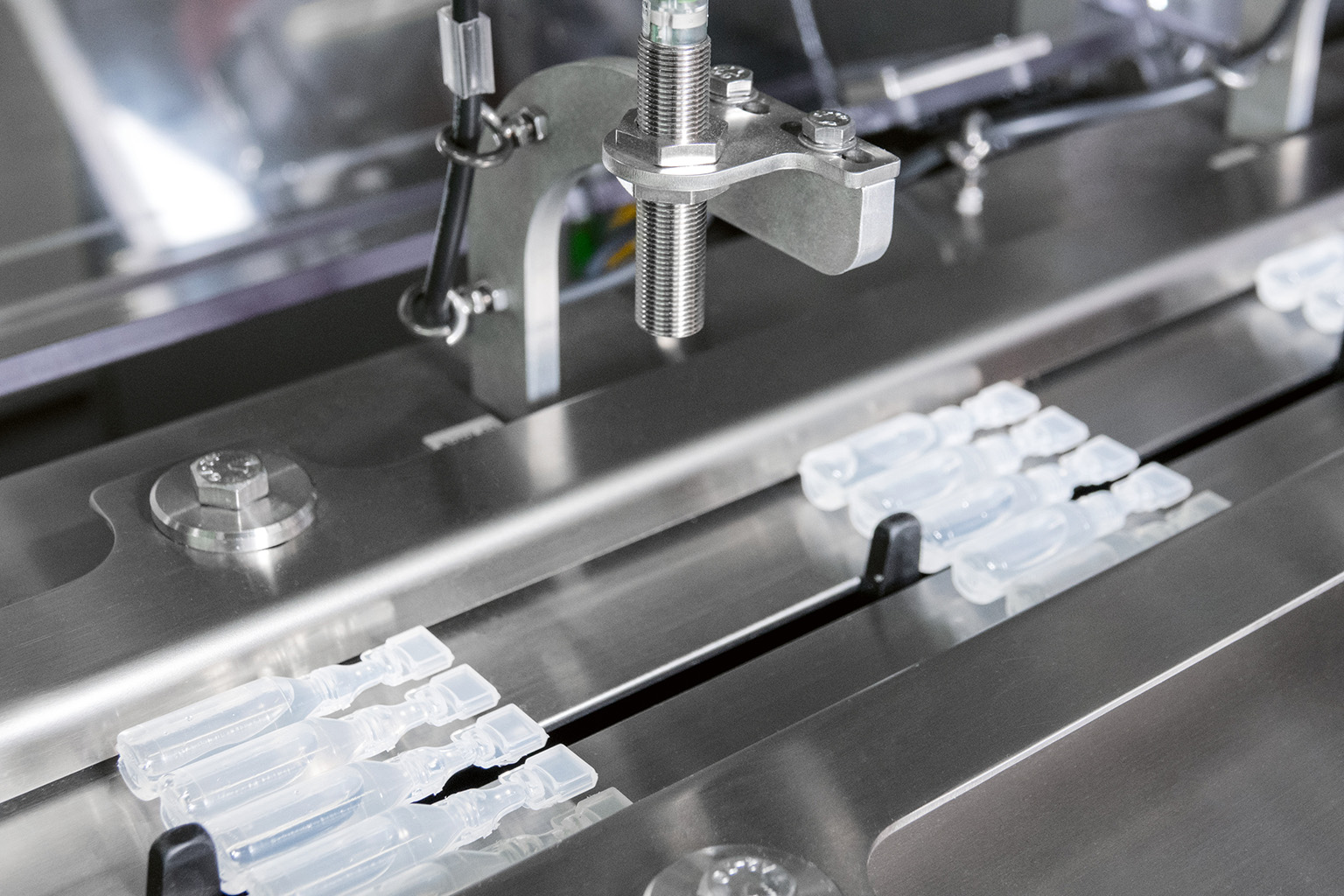

Given its modularity and flexibility, this solution is suitable both for multinational and local companies and can embrace a wide range of applications including blisters, BFS, inhalers, syringes, medical devices and bottles.
Additionally, for the American market, a new Allen Bradley electronic platform is available to meet local requirements.
Production plant
IMA Ilapak International SA
Machine highlights
-
1.

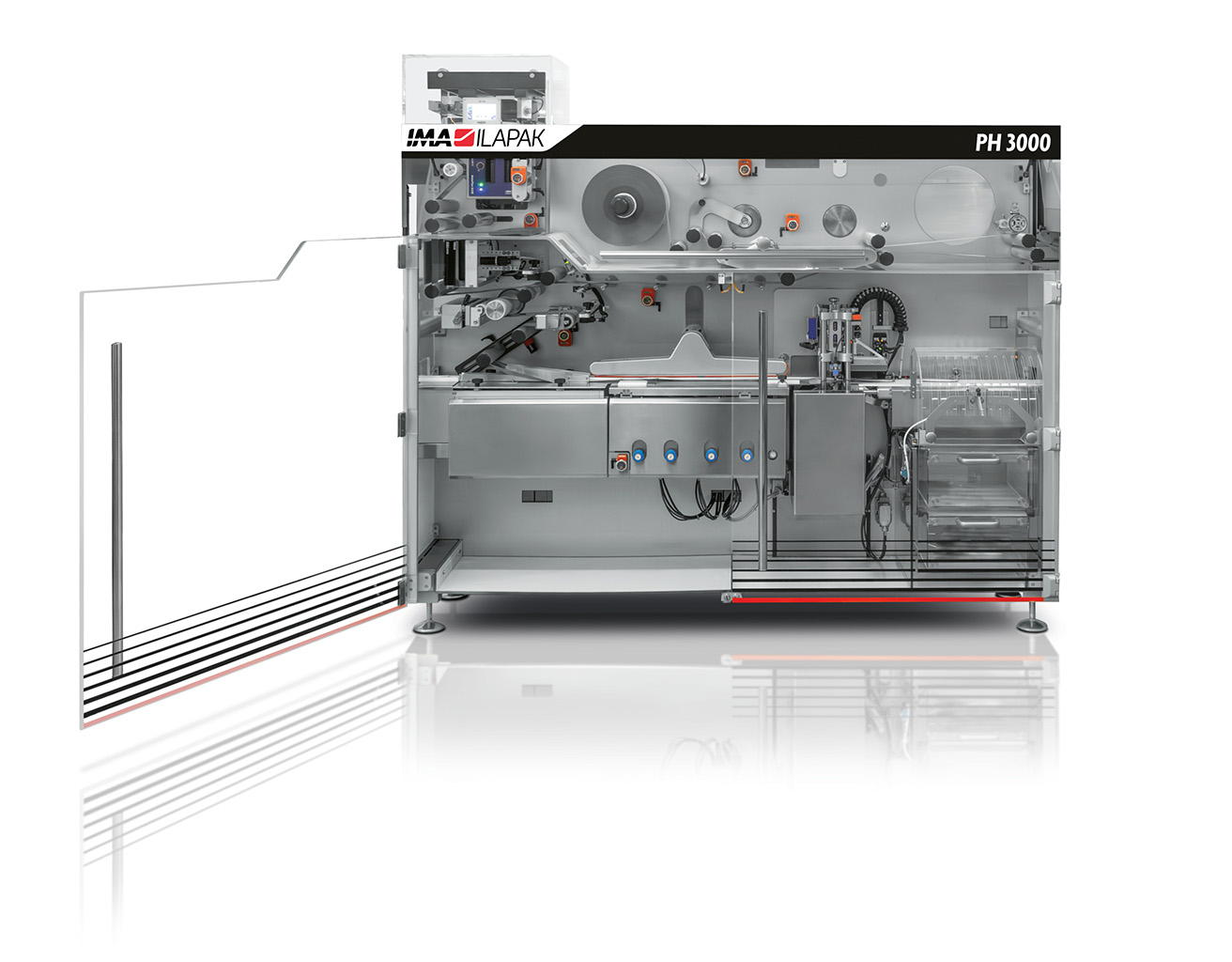

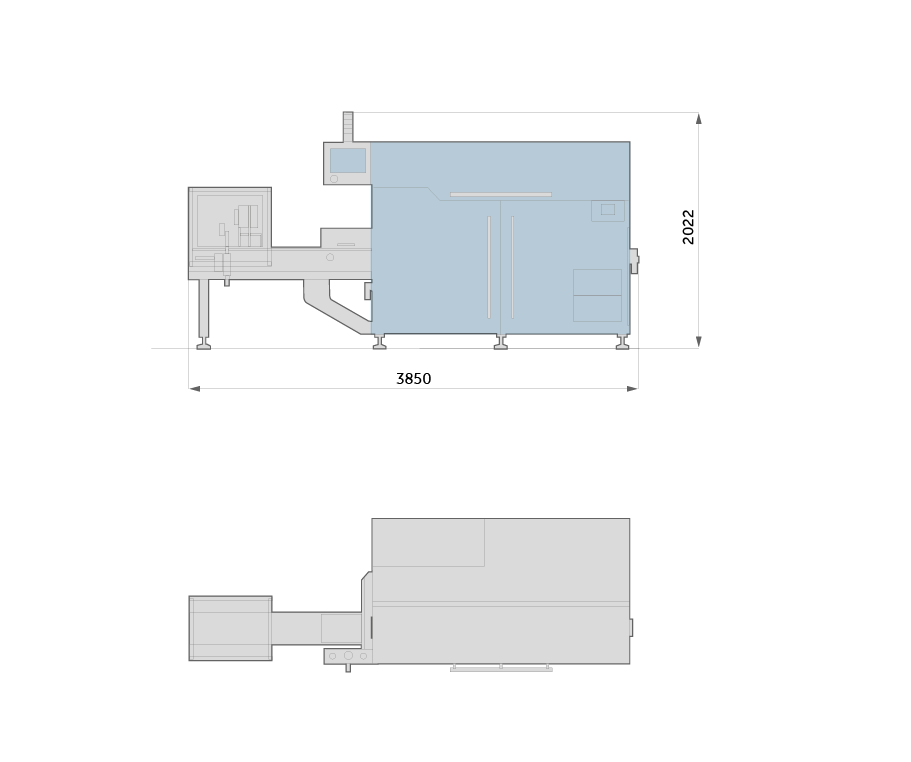

Minimised footprint and new architecture make the PH 3000 extremely compact, robust and ergonomic.
-
2.
Hygienic and balcony style design allow film and product path always visible and accessible.
-
3.
Featured with in-line by pass, containment & clean-room compliance.
-
4.

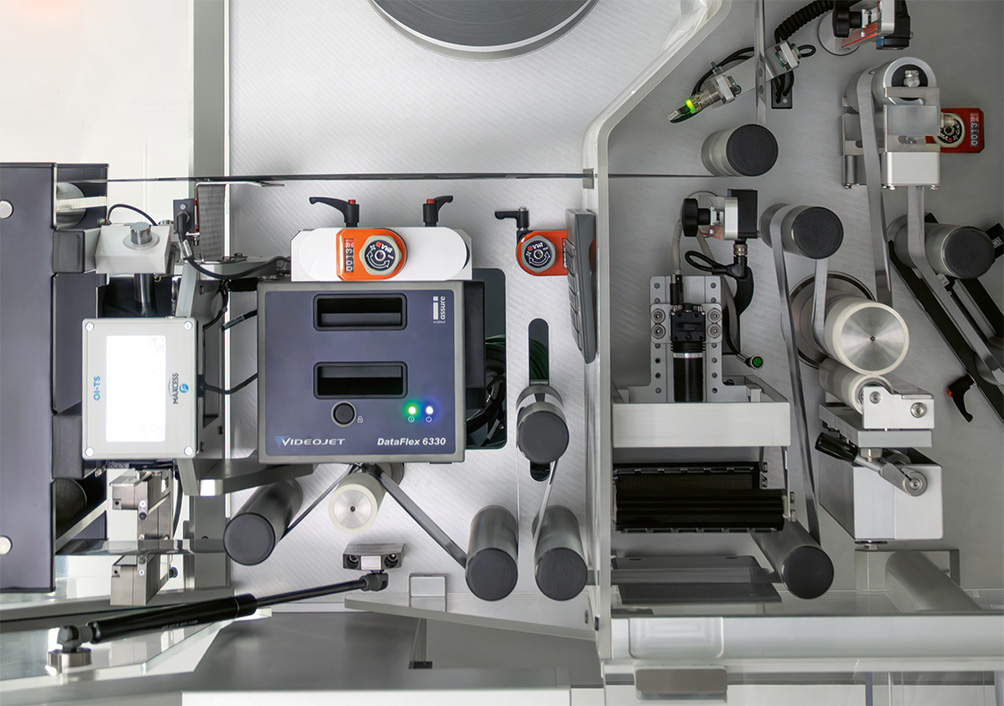

Wide solutions of features such as printing OCR/OCV, automatic feeding and 21 CFR Part 1.
Machine details
Technical information
| PH 3000 | |
|---|---|
| Machine Speed | Up to 450 cycles per minute Production output depends on film sealability and product characteristics |
| Film Cut-Off | Min 60 mm (2.4″) / Max 400 mm (16″) Depending on film and product characteristics |
| Wrapping Materials | Alu-based material, laminated, co-extruded and all sealable films |
| Film Reel Max Weight | Depending on film reel width, up to 50 kg (110 lbs) |

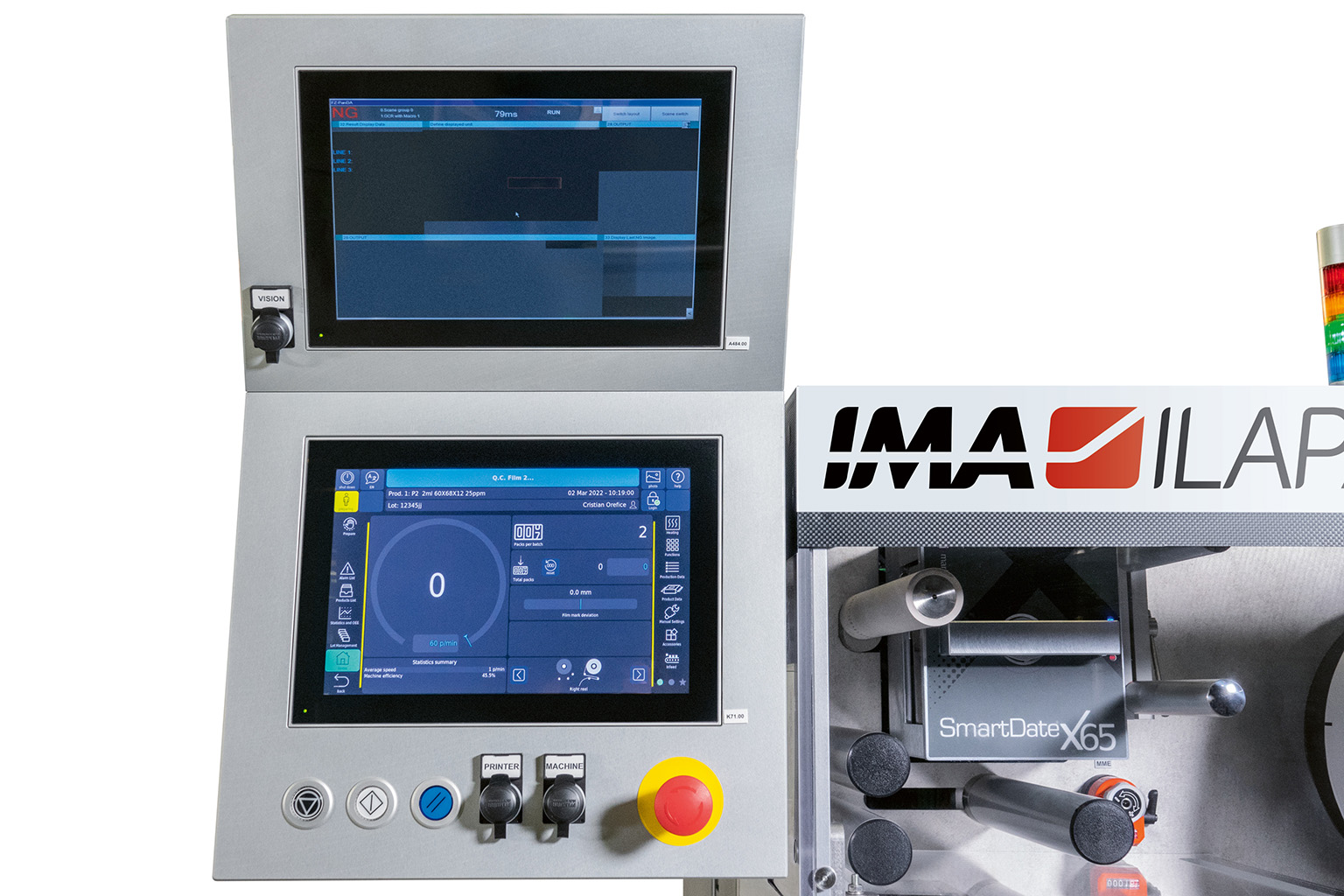

| Electronic Platform | Industrial PC |
| Power Requirement | From 220 to 480 V, 50/60 Hz, 7 kVA |
| Compressed Air | 6 bar, 200 l/min |
| Machine Weight | 1400 kg (3100 lbs) |
| PRODUCT DIMENSIONS | |
| Length | Up to 250 mm (10″) standard |
| Width | Up to 100 mm (4″) standard |
| Height | Up to 100 mm (4″) standard |
| FILM REEL DIMENSIONS | |
| Core Ø | 76.2 mm (3″) standard |
| Outer Ø | 400 mm (12″) |
| Width | 300 mm (19.7″) standard |
