PANDA RS Horizontal Form Fill and Seal
Machine overview
Flexible flow wrapping solution for highly customized applications
The PANDA RS Series is engineered for high speed flow wrapping, combining Italian manufacturing excellence with over 50 years of engineering experience.
Equipped with rotating sealing jaws, the RS models deliver fast, secure and visually appealing packages, reaching speeds up to 300 packs per minute for small and medium-size products.
Designed with an ergonomic stainless-steel frame, the RS Series integrates seamlessly into automatic production lines and suits both food and non-food industries.
Production plant
IMA Record
Machine highlights
-
High-speed packaging up to 300
Maximum performance for demanding production lines.
-

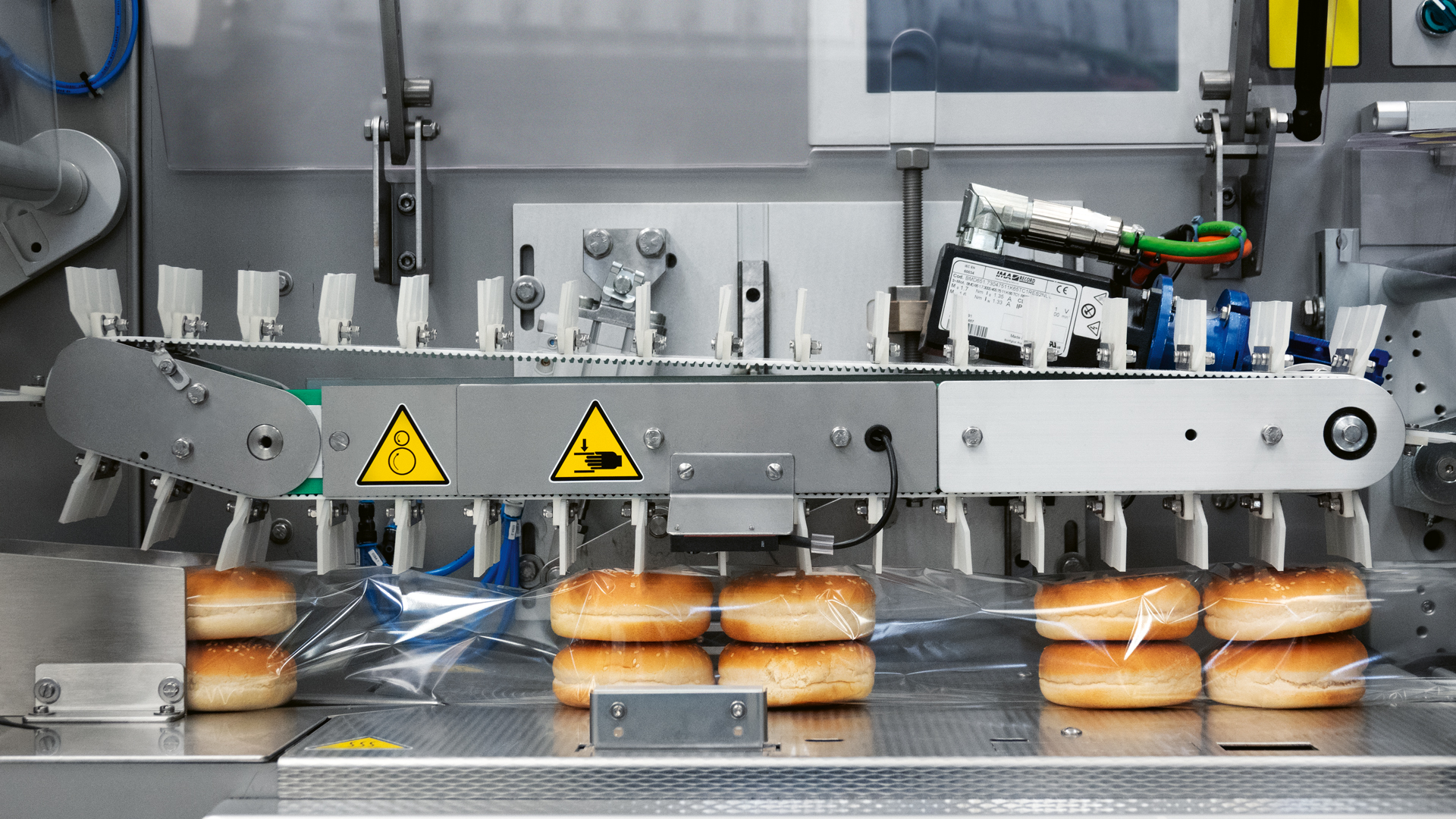

Rotating sealing jaws
Ensures tight, clean seals and a premium pack appearance, even with heat-shrinkable films.
-
Hygienic stainless-steel design
Rounded shapes and easy-to-clean surfaces, with a full wash-down version available.
-
Full line integration
Compatible with IMA Record’s automatic feeding systems for complete process flow solutions.
Machine versions

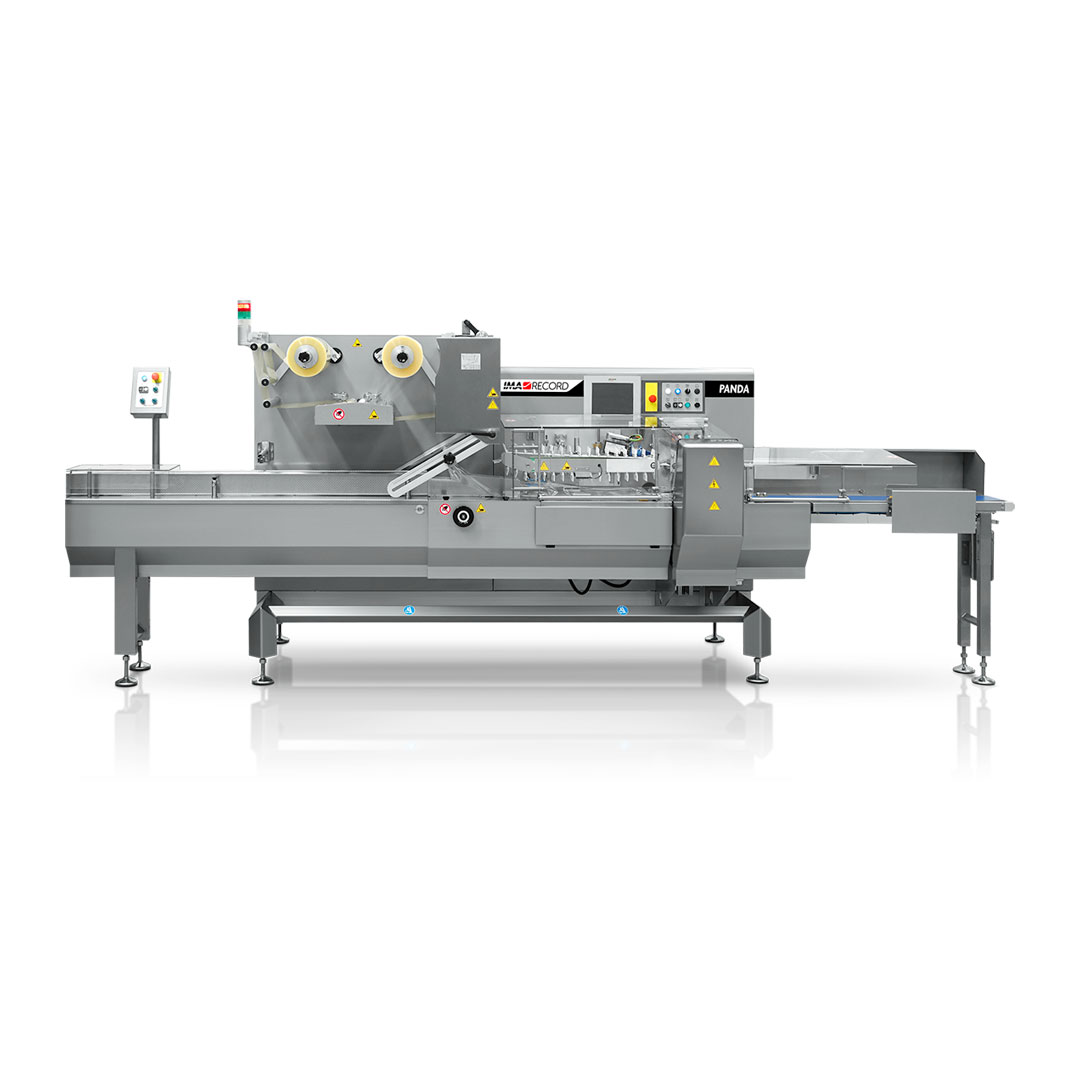

PANDA BS RS
The PANDA BS RS is a bottom seal flow wrapper with rotating sealing jaws designed for high-speed production environments. It delivers excellent sealing quality and pack appearance using simple or heat-shrinkable wrapping materials, reaching up to 300 ppm.
PANDA BS RS OE
The PANDA BS RS is the On Edge version of the PANDA BS RS and is ideal for products such as biscuits, crackers and sliced bread. This flow wrapper is suitable for both semi-automated and fully automated applications, meeting a wide range of production needs, and can be integrated with the automatic feeding systems offered by IMA Record.
PANDA TS RS
The PANDA TS RS is the top seal version with rotating sealing jaws, ideal for irregular or unsupported products. Featuring a transparent-door open frame for superior accessibility, it achieves speeds up to 100 ppm, maintaining sealing quality and production efficiency.
Technical information
| PANDA BS RS | PANDA BS RS OE | PANDA TS RS | |
| Machine speed (ppm max.) | 150 (300) | 130 | 100 |
| Product width (mm max.) | 750 | 300 | 750 |
| Product depth (mm max.) | 280 | 130 (180) | 320 |
| Product height (mm max.) | 120 (180) | 80 (110) | 70 (160) |
| Film width (mm max.) | 730 | 730 (930) | 730 |
| Cut-off length (mm max.) | 850 | 400 | 850 |
| Jaws width (mm max.) | 350 (170) | 170 (250) | 350 |
| Film linear speed (m/min.) | 50 | 50 | 30 |
