Multipack 5600 Dosing and wrapping
Machine overview

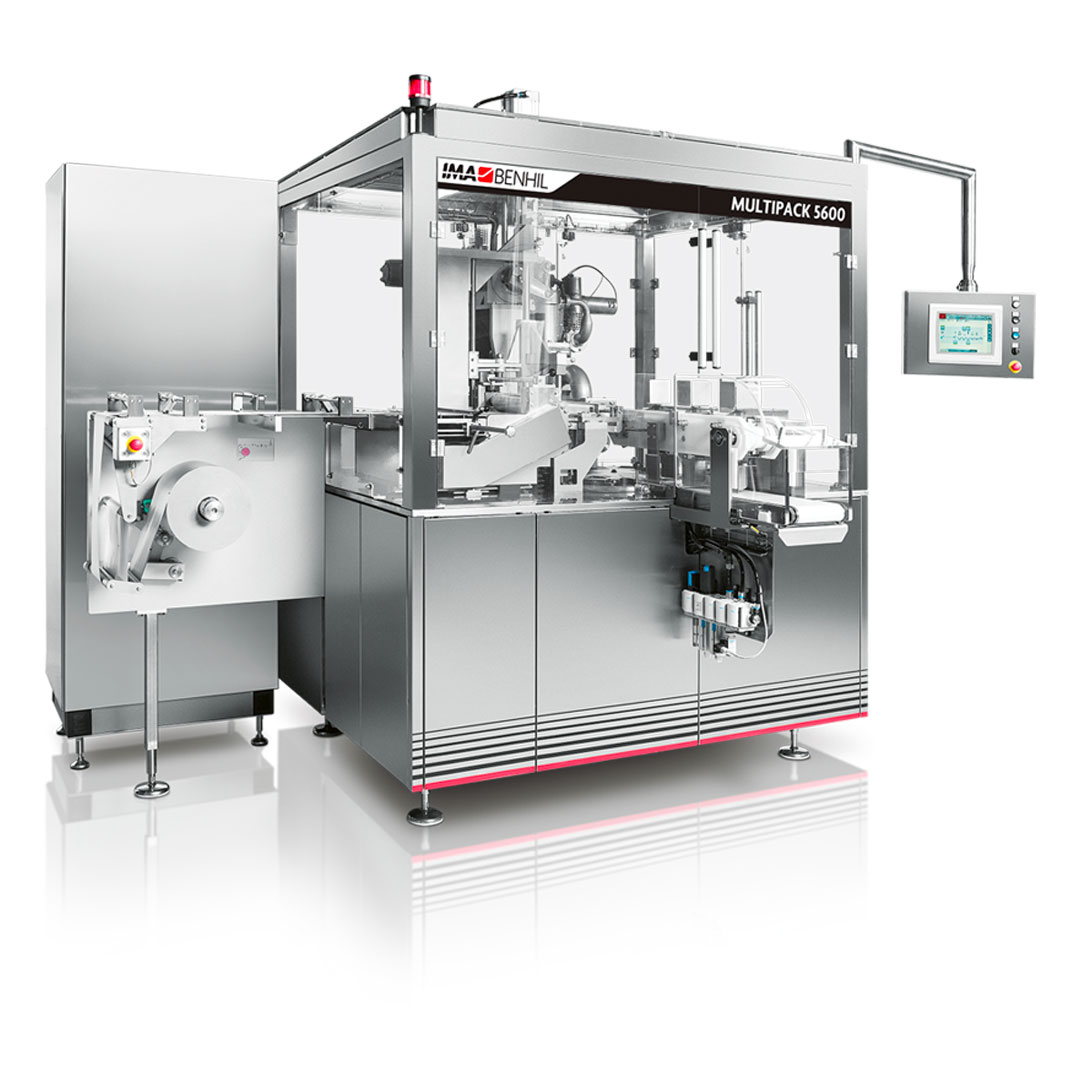

High-speed wrapping machine with extremely gentle product handling
The Multipack 5600 combines servo-controlled dosing unit technology with lifting cells to achieve wrapping speeds up to 140 packs per minute.
Designed as a single-cell system with a format flexibility between 50 – 500 g, it sets a global benchmark for high-performance wrapping of butter, margarine and pasty products.
The integration of servo drive technology enables an energy-efficient machine concept, reducing power consumption by approximately 30%.
For applications requiring strict hygiene, the machine can be equipped with a CIP-cleanable dosing system that meets the demands of the food industry.
Like all IMA Benhil dosing and wrapping machines, the Multipack 5600 is distinguished by exceptional filling accuracy (s= 0.3 g for Qn < 250 g), extremely high reliability, and a long service life, delivering consistent performance in the most demanding production.
Production plant
IMA Benhil
Machine highlights
-

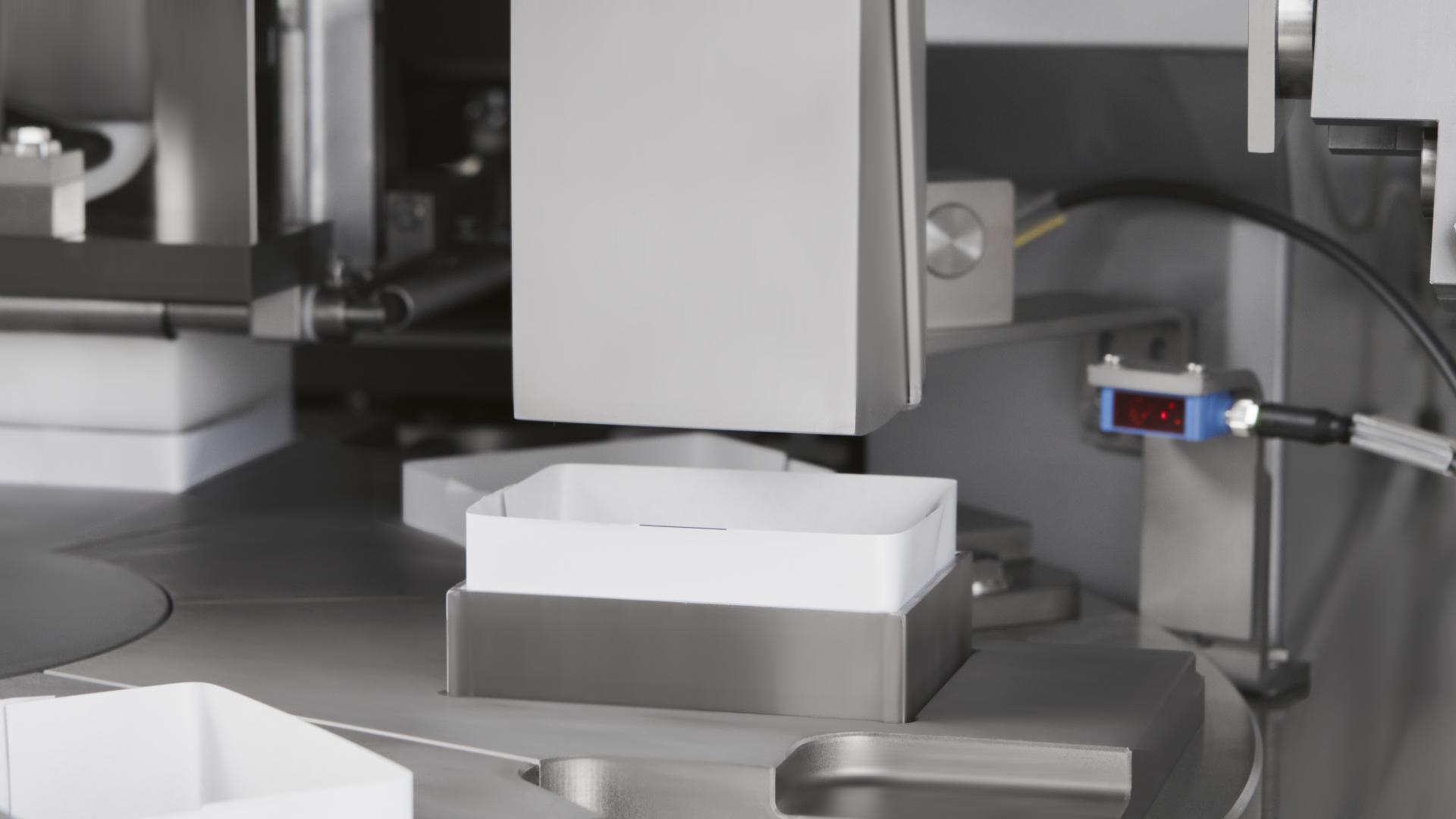

Precision Dosing
Excellent filling accuracy (s= 0.3 g for Qn < 250 g), guaranteeing consistent product quality.
-
Energy-Efficient Servo Technology
Up to 30% lower power consumption with advanced control.
-
Gentle Product Handling
Delicate products processed with controlled smooth handling.
-
Hygienic Dosing Systems
CIP-cleanable options meeting strict industry standards.
-
Wide Format Flexibility
Flexible handling of formats ranging from 50 to 500 g, allowing smooth transitions between product sizes.
-
High-Speed Performance
Outputs up to 140 packs/minute for maximum productivity.
Machine details
Technical information
| MULTIPACK 5600 TECHNICAL DATA | |
| Filled products | Butter, margarine, edible fats, fresh cheese and other pasty products |
| Dosing range | 50 – 500 g |
| Nominal output | Up to 140 packets/min. |
| Filling accuracy | s = 0,2 for Qn = 100 g / s = 0,3 for Qn = 250 g / s = 0,5 for Qn = 500 g |
| Product feed | Direct feed from the process plant, product hopper with feeding augers |

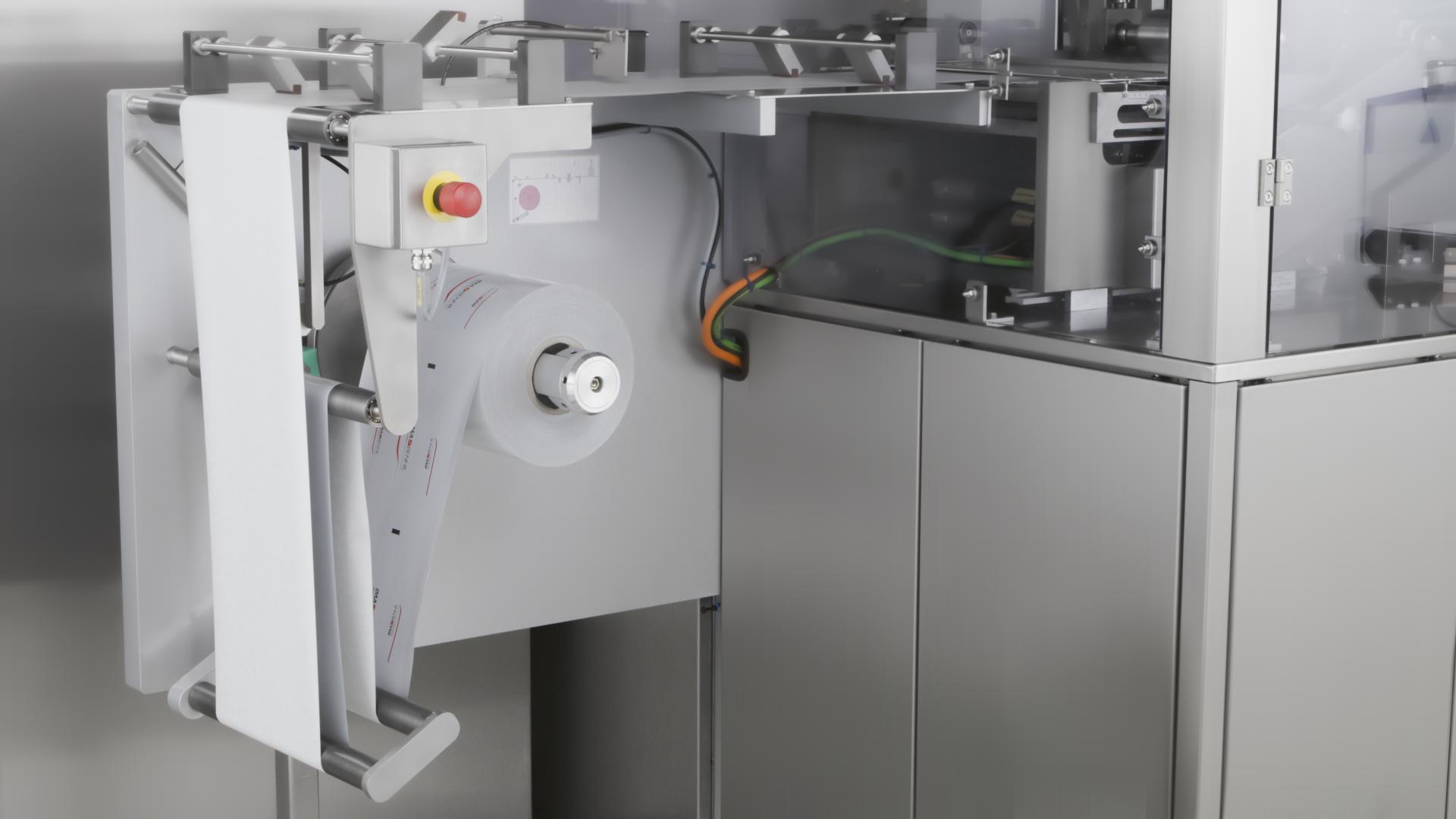

| Wrapping material | Parchment, aluminium laminated foil, plastic coated papers, other materials on request |

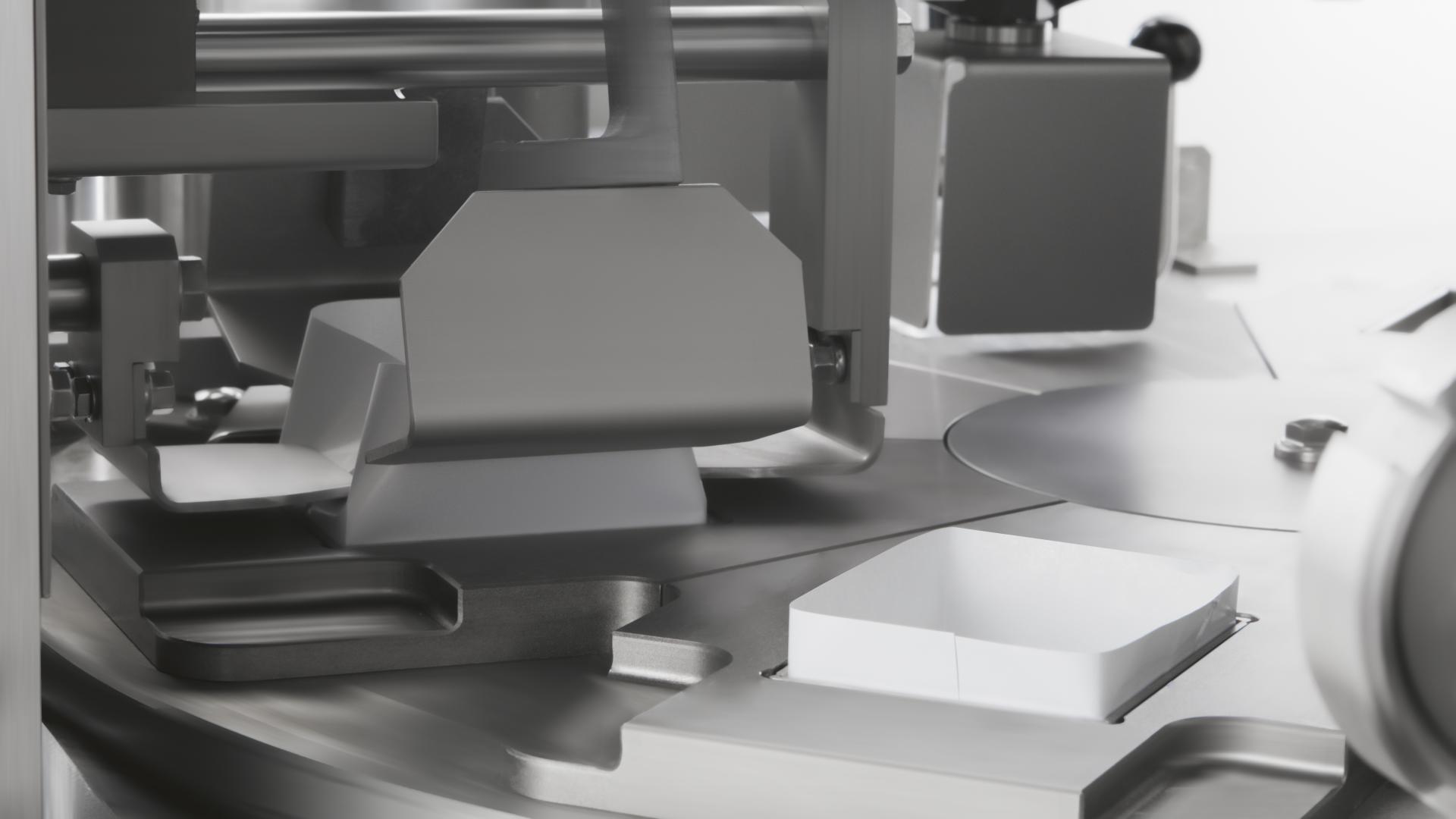

| Fold principle | Bottom or length side fold |

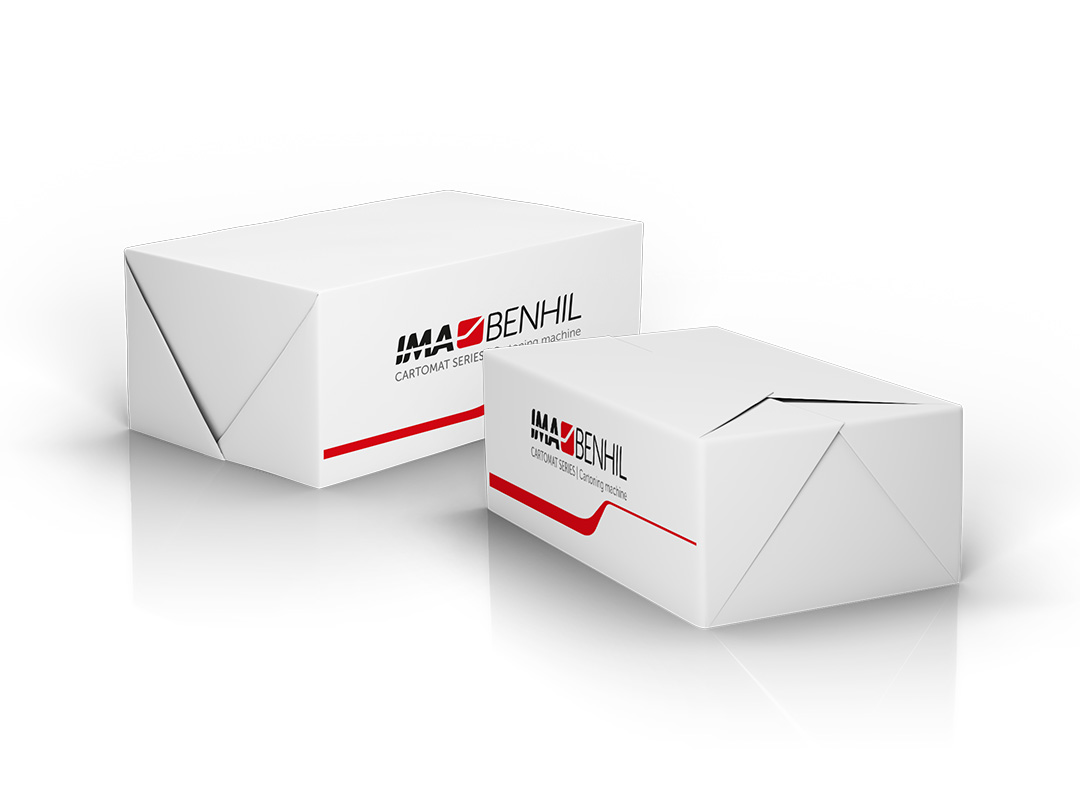

| Formats | Bricks, cubes, sticks |

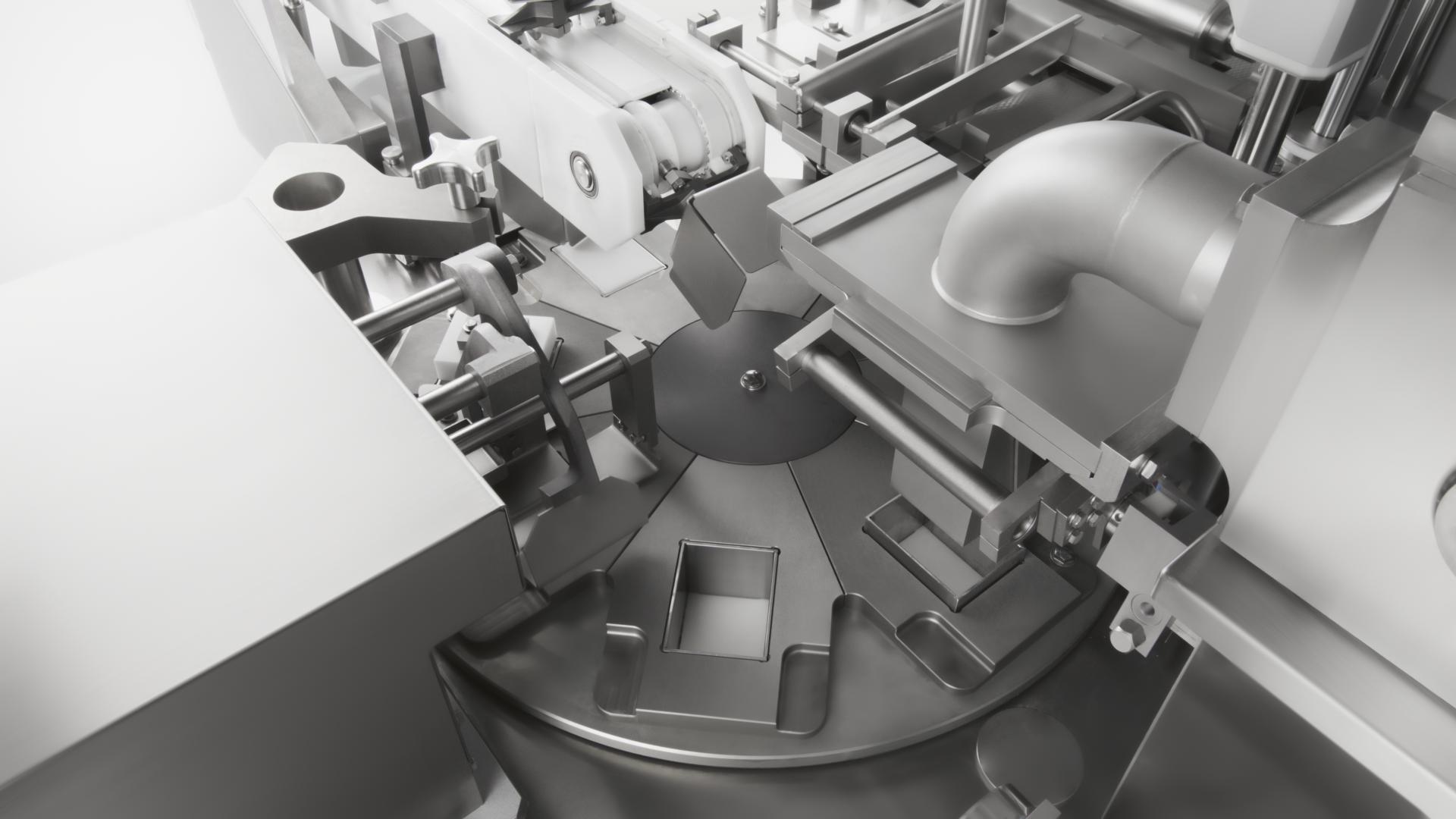

| Design | Single cell rotary machine |
| Packing material | Aluminum laminated materials, parchment, plastic-coated materials, other materials after prior testing possible |
| Reel diameter | Maximum 400 mm |
| End-of-line packaging | By downstream fully automatic or semi-automatic case packer |
| Equipment | Servo-driven main drive, servo-drives for wrapping material feed, dosing and cell lifting, photo-electric for wrapper with printed scanning marks, corrosion-resistant materials in the filling area, central lubrication, pneumatically operated tension axel |
| Options | CIP cleanable dosing unit, date coding, USDA execution, remote access control |
| Machine control | PLC by Allen Bradley with touch screen operating panel |
