Multipack Dosing and wrapping
Machine overview
High-performance solutions for butter, margarine and pasty product packaging
The Multipack Series represents the ultimate solution for dosing and wrapping butter, margarine and pasty products, combining flexibility, precision, and high-speed performance across a wide range of formats. Designed to meet diverse production needs, these machines offer dosing ranges from 50 g up to 1000 g, with outputs reaching up to 300 packets per minute, ensuring maximum efficiency for any scale of operation.
From the compact and cost-effective yet high-quality Multipack 2000 to the world’s fastest Multipack 8600, the series covers every requirement: cost-effectiveness, ultimate flexibility, energy savings, top-speed performance, and hygienic design, thanks to optional CIP-cleanable systems. Whether you need 100 ppm for standard production or 300 ppm for high-output lines, the Multipack Series ensures a perfect balance of technology, reliability, and value.
Production plant
IMA Benhil
Machine highlights
-
Precision dosing
Excellent filling accuracy (up to s = 0.3 g for Qn ≤ 250 g), guaranteeing consistent product quality.
-
Energy-efficient servo technology
Up to 30% lower power consumption with advanced control.
-
Compact and modular designs
Reliable construction with easy maintenance access and short format change over time.
-
Hygienic dosing systems
CIP-cleanable options meeting strict industry standards.
-
Unmatched flexibility
Adaptable configurations for different sizes, weights, and formats.
-
High-Speed Performance
Outputs up to 300 ppm for maximum productivity.
Machine details
Technical information
Machine versions

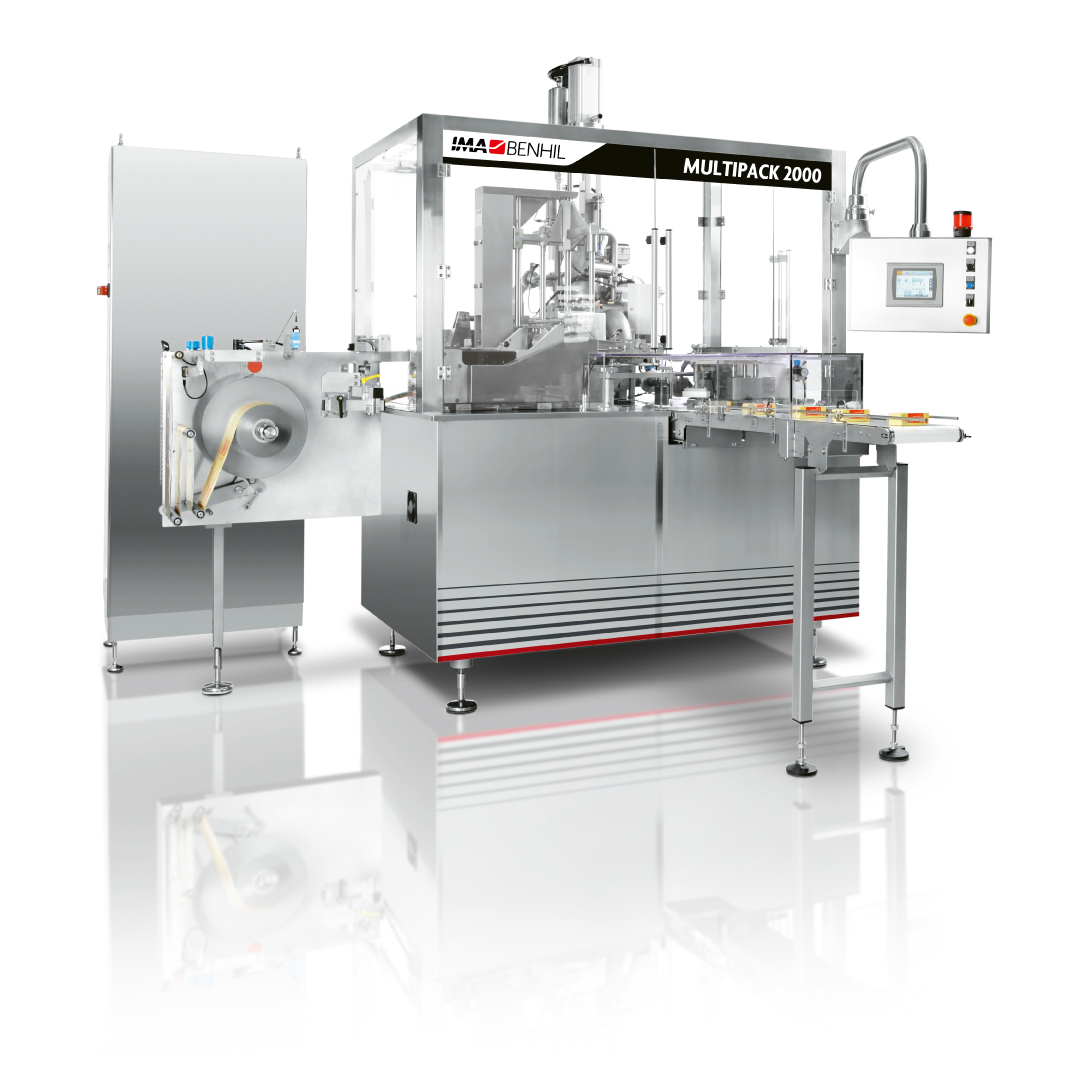

High quality at an economical level

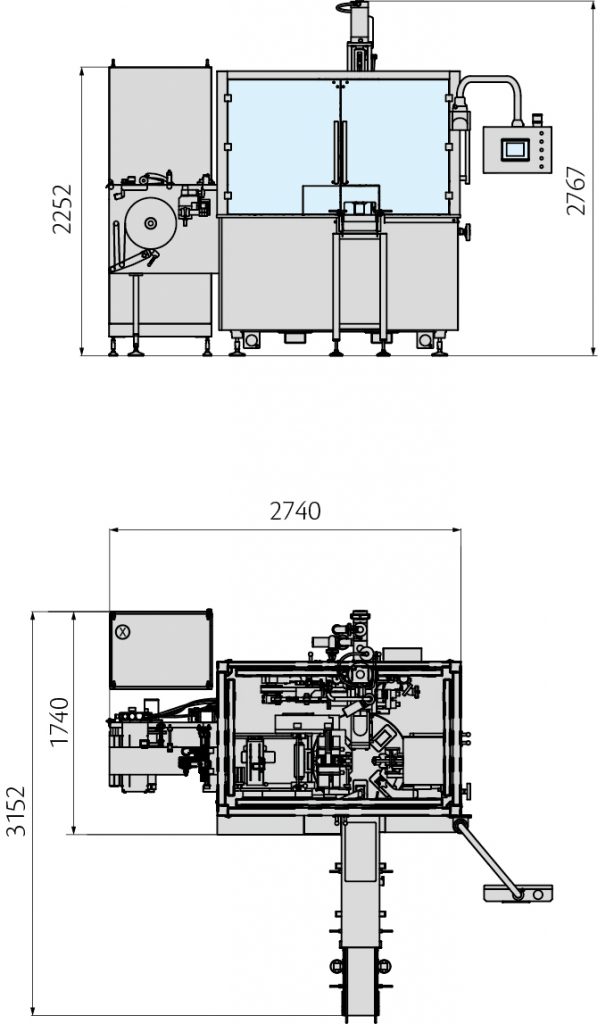

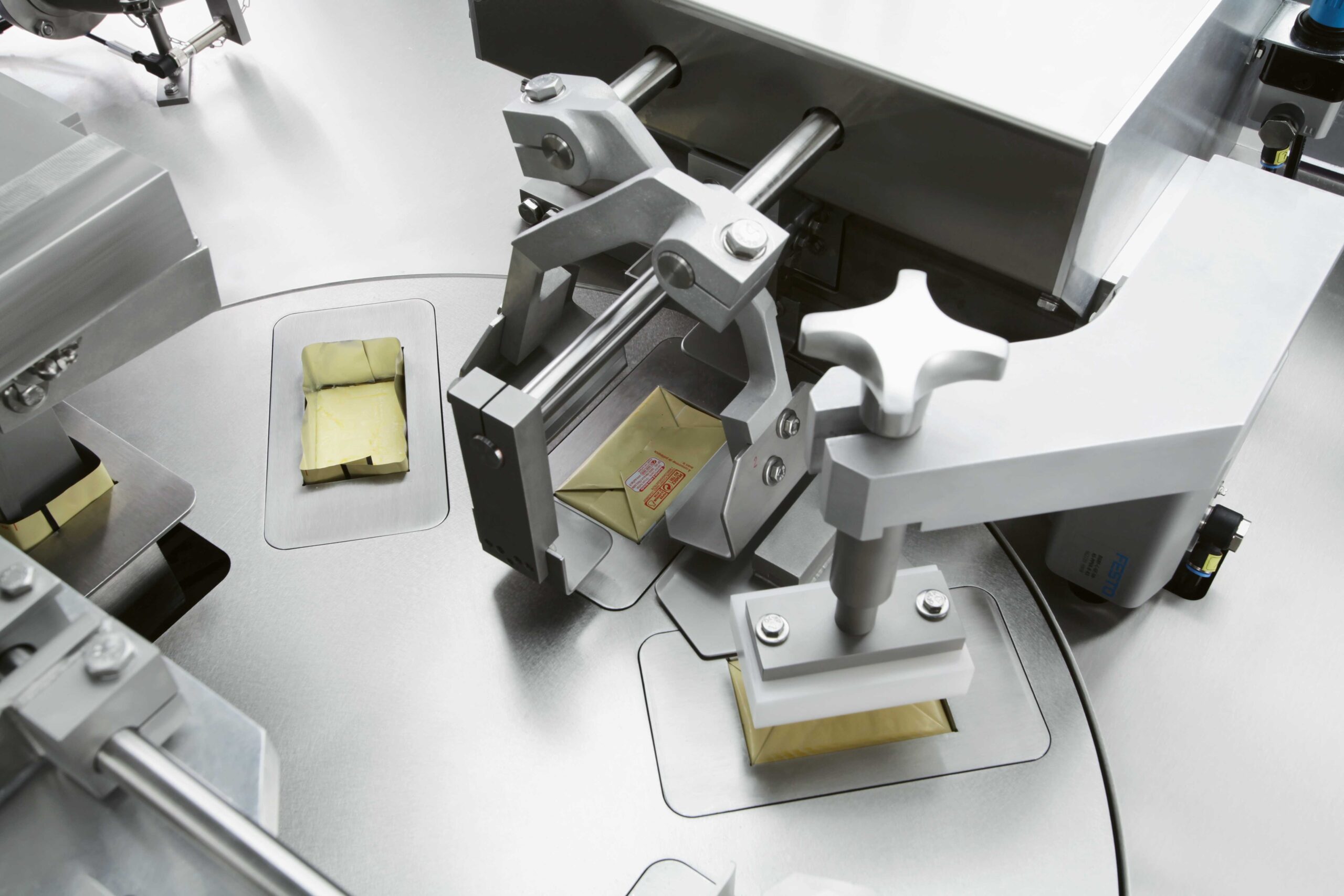

Compactness, flexibility and state-of-the-art technology describe the Multipack 2000.
With a dosing variety from 50 up to 500g and an output of 100 ppm, this dosing and wrapping machine stands for high quality at an economical level.
The Multipack 2000 accomplishes a supreme dosing accuracy (s=0.5 g for Qn≤250 g). Further highlights are the servo-drive technology and the remarkable reliability of the machine.

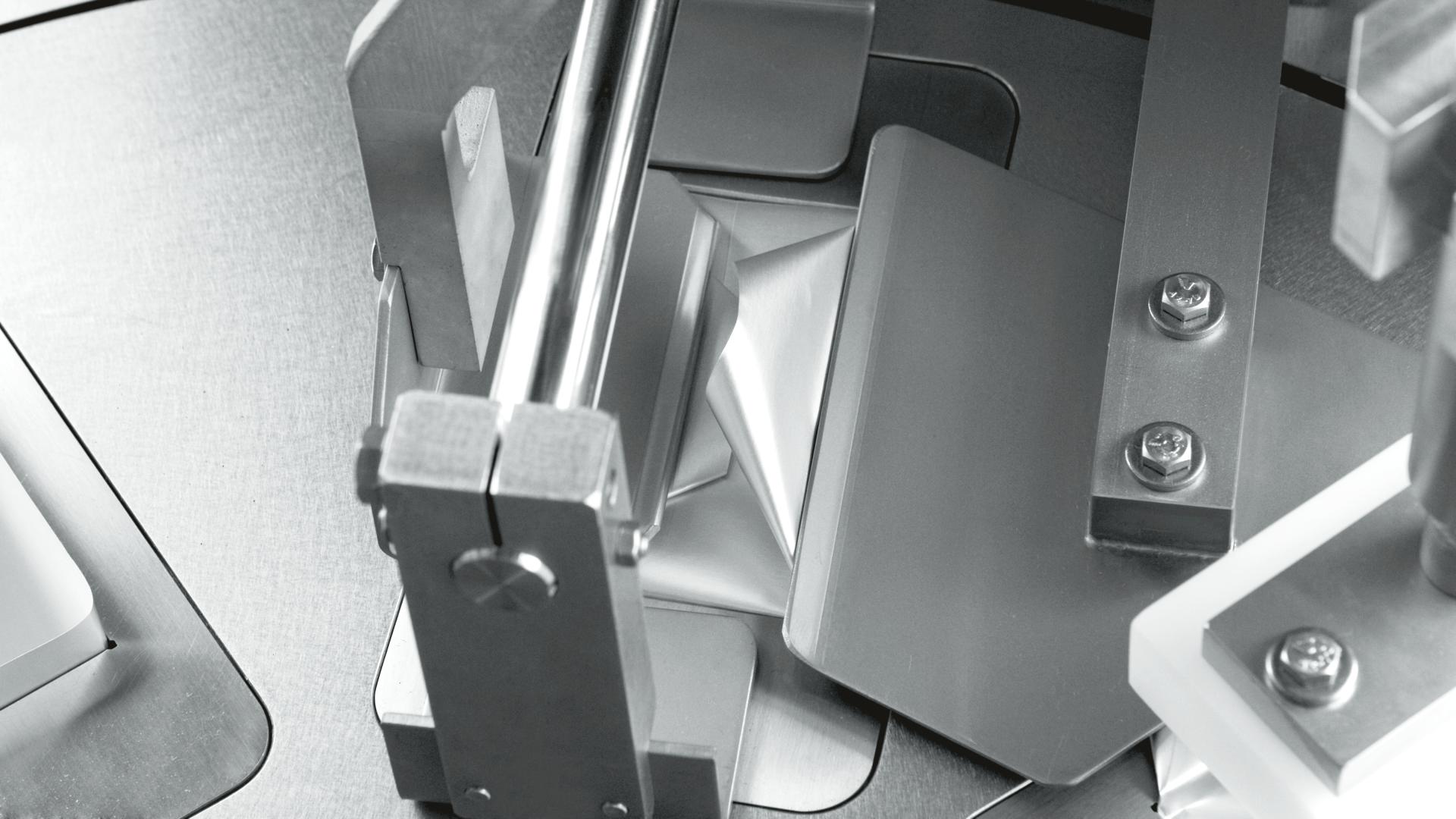

The most flexible wrapping machine in the world with ultimate operating convenience

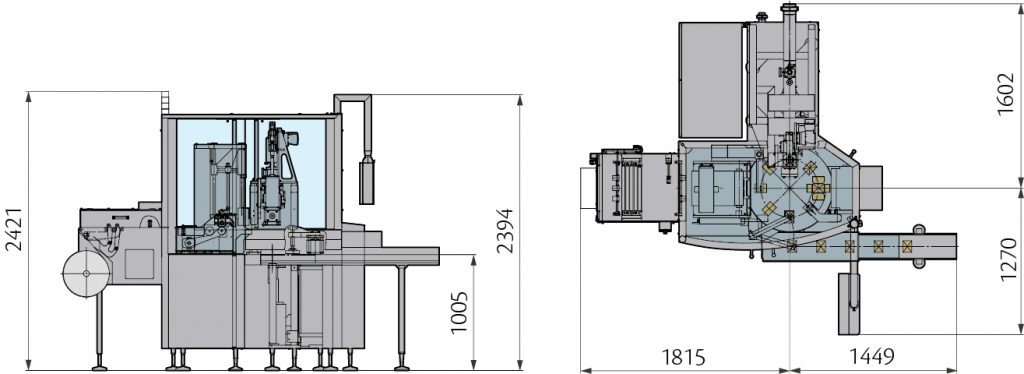

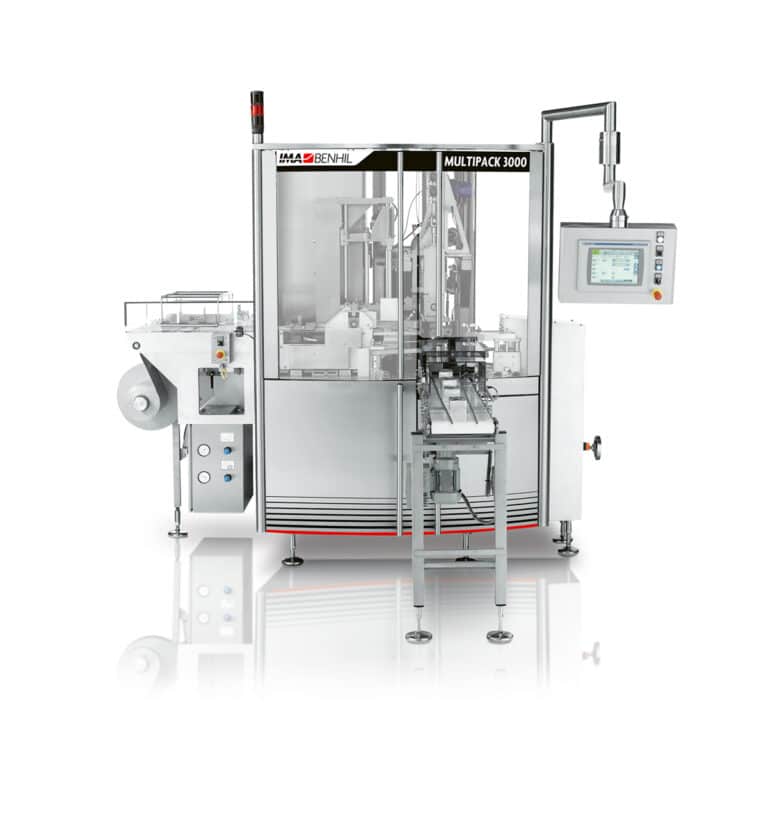

The single-cell Multipack 3000 offers the highest flexibility worldwide for wrapping pasty products. Typical of other IMA Benhil dosing and wrapping machines, it ensures exceptional dosing accuracy (s=0.3 g for Qn<250 g), excellent reliability and a long service life.
The Multipack 3000 wrapping machine covers an extraordinary range of dosing weights between 50 and 1000 g of pasty type products, packing up to 100 ppm.

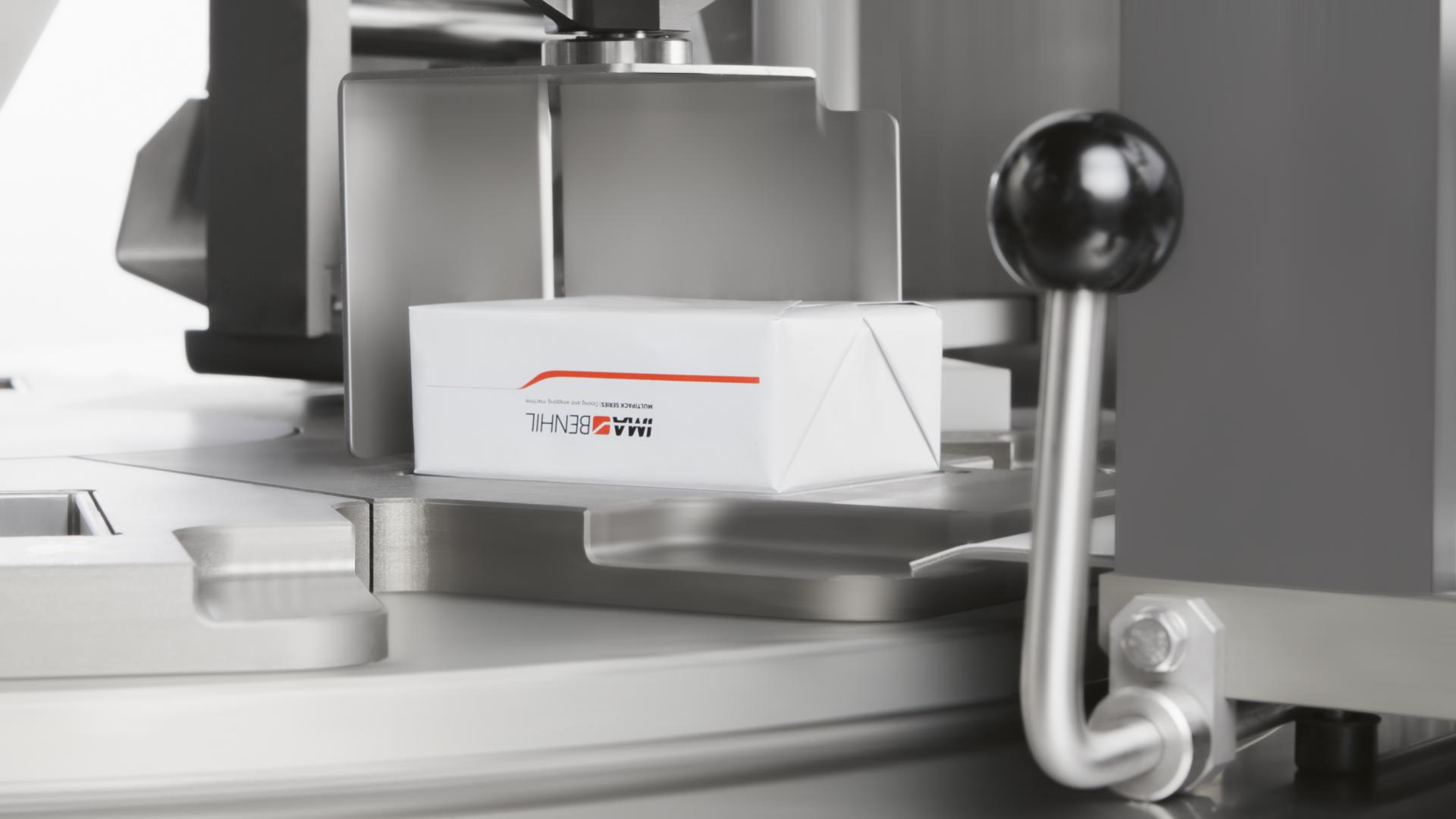

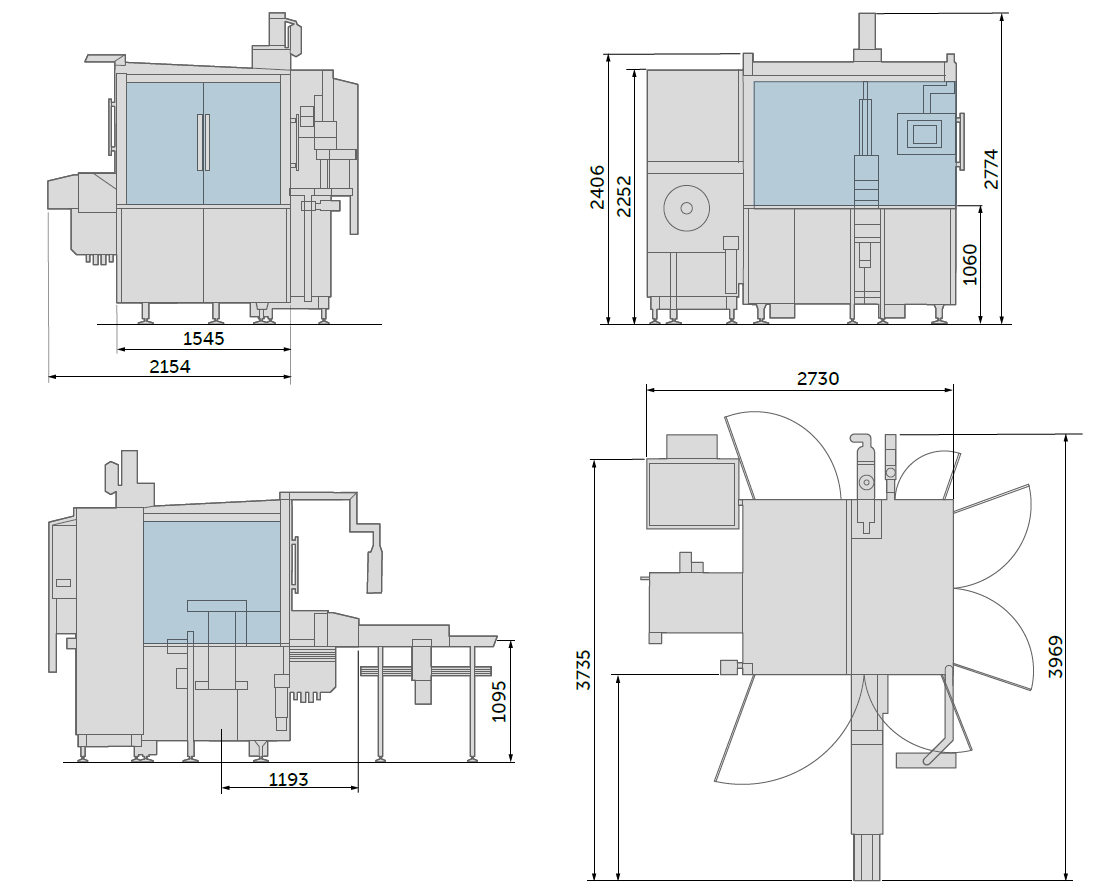

High-speed wrapping machine with extremely gentle product handling
With servo-controlled dosing unit and lifting cells, the Multipack 5600 enables an increased speed of up to 140 packs / minute. The single-cell Multipack 5600, which has a format flexibility of 50 – 500 g, sets the highest performance standard worldwide for the wrapping of pasty products. The integration of servo drive technology results in an energy-efficient machine concept and a reduction in power consumption of approx. 30%. This machine can be equipped with a CIP-cleanable dosing system that meets the hygienic requirements of the food industry. Like all IMA Benhil filling and packaging machines, the Multipack 5600 is characterized by exceptional filling accuracy (s= 0.3 g for Qn < 250 g), extremely high reliability and a long service life.

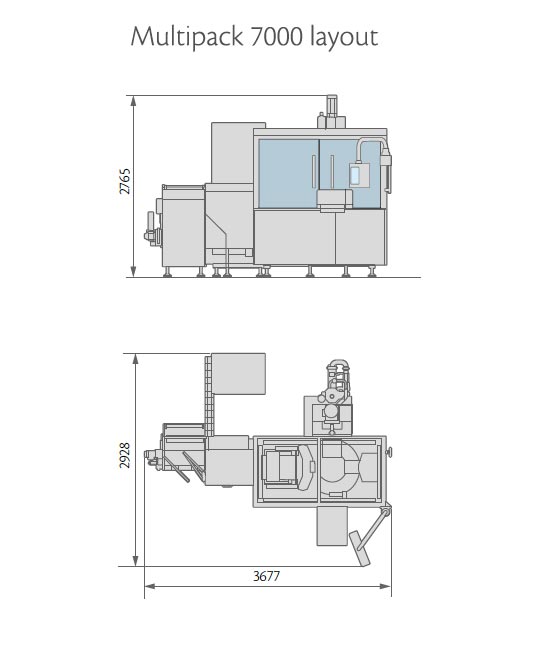

High-speed, top-value machine

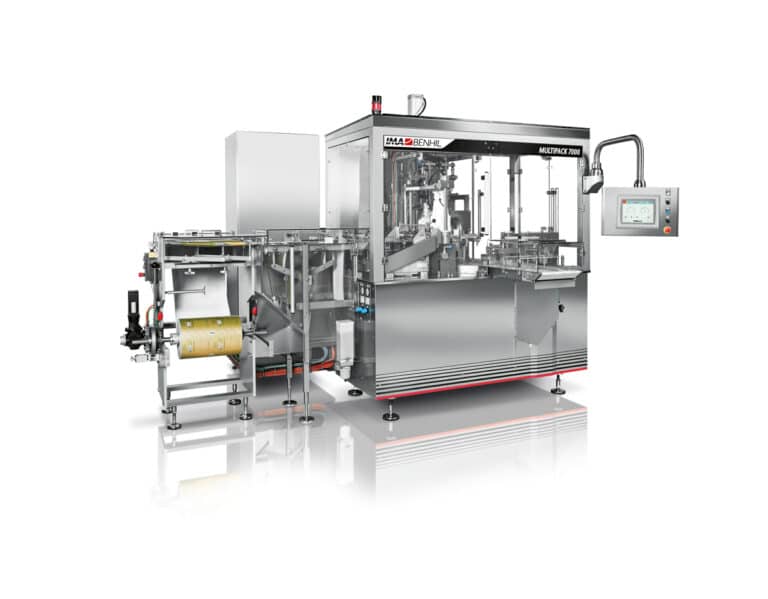

With an output of up to 200 packets/min. in twin execution and a filling weight/size range going from 50 to 250 g, the new double-cell Multipack 7000 combines performance and efficiency to provide a valid solution at an affordable price.
When faced with the need to switch frequently between different sizes, heights and packet footprints, the Multipack 7000 offers superb flexibility, and height adjustment procedures are fast, especially easy with the optional electrical packet height adjustment system. For complete changeovers, less than 45 minutes are needed to replace size parts.

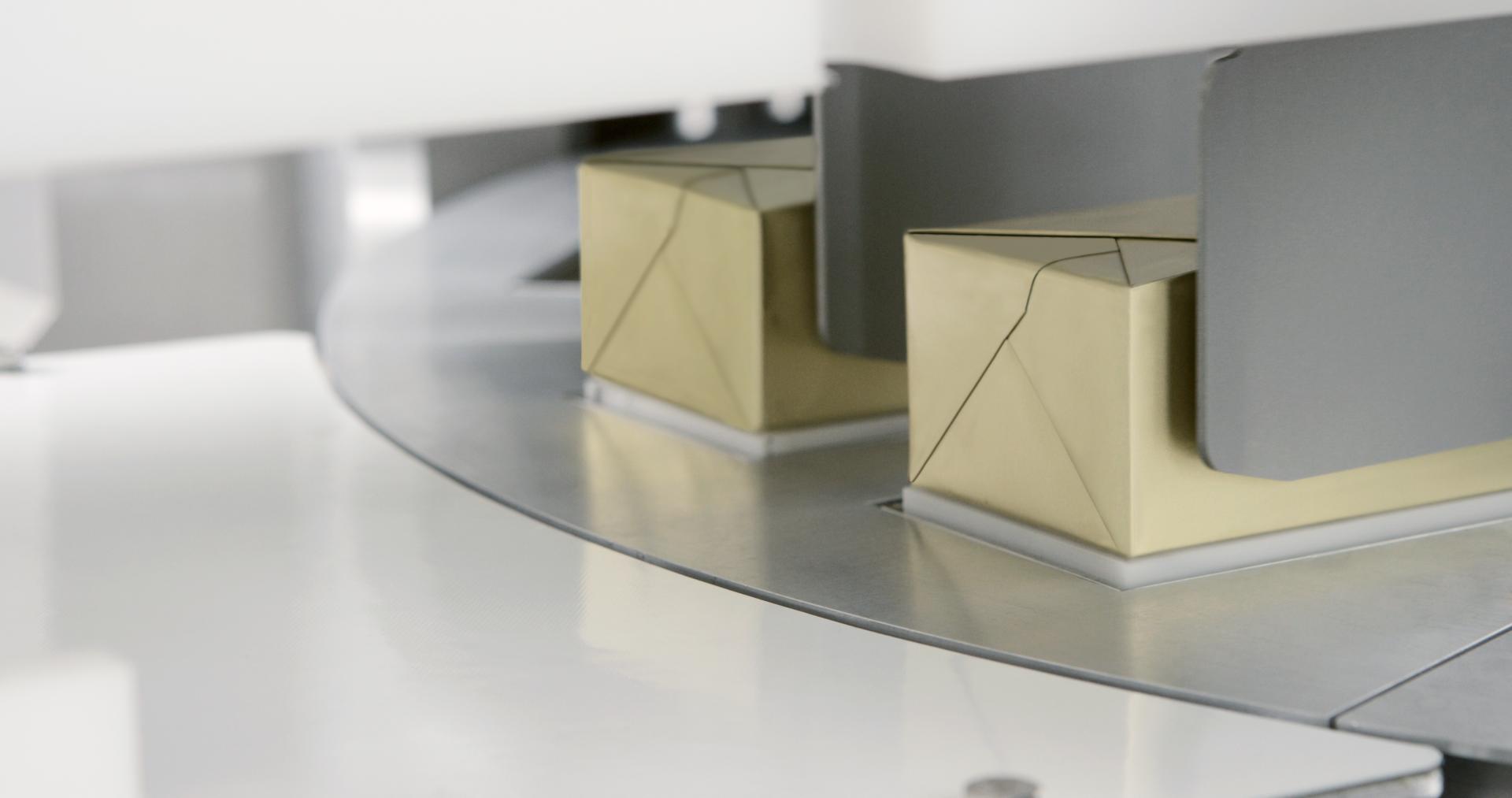

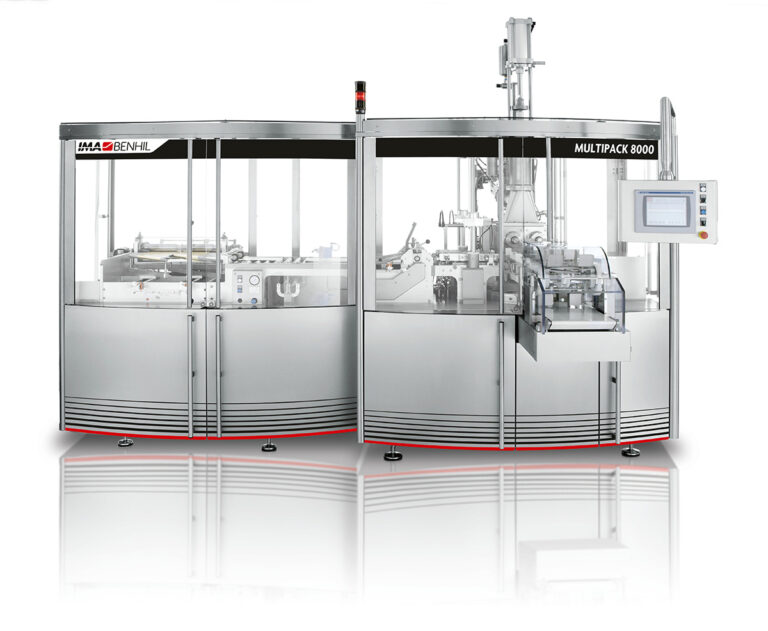

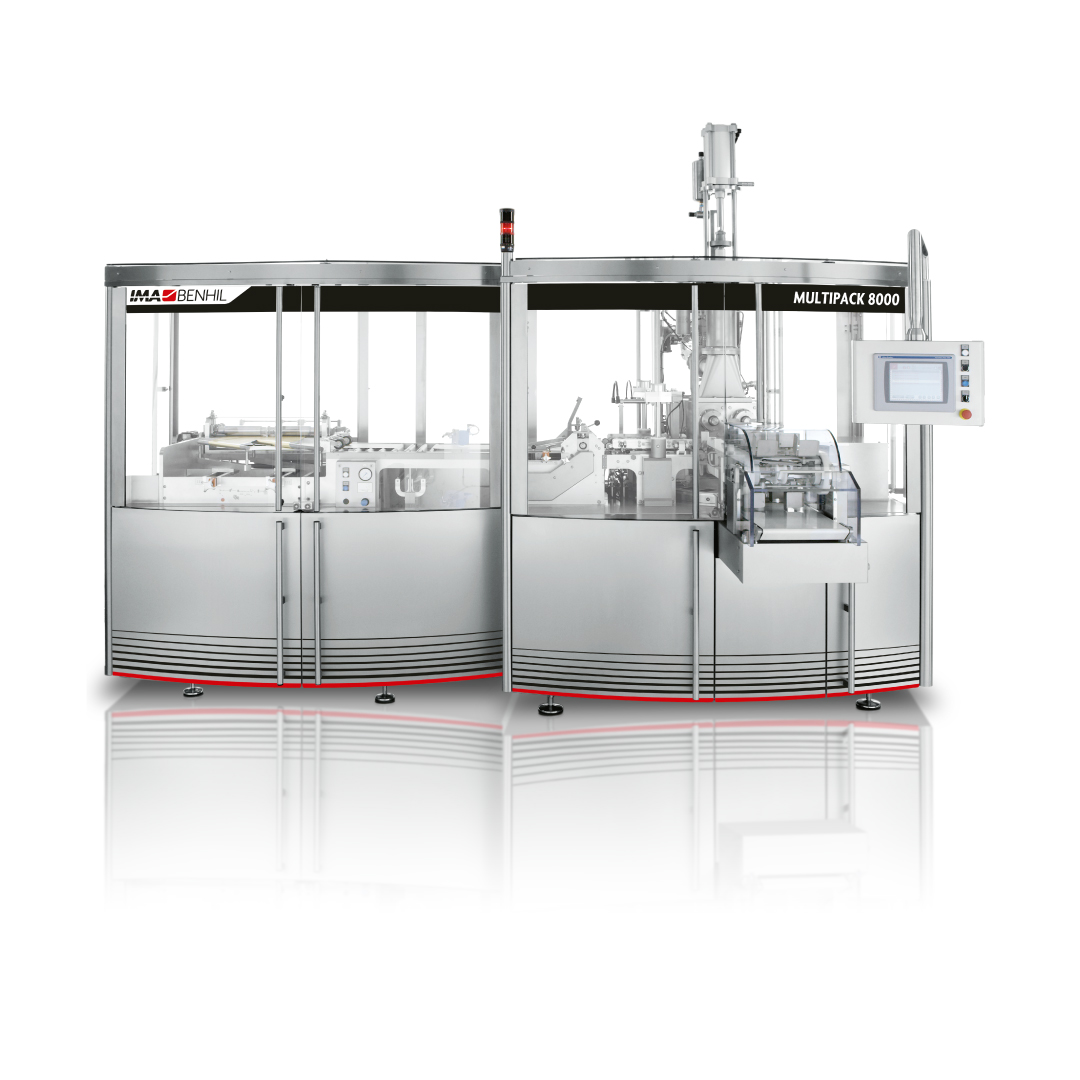

The advanced modular solution

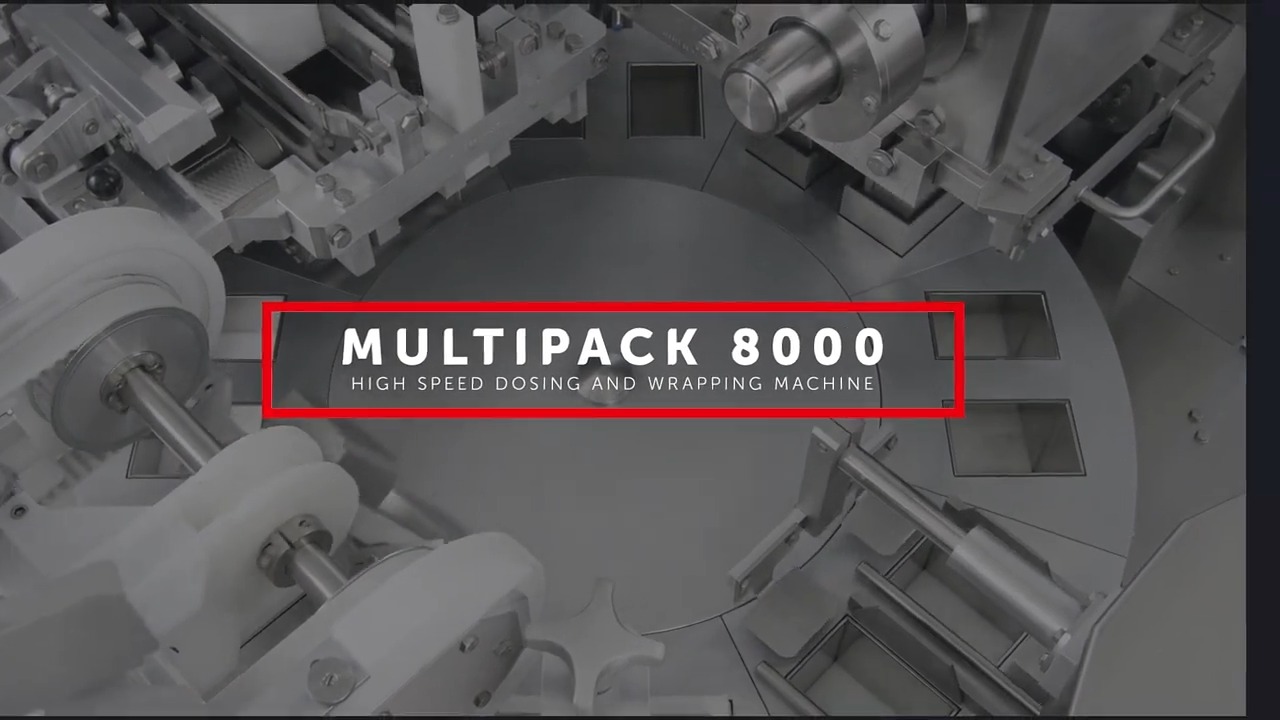

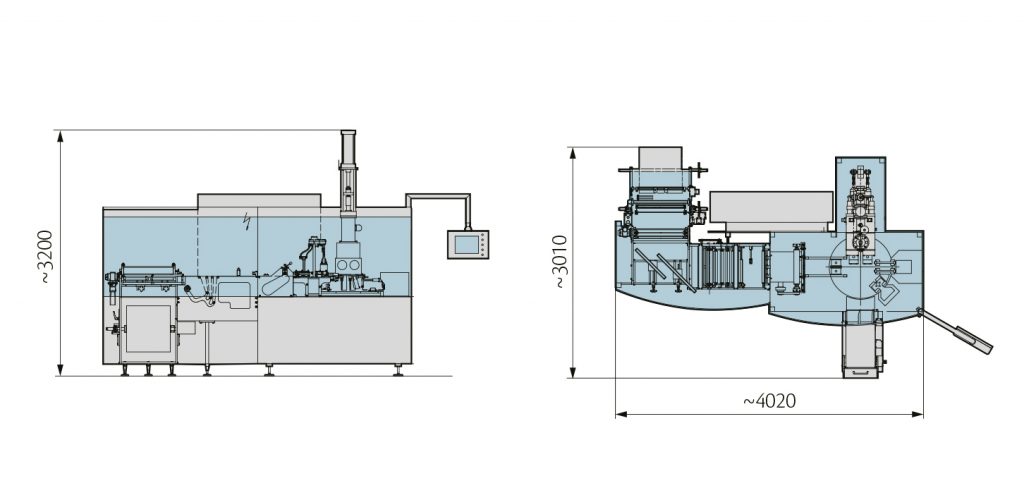

Multipack 8000, double-cell machine for dosing and wrapping pasty products implements state-of-the art technology for maximum efficiency and optimum results.
Unique for such a high-speed machine, the Multipack 8000 wrapping machine offers the flexibility of a dosing range between 100 and 500 g at a nominal output of 250 ppm and it ensures incredible dosing accuracy (s=0,3 g for Qn<250 g), extremely high reliability and solid construction.
Attractive, intelligent and offering outstanding control technology for the highest output worldwide

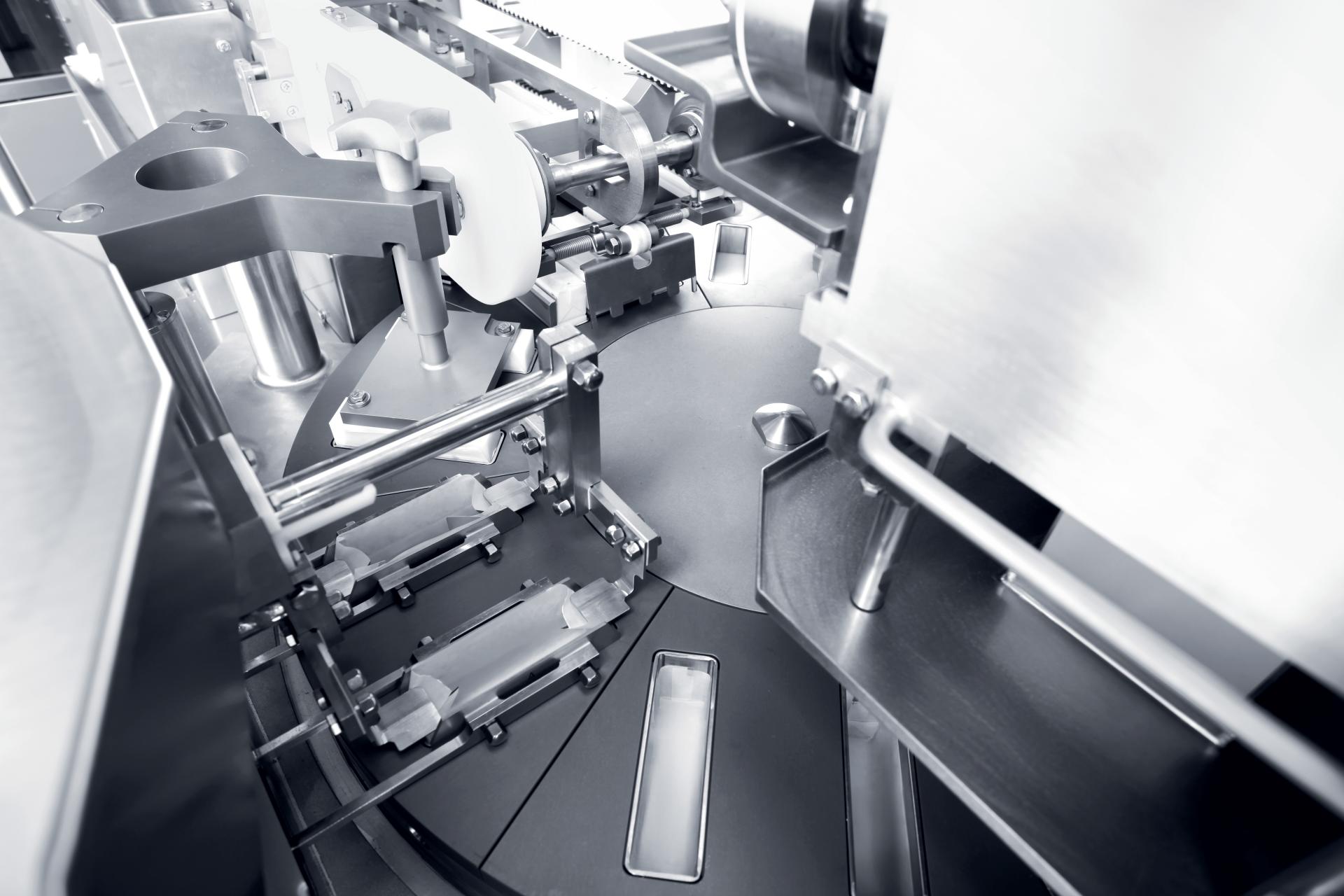

With an output of up to 300 ppm and a size range of 50 to 180 g, the double-cell Multipack 8600 for stick formats achieves the highest output worldwide, for dosing and wrapping pasty type products, proving exceptional size flexibility for such high-speed operation.
Furthermore it is equipped with an advanced dosing system with constant dosing time for different filling stick profiles ensuring outstanding dosing accuracy (s=0,3 g for Qn<180 g).
