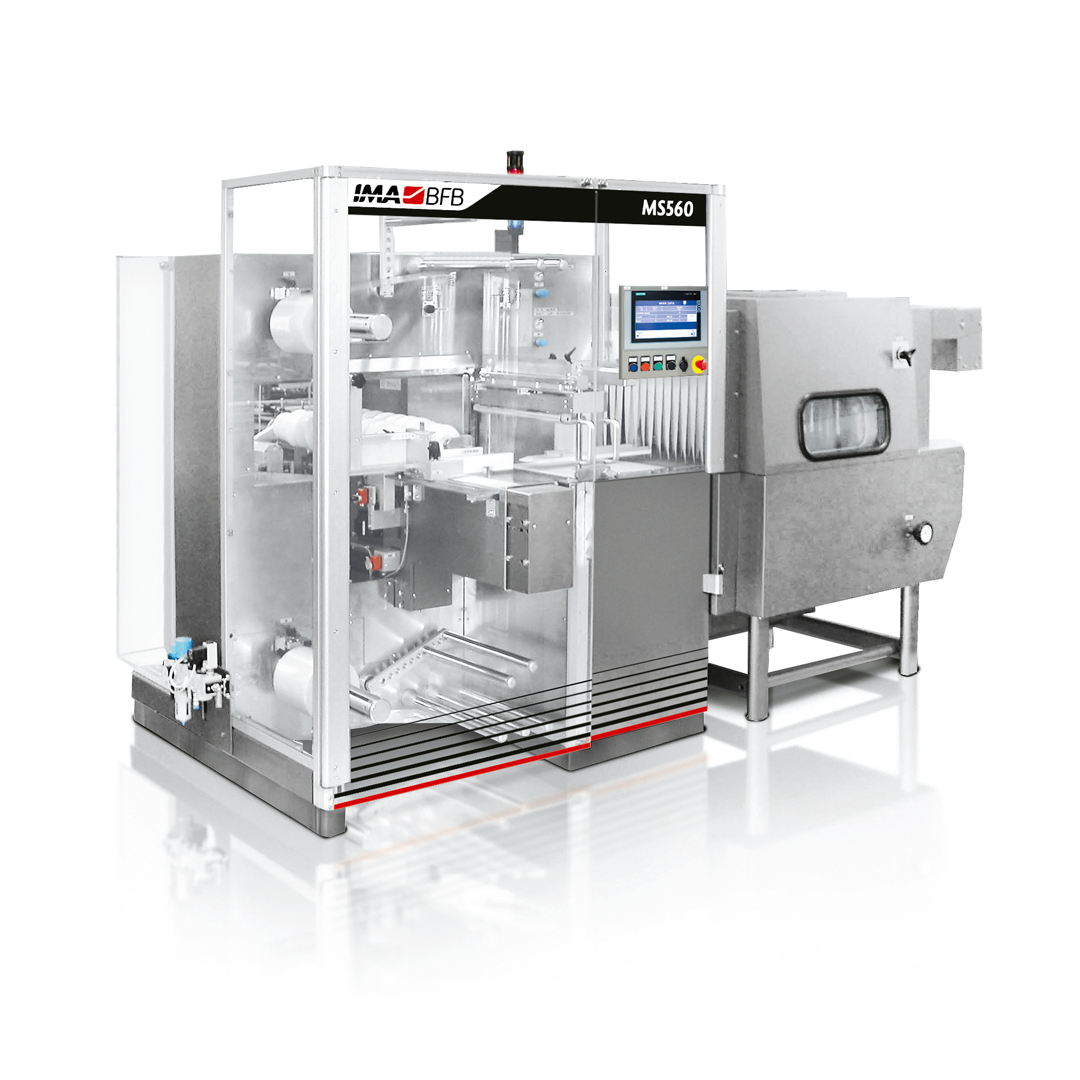

MS560 Series Shrink wrapping and stretch banding

Machine overview

Efficient processing with downtime kept at minimum.

Built ergonomically and with maximum accessibility to facilitate cleaning procedures and maintenance, the MS560 ensures smooth, accurate product handling at speeds of up to 40 cycles/min thanks to servo-driven technology.
Reel change times can be totally eliminated with an optional automatic film splicing device, putting the accent on efficiency as well as accuracy.

Production plant

IMA BFB

Machine highlights

Easy changeover

Tool-free size changeover in just 5 minutes with digital indicators to assist with adjustments.
Quick reel change

Reel spindles featuring pneumatic quick release to minimise the downtime for reel replacement.

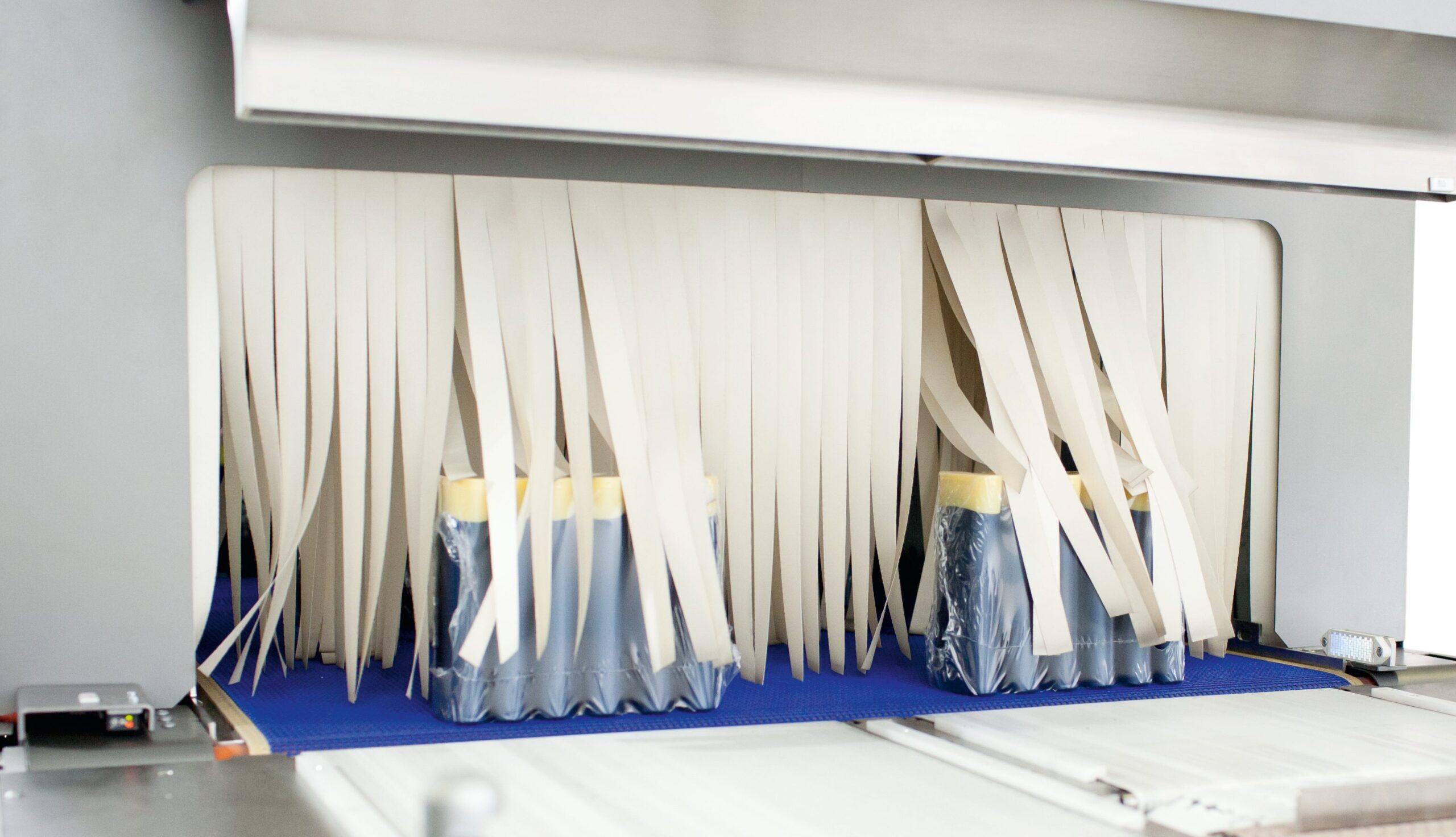

Shrinking tunnel

As standard on the T600 tunnel: transparent window and internal lighting to inspect the inside of the heat chamber.
Cooling fan

Film cooling fan at tunnel discharge point.
