Modular Roasters Roasting
Machine overview
Superior productivity, layout flexibility, innovative energy-saving system.

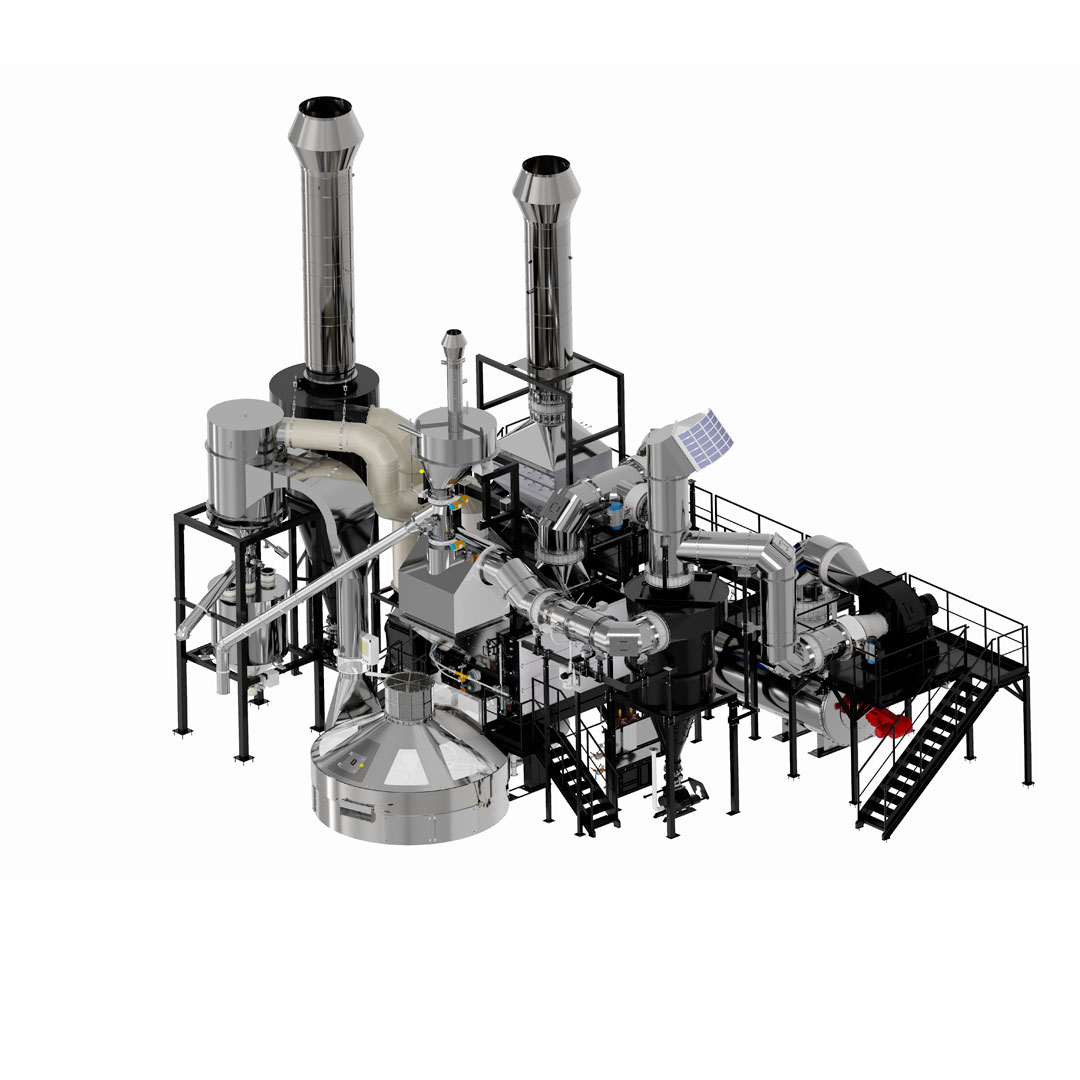

TMR Roasters are modular drum roasting machines designed to perform a wide range of coffee profiles, with a capacity of 1000 to 3600 kilograms per hour. Ideal for industrial production requiring high engineering and safety standards, TMR Series offers high profitability and a consistent roasting process.
TMR Series integrates the Roasting Air Recirculation and Heat Recovery, using a single burner for both heat generation and afterburning, reducing CO, formaldehyde, VOCs and NOx emissions and saving 35-45% more energy compared to traditional machines.
TMR Roasters ensure consistent roast degree and time, delivering excellent bean quality despite varying factors like environment temperature changes, coffee moisture, or lot differences. It is ideal for frequent recipe changes with guaranteed repeatability, allowing for innovative roasting profiles that enhance flavor and physical characteristics.
Roasting profiles are created with the ORCHESTRA control system, where time and bean temperature are independently controlled, ensuring consistent product quality from the first to the last batch, with precise control over time, in order to reach the exact coffee color and flavor desired.

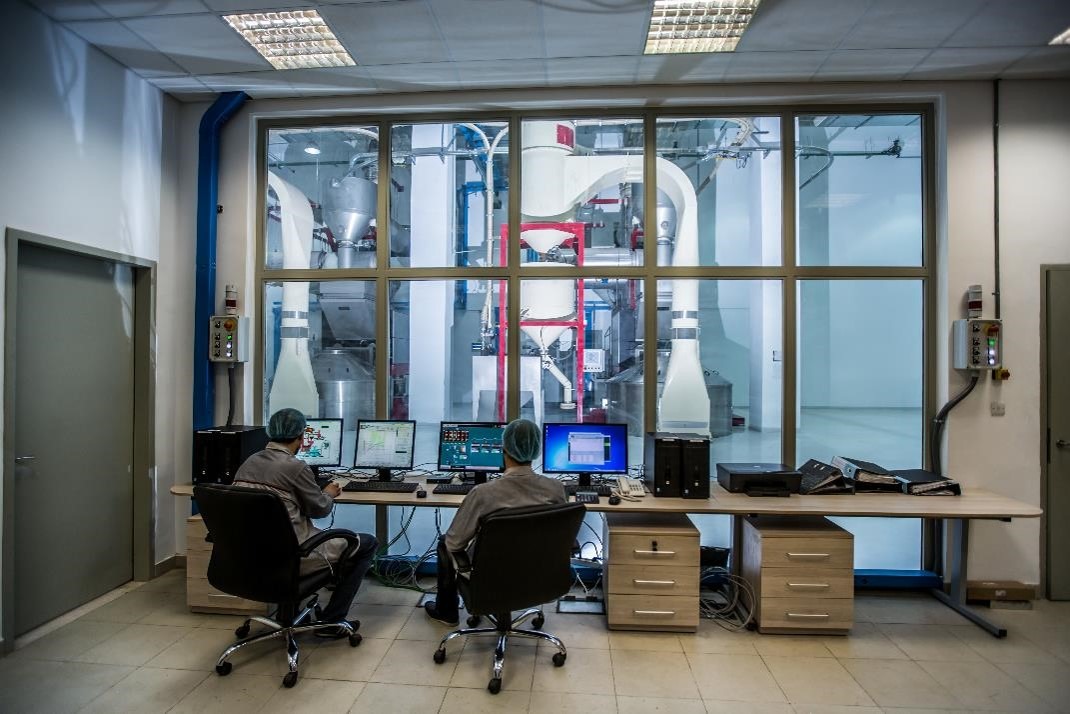

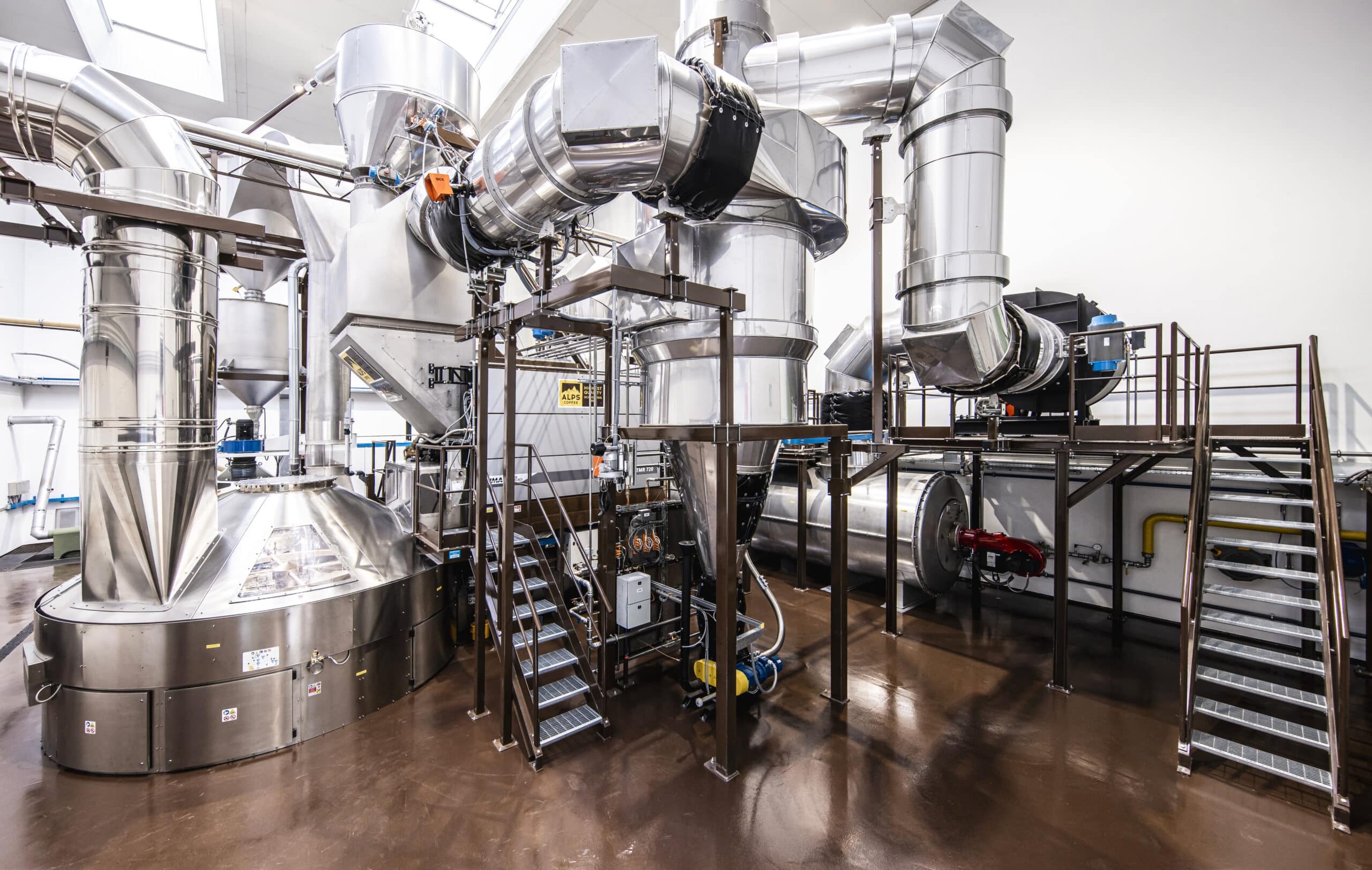

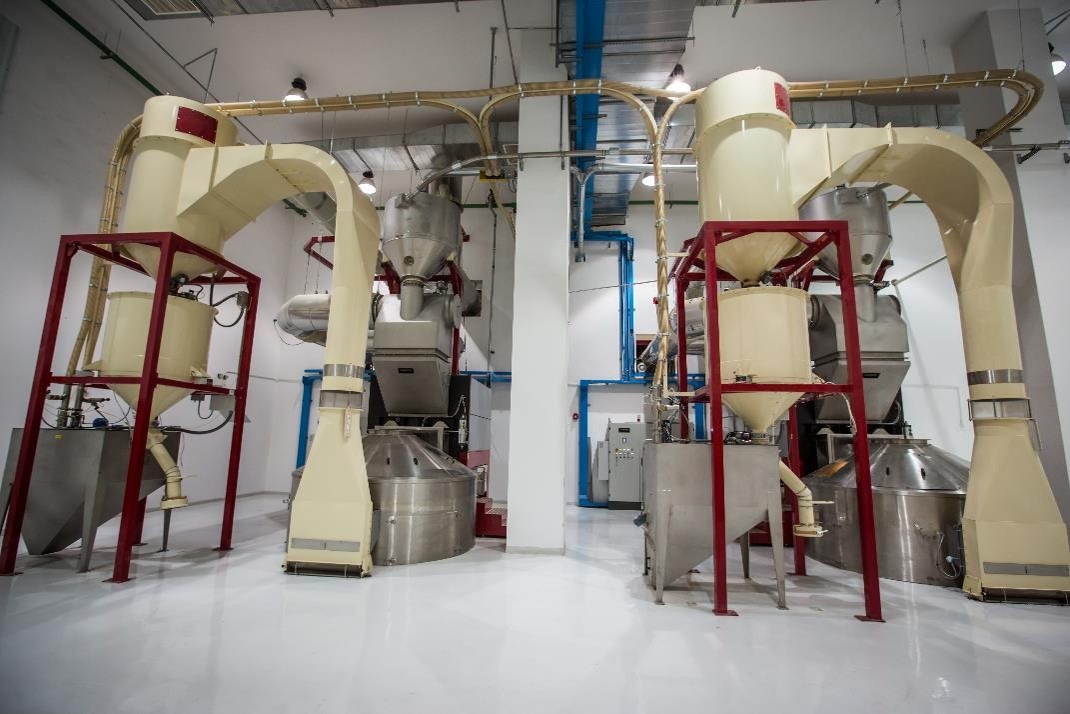

Production plant
IMA Petroncini
Machine highlights
-
Fully automatic roasting process
Ensuring consistent roast degree and precise roasting time.
-
Ideal for frequent recipe changes
Guaranteeing repeatability and consistent results.
-
Pre-designed roasting profiles
Deliver the exact color, moisture, and taste desired.
-
ORCHESTRA – Extreme Roasting Control
Ensures perfect repeatability, batch after batch.
-
Single burner with efficient heat recovery system
Providing lowest energy consumption.
-

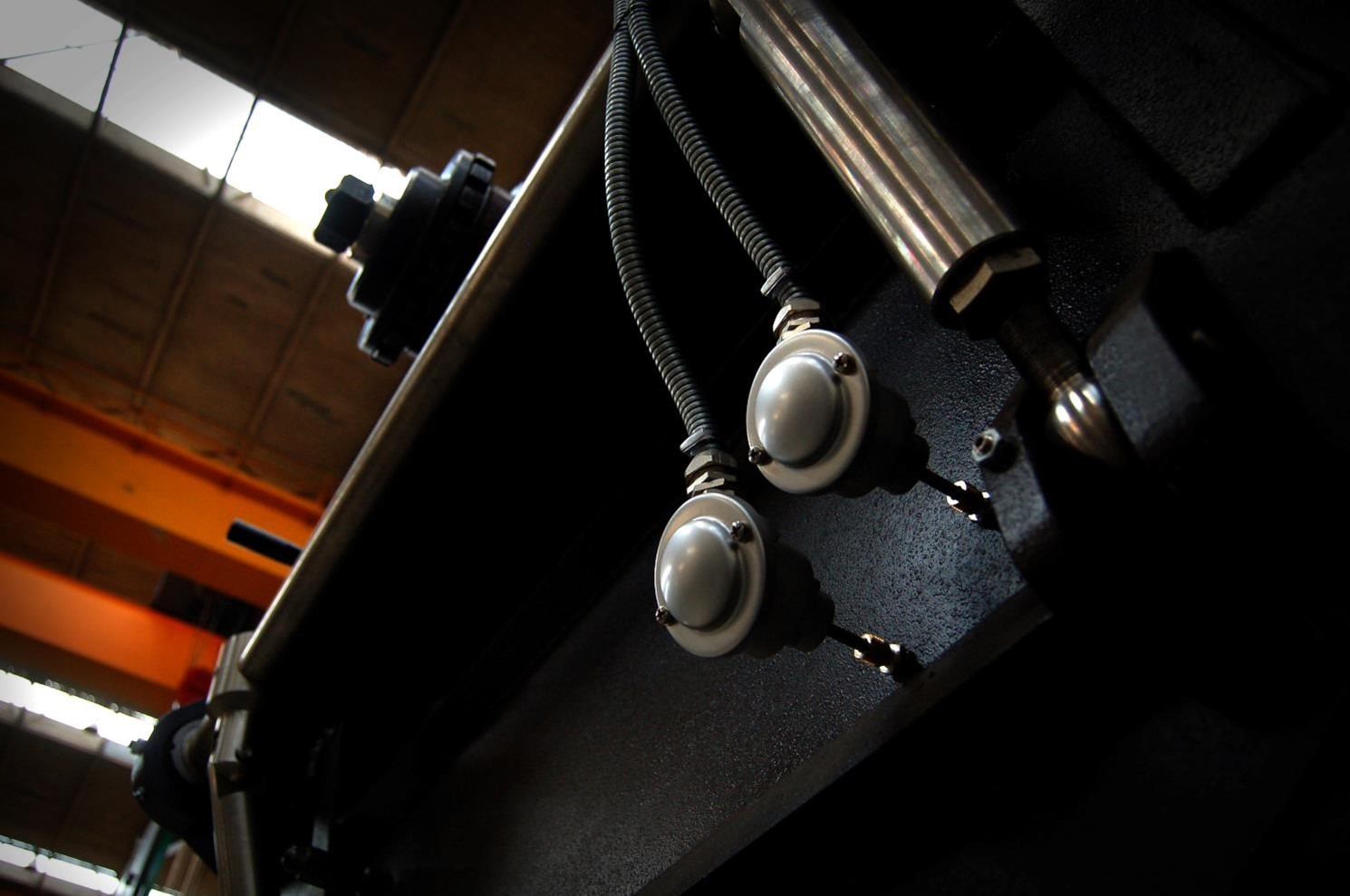

Equipped with over 50 sensors, probes, and pressure controls
For precise process monitoring.
-
Consistent bean quality
Achieving uniform roast and optimal flavor in every batch.
-
Modular layout
For easy access during maintenance and fine-tuning operations.
Machine details
Machine versions

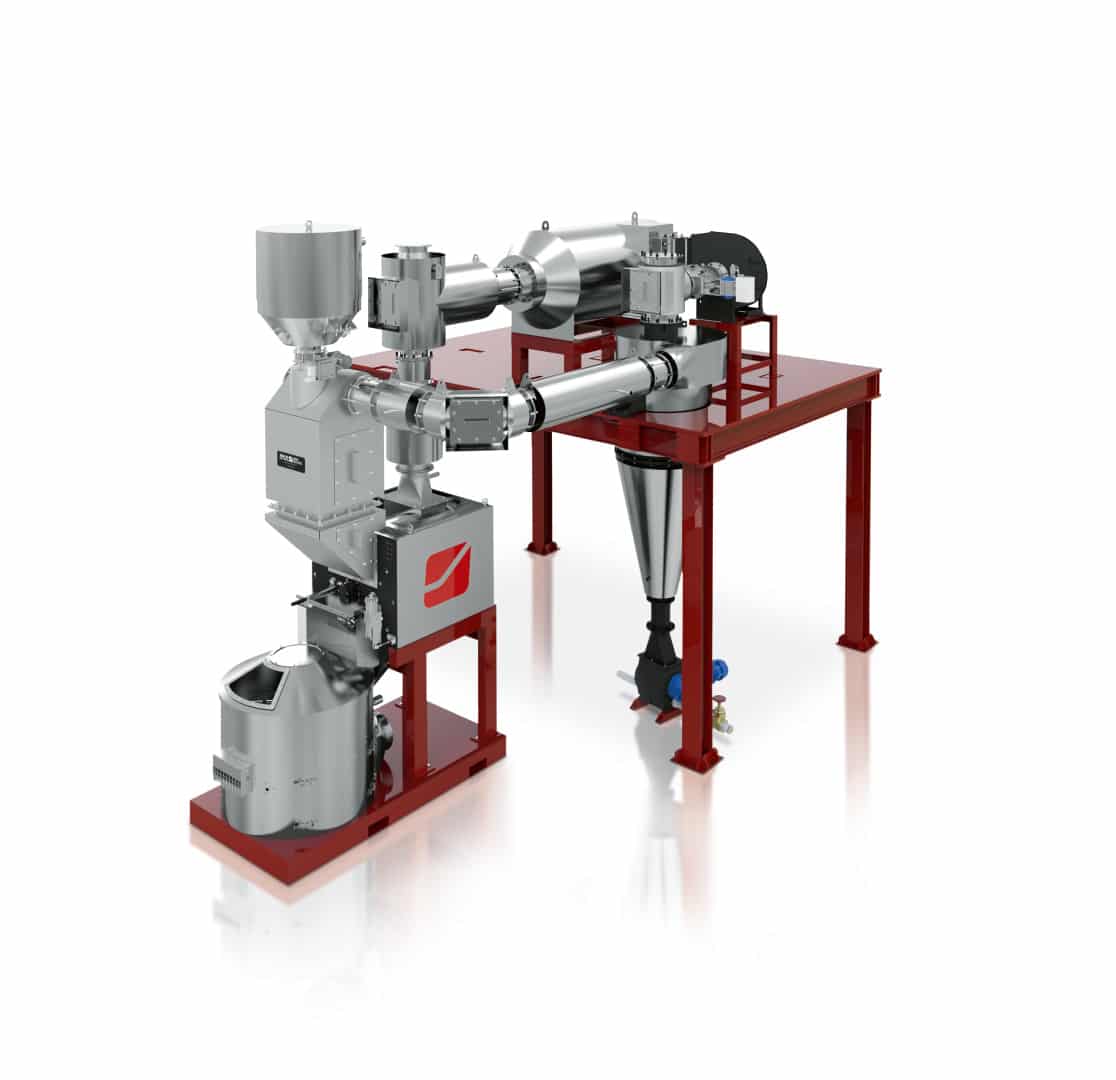

TMR 25 LAB
Lab roaster with unlimited performances

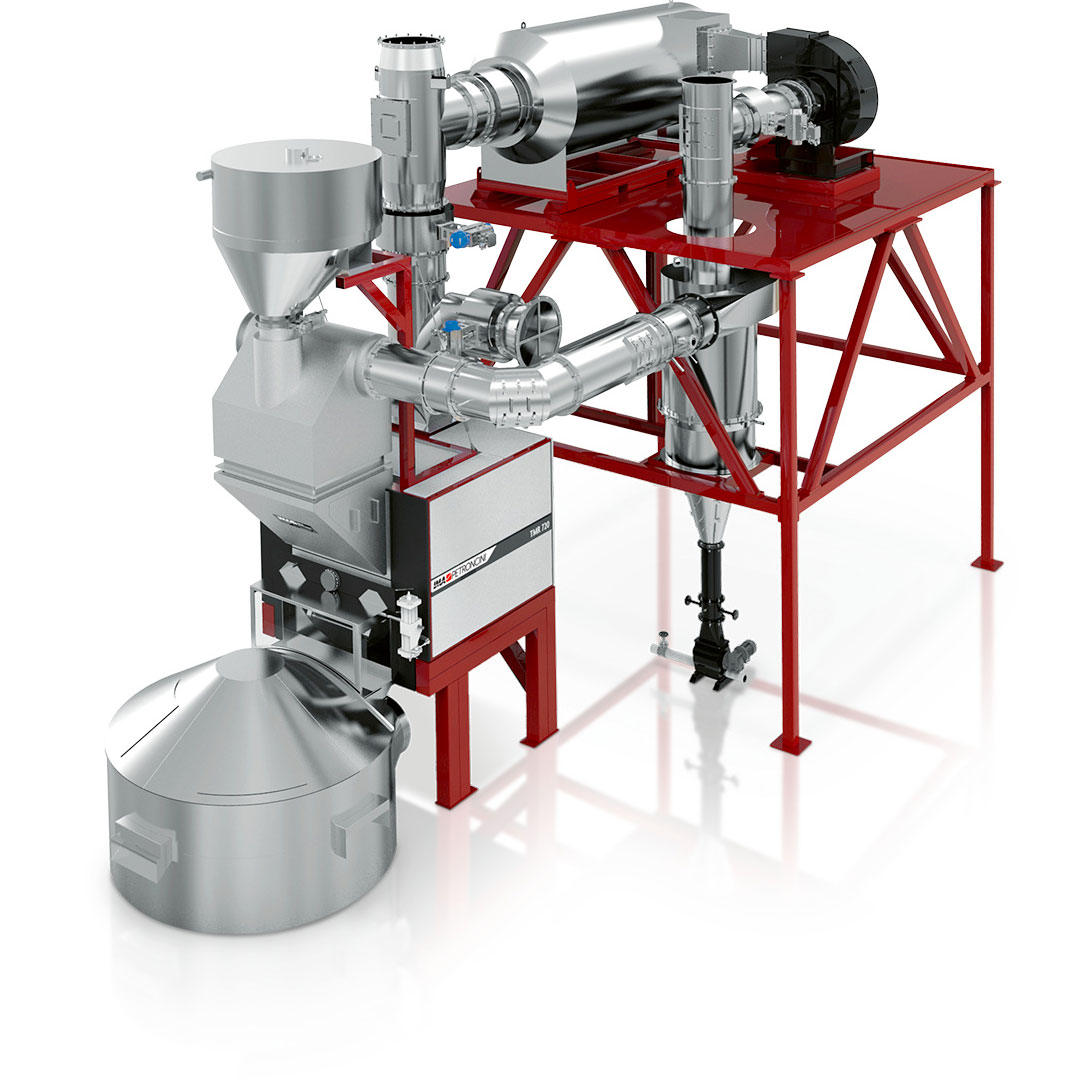

TMR 25 Lab roaster has been specially designed to achieve the desired roasting profile in terms of time, colour and flavour thanks to an innovative system that allows to previously designed the roasting curves.
Counting on the same technical features of the industrial TMR Series models, TMR 25 Lab can roast up to 25 kg/cycle, thus minimizing the waste of energy and good quality coffees. The roasting profiles created can betransferred on industrial roasters without any parameters modifications, having the same results in terms of product properties. It is an essential tool, which allows the customers to TMR 25 Lab and improve the quality of their product and its performance, carry out specific test before starting industrial production.
One unit of TMR 25 is also at disposal for test and trial at the IMA Coffee Lab, where is also possible to perform product analysis and cup tasting.
TMR 250
Flexible Industrial Drum Roaster
The TMR250 is designed for producers seeking industrial roasting performance with a high degree of flexibility. With a batch capacity of up to 250 kg, it is ideal for medium scale operations and frequent recipe changes. Thanks to the ORCHESTRA Extreme Roasting Control system, predefined roasting profiles guarantee precise color, moisture, and flavor consistency, batch after batch.
The single-burner configuration, combined with an efficient heat recovery system, minimizes energy consumption, while the modular layout allows easy access for maintenance and fine-tuning. The TMR250 offers the perfect balance between control, repeatability, and operational efficiency.
TMR 400
Scalable Performance for Growing Production
The TMR400 is engineered for coffee producers looking to increase output while maintaining full control over the roasting process. With a batch capacity of up to 400 kg, it supports higher production volumes and intensive operating cycles without compromising quality.
Powered by ORCHESTRA Extreme Roasting Control, the TMR400 ensures total repeatability of roasting profiles, delivering uniform bean quality across all batches. Advanced sensor systems continuously monitor the process, while optimized heat recovery technology reduces energy consumption. A robust and scalable solution for growing roasting facilities.

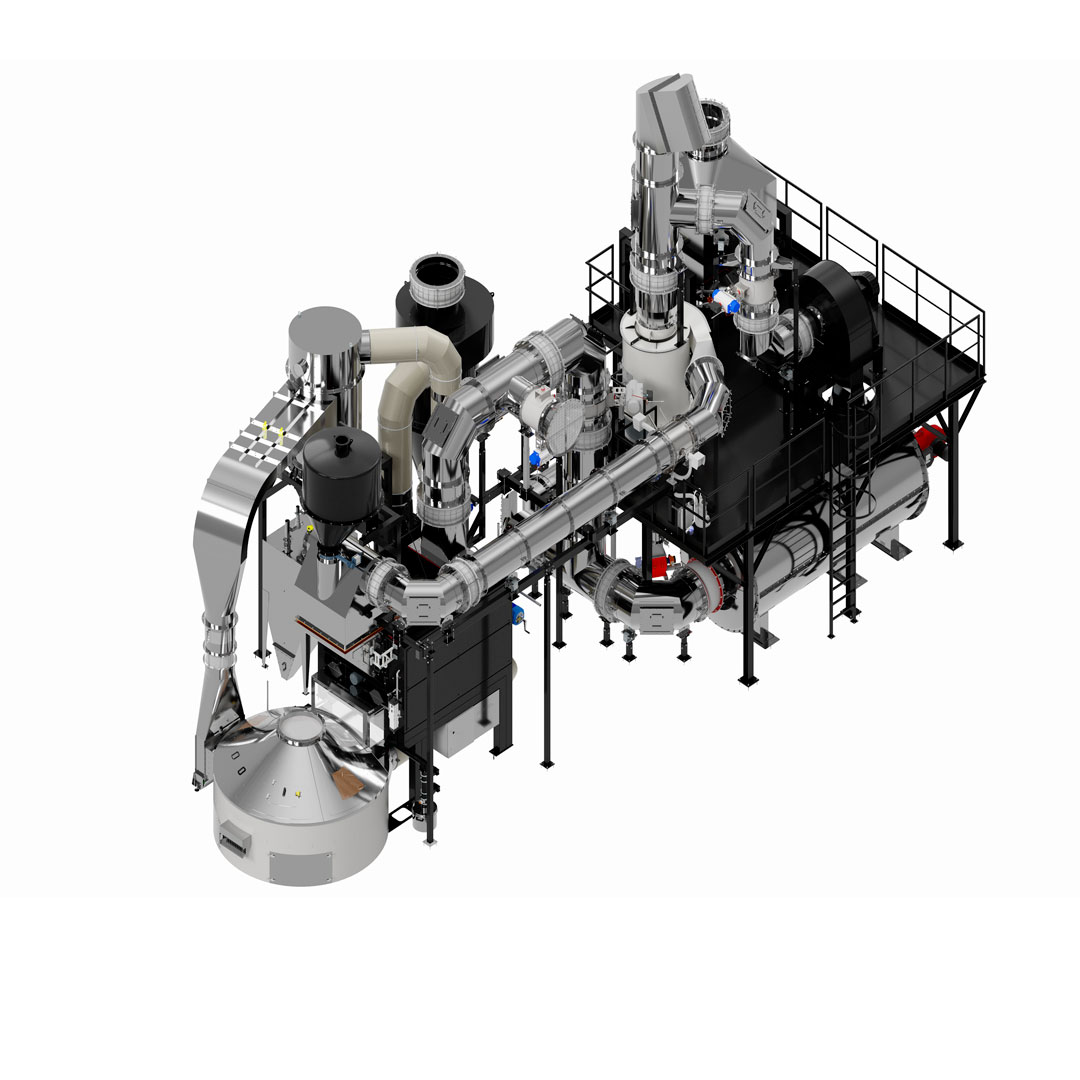

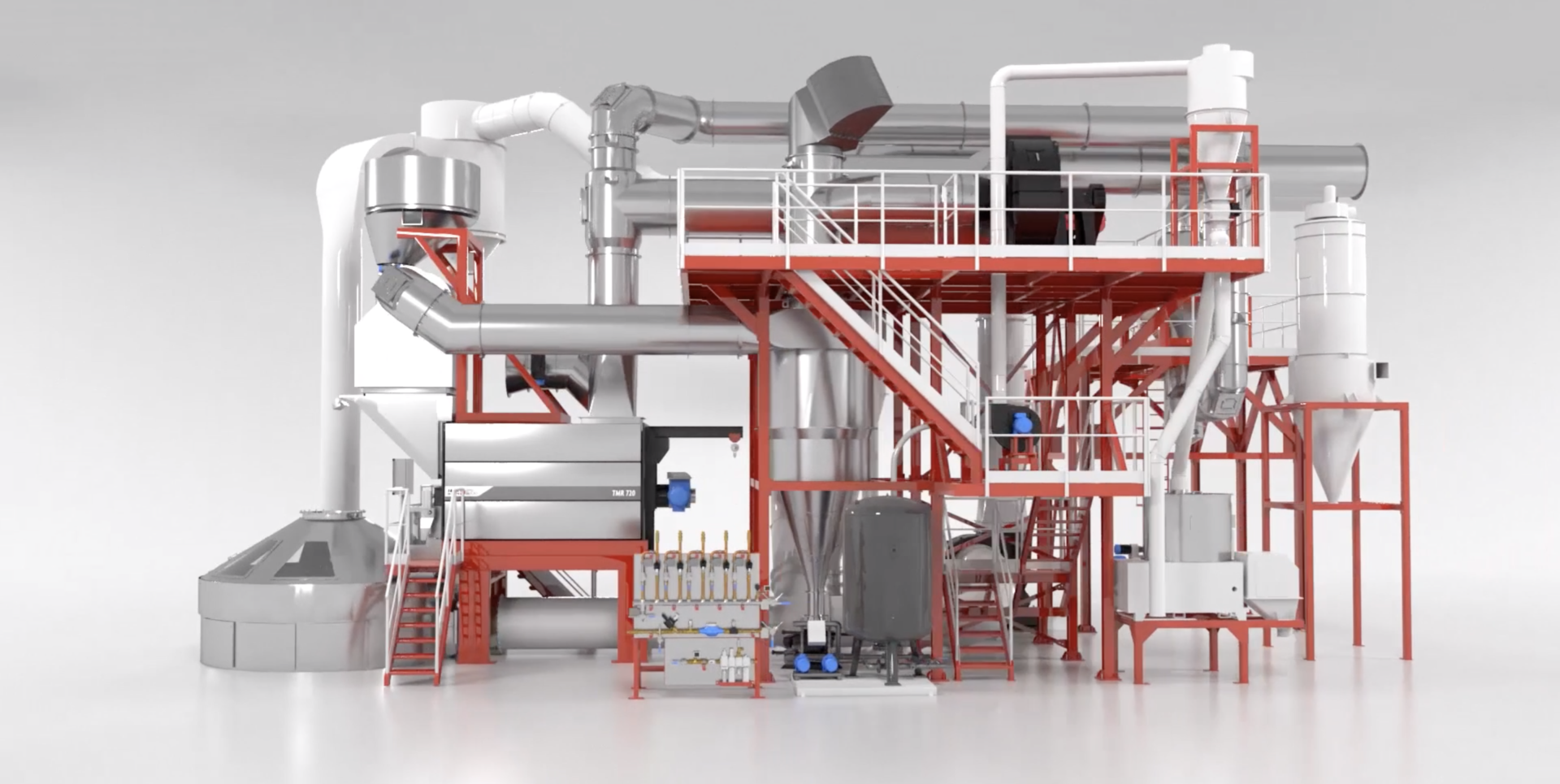

TMR720
Maximum Throughput, Absolute Consistency
The TMR720 is designed for large-scale industrial roasting operations requiring maximum throughput and uncompromising consistency. With a batch capacity of up to 720 kg, it delivers outstanding productivity while ensuring precise control over every roasting parameter.
ORCHESTRA Extreme Roasting Control guarantees perfect repeatability, even at full capacity, while an extensive network of sensors, probes, and pressure controls ensures exceptional process stability. The advanced heat recovery system and modular construction make the TMR720 the benchmark solution for high-capacity industrial roasting.
Technical information
| TMR250 | TMR400 | TMR720 | |
Length (mm) | 4600 | 5800 | 7300 |
Width (mm) | 2600 | 3050 | 3900 |
Hight (mm) | 4600 | 4900 | 6000 |
Batch Size (kg) | 150-250 | 250-400 | 500-720 |
Capacity (kg/h) | Up to 1250 | Up to 2000 | Up to 3600 |
Roasting Time (min)* | 8-20 | 8-20 | 8-20 |
* Roasting Time depends on the type of roasting desired
