Modula HF Pouch Filling

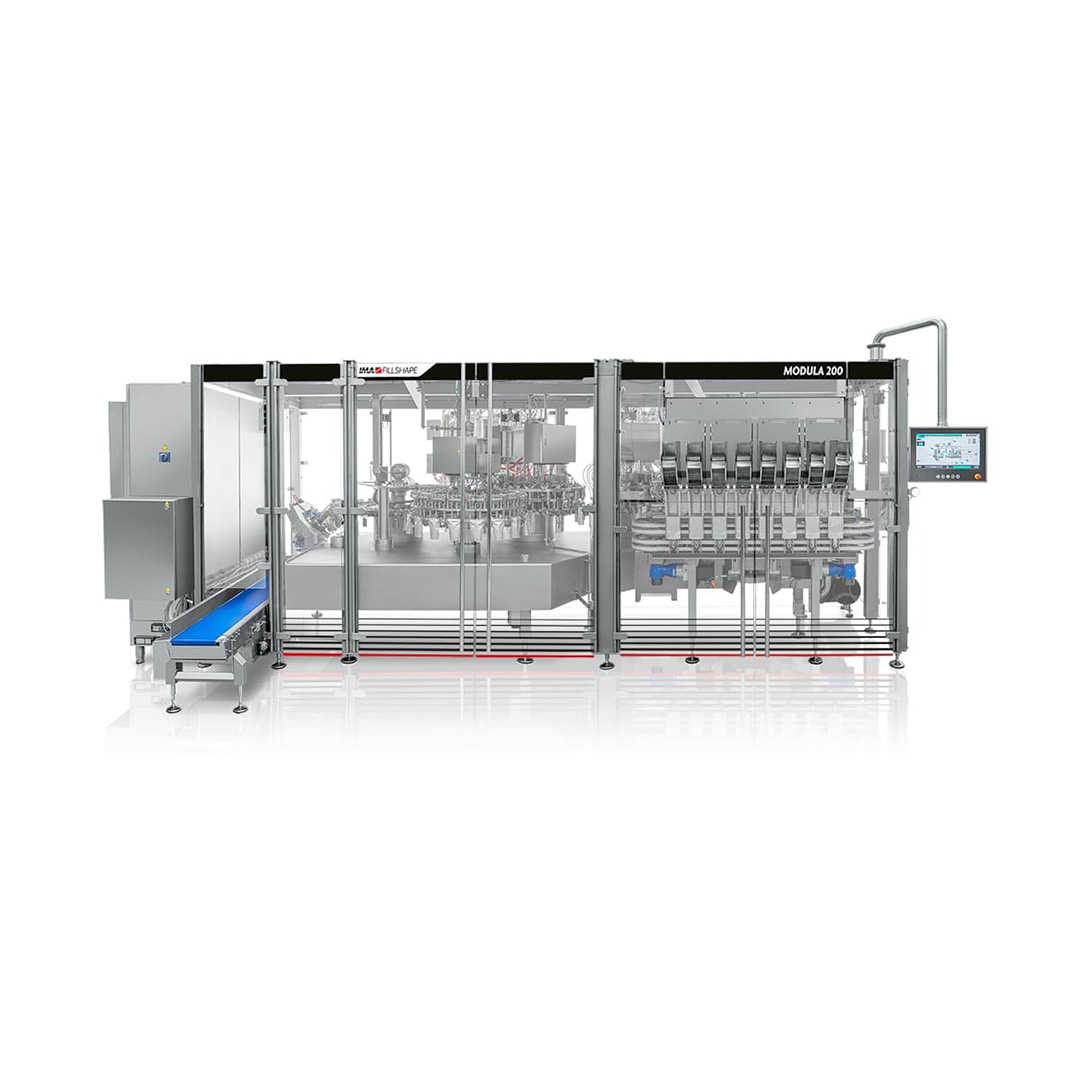

Machine overview
Accurate, Reliable, Modular
Modula is a continuous rotary machine that fills and ultra-sonically seals pre-made pouches using a patented “double pick-up” system. Ideal for solid, liquid and high-viscous products, Modula is very versatile and offers high-speed changeover procedures.
Suitable for different filling applications such as food, pet food and beverages, where high hygienic standards, huge flexibility, and rapid changeover procedures are key factors on a competitive market, Modula ensures ultimate filling accuracy and sealing reliability and boasts an extremely low rejection rate.

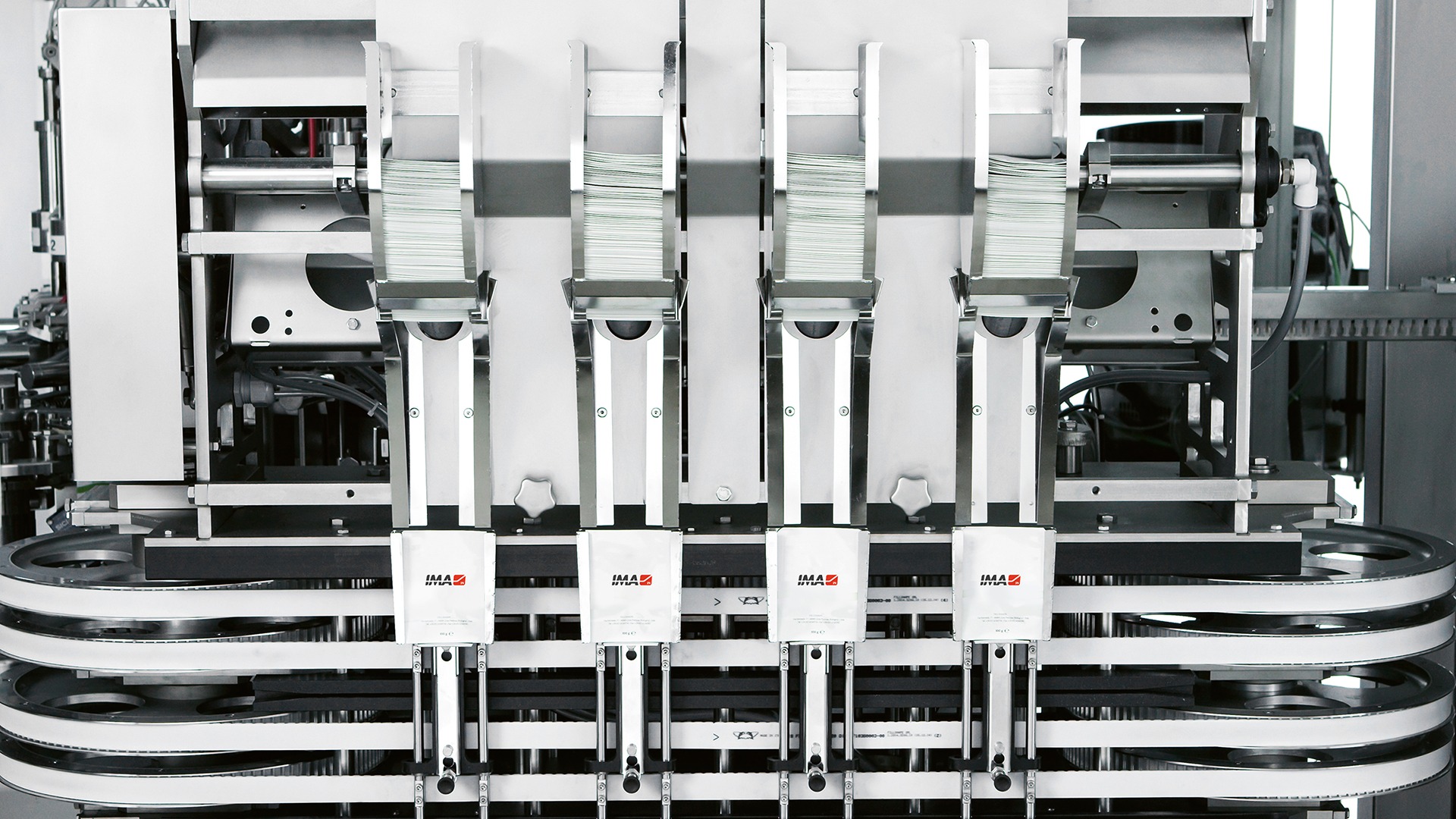

Furthermore, the patented “double pick-up” system avoids the use of chains for pouch handling.
The modular structure enables customers to use a large variety of pouch shapes and create customised solutions for a vast range of products.
Production plant
IMA Fillshape
Machine highlights
-
1.
Size changeover carried out in just 20 minutes (120 ppm version): optimise productivity and adapt to fast-changing market requirements
-
2.
High hygienic standards thanks to the frameless design and separation between pouch making and filling areas
-
3.
Customers can adapt existing can-filling technologies to rotary pouch filling
-
4.
Space saved on the production floor thanks to reduced footprint given by rotary design
Technical information
| TECHNICAL DATA MODULA | ||||||||
| Machine model | Stations | Pouch width (mm) short pitch | Pouch width (mm) long pitch | Pouch height (mm) | Pouches per minute | |||
| Magazines | Opening | Filling | Sealing | |||||
| Modula 200 | 8 | 20 | 20 | 2 | 65 – 105 | 105 – 160 | 80 – 180 (180 – 250 oversize) | 200 |
| Modula 360 | 12 | 30 | 30 | 5 | 65 – 105 | NA | 80 – 180 | 360 |
