Minima Capsule Filling
Machine overview
Dosing precision in a benchtop format.
Minima is a table-top capsule filler designed to dose DPIs or solid products for oral administration in hard capsules. Used as an efficient solution to assess product processability, Minima is also directly scalable to production line capsule fillers.
Extremely precise and with a single dosator, Minima can work with all capsule sizes and any dosage, as it can be equipped with all dosing devices found on standard production machines.
Portable and with minimal user requirements, Minima is simple to use, completely mechanical and only requires compressed air to function.
Production plant
IMA Active
Machine highlights
-
Direct scalability
Mimics the same process and dosing parameters of production machines.
-
Flexible configurations
Three configurations available: OSD (Oral Solid Dosage) powder or pellets and DPIs (Dry Powder Inhalers).
-

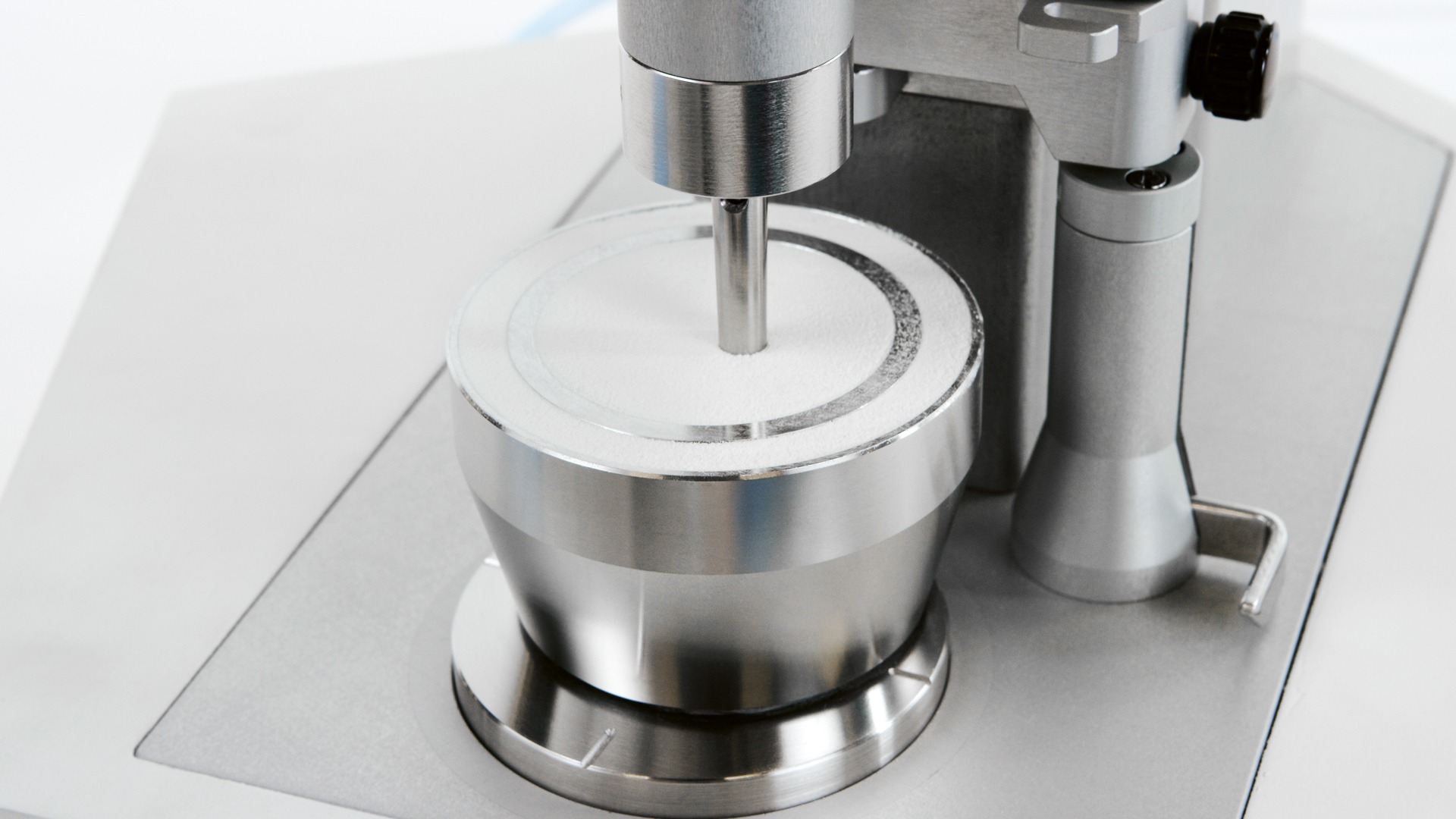

Adjustable bowl
Powder bowl with adjustable height and accurate scraping system with powder recovery ring, suitable for DPIs.
-
Compact design
Designed to minimise footprint while maximising ease of use, the machine combines a compact structure with intuitive controls.
From DPIs to pellets, all in one solution
Minima comes factory-preset for dry powder inhalers and can also dose micro-granules, pellets, or incompressible powders. Beyond being an efficient inhalation product optimisation system, it is an excellent R&D tool suitable for any capsule dosing application.
Machine details

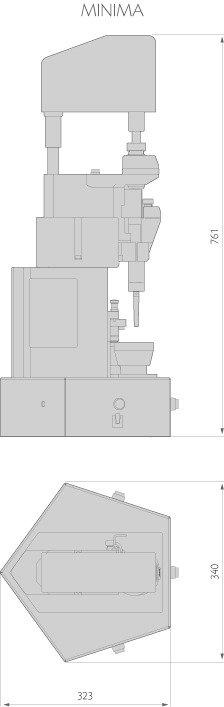

Technical information
| Minima technical data | |
| Number of capsules per cycle | 1 |
| Capsule size | 4÷0 |
| Capsule type | Gelatin, HPMC, other vegetal or animal or polymeric materials |
| Compressed air (bar) | 6 |
| Weight (kg) | 32 |
