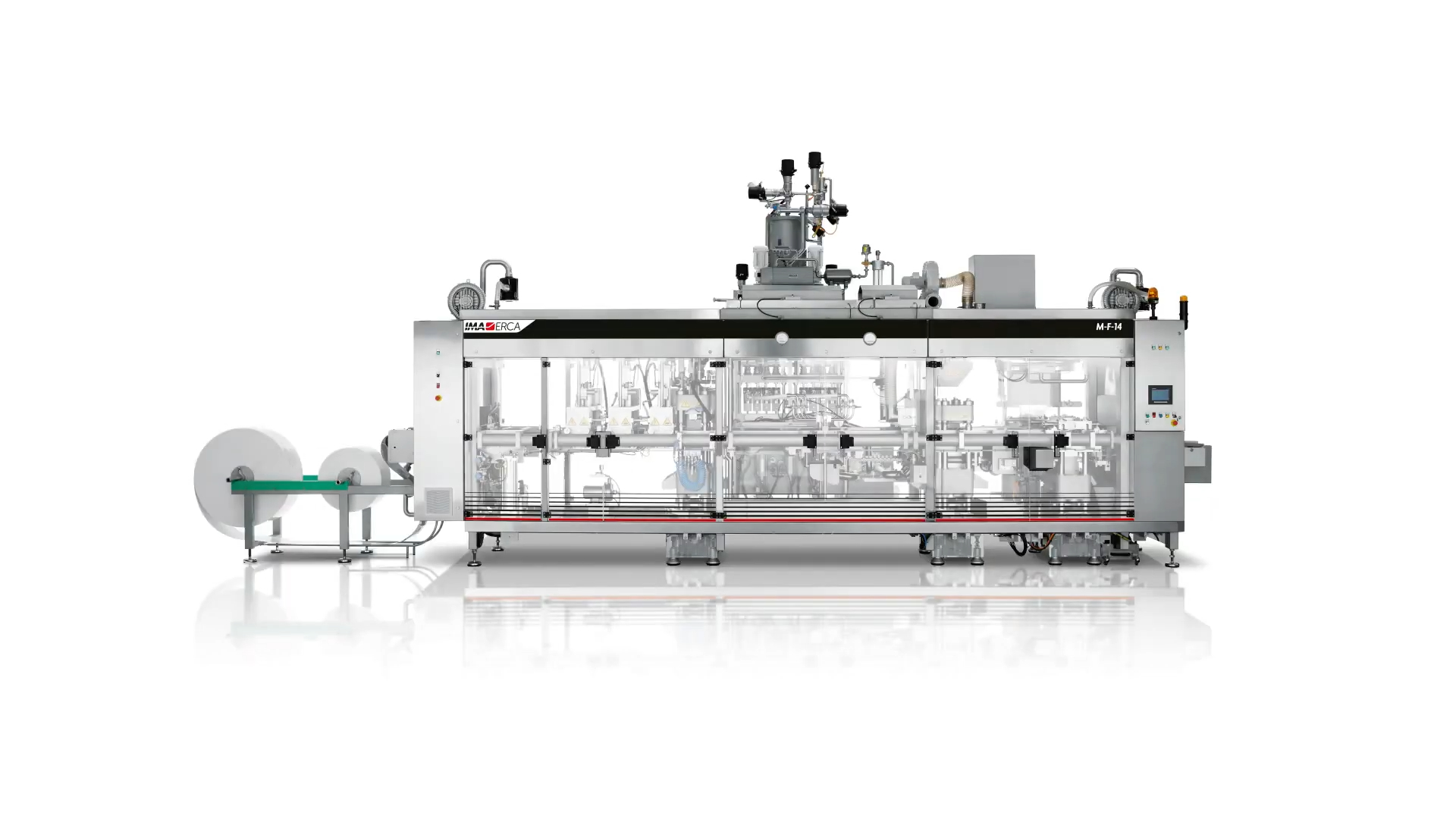

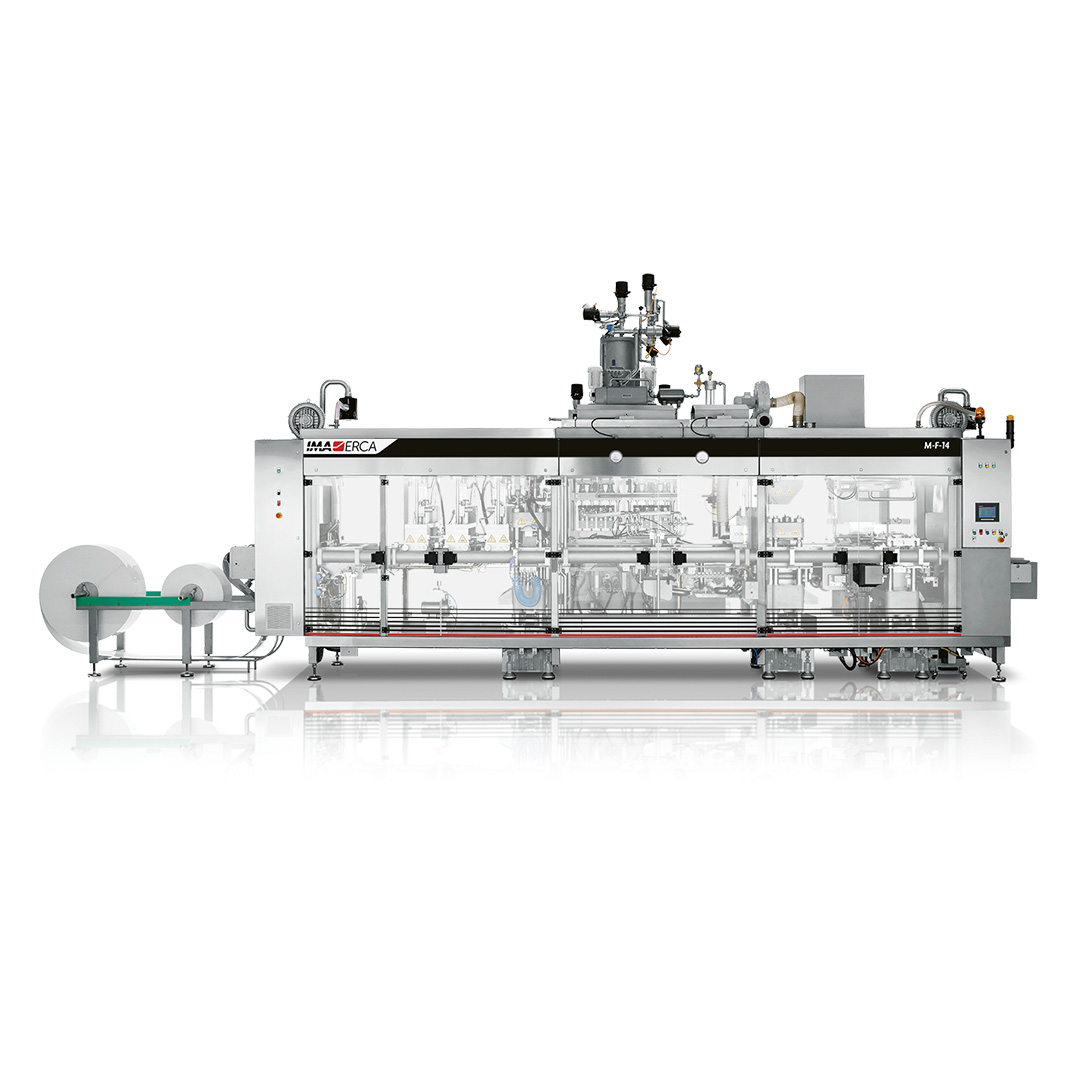

MF Series Cup Forming, Filling and Sealing
Machine overview
Huge value, small footprint
Designed to handle yoghurt, fresh cheese, tomato sauce, fruit puree, water and more, the form, fill and seal machines of the M-F series are one of the market’s most compact solutions for cups in a wide range of shapes and sizes, combining a series of processes on one single machine.
Cups are thermoformed, filled with product, hermetically sealed with a film or foil and cut into singles or multi-packs.
Cups can be designed cost-effectively with interesting labelling solutions and freedom of cup geometry. Not only a marketing tool, the label also strengthens the cup’s sidewall stability, enabling a thinner bottom web resulting in lower material costs.
Production plant
IMA Erca
Machine highlights
-
1.
Reduced footprint saving up to 30% on floor space.
-
2.
Integration of electro-pneumatic cabinets and filler in machine base.
-
3.
Highly versatile equipment: cups from 20 to 500 ml.
-
4.
Excellent cost efficiency.
Machine details
Technical information
| TECHNICAL DATA M-F SERIES | |||
| Cup material width | 400 mm | Draw off length | 150 mm |
| Usable width | 240 mm | Forming depth | 90 mm |
| Materials | PET/PET, PP and multilayers such as PS/PE, PS/PETG, PS/EVOH/PE, PP/EVOH/PP | ||
| Output | up to 21.600 cups/h | ||
| Standard Equipment | |||

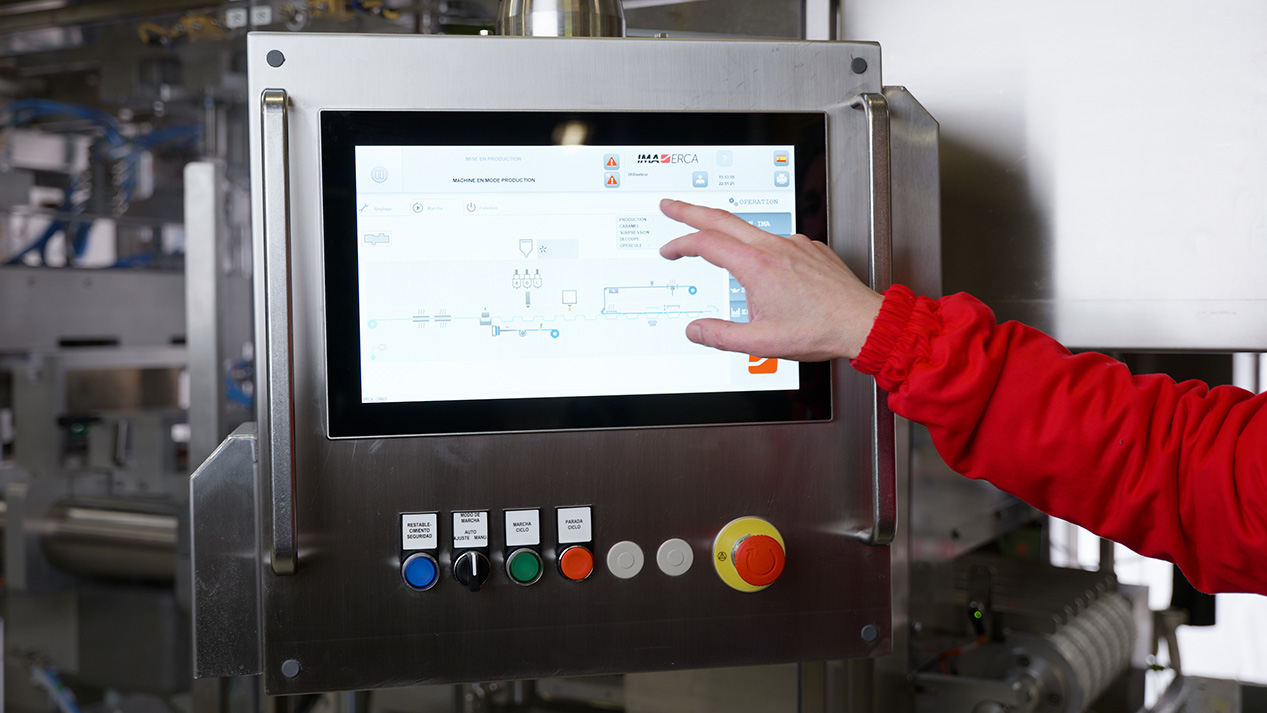

| Components | Controller and Servo motors ELAU, Pneum. FESTO, HMI 15″ touchscreen | ||

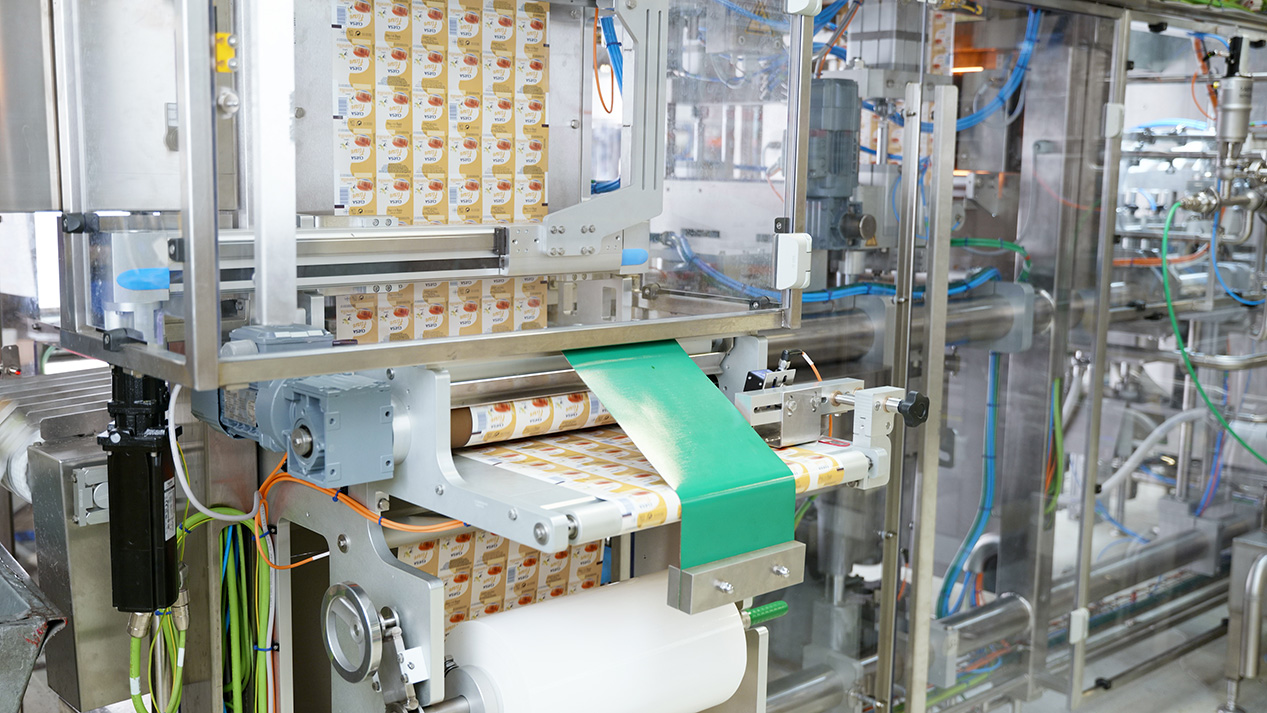

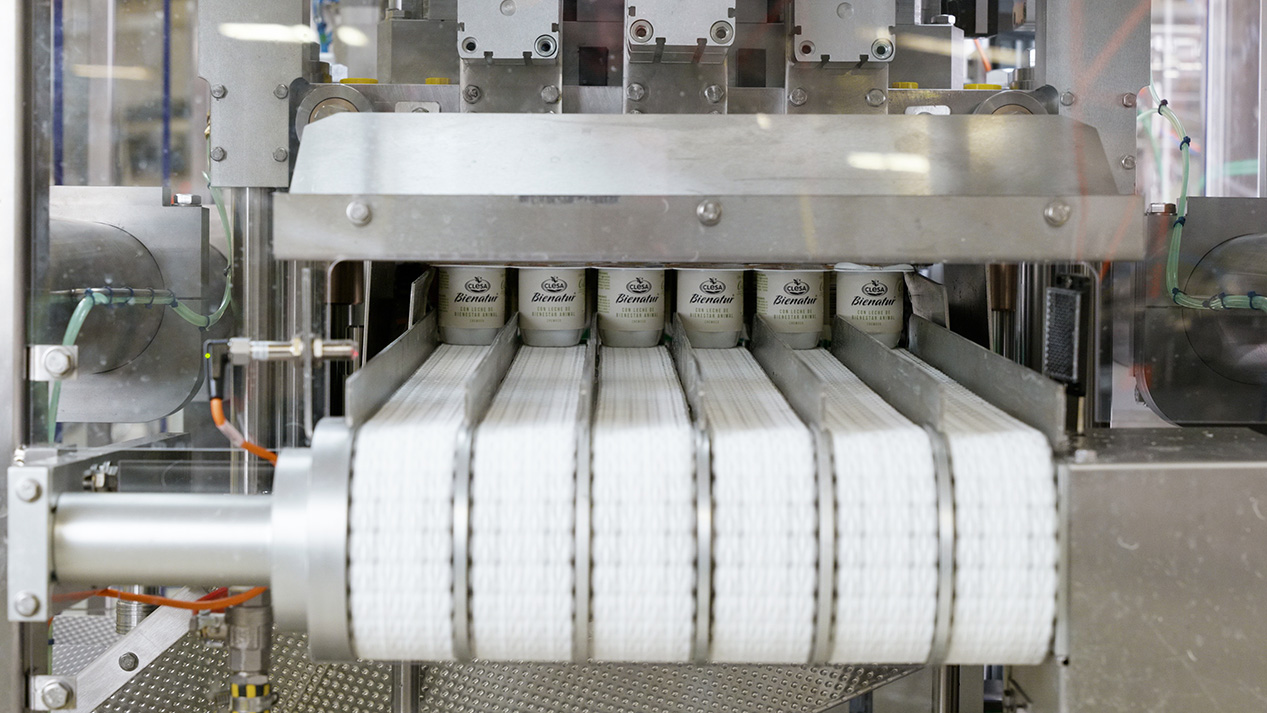

| Standard configuration | Bottom web reel : Ø 1200 mm Lid reel: Ø 400 mm Label reel: Ø 600 mm Labelling with tilting mold, drive heating section on 6 pitches, exit conveyor with Intralox chains | ||
| Options | |||
| Hygiene class | Clean*, Ultra-clean* | ||

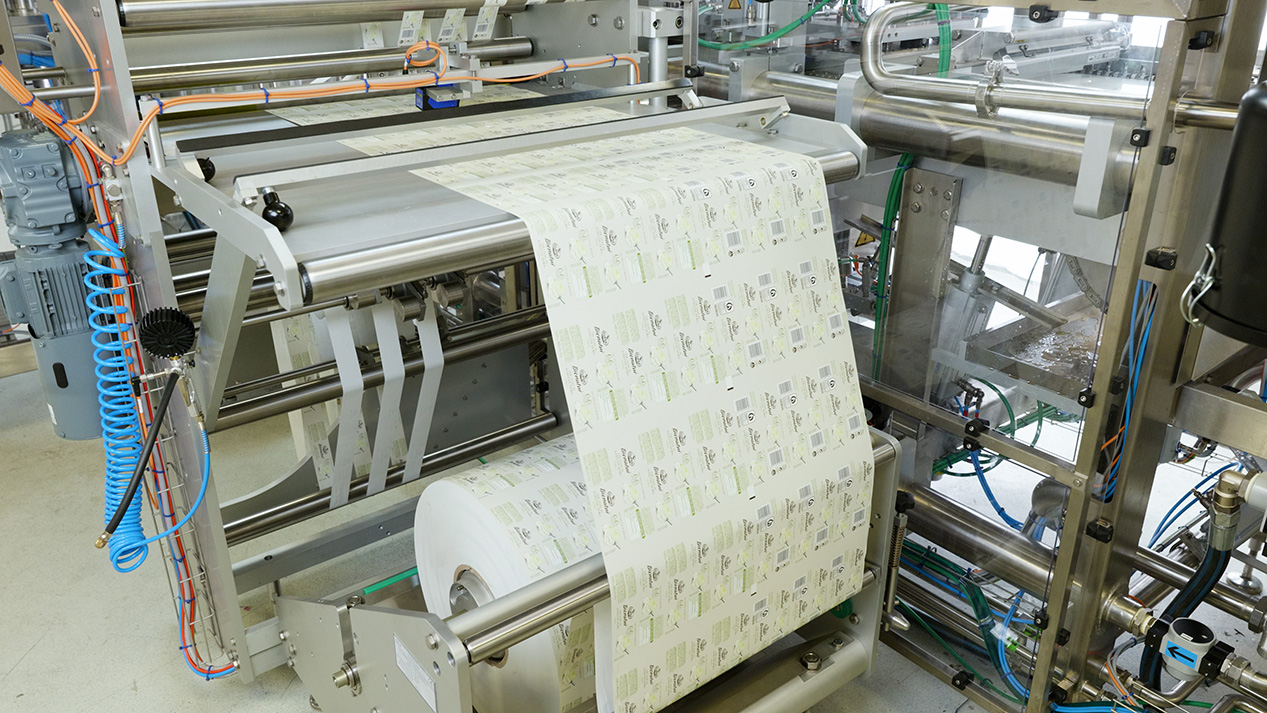

| Labelling | Labelling, labelling for conical cups, 2 label heights | ||

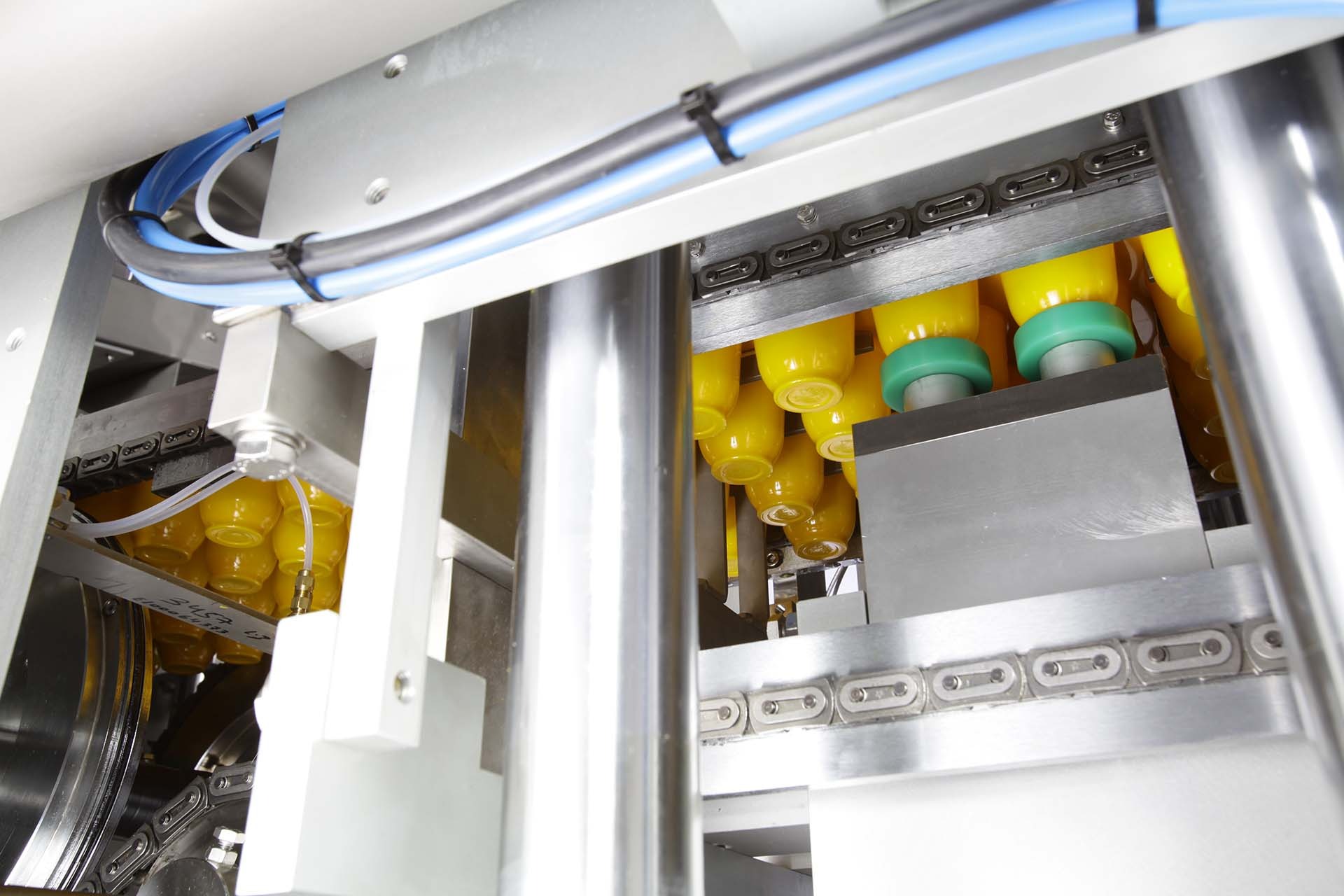

| Chains | ERCA chains with grippers and magnetic drive | ||

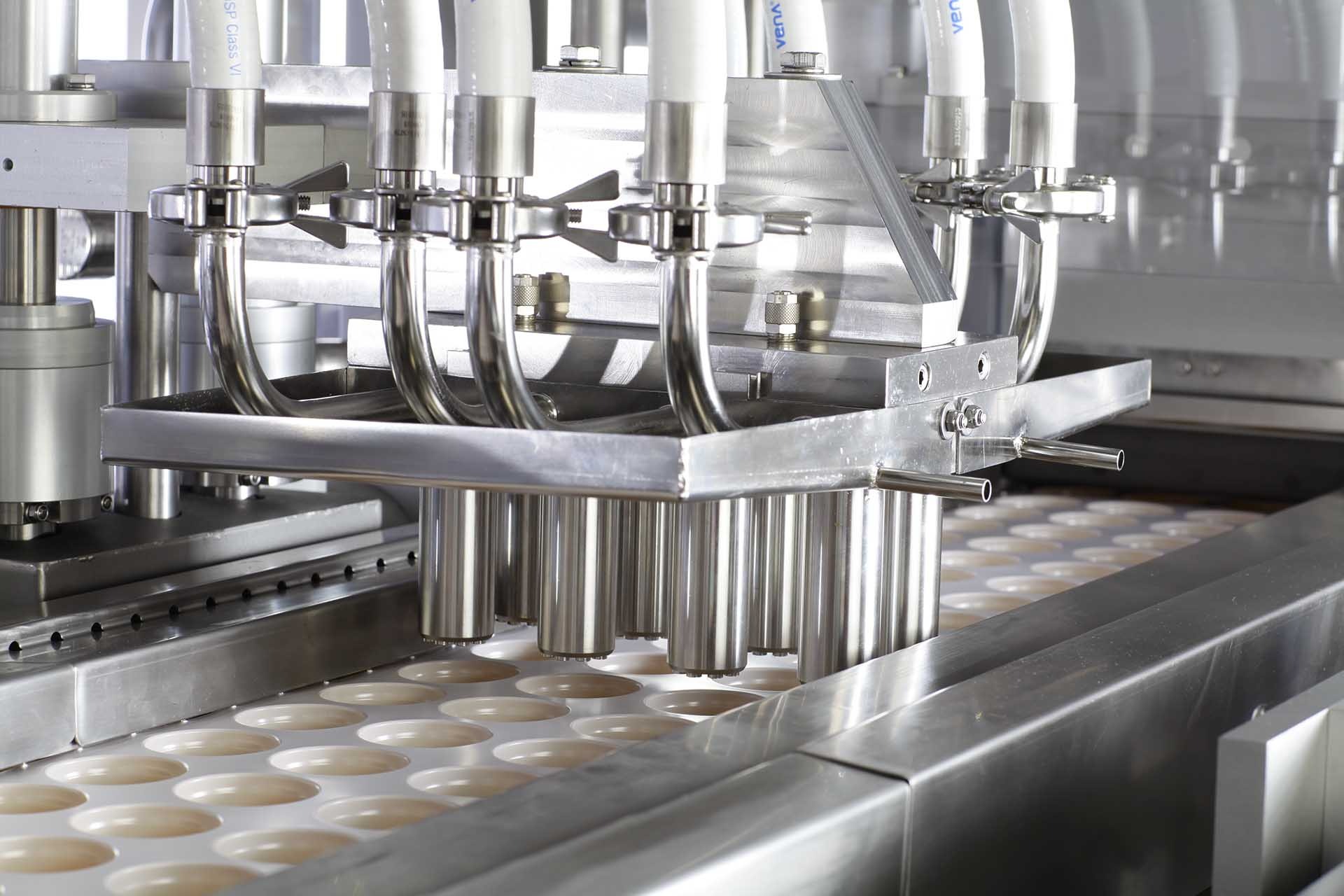

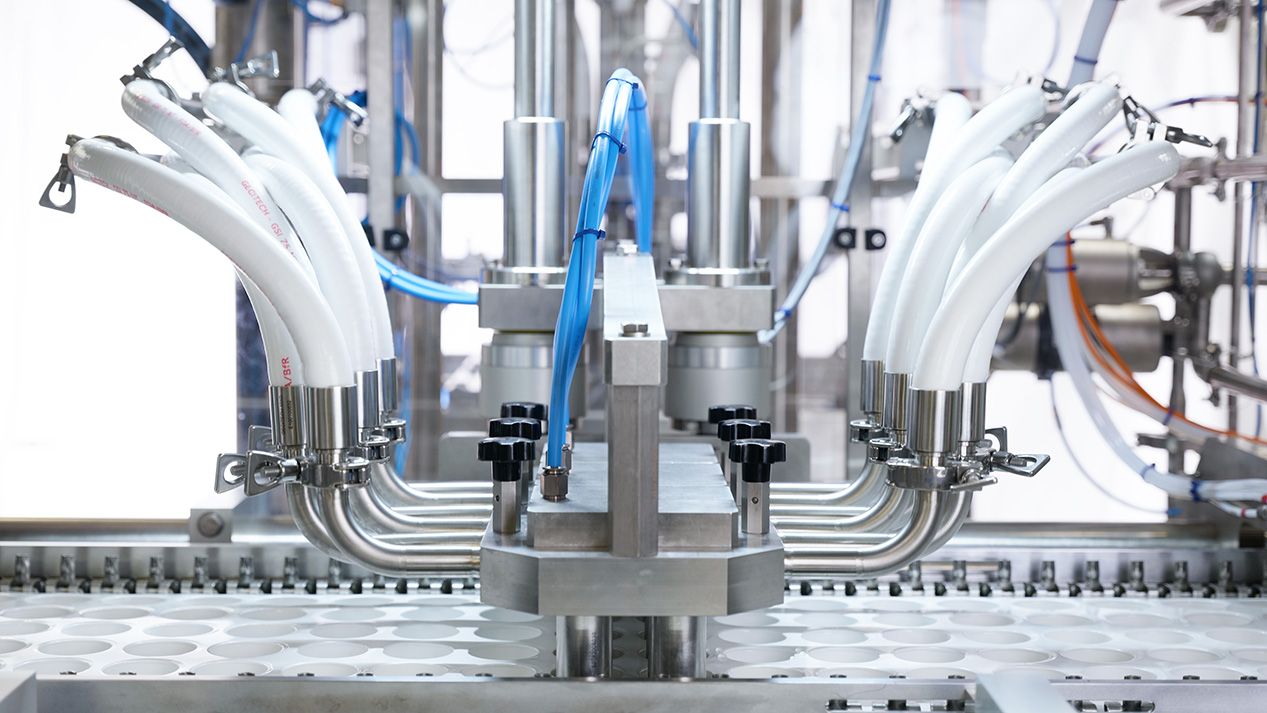

| Fillers | Up to 3 fillers | ||
* depending on customer request
