MD20 Plus Tea bag packaging

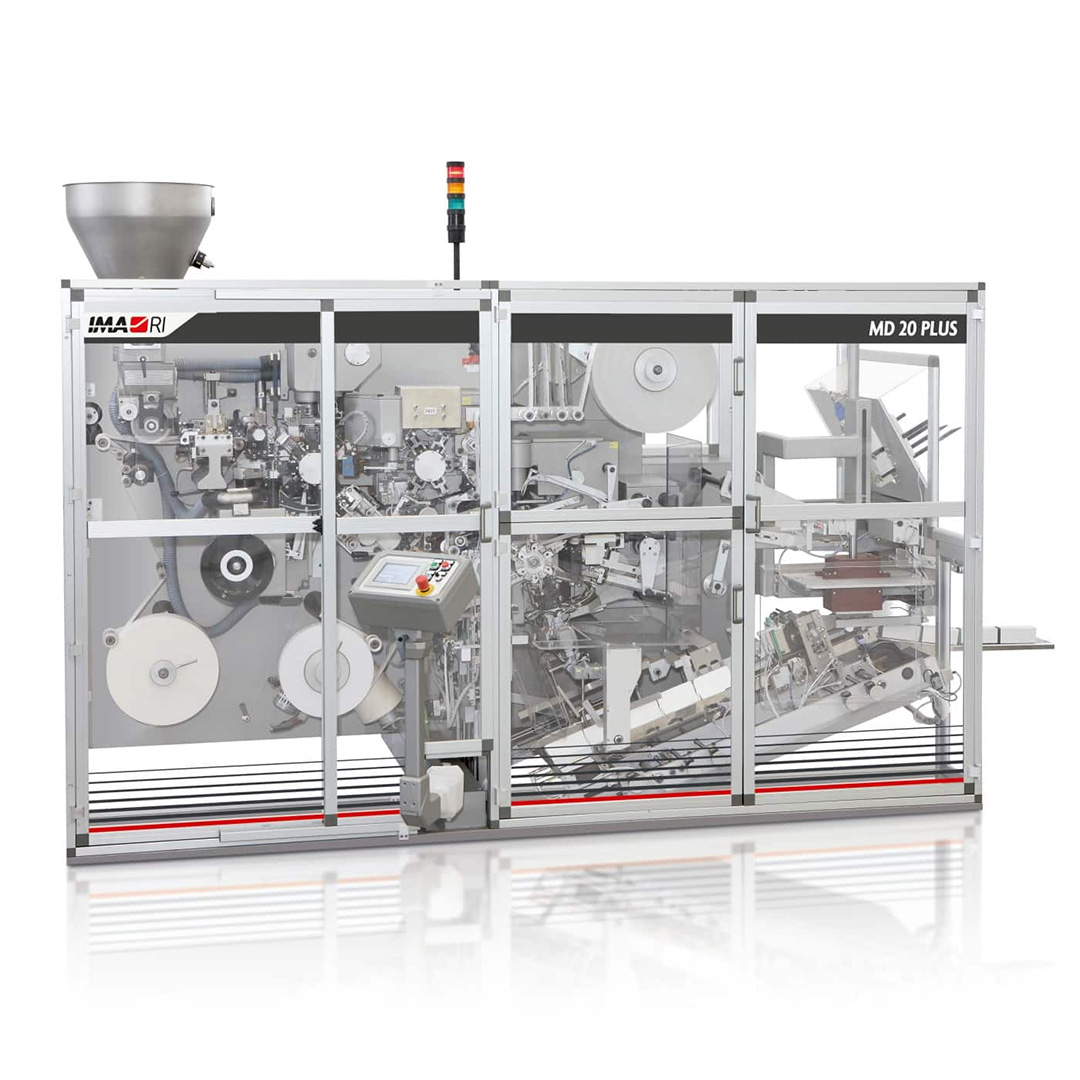

Machine overview
Maximum flexibility
The MD20 PLUS produces non-heatsealable, double-chamber, knotted naked bags for tea and herbs at speeds of up to 200 bags/min. To protect the naked bag, the MD20 PLUS produces crimped outer envelopes and in order to further preserve the flavour of the tea or herbs, it also processes totally airtight, waterproof, heatsealed outer envelopes.
Greater variety is provided by the possibility of fitting different cartoning attachments starting from flat blanks or pre-erected cartons. Optional carton closing units handle tear-off, flip-top and other cartons styles.
Production is constantly monitored by dedicated supervision software and a video camera which checks knotting and teabag conformity.
Production plant
IMA R.I.
Machine highlights
-

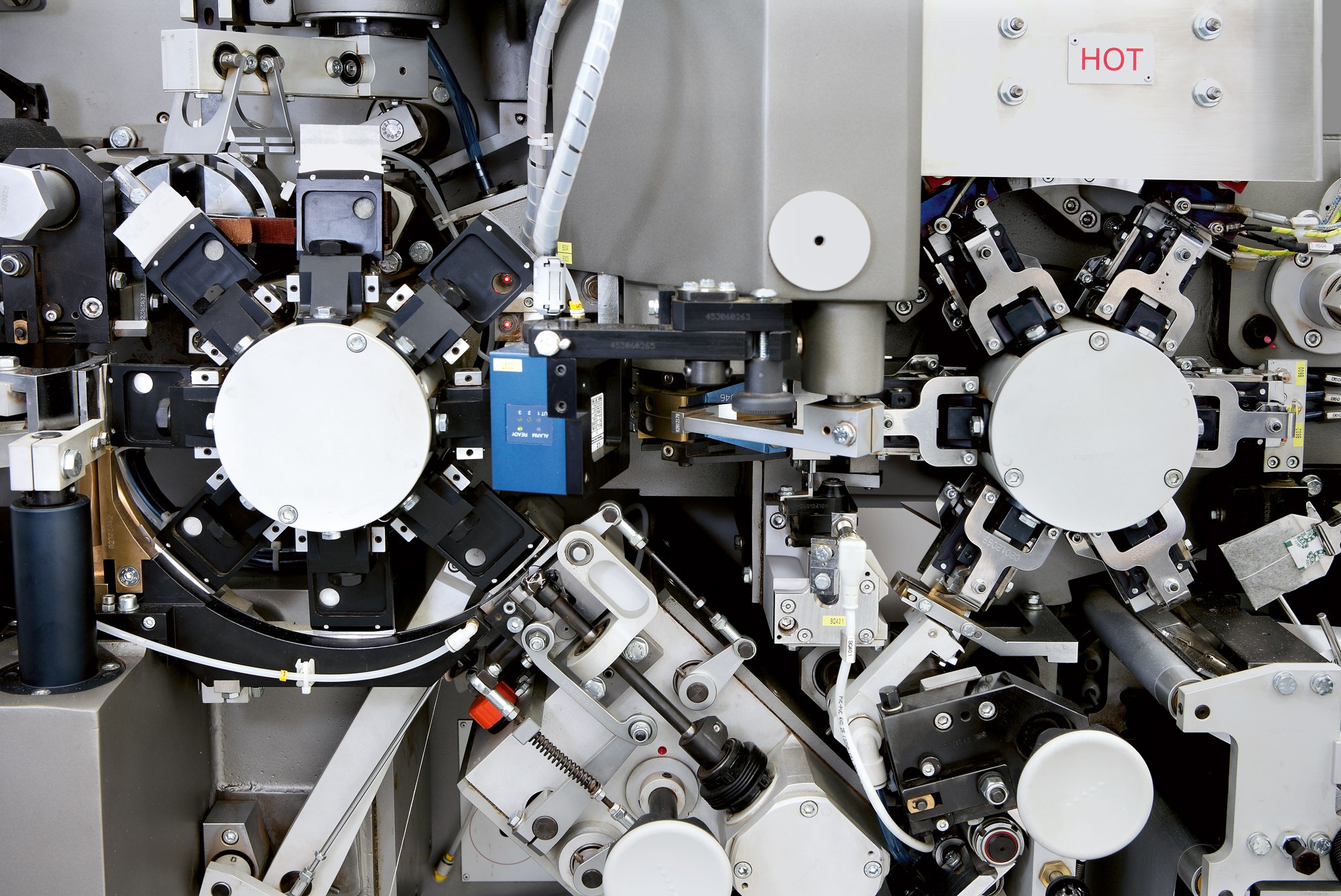

Knot technology
Bags closed firmly with two subsequent knots using the same connected thread.
-

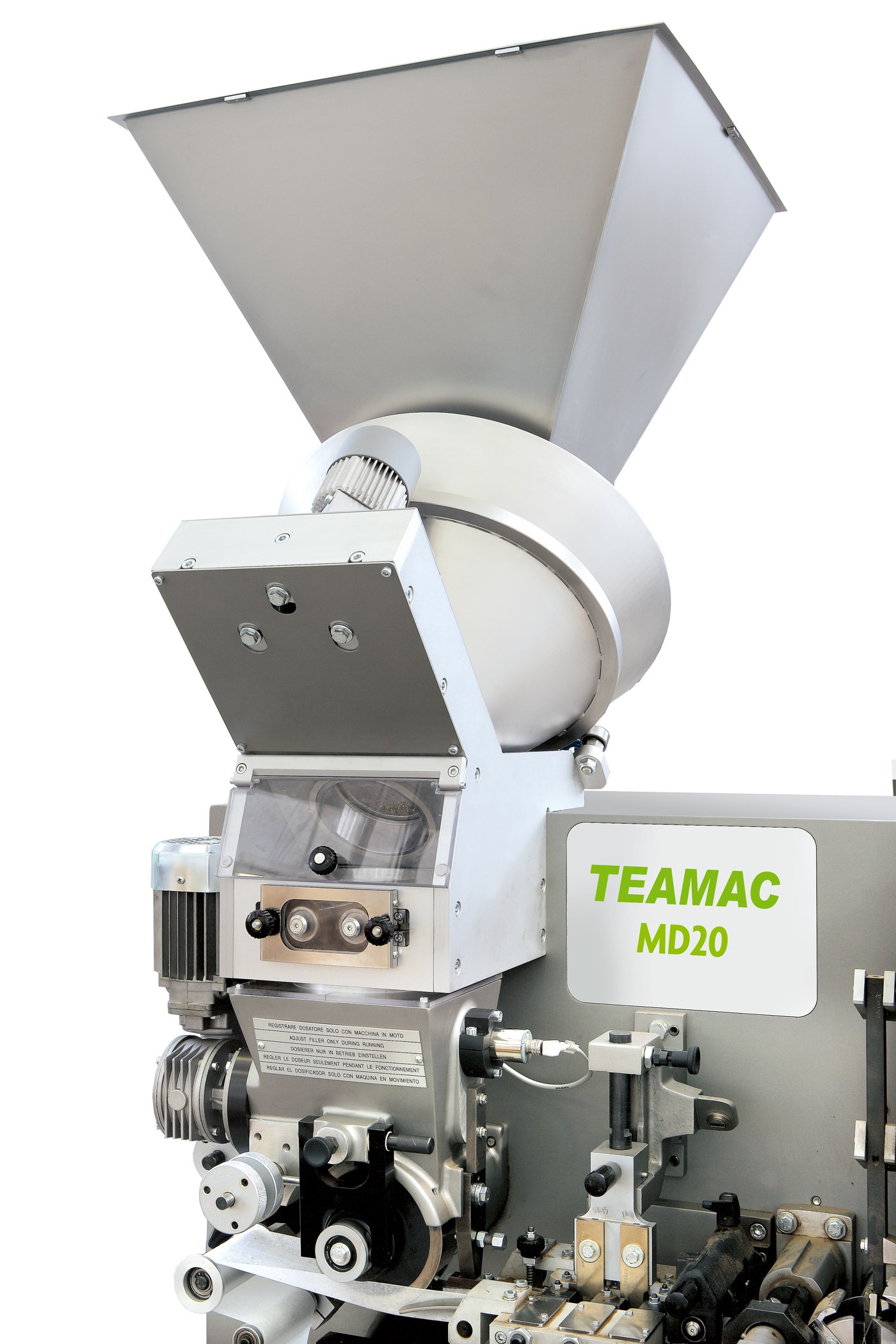

Rotating hopper
Special rotating hopper ensures better handling of non-free-flowing products.
-
Faulty bag rejection
Single bag rejection increases production efficiency and quality.
-
Flexibility
Maximum flexibility for naked bags or bags in heatsealed or crimped outer envelopes.
-
Video camera
Knot conformity constantly controlled via video camera.
-
Packaging material saving
Significant savings on packaging material reaching up to 8% on best-in-class solutions.
-
Integrated cartoner
Can be fitted with an automatic multi-row carton attachment using flat blanks.
-
Spare parts
Reduced needs for spare parts.
Machine details
Technical information
