Macro PWD Non-Aseptic Processing

Machine overview

Macro dosage, maximum accuracy

Macro PWD is an automatic intermittent-motion machine designed to dose powder, granules and milled products in glass or plastic bottles and jars. It is the result of over 50 years of experience in pharmaceutical powder filling and over 100 machines installed worldwide. Able to satisfy the current safety requirements, it successfully addresses the increasing demand for the dosage of dry syrups.
The powder dosing system features the consolidated auger technology, which guarantees extreme precision and product safety even in the case of long production cycles. Depending on customer requirements, the machine is available in three different configurations and ensures easy access to the working area and excellent visibility during production.

Production plant

IMA Life

Machine highlights


  1. Accuracy

    Accurate and clean filling.


  2. Transport system

    Positive transport system.


  3. Loading sensors

    Minimum and maximum bottle inlet/outlet loading sensors.


  4. Efficient processing

    No bottle – no fill control device.


  5. Automatic rejection

    Dedicated belt for automatic rejection of incorrectly filled bottles or missing closures.


  6. Containment

    Open RABS for powder containment.


  7. Multiple dosing

    Able to dose up to two different types of powder in the same bottle.

100% In-Process Control

A 100% check-weighing system is available for direct control of the net weight during the production cycle. The weighing cells weigh the bottles before and after the filling process, while the control system calculates the weight of the product dosed.

Machine video trailer

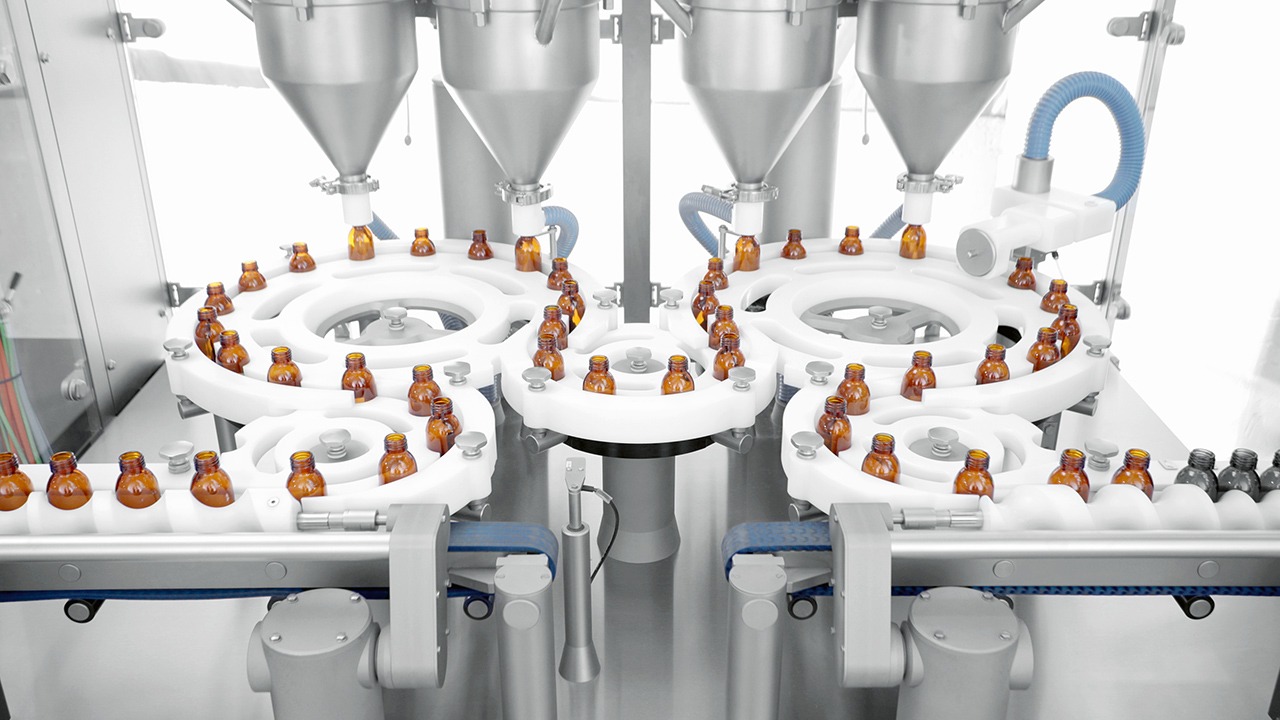

4D version work area with 4 dosing units

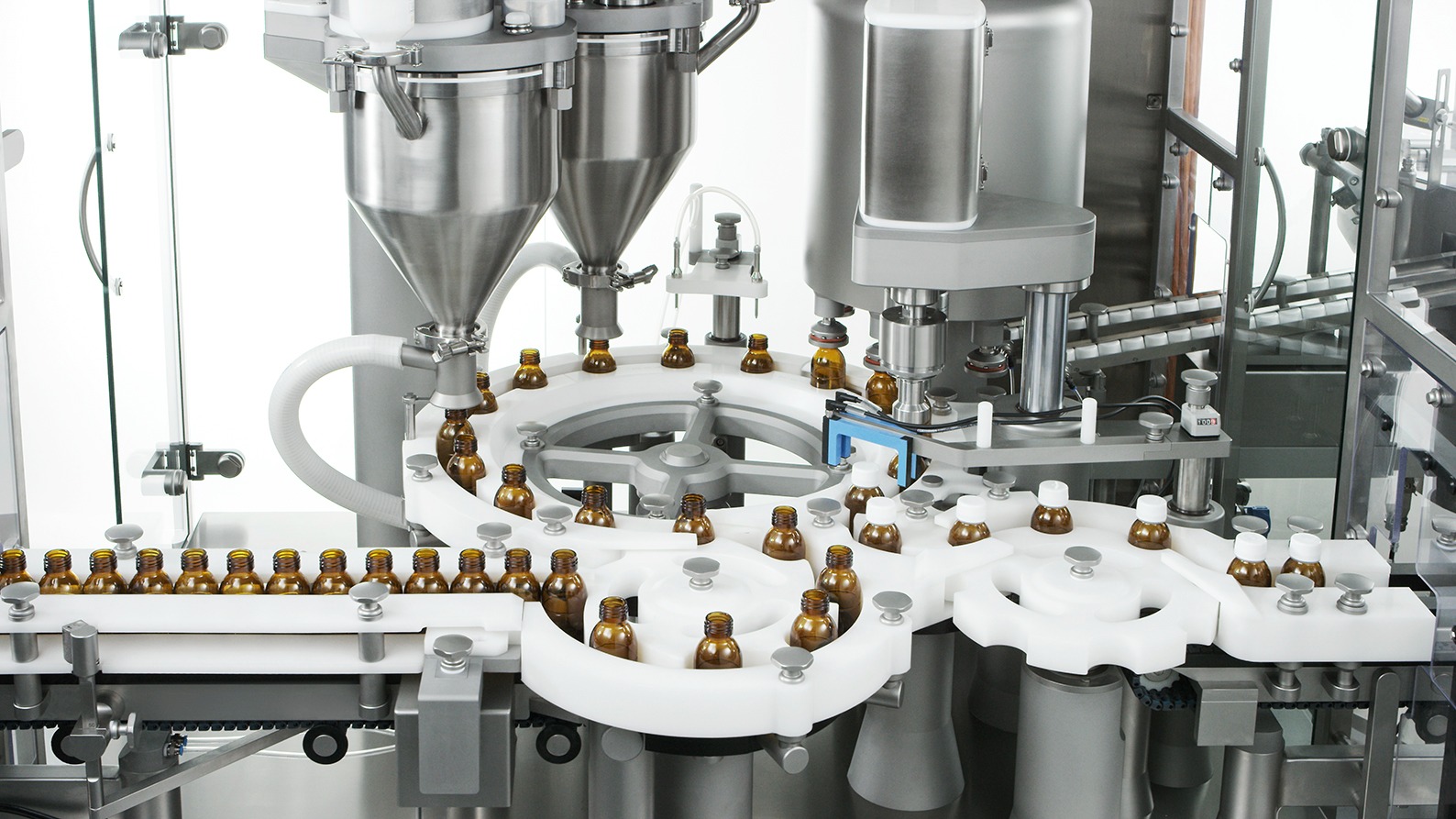

2D monobloc version work area with 2 dosing units

Powder feeding valve

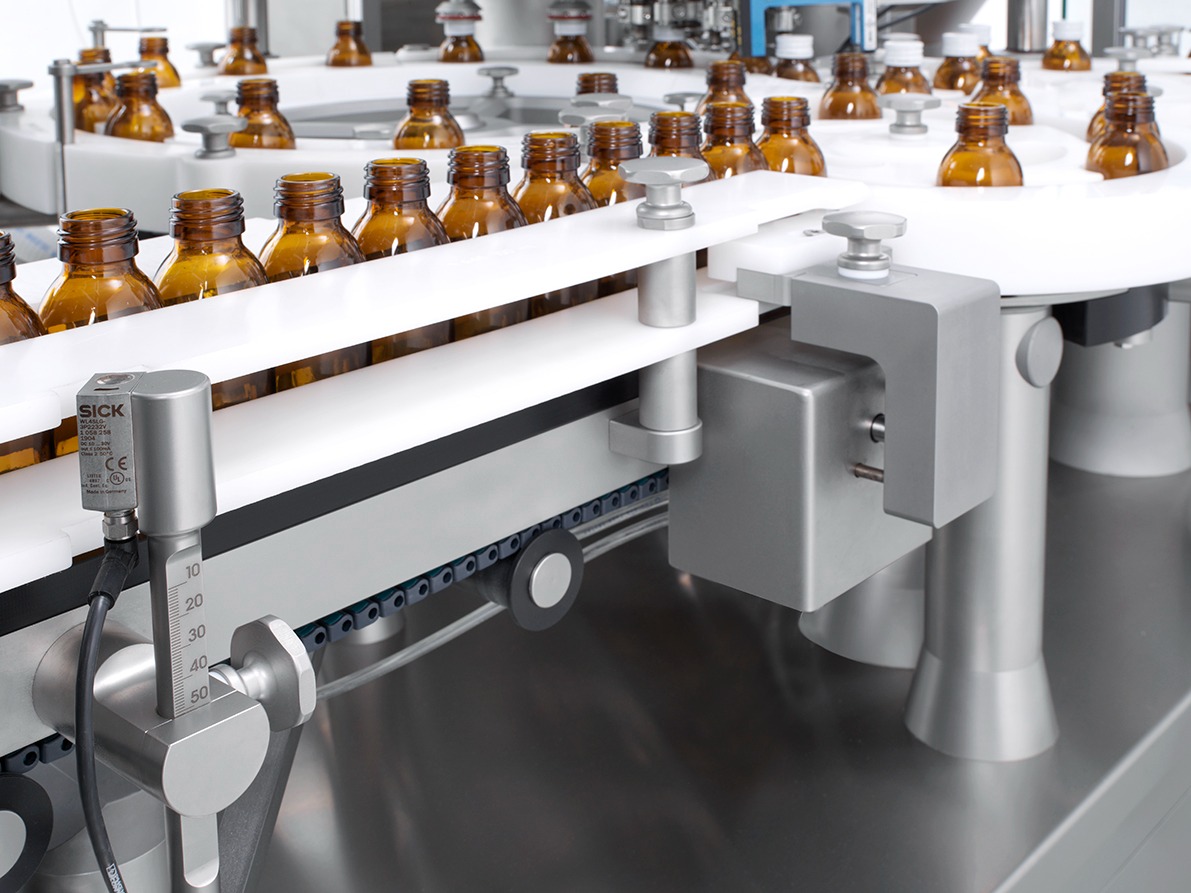

Bottle infeed

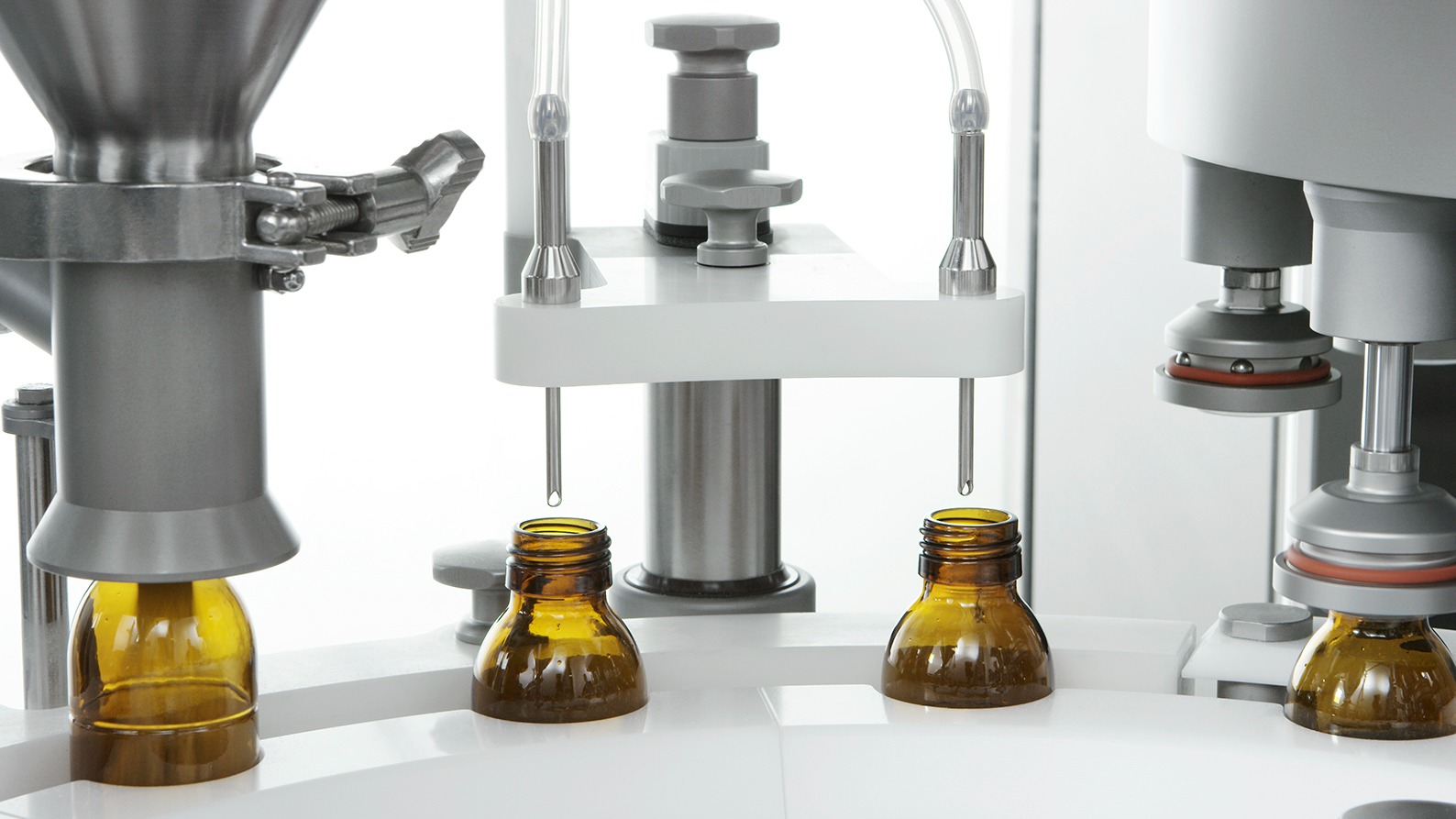

Nitrogen purging

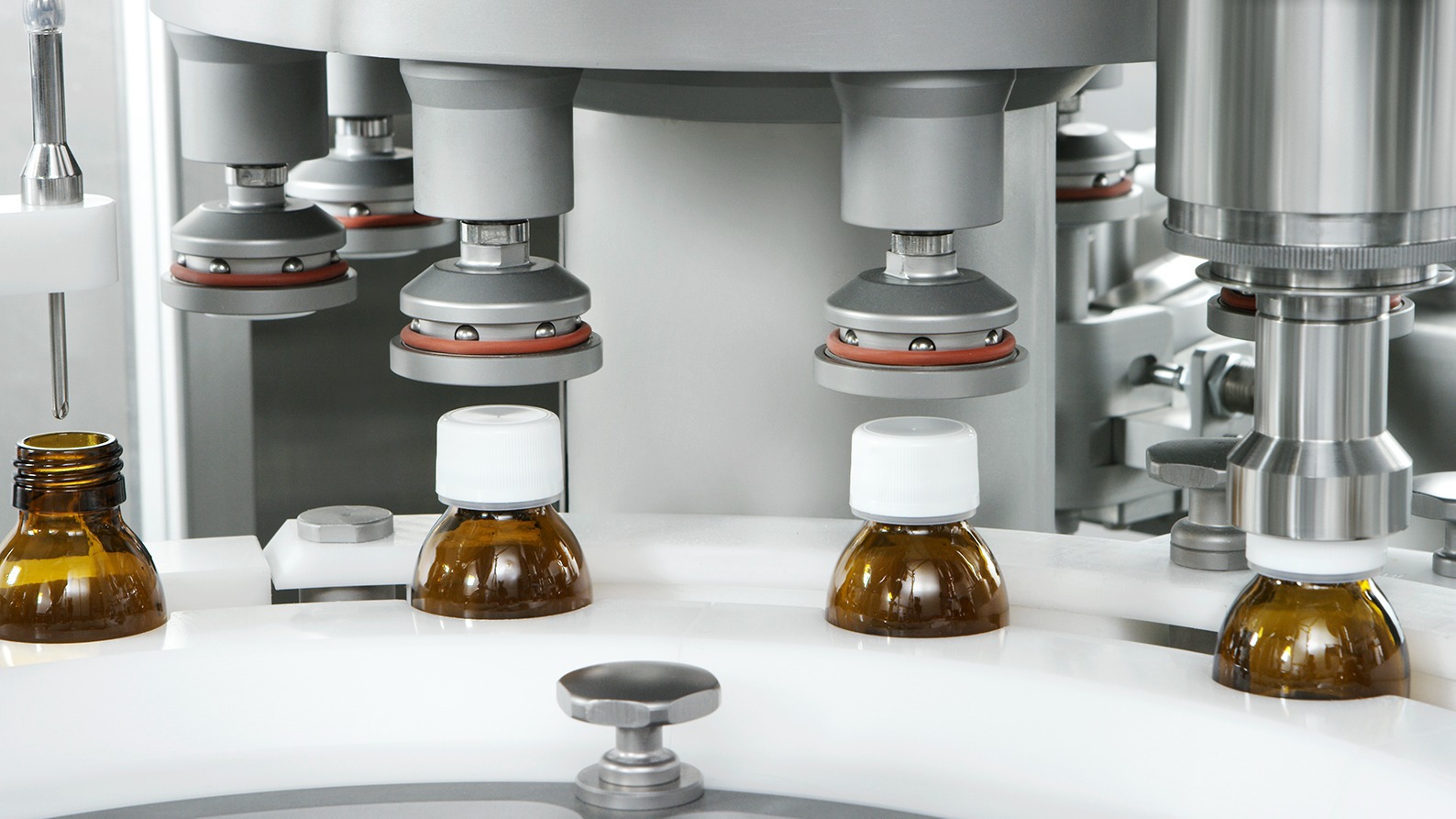

Bottle closing with screw cap

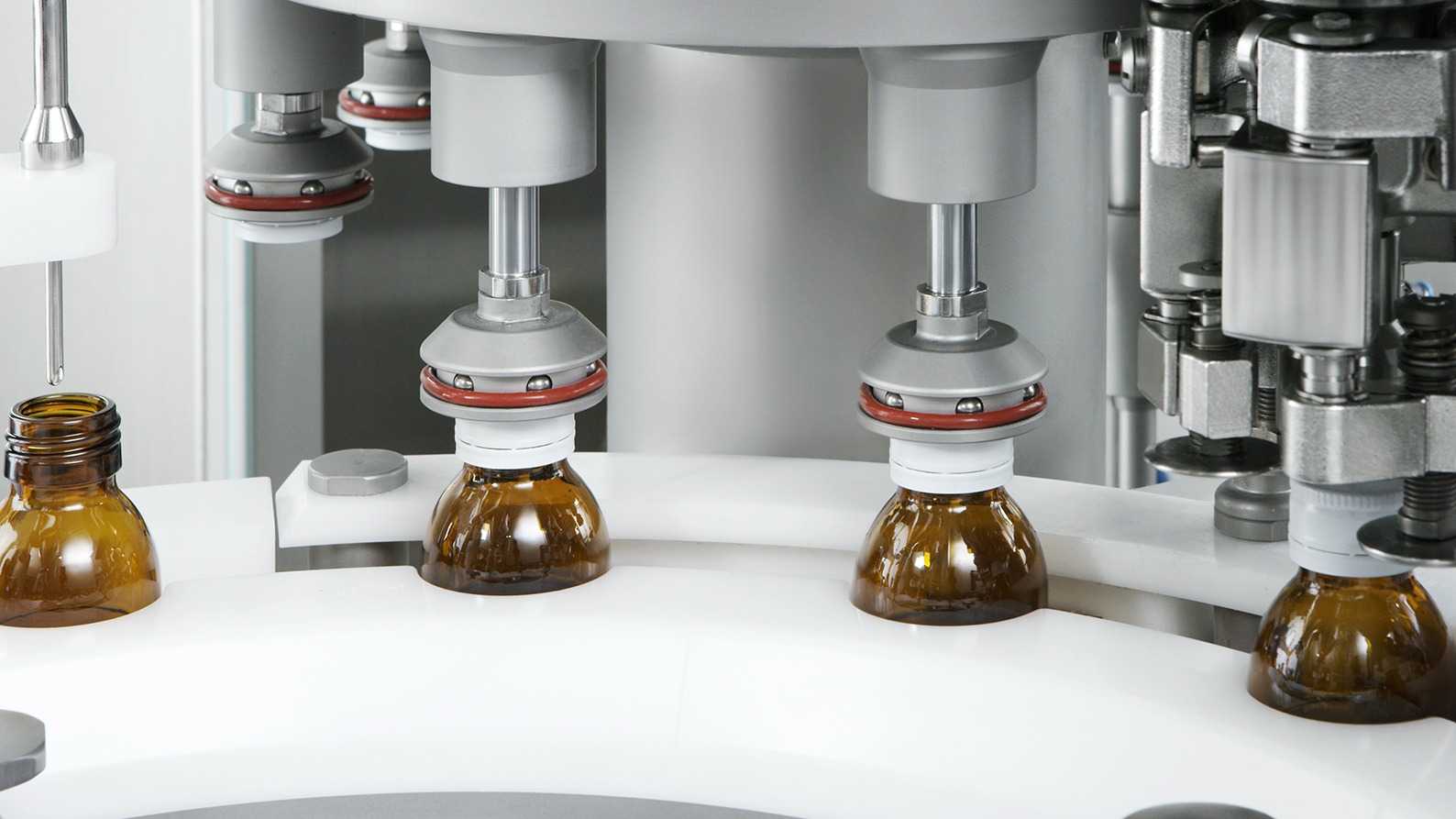

Bottle closing with Alu-PFP cap

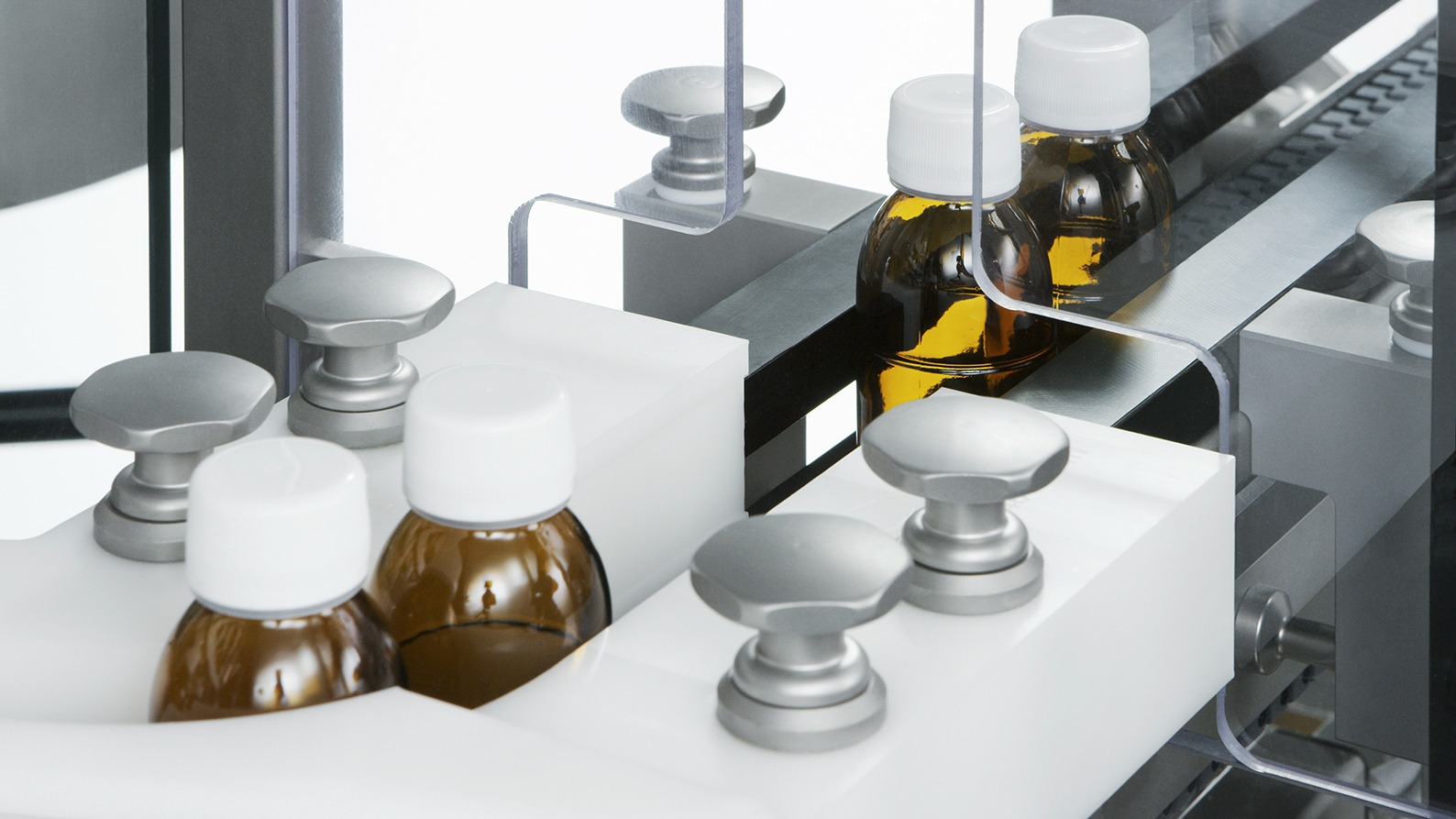

Bottle outfeed

Technical information

TECHNICAL DATA MACRO PWD

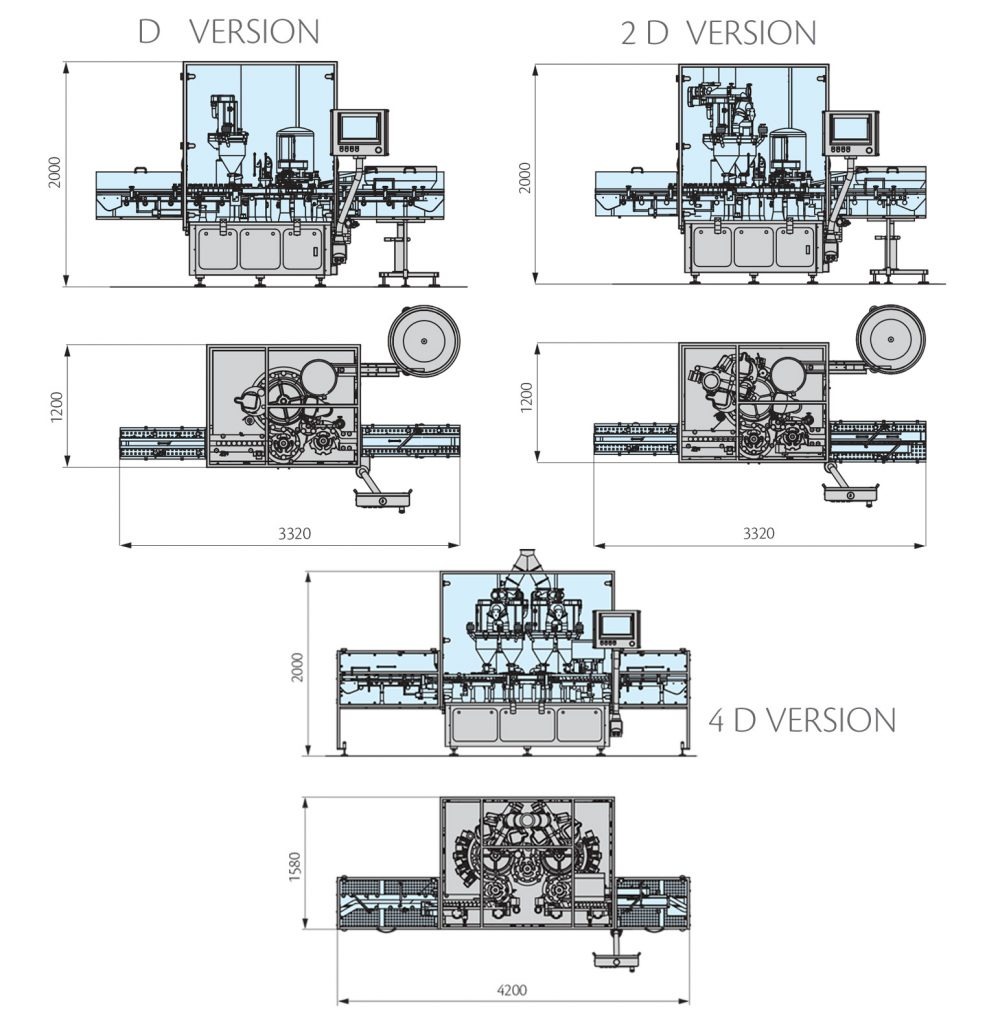

Machine version

D

2D

4D

Dosing units

 124

Closing groups

YesYesNo

Bottle range diameter (mm)*

 30-6030-6030-60

Bottle height (mm)

 60-17060-17060-170

Filling volume (g)

1-1001-1001-100

Output (bottles/minute)

Up to 35Up to 70Up to 150
Standard voltage

400 V – 50 Hz

Installed power (kW)

7914

Weight (kg)

180019002500

*Bottles with different diameters can also be handled with dedicated size parts.
