Kappa Sachet Series Sachet Form Fill and Seal
Machine overview
Simply the highest expression of flexibility
The machine is divided into two modules:
• A linear module which includes the following production functions: sachet vertical sealing,
coding, corners rounding, film pulling and single sachet cutting.

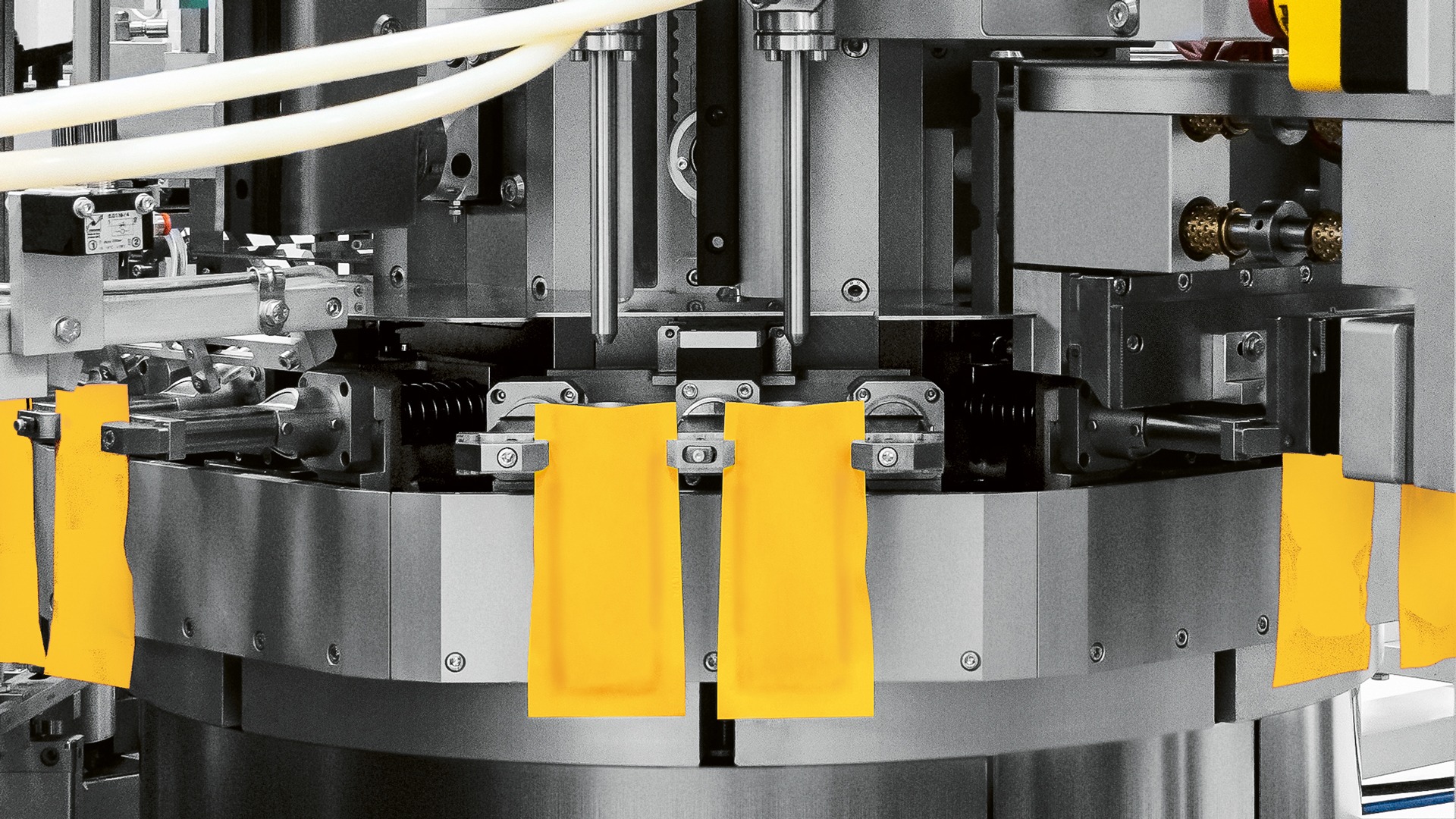

• A rotating module which includes 8 stations to dose one or more products and subsequent
sachet sealing. With this configuration, dosing is performed away from the sealing areas where
the temperature is high, so there is no risk of product heating.
This structure allows extreme compactness even if different dosing systems are installed.
Production plant
Perfect Pack
Machine highlights
-
High flexibility
High flexibility in terms of sachet configuration, including special applications
-

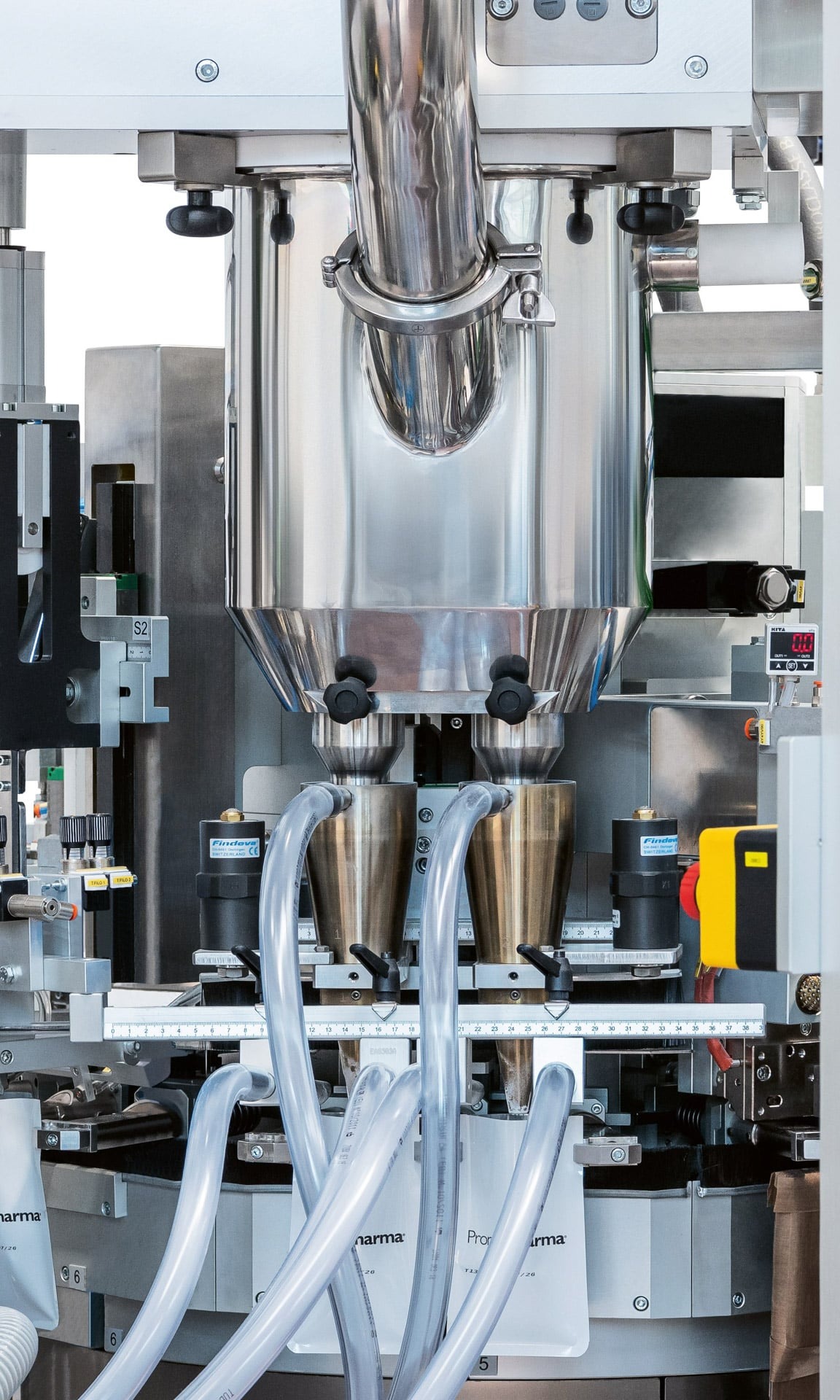

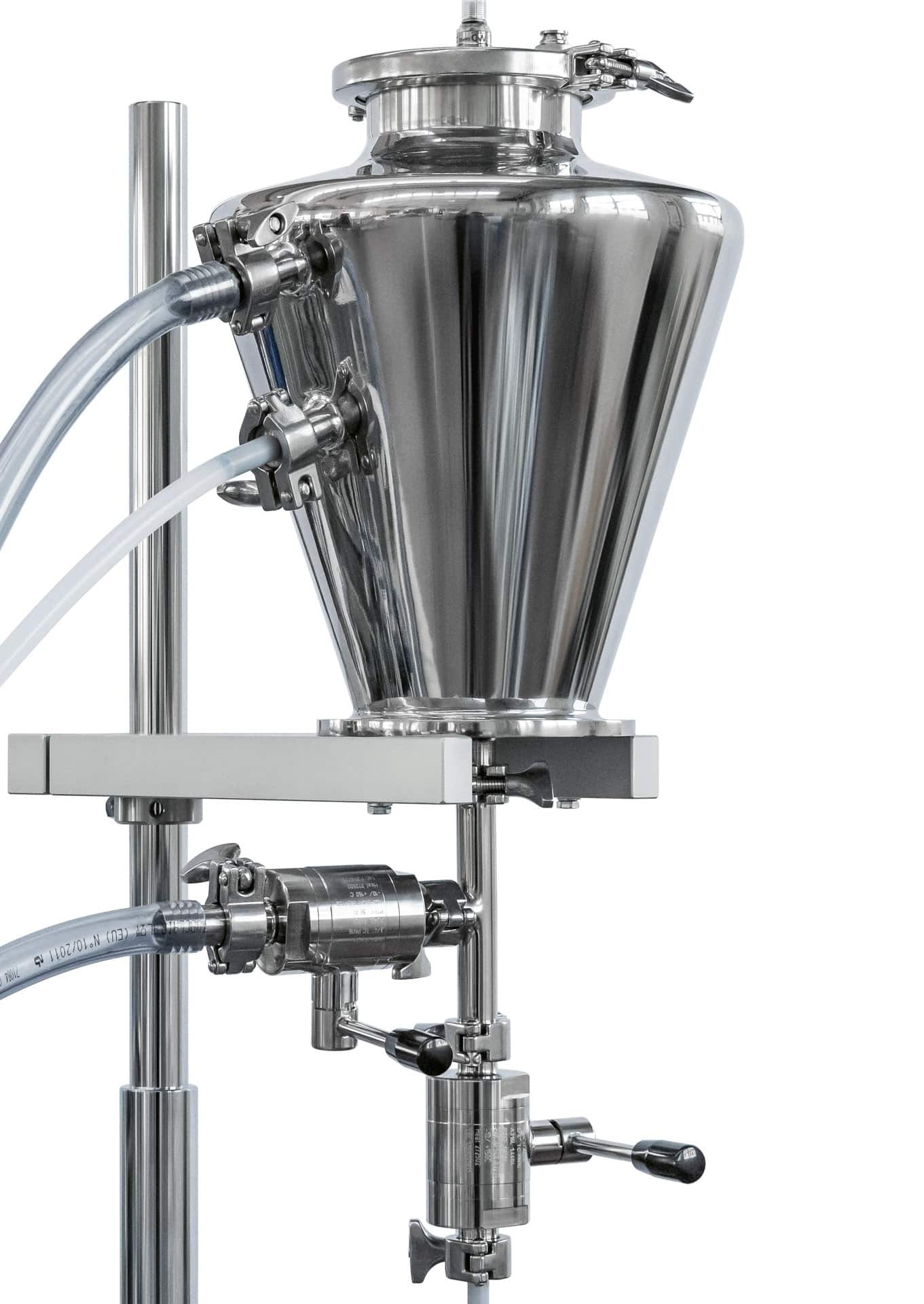

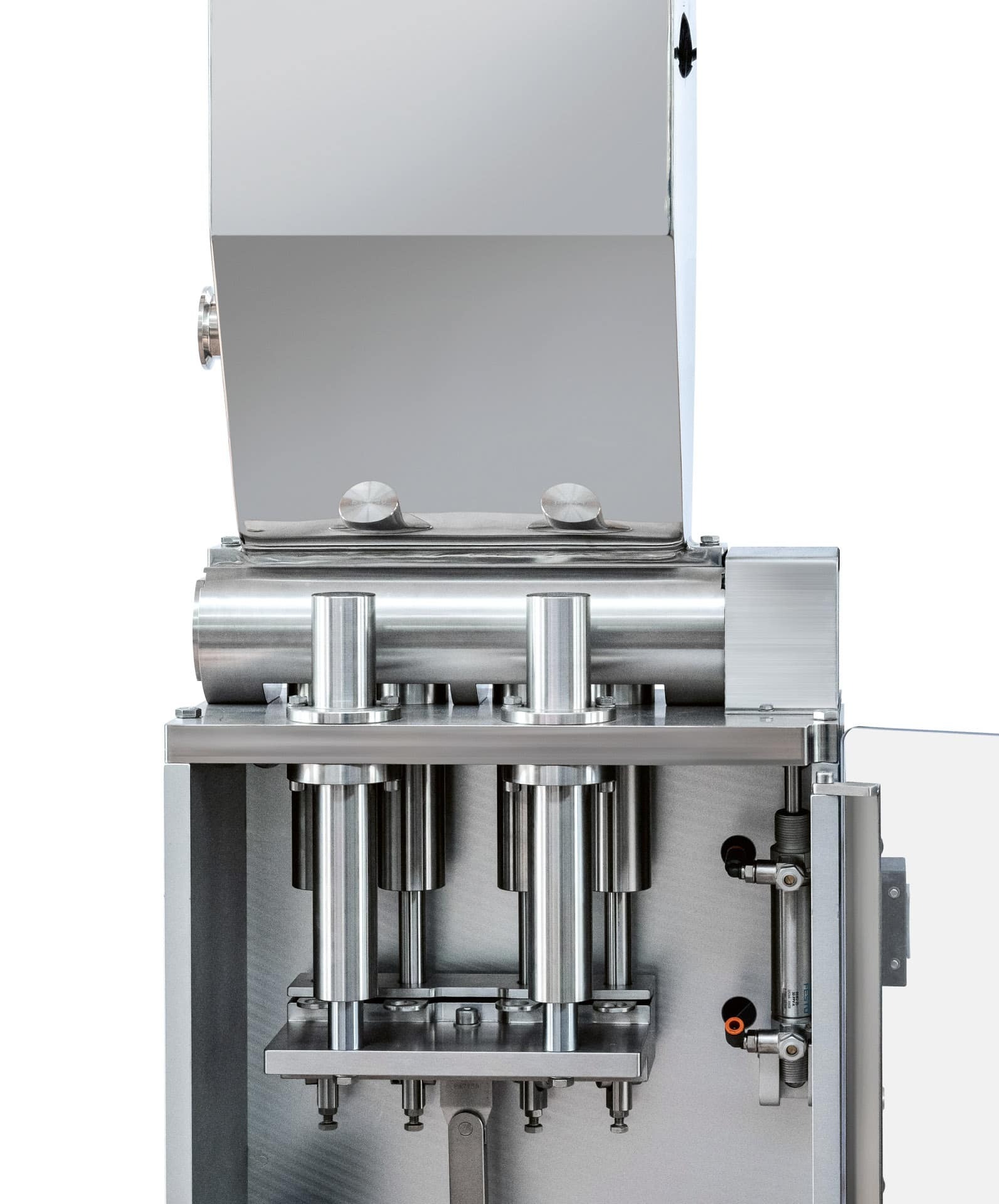

Dosing systems
Different kinds of dosing systems available
-
Sized
Wide range of sachet sizes covered
-
Size changeover
Patented systems to reduce the size changeover times to the minimum
-
Complete accessibility
Hybrid design that allows complete accessibility and a compact footprint
Sachet configuration
KAPPA machines are able to handle any kind of sachet configuration, including special applications: three-side sealing, four-side sealing, doypack (stand up), sachet with shaped head, bag-on-valve, sachet with zip or with cap.
Clean rooms
Clean rooms with controlled temperature and humidity are available to carry out tests and FATs, simulating the same conditions of the final production and working environment.
Machine details
Technical information

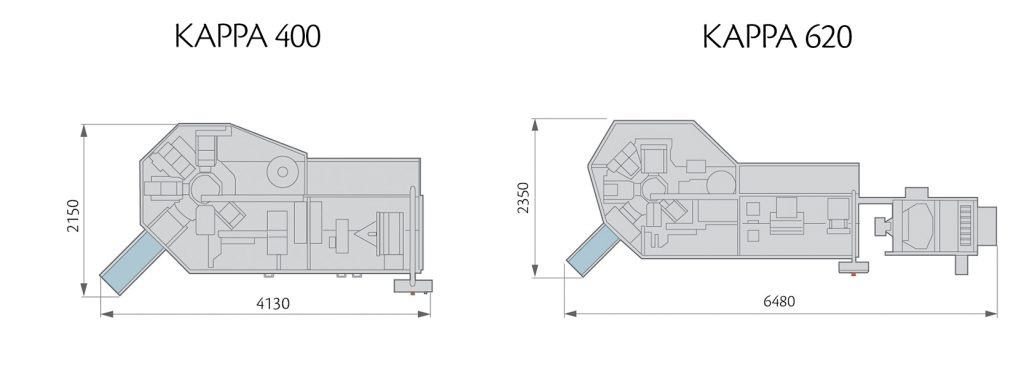

Machine versions
KAPPA 400
Machine configurations:
• Configuration for dense and semi-dense products
• Configuration for powders, free and not free flowing products
• Configuration for fluid products
• Configuration for tablets and capsules

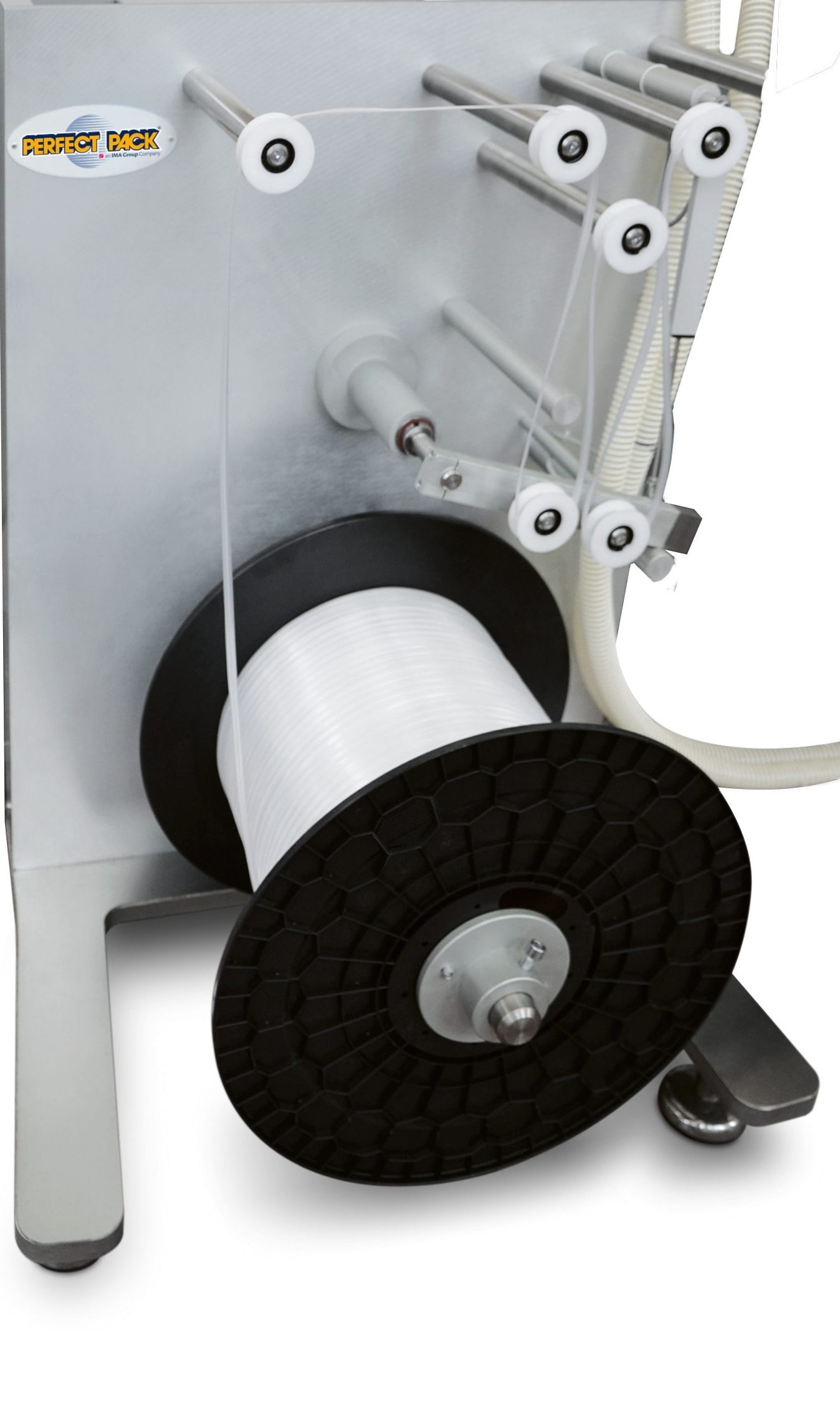

Special applicators:
• Zip
• Cap

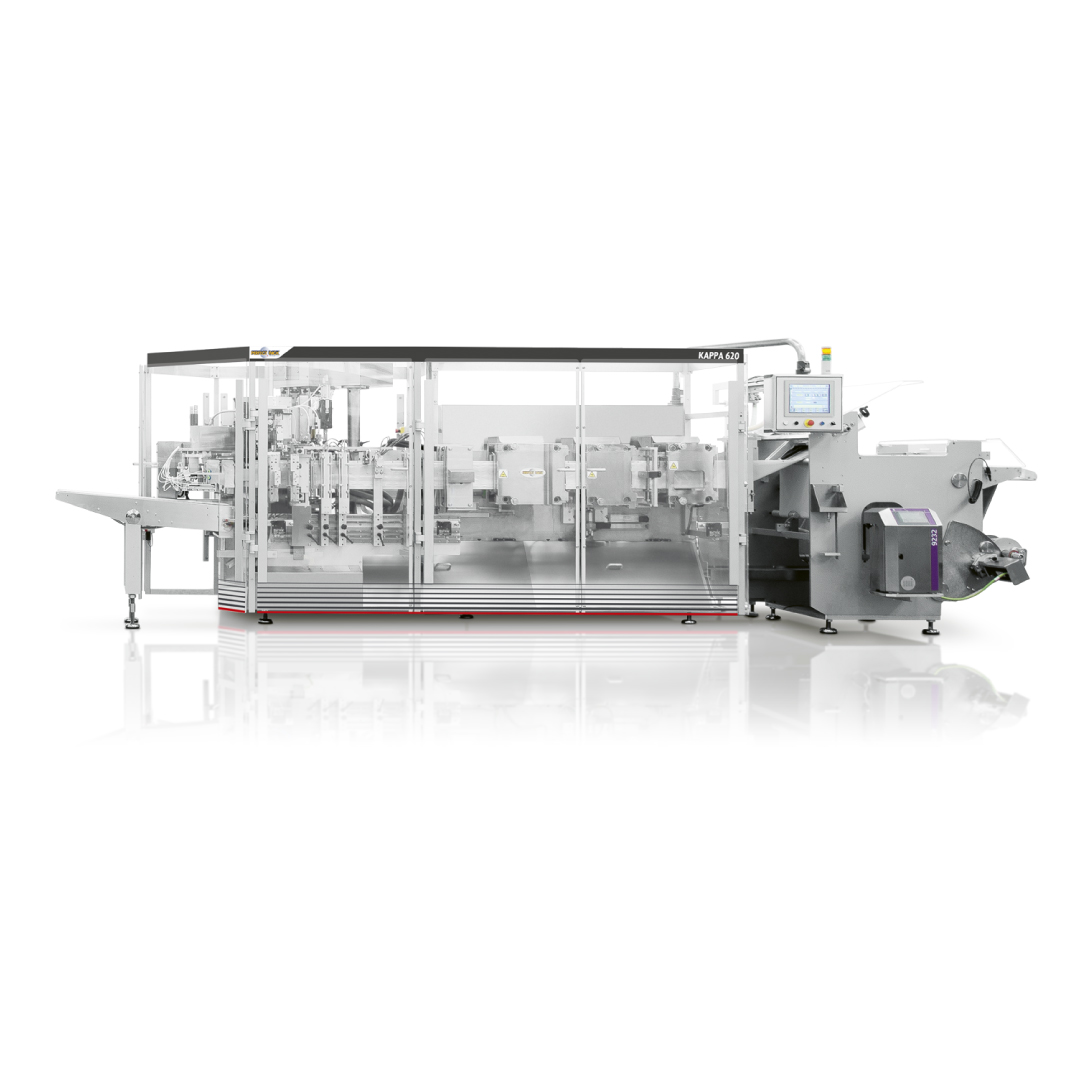

KAPPA 620
for sachets with big dimensions
Machine configurations:
• Configuration for dense and semi-dense products
• Configuration for powders, free and not free flowing products
• Configuration for fluid products
• Configuration for tablets and capsules
Special applicators:
• Zip
• Cap
