IP 3000 Case Packing
Machine overview
Servo motion control, open-frame design, and gentle bag handling

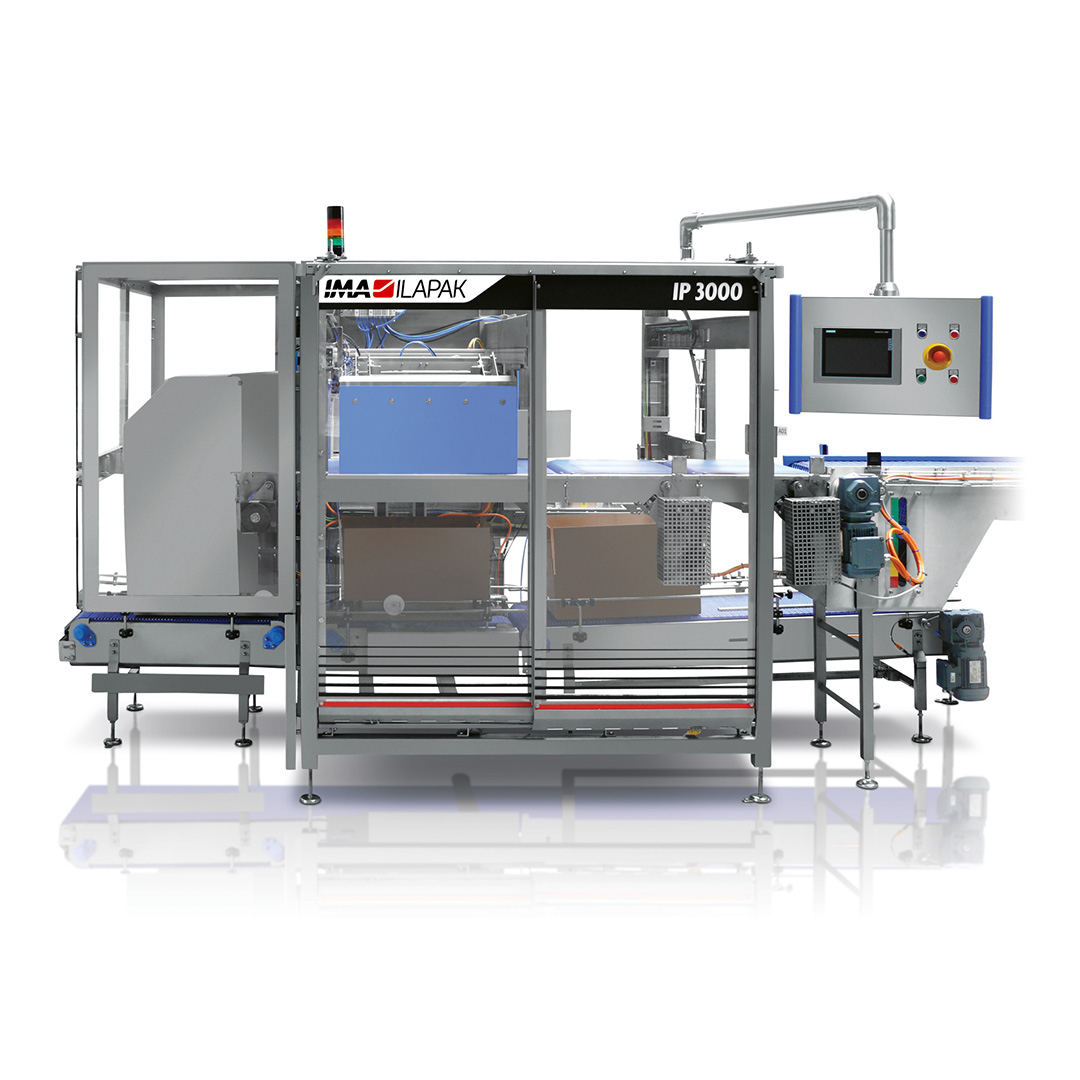

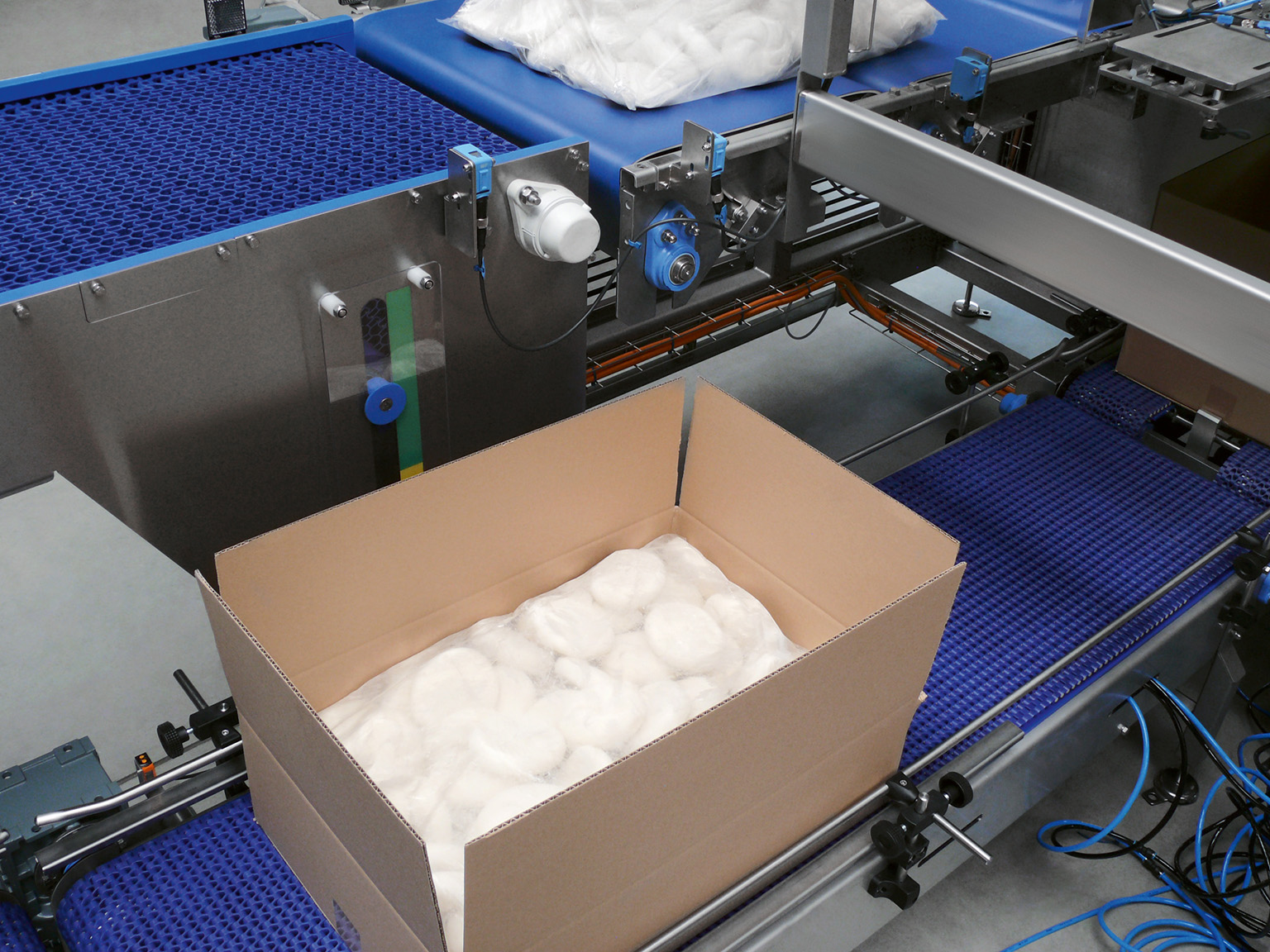

The IMA Ilapak IP 3000 is a fully servo-driven case packer designed to efficiently count and load bags by gravity into cases or trays. Engineered for the demands of the IQF, Produce and Bakery sectors, this robust solution can handle a wide variety of bag formats and pack styles with speed and precision.
Featuring an open-frame stainless steel structure, Siemens PLC, and Schneider Linear Servo Drives, the IP 3000 ensures maximum hygiene, accuracy, and ease of use. Optional devices such as box/bag shakers and servo-driven box lifting systems further enhance performance, reducing product drop height and optimizing product placement.
Production plant
Ilapak Verpackungsmaschinen GmbH
Machine highlights
-
1.

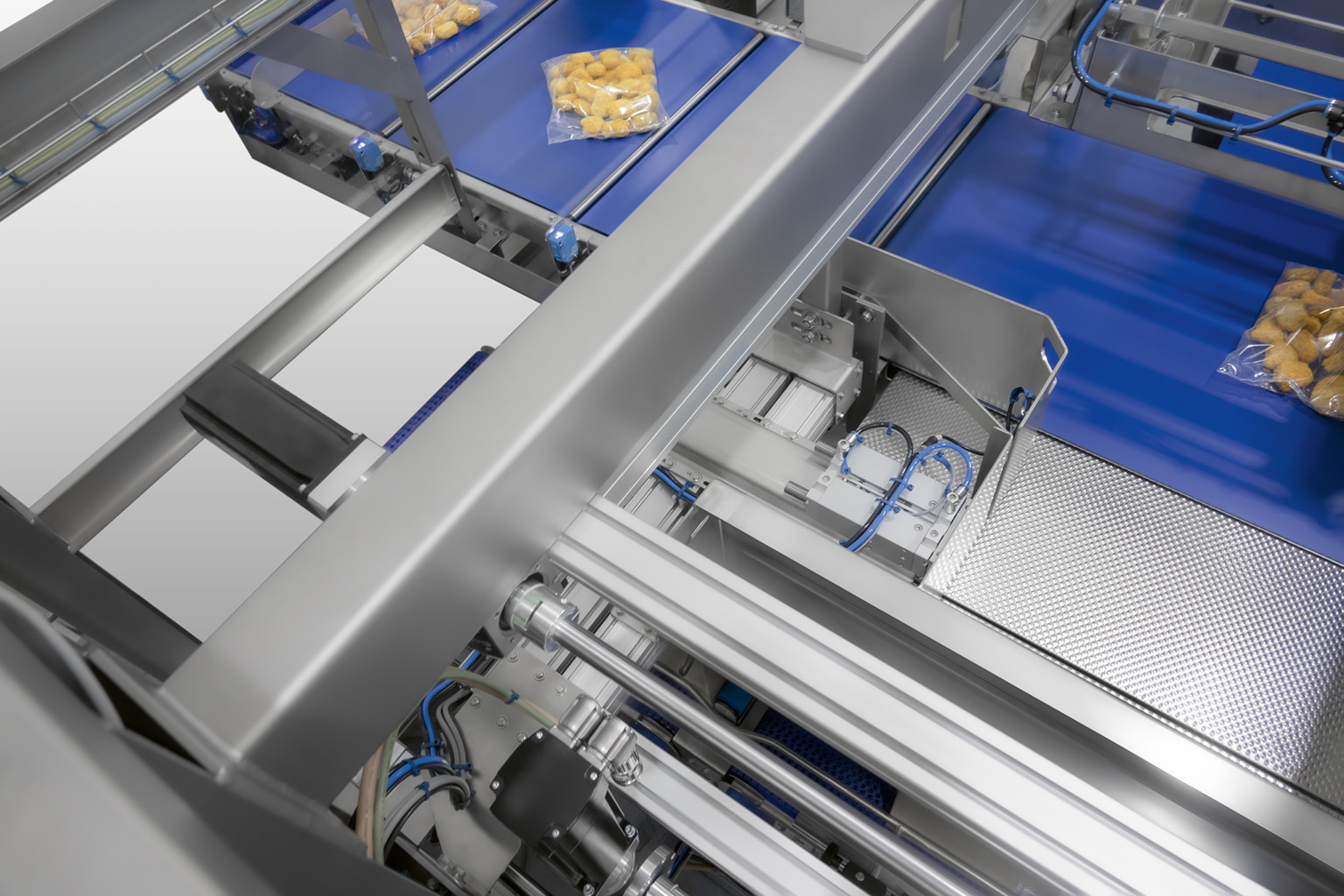

Open-frame stainless steel design – Easy to access, clean, and maintain.
-
2.
Fully servo-driven system (pushers, bomb doors, etc.)
-
3.
Compact footprint for space-constrained layouts.
-
4.
Flexible configuration for single, multiple, or special product layers.
-
5.
Siemens controls and Schneider Linear Servo Drives.
-
6.
User-friendly interface.
-
7.
Compact and robust.
-
8.
Bag/box shaking device (optional).
-
9.
Servo-driven box lifting system (optional).
Machine details
Technical information
| Applications | Industrial Bakery, IQF and Produce sectors |
|---|---|
| Bag Styles | Different styles and sizes of bags |
| Bag Size | *Depending on the application |
| Capacity | Approx. 10 boxes/min* depending on the application, bag size and layers |
| Utilities | Electric: 400V, 3 phases, 50/60Hz, approx. 28KW, 40A |
| Electronic Platform | Siemens PLC |
| Programme Memory | 100 programs |

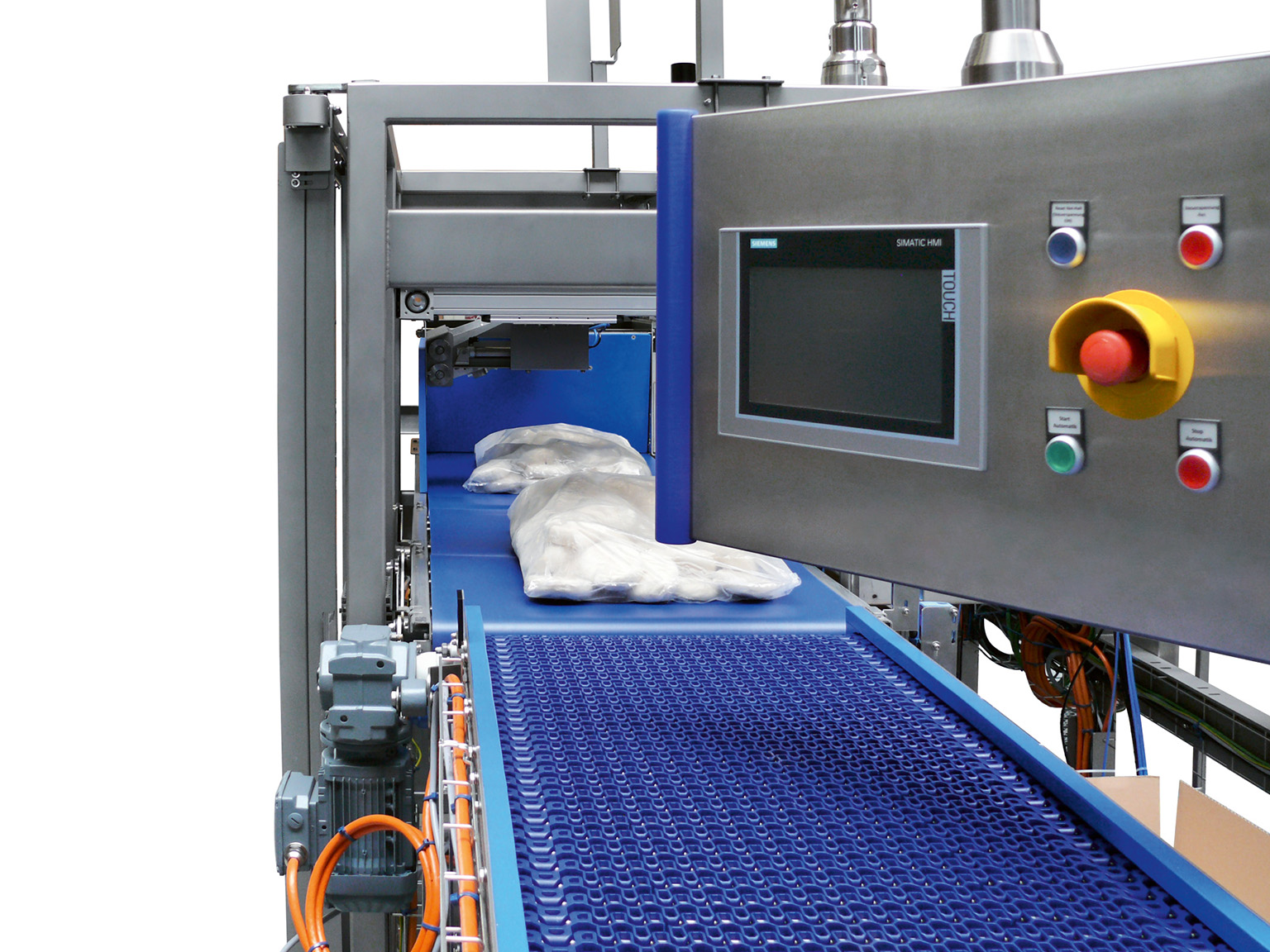

| HMI | 9″ HMI colour touch screen, Siemens |
| Compressed Air | Air: 6bar, dry and clean – approx. up to 200 l/min |
| Electric Cabinet | Right-hand version, Left-hand version |

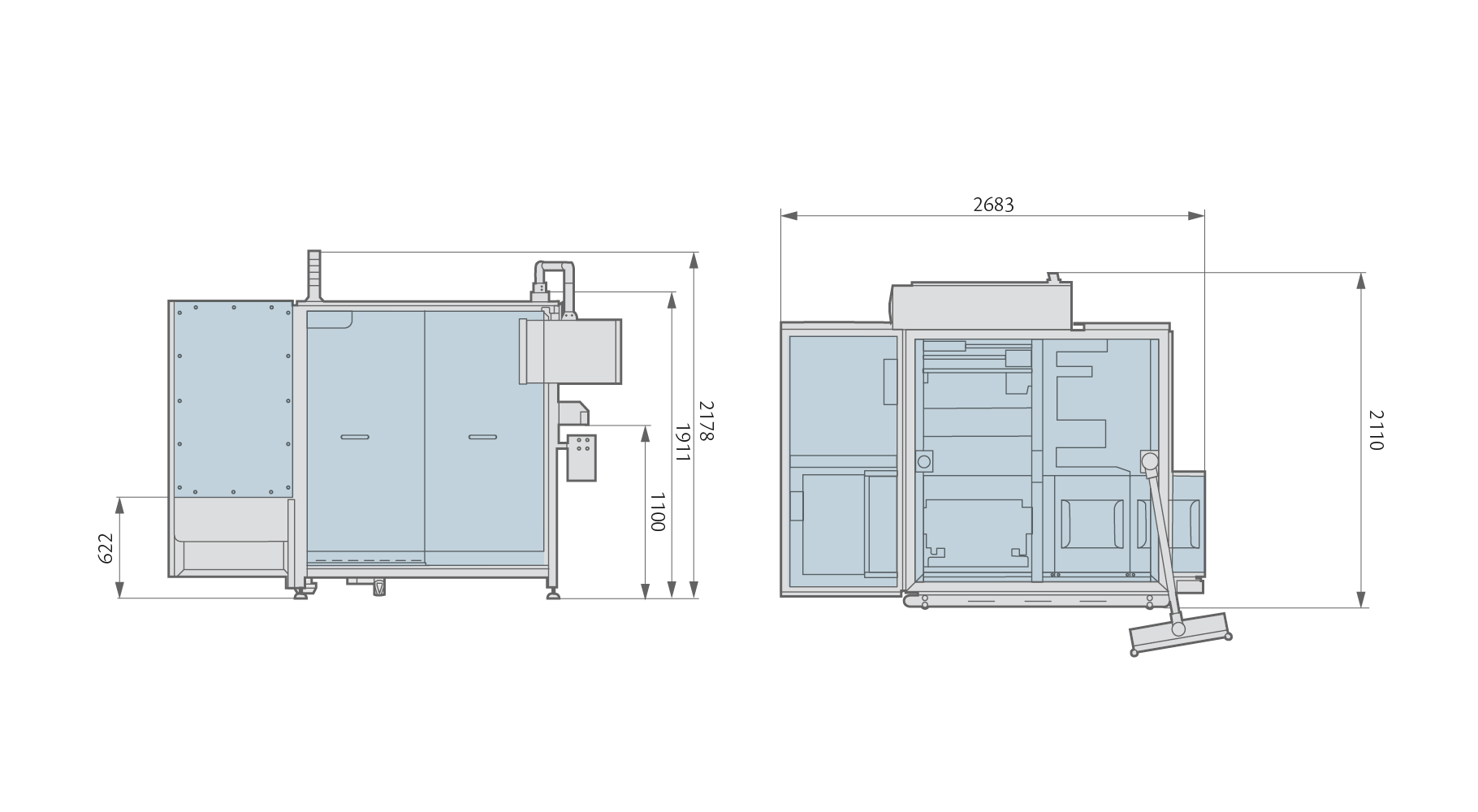

| Machine Dimensions | Approx. 2700 x 2100 x 2250 mm (106″ x 82.5″ x 88.5″) |
| Machine Finishing | Stainless Steel |
| Machine Weight | Approx. 1000 kg (2200 lbs) |
| BOX/TRAY DIMENSIONS | |
| Min.-Max. Width | 400-200 mm (15.8″ – 7.8″) |
| Min.-Max. Length | 300-600 mm (11.8″ – 23.6″) |
| Min.-Max. Length | 100-400mm (3.9″-15.8″) |
* depending on bag sizes and layers
