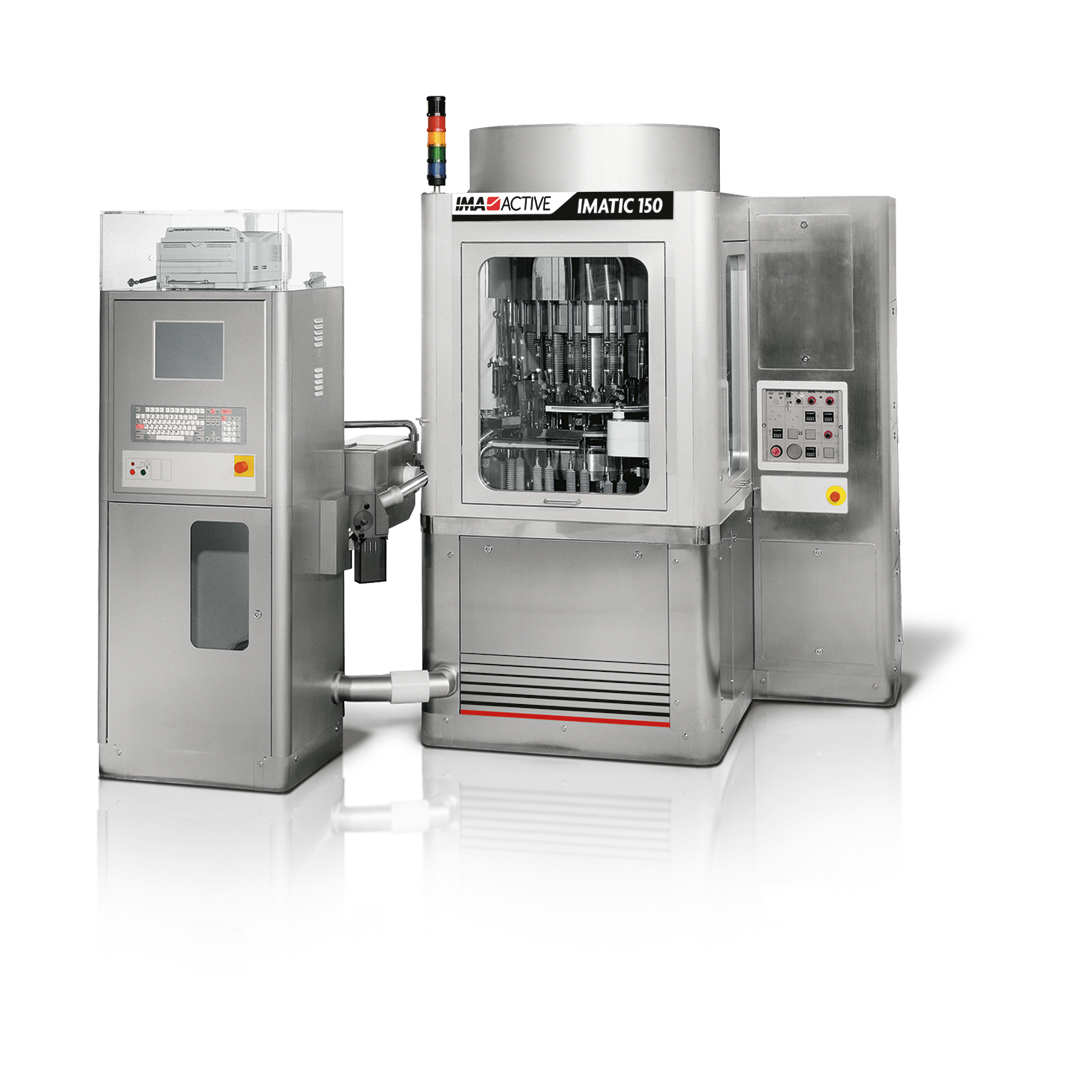

Imatic Capsule Filling
Machine overview
Increasing production. Continuously.

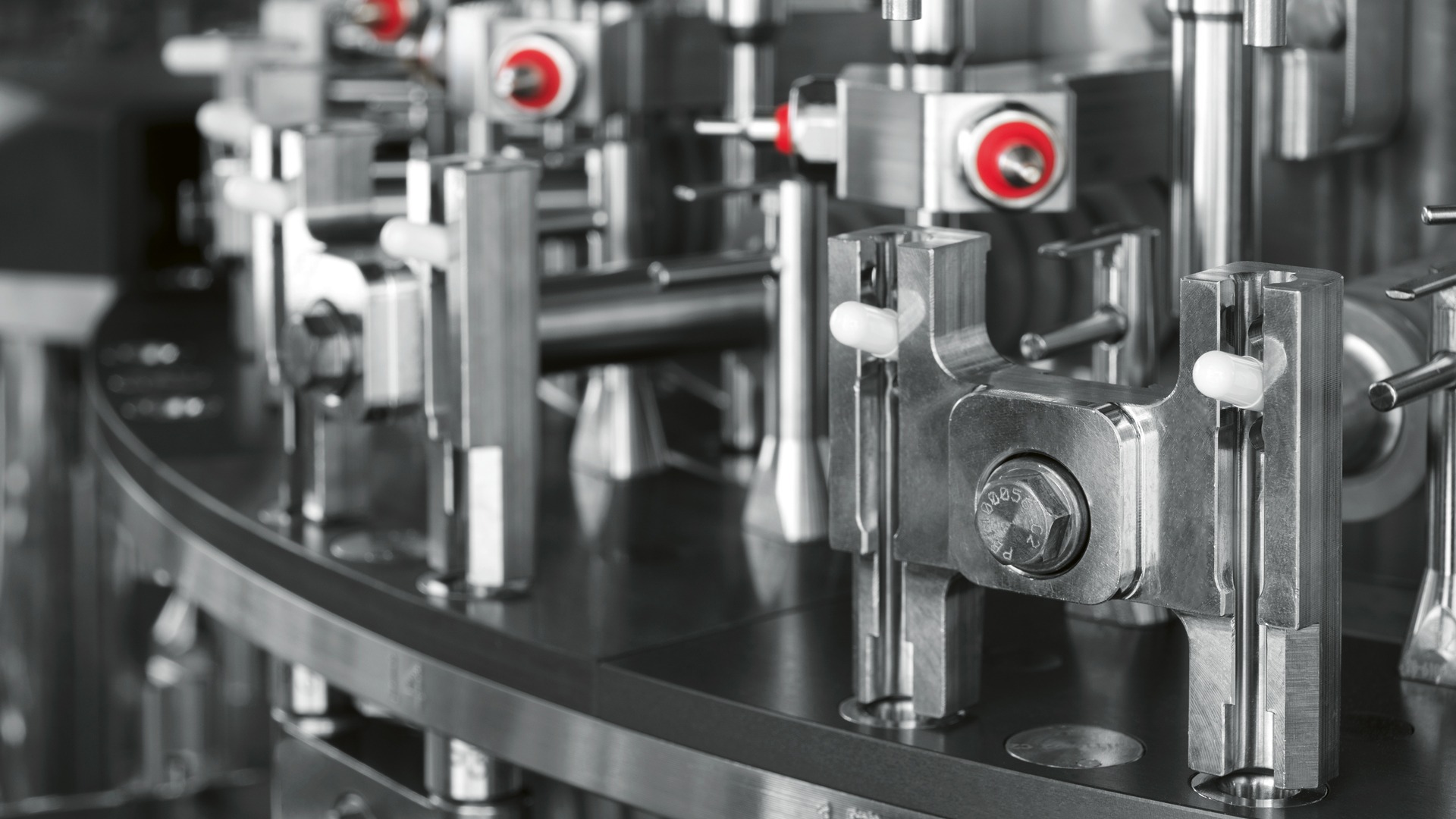

Designed to reach very high speeds, Imatic dedicates more time to the most delicate phases of the filling process. The continuous movement of the unique turret system has proven over the years to combine precision and reliability. Able to dose powder or pellets into hard gelatine capsules, the machine’s operating system is based on a single turret concept where a rotary motion of 180 degrees guides the capsules through all processing phases.
Imatic water recirculation system allows consumption saving and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance.
Production plant
IMA Active
Machine highlights
-

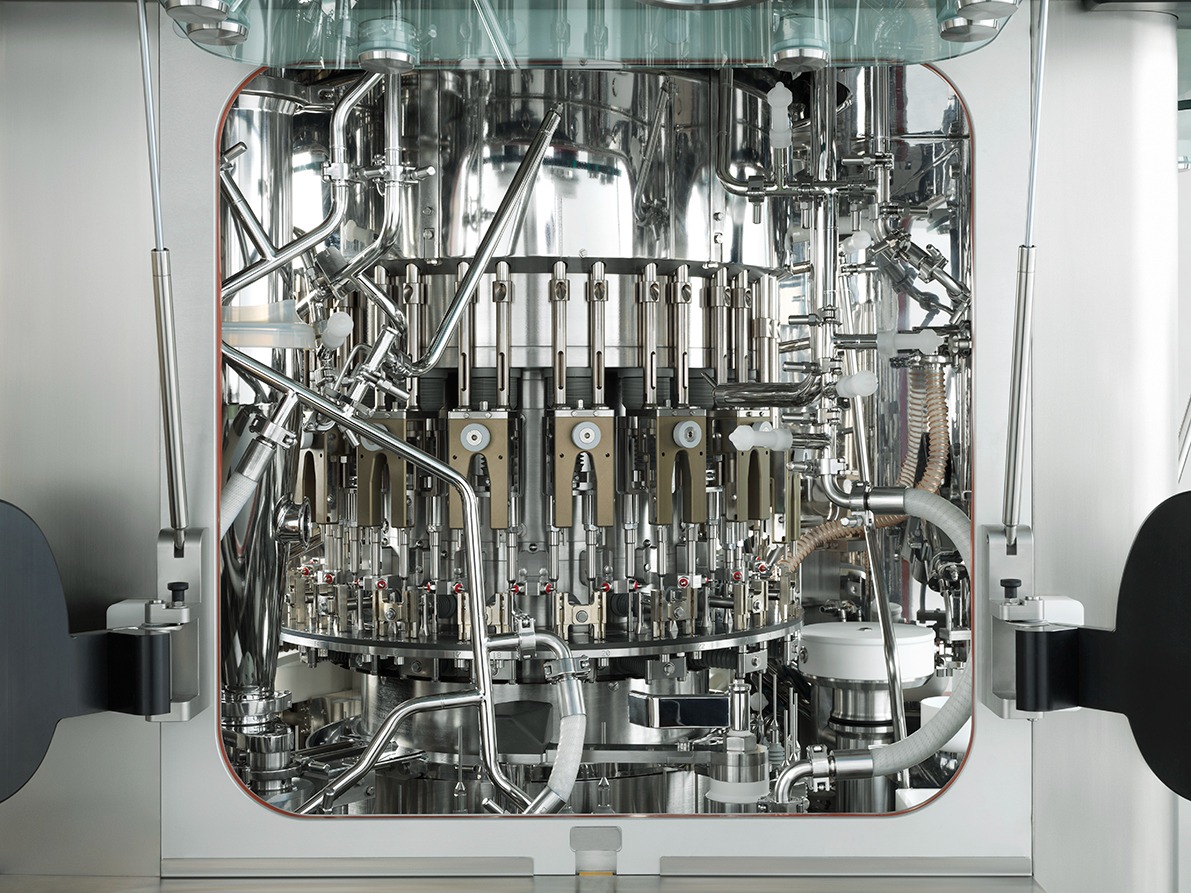

Safe production flow
Complete separation between production and mechanical areas to prevent the powder from reaching the lower machine section.
-
Quality preservation
Maximum care of the dosed product, with attention to integrity and consistent quality.
-
Easy size changeover
Simple and quick size-change operations, designed to reduce downtime and ensure maximum efficiency.
-
Advanced automation
High level of automation, ensuring streamlined operations, reduced manual intervention, and consistent performance across the entire process.
-

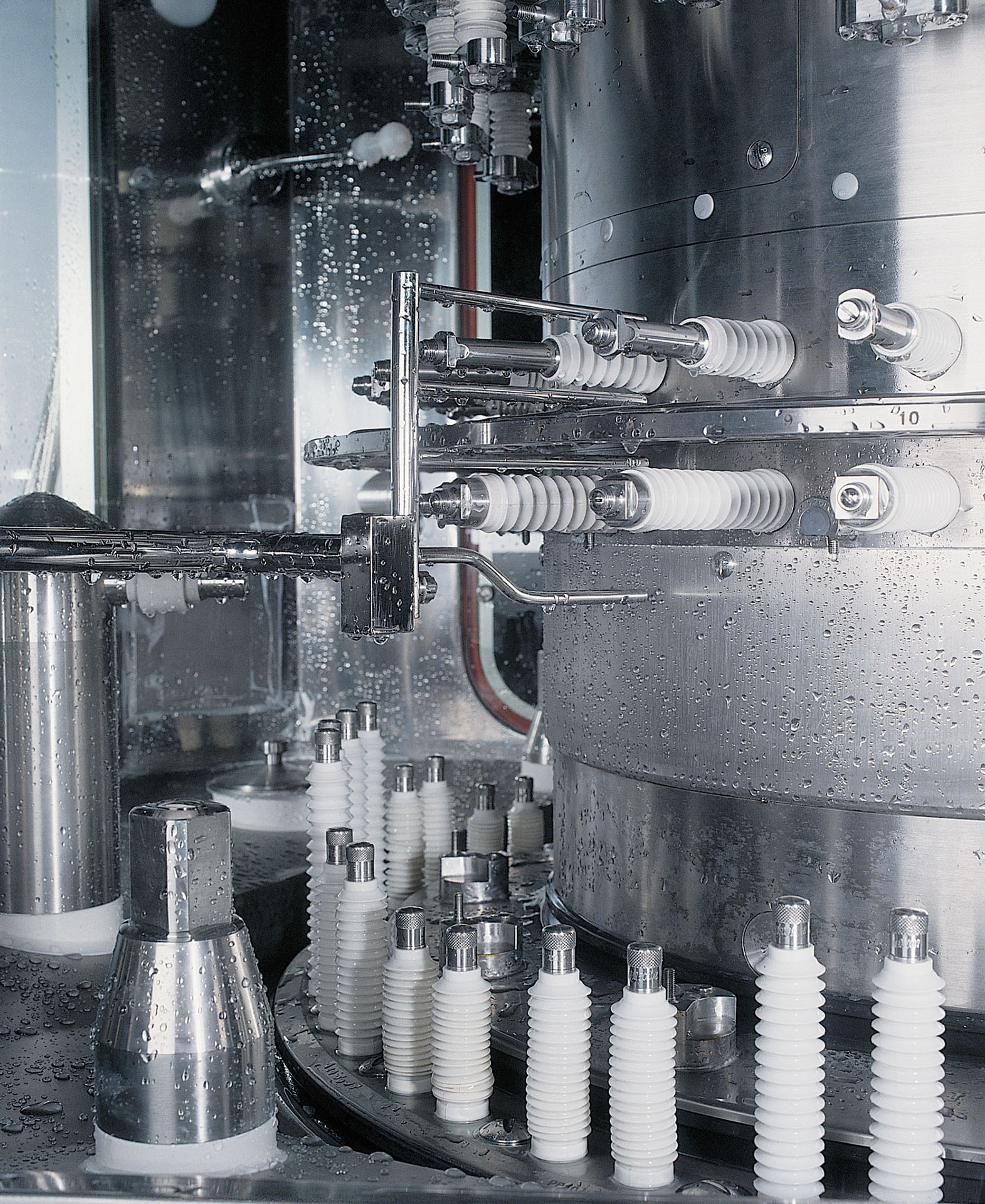

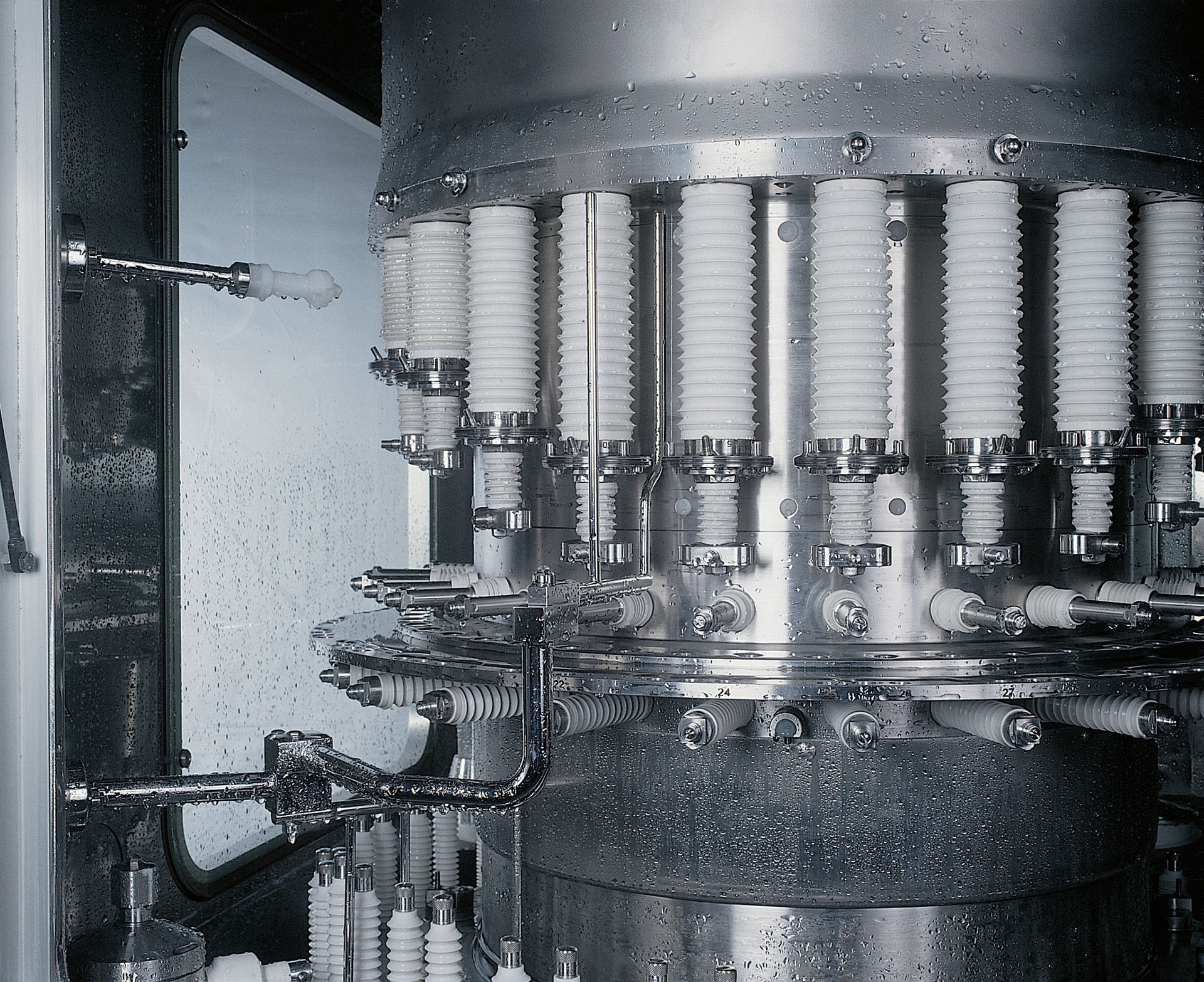

Safe cleaning
Complete isolation of critical areas combined with an integrated Cleaning-In-Place (CIP) system. This ensures maximum hygiene and prevents cross-contamination.
-

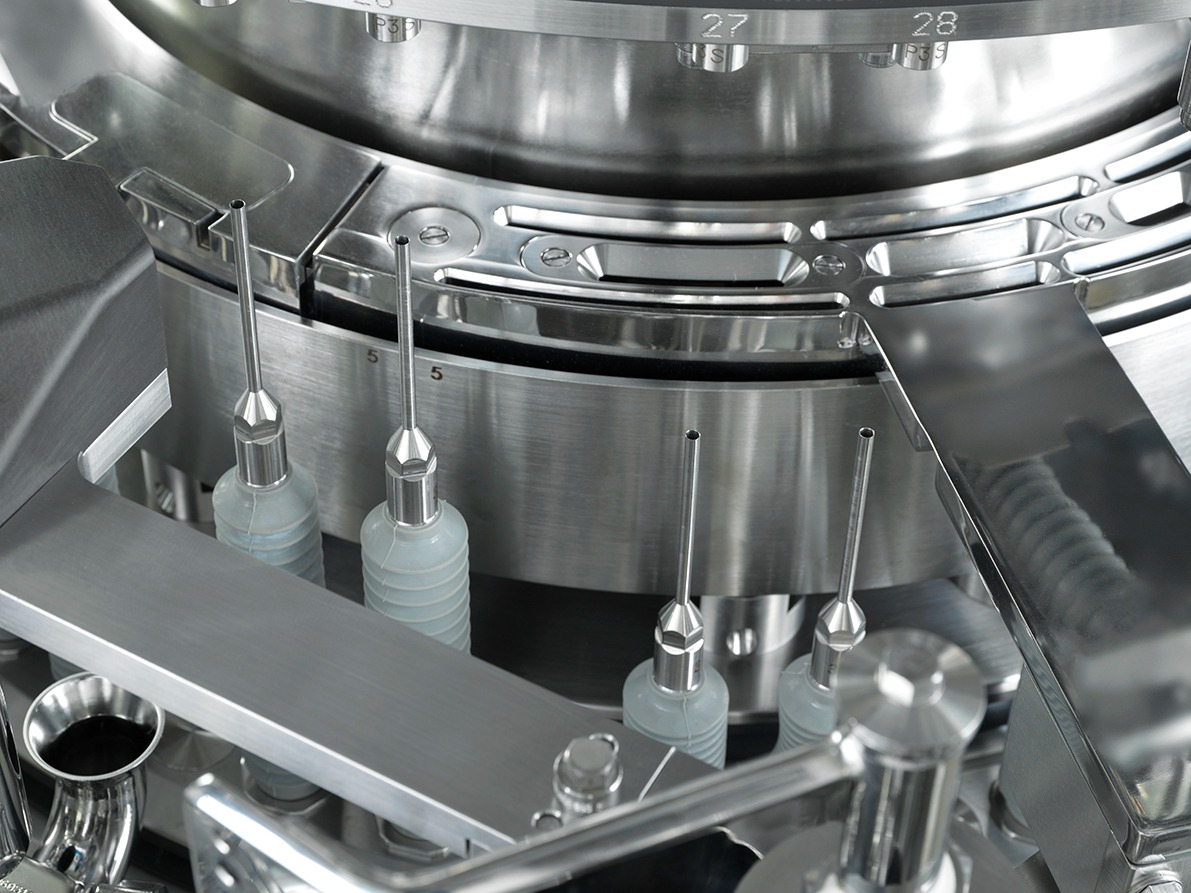

Accurate dosing
100% in-line indirect control of product dosage available, ensuring maximum precision, consistency, and reliability throughout the entire process.
Reliability and autonomy for peak performance
Thanks to its mechanical reliability, combined with a series of optional devices that keep the machine running even without the operator’s presence, IMATIC reaches maximum output.

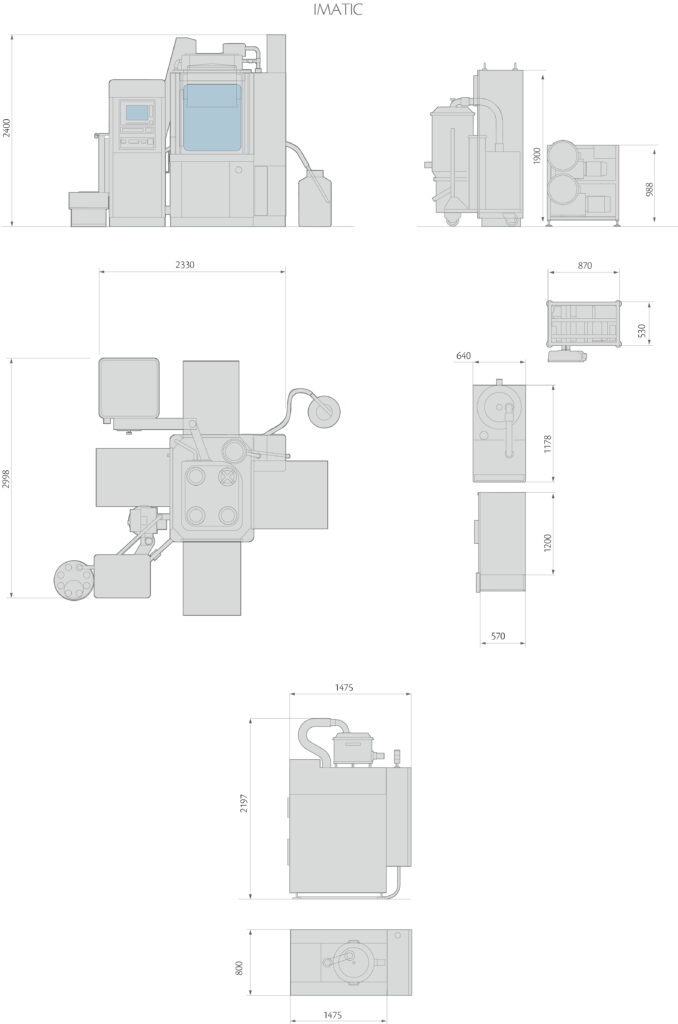

Machine details
Technical information
| Imatic technical data | ||
| Model | Imatic 100 | Imatic 150 |
| Number of stations | 24 | 36 |
| Maximum speed (capsules/hour) | 100,000 | 150,000 |
| Sizes processed | 000-5-Supro A-E, DB, DB.AA, vegicaps: vegetable capsules | 000-5-Supro A-E, DB, DB.AA, vegicaps: vegetable capsules |
| Maximum installed power (kW) | 37 | 37 |
| C.I.P. skid power (kW) | 6 | 6 |
| Standard voltage | 230/400 V – 3F – 50/60 Hz | 230/400 V – 3F – 50/60 Hz |
