ILS-1 Counting/Dosing
Machine overview

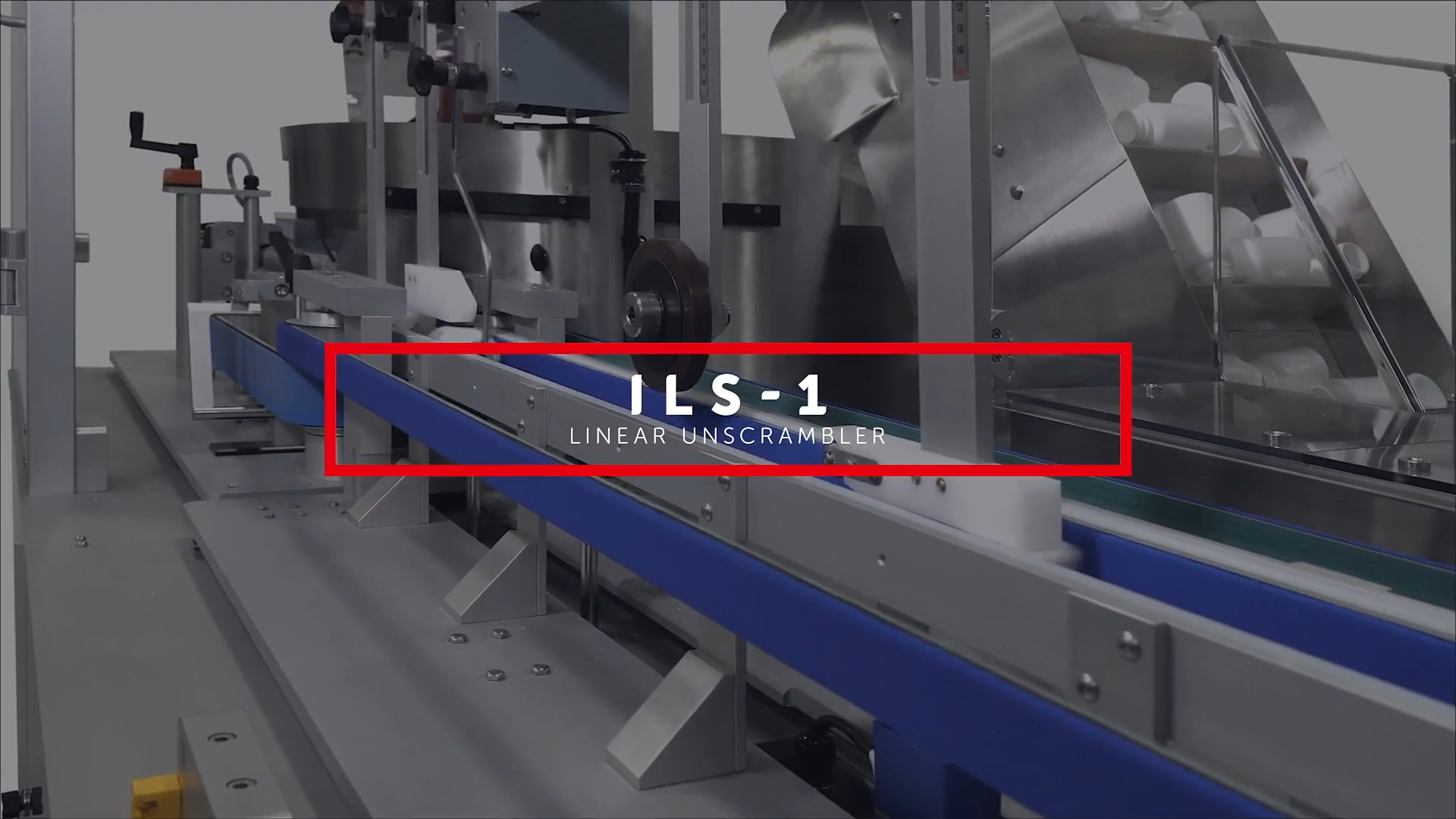

A flexible, efficient bottle unscrambler that exceeds expectations
Designed for maximum flexibility, the ILS-1 linear unscrambler handles a wide range of bottles and can be changed over quickly without any tools or change parts. Featuring an integrated bulk hopper, ionised air rinse and inspection, ILS-1 performs highly efficient bottle feeding.

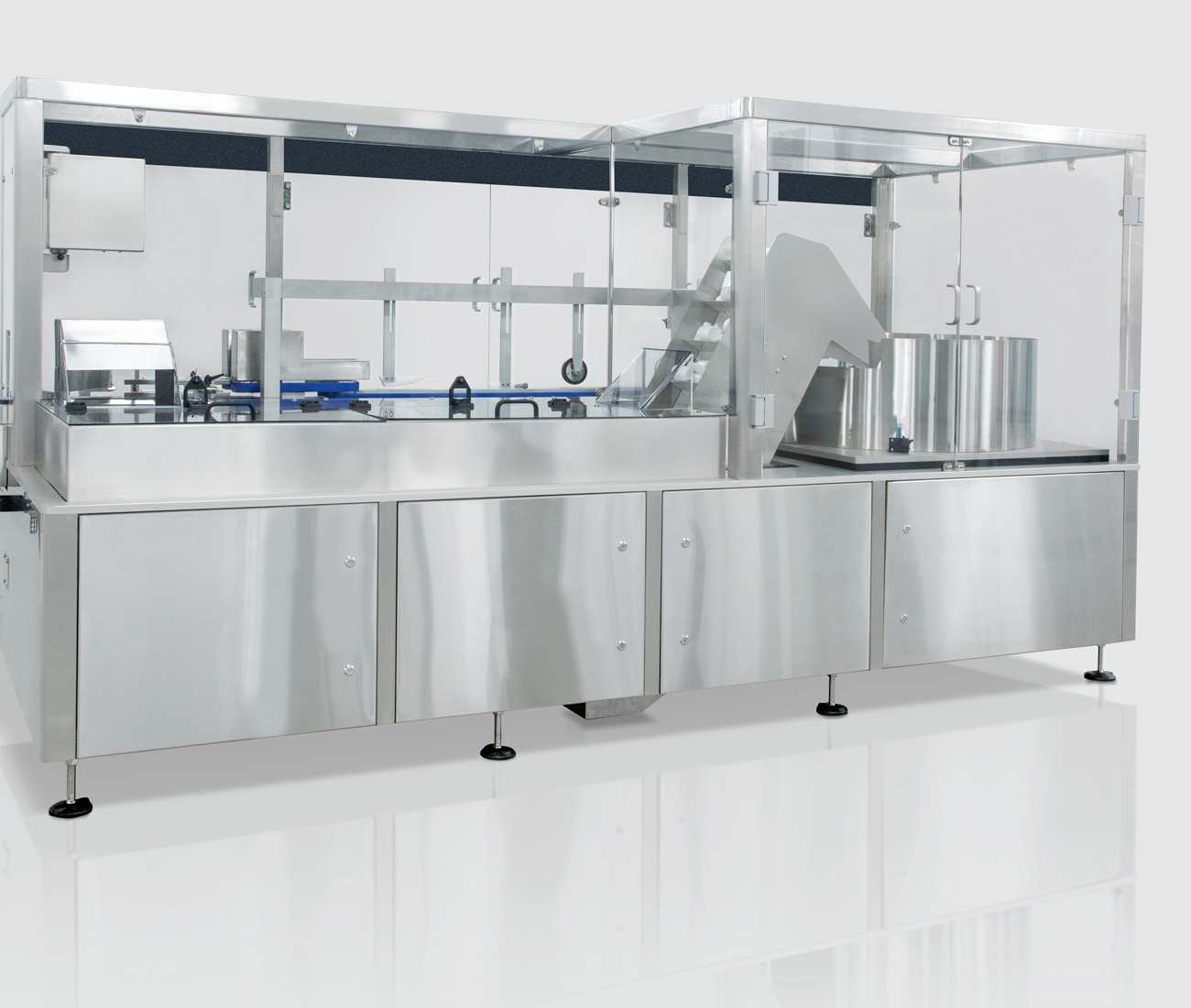

A fully interlocked enclosure provides operator safety and very low noise emission while ensuring complete visibility of the entire operation. The integrated inspection/rejection system ensures that any upside-down or fallen bottles are automatically returned to the bulk hopper. This avoids the need for the operator to recycle the bottles and ensures maximum efficiency.
The machine can be installed in new or existing packaging lines and adapts to most conveyor designs.
Production plant
IMA North America
Machine highlights
-
GMP design
Features fully interlocked guarding.
-
Quiet operation
Very low noise.
-
Bulk hopper
Integrated 525-litre (18.5 ft³) bulk hopper with ergonomic loading height.
-
No change parts
No bottle change parts required.
-
Ionisation and cleaning
Bottle ionisation and cleaning included as standard.
-
Rejection capabilities

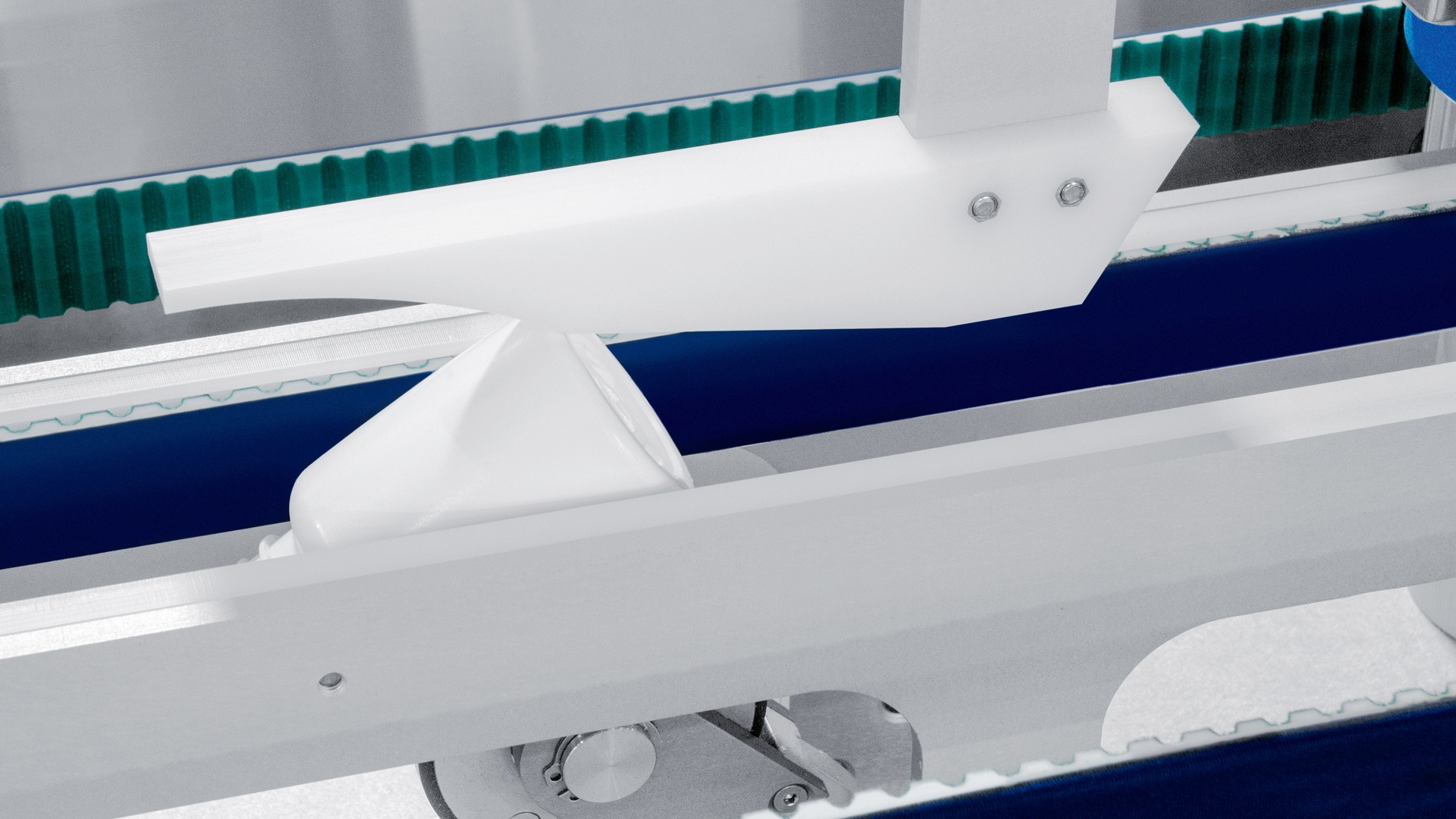

Integrated fallen/upside-down bottle rejection station returns bottles to bulk hopper.
-
Changeover points

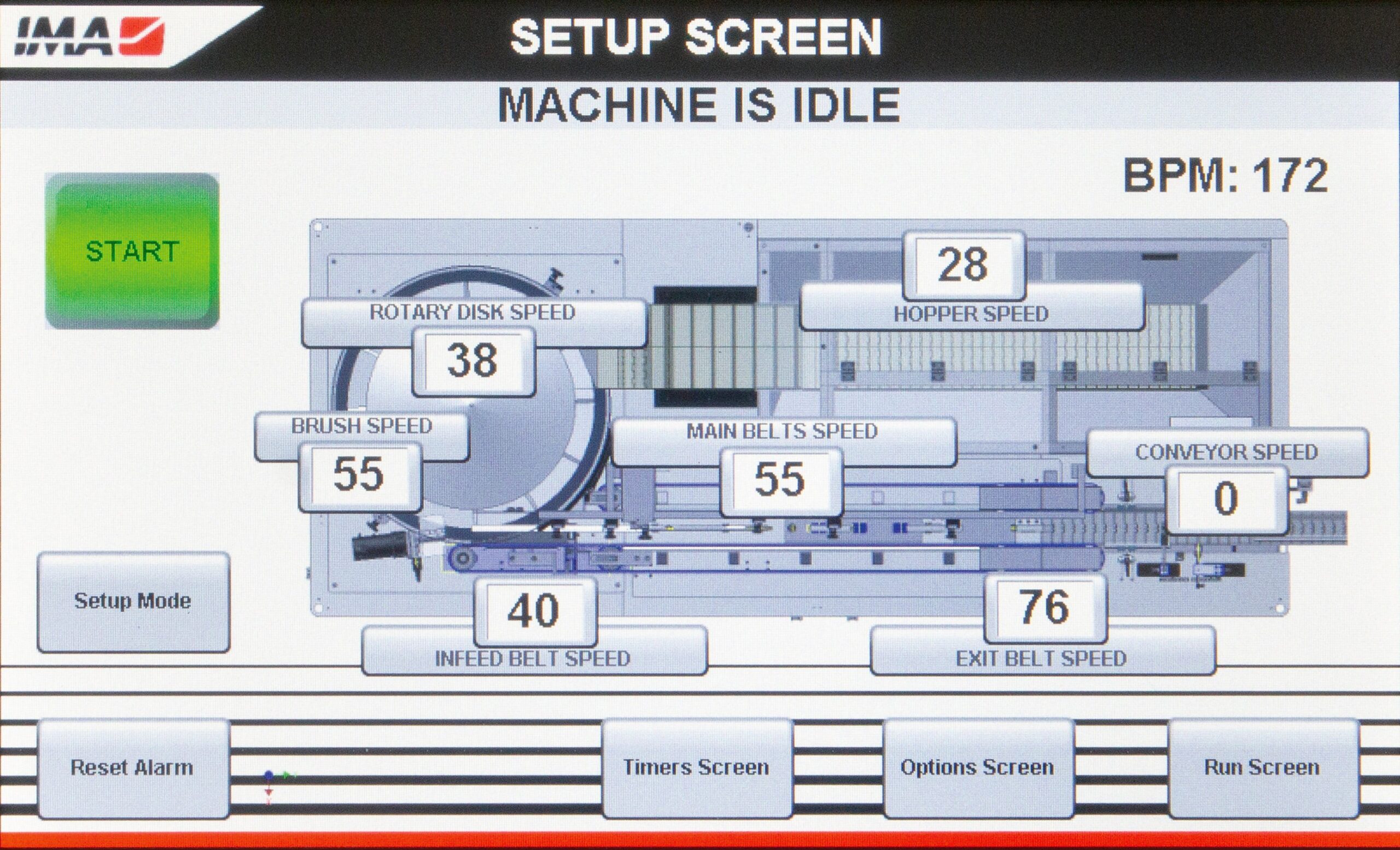

Digital indicators and scales for all changeover points.
-
Advanced cleaning
Available with advanced bottle cleaning system.
Machine details
Technical information
| TECHNICAL DATA ILS-1 | |||||||
| Bottle Output | Up to 300 bpm | ||||||
| Bottle range | Min. | Max. | |||||
| Length | Width | Height | Length | Width | Height | ||
| Round, rectangular, square | 30 mm (1.18″) | 30 mm (1.18″) | 40 mm (1.57″) | 115 mm (4.52″) | 115 mm (4.52″) | 200 mm (7.87″) | |
