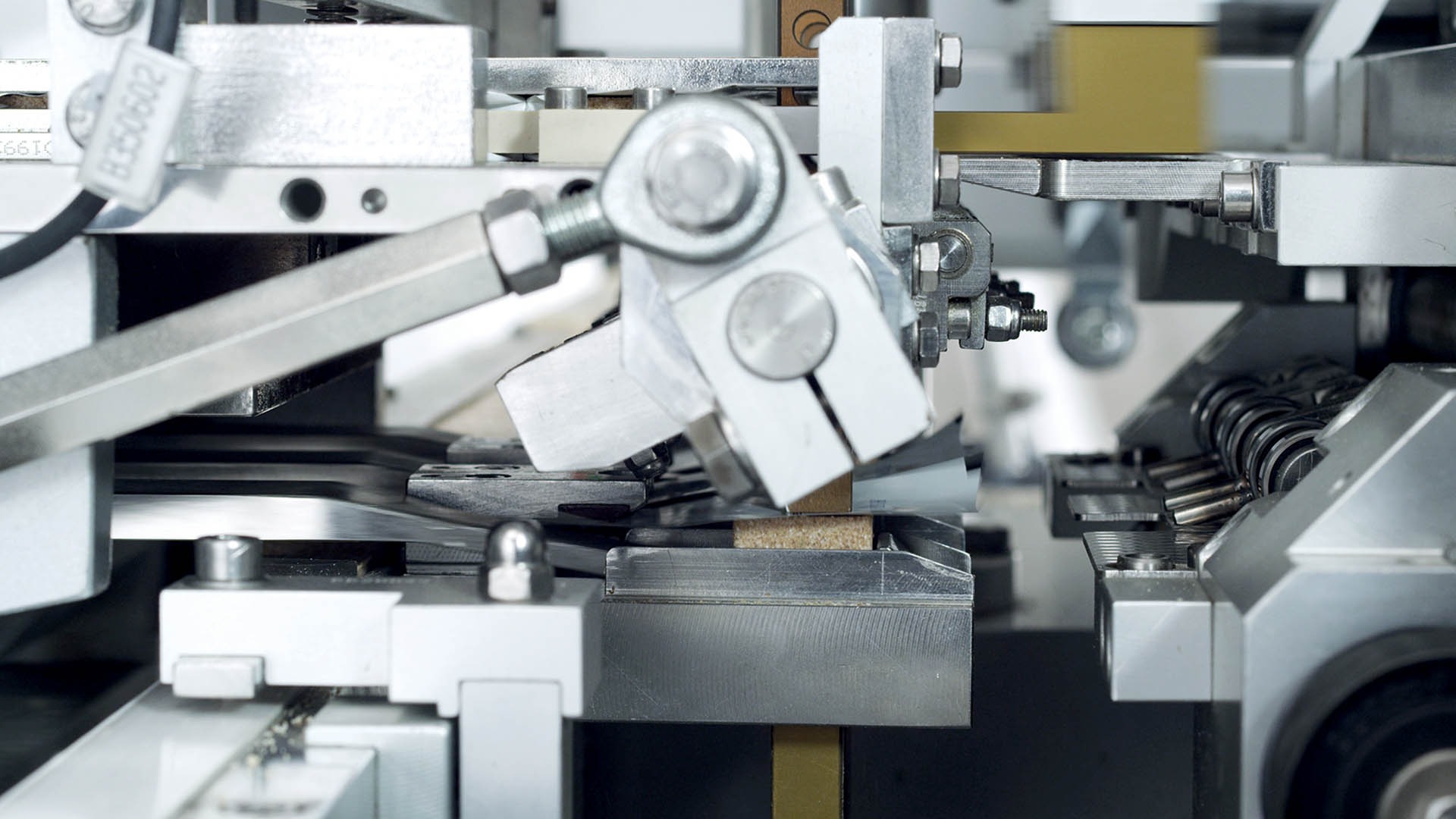

I Series Bottom Fold Primary wrapping
Machine overview
A full range of solutions for bottom fold wrapping technologies
The I Series bottom fold wrapping machines are designed to package pressed soup cubes at a low humidity and strength.
This machine series stands out for a fully mechanical execution that can grant long lasting reliability and easy maintenance operations.
The wide range of pressed cube wrapping solutions are able to satisfy all customer’s requirements.

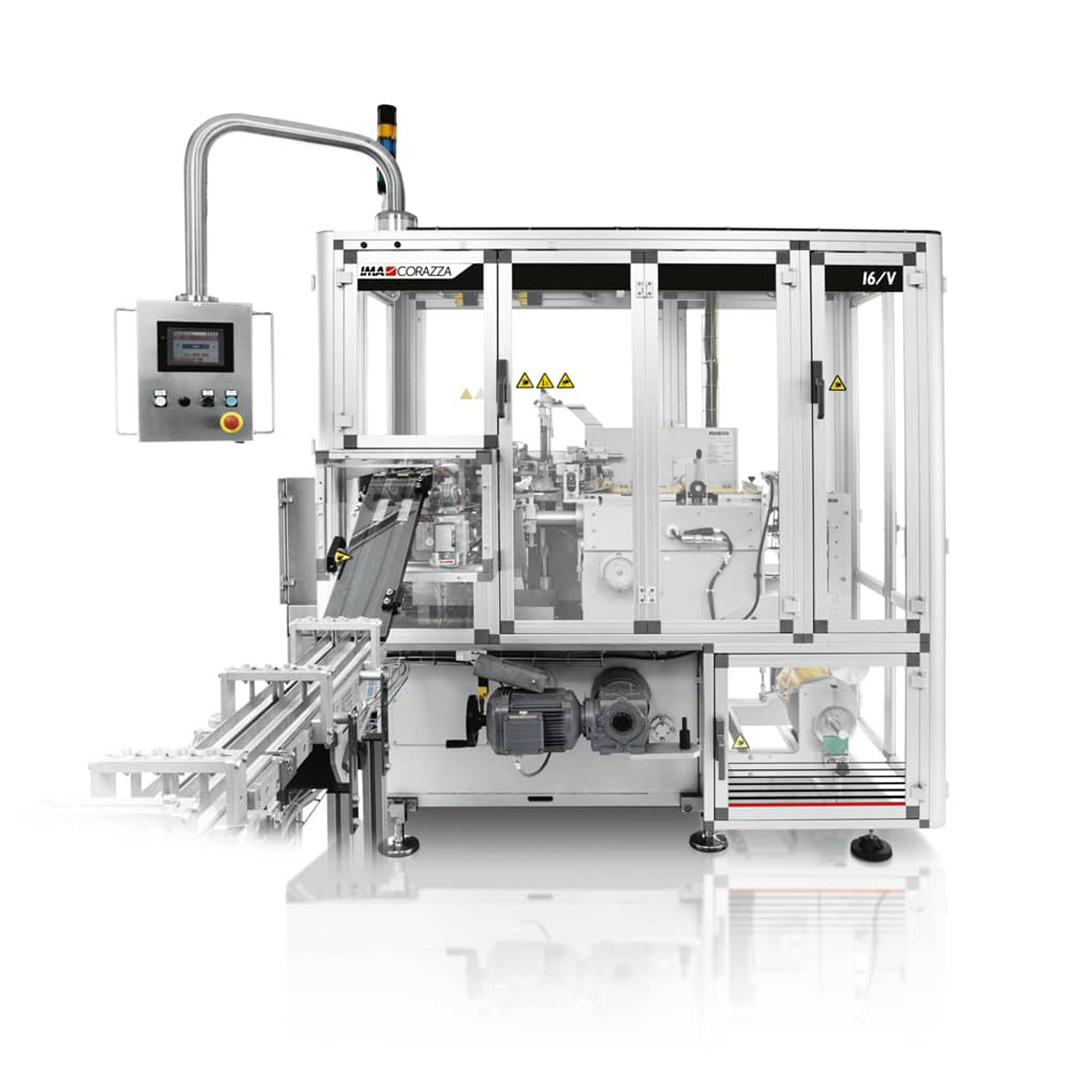

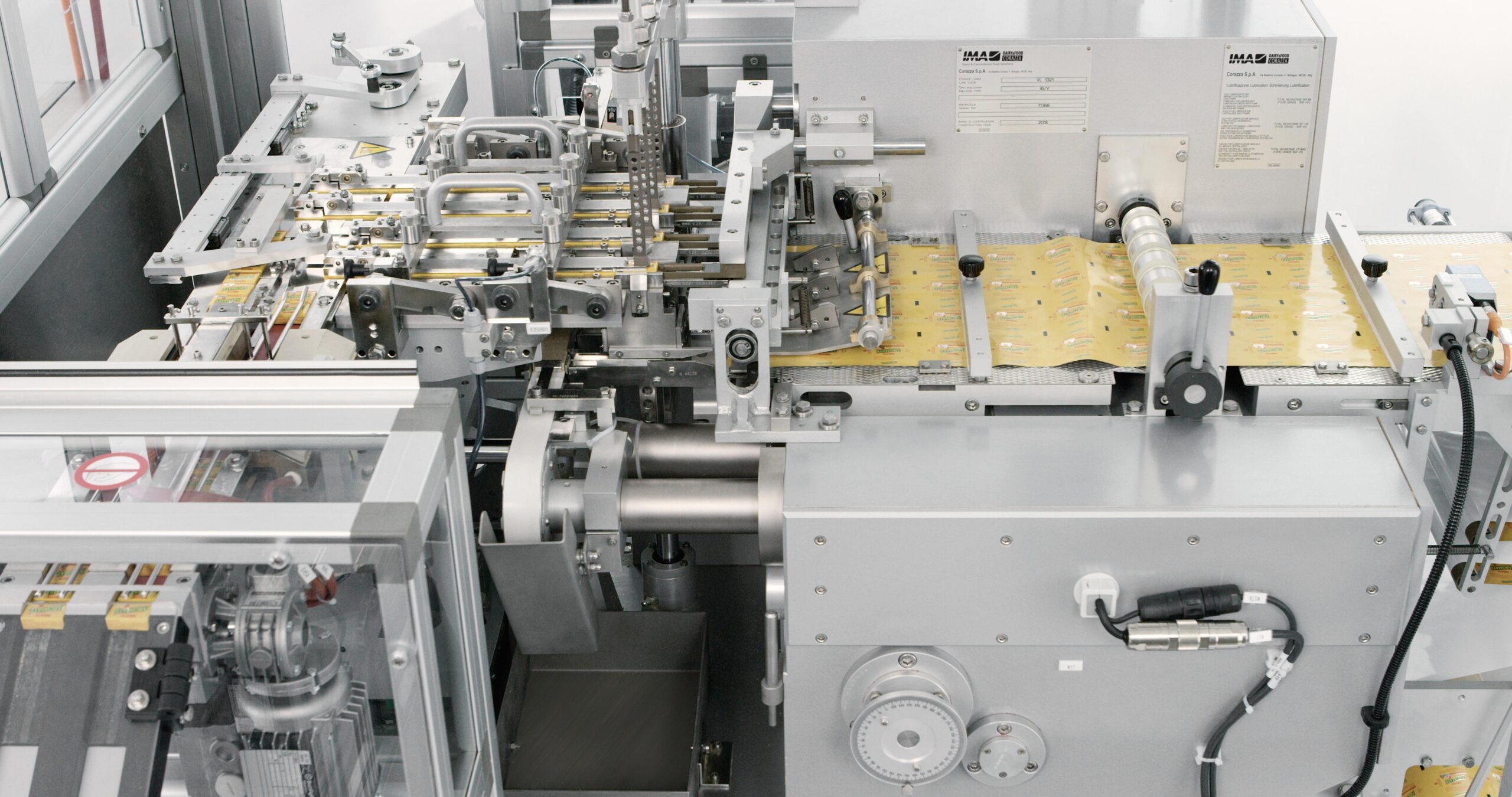

I6 and I6V are suitable for cubes and tablets and can wrap up to 800 ppm.
IDP and IDPS machines are suitable for customers who prefer running at a lower speed up to 600 ppm.
Production plant
IMA Corazza
Machine highlights
-
Packaging Material Versatility

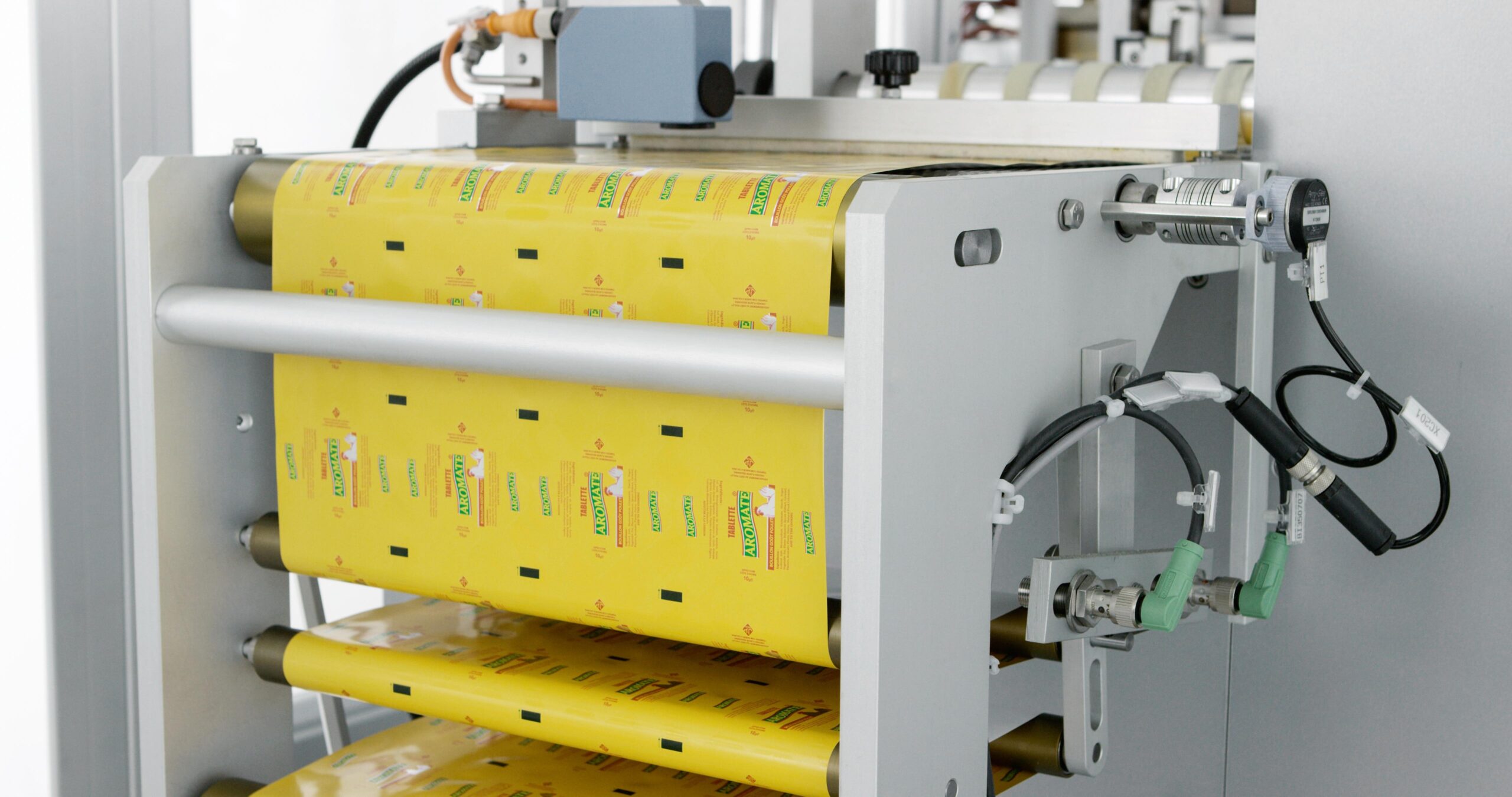

Packaging materials include Aluminum foil, AluBOPP, BOPP, thermowelding aluminum and coupled aluminum OPP (according to version).
-
Brushless Motor Print Centering Device
Print centering device controlled by brushless motor for greater accuracy (according to version).
-

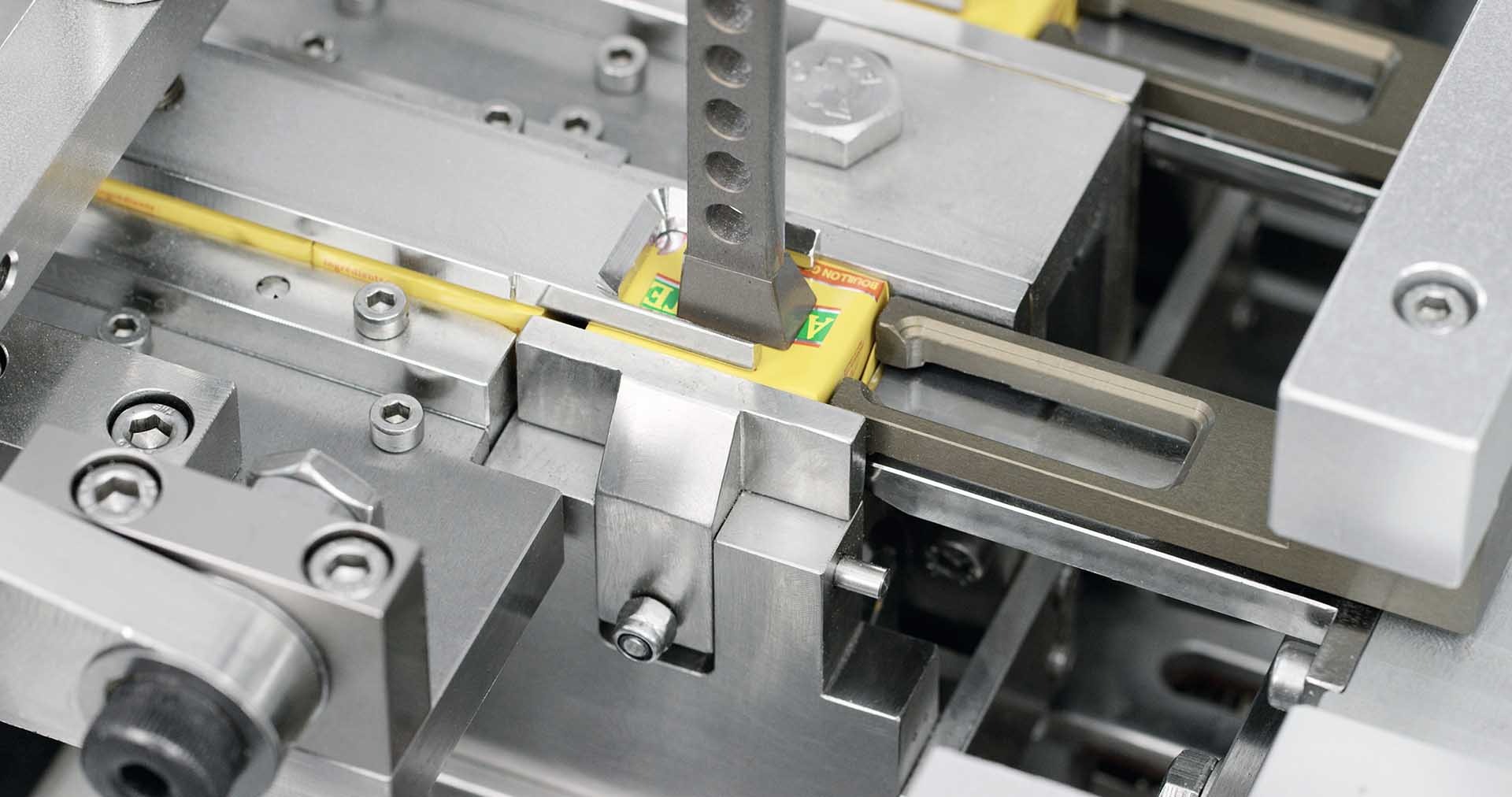

Vibration Reduction Device on Wrapping Section
Special device on wrapping section eliminates unwanted vibration (according to version).
-
Automatic Product Ejection in Case of Machine Stoppage

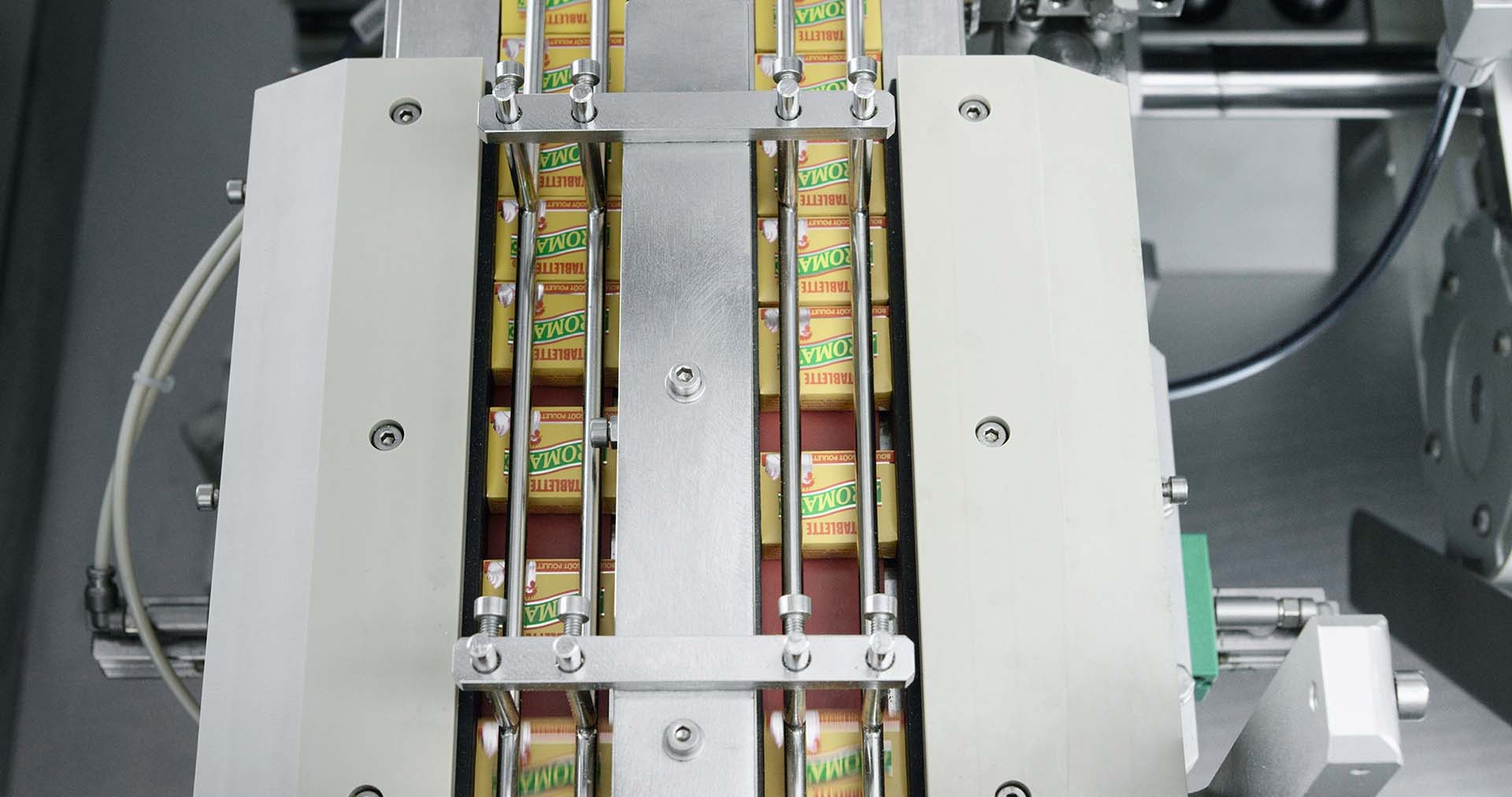

Side and lower sealing sections have an automatic product ejection in case of machine stoppage (according to version).
-
Easy Opening Feature for Cube and Bar Formats
Easy opening feature on request, designed both for cube and bar size.(according to version).
-
Easy Operation and Compact Design
Simple to operate and easy to maintain with a space saving footprint.
Machine details
Technical information

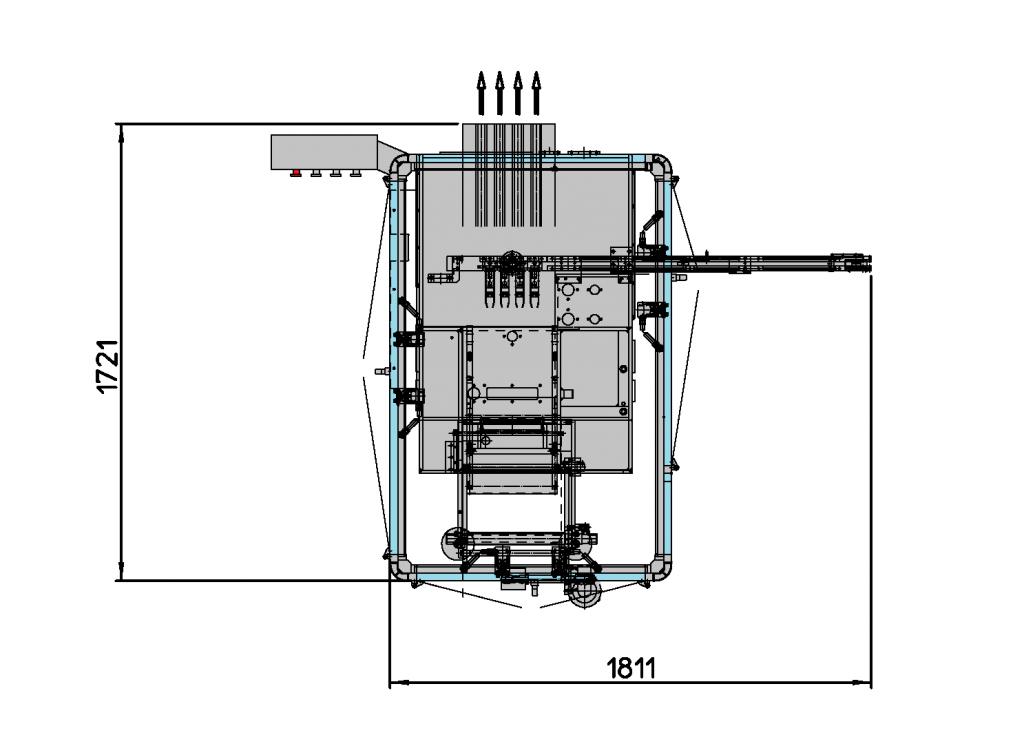

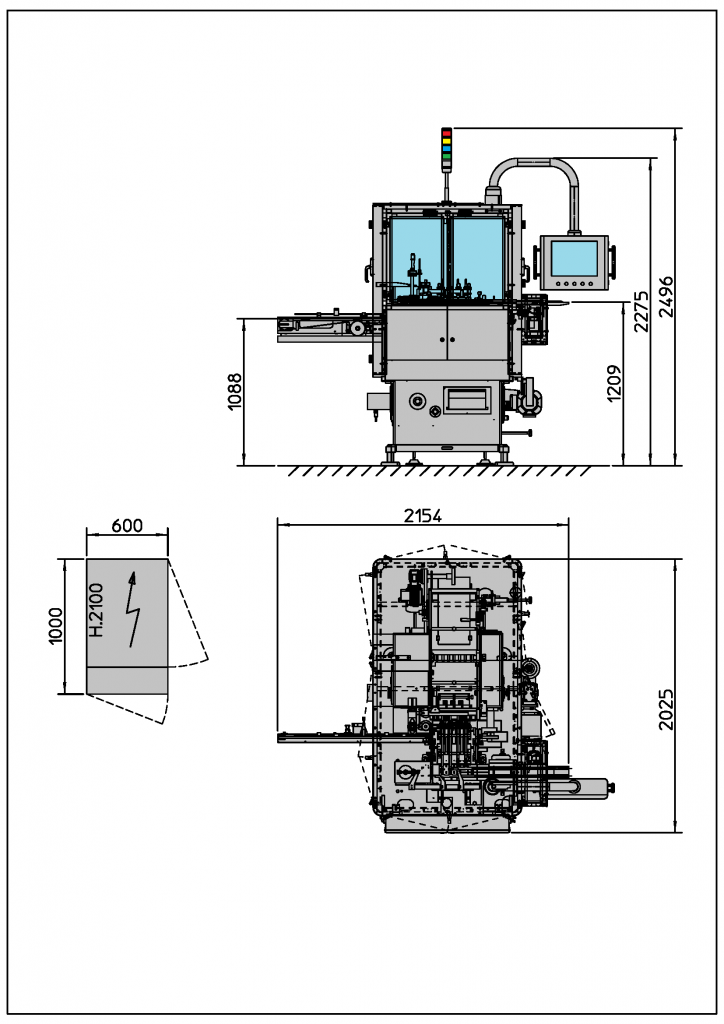

| Machine model | IDP | IDP/S | I6/V | I6 | I6/V2 | ||
| Production capacity | Up to 550 portions/min. | Up to 500 portions/min. | Up to 800 portions/min | Up to 750 portions/min | Up to 700 portions/min | ||
| Full load current | 3P x 400 Volt 50 Hz – 10 Amp | P x 400 Volt 50 Hz – 10 Amp | 3P x 400 Volt 50 Hz – 12 Amp | 3P x 400 Volt 50 Hz – 10 Amp | 3P x 400 Volt | ||
| Compressed air consumption | 120 Nl/min. (min. op. pressure 6 bar) | 120 Nl/min. (min. op. pressure 6 bar) | 150 Nl/min. (min. op. pressure 6 bar) | 150 Nl/min. (min. op. pressure 6 bar) | 150 Nl/min. (min. op. pressure 6 bar) | ||
| Weight | 2,000 Kg Approx. | 2,000 Kg Approx. | 1,500 Kg Approx. | 1,500 Kg Approx. | 1,500 Kg Approx. | ||
| Shape | Tablet | Cube | Tablet | Cube | Double Cube | ||

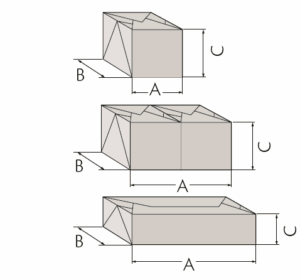

Box dimensions
Other sizes available upon request. | A (min ÷ max) | ||||||
| 13 ÷ 36 | 15 max. | 13 ÷ 36 | 15 max. | 28 max. | |||
| B (min ÷ max) | |||||||
| 13 ÷ 24 | 15 max. | 13 ÷ 24 | 15 max. | 14 max. | |||
| C (min ÷ max) | |||||||
| 8 ÷ 12 | 15 max. | 8 ÷ 12 | 15 max. | 14 max. | |||
| Weigth (min ÷ max) | |||||||
