Hyper Series Labelling
Machine overview
Hyper-possible
Hyper is the ultimate labelling solution created to achieve the impossible. Fully modular and implementing the latest technologies for high-speed labelling, it handles all container materials and shapes.

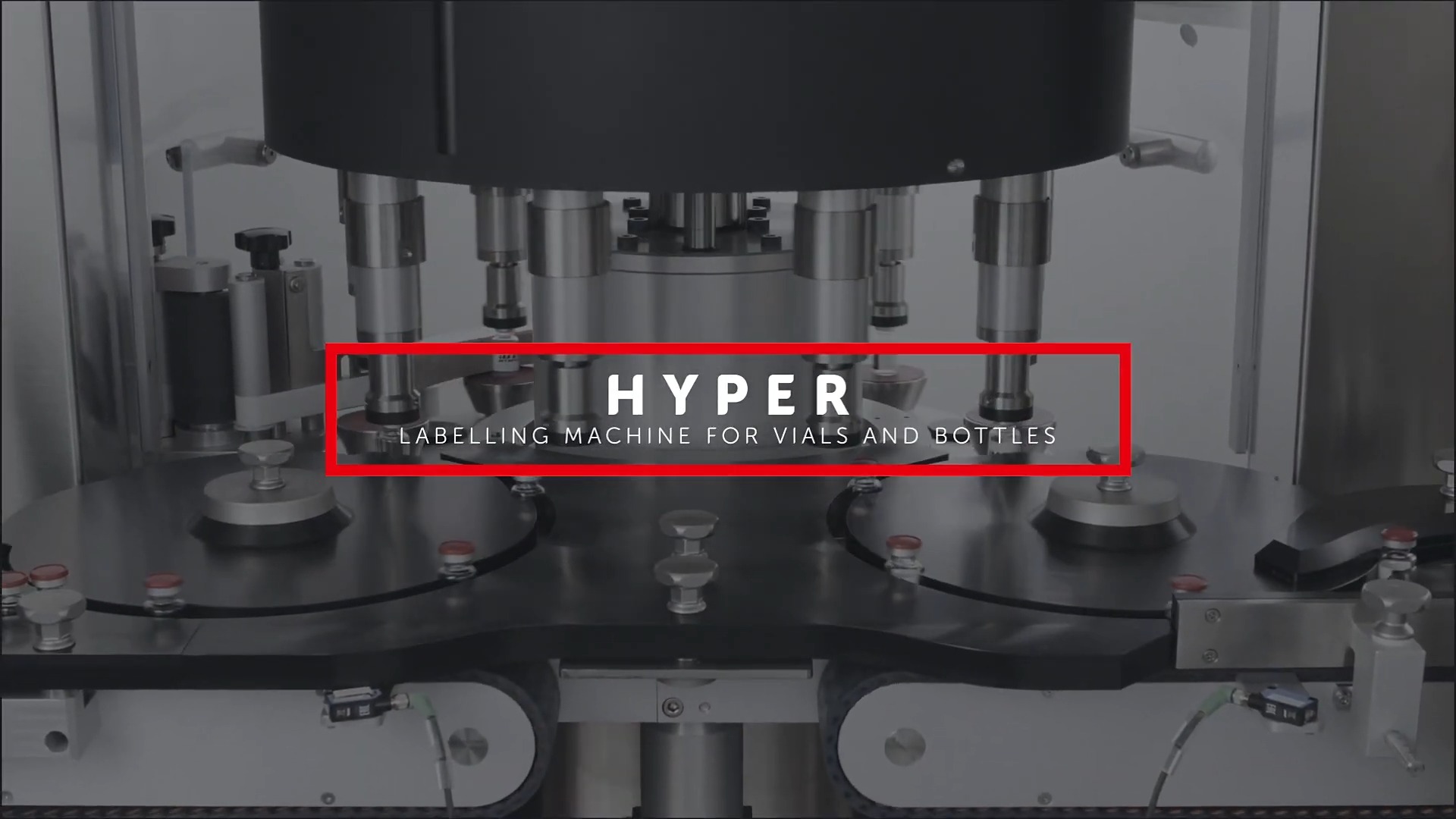

Hyper is a high-speed labelling machine for vials and bottles handling all container materials, from glass to plastic or aluminium, and shapes: square, round, tall or not. It can apply up to 5 labels (paper or plastic) and outserts.
Designed with full brushless technology, Hyper can self-adjust the working parameters, thus improving productivity and ensuring correct container positioning and label application precision.
Fully modular, it can integrate any printing type and feature serialization enabling single-container Track & Trace capabilities.
Production plant
IMA Life
Machine highlights
-
Type of pharmaceutical containers
Can apply up to 5 labels (paper or plastic) and outserts.
-
Brushless technology
Full brushless technology for maximum precision during the labelling process.
-
Extreme precision

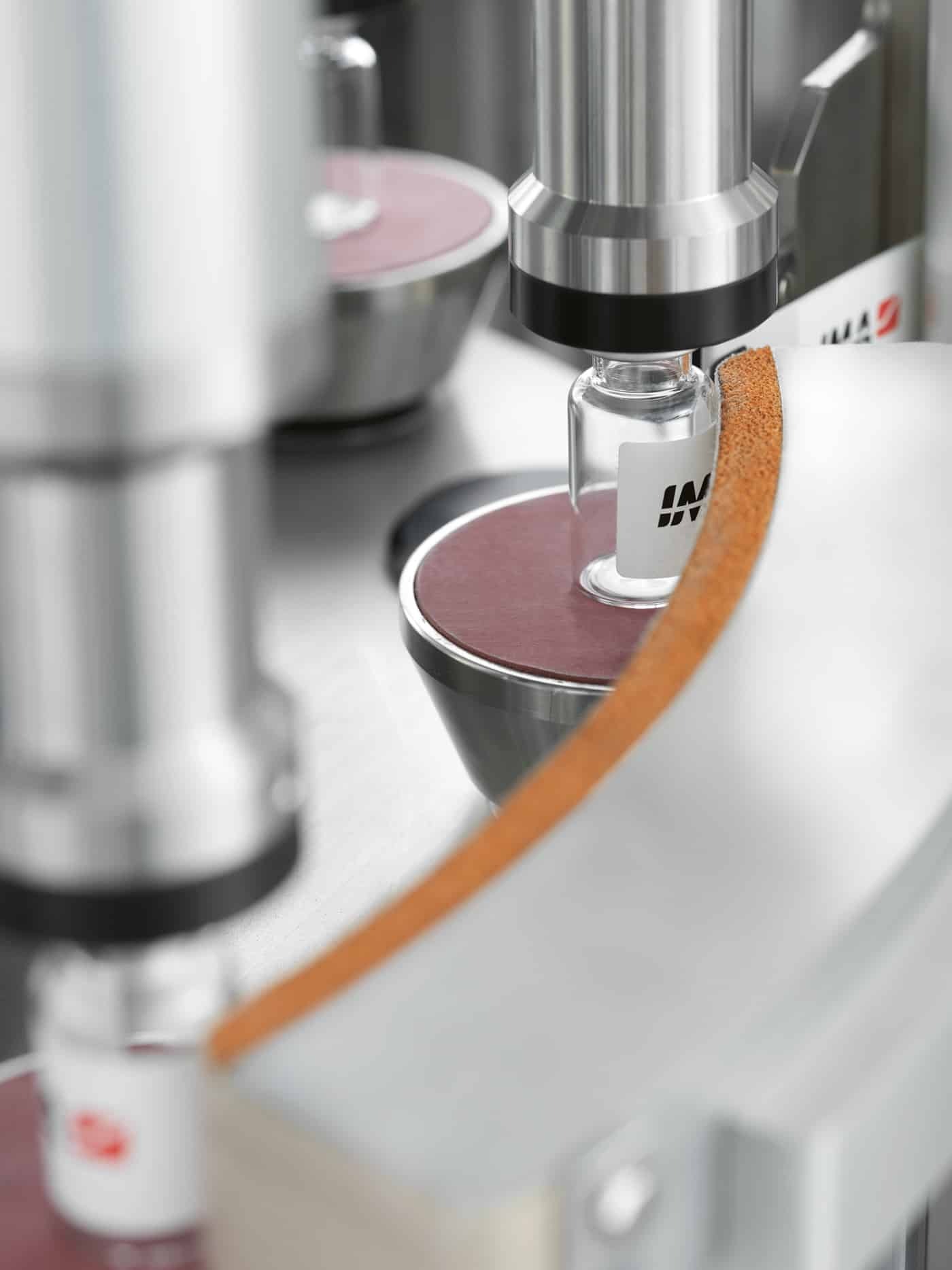

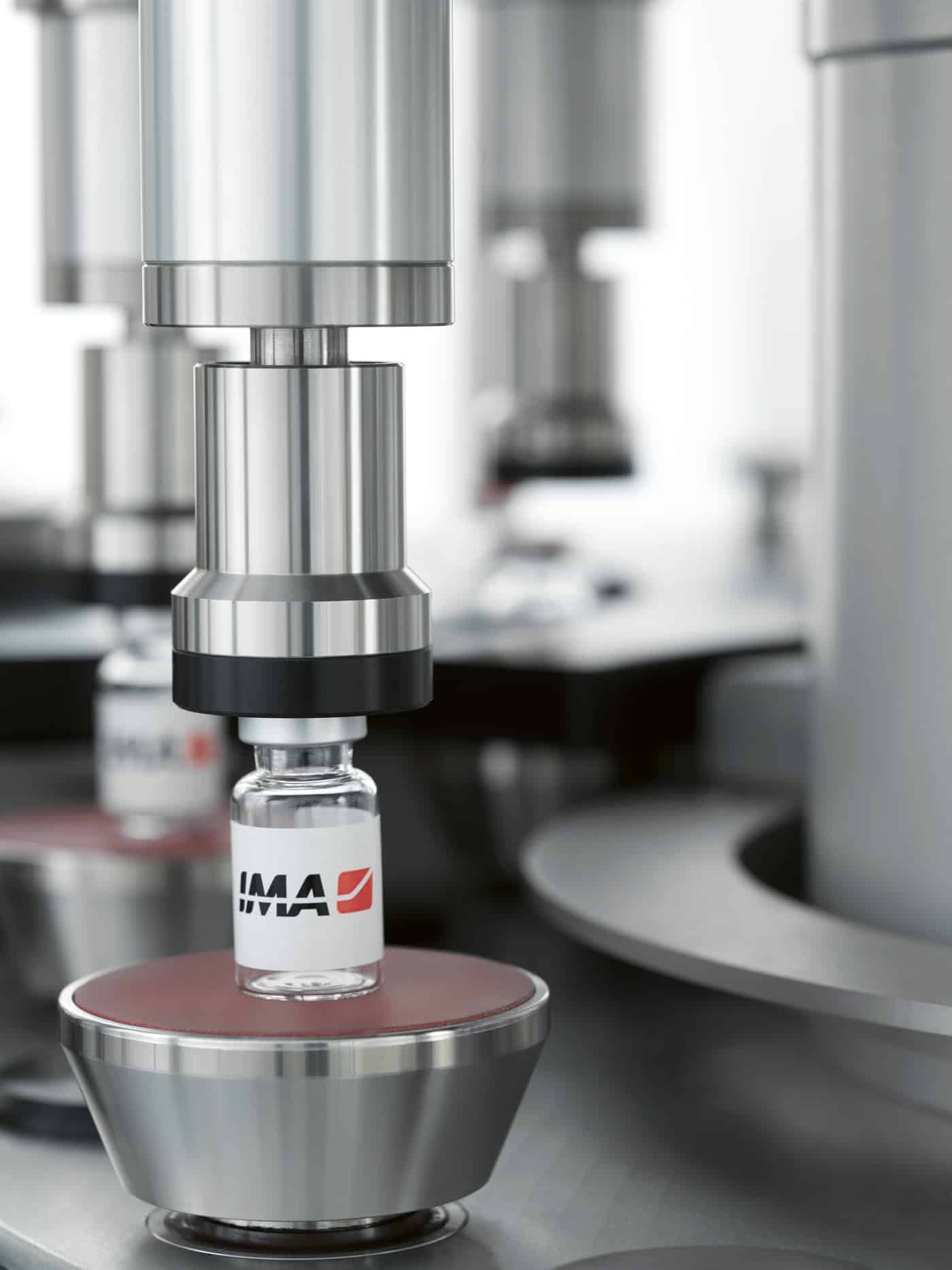

Positive container transport for precise label application.
-
Component control
Independent electronic control of all machine components.
-
Available versions
Can be supplied as a stand-alone version or integrated in complete processing and packaging lines.
-
Smart design
Modular and ergonomic design with stainless steel finishing.
-
Printing and serialisation

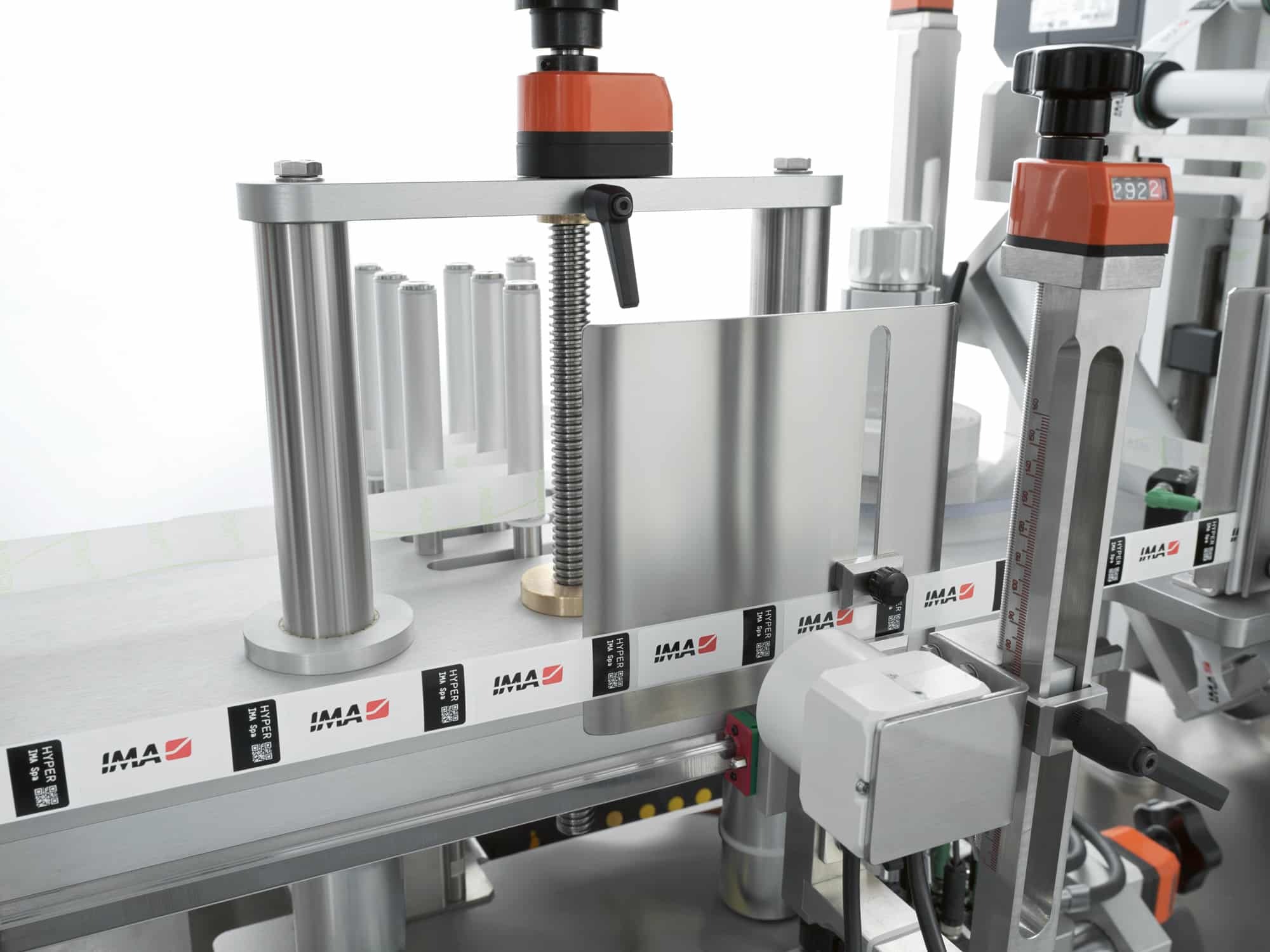

Easy installation of overprinting device and vision systems to read and check data.
Machine details
Technical information
| TECHNICAL DATA HYPER | |
|---|---|
| Maximum output (pieces/minute) | 500 |
| Installed power (kW) | 3.7 |
| Standard voltage | 400 V – 50 Hz |
| Maximum container height (mm)* | 220 |
| Maximum container diameter (mm)* | 16-86 |
| Label height (mm) | 10-100 |
| Label length (mm) | 15-200 (300 for containers with 4 sides) |
| Maximum label reel diameter (mm) | 400 |
| Label accuracy (mm) | ±0.6 |
| *can be bigger depending on machine configuration | |
Hyper-possible
Hyper implements the latest technologies for high-speed labelling, including its ability to self-adjust working parameters and thus improve productivity. Fully modular, it can integrate any printing type and also applies outserts. Brushless technology ensures correct container positioning and label application precision. Hyper handles all container materials, from glass to plastic or aluminium, and shapes: square, round, tall or not, and features serialisation enabling single-container Track & Trace capabilities.
