Hydrowash Washing
Machine overview
Efficiency made compact.

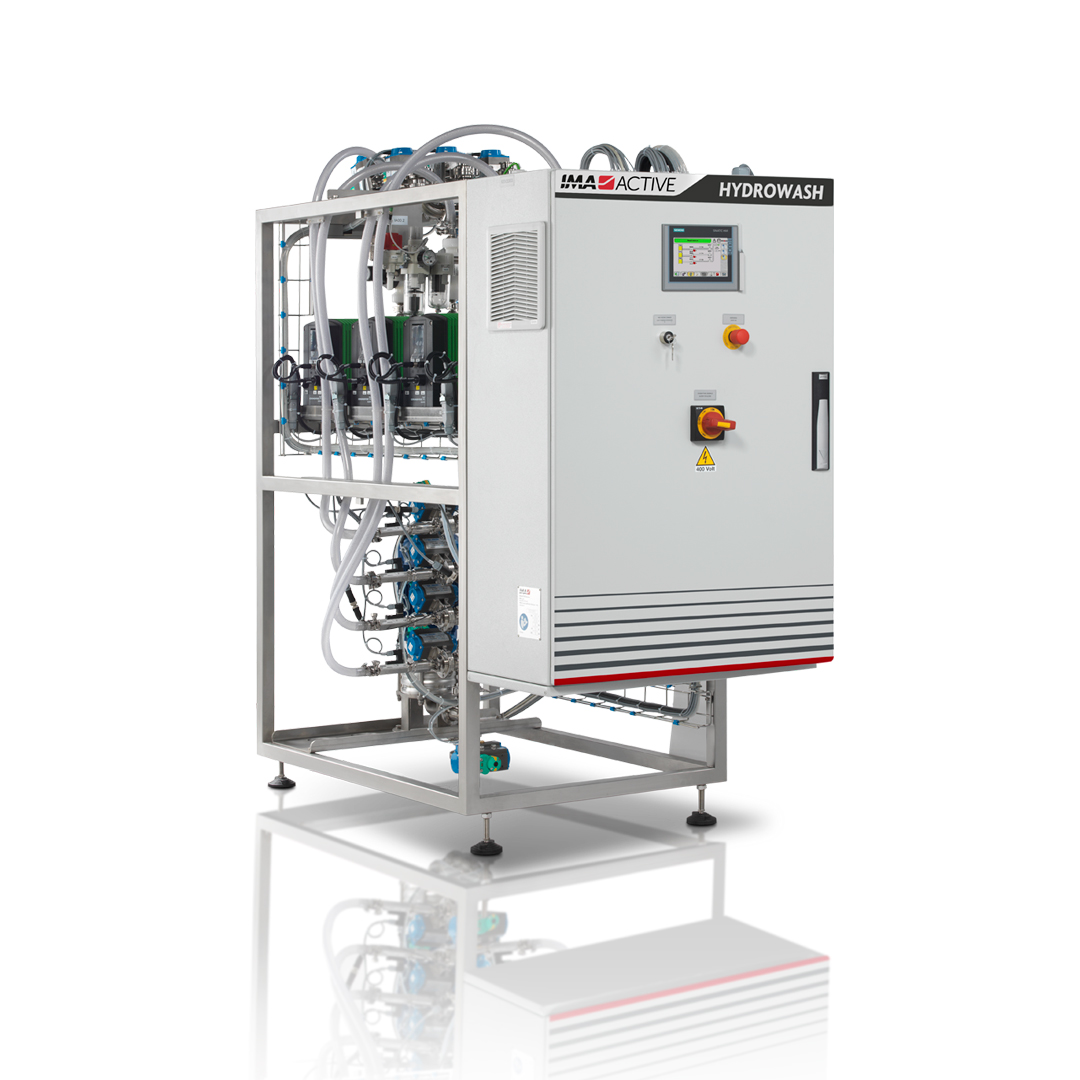

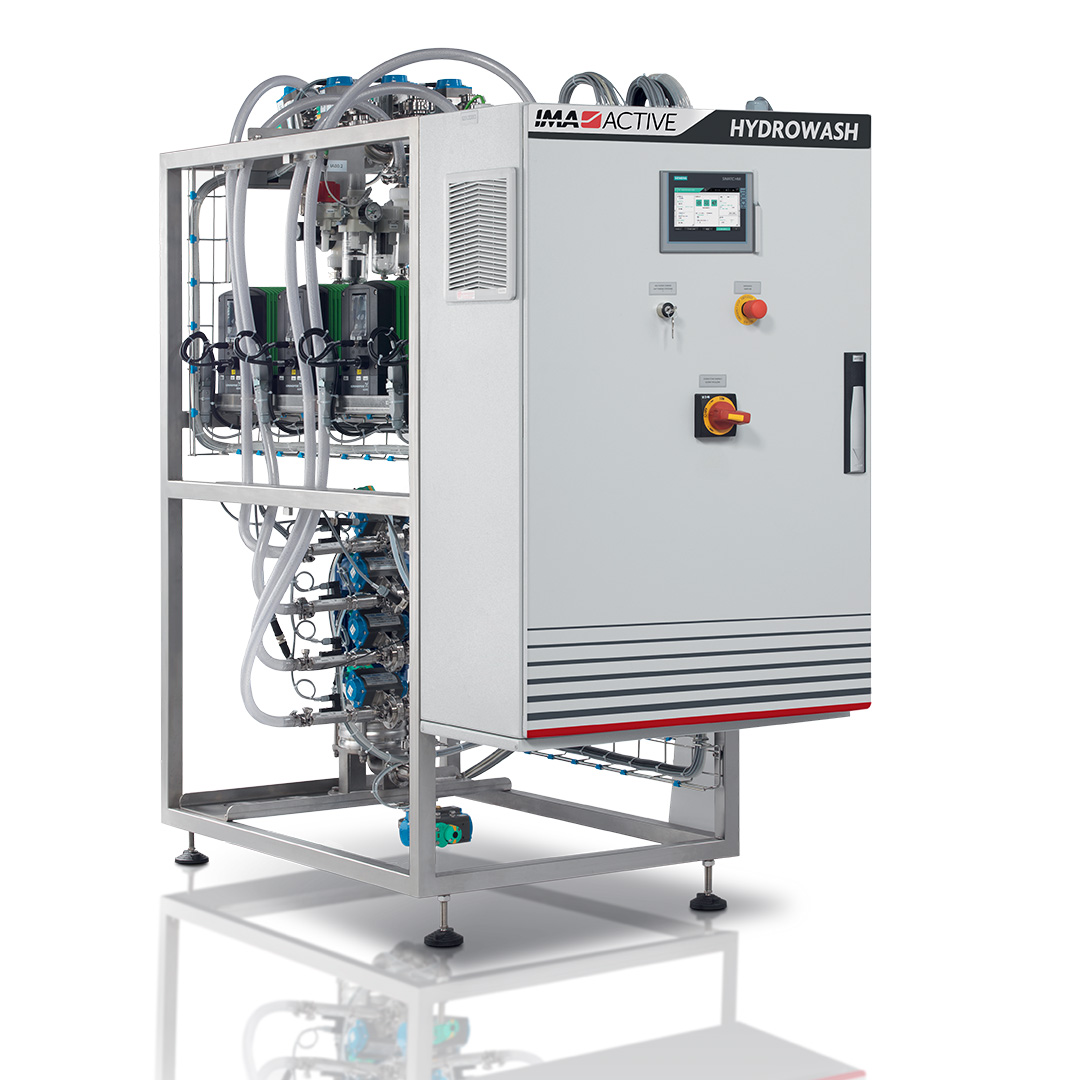

Hydrowash is a high-efficiency compact parts washer designed in compliance with the highest GMP standards for installations with sanitary water. Easily positioned inside the working area, Hydrowash can be used as a stand-alone washing skid or as a feeding group for WIP/CIP systems to serve an IBC washing station or to clean high shear mixer granulators, fluid bed processors, tablet presses, capsule fillers and coating pans. Different devices are available for washing cycle optimisation.
Production plant
IMA Active
Machine highlights
-

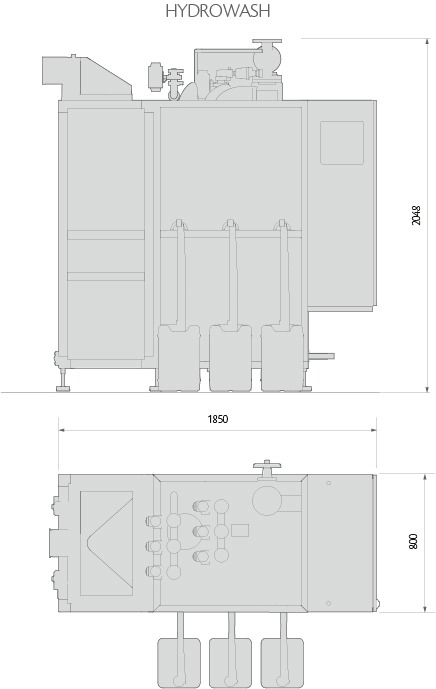

Space-efficient
Compact design for easy positioning inside the working area.
-
Top performance
High quality and accurate finishing of each component.
-
GMP-compliant
GMP-compliant machinery for the pharmaceutical industry, ensuring safety, precision, and full regulatory compliance.
-

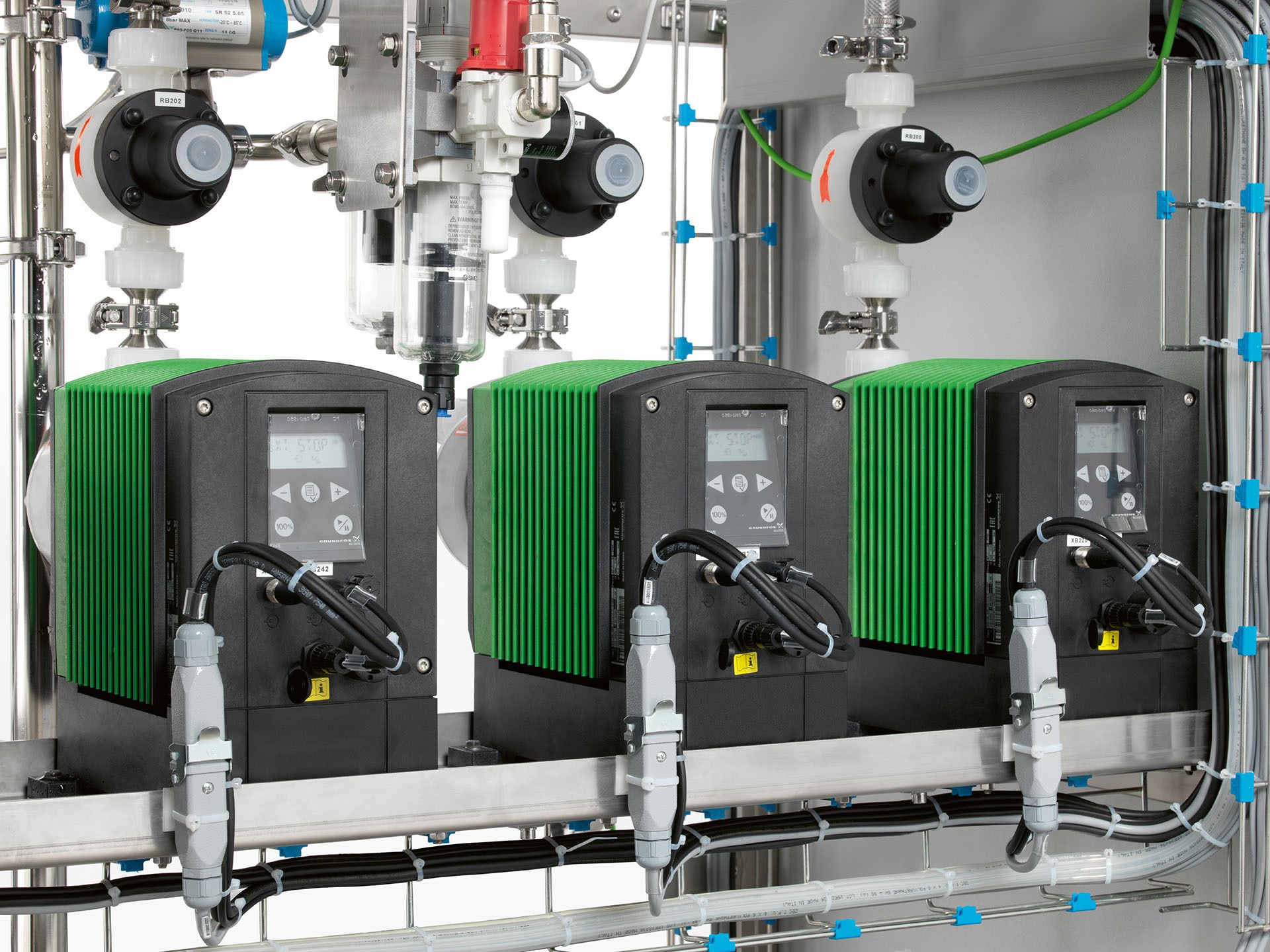

Clever dosing

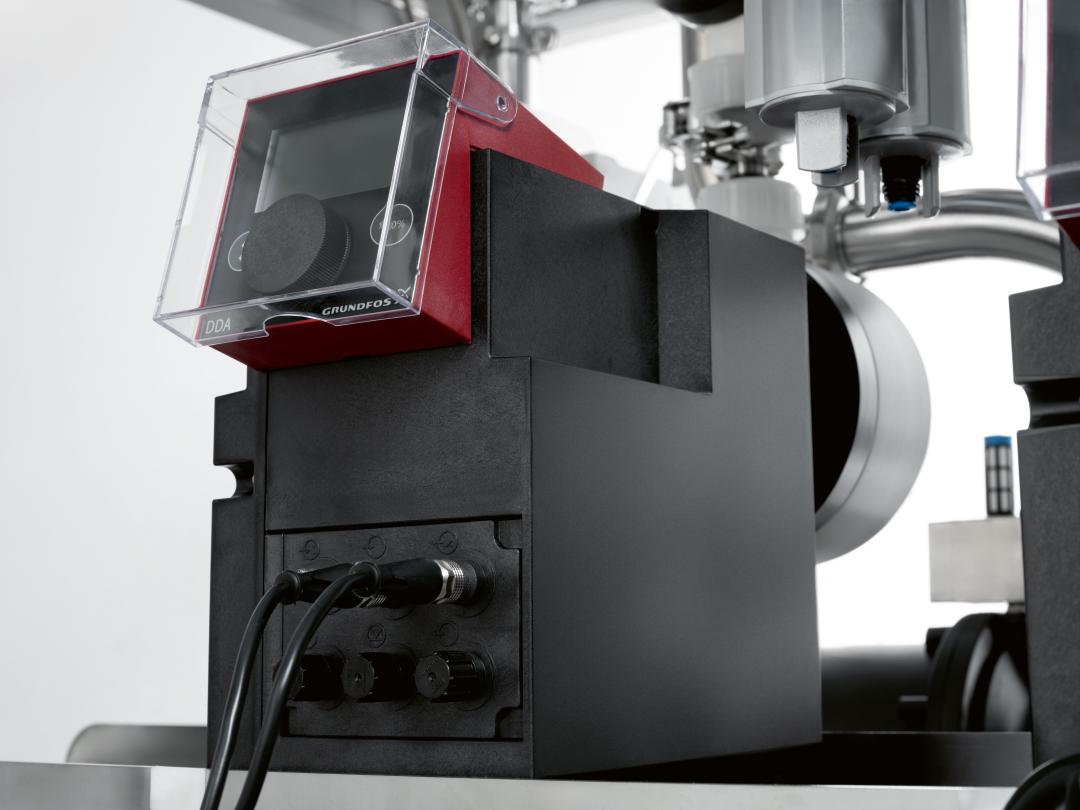

Hydrowash handles up to 3 different detergents with smart, automatic dose regulation for maximum efficiency.
-
Seamless integration
MCL column holding the washing lid for direct connection to Hydrowash.
-
Drying options
Choose between steam or electric Air Handling Unit for flexible and reliable drying performance.
Smart flow measurement for perfect dosing

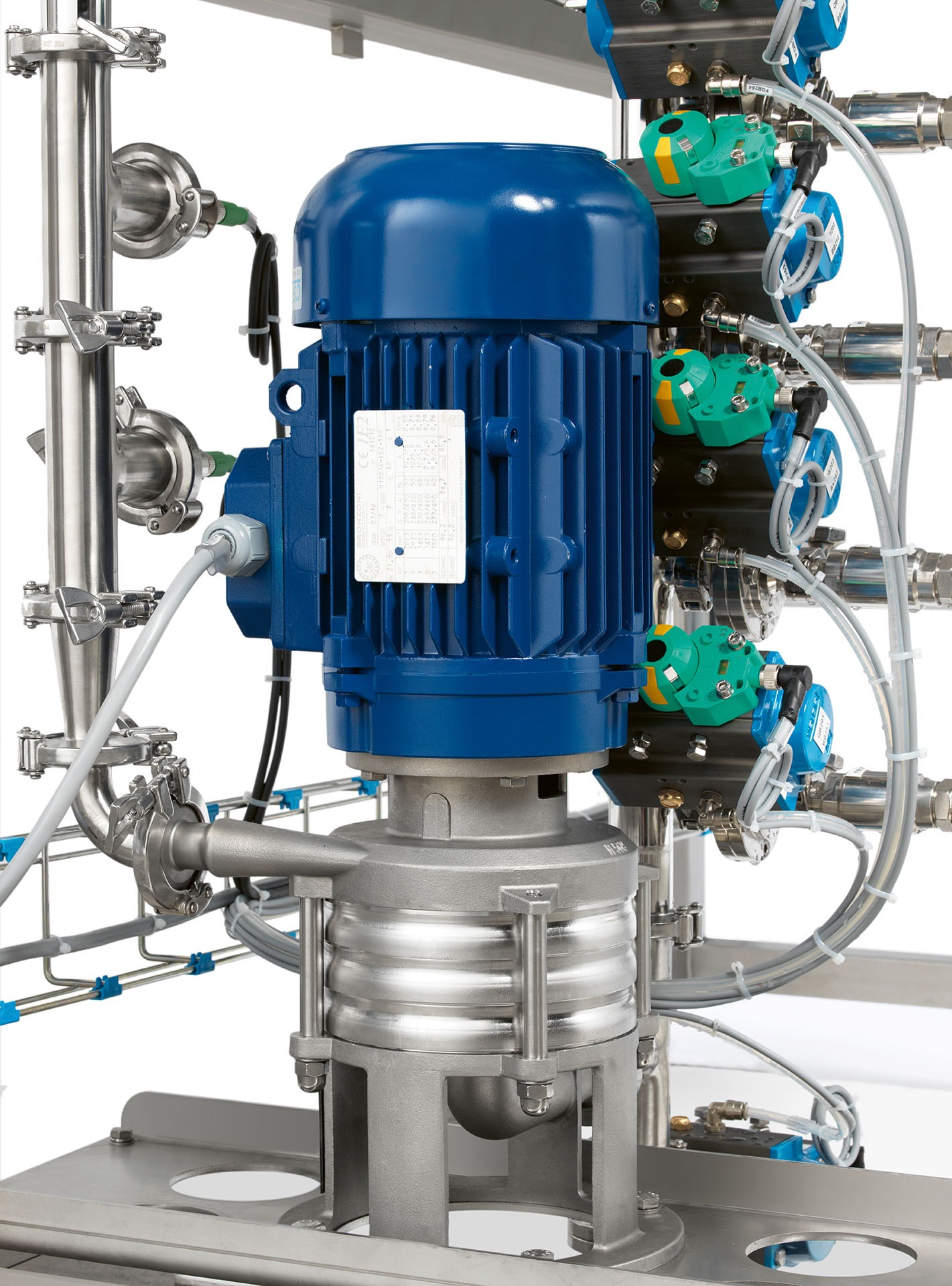

Mass and ultrasonic flow meters, installed downstream of the centrifugal pump, measure the instant flow rate of the washing fluid and increase the accuracy of the detergent dosing.
Machine details
Technical information
| Hydrowash technical data | |
| Water flow (l/min) | 70 or 120 |
| Inlet pressure (bar) | 1÷3 |
| Working pressure (bar) | 6 |
| Maximum temperature (°C) | 85 |
| Power supply | 400 V – 50 Hz – 3 phase AC |
| Installed power (kW) | 6 |
