GS Coating Coating

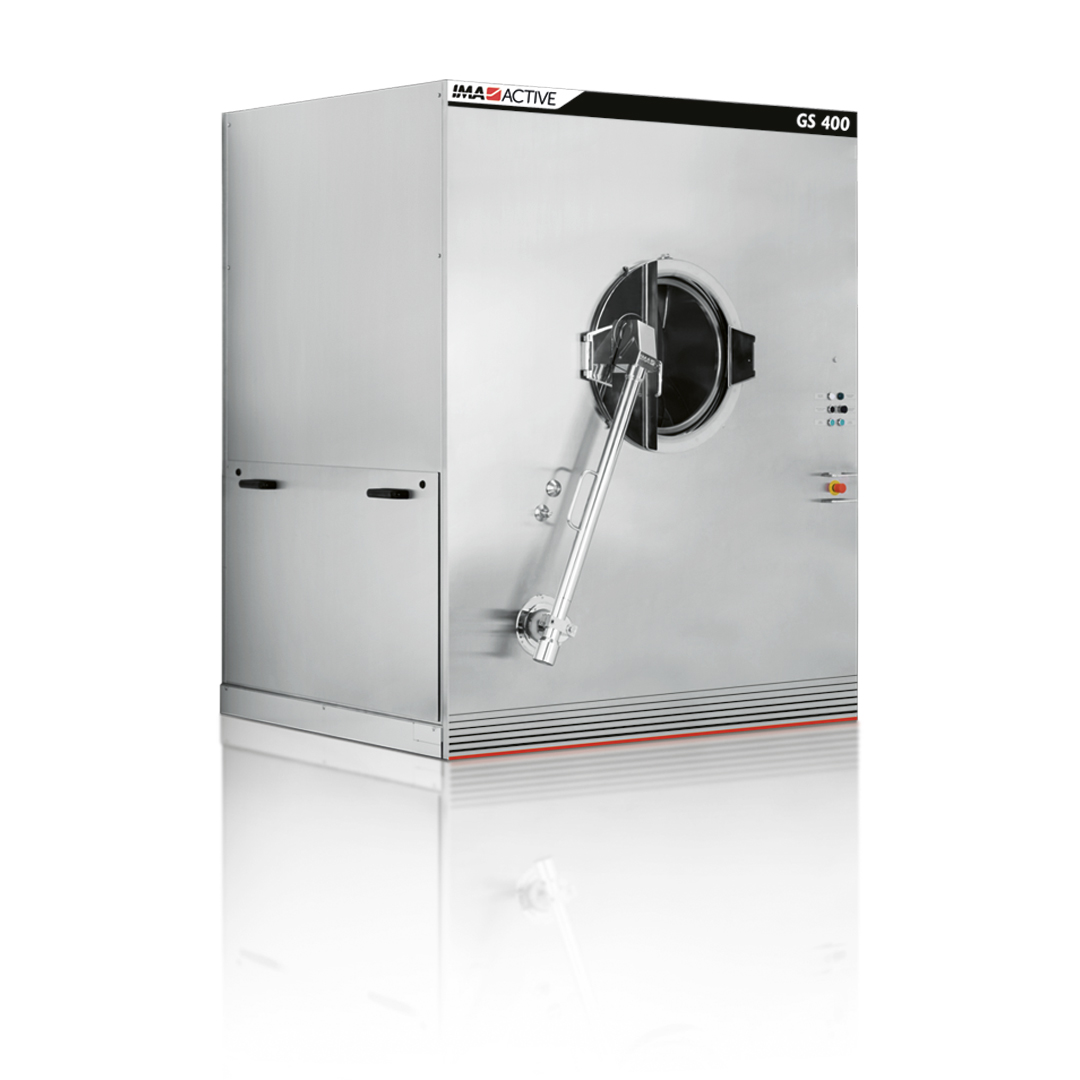

Machine overview
The coating pan that made history.
GS Coating features innovative technology and has been conceived to address issues related to environment, energy saving and reliability. Available in different models, GS machines allow the processing of all product sizes.

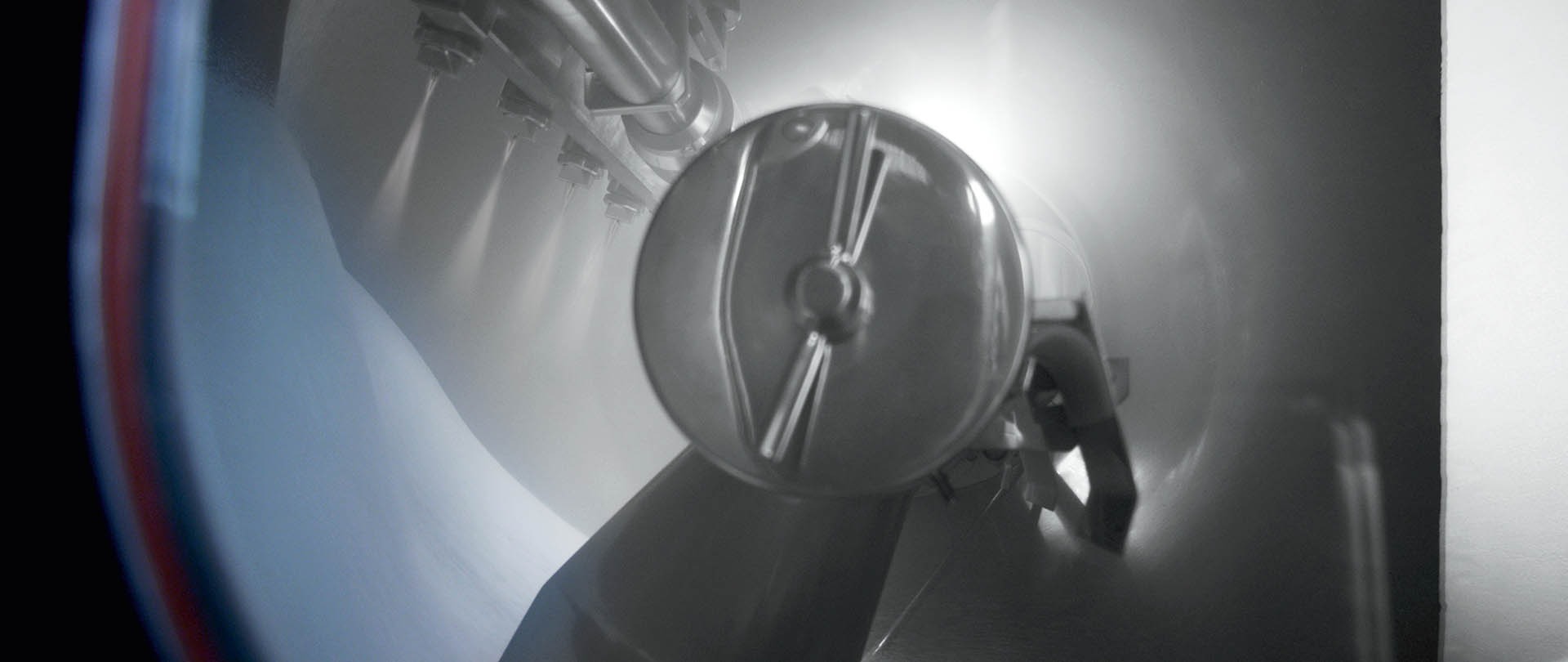

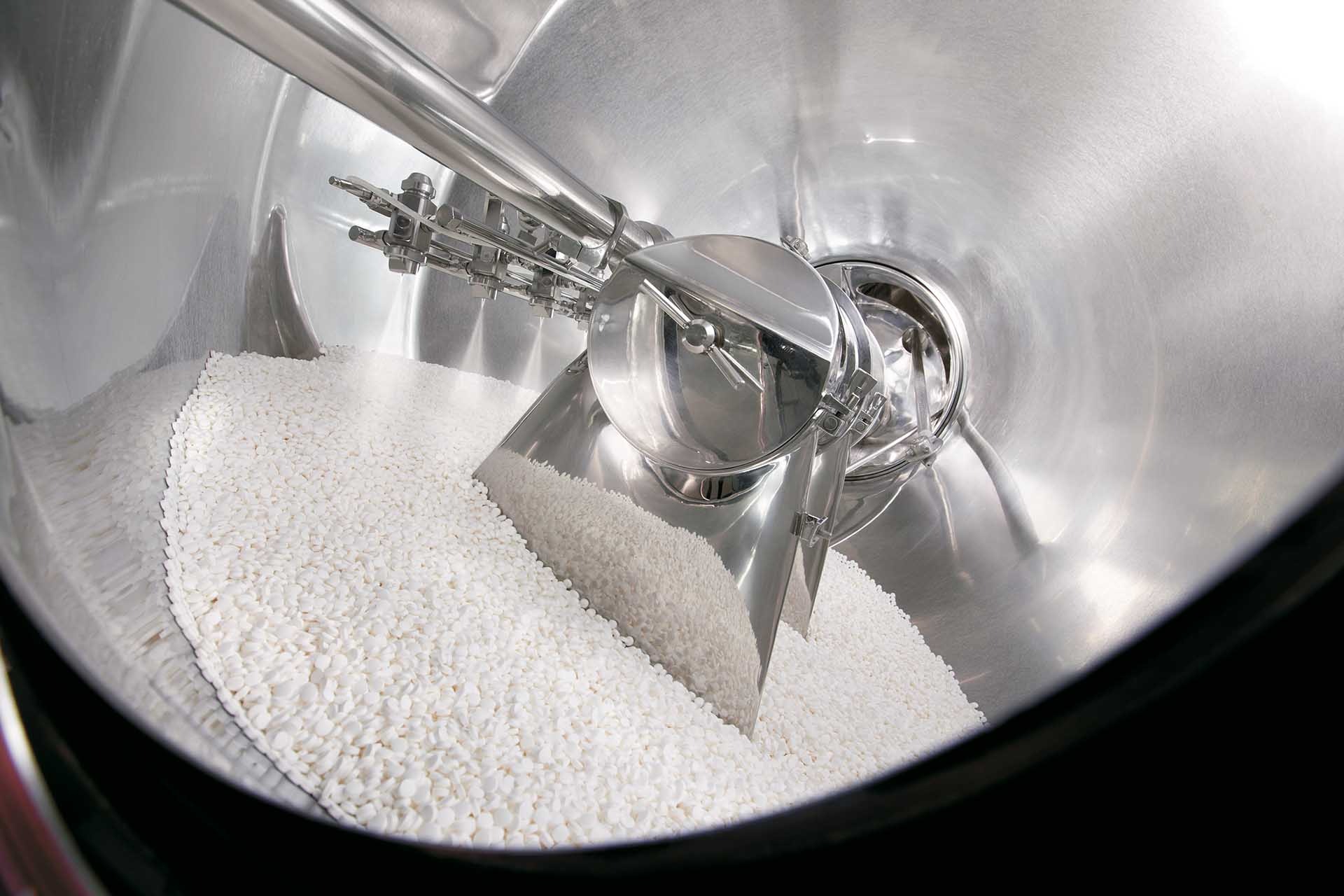

GS can be fitted with exhausting and/or blowing paddles to perform tablet film and sugar coating, as well as to process pellets and microgranules. The solid wall pan guarantees excellent results with all product shapes.

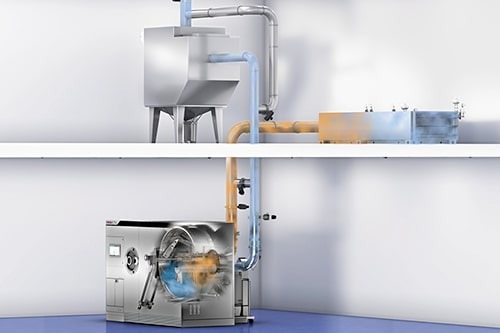

Production plant
IMA Active
Machine highlights
-

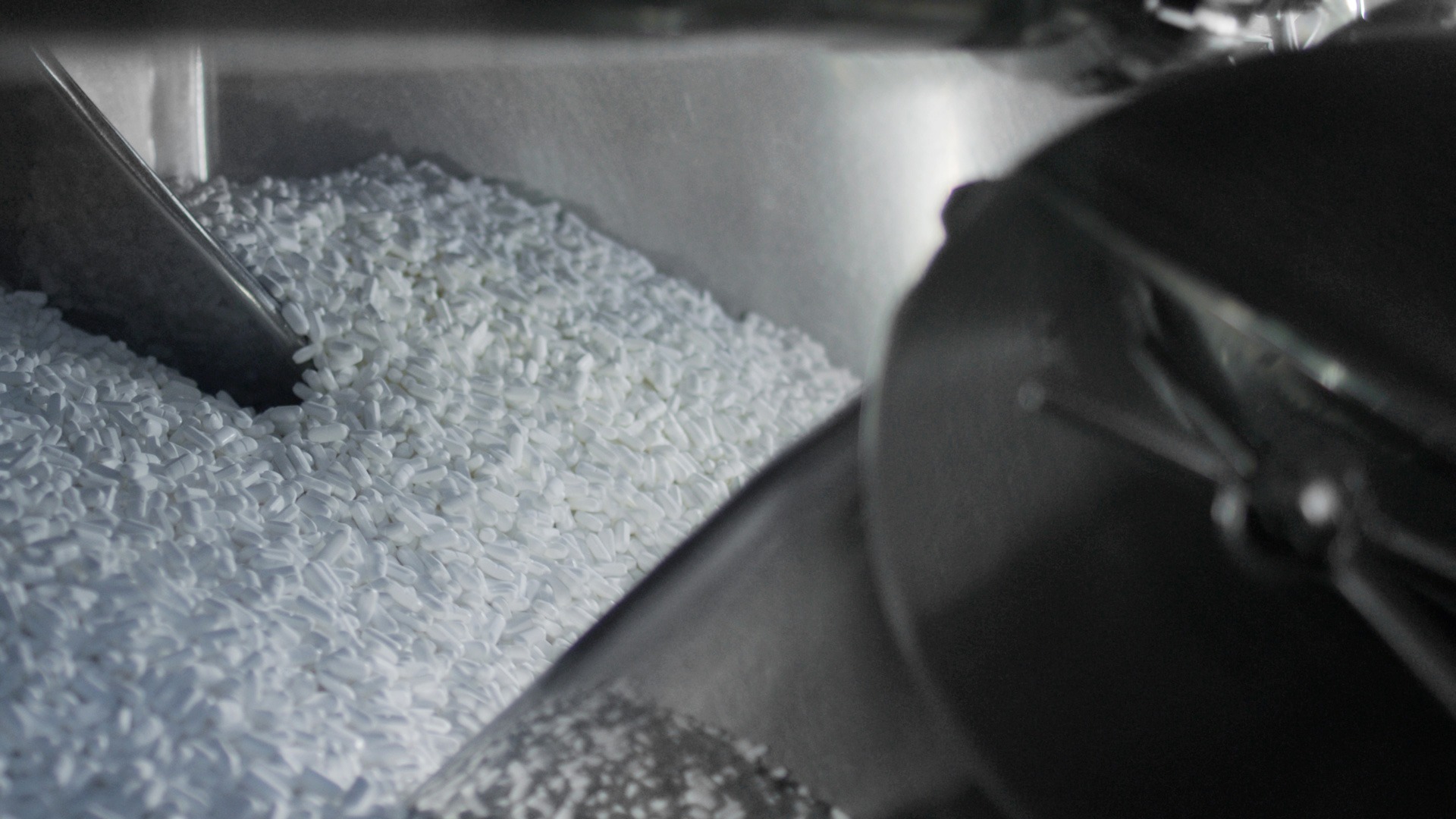

Perfect mixing
Perfect mixing and uniform distribution of coating material ensured by pan shape and surface smoothness.
-
Efficient drying
Patented drying system designed to optimize process performance and reliability.
-
Enhanced flexibility
Different paddle sizes provide higher adaptability to various pan working capacities.
-

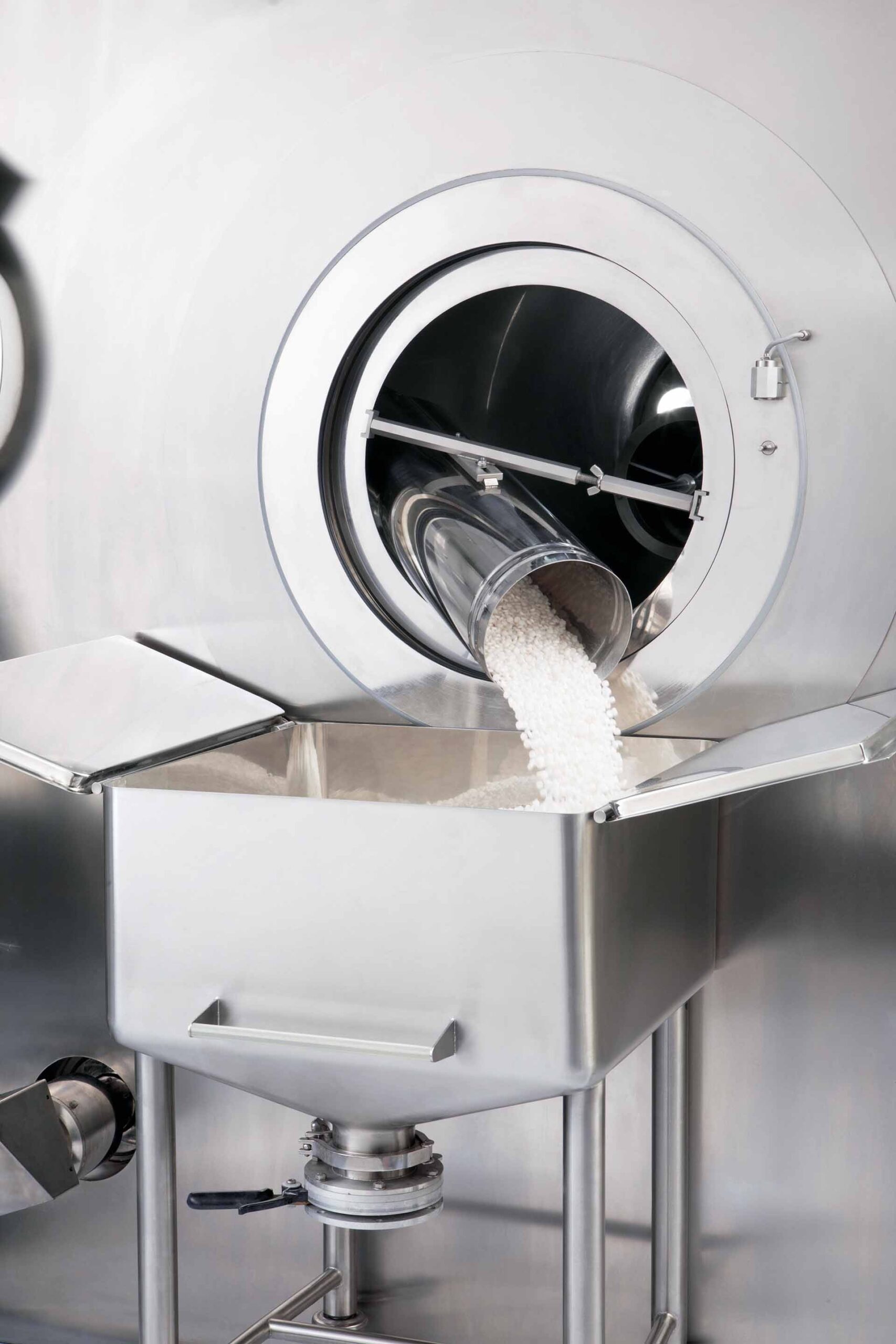

Easy loading
Automatic product load and discharge ensures smooth operations and reduced handling time.
Smart cleaning made easy
The cleaning operations are fast and simple due to the use of a solid wall pan. Different cleaning programmes, comprising washing, rinsing and discharge, can be developed according to different products and stored in the recipes.
Machine details
Machine versions
Lab Version
The laboratory systems make use of the same highly advanced technology as those developed for the production range, and this means all kinds of products can be processed, with maximum flexibility and easy scale-up.
Mylab is a laboratory-scale coating pan processor for R&D purposes equipped with an interchangeable drum, either fully perforated or solid wall. The drum is able to work batches from 1.5 to 6 litres, a smaller drum to work from 0.5 to 2 litres is also available as an option.
Technical information
| GS technical data | ||||||||
| Model | GS 25 | GS 70 | GS 150 | GS 300 | GS 400 | GS 450 | GS 600 | GS 700 |
| Minimum/maximum capacity (l) | 13÷25 | 40÷70 | 70÷150 | 150÷300 | 200÷400 | 225÷450 | 350÷600 | 350÷700 |
| Pan diameter (mm) | 800 | 1,050 | 1,280 | 1,580 | 1,630 | 1,700 | 2,000 | 2,050 |
| Pan mouth diameter (mm) | 300 | 400 | 450 | 520 | 520 | 520 | 730 | 730 |
| Pan motor power (kW) | 0.37 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 | 5.5 |
| Process air delivery (m³/h) | 350 | 1,000 | 1,400 | 2,500 | 3,000 | 3,000 | 4,000 | 4,000 |
