Giant5 Series Blister Packaging
Machine overview
Raising speed standards.
Giant5-A96 breaks the mould of traditional blister packaging concepts by combining exclusive advantages such as high speed and flexibility. Designed specifically for large batch production, it copes perfectly with fast and frequent changeovers.
Part of the Giant family, Giant5-A96 has been conceived to handle any size and shape of product. This versatility is due to the high-speed Sombrero blister feeding system. As a 3-row version ensuring a production of 1300 blisters/min and 500 cartons/min, Giant5-A96 features machine functions, product handling and packaging capabilities that are not affected by high speeds.
Production plant
IMA Safe
Machine highlights
-
High-speed packaging
Fastest blister packaging speed available: Giant5-A96 completes our speed range with a 3-row version and a production of 1300 blisters/min and 500 cartons/min.
-
Broad blister size range

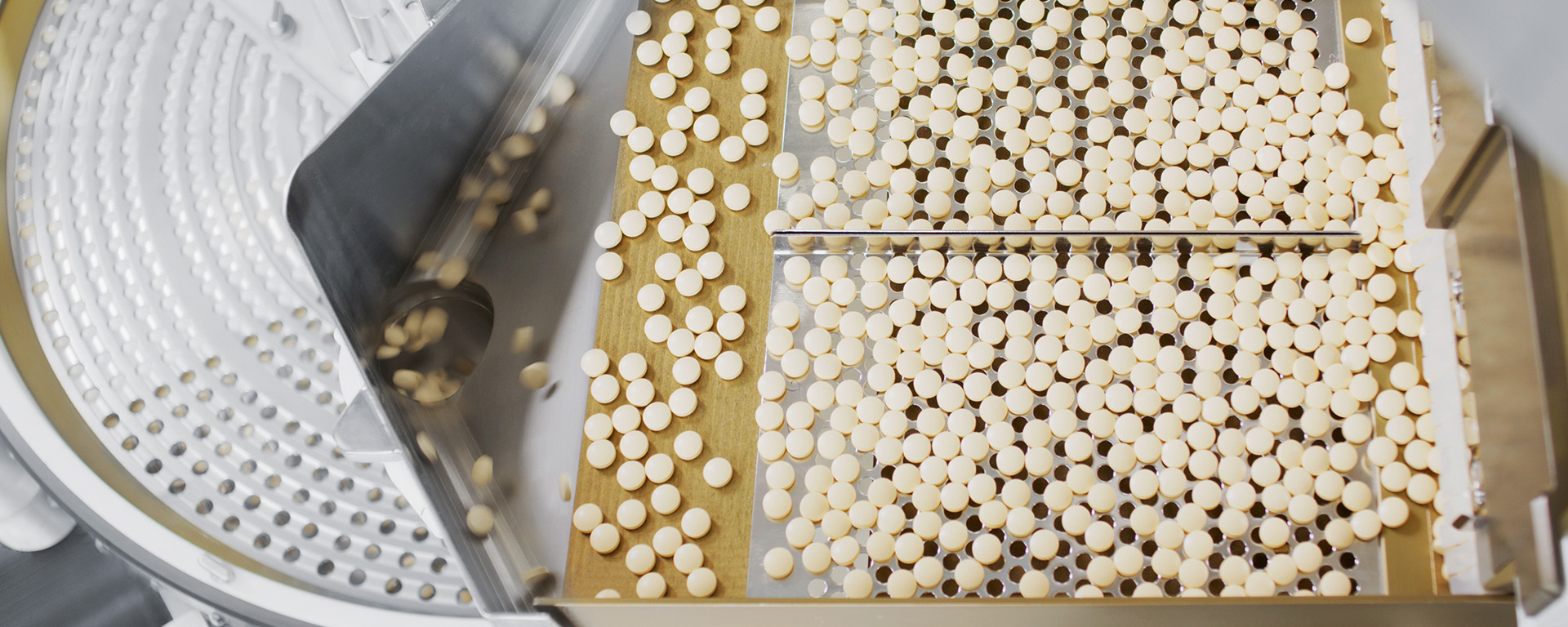

Ready to handle a vast blister size range at the fastest speed available thanks to the high-speed version of Sombrero, unique blister feeding system.
-
Visible production flow

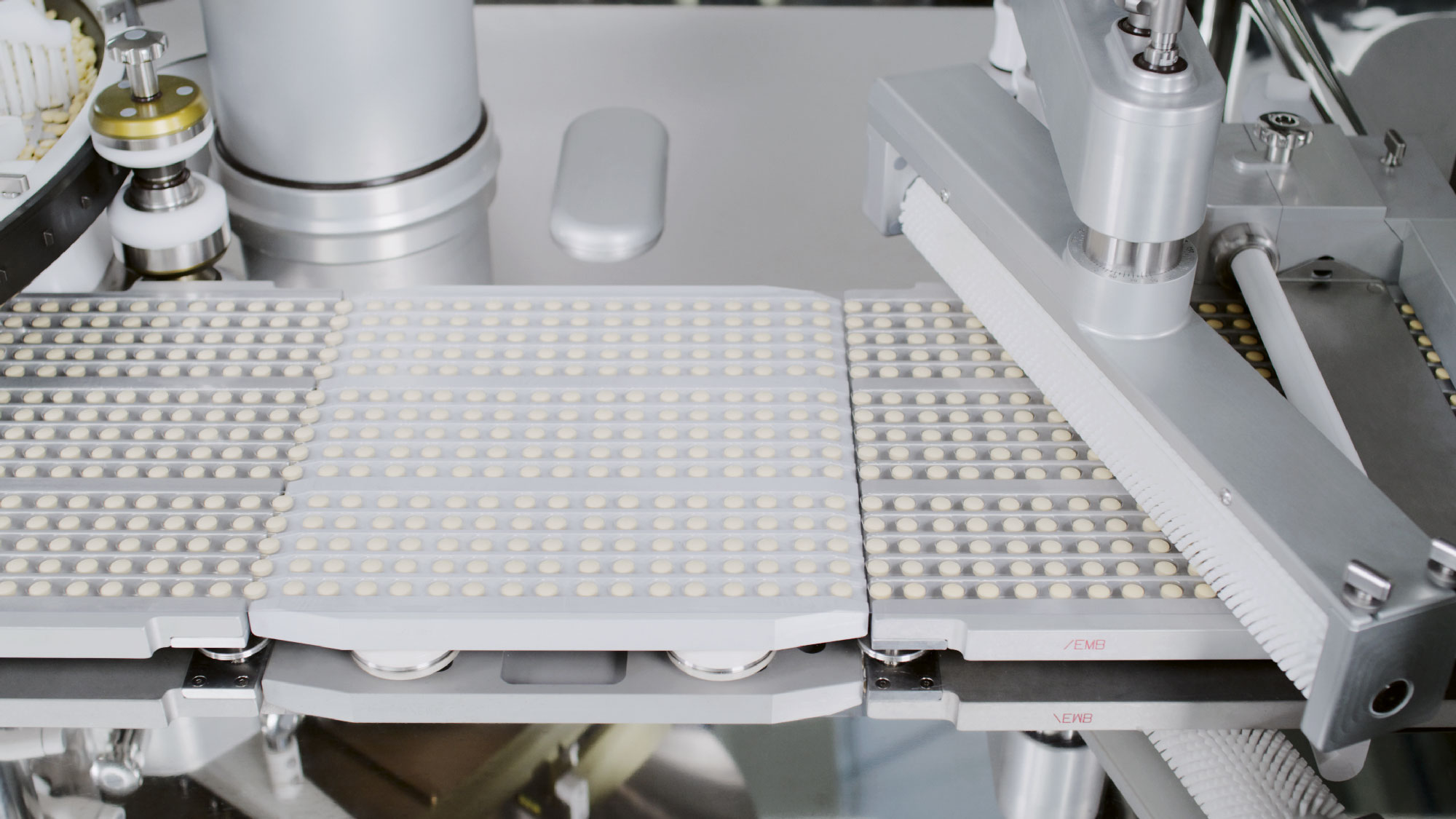

The production flow is always visible and under control thanks to transport via a toothed belt equipped with vacuum cups.
-
No ALU pocket size limits
Thanks to the unique Giant family sealing technology, there are no ALU pocket size limits while maintaining all the advantages that characterise roller technology.
-
Single operator changeover
The Giant5 Series reduces changeover and cleaning times in an unprecedented manner. A single operator can switch from one product and blister size to another.

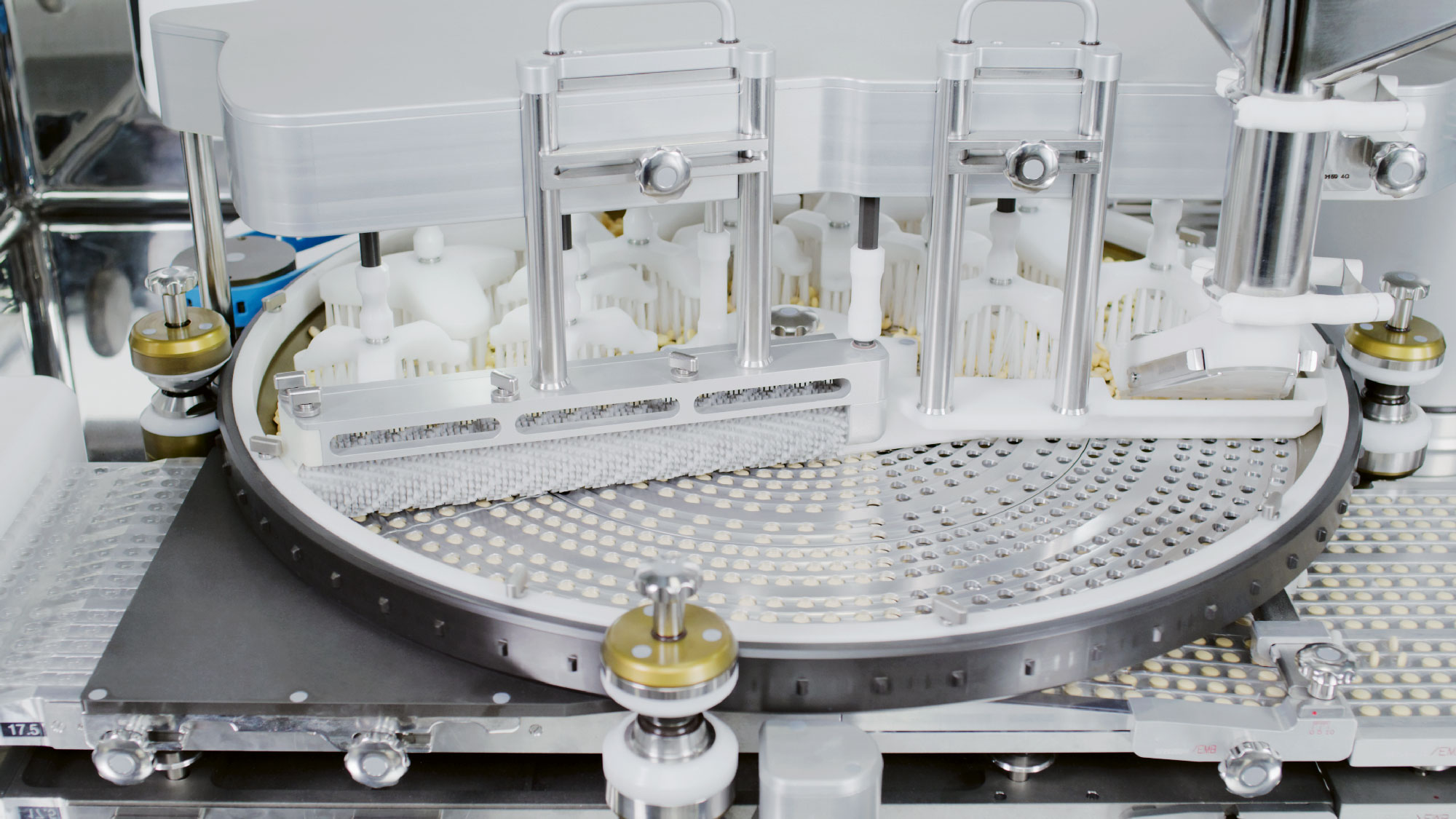

Feeding system reliability
The new Sombrero high speed version’s design meets production efficiency. This unique feeder features unparalleled efficiency, running with both thermoformable and ALU materials without being impacted by product tolerances and shapes.
Machine details
Technical information
| Technical Data Giant5-A96 | ||
| Blister output | Carton output | |
| Speed | 1,300 bl/min | 500 ctn/min |
| Blister dimensions (min/max) | Carton dimensions (min/max) | |
| Width | 30-90 mm | 35-95 mm |
| Lenght | 60-145 mm | 70-150 mm |
| Height | 3-12 mm | 15-90 mm |
