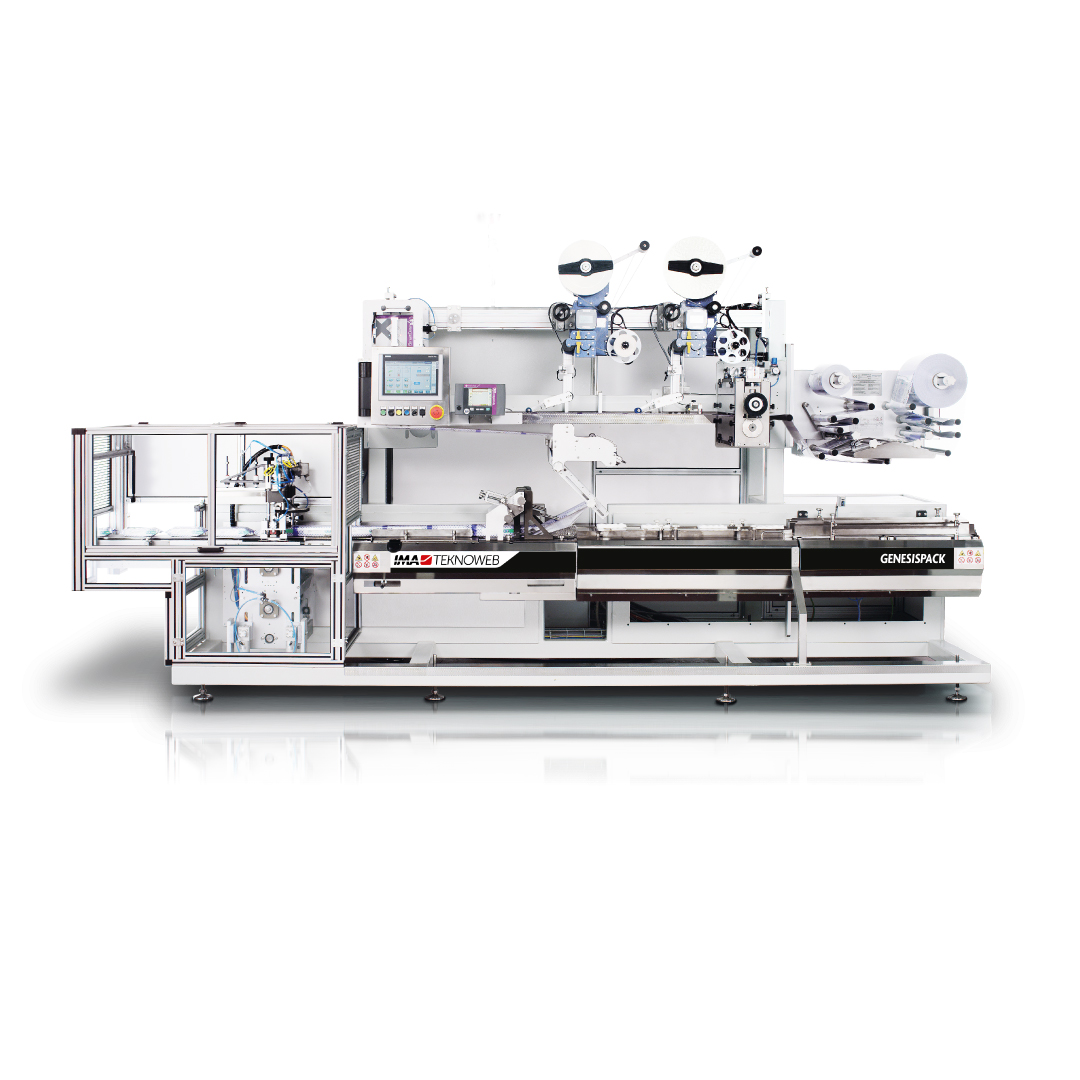

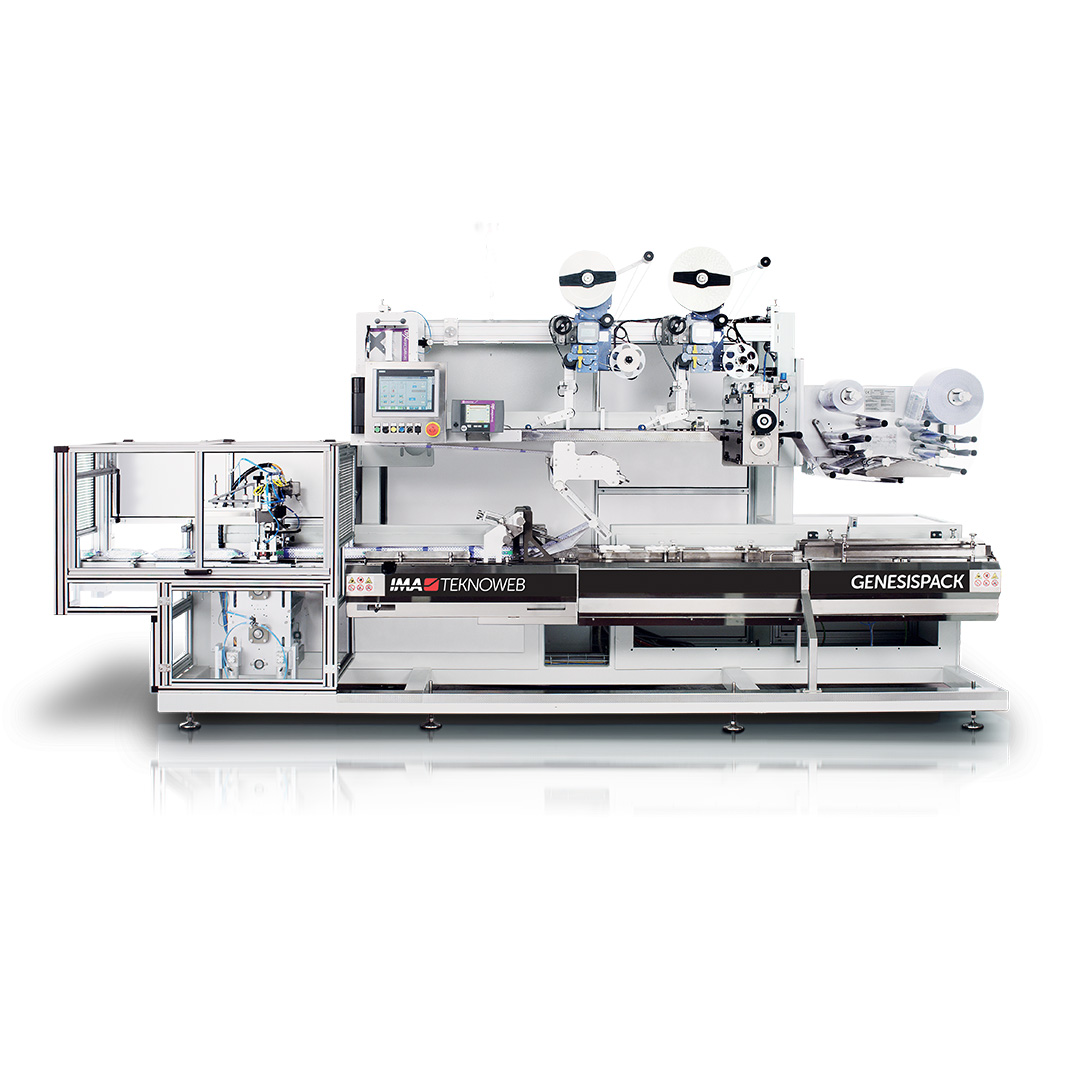

Genesispack Horizontal Form Fill and Seal
Machine overview
Built to succeed
First result of TEKNOWEB and IMA joint innovation, GENESISPACK is the answer for a technological and reliable wet wipe flow wrapper.
The production speed can reach up to 100 packs per minute, in a compact design that fits any space.

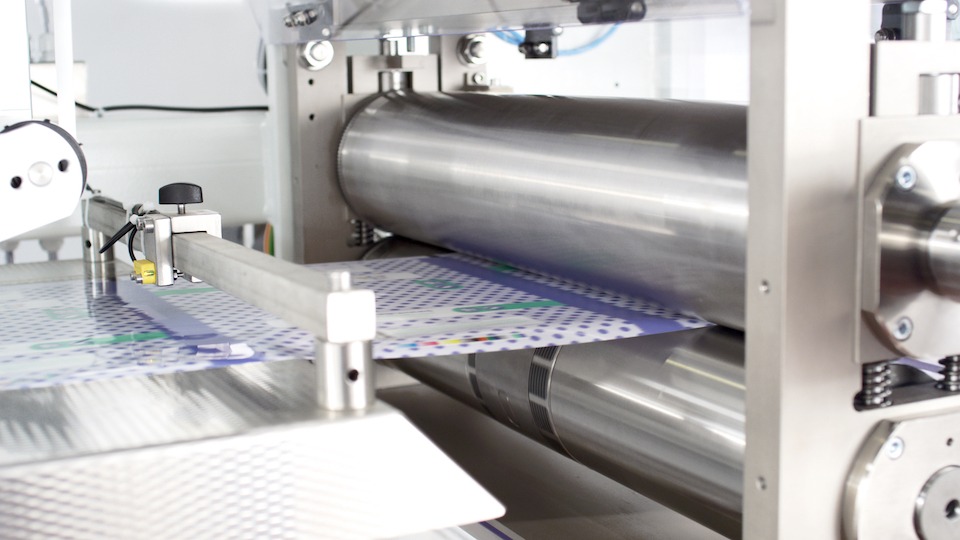

Scrap is reduced by a mark on mark automatic splice; GENESISPACK is equipped with a die cutter with lift function and a high-power Long Dwell sealing head, which guarantees optimal efficiency and very low waste.

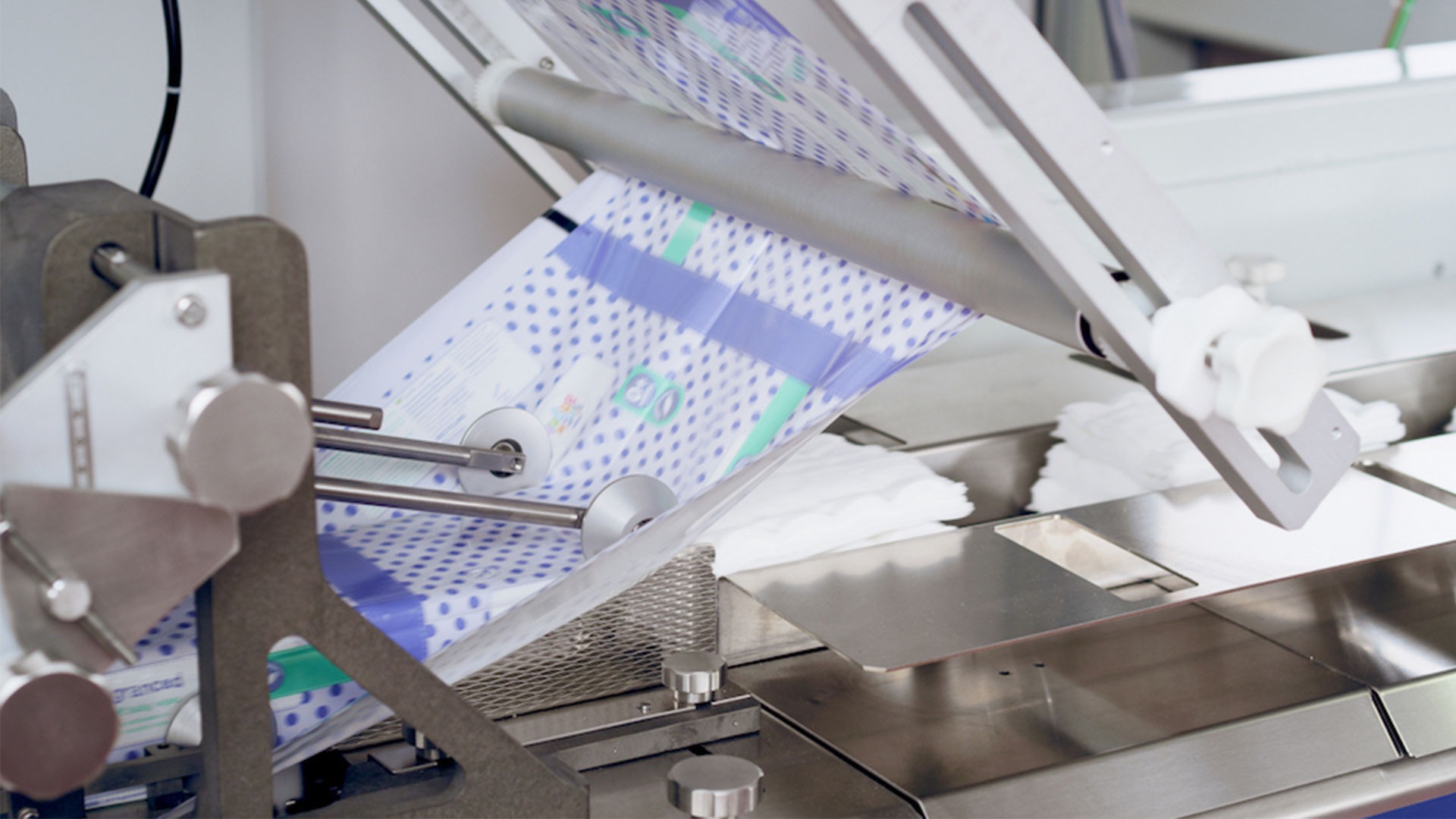

Longitudinal sealing by multiple sealing rollers with trim removal ensures greater cleanliness and better pack aspect
This flow wrapper features an integrated quality control (Vision System) for non-conformities: “no-product/no-bag” and “misplaced product” checks are always included.
Genesispack respects Pharma Good Manufacturing Practice (GMP) standards.
An integrated and continuous quality control system (Vision System) checks for non-conformities, with “no product/no-bag” and “misplaced product” procedures included.
Recipes are stored in HMI (Human Machine Interface), for quick answers and error-free operations.
Production plant
Teknoweb Converting
Machine highlights
-
Reduced scrap

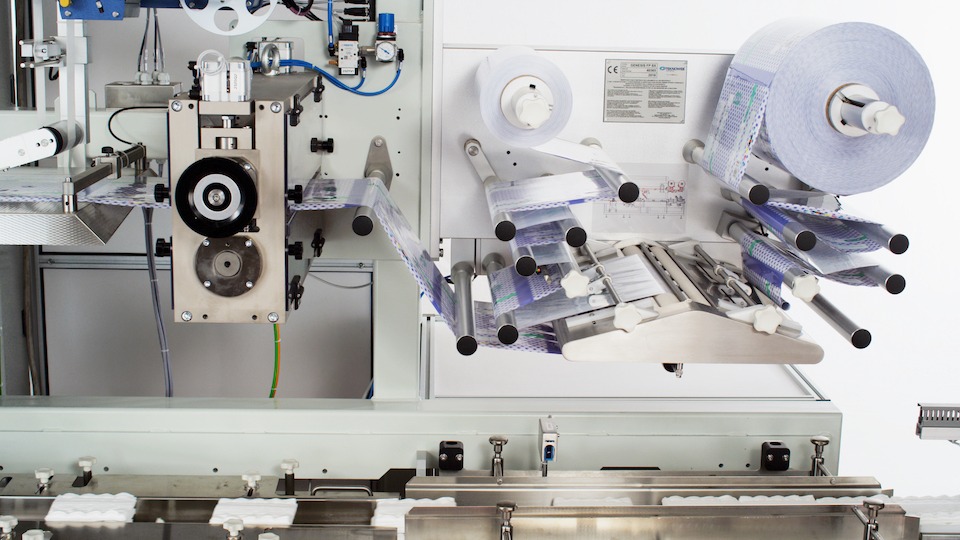

Mark on mark automatic splice for reduced scrap.
-
Stack placing
Phasing belts and lug chain to ensure stack placing pitch.
-
Easy clean
Pharma GMP (Good Manufacturing Practice) standards, easy clean.
-
Vision system
Full process, integrated quality control (Vision System) for non-conformities.
-
Continuous quality control
Continuous quality control, “no-product/no-bag” and “misplaced product” always included.
-
HMI
Recipes in the HMI (Human Machine Interface) for quick reactions and error-free operations.
High-efficiency
& very low waste
With a production speed up to 100 packs/min combined to high-efficiency and very low waste, GENESISPACK is a top class automation platform in a very space-saving design.
Product output options

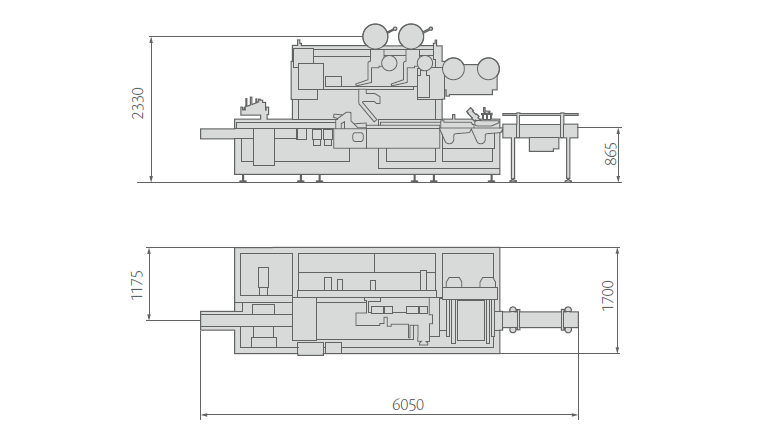

Machine details
Technical information
| TECHNICAL DATA GENESISPACK | |
|---|---|
| Design speed | up to 100 packs/min |
| Operating speed | min 100 packs/min | max 80 packs/min with gusset |
| Linear speed (m/minute) | 35 |
| Motor | Full servo |
| Roll diameter | up to 350 mm |
| Roll width | up to 500 mm |
| Stack length | min 100 mm | max 320 mm |
| Folded wipe width | min 60 mm | max 120 mm |
| Stack height | min 5 mm | max 80 mm |

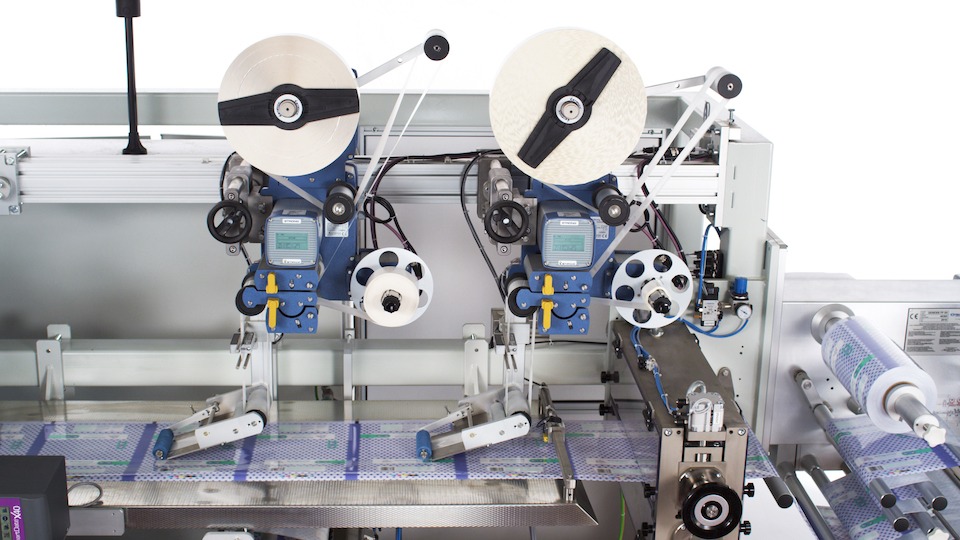

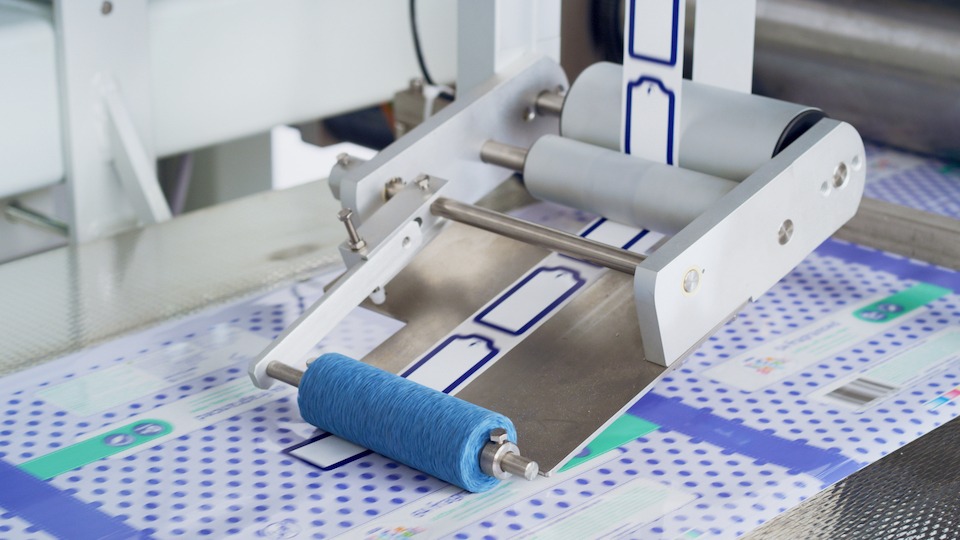

| Number of labellers | std 2 | opt 3 |
| Film splice | Automatic |
| Transversal sealing head | Long Dwell Technology |
| Efficiency (%) | > 95% |
| Waste (%) | < 2% |
| Energy absorption | 18 KW |
