Futura Wet wipes making

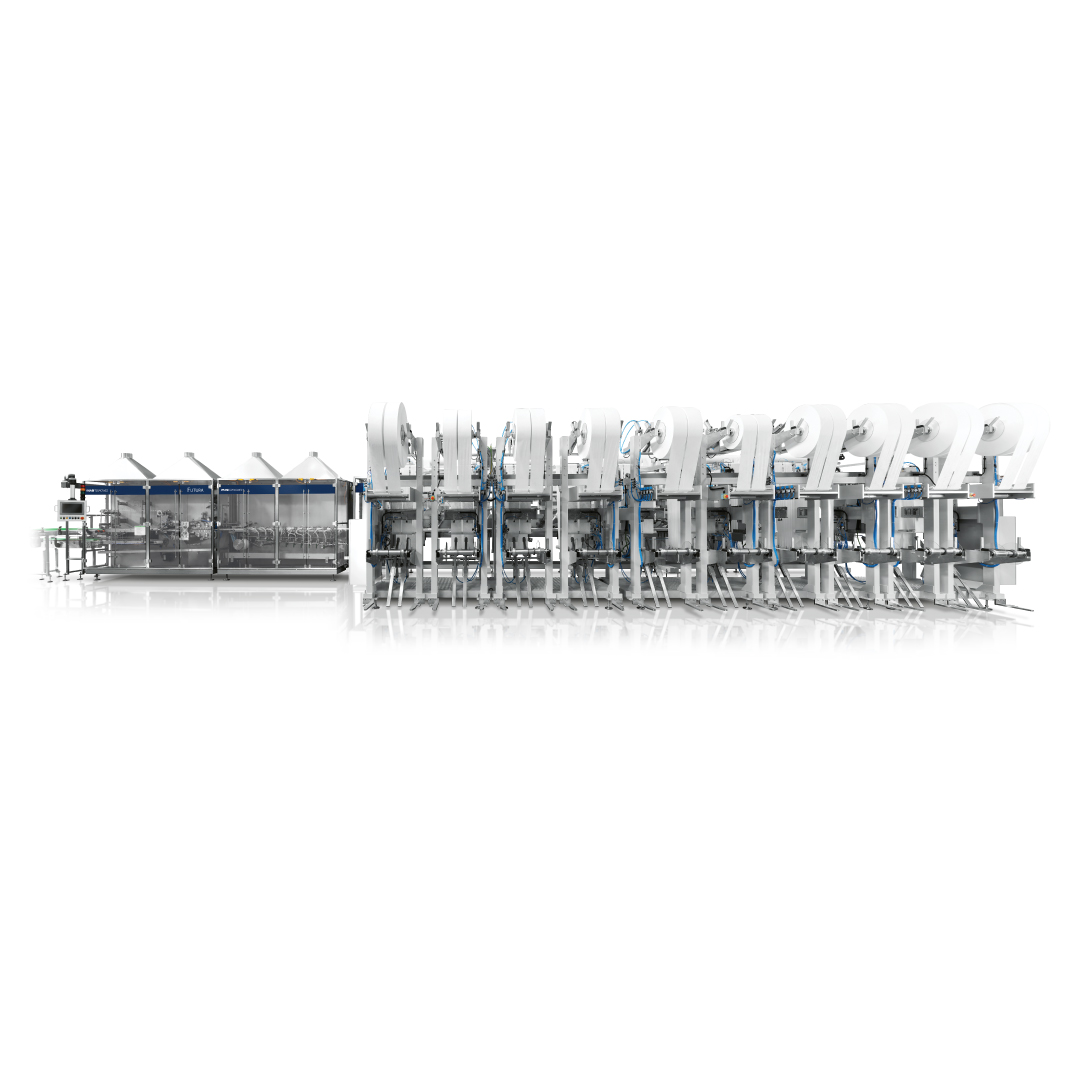

Machine overview
Fast and precise
FUTURA is a wet wipe converting line for length-folded products, characterized by ultimate versatility.
By selecting the right options from its catalogue, FUTURA can match any requirement based on speed, product formula or even operation habits or constraints. It can be configured with a wide range of lanes, from 12 up to 100, and with pinch cutting (up to max 24/25 lanes) or roto orbital saw.
FUTURA can work with precut rolls or semi-jumbo, automatic splice, zero speed splices.
It can have integrated CIP, multiple folds. You can add vision quality systems, multiple wetting stations, specific features to handle delicate materials like flushable paper based nonwovens.
Production speed goes up to 720 cuts/minute (for low lanes number) with any type of substrate, even the most delicate paper-based flushables.
FUTURA can handle wipes width up to 380 mm, and even beyond with specific customization.
Production plant
Teknoweb Converting
Machine highlights
-
Versatility
High versatility for number of lanes (6-100), unwinder type, splice technology, features able to process specific products/materials (flushables or no plastic wipes)
-
Strict sanitary design
Strict sanitary design. No compromise on risk to have product contaminated.
-
Speed
Production speed up to 720 cuts/min with any type of substrate, even the most delicate paper-based flushables.
-

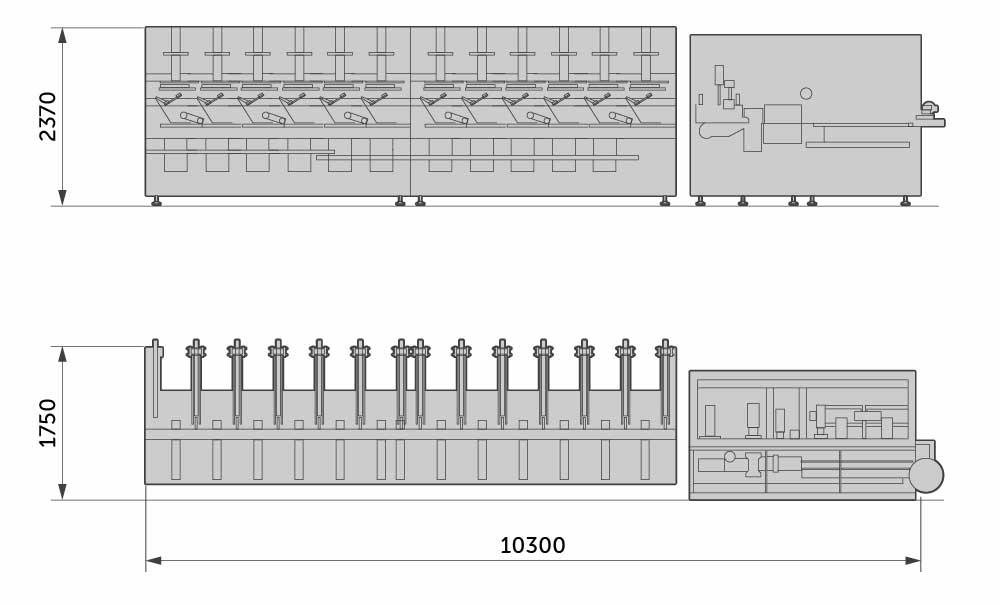

Streamlined layout
Streamlined layout. Reduced footprint for easiness of operation. No thrills, but effective.
-
More packaging option
Plurality of packaging options (flow-wrapper) in accordance with the needs of volumes.
-

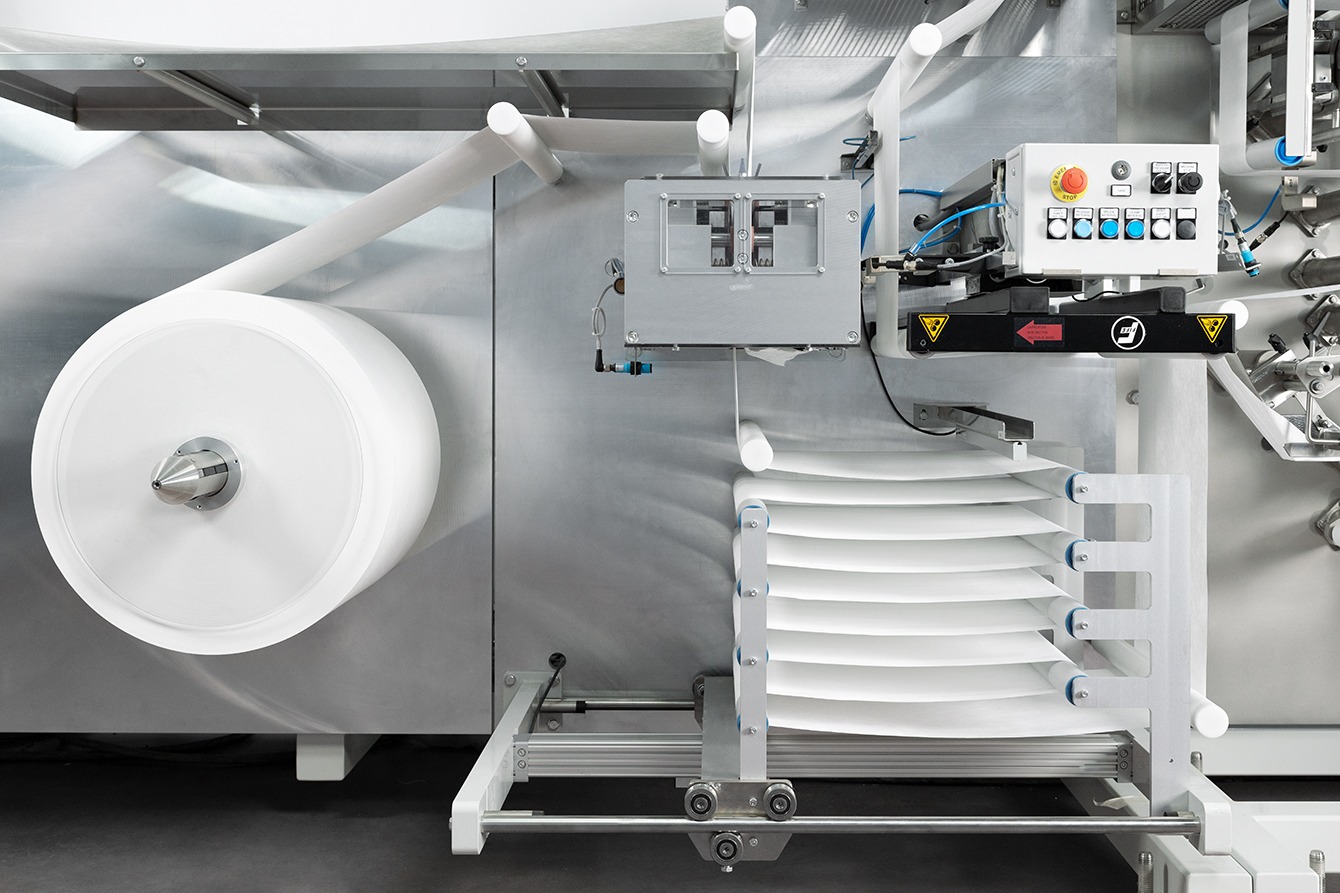

Different unwinder options
Different unwinder options (single, double or semi-jumbo roll) and features (autosplice, zero speed splice).
Production speed

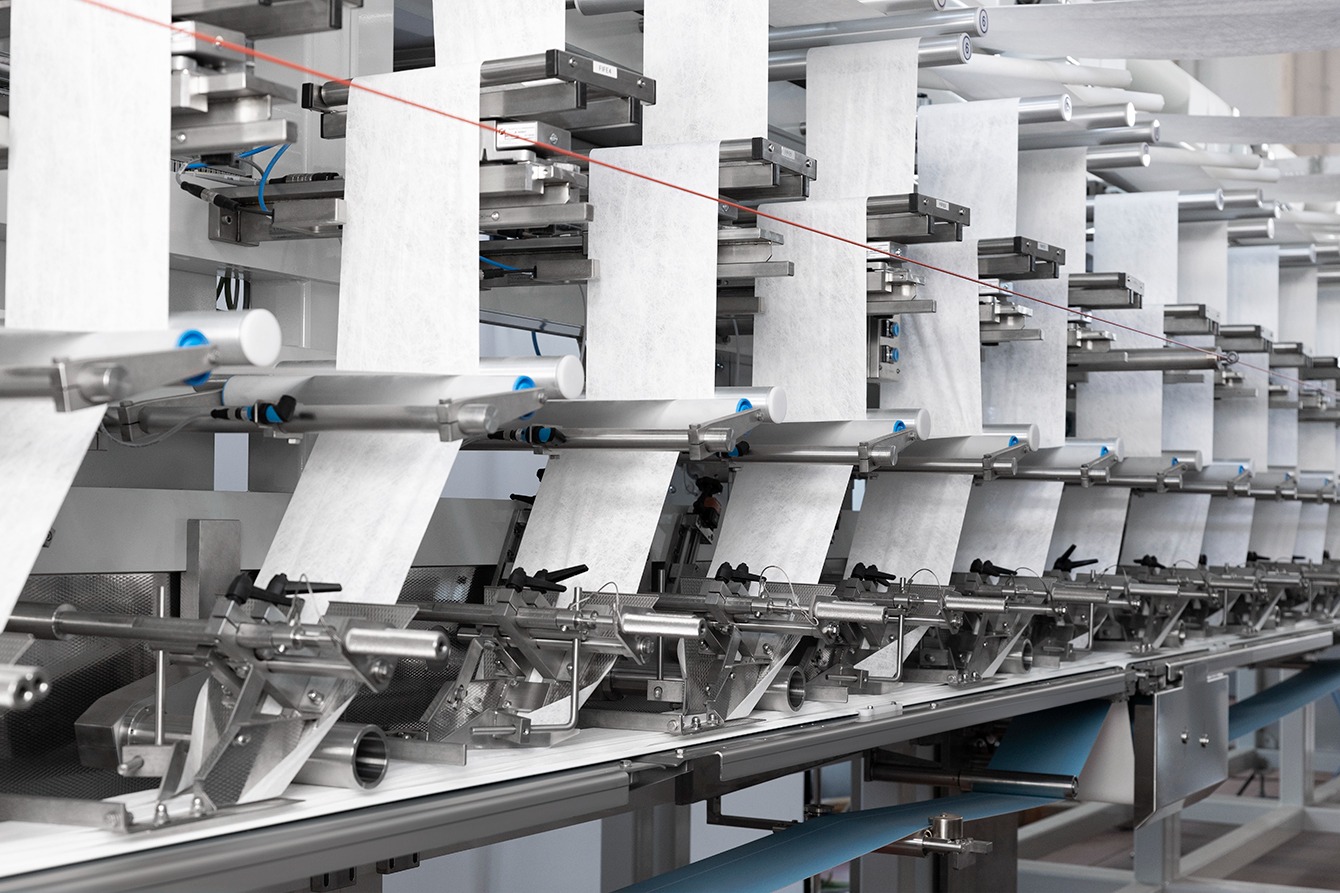

FUTURA features from 12 up to 100 lanes ensuring a production speed up to 720 cuts/minute with any type of substrate, even the most delicate paper-based flushables or no-plastic nonwovens
ATEX compliant

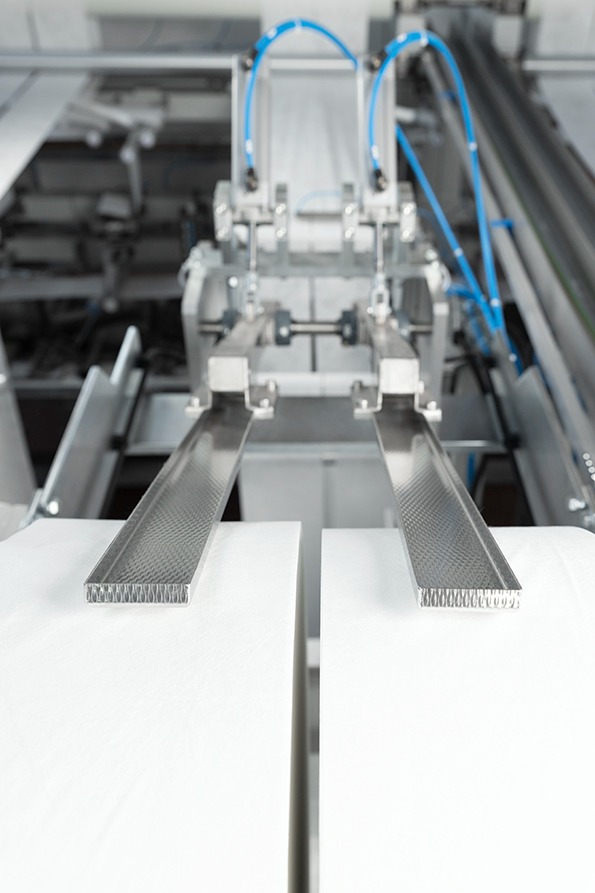

The totally configurable wetting system allows:
• one or more sanitary pumps with dedicated flowmeter, for perfect lotion dispensing on each wipe
• adjustable width or fixed width wetting bars, one per lane, to minimize lotion waste
• free choice of pre-fold wetting, post-fold wetting or both together, depending on substrate type.
FUTURA can be provided compliant to ATEX (explosion-proof) standards, to safely produce and handle wet wipes soaked in Isopropyl Alcohol (IPA) or any other flammable liquids.

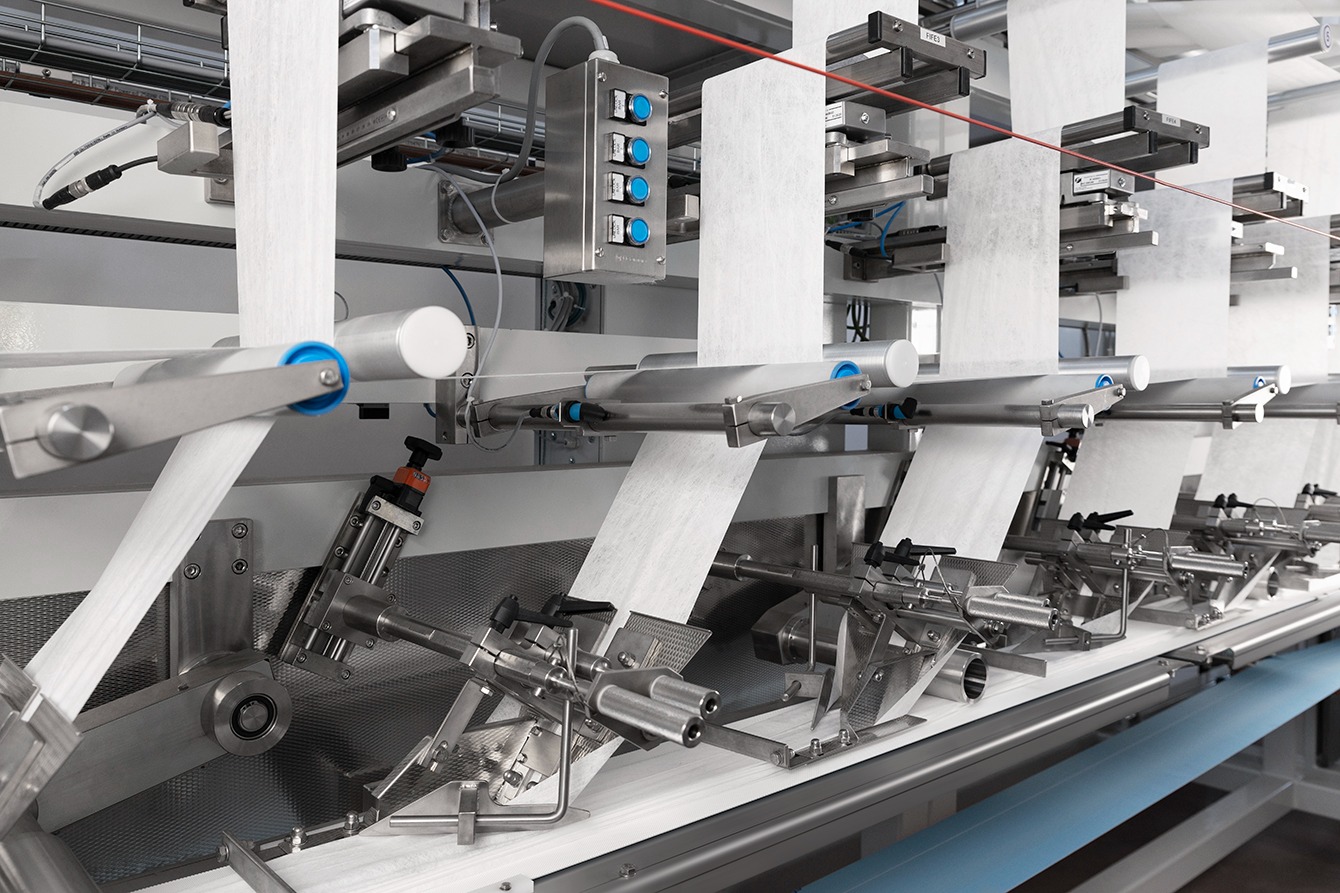

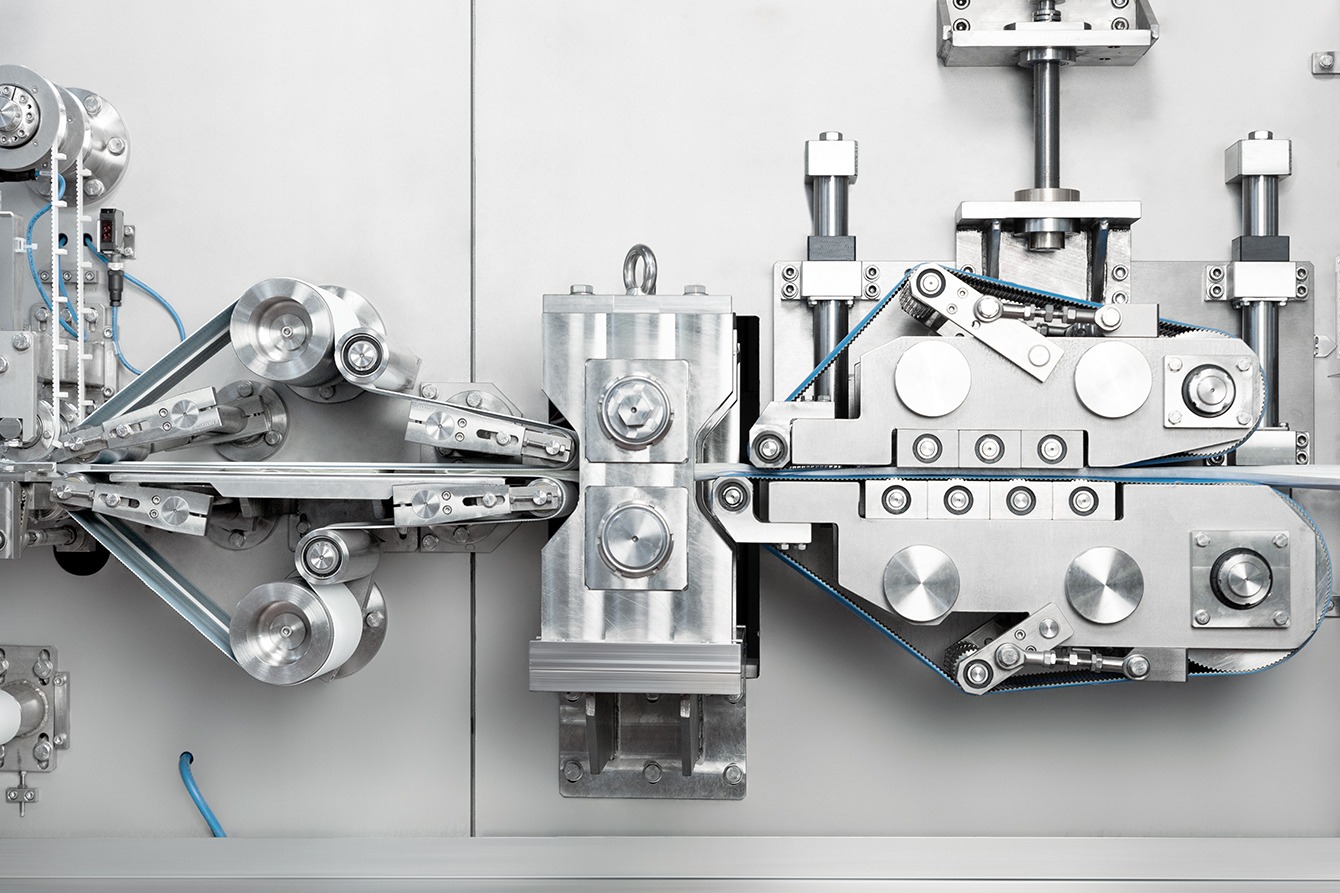

Some specific features (timing belt for die cut feeder belt, easy change folding plows, intermediate pressing belt) allow to reach performances which are the best in the market.
A plurality of packaging options (flow-wrapper) are available, in accordance to speed and volume needs.
This converting line is equipped with an extensive use of automation, in order to retrieve machine setting by HMI (Human Machine Interface).

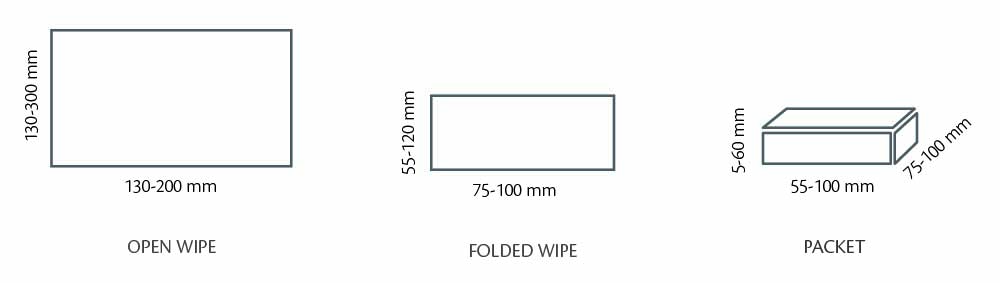

Product output options

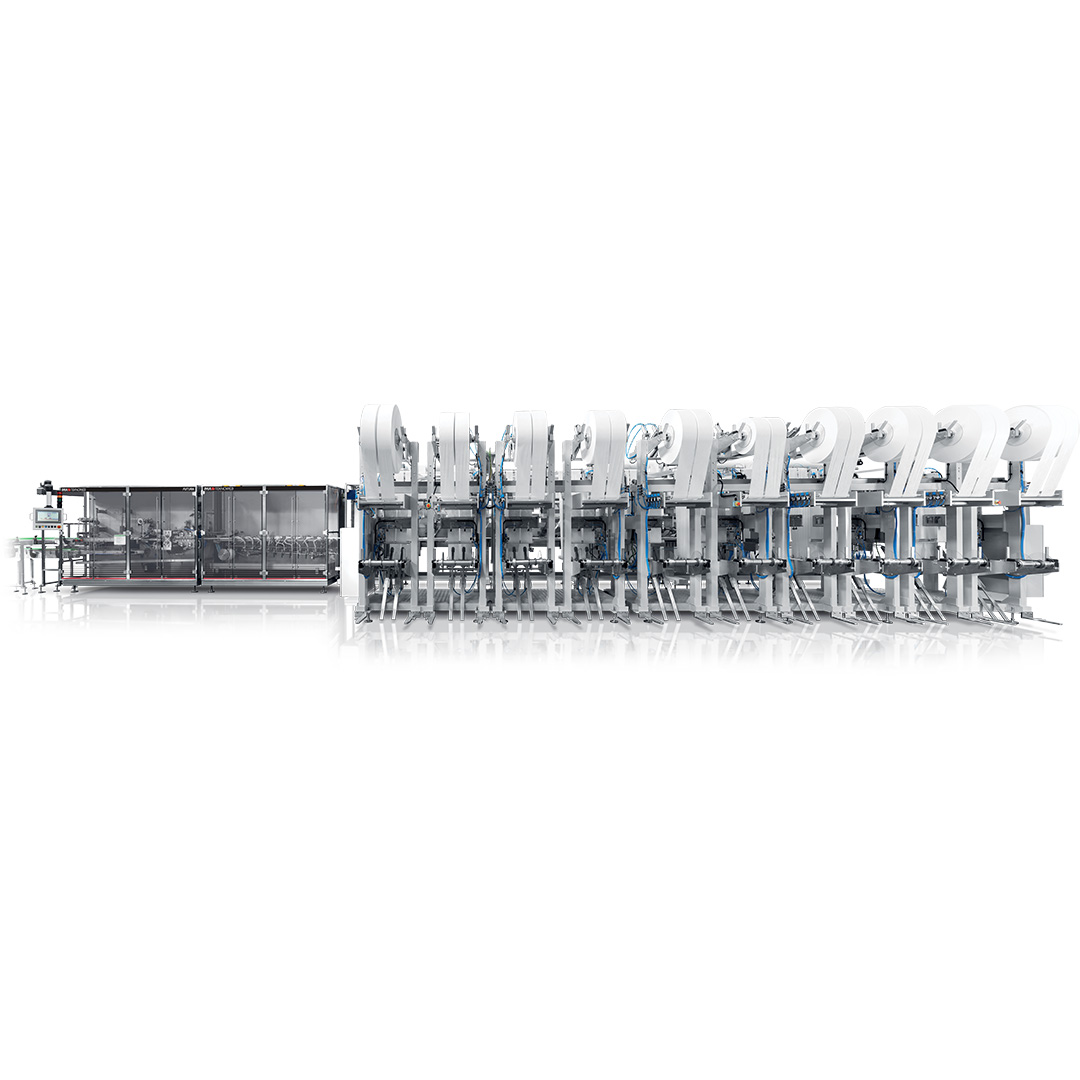

Machine details
Technical information
FUTURA | FUTURA | |
|---|---|---|
| Design speed (wipes/min) | up to 19.200 | up to 48.000 |
| Operating speed (wipes/min) | up to 18.000 | up to 48.000 |
| Cutting speed (clips/min) | up to 720 | up to 600 |
| Stacking speed (stacks/min) | up to 160 | up to 300 |
| Linear speed (m/min) | 120 | 160 |
| Number of lines | up to 25 | over 24, up to 100 |
| Motor | Full servo | Full servo |
| Roll diameter (mm) std | opt | 1200 | 1500 | 1200 | 1500 |
| Roll width (mm) precut min | max | opt | 130 | 320 | 380 | 130 | 320 | 380 |
| Roll width semi-jumbo (mm) min | max | 800 | 1200 | 800 | 1200 |
| Stack length (mm) min | max | 100 | 300 | 100 | 300 |
| Folded wipe width (mm) min | max | 80 | 150 | 80 | 150 |
| Interfolding | Yes | No | Yes | No |
| Fold type | Z, C, W, modified V | Z, C, W, modified V |
| Reels splice std | opt | Manual | Automatic | Manual | Automatic |
| Clip height (mm) min | max | 5 | 25 | 25 | 80 |
| Stack height (mm) min | max | 5 | 80 | 25 | 80 |
| Count min | max | 5 | 120 | 25 | 120 |
| Quantity of lotion (%) min | max | 200 | 400 | 200 | 400 |
| Efficiency (%) precut rolls | semi-jumbo | > 90 | > 95 | > 90 | > 95 |
| Waste (%) | < 3 | < 3 |
