FTB WA Series Tray packing
Machine overview
Space-saving design for diverse tray packing needs
The FTB WA Series is a range of wraparound forming and filling machines for display boxes. Ensuring total content wraparound with zero tolerance, these compact machines handle a wide range of products, even those with extremely small dimensions.
Wraparound display packaging machine from flat blanks, FTB WA Series is a range of fully automatic tray packers for a wide range of products (cartons, sleeves, rigid containers, sanitizing /detergent tablets, etc.), highly appreciated across several market sectors for its key features, including chocolate and confectionery, pharma and personal care.

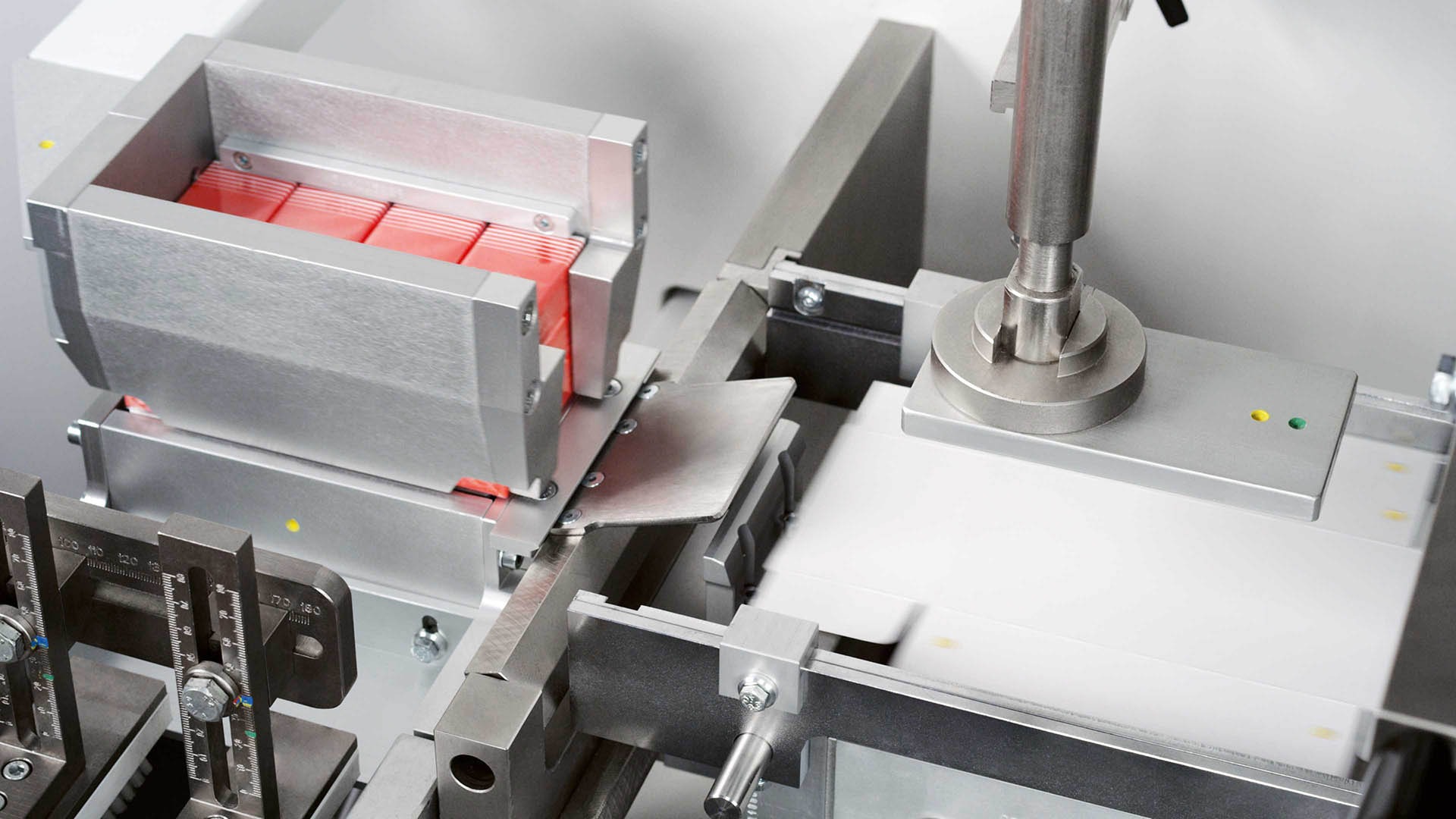

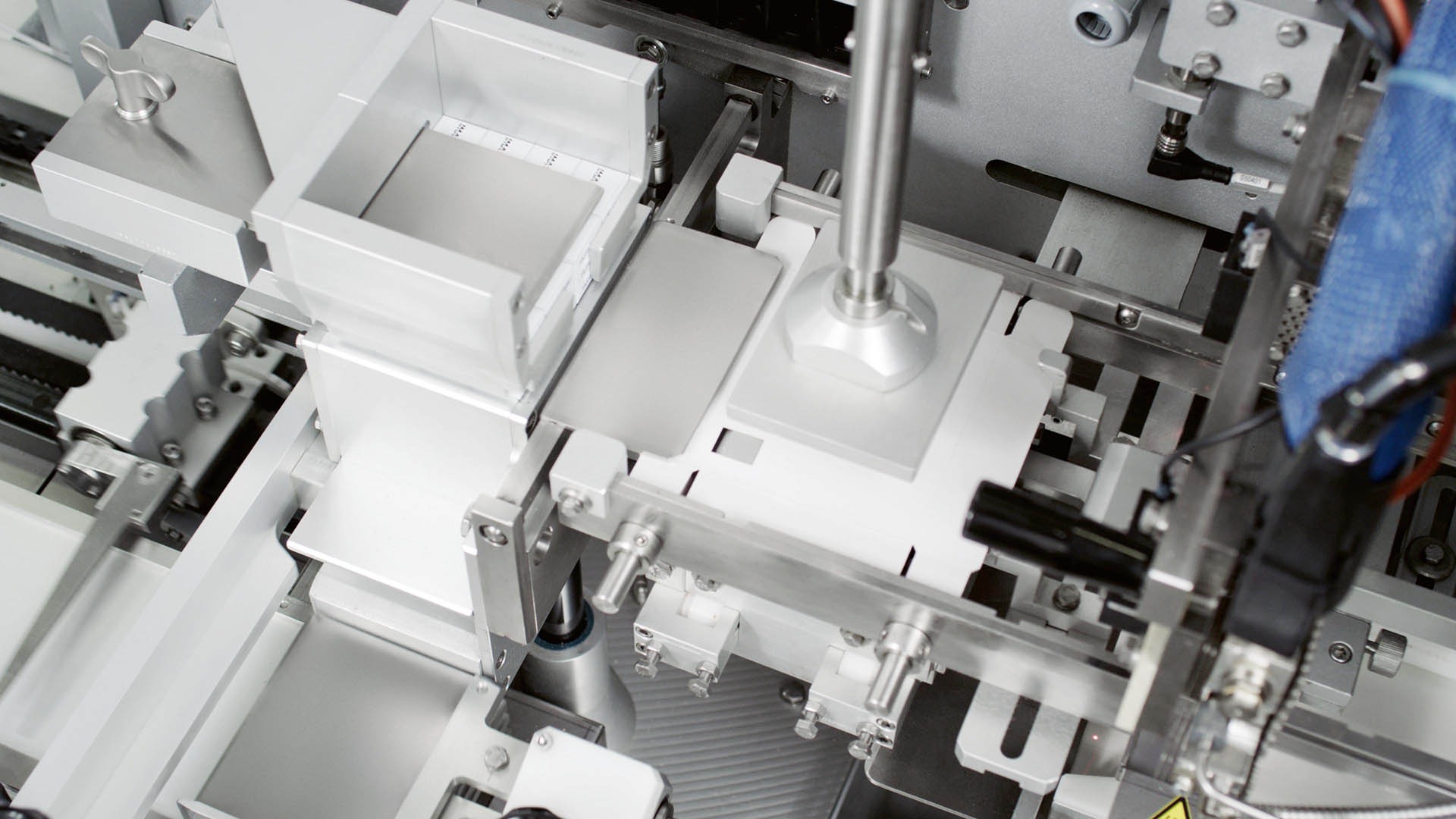

Wraparound technology enables the tray to be formed directly around the bundle with zero tolerance between product and tray. This means a reduction in material consumption, while achieving significant annual savings in logistic and shipping costs. Last but not least, the quality: a tray that fits perfectly around the product looks better on the shelf and facilitates its wrapping, when needed.
Production plant
IMA Gima
Machine highlights
-

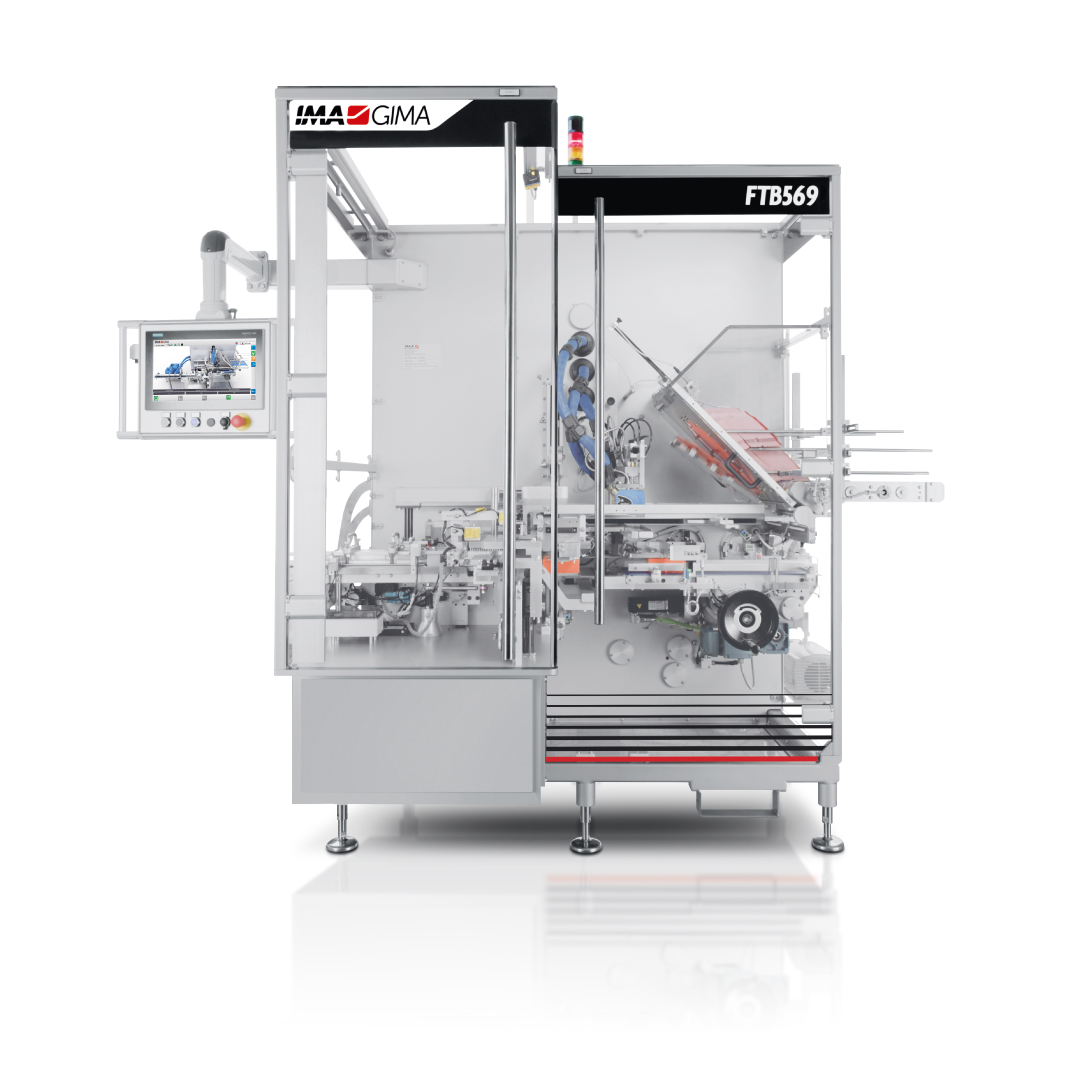

Compact design for a small footprint
The FTB WA Series models are very compact and easily accessible.
-
Many products for different markets
Thanks to the versatility of these tray packers, different kinds of products can be managed on the machines, including cartons, sleeves, wallets, sticks, rigid containers, bouillon cubes/tablets.
-
Gentle handling
Thanks to the servo-driven movements and other tailored devices, it is guaranteed extremely smooth product handling performed with maximum care and safety.
-
Flexibility and high efficiency
The Series is designed to provide quick size change, switching from one format to another by replacing just a few parts.
Machine details

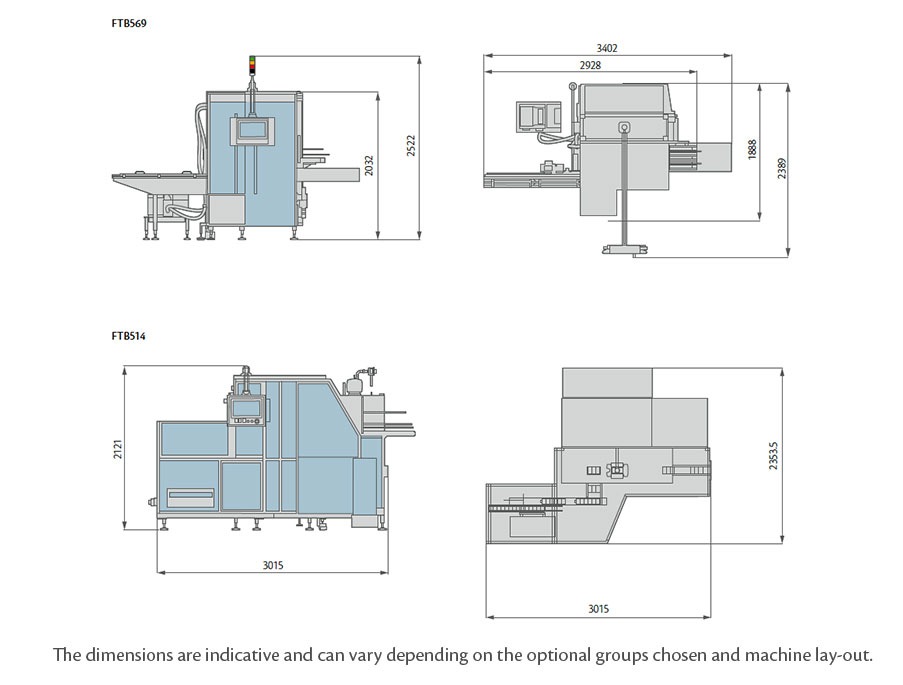

Technical information
| FTB WA SERIES TECHNICAL DATA | ||||
| SERIES MODEL | LENGTH (L) | WIDTH (W) | HEIGHT (H) | PRODUCTION SPEED |
| FTB569 | 80-200 mm | 55-200 mm | 12-100 mm | Up to 60 ppm |
| FTB514 | ||||
