FP40 Unit dose Form, Fill and Seal
Machine overview
High-efficiency modular vertical fill & seal machine for unit-dose packaging

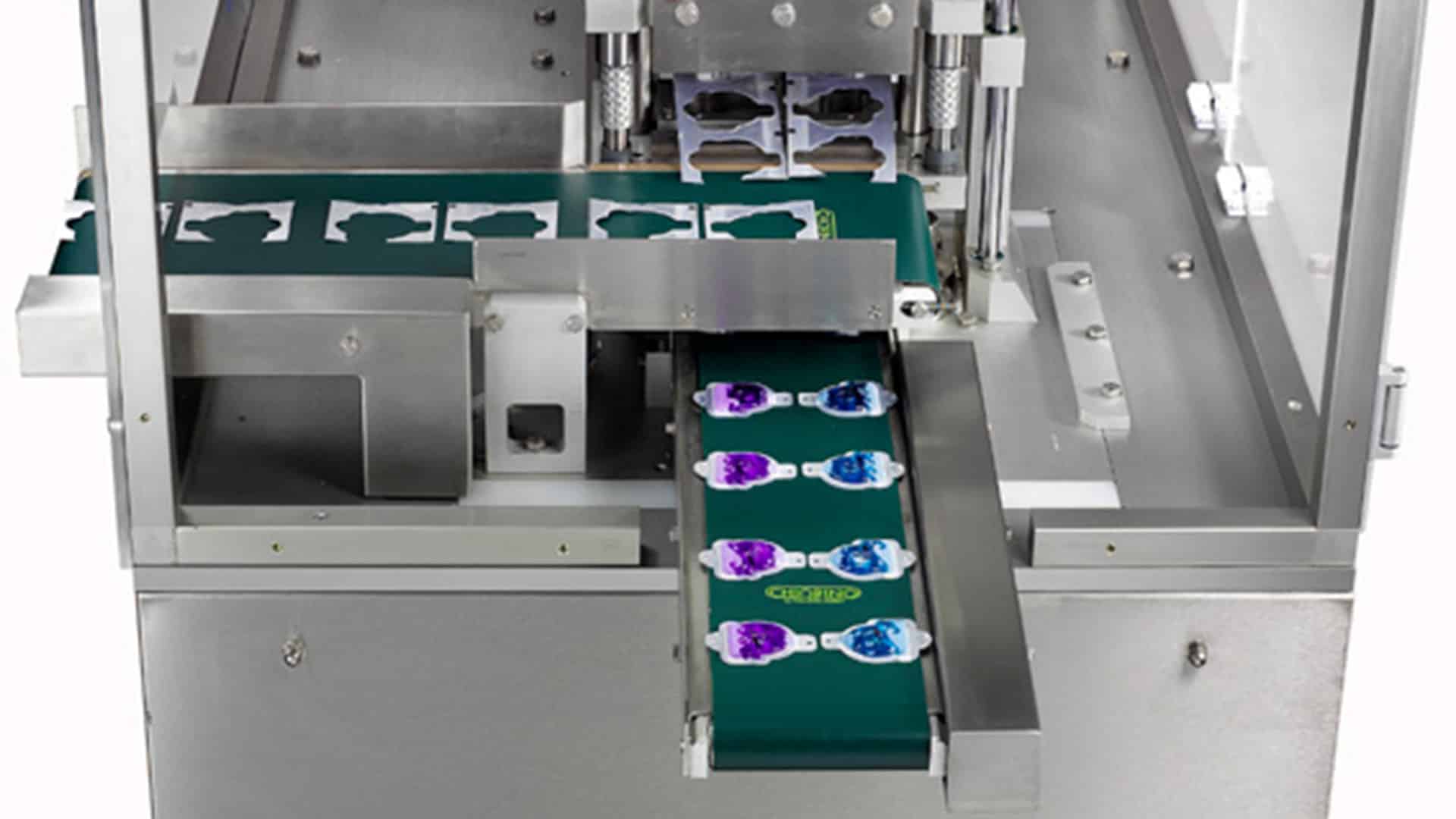

The FP 40 is a versatile modular vertical thermoform, fill & seal machine designed for efficient unit-dose container production. It supports continuous band formation using Sarong technology, accommodating unit-dose packs, custom shapes, peelable and squeezable opening systems, as well as packs with inserts, caps, or sticks.
The FP 40 minimizes material waste, especially for standard packs, and optimizes usage even for special shapes through precise geometrical alignment. It combines traditional mechatronics with GMP compliance, featuring separate processing and mechanical areas, stainless steel components for easy cleaning, and straightforward maintenance.
Operating on dual parallel lanes, the FP 40 is ideal for high production in both food and pharmaceutical packaging environments. It supports laminar flow for maximum sanitation. Additionally, the FP 40 offers quick tooling changeovers, allowing hot mold swaps and efficient cleaning, reducing downtime significantly.
Production plant
IMA Safe
Machine highlights
-
Versatility
The FP 40 can create diverse packaging types, enabling customization for different products, such as pharmaceuticals and food.
-
Waste optimization
For standard packs, waste is almost negligible. The machine’s ability to geometrically optimize special shapes further minimizes material waste.
-
GMP
Traditional technology meets innovation the FP 40 combines traditional mechanics with modern mechatronics and Good Manufacturing Practice (GMP) standards.
-
High output production
Capable of high production, the FP 40 operates efficiently on two parallel lanes.
-
Clean process
Designed for sanitary conditions, the FP 40 is suitable for food and pharmaceutical packaging. It can function under a laminar flow environment to maintain high hygiene levels.
-
Quick and easy tool changeover
Fast mold changes can be performed while the machine is still hot. The pump group, mounted on a trolley, enables quick product switches, significantly reducing cleaning time.
Technical information
| FP 40 TECHNICAL DATA | |
| REEL WIDTH | Max. 320 mm |
| OUTER DIAMETER | Max. 550 mm |
| CORE DIAMETER | 76 mm |
| PITCH | 260 mm |
| FORMING DEPTH | Max 20 mm on each side |
| SPEED | 35 cycles/minute |
