Foldwrap Dosing and wrapping
Machine overview

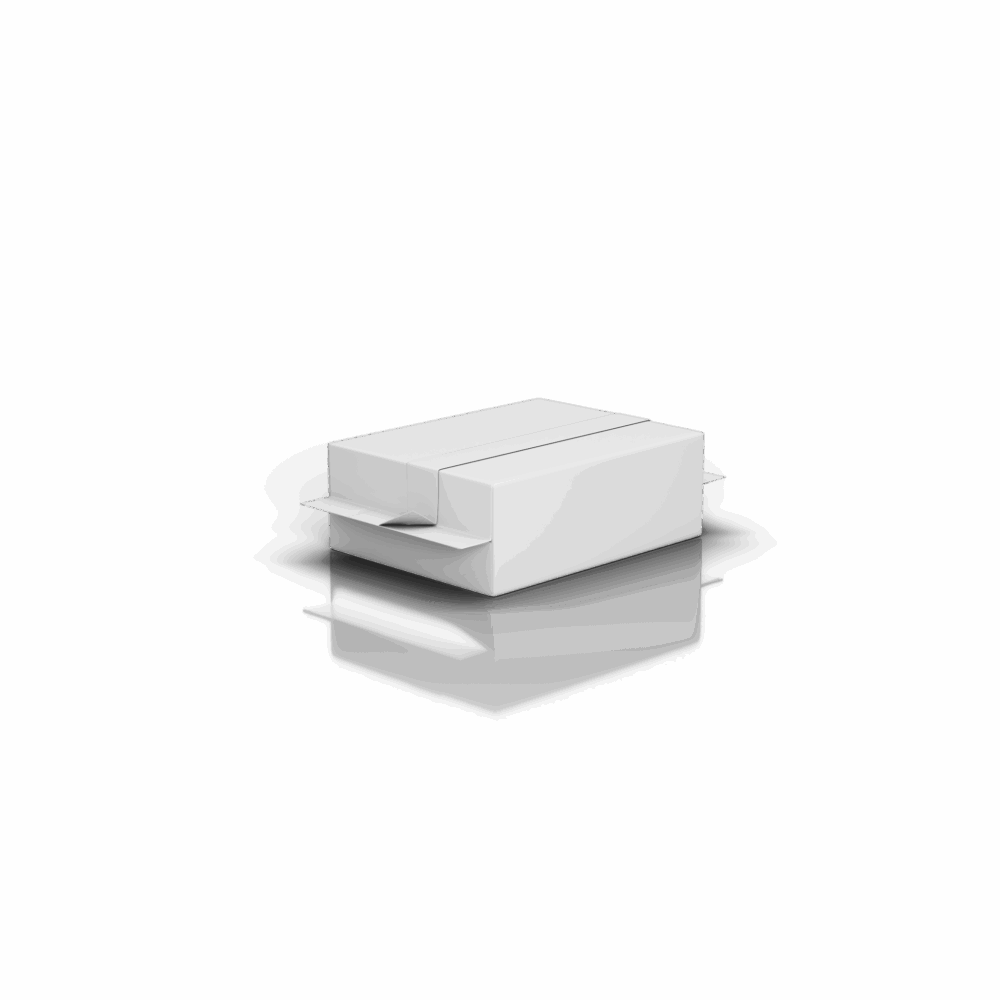

Unmatched product protection, tamper-evident and easy-opening
Ideal for butter, margarine and pasty products, the FoldWrap 1800 is a fully automatic moulding, wrapping and sealing machine performing hermetic sealed packets, ensuring extremely gentle product handling and excellent dosing accuracy (s ≤ 0,4 g for Qn = 100 g). Within the dosing range between 100 and 400 g this machine offers full format flexibility.
The FoldWrap 1800 comes with a nominal output of 140 packets/min and is available as right- and left-hand version.
Production plant
IMA Benhil
Machine highlights
-
Eco-friendly
Uses new materials with higher recyclability than conventional ones, reducing packaging material up to 47%
-
Tamper evident
Provides clear, visible evidence if the product has been tampered with, ensuring consumer safety and trust.
-
Aroma and product protection
Maintains product quality by preserving aroma and shielding oxygen-sensitive items.
-
Hermetic and hygienic
Hermetically sealed to block air flow, reducing the risk of bacterial contamination.
-
Extended shelf life
Reducing waste and enabling wider distribution without compromising product quality.
-

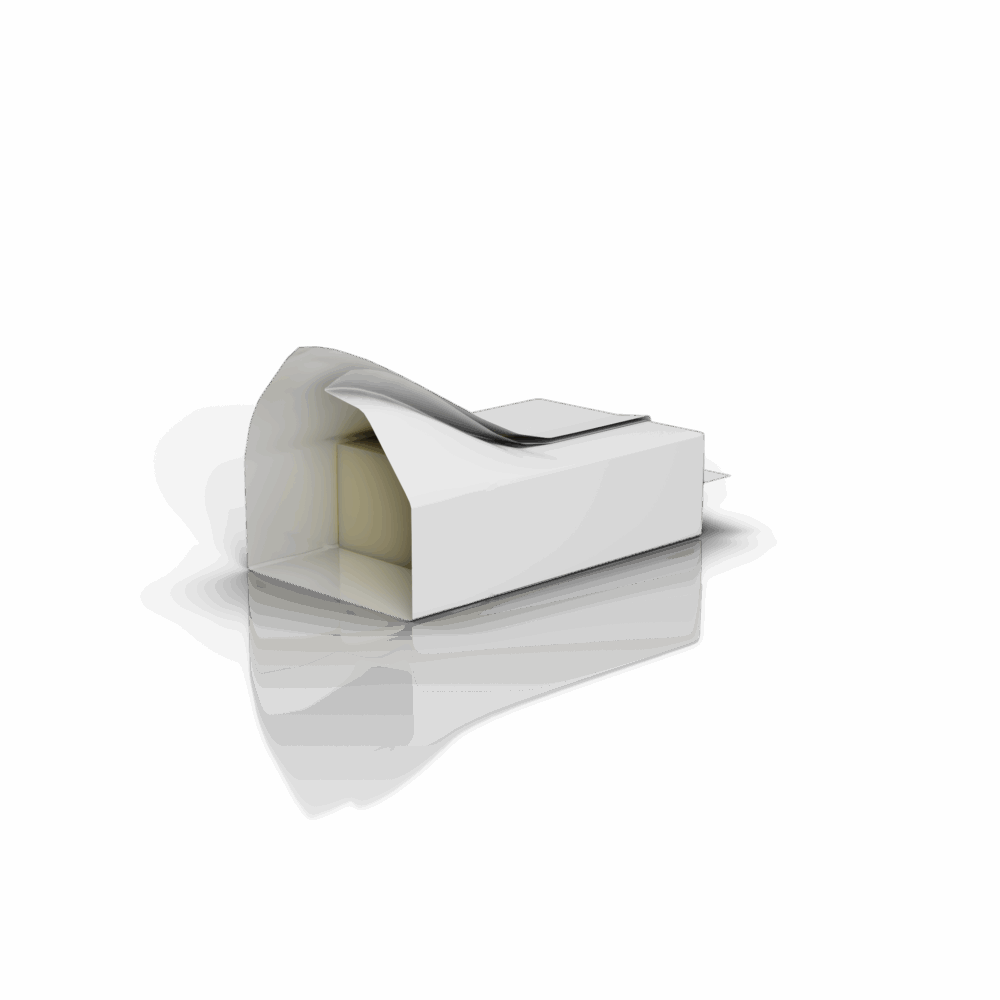

Intuitive opening
Easy-to-open packaging enhances consumer experience and boosts product acceptance.
-
Grease-free handling
Packaging designed to keep fingers clean and grease-free during opening.
Machine details
Technical information
| FOLDWRAP 1800 TECHNICAL DATA | |
| Machine models | FW1800 |
| Product | Butter, margarine and other pasty products |
| Dosing range | 100 – 400 g |
| Nominal output | Up to 130 ppm |
| Filling accuracy | Better than s = 0,4 for Qn = 100 g |
| Product feed | Direct feed from the process plant, trough with feeding augers |

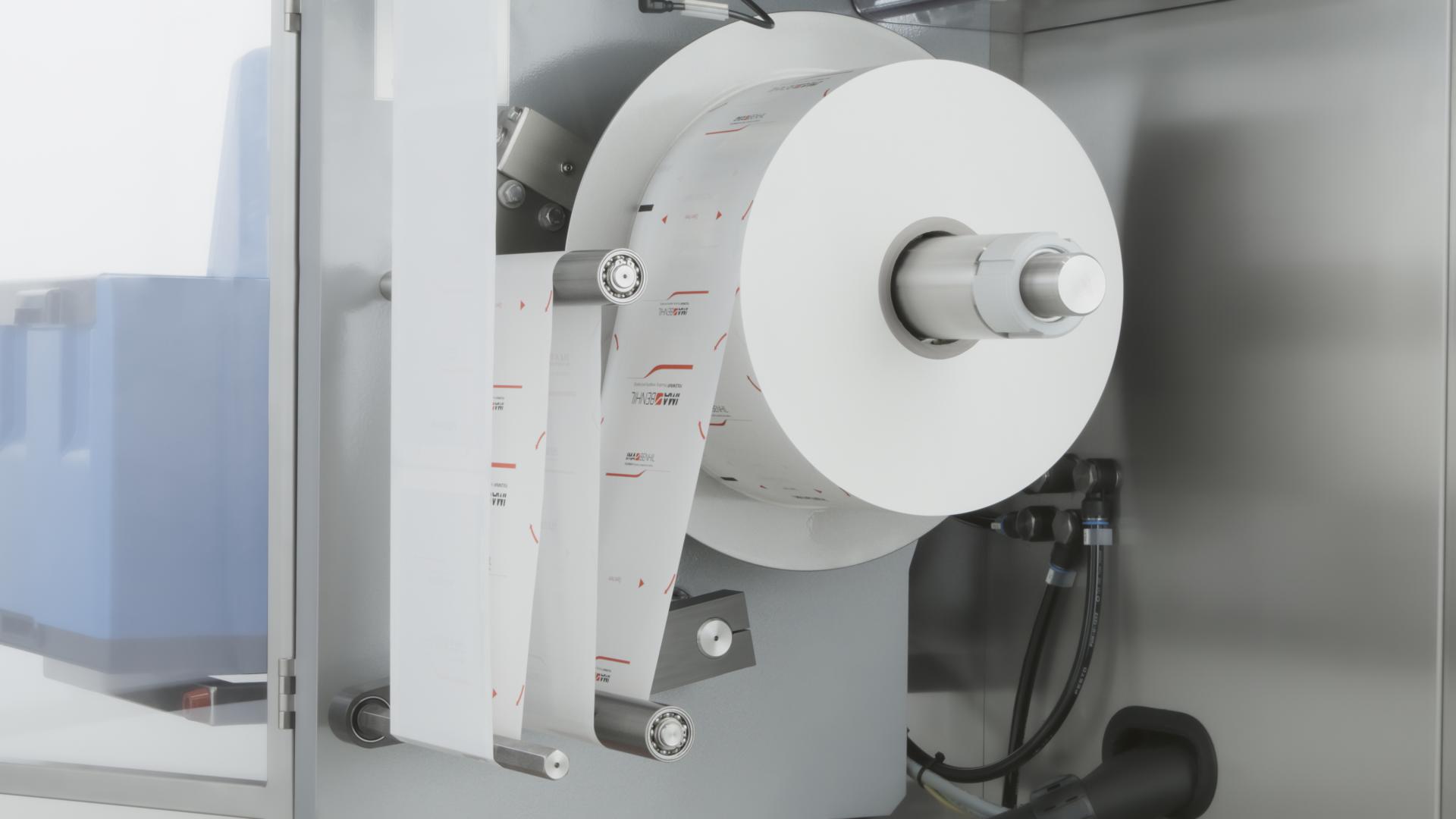

| Wrapping material | Parchment, aluminum laminated foil, PE/PP mono foils, other materials on request |

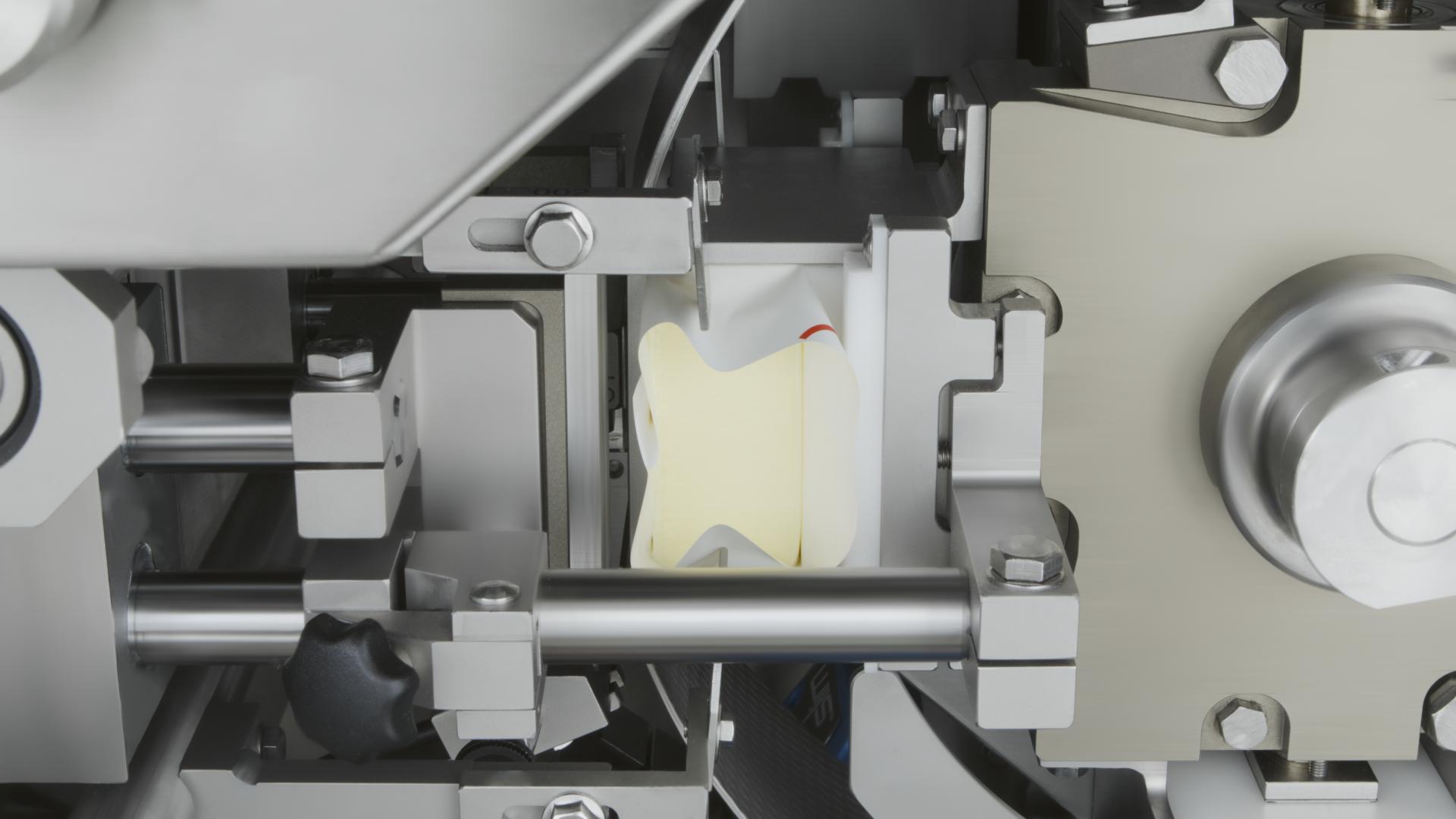

| Folding and shapes | Patented fold wrap sealing |

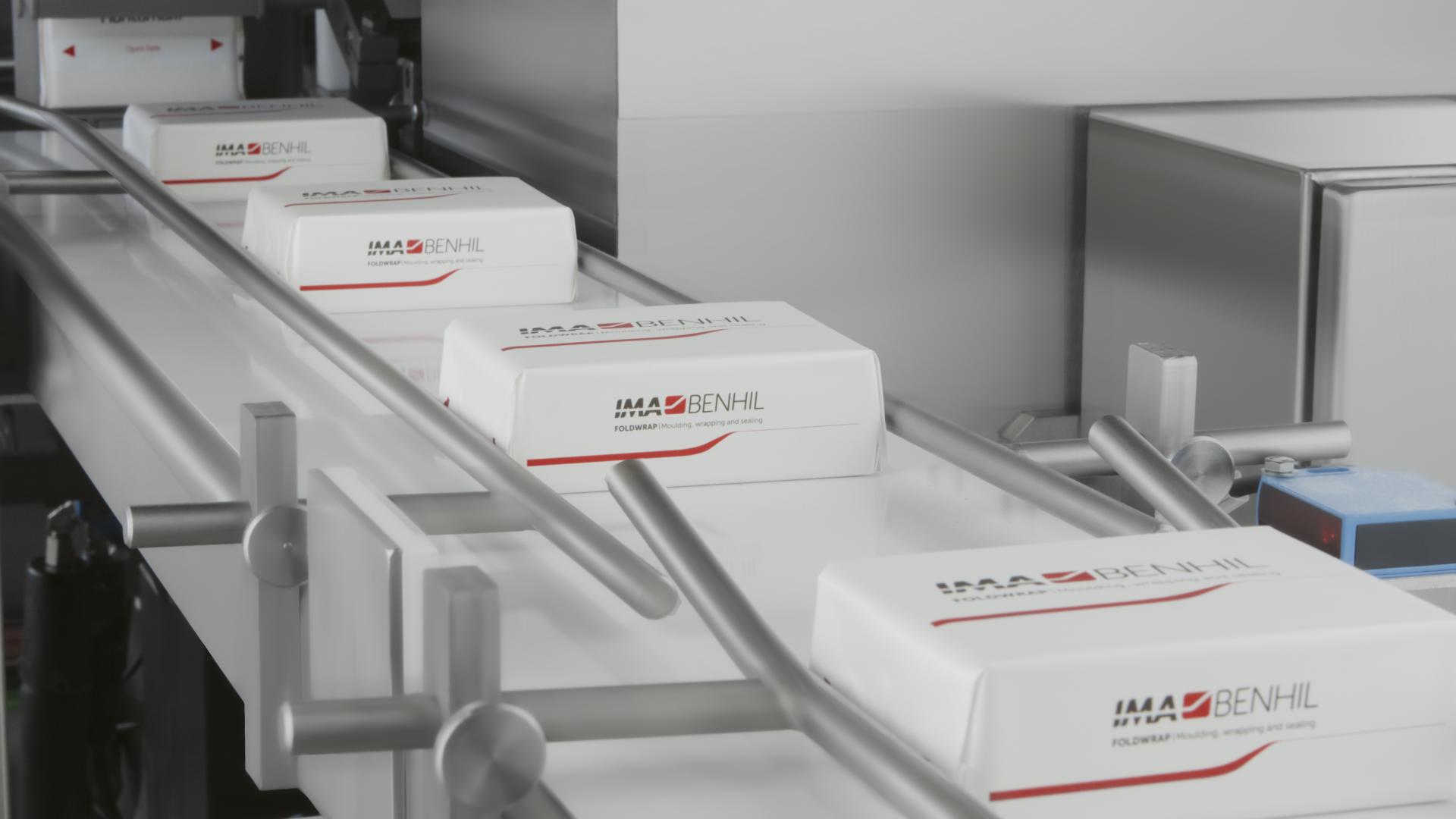

| End-of-line packaging | By downstream fully automatic or semi-automatic case packer |

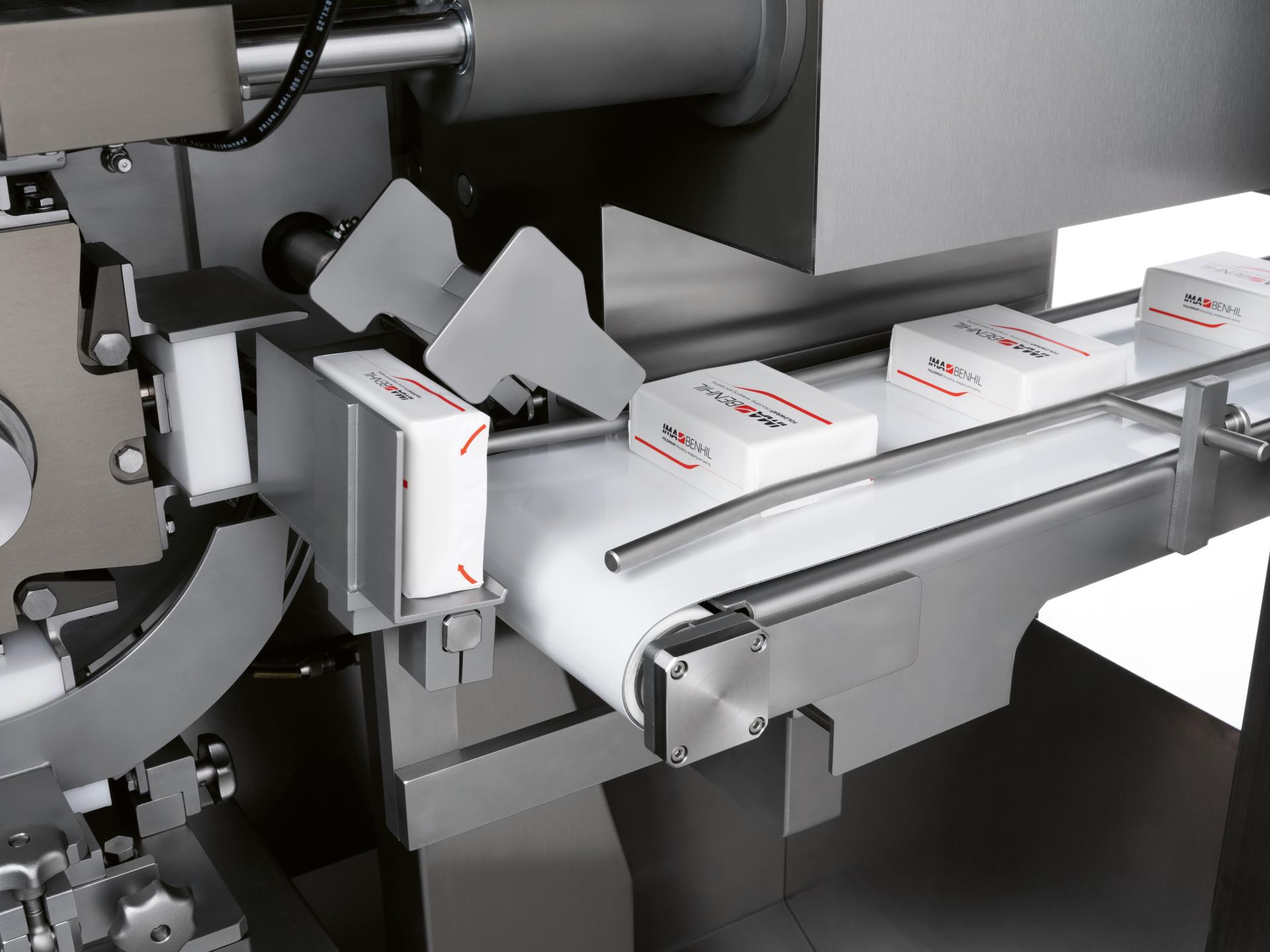

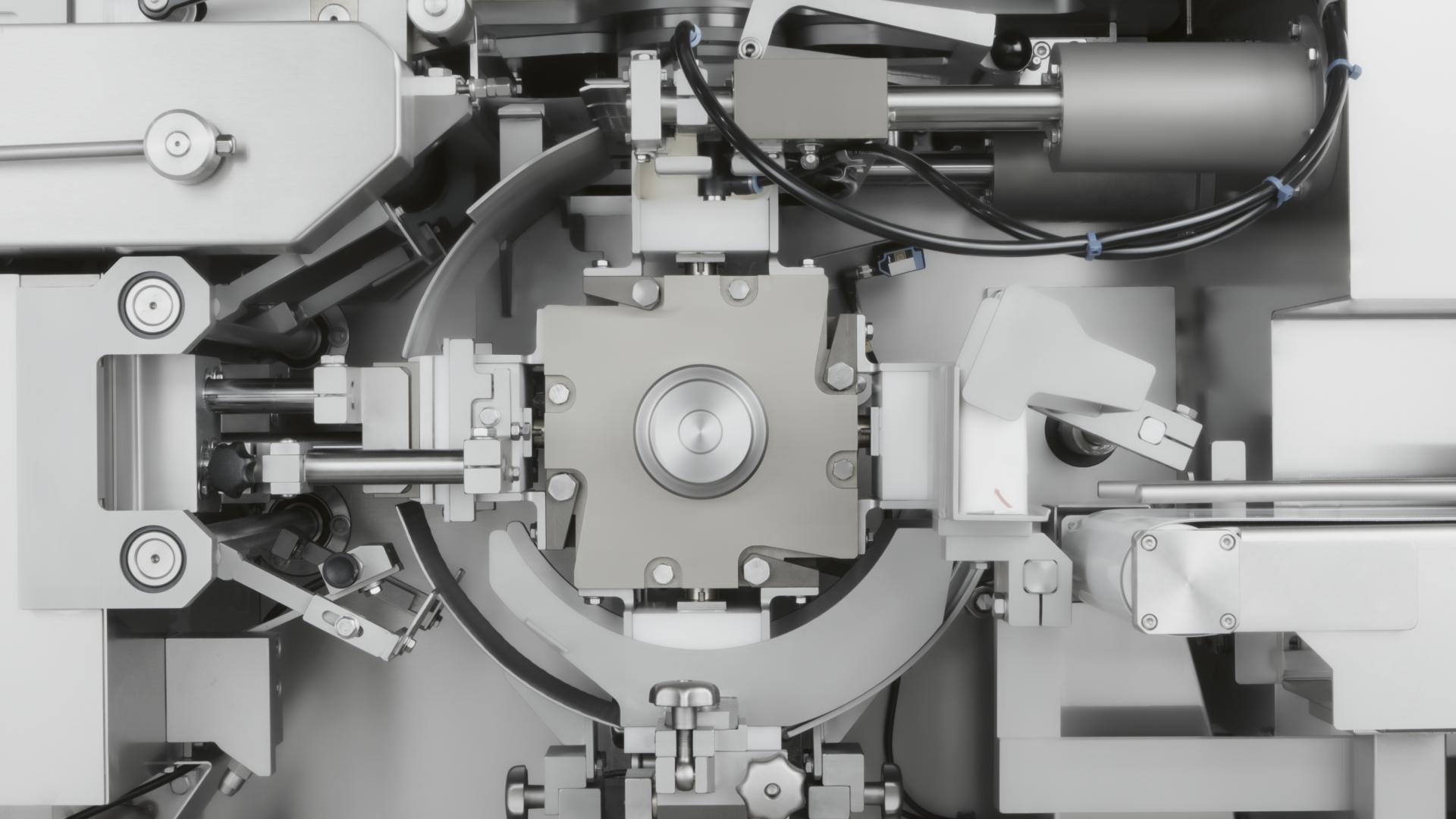

| Equipment | Servo-driven main drive, intermittent driven moulding wheel, photo-electric for wrapper with printed scanning marks, central lubrication, discharge conveyor, non-corrosive or other proven food-grade materials in the product area |
| Special Equipment | CIP cleaning, butter embossing, electrical weight adjustment, date coding, tendency control, remote access control, machine roof top, sterile air laminar flow |
| Machine control | PLC by Allen Bradley with touch panel |
