FDZL Series Dosing and wrapping

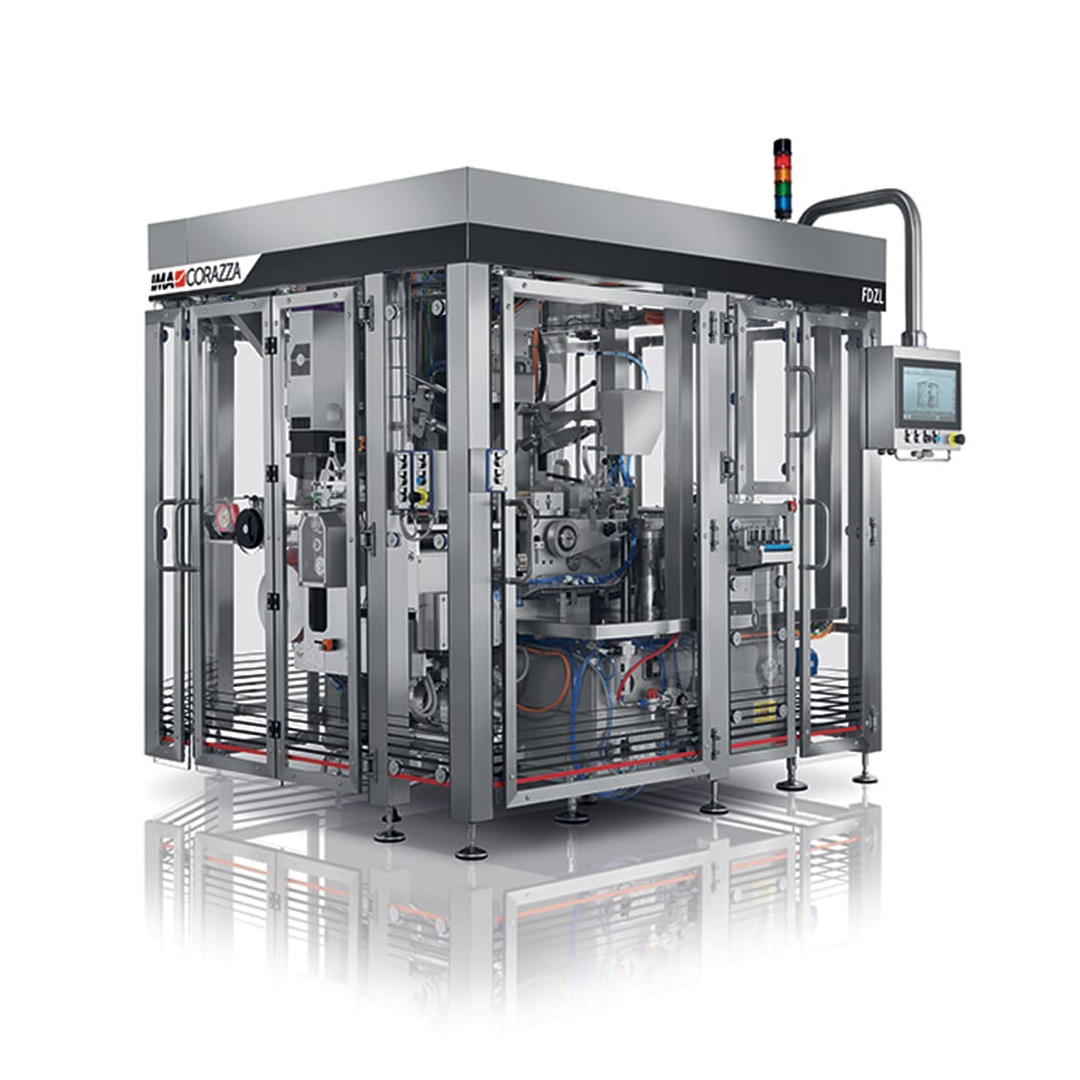

Machine overview
Cold, warm or hot dosing and wrapping of yeast

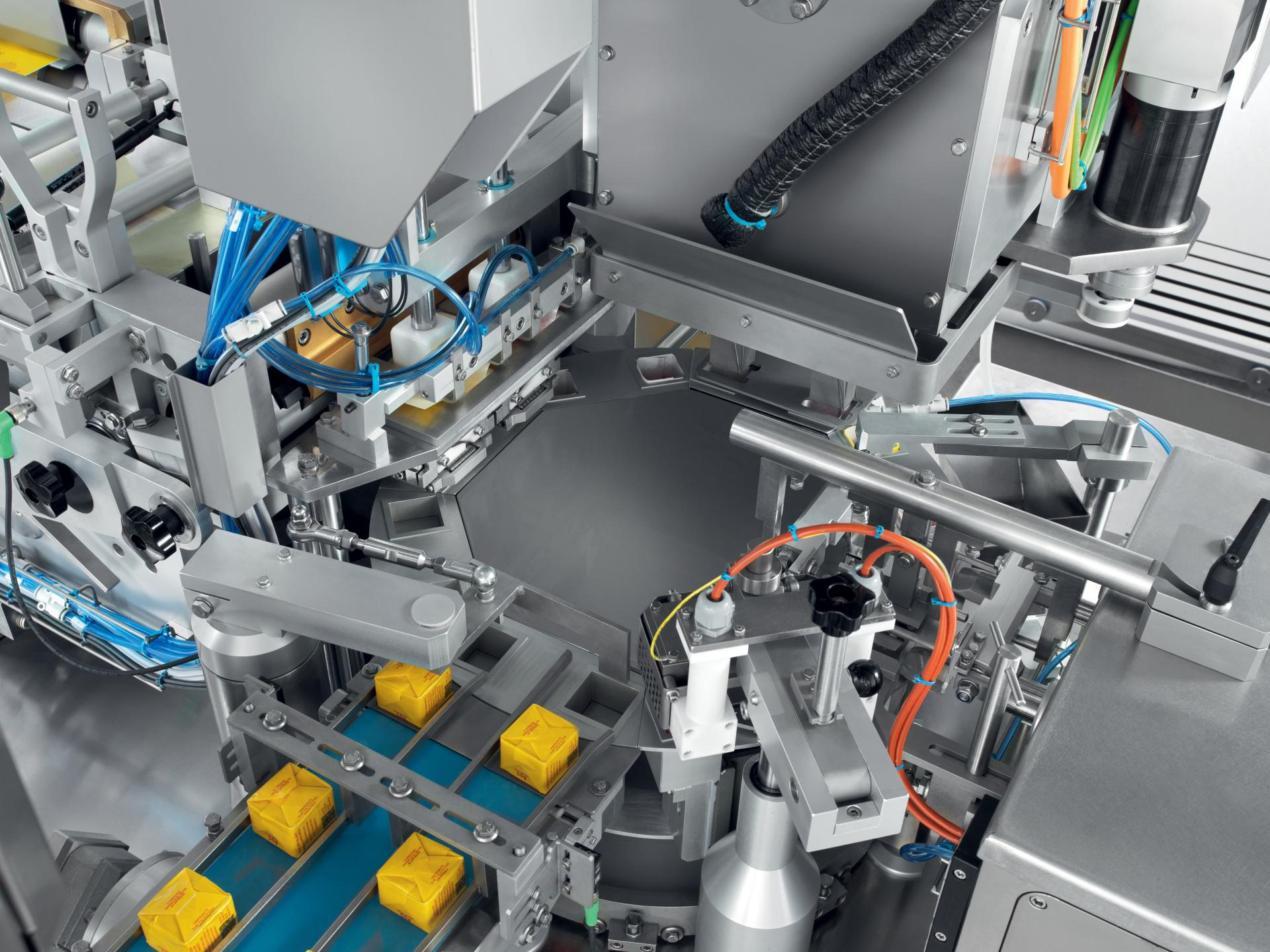

The FDZL is a double-headed automatic dosing and wrapping machine for yeast, available for cold or warm dosing with an independent-drive dosing unit, performing traditional portfolio-style, single-foil wrapping.
Thanks to a double-headed volumetric rotating filler and gasket-free dosing unit with servo-controlled augers as opposed to the traditional suck-in piston-rotary valve system, the FDZL yeast packaging solution handles 240 ppm.
Together with the standard cold or warm dosing configurations, an optional feature for hot portion sealing is available, although not with airtight completion.
Production plant
IMA Corazza
Machine highlights
-

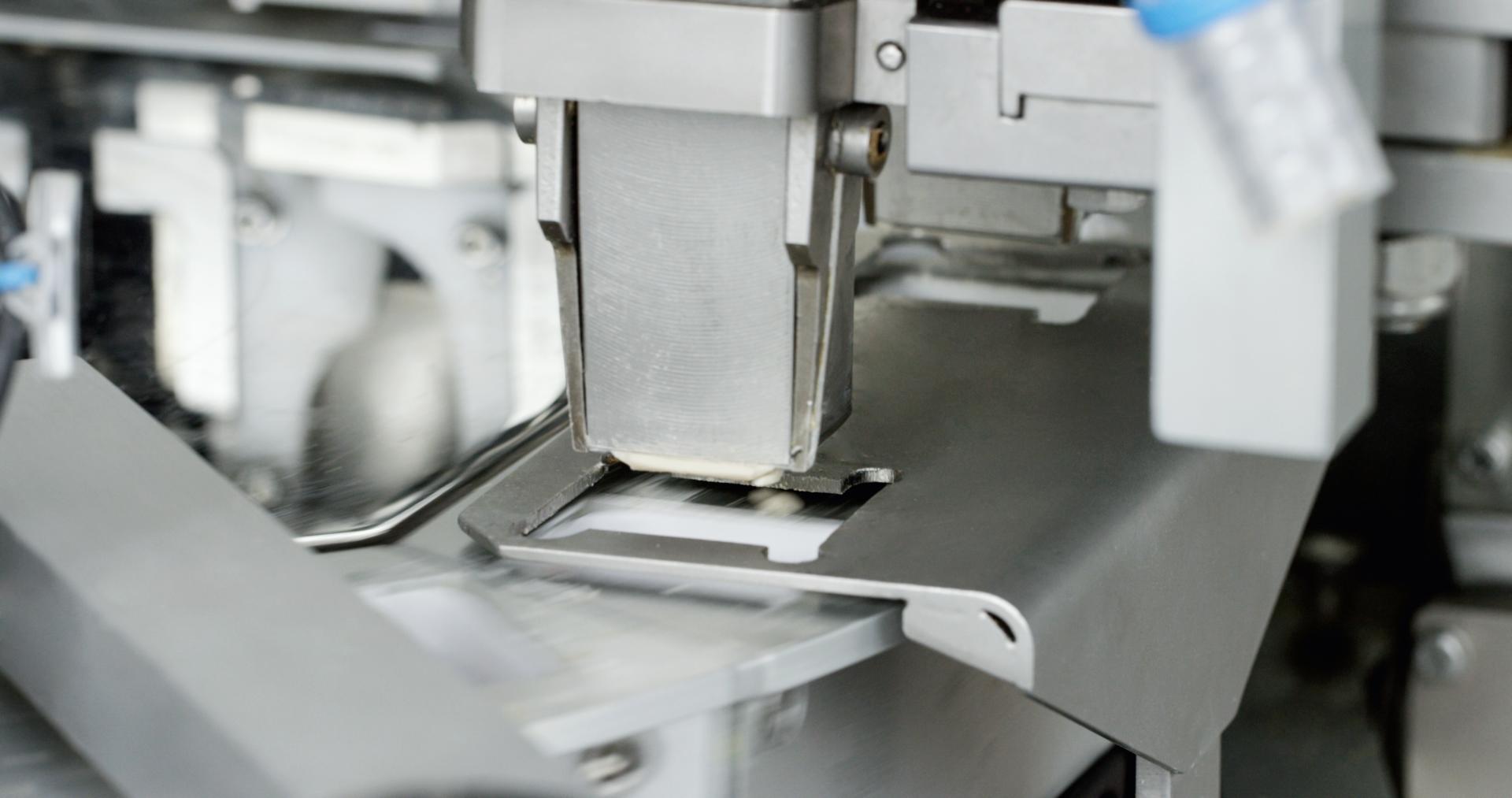

Motor‑driven foil feed with precise print‑centering
Ensures accurate aluminum foil feeding, cutting, and print alignment through fully motor‑controlled operation.
-
Water‑tight design for full wash‑down cleaning
Built with sealed, water‑tight construction to allow thorough cleaning with high‑pressure waterjets.
-
Quick and easy size changeovers
Designed for fast, intuitive format adjustments to maximise uptime and simplify daily operation.
-
Optional Integrated CheckWeigher
Can be equipped with an inline checkweighing unit to enhance quality assurance and weight control.

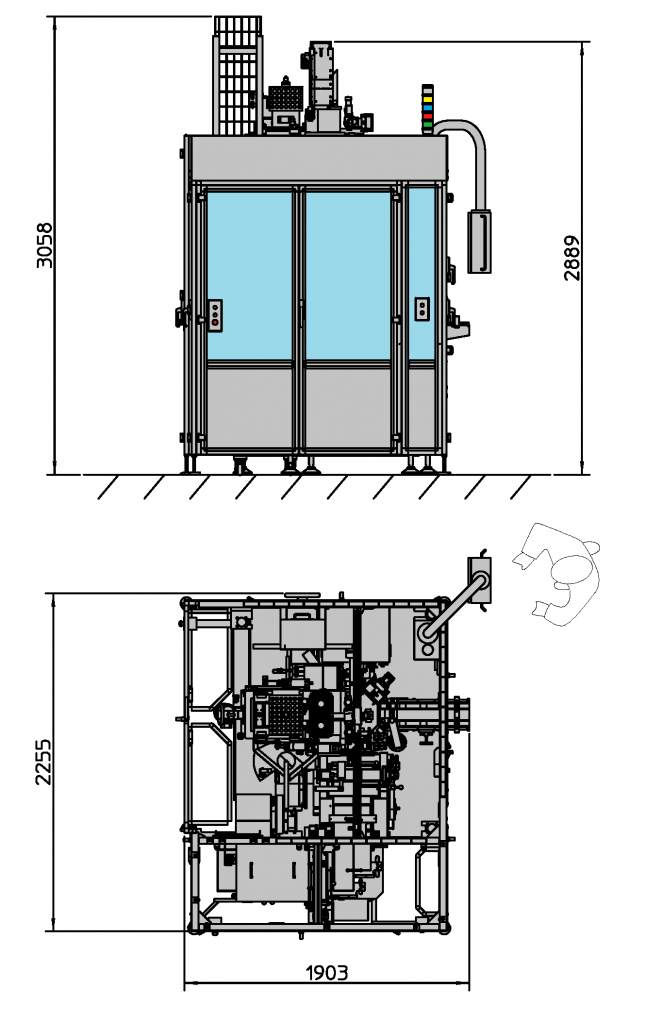

Machine details
Technical information
| Production capacity | Up to 240 portions/min. | ||||
| Full load current | 3P x 400 Volt – 50 Hz – 18 Amp | ||||
| Compressed air consumption | 350 Nl/min. (min. op. pressure 6 bar) | ||||
| Weight | 2,600 Kg Approx. | ||||

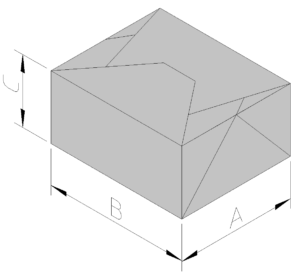

Product dimensions
| Shape | A | B | C | Weight |
| Square | 40 max. | 40 max. | 34 max. | 20g ÷ 50g | |
| Rectangular | 40 max. | 41,5 max. | 34 max. | 20g ÷ 50g | |
