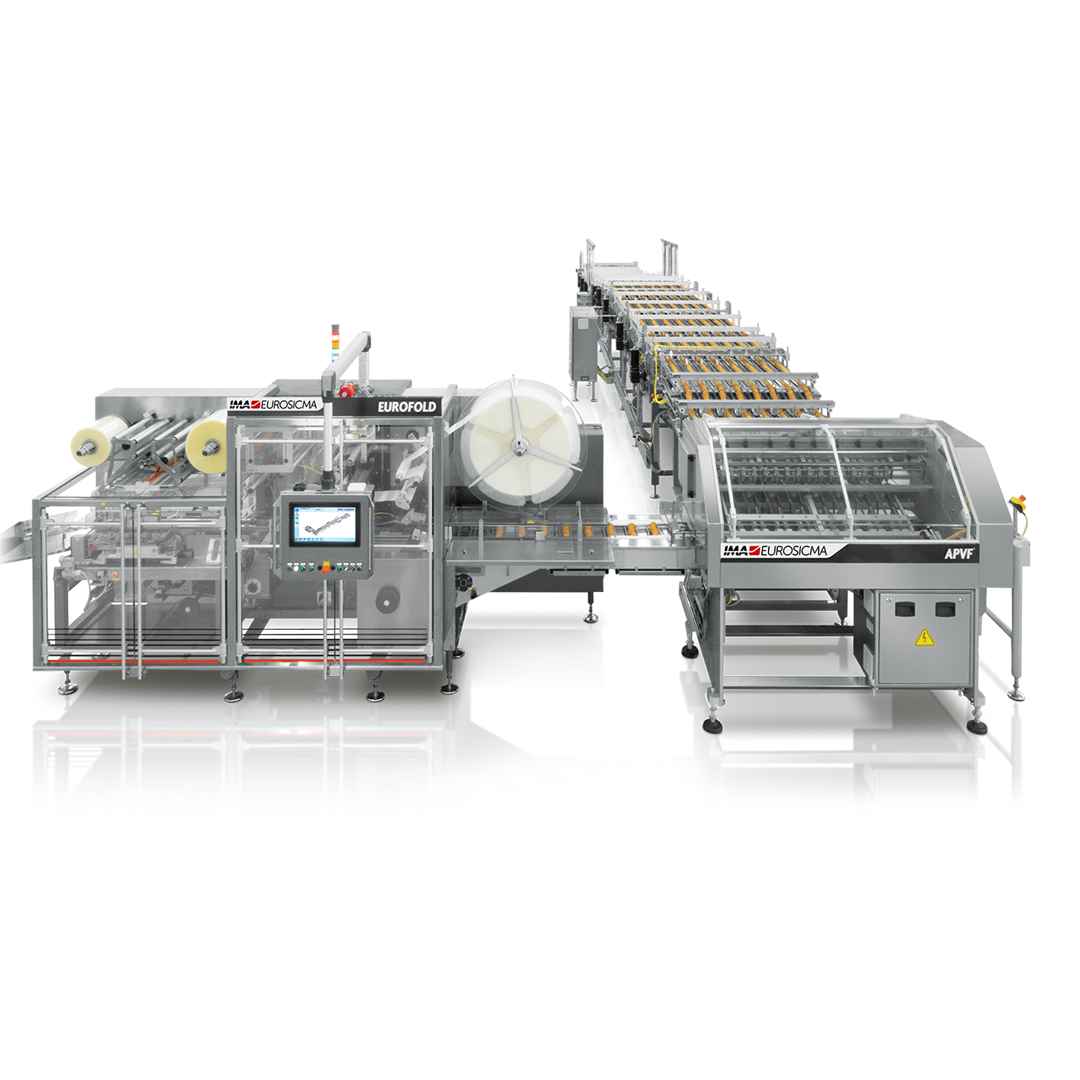

EUROFOLD Horizontal Form Fill and Seal
Machine overview
High performance X-Fold wrapping for tight, reliable packs

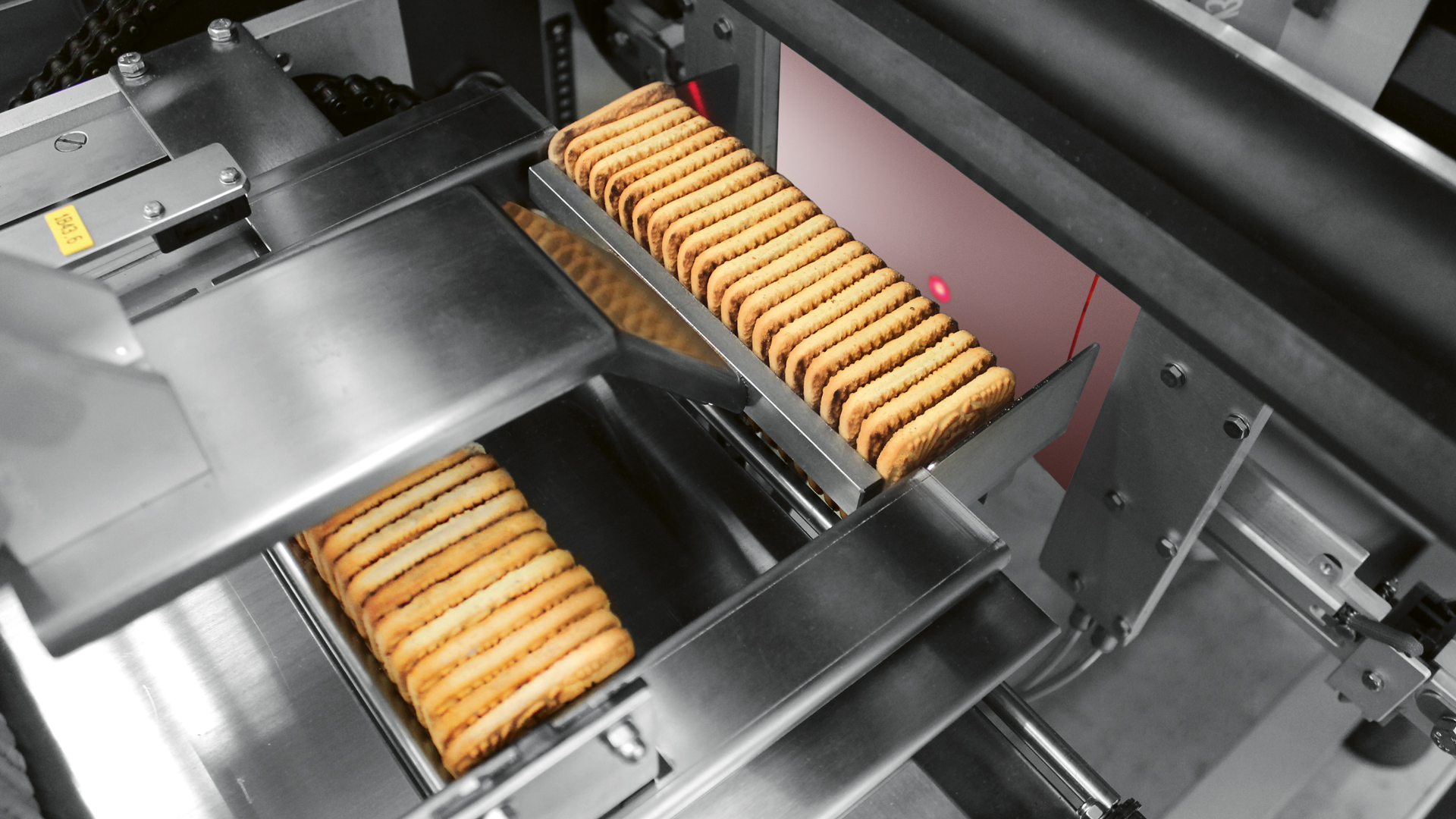

The fully electronic EUROFOLD X-Fold wrapper is designed to pack biscuits and crackers on edge. It can be integrated with volumetric and counting feeders for precise slug formation and gentle product handling.
EUROFOLD can run fin seal packs without cartons or overlap packs with cartons, and is available with an optional tear tape system for easy open packages.
Production plant
IMA Eurosicma
Machine highlights
-
Tight, High Quality Packs

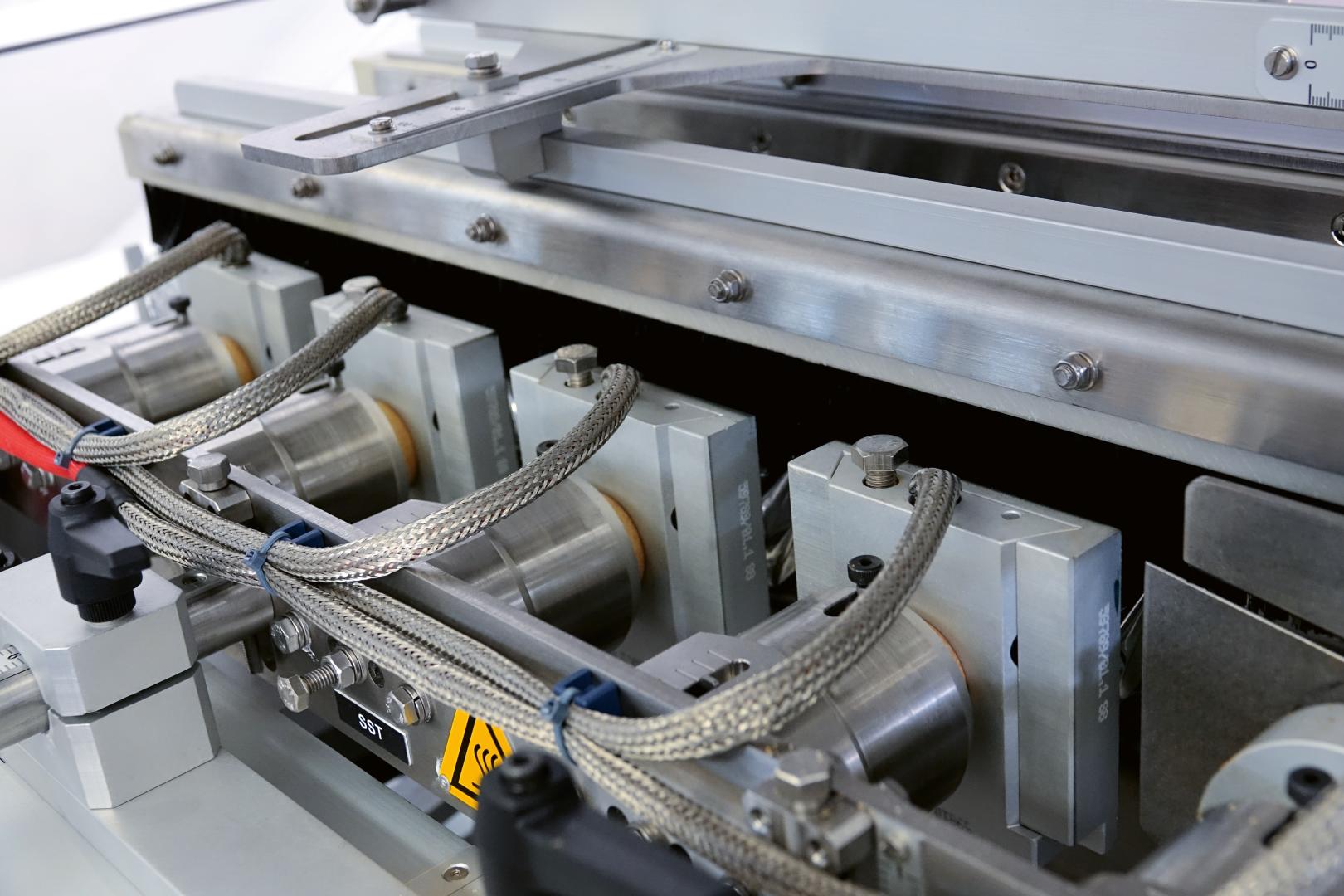

Advanced longitudinal sealing technology ensures consistently compact and reliable packaging.
-
Quick Size Changeovers
Designed for maximum flexibility with fast and user-friendly format adjustments.
-
Ready for Turn-Key Integration
Compatible with a wide range of portion feeders and handling systems for fully automated connection to upstream production lines.
Machine details
Technical information
| PRODUCT DIMENSIONS | |
| Biscuit Length | min 38 mm – max 80 mm* |
| Biscuit Width | min 38 mm – max 80 mm* |
| Biscuit Diameter | min 45 mm – max 80 mm* |
| Slug Length | min 80 mm – max 300 mm |
* max 75 mm with EUROFOLD combined with slug feeder
| FILM REEL DIMENSIONS | |
| Inner diameter | min 73 mm – max 79 mm |
| External diameter | min 100 mm – max 380 mm |
| Reel width | min 125 mm – max 320 mm |
| Maximum weight | 25 kg |
