Euro 88 Gravity Feeders Horizontal Form Fill and Seal
Machine overview
Flow-wrapping solutions for stacking biscuits, cookies and crackers
Depending on the product characteristics and the required level of automation, IMA Eurosicma offers a comprehensive range of gravity feeders, perfectly integrated into semi-automatic or fully automated flow wrapping systems.
Each solution ensures smooth product handling, high efficiency and reliable performance throughout the entire packaging process.

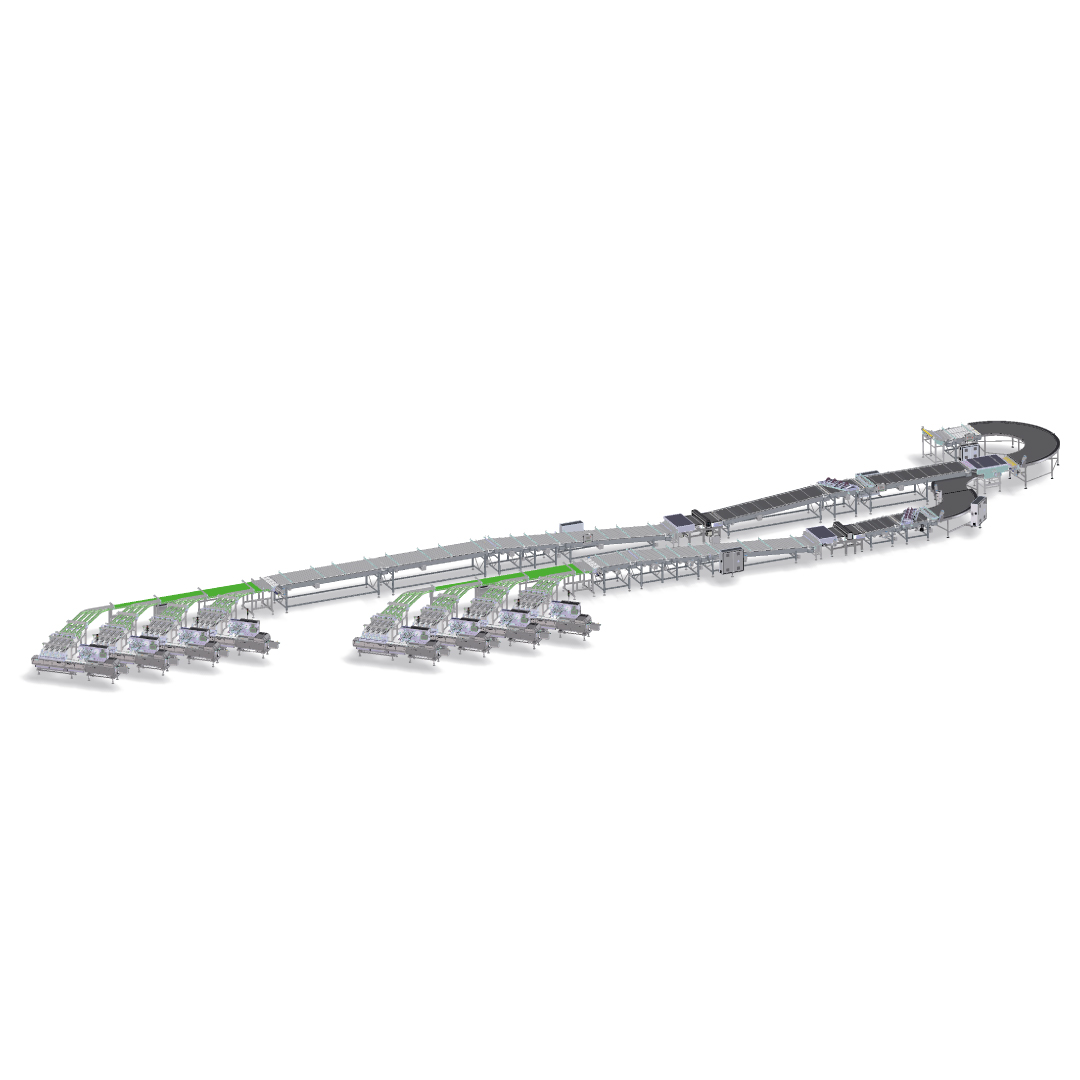

Production plant
IMA Eurosicma
Machine highlights
-
Modular construction
Designed with a fully modular architecture to meet a wide range of production needs and line configurations.
-
Customised for semi and fully automated lines
Optimized for integration into semi and fully automated packaging environments, ensuring smooth product flow and consistent performance.
-
Self-cleaning design
Self-cleaning design for the feeding sections connected to the vertical loaders, enhancing hygiene and reducing maintenance requirements.
Machine versions

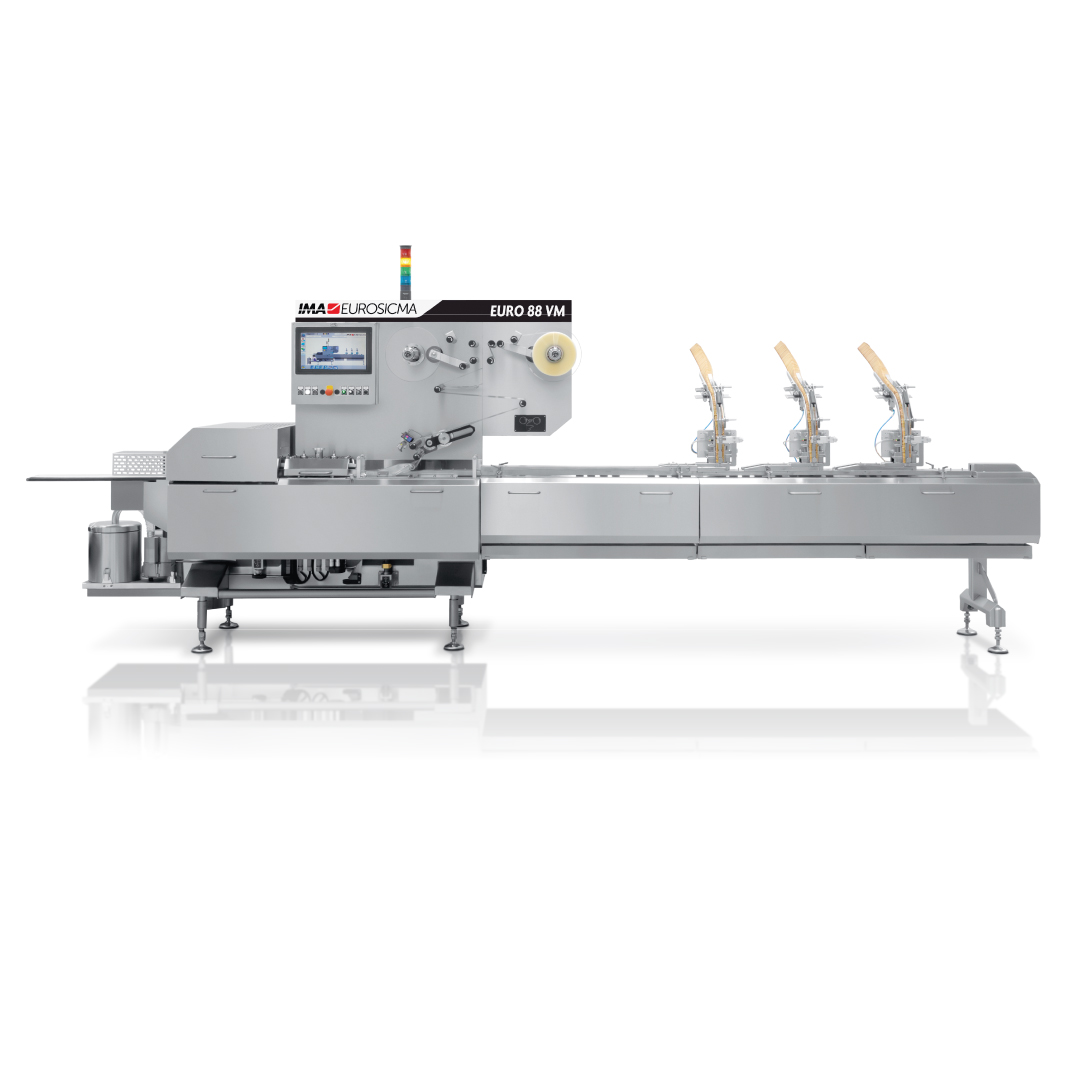

EURO 88 VM

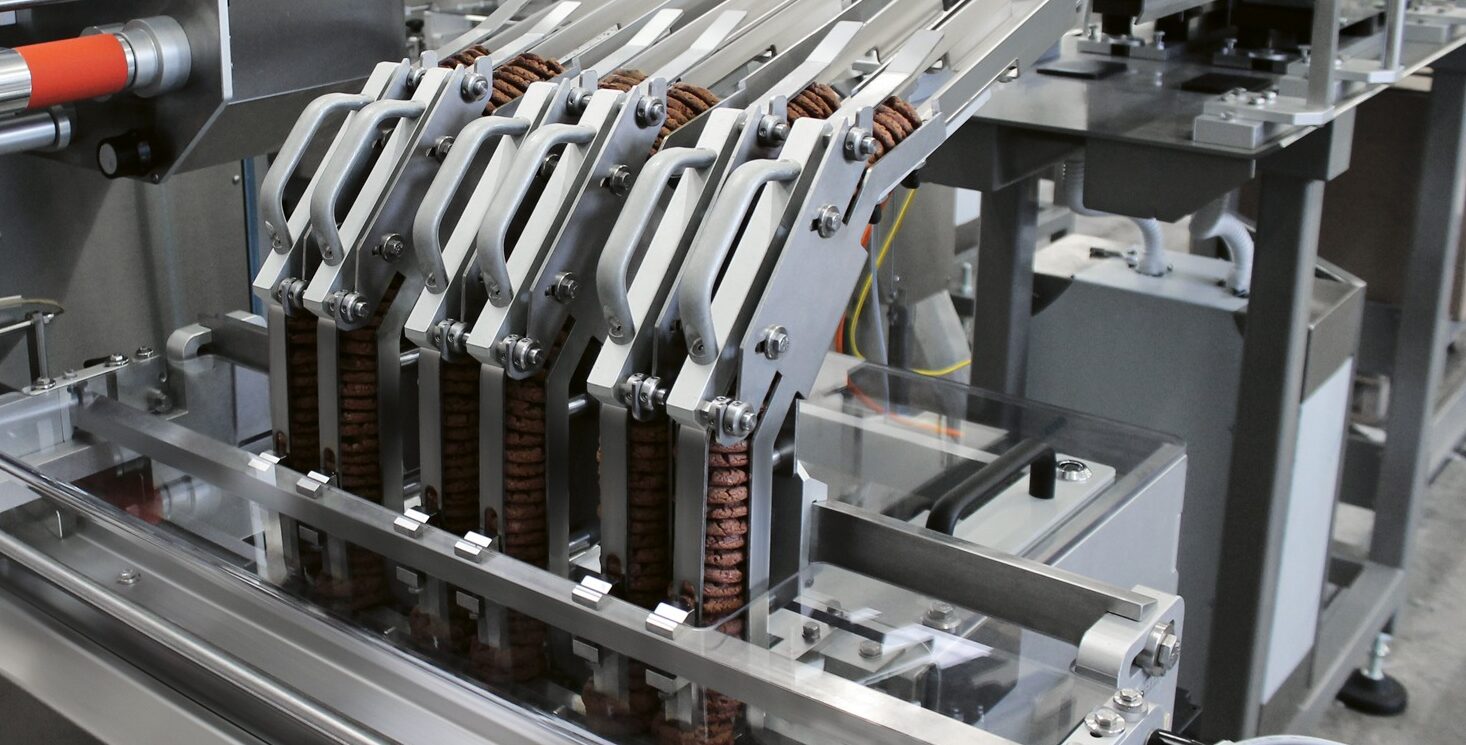

Vertical gravity feeders are installed directly on the wrapper’s infeed chain, allowing a smooth and continuous extraction of biscuits through the natural movement of the running chain. This configuration is an ideal solution for dry, flat, and plain products.
EURO 88 PWF
With vertical gravity feeders positioned just behind the wrapper chain, the EURO 88 PWF features a dual-motor design: one system manages the controlled drop of each pile, while the second ensures precise product transfer. This coordinated motion provides excellent flexibility and makes the unit suitable not only for traditional biscuits but also for sandwich varieties requiring careful handling.
EURO 88 RD
The vertical gravity feeders are mounted directly on the wrapper’s infeed chain and operates through individual servo-driven units. Portioning is achieved by the rotation of dedicated discs, ensuring high accuracy and adaptability. Thanks to its versatile design, the system is suitable for a very wide range of products, from delicate items to various shaped one.
Technical information
| PRODUCT SIZE RANGE | ||||||
| Length (mm) | Width (mm) | Thickness (mm) | ||||
| Machine model | Min. | Max. | Min. | Max. | Min. | Max. |
| EURO 88 VM | 35 | 95 | 35 | 65 | 5 | 60 |
| EURO 88 PWF | 35 | 120 | 35 | 65 | 5 | 60* |
* = considering max 20mm thickness for the single product.
| FILM REEL DIMENSIONS | ||
| Length (mm) | ||
| Min. | Max. | |
| Inner diameter | 70 | 79 |
| External diameter | – | 380 |
| Reel width | 350/500 (opt) / 650 (box motion) | |
| Max weight (kg) | 25 | |
