Euro 88 EDG Horizontal Form Fill and Seal

Machine overview

High Performance Edge Flow Wrapping

The EURO 88 EDG flow wrapper for biscuits and crackers on edge ensures high speed for reliable edge flow wrapping.
The conveyor can be positioned at 90° for maximum performance and gentle product handling, with both flight bar infeed conveyor and transfer unit driven by brushless motors.
Custom infeed configurations are available, along with optional features such as an independently driven servo motorized gusseting device and carton feeders.

Production plant

IMA Eurosicma

Machine highlights

  1. Product Flexibility

    Designed to handle a wide variety of bakery product types and formats.

  2. Gentle 90° Product Transfer

    Smooth and controlled handling ensures product integrity during the transfer phase.

  3. Ready for Full Line Integration

    Turn key solutions with the option to connect portion feeders and automate integration with upstream lines.

Machine details

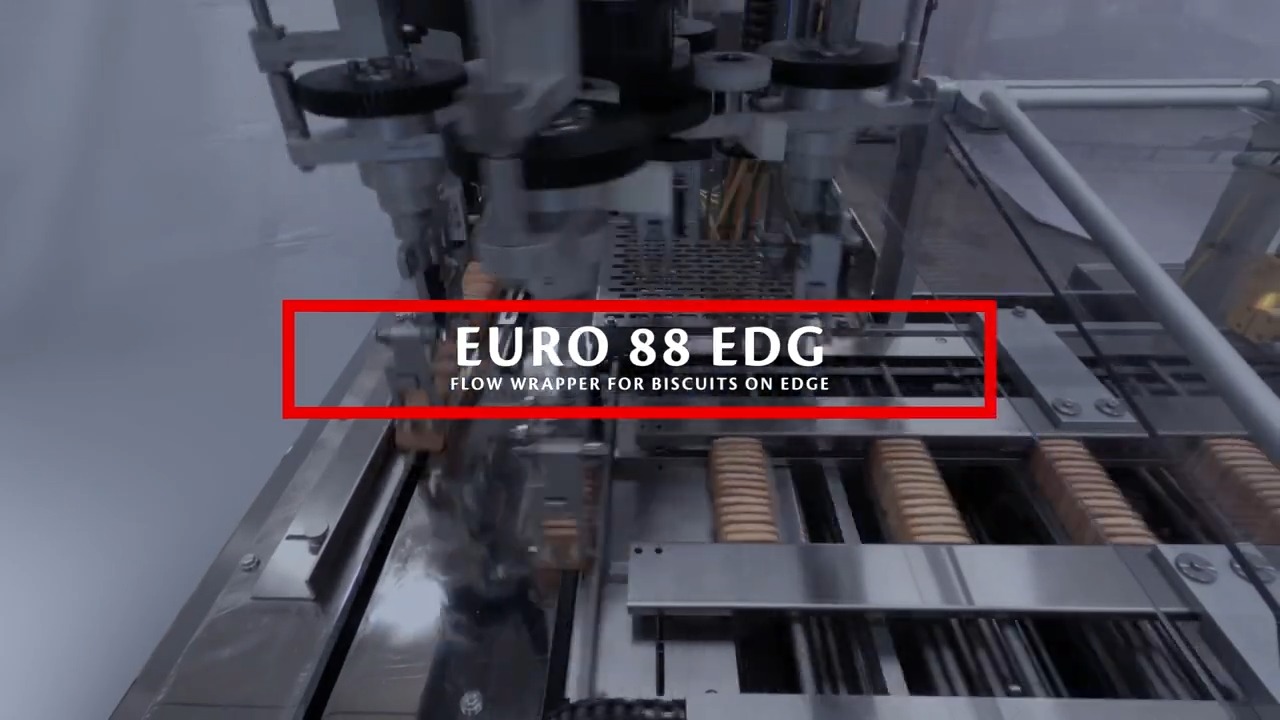

Machine video trailer

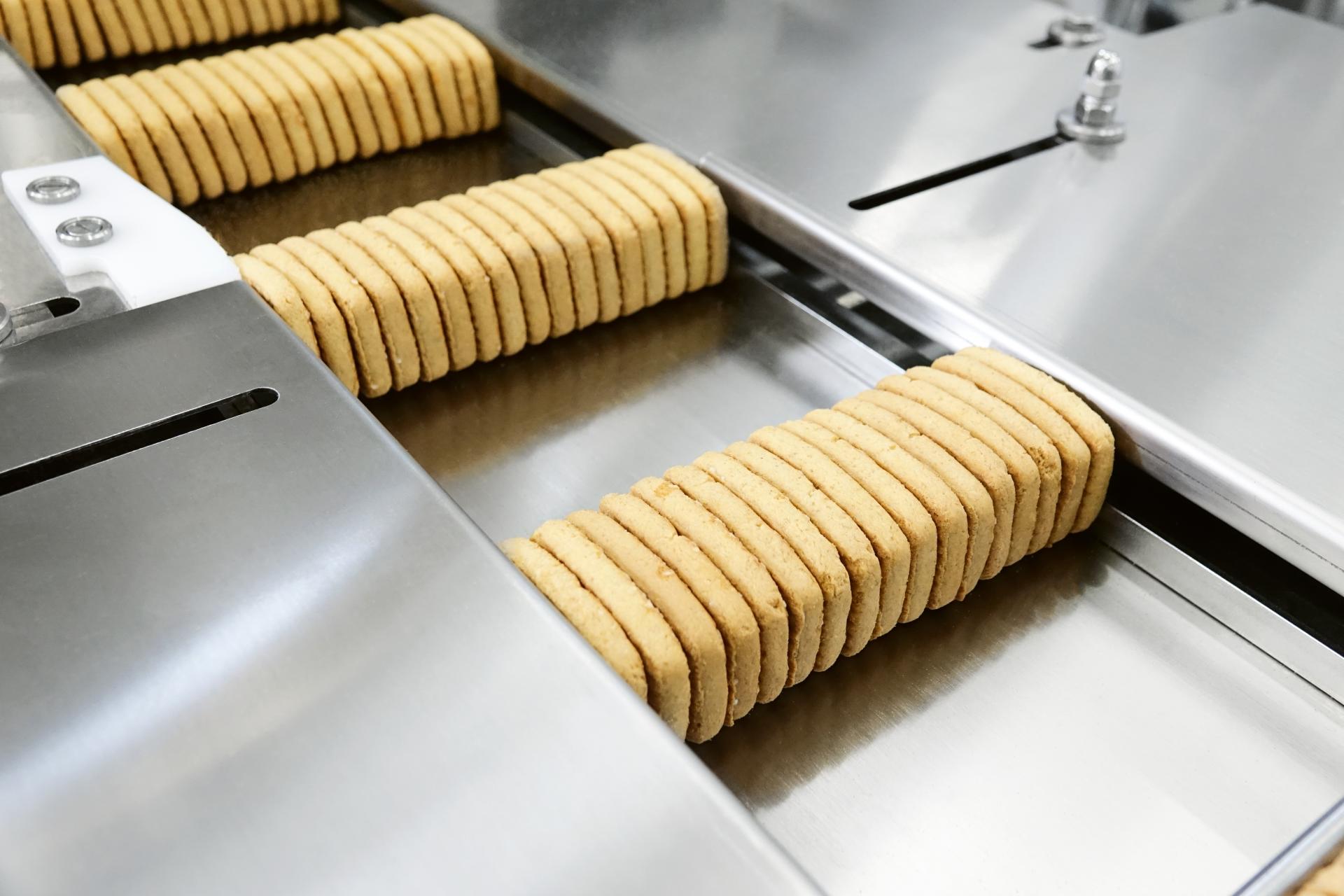

Flight-bar infeed conveyor

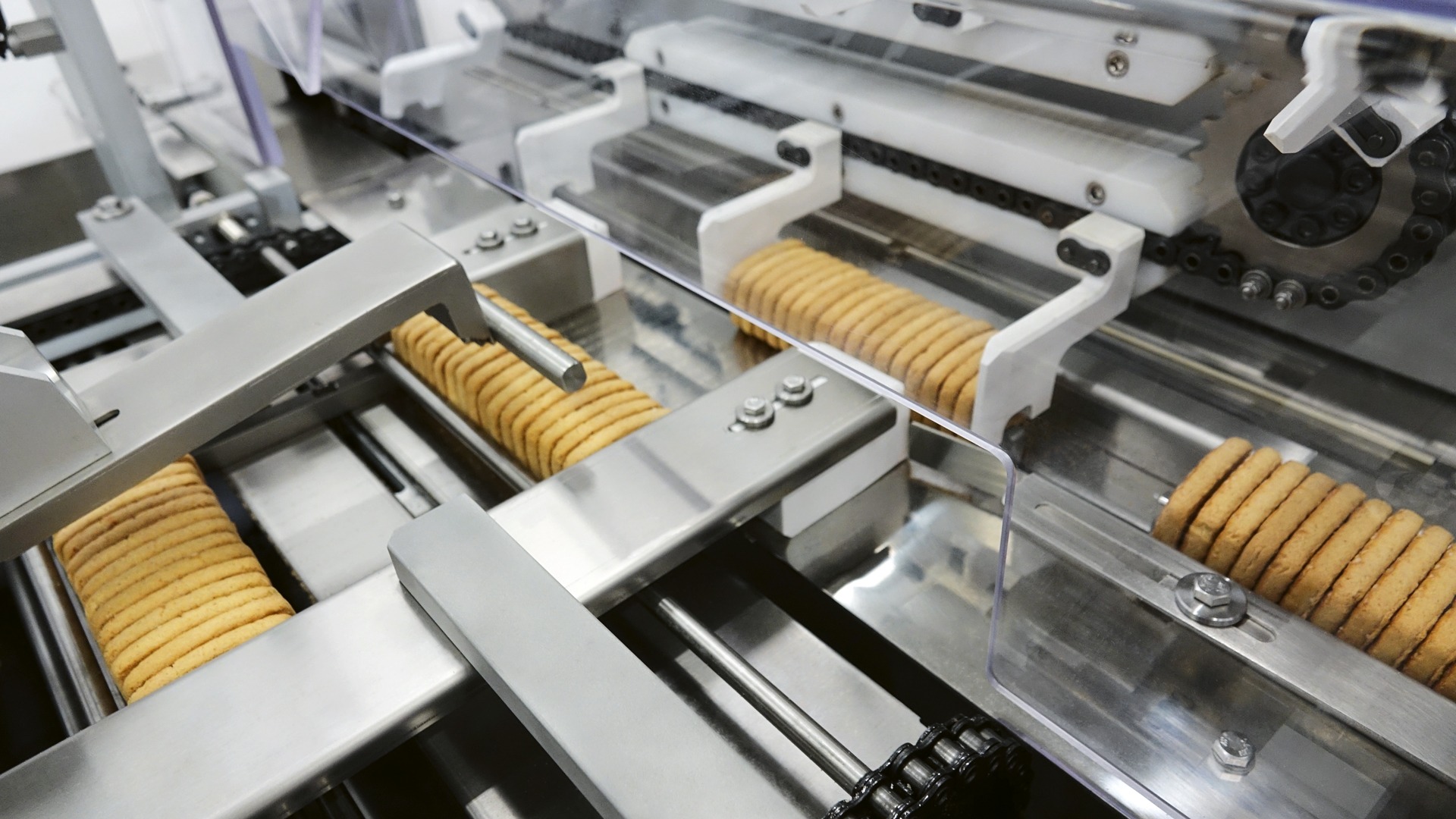

Servo-driven 90° transfer unit

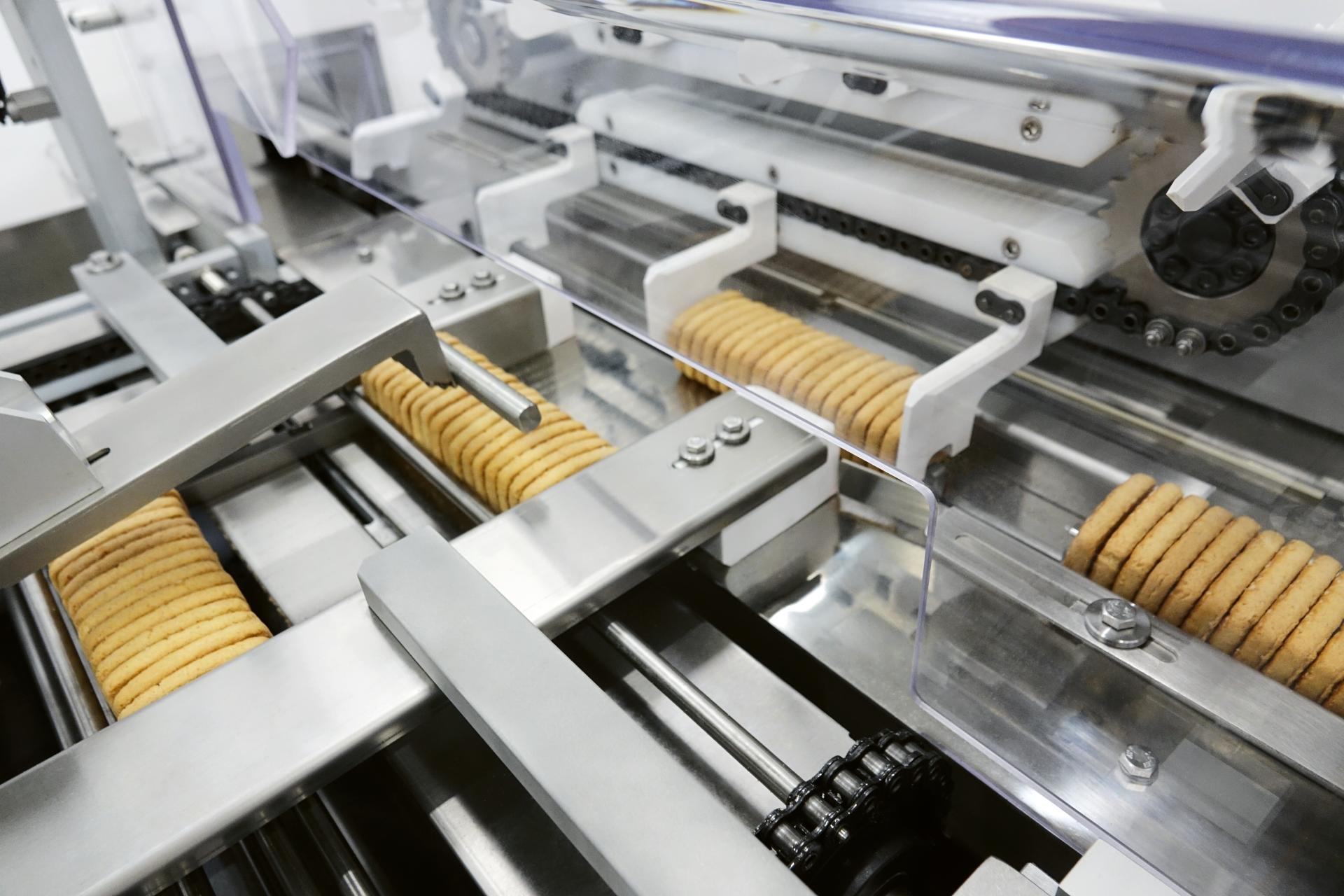

High-speed transfer version

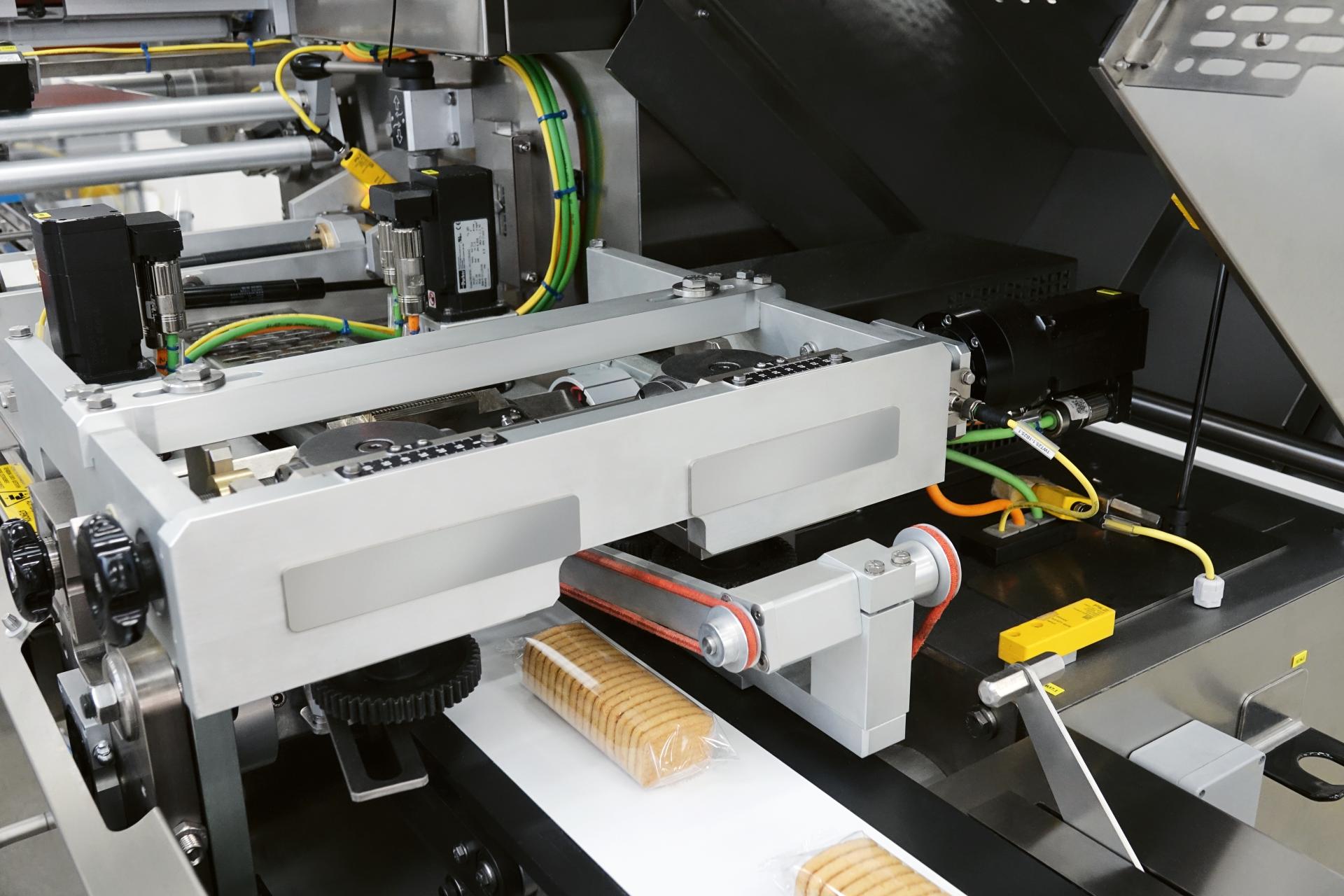

Servo-motorized gusseting and exit belt

Technical information

PRODUCT SIZE RANGE
 Length (mm)Width (mm)Thickness (mm)
Machine modelMin.Max.Min.Max.Min.Max.
EURO 88 EDG5525038803880

FILM REEL DIMENSIONS
 Length (mm)
 Min.Max.
Inner diameter7079
External diameter–380
Reel width350/500 (opt) / 650 (box motion)
Max weight (kg)2
