Euro 77 Slab Horizontal Form Fill and Seal
Machine overview
Portioning and wrapping integration for gum slabs
With two dedicated models available, IMA EUROSICMA delivers the ideal solution for wrapping chewing-gum slabs. Each system is tailored to product shape and size, with in-house designed handling, pre-scoring and trimming units fully integrated for maximum efficiency.
Production plant
IMA Eurosicma
Machine highlights
-
Seamless Line Integration
Perfect synchronization between portioning and flow wrapping systems for smooth, uninterrupted production.
-
Compact & Hygienic Design
A space-saving layout combined with hygienic construction for efficient and easy-to-clean operations.
-
Flexible Counting Solutions
Multiple counting unit options available to ensure accurate and reliable box filling.
Machine versions

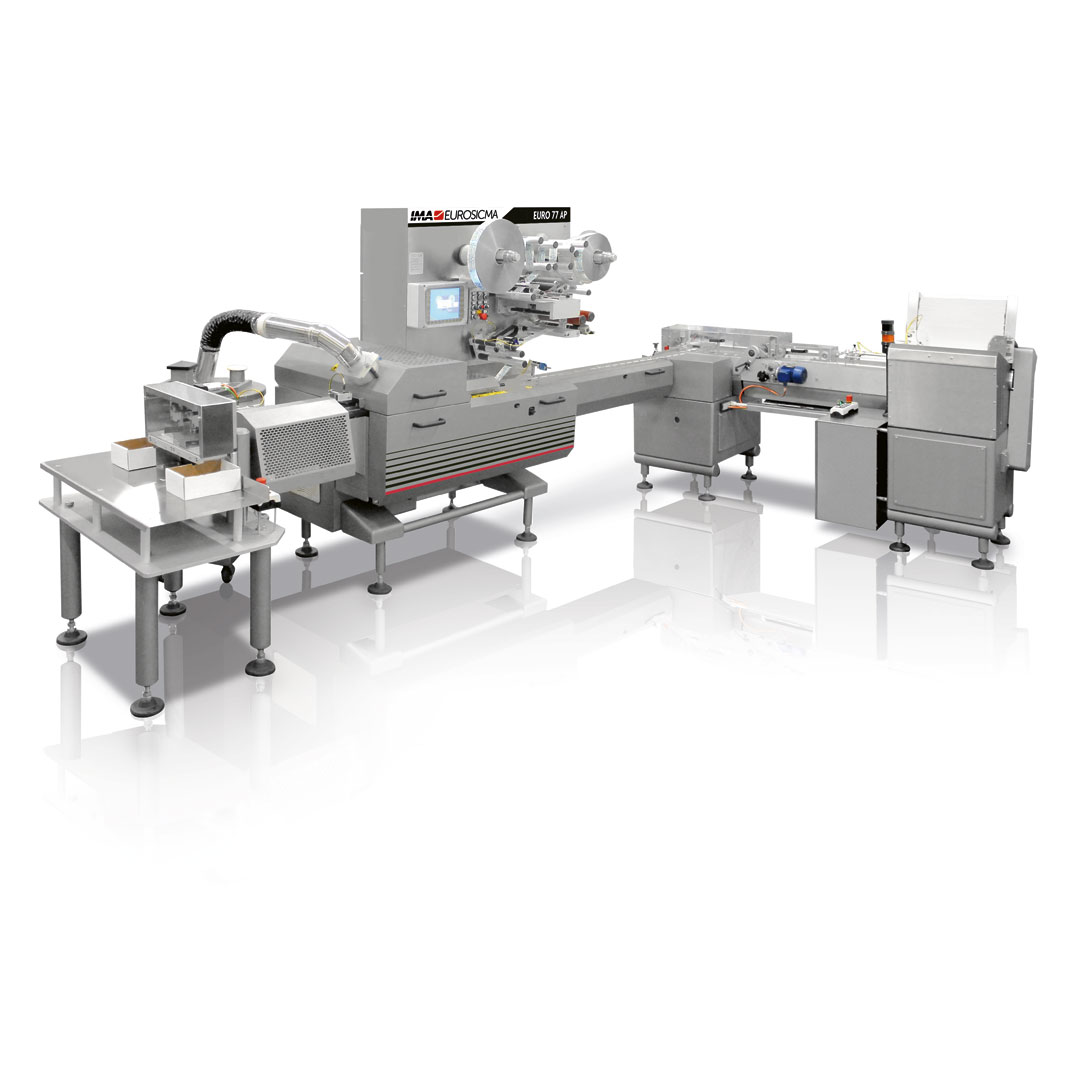

EURO 77 AP
Flow wrapper for chewing-gum slabs with 90° infeed
The EURO 77 AP is engineered for efficient and reliable wrapping of rectangular chewing-gum slabs.
Its 90° infeed configuration ensures optimal product orientation and smooth handling throughout the process.

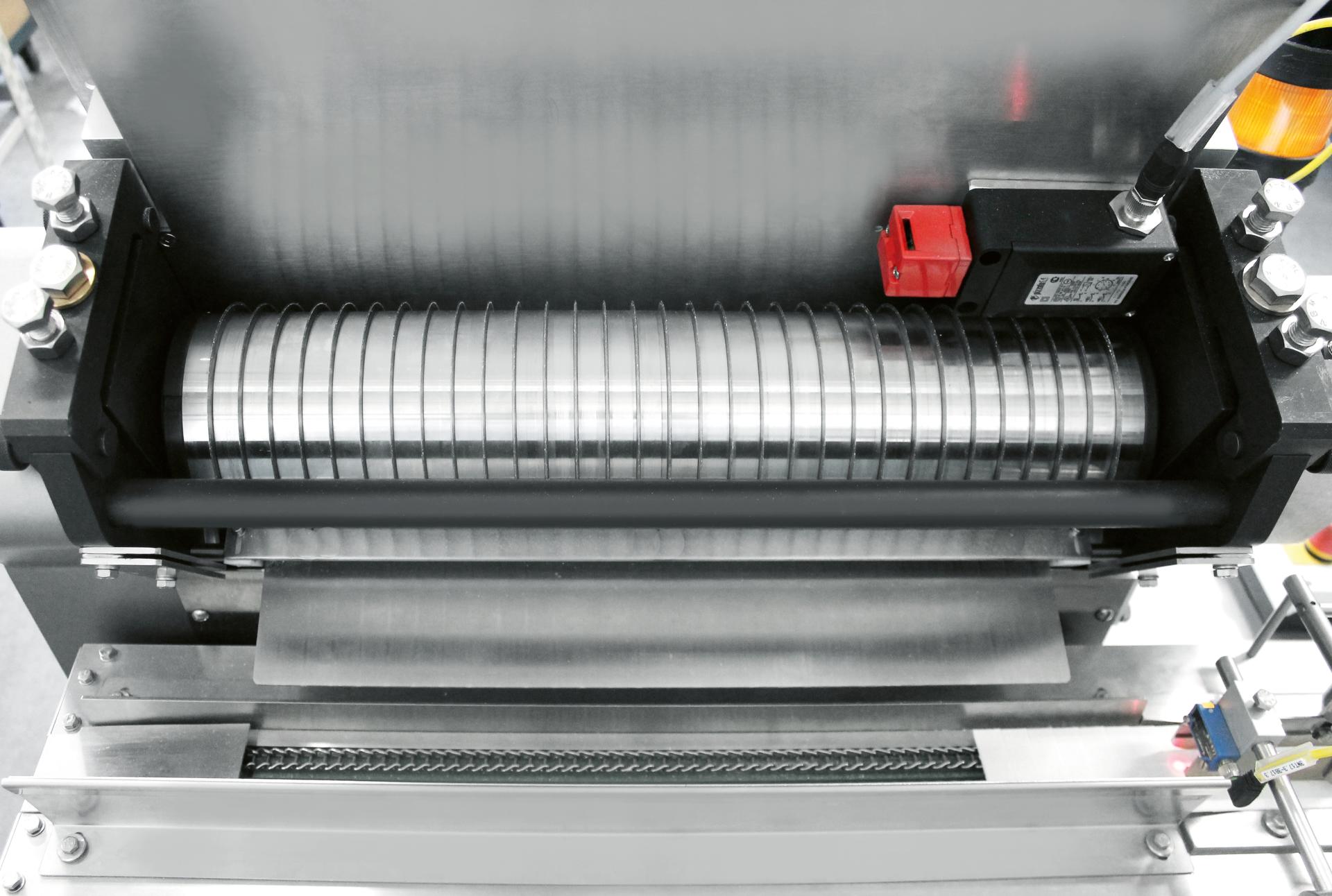

The system includes a vertical slab loader, rotary pre-scoring unit, timing conveyor, and cutting and separating wheel, fully integrated to guarantee consistent quality and high-speed operation.

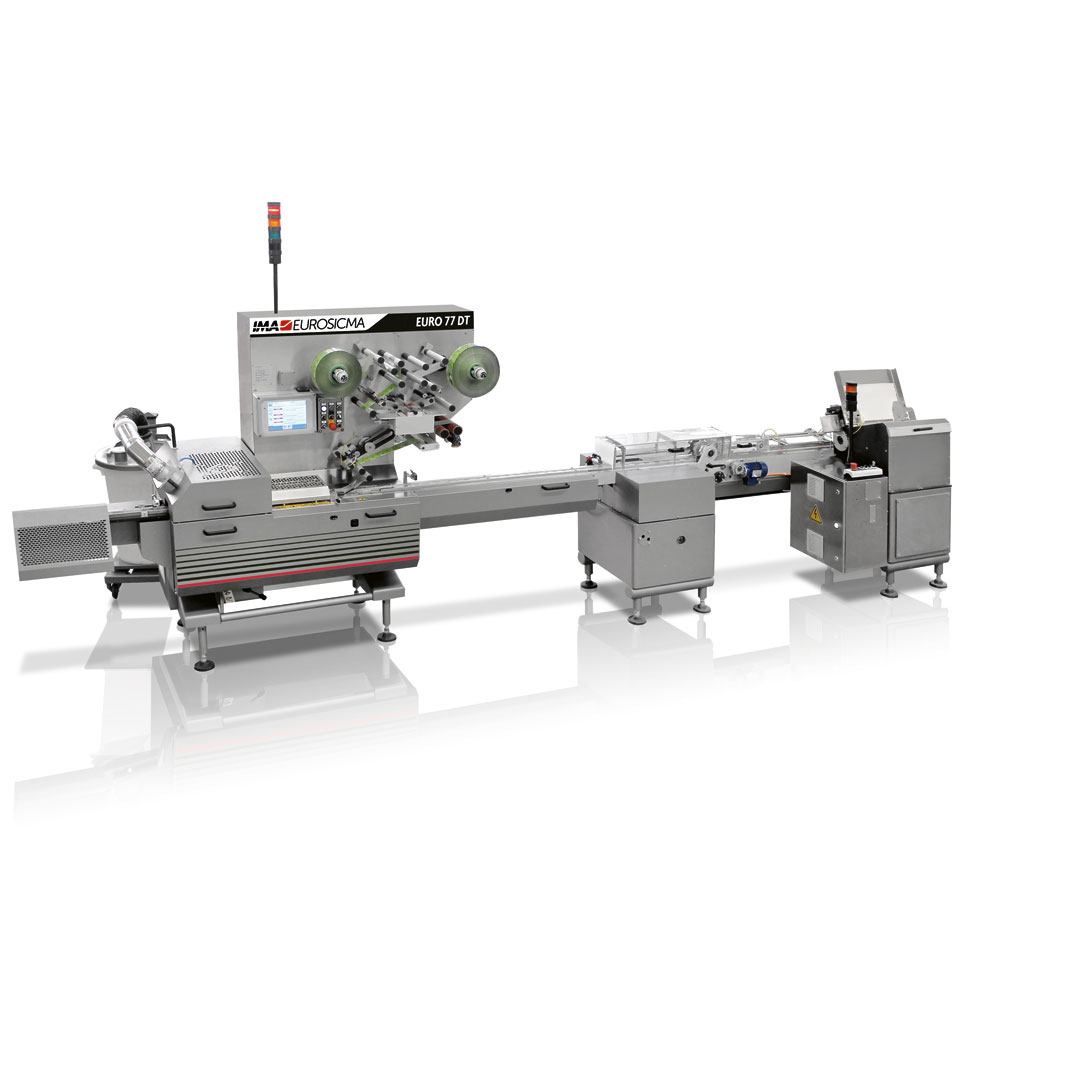

EURO 77 DT
Flow wrapper for chewing-gum slabs with in-line infeed
The EURO 77 DT is engineered for the smooth and efficient wrapping of square-shaped chewing-gum slabs. Its in-line infeed configuration ensures a direct, optimized product flow, enhancing performance and reducing handling complexity.
The system integrates a vertical slab loader, rotary pre-scoring unit, timing conveyor, and cutting and separating wheel, delivering high-speed production in a fully synchronized process.
Technical information
| PRODUCT SIZE RANGE WITH CHANGING SIZE PARTS | ||||||
| Lenght (mm) | Width (mm) | Thickness (mm) | ||||
| Machine model | Min. | Max. | Min. | Max. | Min. | Max. |
| EURO 77 AP – big slab | – | 480 | 43 | 72 | 1.7 | 4 |
| EURO 77 AP – single product | 43 | 72 | 11.5 | 19 | 1.7 | 4 |
| EURO 77 DT – big slab | – | 480 | 30 | 37 | 1.7 | 4 |
| EURO 77 DT – single slab | 30 | 40 | 31 | 37 | 1.7 | 4 |
| FILM REEL DIMENSIONS | ||
| Lenght (mm) | ||
| Min. | Max. | |
| Inner diameter | 70 | 76 |
| External diameter | – | 380 |
| Real width | – | 200 |
| Electrical data | 7,5 Kw | |
| Air pressure | 0,6 – 0,9 Mpa | |
| Air consumption | 10 NI – min | |
