Entra AFH Primary wrapping
Machine overview
Your partner in wrapping.

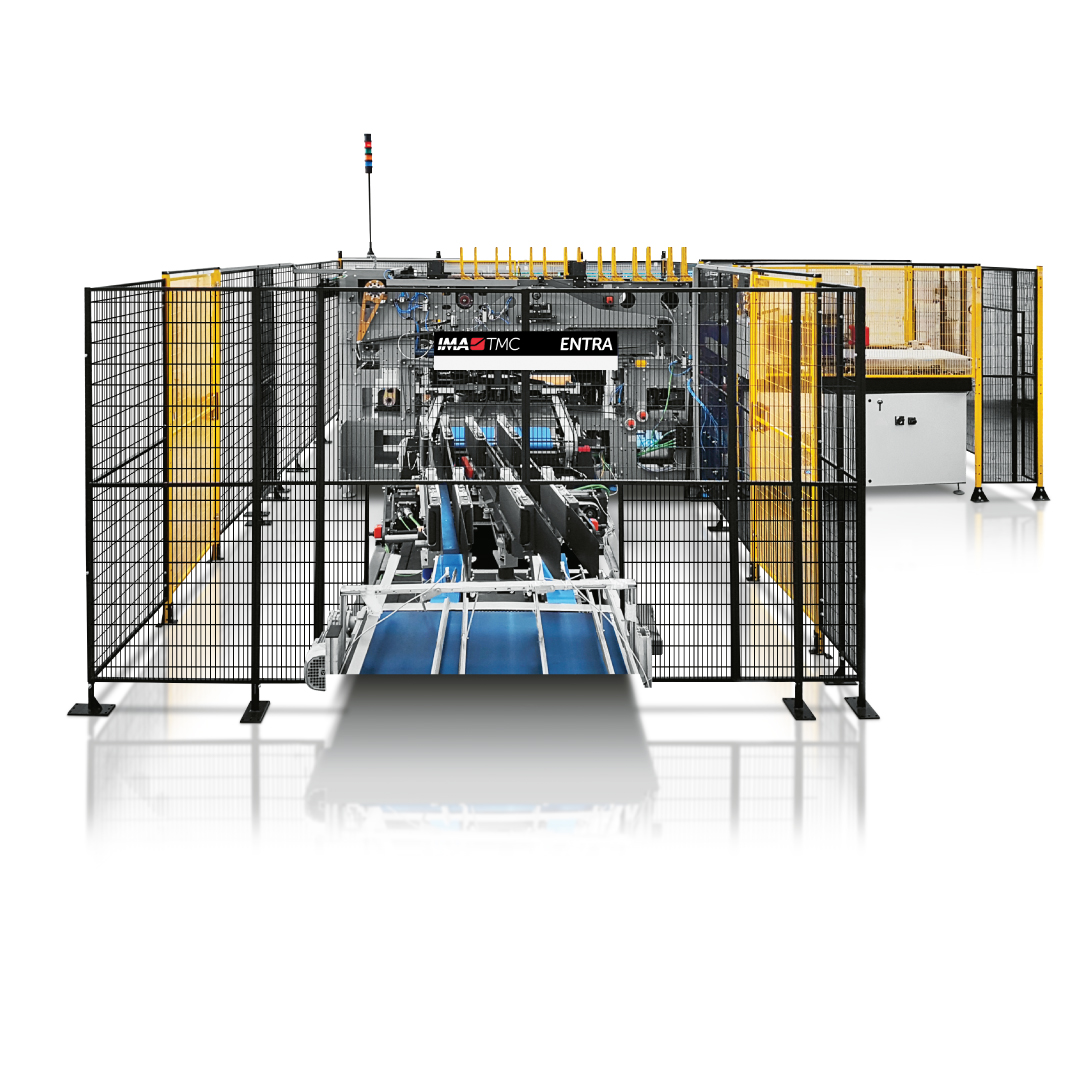

ENTRA is the automatic wrapping machine for bathroom tissue and household towel rolls, away from home rolls (AFH) and medical tissue rolls (MT), designed and manufactured for medium capacity production lines.
This machine guarantees an efficient production capacity thanks to the performance of the innovative infeed diverter unit. The group is designed to pack a wide range of AFH rolls, allowing extremely flexible handling depending on the products to be treated.
Thanks to its ease of use, ENTRA allows a significant reduction in format changeover times, minimizing skills required to the operators. The integrated Integrated Electrical Cabinet leads to an important layout saving.
ENTRA with its innovative design solutions, guarantees high performance combined with unique flexibility in the packaging market.
Production plant
IMA TMC
Machine highlights
-
Wrapping materials
Entra can wrap polyethylene and other heat-sealable materials.
-
Performance

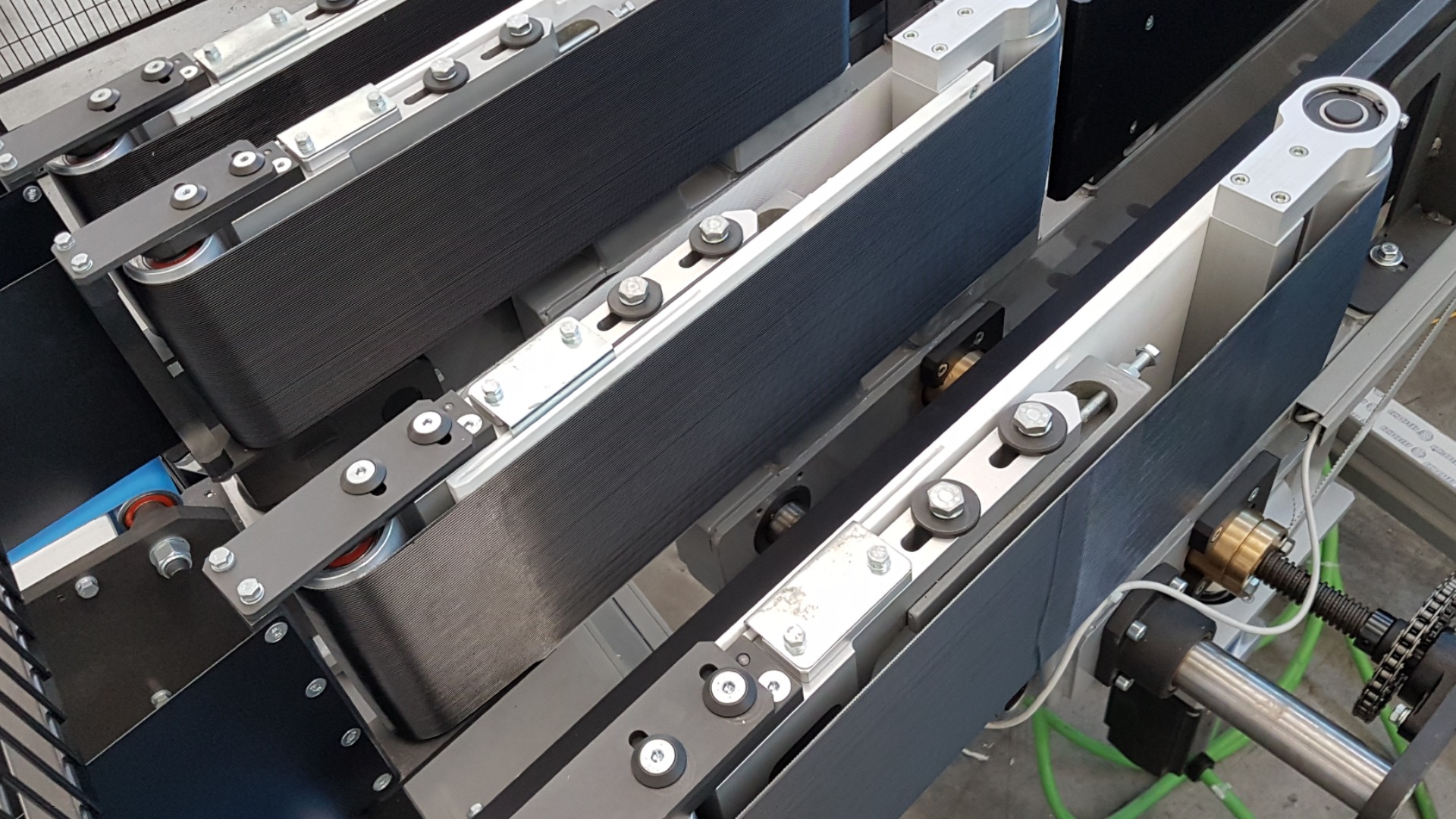

Efficient production capacity thanks to the performance of the innovative infeed diverter unit.
-
Speed
Production speed up to 120 packs/minute.
-

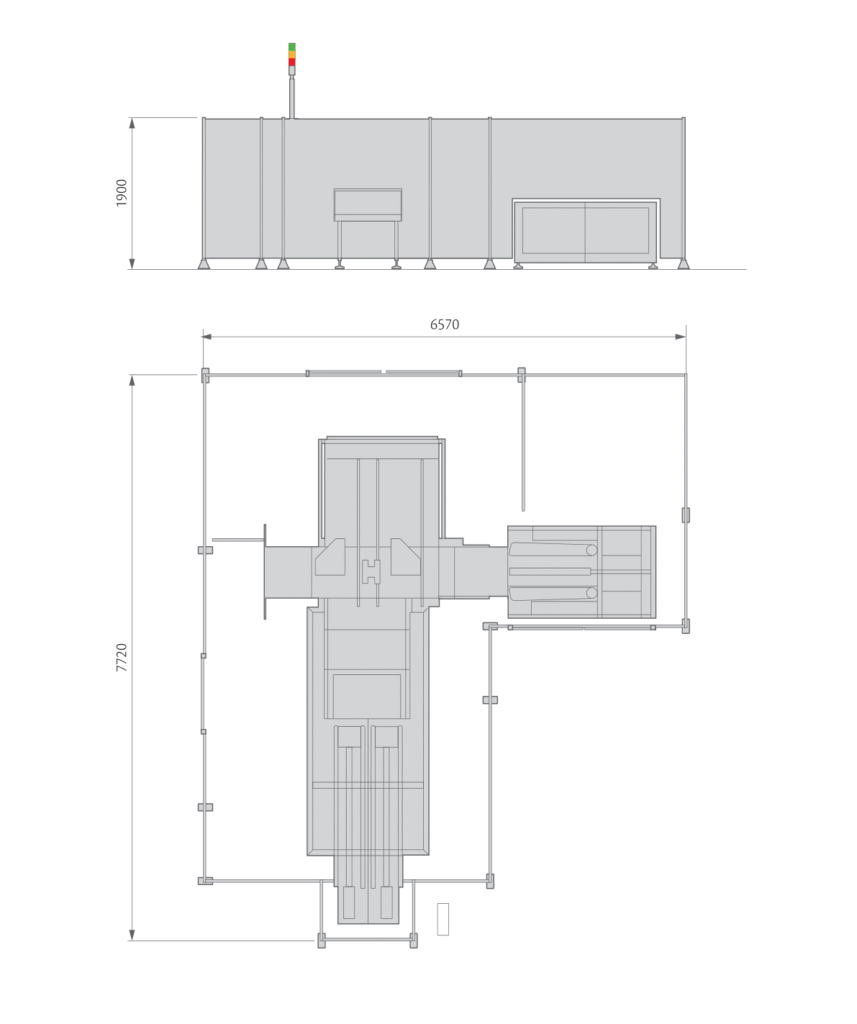

Footprint
The integrated Integrated Electrical Cabinet leads to an important layout saving.
-
Productivity
High production performance and unique flexibility.
-
Changeover
Significant reduction in format changeover times thanks to its ease of use.
Extremely flexible
ENTRA is designed to pack a wide range of AFH rolls, allowing extremely flexible handling depending on the products to be treated.
Machine details
Technical information
| ENTRA TECHNICAL DATA | ||
| Mechanical Speed | 130 cycles/1′ | |
| Production Speed | 120 packs/minute | |
| BRT – HHT – AFH | MIN | MAX |
| Diameter | 100 mm (3,9”) | 300 mm (11,8”) |
| Length (cut-off) | 90 mm (3,5”) | 600 mm (23,6”) |
| MT (Medical Tissue Rolls) | MIN | MAX |
| Diameter | 100 mm (3,9”) | 300 mm (11,8”) |
| Length (cut-off) | 400 mm (15,7”) | 600 mm (23,6”) |
| Machine range (final pack dimensions) | MIN | MAX |
| Package width | 100 mm (3,9”) | 600 mm (23,6”) |
| Package depth | 100 mm (3,9”) | 600 mm (23,6”) |
| Package height | 90 mm (3,5”) | 300 mm (11,8”) |
| Poly Capability | MIN | MAX |
| Reel width | 320 mm (12,6”) | 1500 mm (59”) |
| Repeat length | 225 mm (8,8”) | 800 mm (31,5”) |
