Ecopack Dosing and wrapping
Machine overview
Economical product wrapping with extremely gentle handling

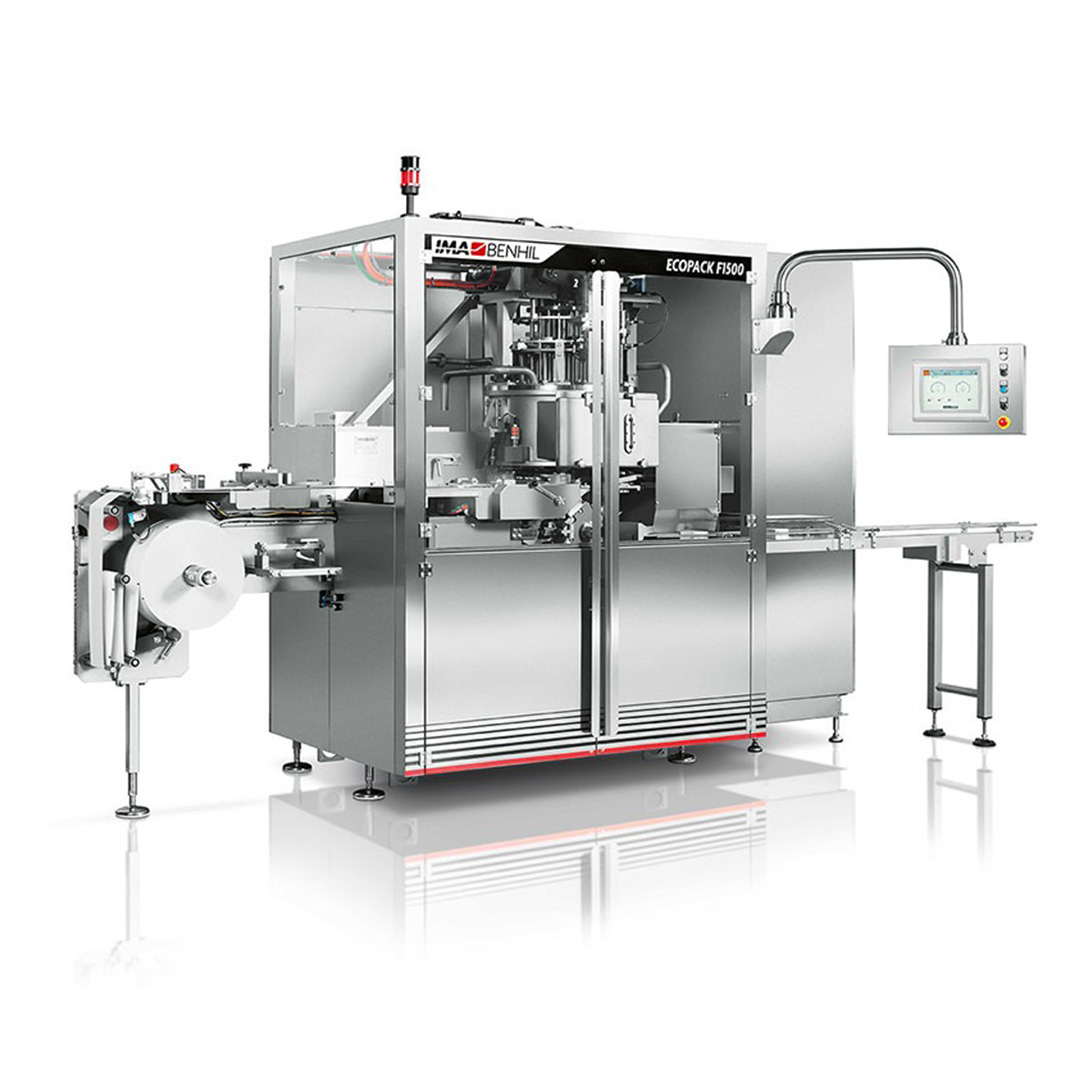

Ideal for butter, margarine and pasty products, the Ecopack F1000/1500 is a fully automatic moulding and wrapping machine performing end-side folding, and ensuring extremely gentle product handling, low wrapping material consumption and excellent dosing accuracy (s=0,4 g for Qn=100 g).
With dosing weights ranging between 100 and 500 g and a nominal output of 125/150 ppm, the Ecopack F1000/1500 wrapping machine is flexible and provides accurate dosing and reduces wrapping material consumption by up to 30% compared to traditional folding styles.
For complete packaging solutions, Ecopack can be seamlessly integrated in-line with the Cartomat Series. The Cartomat 8300, 8400 and 8500 are fully automatic wrap-around cartoners with hot melt gluing, starting from flat blank cartons and reaching up to 125 cartons per minute. They allow multiple product configurations and different layers ensuring maximum versatility for modern production lines.
Production plant
IMA Benhil
Machine highlights
-

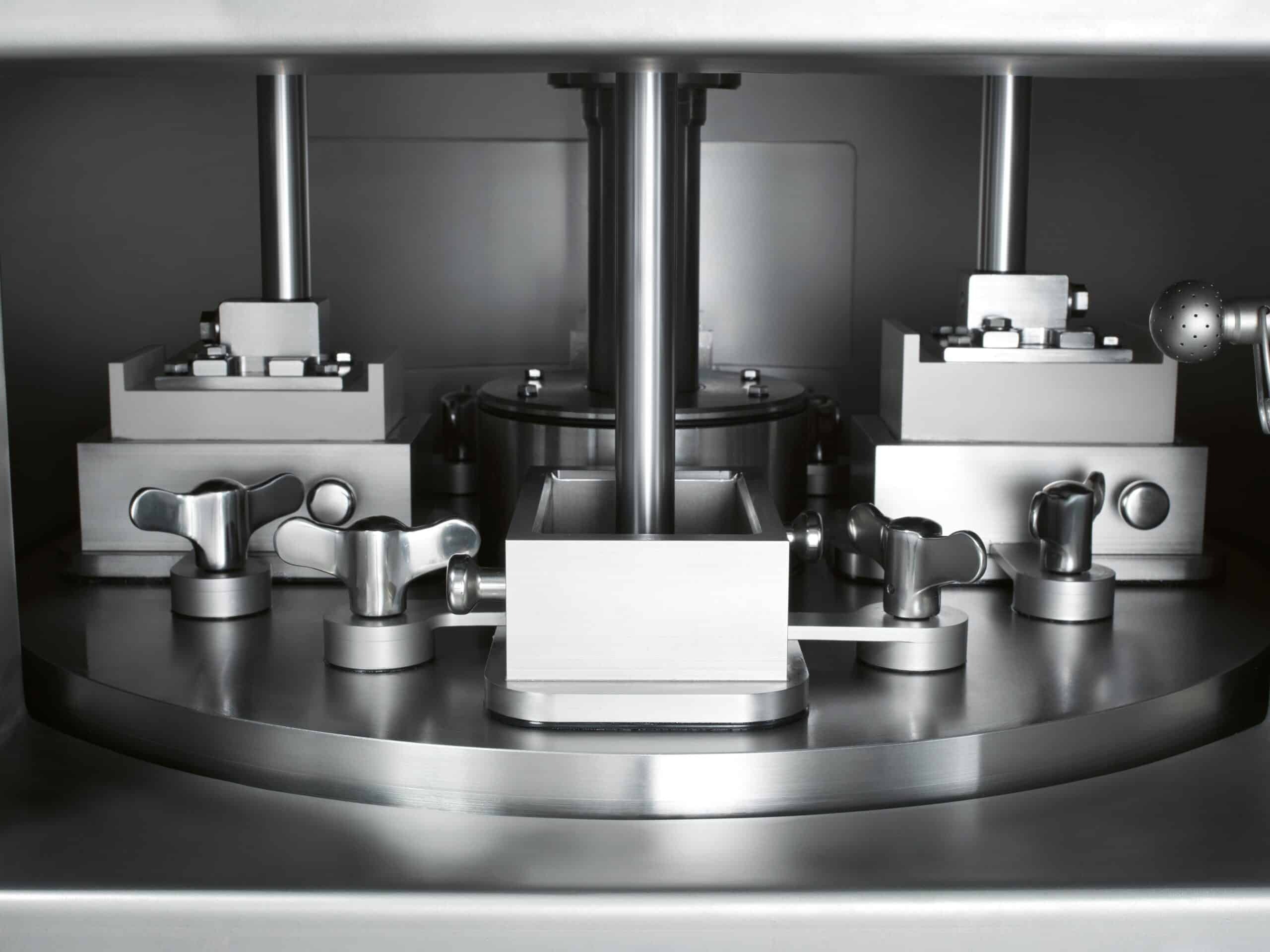

Precision dosing
Exceptional filling accuracy, extremely high reliability and long service life
-
Energy-efficient servo technology
30% reduction on wrapping material consumption compared to traditional folds
-

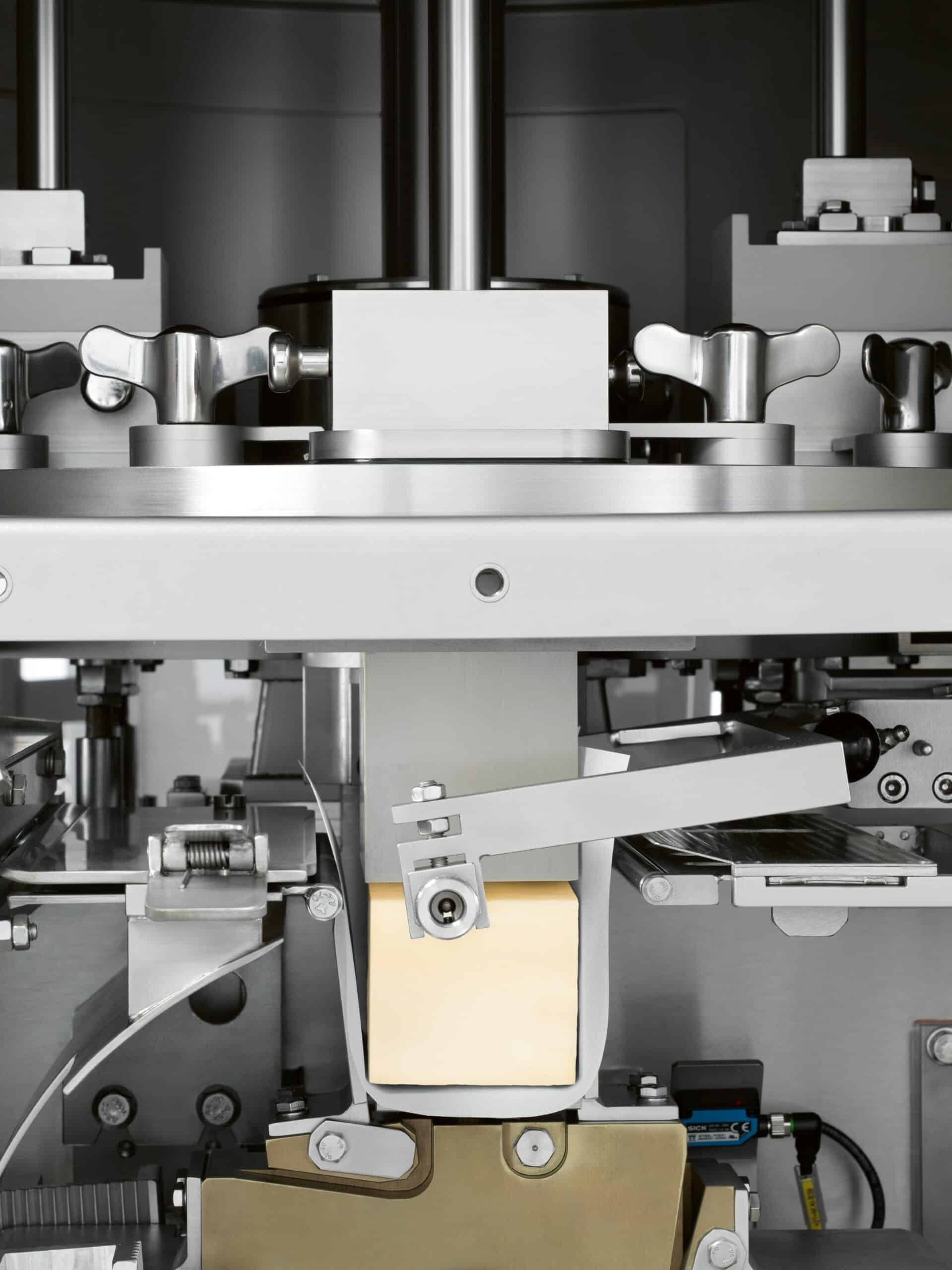

Compact and modular designs gentle product handling
Ensures product integrity throughout the wrapping process, minimizing stress and deformation for perfect quality and appearance
Machine details
Technical information
| TECHNICAL DATA ECOPACK | ||
| Model | F 1000 | F 1500 |
| Product | Butter, margarine and other pasty products | |
| Nominal output | Up to 125 packets/min. | Up to 150 packets/min. |
| Dosing range | 50 – 500 g | |
| Filling accuracy | Better than s=0,4 for Qn < 100 g | |
| Product feed | Direct feed from the process plant, through with feeding augers | |

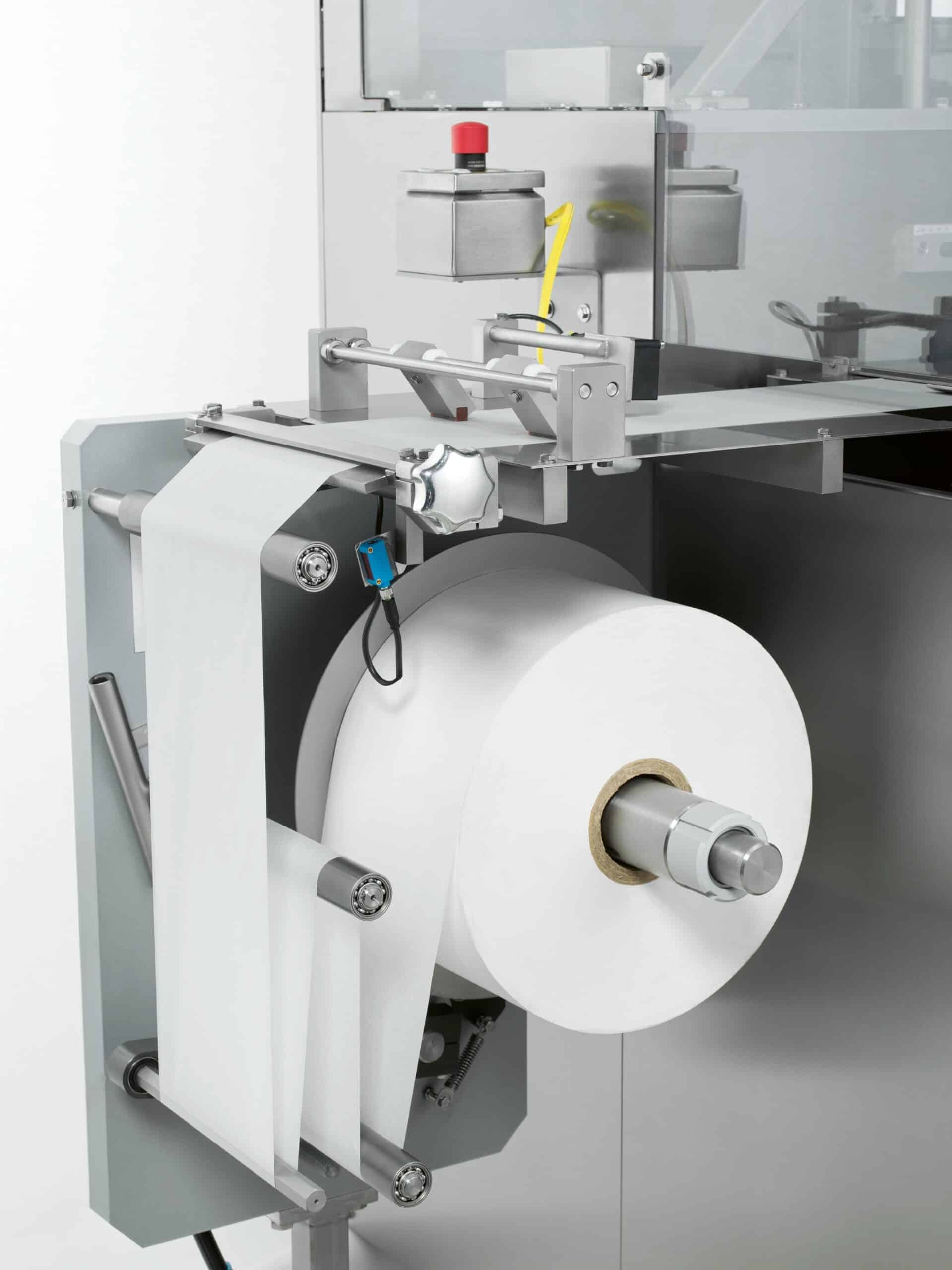

| Wrapping material | Parchment, aluminum laminated foil, plastic coated papers, other materials on request | |

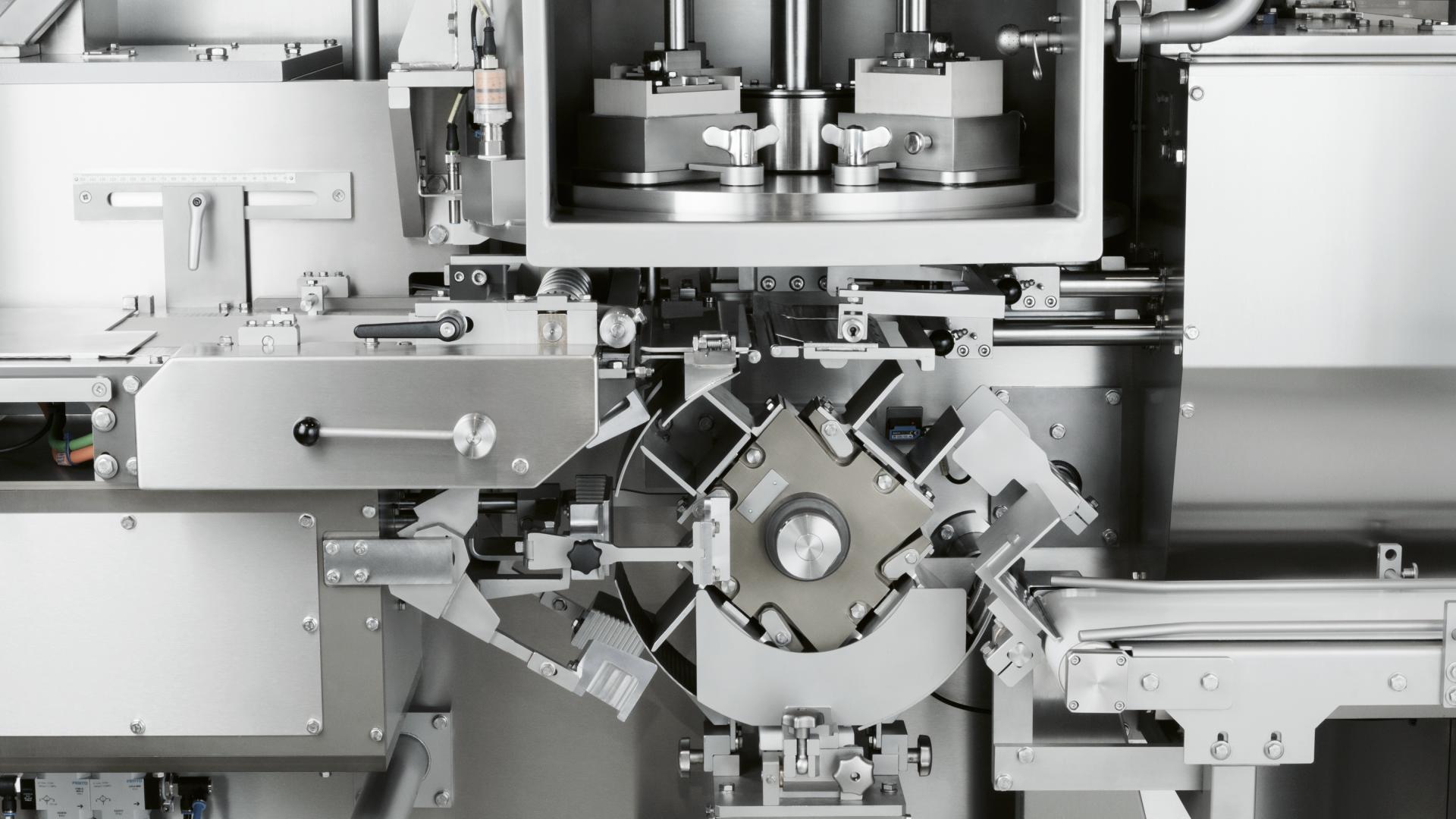

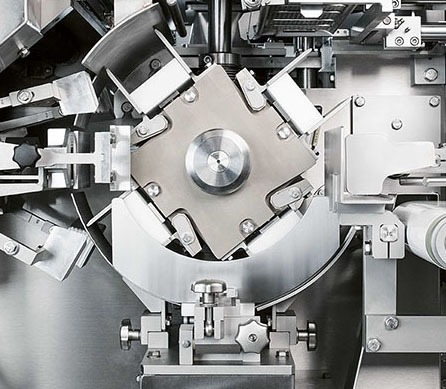

| Folding and shapes | End-side folding for bricks | |

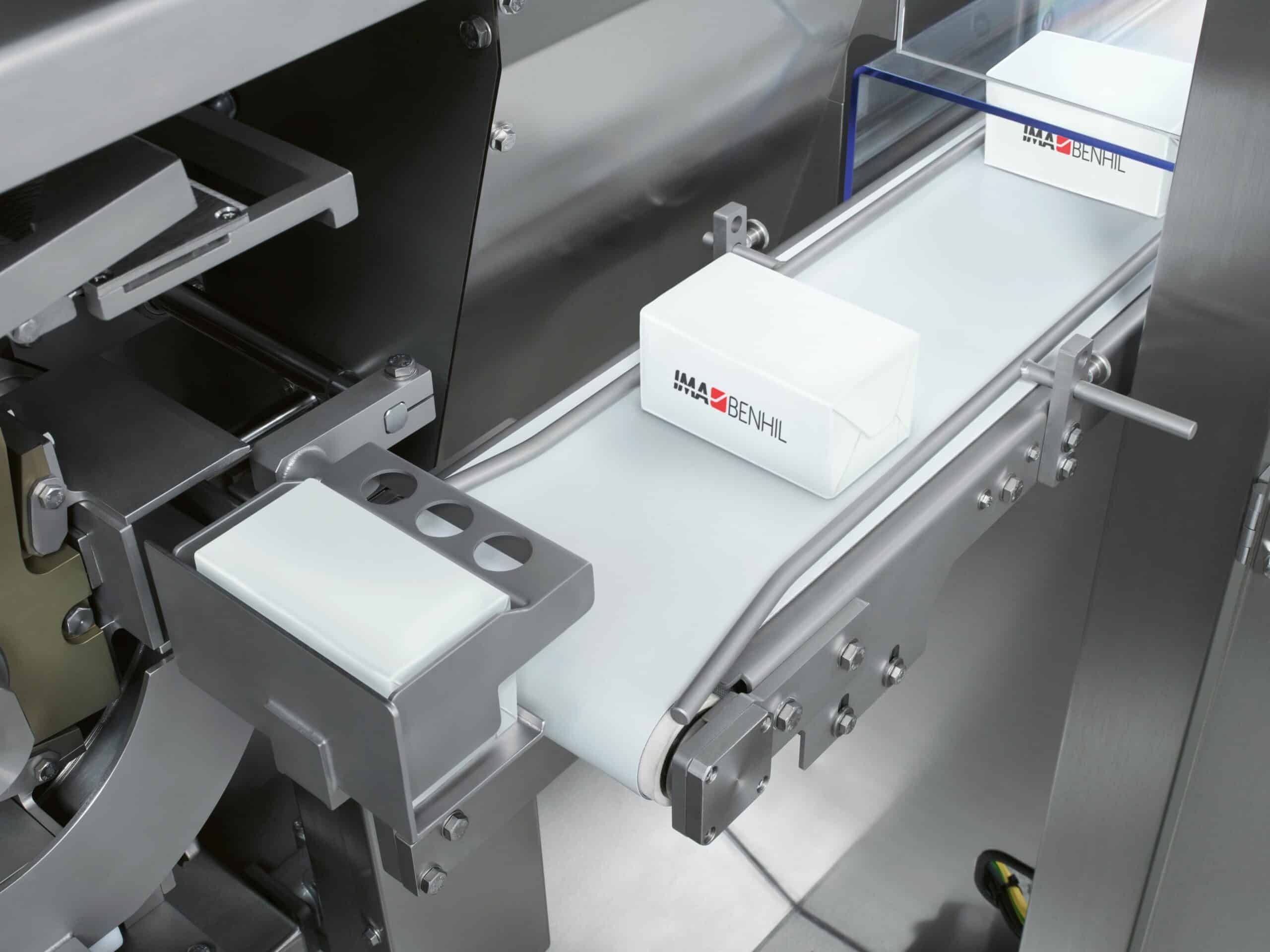

| End-of-line packaging | By downstream fully automatic or semi-automatic case packer | |
| Equipment | Servo-driven main drive, intermittent driven moulding wheel, photo-electric for wrapper with printed scanning marks, discharge conveyor, non-corrosive or other proven food-grade materials in the product area | |
| Special Equipment | CIP cleaning, butter embossing, electrical weight adjustment, central lubrication, date coding, tendency control, remote access control | |
